GM Ecotec Engine Sleeves – 88mm to 92mm High-Performance Sleeves

High-Performance Ecotec Engine Sleeves for GM Builds

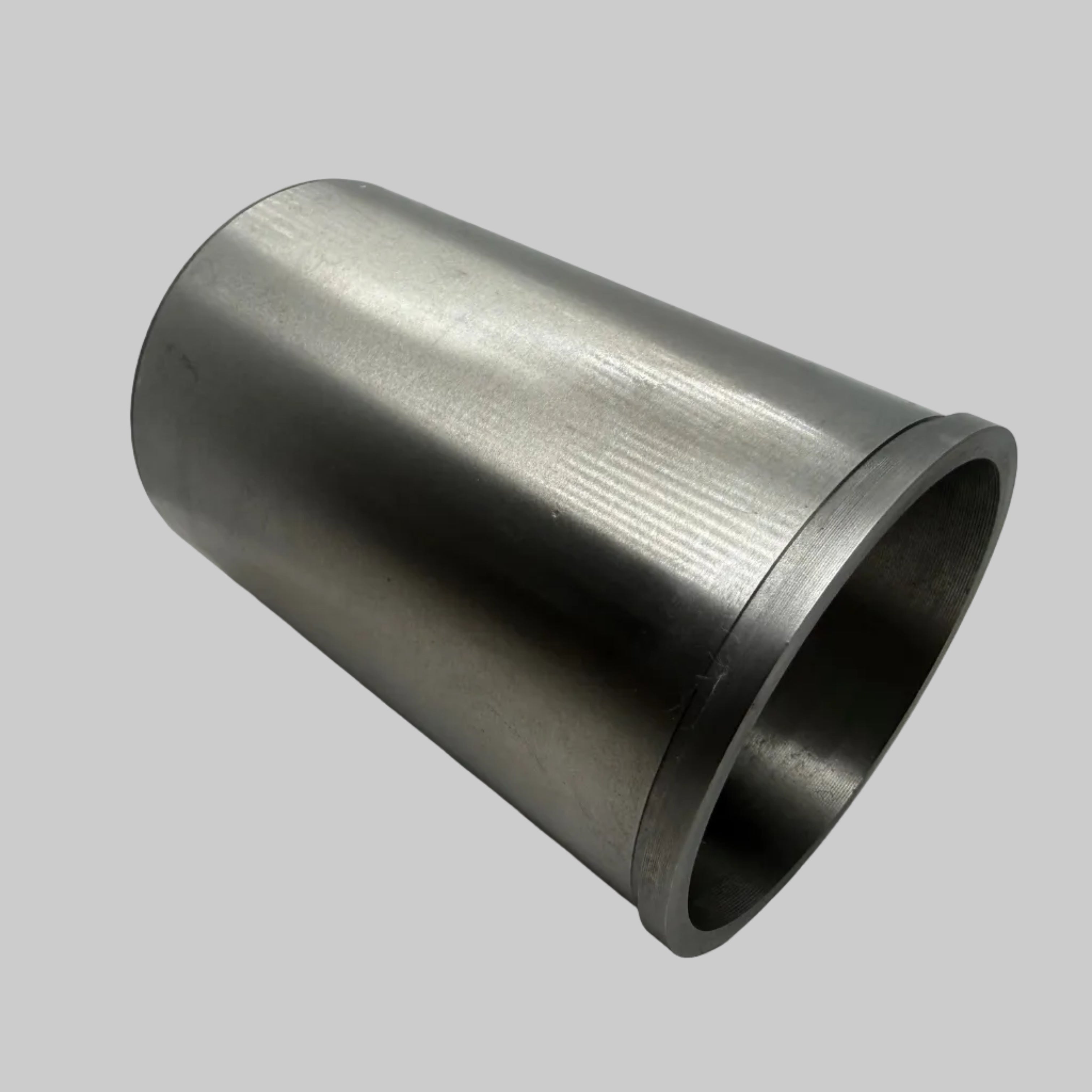

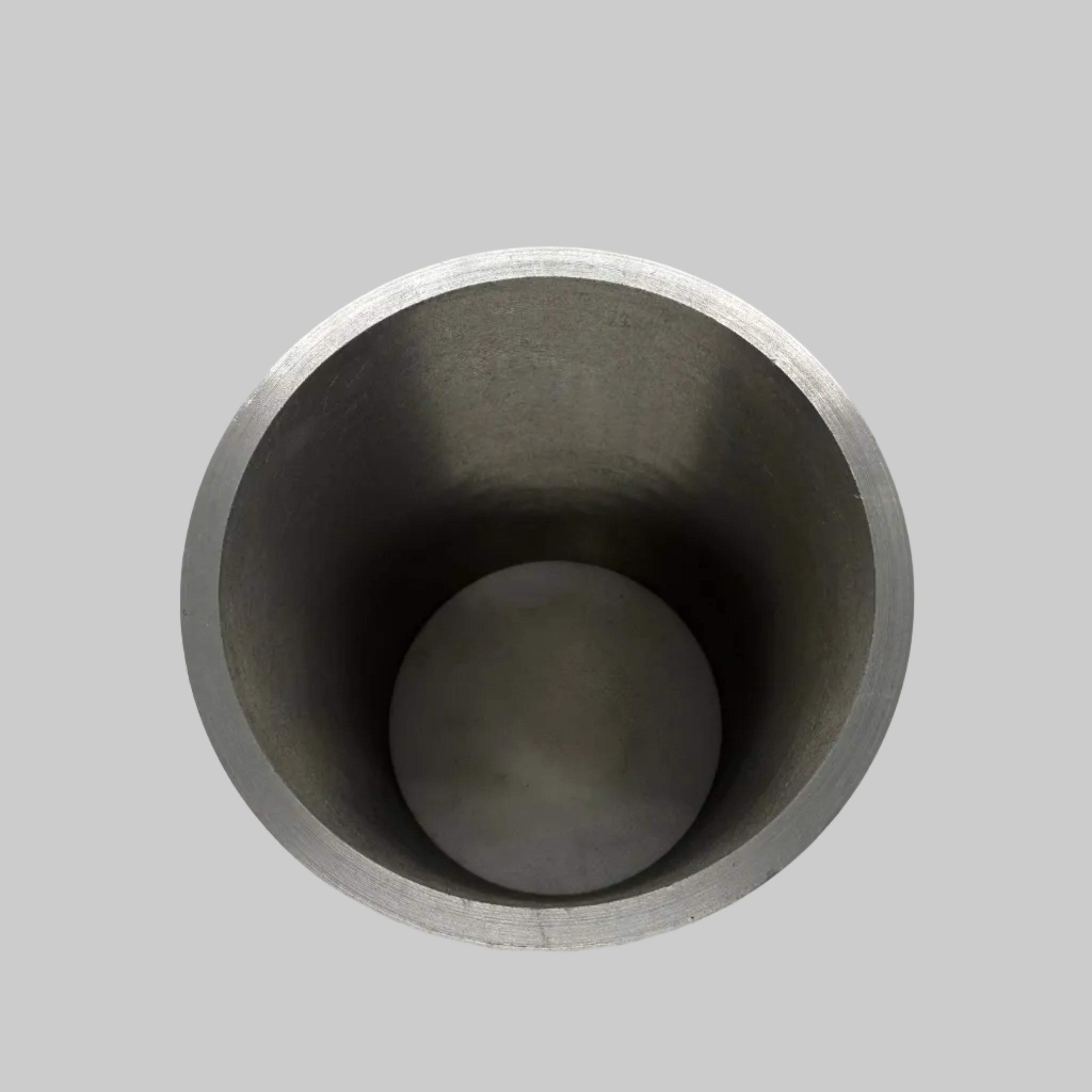

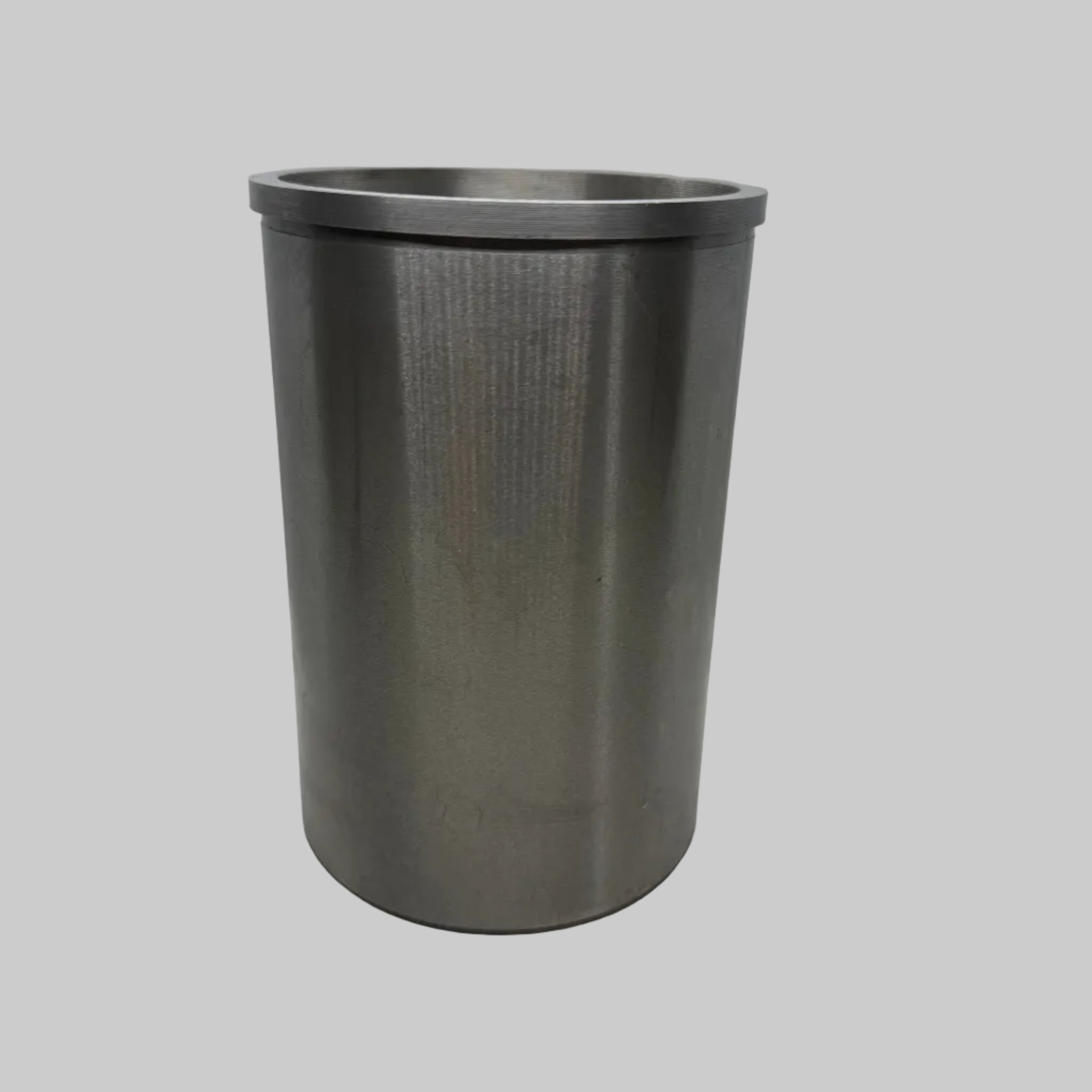

BK Racing GM Ecotec Engine Sleeves were developed for high-performance and racing engine applications requiring increased cylinder strength, improved stability, and large bore capability beyond the limitations of factory Ecotec sleeves.

Designed specifically for GM Gen 3 Ecotec engine blocks, these sleeves are manufactured from high-strength ductile iron alloy material with chromium-enhanced wear resistance to support demanding naturally aspirated, turbocharged, and sustained RPM racing environments.

Unlike generic replacement sleeves, each BK Racing sleeve set is individually measured, inspected, and grouped into matched 4-cylinder sets to improve installation consistency and dimensional uniformity across the engine block.

Designed for serious Ecotec racing applications, these sleeves are commonly used in circle track, drag racing, turbocharged, and custom large bore engine builds where factory cylinder support becomes a limitation.

Compatible Engine Platforms

Designed for GM Gen 3 Ecotec engine blocks including:

• LE9 2.4L
• LAF 2.4L
• LEA 2.4L

Compatible with Gen 3 Ecotec style 2.4L bottom end engine blocks.

Bore Capability

BK Racing Ecotec sleeves are capable of supporting bore sizes from:

• 88.0mm
through
• 92.0mm

The 88–90mm range is generally recommended for most high-performance naturally aspirated applications.

Larger bore sizes up to 92mm may be possible depending on cylinder pressure, intended power level, block support, machine work quality, and overall engine combination.

Approximate remaining wall thickness at 92mm bore:
• Approximately 0.058"

Features

• High-strength ductile iron performance alloy
• Chromium-enhanced wear resistance
• Precision matched 4-cylinder sleeve sets
• Designed for high cylinder pressure applications
• Excellent ring seal characteristics
• Suitable for naturally aspirated and turbocharged builds
• Intended for professional engine machining and racing applications

Why Upgraded Ecotec Sleeves Matter

Factory Ecotec cylinder sleeves were never designed for extreme cylinder pressure, large bore racing applications, or sustained high RPM abuse commonly seen in competitive motorsports. As bore size and cylinder pressure increase, maintaining cylinder stability and consistent ring seal becomes increasingly important for power production and long-term durability.

Upgraded sleeves provide improved structural support and dimensional stability under severe operating conditions while allowing larger bore combinations commonly used in serious racing builds.

Recommended Applications

• Circle track racing
• Turbocharged Ecotec engines
• Large bore racing combinations
• High compression naturally aspirated builds
• Custom engine machining applications
• Sustained high RPM operation

Installation Recommendations

BK Racing recommends:

• Professional installation
• Measuring all components prior to machining
• Decking the block after sleeve installation
• Final boring and torque plate honing after installation

As with most high-performance racing sleeves, flange heights may vary slightly prior to final machining operations.

Designed for off-road and racing use only.

Strengthen Your Ecotec Foundation

When power levels increase, cylinder stability becomes critical. BK Racing Ecotec Performance Engine Sleeves are designed for builders who need a stronger foundation for naturally aspirated, turbocharged, supercharged, and circle track racing applications.

Manufactured from high-strength ductile iron performance alloy material with chromium-enhanced wear resistance, these sleeves provide improved durability and cylinder support for demanding performance environments. Whether you’re repairing a damaged block or building a serious race engine from the ground up, proper sleeves can be the difference between a reliable engine and a costly failure.

Precision Matched for Consistency

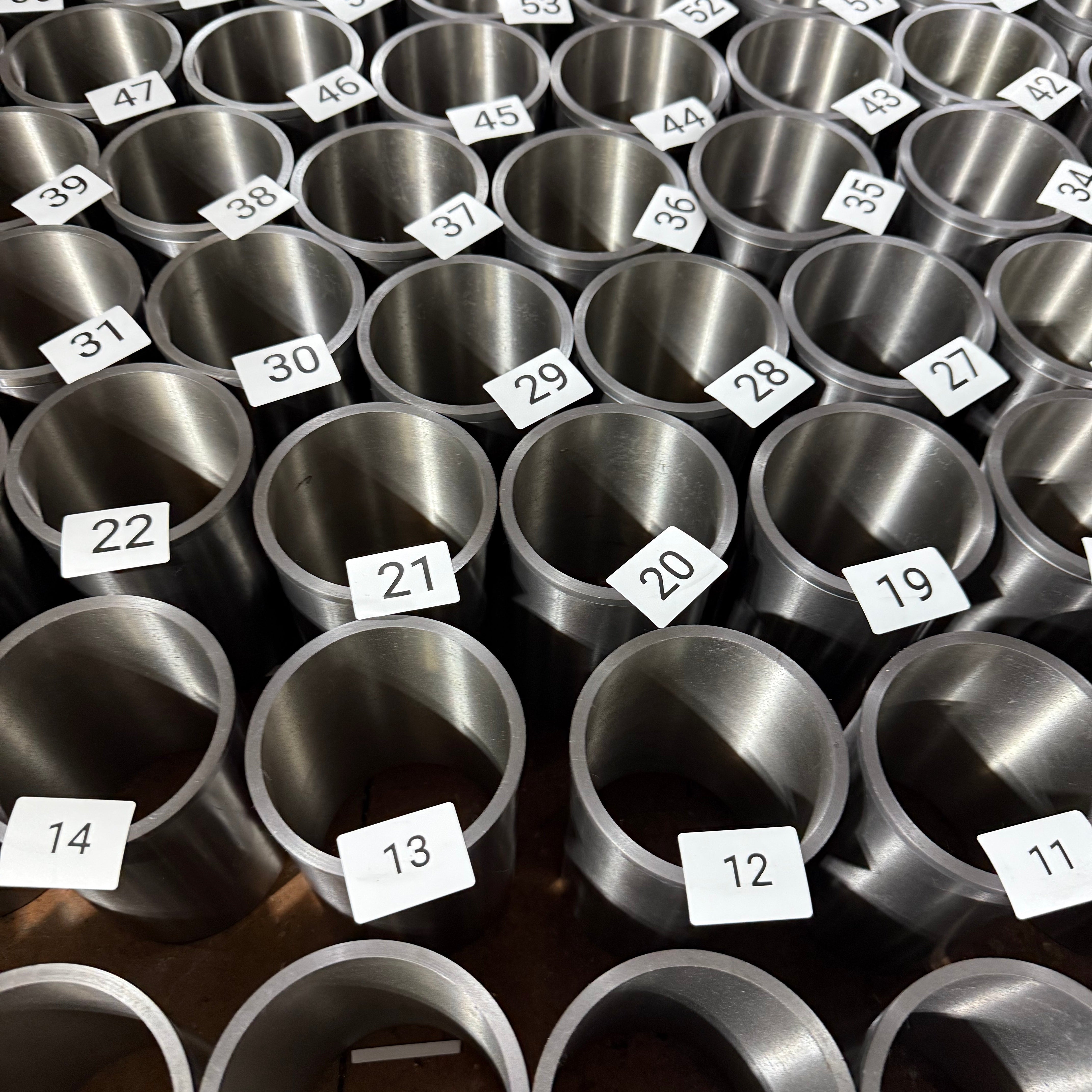

Unlike many generic sleeves sold in bulk, every BK Racing sleeve set is individually measured, inspected, and grouped into matched 4-cylinder sets based on body OD and flange OD consistency.

This additional quality control helps improve installation consistency and provides builders with a more uniform starting point during the machining process.

Designed for professional engine builders and performance machine shops, these sleeves are intended to be installed, decked, bored, and torque plate honed as part of a complete engine machining process.

Bore Sizes from 88mm to 92mm

BK Racing Ecotec sleeves support bore sizes from 88mm to 92mm, giving builders the flexibility to repair damaged cylinders, restore worn blocks, or create large-bore performance combinations.

For most high-performance naturally aspirated applications, we recommend bore sizes in the 88mm to 90mm range. Larger bores up to 92mm may be possible depending on application requirements, block support, cylinder pressure, cooling system performance, and machine shop discretion.

At a 92mm bore, approximately 0.058” of sleeve wall thickness remains, making proper machining and application selection critical.

Built for Performance Applications

These sleeves are designed for GM Gen 3 Ecotec 2.4L engine blocks, including LE9, LAF, and LEA applications.

Ideal for:

• Circle track racing
• High-performance naturally aspirated builds
• Turbocharged applications
• Supercharged applications
• Custom engine projects
• Damaged block repair and restoration

Whether you’re chasing horsepower, rebuilding a damaged engine, or preparing a race-winning combination, BK Racing Ecotec Performance Engine Sleeves provide the strength and durability serious builders demand.
