BK Racing Oil Control Baffle vs. Factory Windage Tray: What's the Difference?

One of the most common misconceptions in the GM Ecotec community is that a windage tray and an oil control baffle perform the same function.

Although both components are found inside or near the oil pan, they solve two completely different problems.

Understanding the difference is important when building a reliable race engine because one component controls how oil returns to the sump, while the other controls where that oil stays once it gets there.

Together they improve lubrication, but neither replaces the other.

What Is the Factory Windage Tray?

The factory windage tray is mounted between the rotating crankshaft assembly and the oil pan.

Its primary job is to reduce the amount of oil contacting the crankshaft and connecting rods as they rotate at high engine speed.

Without a windage tray, the rotating assembly continually strikes suspended oil inside the crankcase. This creates drag, throws oil throughout the engine, and delays its return to the oil pan.

By separating the rotating assembly from the oil returning to the sump, the windage tray helps:

• Reduce crankshaft drag.
• Reduce oil aeration.
• Improve oil drain-back.
• Reduce parasitic power loss.
• Increase the amount of liquid oil returning to the oil pan.

The windage tray improves lubrication efficiency, but it does not control oil movement inside the sump.

What Is an Oil Control Baffle?

An oil control baffle works inside the oil pan after the oil has returned to the sump.

Its purpose is to manage how oil moves during braking, acceleration, and cornering.

As a race car changes direction, inertia causes the oil to move throughout the oil pan. If enough oil moves away from the pickup, the oil pump begins drawing air instead of a continuous supply of liquid oil.

An oil control baffle helps slow and direct that movement, allowing oil to remain concentrated around the pickup during high-G conditions.

Rather than reducing windage, it improves pickup coverage.

The Factory Windage Tray Doesn't Prevent Oil Starvation

A common misconception is that installing a windage tray prevents oil starvation.

It doesn't.

The windage tray helps oil return to the sump more efficiently, but once the oil reaches the oil pan, it is still free to move under cornering forces.

If the oil moves away from the pickup during a long corner, the windage tray has already done its job.

At that point, oil control inside the sump becomes the critical factor.

The BK Racing Oil Control Baffle Solves a Different Problem

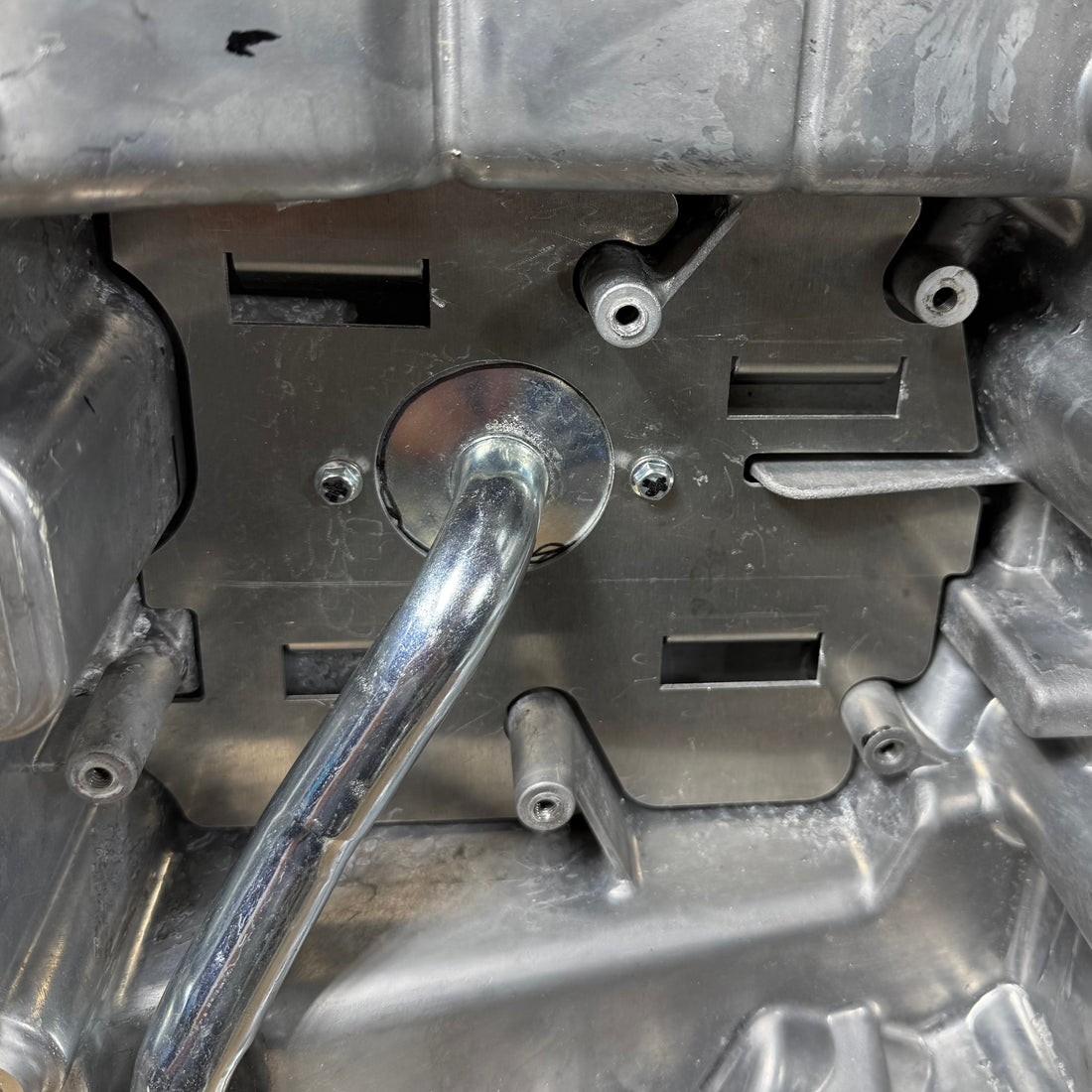

The BK Racing Oil Control Baffle was designed specifically to improve oil control inside the oil pan.

Instead of focusing on the rotating assembly, it focuses on maintaining oil around the pickup during racing.

By managing oil movement inside the sump, the system helps reduce the likelihood of the pickup becoming uncovered during sustained cornering.

The objective is simple:

Maintain a continuous supply of liquid oil where the oil pump needs it most.

Why Both Components Matter

The factory windage tray and the BK Racing Oil Control Baffle are not competing products.

They perform complementary functions.

The windage tray helps oil return to the sump.

The oil control baffle helps keep that returned oil available around the pickup.

Together they create a more complete lubrication system than either component could provide alone.

Think of It as Two Separate Jobs

Imagine rainwater running off the roof of a building.

The gutters collect the water and direct it toward the downspout.

That is similar to what the windage tray does—it helps return oil where it belongs.

Now imagine trying to keep that water inside a collection basin while the basin is constantly being shaken.

That is the job of the oil control baffle.

It manages where the oil remains once it has reached the sump.

Although both systems deal with the same oil, they solve different engineering problems.

Why This Matters in Circle Track Racing

Circle track racing creates sustained lateral G-forces that most production vehicles never experience.

During a long corner, the oil has enough time to migrate across the oil pan and away from the pickup.

Even with an effective windage tray returning oil to the sump, the pickup can still become uncovered if the oil is free to move throughout the pan.

This is why oil control becomes increasingly important as tire grip, cornering speeds, and engine performance improve.

Maintaining pickup coverage under these conditions is one of the most effective ways to improve engine reliability.

A Complete Lubrication System Requires Both

Reliable lubrication isn't achieved by relying on one component.

The most effective lubrication systems combine:

• A properly functioning windage tray.
• Efficient oil drain-back.
• Effective oil control inside the sump.
• Proper oil level.
• High-quality filtration.
• A healthy oil pump.
• A properly operating pressure relief valve.

Each component contributes to maintaining stable oil pressure under racing conditions.

What Does an Oil Baffle Do?

An oil baffle helps control oil movement inside the oil pan so the pickup stays covered during hard braking, acceleration, and cornering.

It does not reduce windage; it helps keep liquid oil where the pump can reach it.

What Is the Purpose of a Baffle?

The purpose of a baffle is to manage fluid movement and reduce oil slosh in the sump.

In performance applications, that helps maintain oil supply to the pickup during high-G driving.

Is a Baffled Oil Pan Worth It?

For performance and track applications, a baffled oil pan is often worth it because it improves oil control under high-G driving.

It can help reduce the risk of oil starvation when the vehicle is pushed hard in turns.

When Should I Replace My Baffle Plate?

Replace a baffle plate if it is damaged, loose, cracked, or no longer fits securely in the oil pan.

If you're upgrading your oiling system for racing or more demanding driving, it may also be time to replace the factory part with a better oil control solution.

Final Thoughts

The factory windage tray and the BK Racing Oil Control Baffle perform two completely different jobs.

The windage tray reduces crankshaft windage, improves oil drain-back, and minimizes oil aeration.

The BK Racing Oil Control Baffle manages oil movement inside the oil pan to help maintain pickup coverage during sustained cornering, braking, and acceleration.

Neither component replaces the other.

Together, they form part of a complete lubrication strategy designed to keep a continuous supply of clean, liquid oil flowing to the engine under the demanding conditions of circle track racing.

Understanding the difference between the two helps racers build a lubrication system that doesn't simply survive race conditions—it is engineered specifically for them.
