Why Stock Ecotec Valve Springs Lose Control at High RPM – Understanding Valve Control, Spring Design, and Performance
Oil pressure.
Fuel delivery.
Camshaft selection.
Compression ratio.
These are all topics Ecotec racers spend countless hours discussing.
Yet one of the most critical components in the entire valvetrain is often reduced to a single number: ~ Seat pressure.
55 lb. 82 lb. 83 lb. 94 lb.
The problem is that valve control is far more complicated than a single advertised seat pressure rating.
In fact, every decent performance valve spring should prevent valve float. ~ That’s the minimum requirement, not the benchmark.
The real question is:
What is your valve spring actually doing at high lift and high RPM?
- Because that’s where horsepower, reliability, and race-winning performance are won or lost.
Why Stock Ecotec Valve Springs Become A Limitation?
-
Factory Ecotec valve springs were designed for daily driving, emissions compliance, fuel economy, and long service life.
They were never intended to support:
- Aggressive camshaft profiles
- Sustained high RPM operation
- Turbocharged competition engines
- Circle track racing
- Road racing
- High-lift performance applications
Factory valve springs perform their intended job very well in a stock engine.
However, as engine speed, lift, and camshaft aggressiveness increase, the demands placed on the valvetrain increase dramatically.
Eventually the stock spring simply reaches the limits of what it was designed to control.
Valve Float Is Not The First Problem
Many racers assume the progression looks like, Valve float = Engine damage...
The reality is often much different.
Most valvetrain issues begin long before traditional valve float occurs.
A more realistic progression is, Loss of valve control - Valve bounce - Valve loft - Rocker instability - Power loss - Valve float = Component damage...
By the time valve float becomes obvious, horsepower has often been left on the table for quite some time.
What Is Valve Control?
The purpose of a valve spring is simple - Keep the valve following the camshaft exactly.
At low RPM this is relatively easy.
At high RPM the spring must control: Valve inertia, Retainer inertia, Rocker arm inertia, Hydraulic lash adjuster movement, Harmonic oscillations, and Aggressive cam acceleration rates
-
Every time engine speed increases, the demands on the spring increase.
-
Every time valve lift increases, the demands on the spring increase.
-
Every time camshaft ramp rates become more aggressive, the demands on the spring increase.
The spring is constantly fighting to maintain control of the entire valvetrain.
Aggressive Cam Profiles Change Everything
One of the most misunderstood topics in the Ecotec world is camshaft ramp rate.
Many racers focus only on lift numbers. However, two camshafts can have very similar lift figures while placing completely different demands on the valve spring.
An aggressive cam profile accelerates the valve more rapidly. Which increases:
- Valve acceleration
- Rocker loading
- Lash adjuster loading
- Spring demand
The faster the cam attempts to move the valve, the harder the spring must work to maintain control.
This is one reason why simply comparing seat pressure numbers often tells only a small part of the story.
Why More Spring Pressure Isn’t Always Better
A common misconception is that increasing spring pressure automatically improves performance.
If that were true, the solution would be simple:
Install the highest pressure spring available.
Unfortunately, reality is more complicated. Higher spring loads can increase:
-
- Friction
- Camshaft loading
- Valve guide wear
- Valve seat wear
- Hydraulic lifter loading
- Parasitic horsepower loss
The goal is NOT to use the maximum spring pressure.
The goal IS sufficient spring pressure to maintain complete valve control while minimizing unnecessary load on the valvetrain. In other words:
-
The best spring is not the spring with the highest pressure.
-
The best spring is the spring that maintains control with the least compromise.
Why We Chose A Single Spring

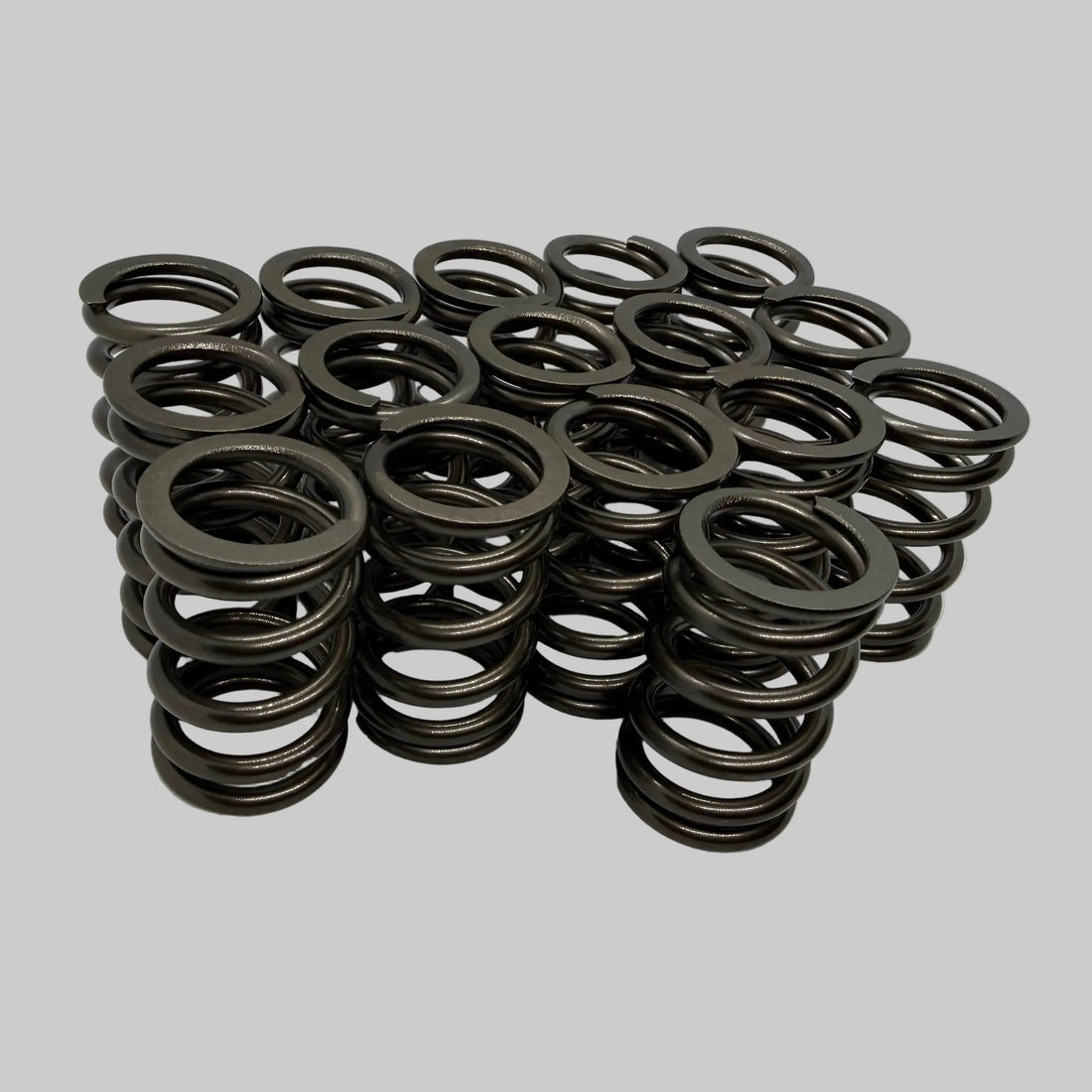

During development of the BK Racing 83# Ecotec valve spring, we evaluated multiple approaches to improving valvetrain stability.
Dual springs absolutely have their place. For extreme lift, extreme RPM, and dedicated maximum-effort racing engines, dual spring packages can be the correct solution.
However, for the majority of Ecotec performance applications, the advantages of a properly engineered single spring outweigh the disadvantages.
The Advantages include:
- Reduced valvetrain weight
- Reduced friction
- Reduced parasitic loss
- Reduced guide wear
- Reduced seat wear
- Simpler installation
- Stock retainer compatibility
- Stock appearance
- Direct drop-in installation
Our goal was not to build the highest-pressure spring possible.
Our goal was to develop the lightest, simplest (stock appearing) spring package capable of maintaining superior valve control at higher RPM.
The Difference Isn’t 83 lb vs 82 lb
Many racers look at an 82 lb spring and an 83 lb spring and assume there is very little difference between them. ~ At installed height, they would largely be correct.
In fact, during testing, the BK Racing 83# spring and a comparable 82 lb Ecotec single spring produced very similar pressure figures near installed height.
This raises an important question: If the seat pressure numbers are so close, why does spring design matter?
Because seat pressure is only one small part of the story.
-
The real challenge begins as valve lift increases, camshaft acceleration increases, and engine speed rises.
-
That’s where valve control becomes difficult.
-
That’s where spring design begins to separate itself.
Pressure Curve Testing Results
During development, we conducted extensive spring testing to better understand how different Ecotec valve springs behave throughout the lift cycle and what we found was eye-opening.
Near installed height, the springs were remarkably similar. However, as compressed height decreased and valve lift increased, the pressure curves began to separate significantly.
Notice what happens.
At lower lift, the difference is minimal.
At higher lift, where valve acceleration and valvetrain loads are greatest, the BK Racing spring continues to build pressure while the pressure curves begin to separate dramatically.
This is why comparing springs solely by seat pressure can be misleading. Two springs can carry nearly identical seat pressure ratings while behaving very differently where the engine needs control the most.
27% More Pressure Where It Matters
At .800” compressed height, the BK Racing spring produced 196 lb of pressure compared to 154 lb from the comparable 82 lb spring.
That represents approximately 27% more pressure available to control the valve, retainer, rocker arm, and valvetrain assembly.
The difference is not the 1 lb increase in advertised seat pressure.
The difference is what happens when the valve approaches maximum lift, maximum acceleration, and maximum RPM.
This additional pressure helps maintain:
- Stable valve motion
- Consistent rocker control
- Improved resistance to valve bounce
- Improved resistance to valve loft
- Improved high-RPM stability
In other words:
The difference isn’t 83 lb versus 82 lb.
The difference is valve control.
Usable Lift vs Advertised Lift
Many spring manufacturers advertise maximum lift figures.
Unfortunately, lift ratings alone don’t tell the entire story.
A spring may technically survive a given lift number while operating extremely close to coil bind or with very little remaining travel.
During development, we focused heavily on usable travel and valve control rather than simply chasing an advertised lift number.
The BK Racing spring was designed to provide increased usable travel while maintaining stable spring pressure deeper into the lift cycle.
The result is a spring package capable of supporting aggressive camshaft profiles while retaining stock-style simplicity and compatibility.
For racers, usable lift is often more important than advertised lift.
Because usable lift means maintaining control throughout the entire valve event rather than simply avoiding mechanical interference.
Why Nitriding Matters
Most racers focus on spring pressure.
Few consider what happens after thousands or even millions of spring cycles.
At 8,000 RPM, a valve spring is being compressed and released more than 4,000 times every minute. Over the course of a racing season, that can amount to millions of stress cycles.
The challenge is not simply producing spring pressure.
The challenge is maintaining spring pressure over time.
To improve durability and long-term consistency, the BK Racing 83# springs feature a nitrided surface treatment. The Benefits include:
-
- Improved Surface Hardness
- Nitriding hardens the outer surface of the spring wire, helping resist wear and microscopic surface damage.
- Improved Fatigue Resistance
- Repeated cycling creates microscopic stress concentrations that can eventually lead to pressure loss or spring failure.
- Nitriding helps improve resistance to fatigue-related degradation.
Increased Durability
High-RPM race engines place tremendous stress on valve springs.
The nitrided surface helps maintain spring characteristics under repeated high-load operation.
Extended Spring Life
A spring that maintains its pressure longer will maintain valve control longer.
The result is more consistent performance and improved long-term reliability.
The question isn’t simply: “How much pressure does a spring have today?”
The better question is: “How much pressure will it still have after an entire racing season?”
Proven In Real-World Competition, Testing equipment is important, Engineering is important, But ultimately, racing results matter most.
The BK Racing 83# spring has been successfully used in applications operating up to 9300 RPM.
Respected Ecotec engine builders, including MWR, have successfully utilized these springs in high-performance combinations where valve control is critical.
These are not theoretical calculations.
They are real-world results in demanding racing environments.
From circle track racing to high-horsepower turbocharged applications, the springs have demonstrated the ability to maintain stable valve control while retaining the simplicity and serviceability of a stock-style package.
Final Thoughts: Valve Control Wins Races
Every decent performance valve spring should prevent valve float. - That is the minimum requirement.
The real question is how effectively a spring controls the valve throughout the entire lift cycle.
- Can it maintain control with an aggressive camshaft?
- Can it remain stable at RPM?
- Can it provide consistent pressure deep in the lift curve?
- Can it deliver reliable performance season after season?
When developing the BK Racing 83# spring, we didn’t build it around a seat pressure number.
We built it around valve control, drop-in compatibility, stock appearance, increased lift capability, durability, and stable high-RPM operation without the added complexity, weight, friction, and cost associated with many dual-spring conversions.
