Best Ecotec Header: 2.2 vs 2.4, Long Tube vs Shorty, and What Actually Makes Power
Best Ecotec Header: 2.2 vs 2.4, Long Tube vs Shorty, and What Actually Makes Power
Introduction
Most Ecotec enthusiasts know a header can increase horsepower.
What most don’t know is why.
Two long tube headers can look nearly identical.
Both can be built from stainless steel.
Both can use mandrel bends.
Both can bolt to the same engine.
Yet one can outperform the other by several horsepower.
We’ve seen it firsthand.

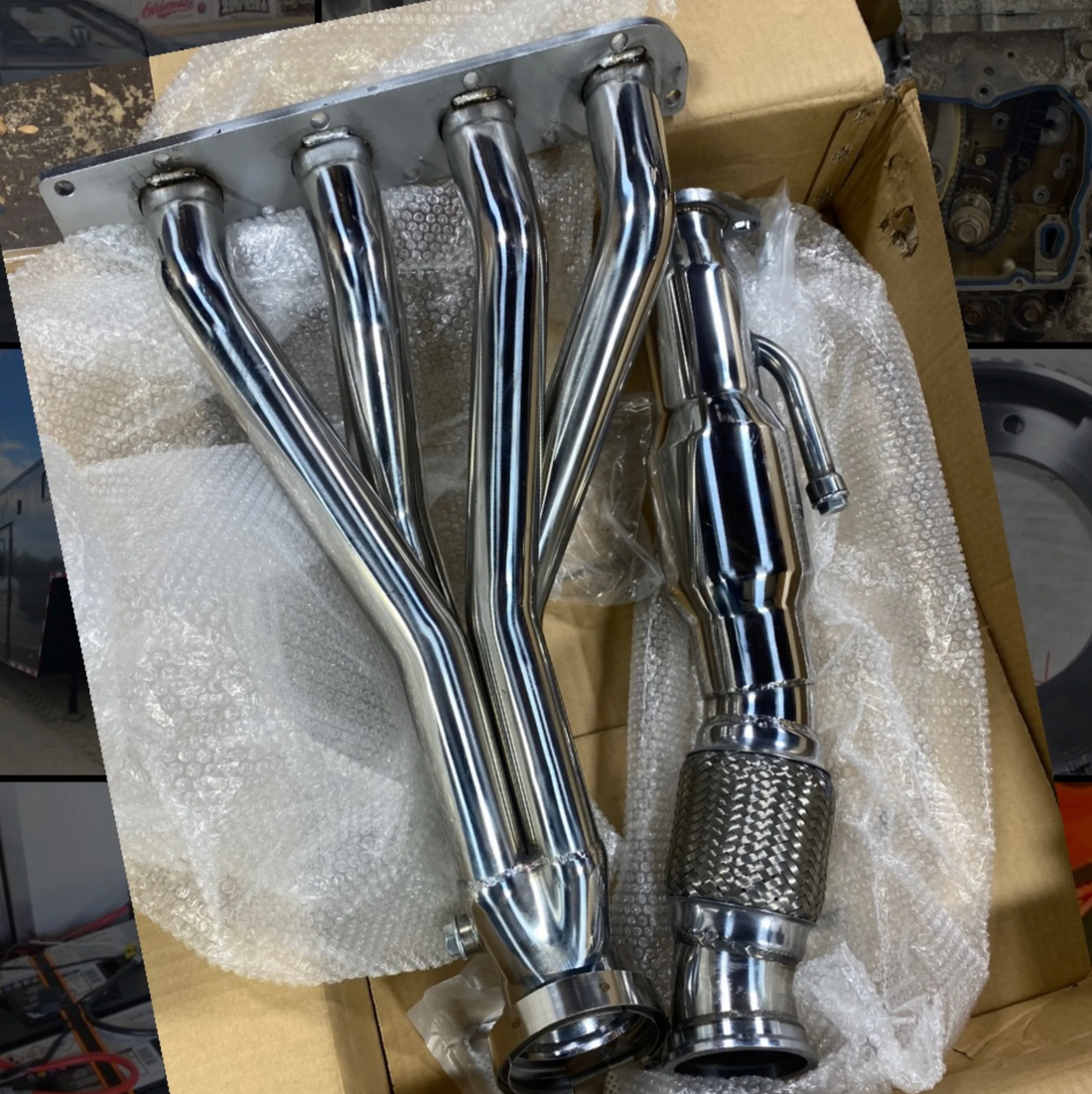

In testing, our BK Racing Ecotec Header produced approximately 7 horsepower more than comparable long tube headers on the market.
The difference wasn’t luck.
It was design.
To understand why, you first need to understand what an exhaust header actually does.
What Does An Ecotec Header Actually Do?
Most people think headers simply reduce exhaust restriction.
That’s only part of the story.
The real purpose of a properly designed header is to improve cylinder scavenging.
Every time an exhaust valve opens, a high-pressure exhaust pulse travels down the primary tube.
As that pulse moves through the header, it creates pressure waves behind it.
When properly tuned, those waves help pull remaining exhaust gases out of the cylinder while assisting the incoming intake charge.
This process is called scavenging.
Better scavenging can improve:
- Cylinder filling
- Volumetric efficiency
- Torque production
- Horsepower production
- Throttle response
This is why headers can increase power even when the factory manifold doesn’t appear restrictive.
The header isn’t simply reducing backpressure.
It’s improving the efficiency of the engine’s breathing cycle.
Why Exhaust Scavenging Matters On Ecotec Engines
Airflow is everything.
An engine is nothing more than an air pump.
The more efficiently it moves air into and out of the cylinder, the more power it can produce.
The Ecotec platform responds particularly well to scavenging improvements because:
- The engines operate at relatively high RPM
- Many performance builds use increased camshaft overlap
- Circle track engines spend long periods at high load
- Naturally aspirated combinations depend heavily on efficient cylinder filling
When scavenging improves:
- Residual exhaust gas decreases
- Cylinder pressure improves
- Fresh air/fuel charge quality improves
- Combustion efficiency improves
This is one reason properly designed headers often produce gains throughout the powerband rather than only at peak RPM.
Ecotec Exhaust Manifold vs Header
At first glance, the factory Ecotec manifold doesn’t look terrible.
GM engineers actually did a respectable job considering their priorities.
But their priorities were different than yours.
The factory manifold was designed around:
- Cost
- Packaging
- Emissions compliance
- Noise reduction
- Manufacturing efficiency
- Catalytic converter light-off time
Maximum horsepower was not the primary objective.
As a result, factory manifolds often suffer from:
- Short runner lengths
- Unequal runner lengths
- Abrupt transitions
- Reduced scavenging efficiency
Headers are designed to solve these problems.
The goal is not simply flow.
The goal is improving how the engine breathes throughout the combustion cycle.
Long Tube Header vs Shorty Header
This is where most Ecotec enthusiasts begin shopping.
And where many make the wrong decision.
Both styles have advantages.
Both styles have disadvantages.
The correct choice depends on the application.
Shorty Headers
Shorty headers are designed primarily for packaging.
Advantages:
- Easier installation
- Better ground clearance
- Easier emissions compliance
- Improved packaging around accessories
Disadvantages:
- Reduced scavenging effect
- Shorter primary lengths
- Smaller performance gains
While shorty headers can outperform a stock manifold, they generally cannot match the scavenging benefits of a properly designed long tube header.
Long Tube Headers
Long tube headers prioritize performance.
Advantages:
- Improved scavenging
- Increased torque
- Increased horsepower
- Improved cylinder evacuation
- Stronger mid-range power
Disadvantages:
- More complex packaging
- Potential ground clearance concerns
- Higher manufacturing costs
For most naturally aspirated Ecotec performance applications, long tube headers consistently provide the greatest performance potential.
Why Long Tube Headers Work So Well On Circle Track Cars
Peak horsepower wins dyno competitions.
Average horsepower wins races.
Most circle track engines spend their lives accelerating off the corner and pulling through the middle of the RPM range.
This is exactly where scavenging becomes valuable.
A properly designed long tube header can improve:
- Corner exit acceleration
- Mid-range torque
- Throttle response
- Average horsepower
Many racers focus entirely on peak dyno numbers.
The fastest cars often focus on improving the area under the curve.
Why Some Headers Make More Power Than Others
This is where things become interesting.
Many Ecotec headers look nearly identical.
The dyno often says otherwise.
Several factors determine how effectively a header performs:
Primary Tube Diameter
Too small creates restriction.
Too large reduces exhaust velocity.
Both hurt performance.
Primary Tube Length
Length affects tuning characteristics.
This influences where torque and horsepower are produced.
Collector Design
The collector is where all cylinders begin working together.
Poor collector design can significantly reduce scavenging efficiency.
Merge Angle
The transition into the collector affects pressure wave behavior.
Small design changes can influence performance.
Transition Quality
Smooth transitions help maintain exhaust velocity.
Abrupt transitions create turbulence.
Turbulence costs power.
These factors explain why two headers that appear similar can perform very differently.
During testing, our BK Racing Ecotec Header produced approximately 7 horsepower more than comparable long tube headers.
The difference came from optimizing the complete system rather than focusing on any single dimension.
Bigger Headers Do Not Always Make More Power
This may be the biggest misconception in performance exhaust design.
Many enthusiasts assume larger tubes automatically make more horsepower.
In reality, oversized headers frequently hurt performance.
Exhaust systems depend on velocity.
As tube diameter increases, velocity decreases.
Reduced velocity can weaken:
- Scavenging
- Cylinder evacuation
- Mid-range torque
- Throttle response
This is one reason many oversized headers perform worse than properly sized designs.
The objective is not building the biggest header.
The objective is building the most efficient header.
2.2 Ecotec Header vs 2.4 Ecotec Header
One of the most common questions we receive is whether the same header works equally well on both engines.
The answer is: not always.
The 2.4L engine moves approximately 9% more air than a 2.2L engine.
That changes:
- Exhaust volume
- Exhaust velocity
- Scavenging requirements
- Collector behavior
A design that performs exceptionally well on a 2.2L may not be optimal on a 2.4L and vice versa.
This is why serious header development involves testing rather than assumptions.
Common Ecotec Header Mistakes
Many performance losses come from simple mistakes.
Choosing Based On Appearance
Looks don’t make power.
Assuming Bigger Is Better
Oversized primaries often hurt torque.
Ignoring The Collector
Collectors are critical to scavenging performance.
Chasing Peak Dyno Numbers
Average horsepower often matters more than peak horsepower.
Ignoring The Rest Of The Exhaust System
A header can only perform as well as the system attached to it.
Frequently Asked Questions
Do Headers Add Horsepower On An Ecotec?
Yes. Gains vary depending on engine combination, header design, and supporting modifications.
Are Long Tube Headers Worth It?
For most naturally aspirated performance applications, long tube headers offer the greatest performance potential.
Do Headers Increase Torque?
A properly designed header can increase both torque and horsepower through improved scavenging efficiency.
Do I Need A Tune After Installing A Header?
While not always required, tuning often helps maximize performance gains.
What Is The Best Ecotec Header?
The best header is the one that provides the highest overall efficiency for your specific engine combination and operating range.
Will a Long Tube Header Fit a Cavalier or Sunfire?
One of the most common questions we receive is whether the BK Racing Ecotec long tube header will fit in a Chevrolet Cavalier or Pontiac Sunfire. The answer is yes. From engine mount positioning and tunnel clearance to thermostat housing modifications, we’ve put together a complete guide covering the installation process and the BK Racing parts that make it easier.
👉 Read the Complete J-Body Long Tube Header Installation Guide
Final Thoughts
Not all Ecotec headers are created equal.
The difference between a mediocre header and an exceptional header is rarely visible from the outside.
Primary sizing.
Collector design.
Scavenging efficiency.
Exhaust velocity.
These factors determine whether a header simply looks good or actually makes power.
Understanding how these principles work is the first step toward selecting the right header for your Ecotec engine—and maximizing the performance potential of the entire combination.
