GM Ecotec Timing Chain Tensioner Guide: Reset, Replacement, Noise & Manual Upgrades

The timing chain tensioner is one of the most important components in the GM Ecotec timing system, yet it is often overlooked until timing chain rattle, chain slap, a check engine light, or a major engine repair brings the system into focus.

Whether you are maintaining a stock daily driver, diagnosing a higher-mileage engine, rebuilding a high-performance Ecotec, or preparing a dedicated race car, understanding how the Ecotec timing chain tensioner works is important for reliable chain control and maintaining the correct mechanical relationship between the crankshaft and camshafts.

The timing chain tensioner does not operate alone.

The complete primary timing drive includes:

• Timing chain
• Crankshaft sprocket
• Intake camshaft sprocket
• Exhaust camshaft sprocket
• Fixed timing chain guides
• Movable timing chain guide
• Timing chain tensioner

These components operate together as a system.

A problem that sounds like a bad Ecotec timing chain tensioner may actually involve a worn timing chain, damaged guide, incorrect installation, improper tensioner activation, lubrication problem, worn sprocket, or a combination of several issues.

That is why replacing the tensioner alone is not always the correct repair.

Why the Ecotec Timing Chain Tensioner Matters

The primary timing chain maintains the mechanical relationship between the crankshaft and camshafts.

The timing chain tensioner acts through the movable timing chain guide to help control slack and unwanted chain movement.

If chain control is compromised, symptoms may include:

• Startup timing chain rattle
• Persistent timing chain noise
• Chain slap
• Excessive chain movement
• Accelerated guide wear
• Camshaft-to-crankshaft correlation faults
• Check engine light
• Inconsistent engine performance
• Mechanical timing errors

In severe cases, loss of timing chain control can contribute to a timing event serious enough to cause internal engine damage.

The goal of the tensioner is not to make the timing chain as tight as possible.

The goal is controlled operation of the timing drive.

That distinction becomes especially important when comparing a factory-style hydraulic timing chain tensioner with a manually adjusted timing chain tensioner.

Not Every Ecotec Timing Chain Problem Is the Same

One of the biggest misconceptions surrounding the GM Ecotec timing system is that every timing chain problem requires the same repair.

It does not.

A noisy Ecotec timing system may involve:

• A worn timing chain
• A damaged timing chain guide
• Excessive chain slack
• A hydraulic tensioner problem
• An incorrectly installed tensioner
• An improperly activated tensioner
• Lubrication or oil-supply concerns
• Worn sprockets
• Incorrect mechanical timing
• Multiple worn components operating together

The correct repair depends on the actual condition of the timing system.

That is why this series separates diagnosis, resetting, replacement, installation, and tensioner selection into individual technical articles.

GM Used Multiple Ecotec Hydraulic Timing Chain Tensioner Designs

Another important point is that not every GM Ecotec hydraulic timing chain tensioner is the same.

Published technical guidance from Cloyes identifies multiple GM primary timing chain tensioner designs used across 2.0L, 2.2L, and 2.4L Ecotec applications.

These include:

• An early two-piece design with an O-ring and larger piston
• A second similar design without the O-ring
• A later one-piece superseding design with no O-ring and a smaller piston

This matters because tensioner design affects how the component is prepared, installed, activated, and potentially reset.

A generic online instruction telling you to simply “compress and reset the Ecotec tensioner” may not apply correctly to every tensioner design.

Before servicing an Ecotec timing chain tensioner, identify the actual component being used.

What Causes Ecotec Timing Chain Rattle?

Ecotec timing chain rattle is one of the most common reasons owners begin investigating the timing system.

However, timing chain rattle is a symptom—not a complete diagnosis.

Possible causes may include:

• Excessive timing chain wear
• Worn timing chain guides
• A tensioner that is not controlling chain movement correctly
• Incorrect tensioner installation
• Improper tensioner activation
• Excessive existing chain slack
• Lubrication problems
• Worn timing components
• Incorrect assembly

The timing and duration of the noise also matter.

A brief startup rattle is not automatically the same problem as persistent chain noise at idle, noise during RPM changes, or obvious chain slap.

That is why this series includes a separate diagnostic article focused specifically on:

Ecotec Timing Chain Noise, Rattle & Chain Slap Explained

What Is Ecotec Chain Slap?

Chain slap generally describes uncontrolled or excessive timing chain movement that allows the chain to strike or load components abnormally.

It should not automatically be blamed on one part.

Possible contributors may include:

• Excessive chain slack
• Chain wear
• Guide wear
• Guide damage
• Tensioner problems
• Incorrect installation
• Improper tensioner activation

Persistent chain slap should be investigated rather than ignored.

A louder stereo, thicker oil, or simply replacing one component without inspecting the complete timing drive is not a professional diagnosis.

When Should an Ecotec Timing Chain Tensioner Be Reset?

Resetting may be appropriate when:

• The exact tensioner design has been identified
• The tensioner is serviceable
• The tensioner design is intended to be reset using the applicable procedure
• The timing system is otherwise in acceptable condition
• The tensioner has been removed during service and requires correct preparation before reinstallation

Not every Ecotec tensioner should be assumed to use the same reset procedure.

This is important because later tensioner designs differ from earlier versions.

Before attempting to reset any Ecotec timing chain tensioner, identify the tensioner and verify the correct procedure for that design.

For the complete procedure, refer to:

How to Reset an Ecotec Timing Chain Tensioner

When Should an Ecotec Timing Chain Tensioner Be Replaced?

Replacement may be appropriate when:

• The tensioner is damaged
• The tensioner will not operate correctly
• The tensioner cannot be prepared correctly for installation
• Internal operation is questionable
• Threads or housing are damaged
• Contamination is present
• The tensioner is part of a larger worn timing system repair
• The builder wants to move to an updated tensioner design

However, replacing the tensioner alone should not be treated as a universal repair for every timing chain problem.

If the chain is worn, guides are damaged, sprockets are worn, or another mechanical problem exists, those conditions must also be addressed.

Updated OEM Hydraulic Timing Chain Tensioner

The updated OEM-style option retains factory-style hydraulic operation.

A hydraulic timing chain tensioner operates as part of the engine’s oil-fed timing system. Depending on the exact tensioner design, internal mechanical features and hydraulic operation work together to control the tensioner position and timing chain movement.

For many applications, factory-style operation is exactly what the customer wants.

An updated OEM hydraulic timing chain tensioner may make sense for:

• Stock replacement
• Daily-driven vehicles
• Street-oriented builds
• Engines remaining close to factory configuration
• Customers who prefer automatic hydraulic operation
• Customers who do not want routine manual adjustment

BK Racing offers the updated OEM hydraulic option because not every customer wants a manual tensioner.

That is a valid choice.

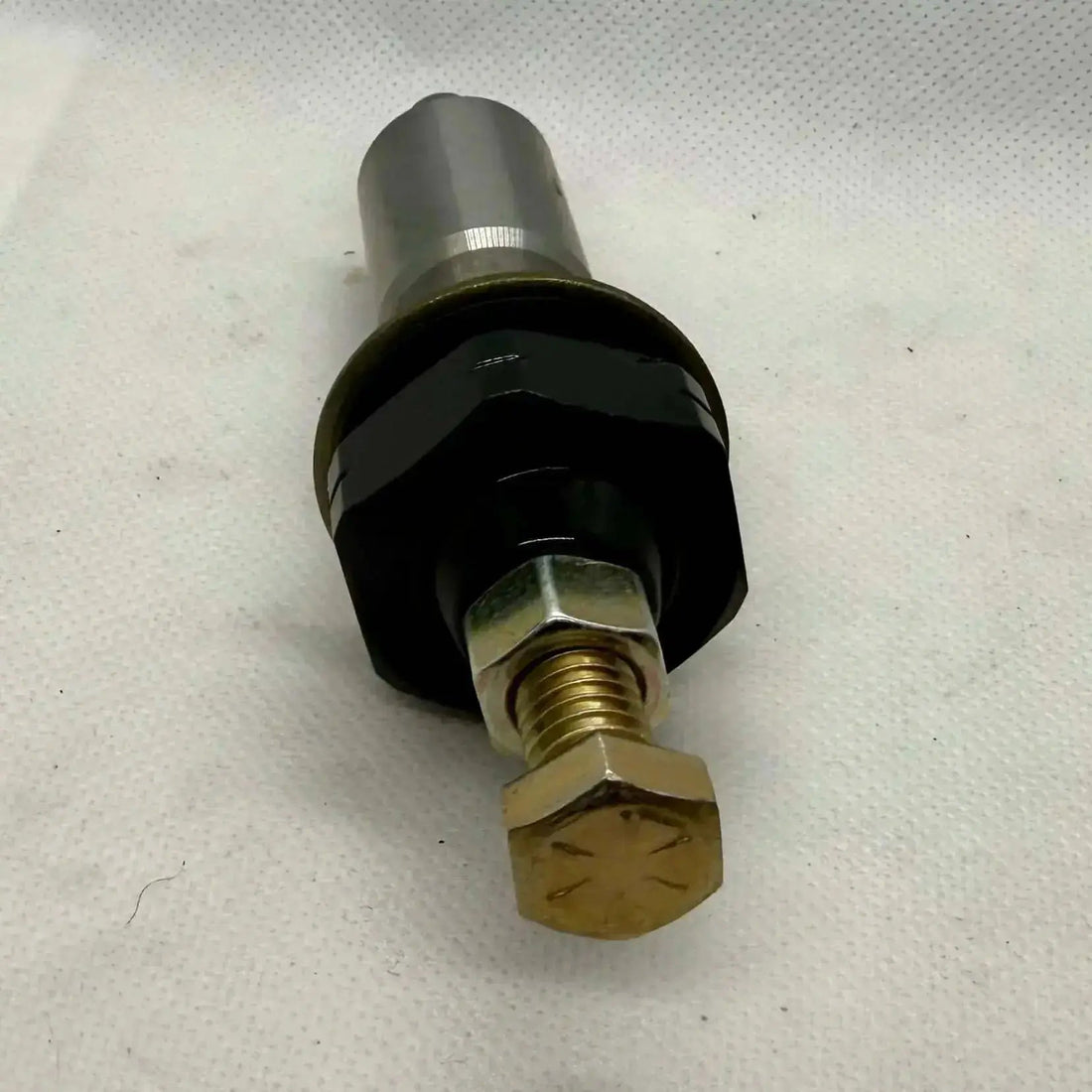

BK Racing Manual Timing Chain Tensioner

The BK Racing Manual Timing Chain Tensioner takes a different approach.

Instead of relying on automatic hydraulic operation to establish the tensioner adjustment, the builder mechanically sets the tensioner position.

This gives the builder direct control over the adjustment applied through the movable timing chain guide.

For serious performance and racing applications, BK Racing highly recommends the BK Racing Manual Timing Chain Tensioner.

Applications may include:

• Circle track racing
• High-RPM naturally aspirated Ecotec engines
• Drag racing
• Road racing
• Dedicated competition engines
• Aggressive camshaft combinations
• Upgraded valve spring combinations
• Solid lash adjuster applications
• Adjustable cam gear combinations

The reason is not that every hydraulic tensioner will automatically fail in a performance engine.

The reason is not that a manual tensioner automatically creates horsepower.

BK Racing’s preference is based on direct mechanical control of a critical timing system adjustment.

Can a Manual Tensioner Help a Worn or Stretched Timing Chain?

Yes—but this requires an important explanation.

Many Ecotec owners install a manual timing chain tensioner because the engine already has:

• Timing chain rattle
• Chain slap
• Excessive chain slack
• A worn timing system
• A hydraulic tensioner that is no longer controlling the available slack effectively

A manual tensioner can mechanically take up additional slack.

In the real world, this may:

• Reduce timing chain rattle
• Reduce chain slap
• Improve control of a loose timing chain
• Quiet a worn timing system
• Provide additional mechanical adjustment

The improvement can be real.

However:

A manual tensioner can compensate for some of the slack in a worn timing system, but it does not reverse the physical wear that created the slack.

If the timing chain has elongated through wear, the manual tensioner does not restore the chain to new condition.

If the guides are worn, the manual tensioner does not replace missing guide material.

If the sprockets are damaged, additional adjustment does not repair the sprocket teeth.

For that reason, a manual tensioner may solve the immediate noise or chain-control problem, but it should not be used indefinitely to hide a timing system that is physically worn beyond serviceable condition.

A quieter timing system is not automatically a repaired timing system.

Why Circle Track Racing Creates a Different Timing Chain Concern

Circle track racing can expose the timing system to operating conditions that a normal street engine may rarely experience.

Race cars spin.

In a manual-transmission race car, if the car spins and the driver does not disengage the clutch quickly enough, vehicle momentum through the tires and driveline can force the engine to rotate backward.

That creates an abnormal operating condition.

The Ecotec oil pump is mechanically driven by engine rotation. The factory-style hydraulic timing chain tensioner operates as part of the engine’s oil-fed system.

During a reverse-rotation event:

• Crankshaft rotation changes direction
• Timing chain loading changes direction
• Slack can transfer to a different span of the timing drive
• The oil system is no longer operating under normal forward-rotation conditions

BK Racing does not claim that every brief reverse-rotation event instantly causes hydraulic tensioner failure or timing chain failure.

However, BK Racing considers reverse engine rotation a serious racing-specific timing-system concern.

If chain control is already marginal because of:

• A worn timing chain
• Worn guides
• Excessive existing slack
• A compromised hydraulic tensioner
• An improperly activated tensioner
• A timing system near the limit of available tensioner travel

then reverse engine rotation may add another risk to an already compromised system.

If mechanical timing is lost far enough on an interference engine, internal engine contact can result.

This is one reason BK Racing’s recommendation for a manual timing chain tensioner becomes stronger in serious circle track applications.

Why BK Racing Prefers Mechanical Adjustment for Racing

The BK Racing Manual Timing Chain Tensioner does not rely on hydraulic oil pressure to establish its mechanical adjustment.

Once correctly adjusted and locked, its position is mechanically established.

That does not make the timing system immune to failure.

A badly worn chain can still create problems.

Damaged guides can still fail.

Incorrect adjustment can still cause problems.

A manual tensioner cannot prevent every possible timing event.

But it removes one variable:

The established tensioner position is not dependent on hydraulic pressure being present during the event.

For a race engine exposed to:

• Sustained high RPM
• Spins
• Sudden traction reversal
• Aggressive acceleration and deceleration
• Wheel hop
• Driveline shock
• Frequent competition use

BK Racing considers direct mechanical control a meaningful advantage.

Manual Does Not Mean Maximum Chain Tightness

A manual timing chain tensioner should never be treated as a device for making the chain as tight as possible.

More tension is not automatically better.

Excessive adjustment can unnecessarily increase load on:

• Timing chain
• Chain guides
• Sprockets
• Camshaft drive components

Insufficient adjustment can allow unwanted chain movement.

The goal is controlled chain preload—not maximum chain tightness.

A manual tensioner must be adjusted correctly.

Reset, Replace, or Upgrade?

The correct decision depends on the condition of the timing system and the intended use of the engine.

Reset the Existing Hydraulic Tensioner

Resetting may be appropriate when:

• The exact tensioner design has been identified
• The tensioner is serviceable
• The design is intended to be reset using the applicable procedure
• The timing system is otherwise in acceptable condition

Not every Ecotec tensioner should be assumed to use the same reset procedure.

Replace With an Updated OEM Hydraulic Tensioner

Replacement may make sense when:

• The existing tensioner is damaged
• The tensioner will not operate correctly
• Factory-style hydraulic operation is preferred
• The engine is stock or street-oriented
• The customer does not want manual adjustment

Upgrade to the BK Racing Manual Timing Chain Tensioner

The manual tensioner may make sense when:

• The engine is built for serious performance
• The engine operates at sustained high RPM
• The engine is used in circle track racing
• The engine is regularly inspected and serviced
• The builder wants direct mechanical control
• The engine uses an aggressive performance combination
• The customer specifically wants a manually adjustable system

A manual tensioner may also control additional slack in a worn timing system, but reduced noise should not be confused with repaired wear.

What You Will Learn in This GM Ecotec Timing Chain Series

BK Racing created this series because timing chain tensioner information is often scattered across service procedures, manufacturer instructions, forum discussions, and incomplete online explanations.

The series covers each major topic separately so readers can find detailed information without forcing every subject into one oversized article.

1. GM Ecotec Timing Chain Tensioner Guide: Reset, Replacement, Noise & Manual Upgrades

This main guide introduces the complete series and explains how the individual topics connect.

2. How the GM Ecotec Timing Chain Tensioner Works

A detailed explanation of the tensioner, movable guide, hydraulic operation, and the differences between factory-style and manual adjustment.

3. Symptoms of a Bad GM Ecotec Timing Chain Tensioner

A focused guide to startup rattle, persistent noise, chain slap, timing faults, and other warning signs.

4. Ecotec Timing Chain Noise, Rattle & Chain Slap Explained

A diagnostic guide covering different types of timing chain noise and what they may indicate.

5. When to Reset vs. Replace an Ecotec Timing Chain Tensioner

A practical guide to deciding whether an existing tensioner should be reset, replaced, or removed from service.

6. How to Reset an Ecotec Timing Chain Tensioner

A focused procedure covering tensioner identification and the importance of using the correct reset method for the actual design.

7. How to Install an Ecotec Timing Chain Tensioner

A detailed installation guide covering timing-system inspection, tensioner preparation, installation, activation, manual engine rotation, and final verification.

8. Updated OEM Hydraulic vs. BK Racing Manual Timing Chain Tensioner

A complete comparison of factory-style hydraulic operation and direct manual adjustment, including performance use, worn timing systems, and circle track reverse-rotation concerns.

GM Ecotec Engine Compatibility

Depending on the exact engine, model year, timing components, and tensioner design, this series is relevant to many GM Ecotec applications, including:

• 2.0L LSJ
• 2.0L LNF
• 2.0L LHU
• 2.2L L61
• 2.2L LAP
• 2.2L LE8
• 2.4L LE5
• 2.4L LE9
• 2.4L LAT
• 2.4L LAF
• 2.4L LEA

Always verify the exact engine code, timing set, and tensioner design before applying a specific service procedure.

The Ecotec family spans multiple generations and applications, and not every component or procedure is interchangeable.

Common Ecotec Timing Chain Tensioner Questions

Throughout this series, BK Racing addresses questions including:

• What causes Ecotec timing chain rattle?
• Why does an Ecotec rattle at startup?
• What does Ecotec chain slap sound like?
• Can an Ecotec timing chain tensioner be reset?
• Are all Ecotec tensioners reset the same way?
• When should an Ecotec timing chain tensioner be replaced?
• Can a manual tensioner quiet a worn timing chain?
• Can a manual tensioner help a stretched timing chain?
• Can a manual tensioner hide a worn timing system?
• Is a manual timing chain tensioner better for racing?
• Why does reverse engine rotation matter in circle track racing?
• What is the difference between an updated OEM hydraulic tensioner and the BK Racing Manual Timing Chain Tensioner?
• Which tensioner does BK Racing recommend for serious performance applications?

Each topic is covered in greater detail in the dedicated articles throughout this series.

BK Racing’s Approach to Ecotec Timing Chain Control

BK Racing works with Ecotec engines across stock replacement, street performance, high-RPM naturally aspirated builds, and dedicated racing applications.

Our position is not that every engine needs the same tensioner.

Some customers want factory-style hydraulic operation.

That is why we offer the updated OEM hydraulic option.

Other customers want direct mechanical adjustment for serious performance and racing use.

For those applications, BK Racing highly recommends the BK Racing Manual Timing Chain Tensioner.

Some customers also install manual tensioners to control slack in already worn timing systems.

That can reduce noise and improve chain control, but it should not be confused with reversing physical wear in the chain, guides, or sprockets.

The correct choice depends on:

• Condition of the timing system
• Engine application
• Performance level
• Service schedule
• Builder experience
• Desired adjustment strategy

Final Thoughts

The GM Ecotec timing chain tensioner should not be viewed as an isolated part.

It operates as one component within a complete timing drive that includes the chain, sprockets, guides, lubrication system, and the mechanical relationship between the crankshaft and camshafts.

When a problem develops, the correct response is not always:

Replace the tensioner.

Sometimes the existing tensioner needs to be correctly identified and reset.

Sometimes it should be replaced.

Sometimes the complete timing system is worn.

Sometimes a manual tensioner can control additional slack and reduce symptoms.

And in serious performance or racing applications, a builder may intentionally choose direct mechanical adjustment from the beginning.

That is the purpose of this series:

To separate diagnosis from guesswork and explain the GM Ecotec timing chain tensioner system in a practical, technically responsible way.

Continue to the next article:

How the GM Ecotec Timing Chain Tensioner Works
