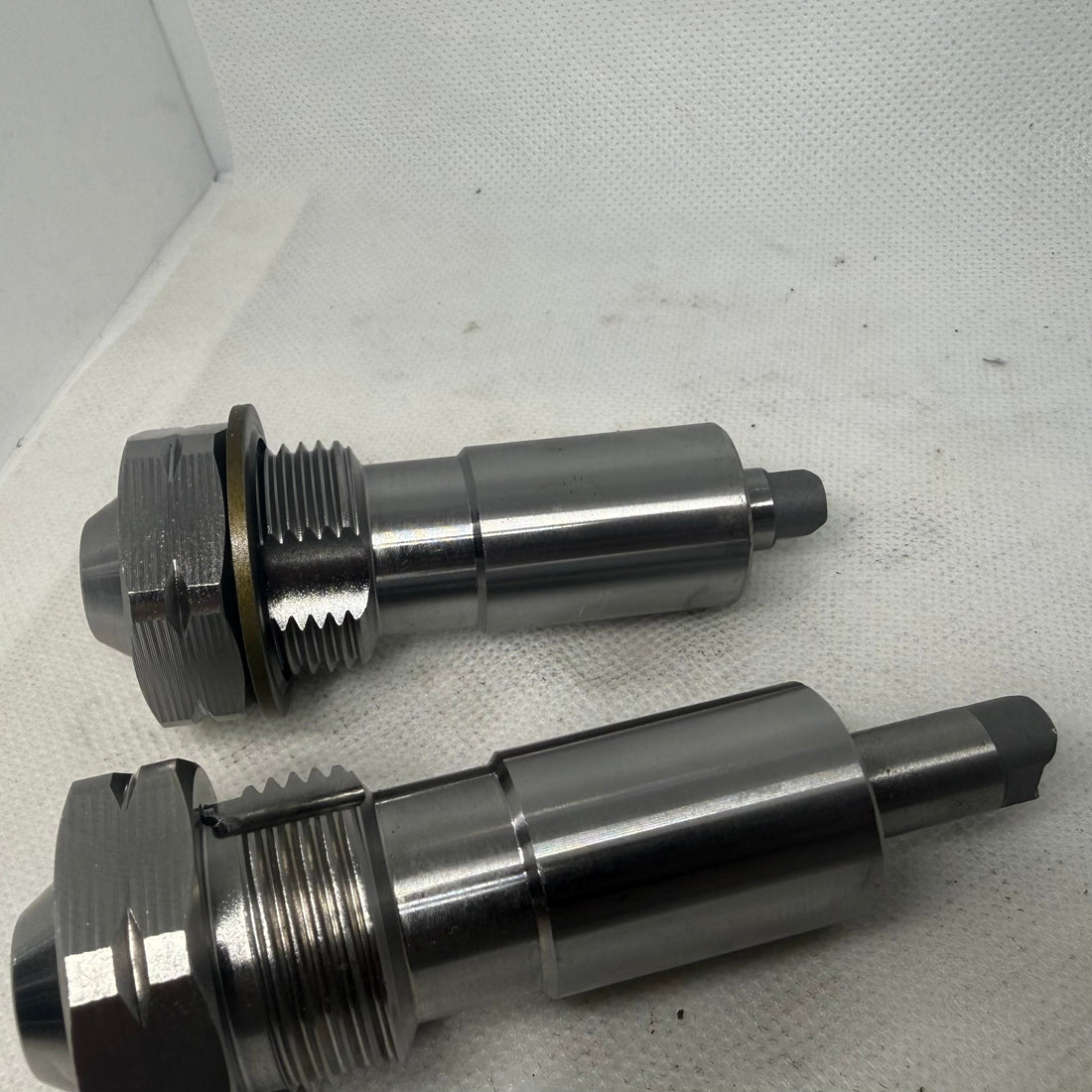

How the GM Ecotec Timing Chain Tensioner Works

The GM Ecotec timing chain tensioner is a critical part of the engine’s primary timing drive. The timing chain connects the crankshaft to the intake and exhaust camshafts, while the tensioner acts through the movable timing chain guide to help control chain slack and unwanted chain movement.

That distinction matters.

The tensioner does not simply “keep the chain tight,” and maximum chain tension is not the goal. A timing chain system must remain controlled while still operating within the intended movement and loading of the complete timing drive.

When chain control is compromised, symptoms may include:

Ecotec timing chain rattle
Startup rattle
Timing chain noise
Chain slap
Excessive chain movement
Accelerated guide wear
Camshaft-to-crankshaft correlation faults
Inconsistent engine performance
Mechanical timing errors

In severe cases, loss of timing chain control can contribute to a timing event serious enough to cause internal engine damage.

Understanding how the GM Ecotec timing chain tensioner works is essential when diagnosing timing chain noise, deciding whether a tensioner should be reset or replaced, installing a new tensioner, or comparing an updated OEM hydraulic tensioner with the BK Racing Manual Timing Chain Tensioner.

The Ecotec Timing Chain Tensioner Is Part of a Complete System

The timing chain tensioner does not operate alone.

The primary Ecotec timing drive includes:

Crankshaft timing sprocket
Intake camshaft sprocket
Exhaust camshaft sprocket
Primary timing chain
Fixed timing chain guides
Movable timing chain guide
Timing chain tensioner

Depending on the exact Ecotec engine and application, the engine may also have additional chain-driven systems and components. Those should not be confused with the primary camshaft timing drive discussed in this article.

Every component in the primary timing system matters.

A new tensioner cannot reverse physical wear in a stretched or elongated timing chain.

A new chain cannot correct a broken guide.

A manual tensioner cannot replace missing guide material.

And replacing one component without inspecting the rest of the timing system may leave the actual problem unresolved.

This is why BK Racing approaches Ecotec timing chain problems as a complete-system diagnosis rather than automatically blaming one part.

What Does the Ecotec Timing Chain Tensioner Actually Do?

The timing chain tensioner acts against the movable timing chain guide.

As the tensioner extends, it changes the position of that guide. The guide then controls available slack on the tensioned side of the timing drive.

The basic purpose is to help maintain chain control as the engine operates through changing conditions.

Those conditions can include:

Startup
Idle
Acceleration
Deceleration
Changing engine speed
Changing valvetrain loads
Normal timing component wear

The tensioner is not responsible for creating the crankshaft-to-camshaft timing relationship. That relationship is established by correct mechanical assembly of the chain and sprockets.

The tensioner’s role is chain control.

That is an important difference because a tensioner should never be expected to correct an incorrectly timed engine.

Not Every GM Ecotec Timing Chain Tensioner Works Exactly the Same Way

This is one of the most important facts in the entire series.

GM used multiple primary timing chain tensioner designs across 2.0L, 2.2L, and 2.4L Ecotec applications.

Published technical guidance from Cloyes identifies three different GM tensioner designs:

An early two-piece design with a rubber O-ring and larger tensioner piston
A second similar design without the O-ring
A later one-piece superseding design with no O-ring and a smaller tensioner piston

Cloyes further documents that the later superseding tensioner is shipped and installed in a deactivated condition and should not be installed activated.

This matters because generic explanations often describe “the Ecotec timing chain tensioner” as though every version has the same internal behavior, reset procedure, and activation procedure.

They do not.

Before diagnosing, resetting, replacing, or installing an Ecotec timing chain tensioner, identify the actual tensioner design being used.

How a Hydraulic Timing Chain Tensioner Works

At a general engineering level, a modern hydraulic timing chain tensioner may use several functions together:

Hydraulic oil pressure
Hydraulic damping
An internal mechanical spring
A mechanical ratcheting or limiting mechanism on designs that use one

These functions should not be oversimplified.

Modern hydraulic tensioners are designed to balance chain stability and damping. Too little control can allow instability, while excessive tension can accelerate chain and component wear. Technical guidance from Cloyes also notes that tensioner designs vary, including differences in ratcheting mechanisms and how the tensioner behaves when oil pressure is absent.

For the Ecotec specifically, the safest technical conclusion is:

Do not assume every Ecotec tensioner contains the same spring, ratchet, piston arrangement, or reset behavior.

The exact design matters.

Hydraulic Oil Pressure and the Ecotec Timing Chain Tensioner

The factory-style hydraulic Ecotec tensioner operates as part of an oil-fed system.

Oil supply is relevant to hydraulic tensioner function. That is why the tensioner’s oil path, installation condition, and internal operation matter.

In a hydraulic chain tensioner, oil entering the tensioner can contribute to pressure and damping within the tensioner assembly. This helps control movement rather than simply applying an uncontrolled maximum force against the guide.

This is more accurate than saying:

“More oil pressure always means more chain tension.”

That statement is too simplistic.

A hydraulic tensioner is a controlled component with internal geometry, oil flow, leakage, damping, and mechanical features that vary by design.

For the Ecotec family, the exact tensioner version must be considered before making claims about how it behaves.

Does the Ecotec Timing Chain Tensioner Use a Spring?

This is an area where generic online information often becomes misleading.

Many modern hydraulic timing chain tensioners use an internal mechanical spring to assist operation, particularly when oil pressure is low. Some designs also use mechanical limiting or ratcheting features.

However, BK Racing does not recommend publishing the blanket statement that every GM Ecotec hydraulic tensioner uses the same heavy-duty internal spring system.

GM used multiple Ecotec tensioner designs.

The later superseding tensioner documented by Cloyes differs from earlier versions in construction, piston size, and installation state.

The technically responsible approach is to identify the actual tensioner before describing its internal mechanism.

Does Every Ecotec Tensioner Use the Same Ratcheting Mechanism?

No assumption should be made that every Ecotec tensioner uses the same internal ratcheting arrangement.

This is another major correction from many generic timing chain articles.

Some hydraulic timing chain tensioners use mechanical ratcheting or limiting systems that allow extension while restricting excessive retraction. However, the exact mechanism varies by design.

Cloyes specifically documents three different GM Ecotec primary tensioner designs and identifies important differences in how the later superseding design is supplied, installed, activated, and deactivated.

For that reason, BK Racing does not describe all Ecotec tensioners as though one universal internal ratchet mechanism applies to every version.

How the Tensioner Responds to Timing System Wear

Timing components do not remain dimensionally unchanged forever.

Over time, wear may occur in:

Timing chain joints
Chain pins and internal bearing surfaces
Guide contact surfaces
Sprockets
Tensioner components

What is commonly called a “stretched timing chain” is generally not the chain material simply stretching like a rubber band.

Instead, accumulated wear through the chain joints can increase the effective length of the chain.

As available slack increases, the tensioner may extend farther to maintain control through the movable guide.

This is one reason tensioner position can provide useful information during timing system inspection.

If a tensioner is operating near the limit of its available travel, simply installing another tensioner may not correct the underlying wear.

General hydraulic-tensioner technical guidance from Cloyes notes that a tensioner near maximum travel can indicate a chain approaching the end of its useful fatigue life and that further inspection is required rather than assuming the tensioner alone has failed.

Can a Hydraulic Tensioner Compensate for Timing Chain Wear?

Within the operating range of the specific system, a tensioner can compensate for increasing available slack by acting farther through the movable guide.

But there is a limit.

A hydraulic tensioner cannot:

Restore worn chain joints
Replace missing guide material
Repair damaged sprockets
Correct broken guide mounts
Fix an obstructed oil passage
Correct an incorrectly timed engine

This is why a new Ecotec timing chain tensioner should not automatically be treated as a complete repair for every noisy timing system.

Why an Ecotec May Show Chain Slack With the Engine Off

Visible chain slack does not automatically prove that the timing chain tensioner has failed.

This is an important diagnostic point.

When the engine is not running, hydraulic oil pressure is absent. Valve spring forces and the position where the engine stopped can influence where slack appears in the timing drive.

Technical guidance on hydraulic timing chain tensioners notes that chain slack may move between spans depending on valve events, camshaft loading, and whether the engine is being rotated by hand without normal oil pressure.

That means opening an engine, seeing some chain movement, and immediately declaring the tensioner failed is not a complete diagnosis.

Further inspection is required.

Why Timing Chain Tension Is So Important

The primary timing chain controls the mechanical relationship between the crankshaft and camshafts.

Excessive uncontrolled movement may contribute to:

Timing chain rattle
Chain slap
Guide impact
Accelerated guide wear
Timing instability
Camshaft-to-crankshaft correlation faults
Increased risk of mechanical timing error

However, excessive tension is not desirable either.

Too much tension can increase loading and wear in the timing drive.

The correct goal is:

Controlled chain behavior—not maximum chain tightness.

This principle applies to both hydraulic and manual timing chain tensioners.

What Causes Ecotec Timing Chain Rattle?

Ecotec timing chain rattle is a symptom, not a complete diagnosis.

Possible contributors may include:

Timing chain wear
Excessive available slack
Worn timing chain guides
Damaged guides
Hydraulic tensioner problems
Incorrect tensioner installation
Improper tensioner activation
Oil-supply concerns
Incorrect timing system assembly
Other worn timing components

The timing and duration of the noise matter.

A brief startup rattle is not automatically the same problem as:

Persistent rattle at idle
Noise during RPM changes
Noise during deceleration
Repeated chain slap
Abnormal front-cover noise

That is why BK Racing created a separate article dedicated specifically to:

Ecotec Timing Chain Noise, Rattle & Chain Slap Explained

Why Replacing the Tensioner Does Not Always Fix the Noise

A common mistake is assuming:

Timing chain noise = bad tensioner.

That diagnosis is too simple.

If the chain is physically worn, the guides are damaged, or the sprockets have excessive wear, replacing only the tensioner may not eliminate the underlying problem.

The same is true if:

The new tensioner is installed incorrectly
The tensioner is not activated correctly
The wrong procedure is used for the tensioner design
An oil passage is restricted
The timing system is incorrectly assembled

The complete timing drive should be inspected.

Why Ecotec Tensioner Installation and Activation Matter

The later superseding Ecotec tensioner documented by Cloyes is shipped and installed deactivated.

Cloyes specifically warns:

The tensioner is installed deactivated
It should not be installed activated
Deactivation after activation requires disassembly

That is not a minor detail.

A tensioner can be a new component and still create a problem if it is installed incorrectly.

This is why BK Racing separates tensioner operation, reset procedures, and installation into different technical articles.

For the complete installation discussion, refer to:

How to Install an Ecotec Timing Chain Tensioner

How the Updated OEM Hydraulic Tensioner Differs From a Manual Tensioner

The updated OEM hydraulic tensioner and the BK Racing Manual Timing Chain Tensioner represent two different approaches to timing chain control.

Updated OEM Hydraulic Timing Chain Tensioner

The updated OEM-style option retains factory-style hydraulic operation.

It may make sense for:

Stock replacement
Daily-driven vehicles
Street-oriented builds
Engines remaining close to factory configuration
Customers who prefer automatic hydraulic operation
Customers who do not want routine manual adjustment

BK Racing sells this option because not every customer wants a manual tensioner.

BK Racing Manual Timing Chain Tensioner

The BK Racing Manual Timing Chain Tensioner gives the builder direct mechanical control over the tensioner adjustment.

Instead of relying on hydraulic operation to establish the adjustment, the builder mechanically sets and locks the tensioner position.

BK Racing highly recommends the Manual Timing Chain Tensioner for serious performance and racing applications such as:

Circle track racing
High-RPM naturally aspirated Ecotec engines
Drag racing
Road racing
Dedicated competition engines
Aggressive camshaft combinations
Upgraded valve spring combinations
Solid lash adjuster applications
Adjustable cam gear combinations

The reason is not that every hydraulic tensioner automatically fails at high RPM.

The reason is not that a manual tensioner automatically creates horsepower.

BK Racing’s preference is based on direct mechanical control of a critical timing system adjustment.

A Manual Tensioner Can Also Control Slack in a Worn Timing System

This is an important real-world point.

Many Ecotec owners install a manual timing chain tensioner because the engine already has:

Timing chain rattle
Chain slap
Excessive chain slack
A worn timing system
A hydraulic tensioner that is no longer controlling the available slack effectively

A manual tensioner can mechanically take up additional slack.

In practice, that may:

Reduce timing chain rattle
Reduce chain slap
Improve control of a loose timing chain
Quiet a worn timing system

That improvement can be real.

However:

A manual tensioner can compensate for slack, but it does not reverse the physical wear that created the slack.

If the chain is worn, the chain remains worn.

If the guides have lost material, the material is still missing.

If the sprockets are damaged, additional tension does not repair them.

A manual tensioner may solve the immediate noise or chain-control problem, but it should not be used indefinitely to hide a timing system that is physically worn beyond serviceable condition.

Why Reverse Engine Rotation Matters in Circle Track Racing

Circle track racing creates another timing-system concern that is not typical of normal street use.

Race cars spin.

In a manual-transmission race car, if the car spins and the clutch remains engaged, the driveline can potentially force the engine to rotate backward.

BK Racing considers this a serious racing-specific timing-system concern.

During reverse engine rotation:

Crankshaft direction changes
Timing chain loading changes direction
Slack can transfer to a different span of the timing drive
The engine’s oil-fed systems are no longer operating under normal forward-rotation conditions

BK Racing does not claim that every reverse-rotation event causes a timing failure.

We also do not claim that every brief reverse event instantly removes all hydraulic tensioner control.

The exact outcome depends on the timing system condition, chain slack, guide wear, tensioner design, duration of the event, and other mechanical factors.

However, on a system with existing chain slack, guide wear, or marginal chain control, BK Racing considers reverse rotation a credible additional risk.

If mechanical timing is lost far enough on an interference engine, internal engine contact can result.

This is one reason BK Racing’s recommendation for the Manual Timing Chain Tensioner becomes stronger in serious circle track applications.

Why BK Racing Prefers Mechanical Adjustment for Racing

The BK Racing Manual Timing Chain Tensioner does not rely on hydraulic oil pressure to establish its mechanical adjustment.

Once correctly adjusted and locked, its position is mechanically established.

That does not make the timing system immune to failure.

A worn chain can still create problems.

Damaged guides can still fail.

Incorrect adjustment can still cause excessive load or insufficient chain control.

But it removes one variable:

The established tensioner position is not dependent on hydraulic pressure being present during the event.

For a race engine exposed to:

Sustained high RPM
Spins
Sudden traction reversal
Aggressive acceleration and deceleration
Wheel hop
Driveline shock
Frequent competition use

BK Racing considers direct mechanical control a meaningful advantage.

Manual Does Not Mean Maximum Chain Tightness

A manual timing chain tensioner should never be treated as a device for making the chain as tight as possible.

More tension is not automatically better.

Excessive adjustment can unnecessarily increase load on:

Timing chain
Chain guides
Sprockets
Camshaft drive components

Insufficient adjustment can allow unwanted chain movement.

The goal is controlled chain preload—not maximum chain tightness.

A manual tensioner must be adjusted correctly and inspected as part of the engine’s service program.

Choosing the Right Ecotec Timing Chain Tensioner

The correct choice depends on the condition of the timing system and the intended use of the engine.

Consider the Updated OEM Hydraulic Tensioner When:

The engine is a stock replacement application
The vehicle is daily driven
The build is street oriented
Factory-style automatic operation is preferred
The customer does not want routine manual adjustment

Consider the BK Racing Manual Timing Chain Tensioner When:

The engine is built for serious performance
The engine operates at sustained high RPM
The engine is used in circle track racing
The engine is used in drag racing
The engine is used in road racing
The engine is regularly inspected and serviced
The builder wants direct mechanical control
The engine uses an aggressive performance combination

A manual tensioner may also control additional slack in a worn timing system, but reduced noise should not be confused with repaired wear.

GM Ecotec Engine Applications

Depending on the exact engine, model year, timing components, and tensioner design, the information in this series is relevant to many GM Ecotec applications, including:

2.0L LSJ
2.0L LNF
2.0L LHU
2.2L L61
2.2L LAP
2.2L LE8
2.4L LE5
2.4L LE9
2.4L LAT
2.4L LAF
2.4L LEA

Always verify the exact engine code, model year, timing set, and tensioner design before applying a specific service procedure.

Not every Ecotec component or procedure is interchangeable.

Final Thoughts

The GM Ecotec timing chain tensioner is not simply a spring-loaded part that “keeps the chain tight.”

It is one component in a complete timing drive.

The most important points are:

The tensioner acts through the movable timing chain guide.
The goal is controlled chain behavior, not maximum tightness.
GM used multiple Ecotec primary tensioner designs.
Not every tensioner resets or activates the same way.
Hydraulic operation depends on an oil-fed system.
Visible chain slack with the engine off does not automatically prove tensioner failure.
A tensioner can compensate for some available slack but cannot reverse physical wear.
A manual tensioner can mechanically control additional slack but should not permanently hide a worn timing system.
BK Racing highly recommends direct mechanical adjustment for serious performance and racing applications.

Understanding those principles makes it much easier to diagnose Ecotec timing chain rattle, evaluate chain slap, decide whether a tensioner should be reset or replaced, and choose between an updated OEM hydraulic tensioner and the BK Racing Manual Timing Chain Tensioner.

Continue the BK Racing GM Ecotec Timing Chain Series

Previous Article: GM Ecotec Timing Chain Tensioner Guide: Reset, Replacement, Noise & Manual Upgrades

Next Article: Symptoms of a Bad GM Ecotec Timing Chain Tensioner

Related Article: How to Reset an Ecotec Timing Chain Tensioner

Related Article: How to Install an Ecotec Timing Chain Tensioner

Engine Building
