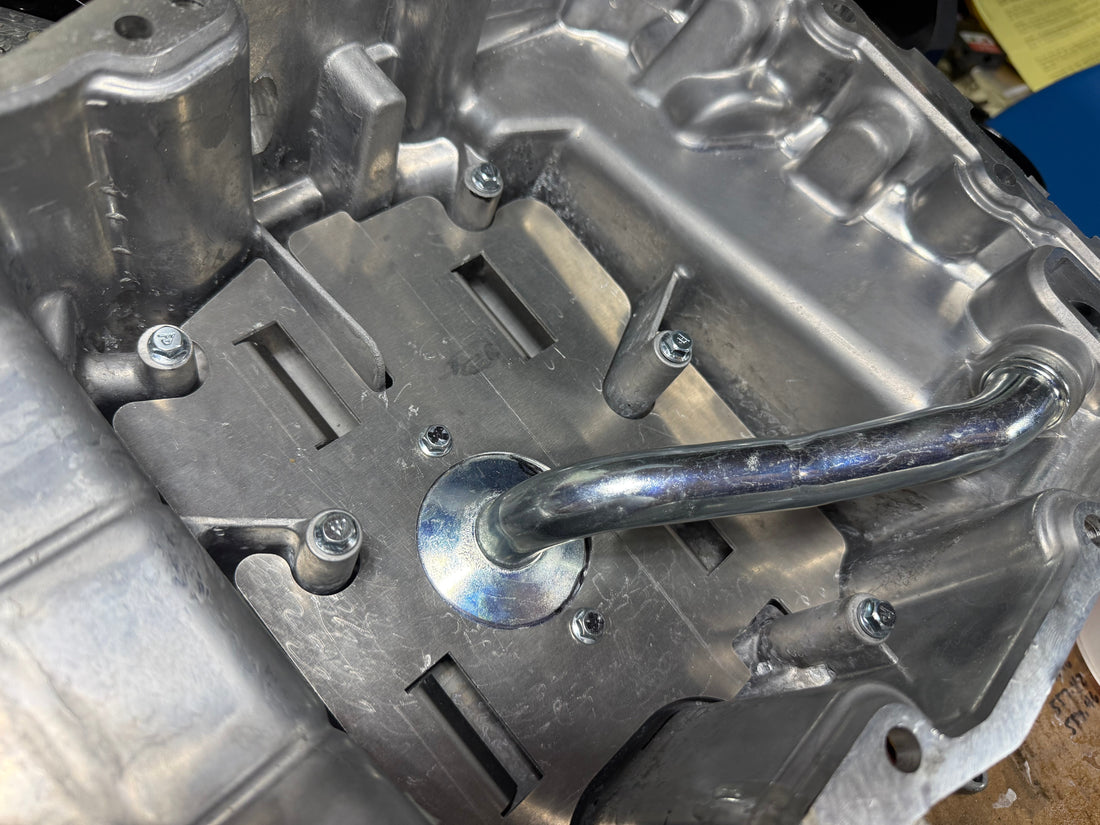

Why BK Racing Developed an Ecotec Oil Pan Baffle

Every race engine builder eventually asks the same question:

How do you keep the oil pump supplied during sustained cornering?

For decades, the most common answer has been the trap-door oil pan.

Trap-door systems have proven effective in many racing applications, and they continue to be used in everything from road racing to circle track competition.

When we began developing our Ecotec oil control system, however, we didn't start by asking how to build another trap-door oil pan.

We started by asking a different question:

What is actually causing the oil pump to lose its supply of oil?

That question ultimately led to a completely different engineering approach.

Understanding the Real Problem

Oil starvation isn't caused by a lack of oil in the oil pan.

It occurs because the oil pump temporarily loses access to the oil surrounding the pickup.

During braking, acceleration, and sustained cornering, inertia causes the oil to move throughout the oil pan.

If enough oil moves away from the pickup, the oil pump begins drawing air instead of a continuous supply of liquid oil.

The challenge isn't increasing oil capacity.

The challenge is controlling where the oil is located during the most demanding conditions.

Looking Beyond Traditional Trap Doors

Trap-door systems work by creating a compartment around the pickup.

As oil flows toward the pickup, hinged doors open to allow oil into the compartment.

When oil attempts to move away during cornering, the doors close, helping retain oil around the pickup.

It's an effective concept that has been successfully used for years.

But it also raises an important question.

What happens to the oil that remains outside the compartment?

As the race continues, oil returning from the motor in the car still has to make its way back to the pickup area.

Rather than creating an isolated reservoir, we wanted a system that continuously worked with the natural movement of the oil.

A Different Engineering Philosophy

Instead of trying to trap oil inside a small enclosure, we designed our oil control system to manage oil movement throughout the entire sump.

Our objective was simple:

• Slow oil movement away from the pickup.
• Guide returning oil toward the pickup.
• Maintain unrestricted drain-back.
• Allow the lubrication system to continuously replenish the pickup area.

Oil is never completely trapped.

It is constantly being managed.

This creates a system that works with the continuous circulation of engine oil instead of treating the pickup area as an isolated chamber.

Continuous Oil Control

Engine oil is constantly moving.

Oil is being pumped through the engine, draining back into the pan, and immediately beginning the cycle again.

Our design recognizes that this movement never stops.

Instead of relying on a compartment that temporarily stores oil, the system is designed to continuously direct returning oil toward the pickup while resisting rapid oil movement away from it during high-G conditions.

The result is an oil control system that is always working rather than waiting for a trap door to open or close.

Why We Didn't Build a Deeper Oil Pan

Simply increasing oil capacity wasn't our goal.

More oil certainly helps reduce operating temperatures and increases reserve volume.

However, additional oil alone doesn't control how oil moves.

Every quart of oil is subjected to the same cornering forces.

If the oil is free to move across the sump, increasing capacity alone cannot prevent the pickup from becoming uncovered.

For circle track racing, we believed controlling oil movement offered the greatest opportunity to improve reliability.

Designed Specifically for Circle Track Racing

Circle track racing presents a unique challenge.

The engine experiences repeated long-duration cornering every lap.

Unlike many road racing applications where forces constantly change direction, circle track cars repeatedly load the lubrication system in a predictable pattern.

That allowed us to develop an oil control system specifically for the conditions experienced by Ecotec circle track racers.

Rather than adapting an existing design from another platform, we engineered a solution around how the Ecotec lubrication system actually behaves during racing.

Reliability Was Always the Priority

Every decision made during development centered around one goal:

Keep the oil pump supplied.

Not increase horsepower.

Not add unnecessary complexity.

Not create the largest oil pan on the market.

Simply provide the oil pump with a more consistent supply of oil during the conditions most likely to produce oil starvation.

Because once the oil pump begins drawing air, every bearing inside the engine is at risk.

The BK Racing Difference

At BK Racing, we believe the best engineering begins by understanding the problem—not by copying existing solutions.

Rather than asking how to improve a trap-door pan, we asked how to improve oil control.

That philosophy led us to develop a system designed to continuously manage oil movement throughout the sump while maintaining unrestricted oil return and consistent pickup coverage.

The result isn't simply another race oil pan.

It's an oil control system developed specifically for the unique demands of GM Ecotec circle track racing.

Final Thoughts

There is more than one way to improve oil control.

Trap-door systems have earned their place in motorsports and remain an effective solution for many applications.

Our approach simply follows a different engineering philosophy.

Instead of concentrating on trapping oil inside a compartment, we focused on managing how oil moves throughout the entire oil pan.

For us, effective oil control isn't about restricting oil movement.

It's about directing it.

By continuously guiding oil toward the pickup while allowing unrestricted return from the engine, we've developed a system designed to provide the oil pump with the one thing it needs above all else:

A continuous supply of clean, liquid oil under the demanding conditions of circle track racing.

Continue Learning

Understanding oil starvation is only the first step toward building a more reliable GM Ecotec engine.

The articles below explore individual areas of the lubrication system in greater detail, from understanding how oil moves inside the oil pan to choosing the right oil control strategy for your racing application. Together, these resources provide a complete understanding of Ecotec lubrication, oil pressure, and engine reliability.

Understanding Oil Starvation

• Why Ecotec Engines Lose Oil Pressure in Long Corners
• What Happens When an Ecotec Oil Pickup Uncovers
• Signs Your Ecotec Is Suffering from Oil Starvation
• How to Prevent Oil Starvation in a GM Ecotec

If you're ready to improve your Ecotec's oil control, BK Racing offers complete solutions including the BK Racing Baffled Ecotec Oil Pan, BK Racing Ecotec Oil Pressure Line Kit, Allstar Oil Pressure Gauge, BK Racing Oil Pan Baffle, and BK Racing Oil Temperature Warning Light. Together, these products help improve oil control during hard cornering while giving drivers an early warning when oil temperatures become excessive. The result is an affordable, race-proven oiling system designed for naturally aspirated, turbocharged, supercharged, and circle track Ecotec engines. We also recommend the BK Racing Dipstick and Tube Kit.

Continue Reading:

• GM Ecotec Oil Starvation Guide
• Why Ecotec Engines Lose Oil Pressure in Long Corners
• What Happens When an Ecotec Oil Pickup Uncovers
• Signs Your Ecotec Is Suffering from Oil Starvation
• How to Prevent Oil Starvation in a GM Ecotec
• Does More Oil Capacity Prevent Ecotec Oil Starvation?
• BK Racing Oil Pan Baffle vs. Factory Windage Tray
• Why Our Baffles Work Better Than Deeper Oil Pans

• Why We Chose the OEM Ecotec Oil Pan for High-G Racing
• Why GM Never Built a True Racing Oil Pan for the Ecotec
• BK Racing Baffle Ecotec Oil Pan vs. $700+ Racing Oil Pans: What Are You Actually Paying For?

FAQ: Oil Pan Baffles

Is an oil pan baffle necessary?

An oil pan baffle is most useful when the motor in the car sees sustained cornering, braking, or acceleration. It helps keep oil near the pickup and can improve reliability in performance builds.

What are baffles in an oil pan?

Baffles are internal panels or barriers inside the oil pan that help control oil movement. They reduce slosh, guide oil back toward the pickup, and improve oil control under high-G conditions.

What is the purpose of the oil sump baffles?

The purpose of oil sump baffles is to keep oil from moving away from the pickup and uncovering it. In racing applications, they help maintain a steady oil supply when the engine is under load.
