Ecotec Cam Gears Failure and Valve Timing Problems

Common Problems With Factory Ecotec Cam Gears

Factory cam gears work extremely well in a stock production environment.

However, many of the assumptions GM designed around no longer apply once an engine becomes a dedicated performance or racing application.

As engine speed, valve spring pressure, camshaft aggressiveness, and overall engine performance demands increase, several limitations of the factory timing chain and cam gear system begin to appear.

Decked Blocks and Milled Cylinder Heads Change Cam Timing

One of the most overlooked issues is that engine machining changes the relationship between the crankshaft and camshafts.

When material is removed from the cylinder head or engine block, the distance between the crankshaft and camshaft centerlines decreases.

The timing chain tensioner compensates by taking up the excess chain slack.

As this occurs, the timing chain geometry changes and the camshafts can become slightly retarded from their original position, affecting valve timing.

While the timing marks may still align correctly, the actual intake and exhaust centerlines may no longer be where the engine builder intends them to be.

Factory Timing Marks Do Not Verify Actual Camshaft Position

Factory timing marks only indicate assembly position.

They do not verify:

• Intake centerline
• Exhaust centerline
• Valve opening events
• Valve closing events
• Camshaft phasing

Two Ecotec engines assembled on the factory marks can still have different actual cam timing due to machining operations, component tolerances, and timing chain variation.

Factory VVT Cam Phasers Were Designed for Street Vehicles

Variable Valve Timing is extremely effective for emissions compliance, drivability, idle quality, and fuel economy.

However, many race engines prioritize fixed, repeatable cam timing.

For dedicated race applications, some builders prefer eliminating variable cam movement and establishing a fixed mechanical cam position using locking cam hubs.

This creates a simpler and more predictable tuning environment, especially when using standalone engine management systems or aggressive aftermarket camshafts.

Factory Cam Gear Drive Pins Can Become a Weak Point

Many factory Ecotec cam gears rely on small locating pins on the backside of the gear to transfer load between the gear and camshaft assembly.

Under stock operating conditions this system functions well.

However, high-RPM race engines often operate under significantly higher loading conditions due to:

• Increased valve spring pressure
• Aggressive camshaft profiles
• Rapid RPM changes
• Sustained high-RPM operation

If the locating pin becomes damaged or shears, camshaft gear failure can change cam timing unexpectedly and may trigger misfires, poor engine performance, or a check engine light.

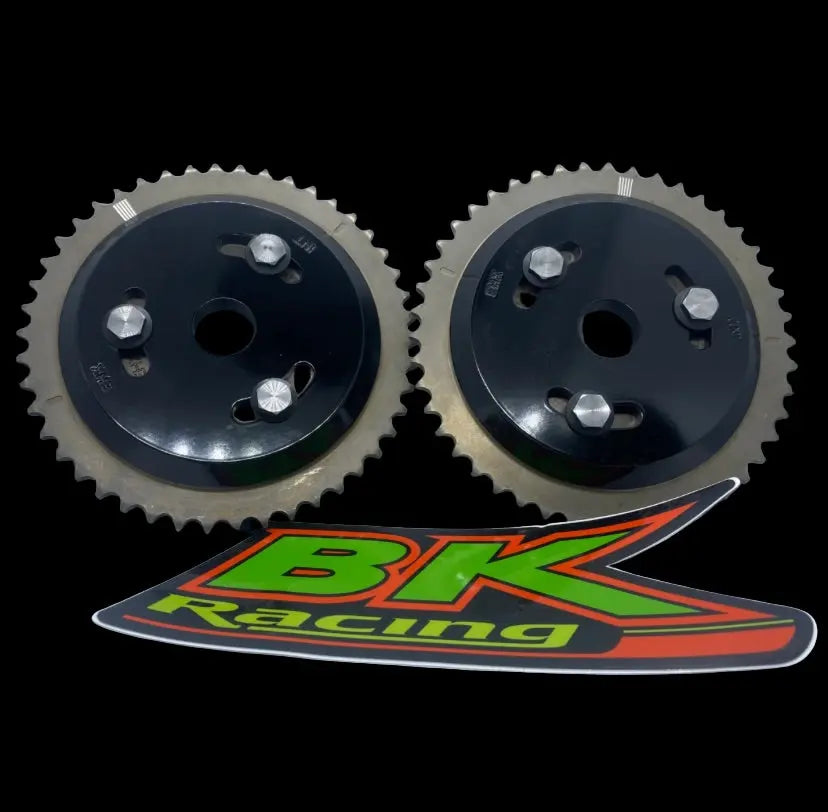

BK Racing adjustable cam gears utilize a hardened steel drive pin that positively engages the camshaft keyway, creating a more robust mechanical connection between the camshaft and gear assembly.

Camshaft Timing Requirements Vary Between Applications

A drag racing engine, circle track engine, autocross car, and street car may all require different cam timing despite using the same camshaft.

Factory gears offer no adjustment.

Adjustable cam gears allow the engine builder to optimize the camshaft position for the specific application rather than accepting a one-size-fits-all setting.

Serious Ecotec Engines Are Degreeing the Cams

As Ecotec combinations become more advanced, camshaft position becomes increasingly important.

Aftermarket camshafts, high compression ratios, cylinder head modifications, VVT deletes, and race RPM levels all increase the importance of accurate cam timing.

This is why many serious Ecotec engine builders degree the cams and use adjustable cam gears to place the intake and exhaust centerlines exactly where the engine combination requires them.

Camshaft Gear Failure Symptoms and Diagnosis

If you are diagnosing Ecotec cam gear failure, inspect the timing chain, tensioner, gear teeth, and cam phaser area inside the timing cover for unusual noises, looseness, or wear.

A bad cam gear can disrupt the air/fuel mixture entering the combustion chamber and throw off valve timing between the intake and exhaust valves.

The check engine light may come on, and the engine control module can log misfires or cam correlation codes when valve timing is out of range.

Timing Chain Wear and Replacement Cost

Replacement cost depends on whether the repair includes the camshaft gear, timing chain, tensioner, and related parts in the engine compartment.

On many Ecotec setups, it makes sense to inspect the full timing belt or chain system at the same time so you are not chasing a second failure later.
