Ecotec Cam Timing and Degreeing Explained

The timing marks line up.

The timing chain is installed correctly.

The engine starts, runs, and sounds perfectly normal.

So the cam timing must be correct… right?

Not necessarily.

One of the biggest misconceptions in the Ecotec performance world is that aligning the factory timing marks automatically places the camshafts where they belong.

In reality, the timing marks only confirm that the engine has been assembled correctly.

They do not confirm where the camshafts are actually positioned relative to the crankshaft.

For a completely stock commuter vehicle, this distinction may not matter.

For a modified Ecotec engine using aftermarket camshafts, solid lifters, a milled cylinder head, a decked block, VVT deletes, locking cam hubs, or a dedicated race combination turning 8,000 RPM or more, it can make a significant difference.

This is where cam degreeing becomes important.

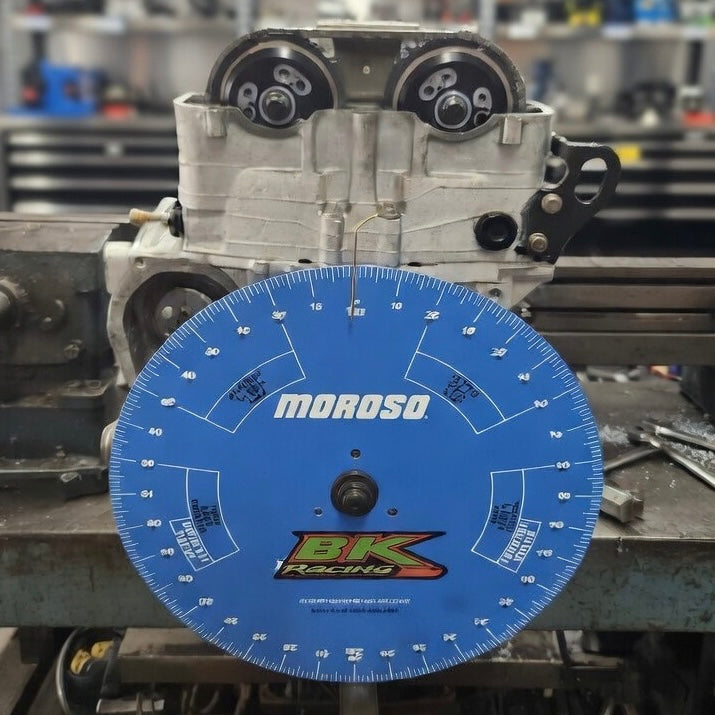

Cam degreeing is the process of measuring the actual position of the camshaft relative to the crankshaft and verifying that the intake and exhaust valve events occur where the engine builder intends them to occur.

The surprising reality is that two seemingly identical Ecotec engines can both be assembled perfectly on the factory timing marks and still have different actual cam timing.

That difference can affect:

• Torque production
• Peak horsepower
• Cylinder pressure
• Throttle response
• Powerband location
• Valve-to-piston clearance
• Overall engine efficiency

This is why serious Ecotec engine builders don’t simply install the timing chain and assume everything is correct.

They measure it.

Why Factory Timing Marks Don’t Tell the Whole Story

Factory timing marks were designed around stock production engines assembled using stock components, stock machining dimensions, and factory camshafts.

Once modifications are introduced, those assumptions begin to change.

Common modifications such as:

• Milling the cylinder head
• Decking the engine block
• Changing head gasket thickness
• Installing aftermarket camshafts
• Locking VVT phasers
• Timing chain wear
• Manufacturing tolerances

can all affect actual camshaft position.

One of the most overlooked examples is cylinder head milling and block decking.

When material is removed from either the cylinder head or the deck surface of the block, the distance between the crankshaft centerline and camshaft centerline decreases.

The timing chain is now effectively too long for the new distance.

The hydraulic tensioner compensates by taking up the excess slack.

As the tensioner removes that slack, the timing chain geometry changes and the camshafts can become slightly retarded from their original position.

The timing marks may still line up perfectly.

The actual cam timing may not.

Many builders assume that because the marks align, the cams must be where the camshaft manufacturer intended them to be.

That assumption can leave horsepower, torque, and efficiency on the table.

The Effect of Cam Timing on Engine Performance

A camshaft controls four critical events:

• Intake valve opening
• Intake valve closing
• Exhaust valve opening
• Exhaust valve closing

Changing those events by only a few degrees can significantly affect how the engine performs.

Cam timing influences:

• Dynamic compression ratio
• Cylinder filling efficiency
• Exhaust scavenging
• Torque production
• Peak horsepower
• RPM range
• Throttle response

This is why many Ecotec racers discover that two engines with identical parts can perform very differently.

The parts may be identical.

The cam timing may not be.

Why Adjustable Cam Gears Matter

Adjustable cam gears are often misunderstood.

They do not create horsepower by themselves.

They allow the engine builder to place the camshaft exactly where it needs to be.

Once the actual intake and exhaust centerlines are measured, adjustable cam gears provide the ability to correct the camshaft position.

This becomes especially important on engines using:

• Aftermarket camshafts
• Milled cylinder heads
• Decked blocks
• High-compression pistons
• Custom engine combinations
• Circle track racing engines
• Drag racing engines

Without adjustable cam gears, the builder is often forced to accept whatever cam timing results from the accumulated tolerances of the engine.

With adjustable cam gears, those variables can be corrected.

VVT Deletes, Locking Cam Hubs, and Fixed Cam Timing

Many later Ecotec engines utilize Variable Valve Timing (VVT) to improve emissions, drivability, idle quality, and fuel economy.

For a street vehicle, VVT is an excellent system.

Many dedicated race engines, however, prioritize fixed and repeatable cam timing.

This is where locking cam hubs become valuable.

A locking cam hub eliminates phaser movement and establishes a fixed mechanical relationship between the camshaft and timing system.

Once the camshaft position is fixed, adjustable cam gears can be used to place the cam exactly where the engine builder wants it.

This creates a repeatable and tunable cam timing system that many racers prefer for high-performance applications.

A Common Weakness of Factory Ecotec Cam Gears

Another overlooked issue is the factory cam gear drive arrangement.

Factory Ecotec cam gears utilize small locating pins on the backside of the gear to transfer load between the gear and camshaft assembly.

For stock applications, this system works well.

As valve spring pressure, engine speed, and camshaft aggressiveness increase, those pins can become a potential weak point.

BK Racing adjustable cam gears utilize a hardened steel drive pin that engages the camshaft keyway, creating a stronger mechanical connection between the camshaft and gear assembly.

For serious race engines, this provides an additional layer of confidence when operating under elevated RPM and valvetrain loads.

The Step Most Engine Builders Skip

Many builders spend thousands of dollars on:

• Camshafts
• Cylinder head work
• Compression ratio
• Valve springs
• Engine management

Yet never verify where the camshafts actually ended up.

The engine may run.

The timing marks may align.

The parts may be premium.

But if the cam timing is not where the engine combination wants it, performance is being left to chance.

That is why serious Ecotec builders degree the cams.

Because measuring cam timing is always more accurate than assuming it.

Final Thoughts

Adjustable cam gears are not simply a tuning accessory.

They are a tool that allows the engine builder to verify, correct, and optimize cam timing.

As Ecotec engines become more specialized, modifications such as milling, decking, aftermarket camshafts, VVT deletes, and locking cam hubs make cam degreeing increasingly important.

The timing marks only tell you that the engine is assembled.

Cam degreeing tells you where the camshafts actually are.

And for serious Ecotec performance engines, that difference matters.
