Cam Timing Explained: How To Degree GM Ecotec Camshafts
Cam Timing Explained: Why Proper Cam Timing Matters In High Performance Ecotec Engines
Whether you’re building a serious circle track Ecotec, drag car, or high RPM street engine, properly degreeing your camshafts is one of the most important steps in engine assembly. Even the best camshafts will underperform if the cam timing is not verified correctly.
Many builders simply line up timing marks and assume everything is accurate. Unfortunately, timing chain stretch, aftermarket gears, block decking, head milling, and production tolerances can all shift camshaft timing enough to affect power, drivability, and valve clearance.
At BK Racing, we highly recommend degreeing all aftermarket camshafts — especially aggressive race profiles.
What Does “Degreeing Cams” Mean?
Degreeing cams means verifying the actual installed centerline position of the intake and exhaust camshafts relative to crankshaft position.
This ensures:
- Accurate valve timing
- Proper powerband location
- Maximum airflow efficiency
- Improved throttle response
- Reduced piston-to-valve risk
- Consistent performance between engines
Simply put:
you are confirming the camshaft is installed exactly where the cam designer intended.
Tools Required
To properly degree Ecotec cams you will need:
- Degree wheel
- Dial indicator
- Magnetic base or fixture
- Adjustable cam gears
- Solid timing chain setup recommended
- Piston stop tool
- Pointer for degree wheel
- Camshaft specifications card
Finding True Top Dead Center (TDC)
Before degreeing cams, you MUST establish true TDC.
Do not rely solely on:
- factory timing marks
- crank keyway position
- balancer markings

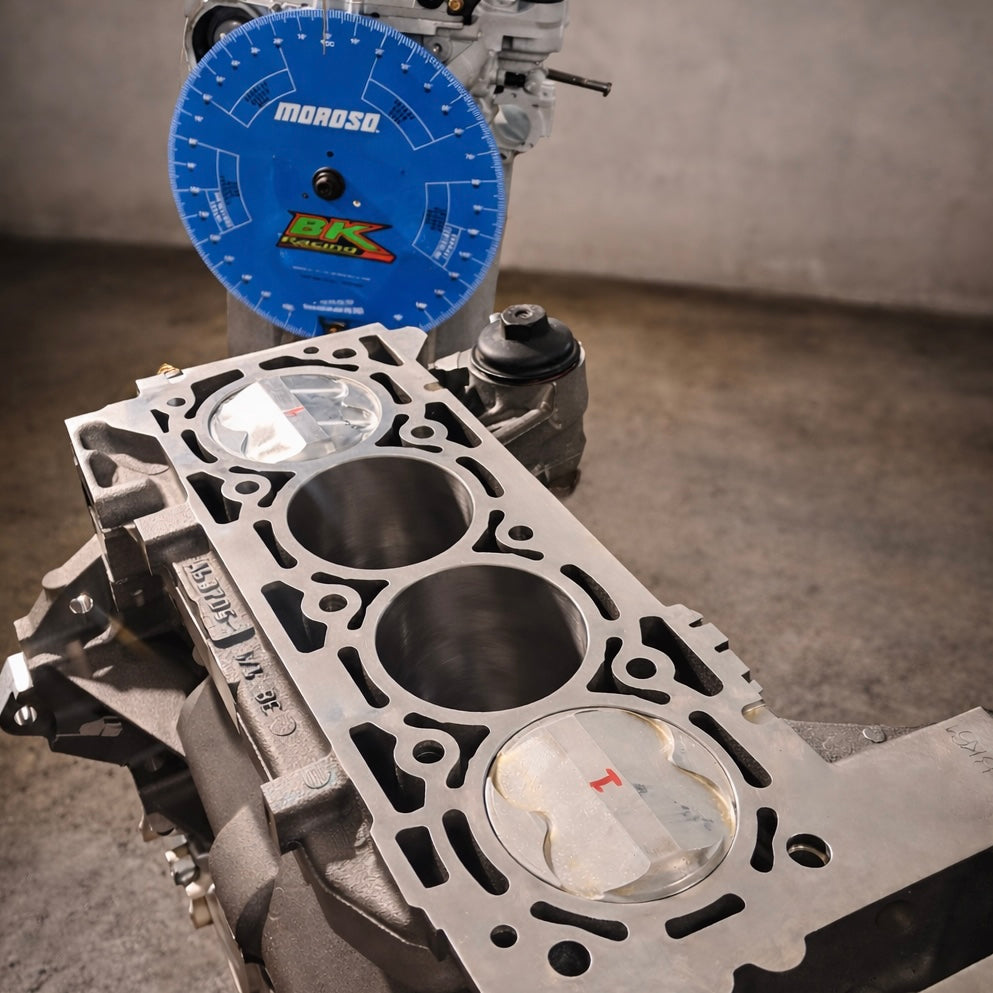

Install a degree wheel on the crankshaft and use a piston stop tool to accurately locate true top dead center.
This step is critical.
Even a few degrees off at TDC will create inaccurate cam timing measurements.
Understanding Cam Centerlines
Most Ecotec performance camshafts are measured using:
- Intake Centerline (ICL)
- Exhaust Centerline (ECL)
Example race setup:
- Intake: 108°
- Exhaust: 114°
These values determine:
- where the engine makes power
- cylinder pressure characteristics
- overlap behavior
- RPM range
Advancing the intake cam generally improves:
- low-end torque
- midrange response
Retarding the intake cam generally improves:
- higher RPM airflow
Exhaust cam adjustments influence:
- scavenging
- overlap
- top-end efficiency
Setting Up The Dial Indicator
Install the dial indicator on the valve retainer or lifter bucket.
Rotate the engine slowly and record:
- intake opening
- maximum lift
- intake closing
- exhaust opening
- exhaust closing
Most builders degree cams using the:
“Centerline Method”
This calculates the exact lobe center position relative to crankshaft rotation.
In practice, the intake opening, intake closing, exhaust opening, and exhaust closing events are measured so the camshaft timing matches the cam card as closely as possible.
When comparing cam cards, remember that advertised duration and duration at .050 inch are not the same thing. The .050 measurement helps compare the portion of the cam lobe that most directly affects valve lift and airflow.
Adjustable Cam Gears
Adjustable cam gears are essential for properly degreeing aftermarket Ecotec cams.
Small adjustments can dramatically affect:
- power curve
- throttle response
- peak horsepower
Aftermarket camshafts are rarely installed perfectly “straight up” without verification.
Even:
- timing chain wear
- head milling
- block decking
can shift installed cam timing several degrees.
Advancing or retarding cam timing changes when the intake and exhaust valves open and close, which can alter dynamic compression, overlap, and cylinder pressure.
In general, advancing cam timing can improve low speed torque and fuel economy in some combinations, while retarding cam timing may help high rpm breathing and top-end power. The right setting depends on the rpm range, lobe separation, and the rest of the engine combination.
Why Ecotec Engines Respond Well To Cam Timing Changes
GM Ecotec engines are extremely sensitive to camshaft timing because of:
- efficient cylinder head design
- relatively small displacement
- high RPM operation
- tight piston-to-valve clearances on aggressive builds
Minor timing adjustments can noticeably change:
- corner exit torque
- pull off the straightaway
- RPM recovery
- top-end charge efficiency
This is especially important in circle track racing where powerband placement matters more than peak dyno numbers.
What Happens If Cam Timing Is Advanced?
Advancing cam timing generally brings the intake and exhaust events earlier in crankshaft degrees. On many builds, this can improve low speed torque, help cylinder pressure build sooner, and sharpen throttle response.
The tradeoff is that advancing too far can reduce top-end power, increase overlap-related reversion in some combinations, and move the power curve lower than intended.
What Happens If Cam Timing Is Off?
If cam timing is off, the engine may lose power, idle poorly, make less vacuum, or show inconsistent cylinder pressure. In severe cases, incorrect camshaft timing can create valve clearance issues and reduce reliability.
Common Mistakes
Not Checking True TDC
Factory timing marks are not precise enough for accurate degreeing.
Rotating Engine Backwards
Always rotate the engine in the normal operating direction when taking measurements.
Ignoring Chain Slack
Timing chain slack can alter readings significantly.
Assuming “Dot-To-Dot” Is Correct
Never assume factory timing marks equal optimal cam timing.
No Valve Clearance Check
Always verify piston-to-valve clearance after final cam timing adjustments.
Final Thoughts
Properly degreeing Ecotec camshafts can be the difference between:
- an average engine
- and a truly optimized race combination.
At BK Racing, we strongly recommend degreeing every serious performance Ecotec build — especially when using:
- aftermarket cams
- milled heads
- decked blocks
- custom pistons
- adjustable cam gears
Precision matters.
The Ecotec platform rewards attention to detail, and accurate cam timing is one of the most overlooked areas in performance engine assembly.
