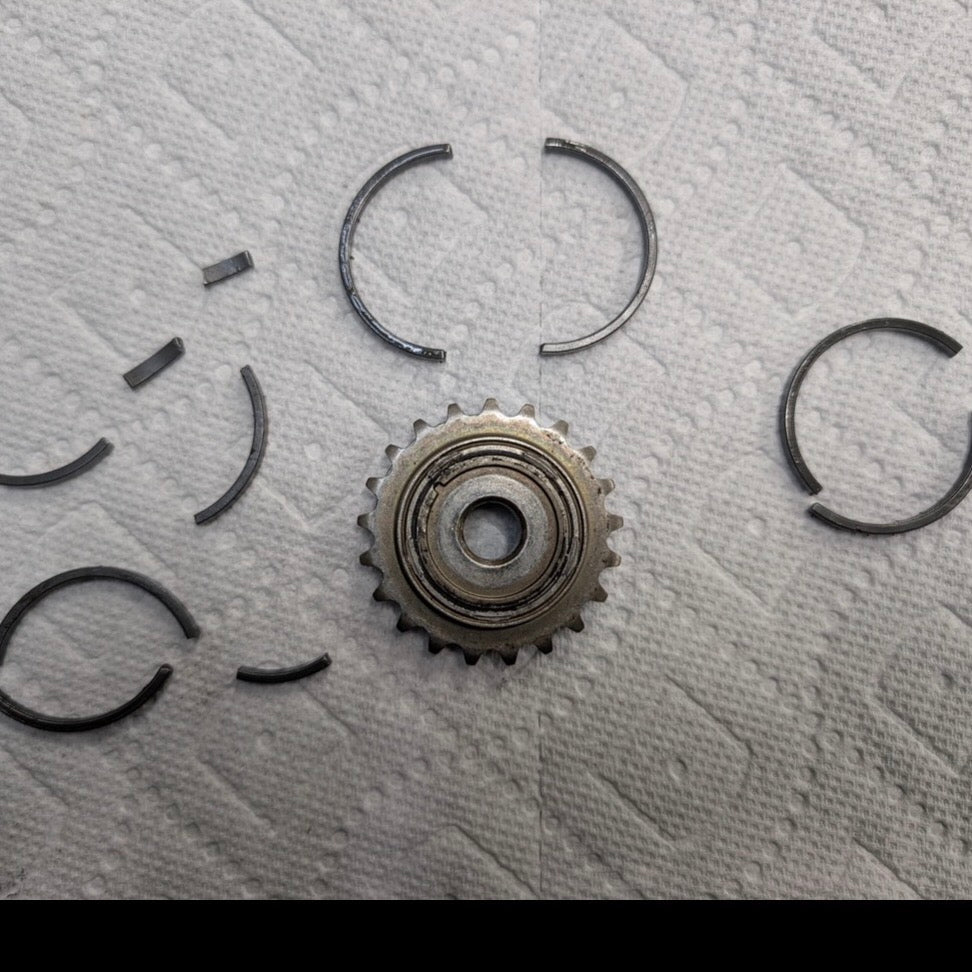

Why GM Ecotec Balance Shaft Sprockets Fail at High RPM – Chain Harmonics, Oil Pressure Loss & Racing Reliability Explained

One of the biggest hidden failure points in high RPM GM Ecotec engines is not the crankshaft, rods, pistons, or even the upper timing chain system.

It is the factory balance shaft sprocket assembly.

As LSJ, LNF, LE5, LE9, L61, and other Ecotec engines are pushed into aggressive racing environments with higher RPM limits, turbocharger boost, supercharger boost, E85 fuel systems, heavier valve spring pressure, aggressive camshafts, and rapid throttle transitions, the factory balance shaft sprockets become exposed to harmonic loads and chain instability far beyond what GM originally engineered them to survive.

Most builders focus heavily on upper timing chains, guides, cam gears, and tensioners while completely overlooking the lower balance shaft drive system and the massive oscillation loads transferred through the balance shaft sprockets during high RPM engine operation.

Unfortunately, when Ecotec balance shaft sprockets fail, the results are often catastrophic.

Understanding WHY balance shaft sprockets fail is one of the most important things serious Ecotec racers can learn when building reliable high RPM engines.

What Do Ecotec Balance Shaft Sprockets Actually Do?

The GM Ecotec balance shaft assembly uses a secondary chain-driven system to rotate counterweighted balance shafts located in the lower portion of the engine block.

These shafts use eccentric rotating weights designed to counteract secondary engine vibrations naturally produced by inline four-cylinder engine geometry.

The balance shaft sprockets transfer rotational force from the crankshaft to the balance shaft assembly through the lower timing chain system.

In factory commuter vehicles, this system helps improve:

• Idle smoothness
• NVH reduction (noise, vibration, harshness)
• Cabin comfort
• Low RPM drivability
• General refinement

However, the factory Ecotec balance shaft system was designed primarily for passenger car comfort — NOT sustained 7,500–8,500+ RPM racing environments.

That distinction becomes extremely important once these engines are modified for serious performance use.

Why Balance Shaft Sprockets Fail in High RPM Ecotec Engines

As RPM increases, the balance shaft system experiences dramatically higher harmonic loading and oscillation forces.

This creates severe stress on:

• Balance shaft sprocket teeth
• Lower timing chains
• Chain guides
• Chain tensioners
• Guide bolts
• Balance shaft bearings
• Oil pump drive systems
• Crankshaft timing harmonics

At elevated RPM, the balance shaft chain rapidly accelerates and decelerates under oscillating load conditions.

This creates violent chain harmonics and chain whip throughout the lower timing system.

Over time, this repeated loading contributes to:

• Sprocket tooth wear
• Sprocket tooth cracking
• Timing instability
• Excessive chain oscillation
• Sprocket deflection
• Chain misalignment
• Timing chain whip
• Oil pressure instability
• Catastrophic lower timing failures

The factory balance shaft sprockets simply were not designed for sustained racing RPM and aggressive high horsepower environments.

Why Chain Harmonics Become So Destructive

One of the least understood problems in GM Ecotec racing engines is timing chain harmonics.

As RPM increases, the balance shaft timing chain begins experiencing resonance and oscillation between the crankshaft sprocket and balance shaft sprockets.

This creates:

• Chain whip
• Sudden chain loading spikes
• Harmonic resonance
• Oscillating tension loads
• Impact loading on sprocket teeth
• Increased guide instability
• Tensioner oscillation
• Lower timing instability

Instead of smooth rotational loading, the sprockets experience repeated shock loading cycles thousands of times per minute.

These forces fatigue the sprocket teeth and timing components over time.

This becomes significantly worse in:

• Turbocharged Ecotec engines
• Supercharged LSJ applications
• Circle track racing engines
• High RPM naturally aspirated builds
• Aggressive throttle transition environments
• E85 race applications
• Heavy valve spring setups
• Lightweight rotating assemblies

Most racers first notice these issues as:

• Startup timing chain rattle
• Lower timing noise
• Intermittent metallic chain sounds
• High RPM vibration changes
• Timing instability at elevated RPM
• Unexplained oil pressure fluctuations

Unfortunately, once symptoms become noticeable, major timing system wear may already be occurring internally.

Why Balance Shaft Sprocket Failures Cause Oil Pressure Problems

One of the most dangerous aspects of Ecotec balance shaft sprocket failures is their relationship with the oiling system.

In many Ecotec engine variants, the balance shaft assembly is closely integrated with the oil pump drive system and lower timing assembly.

When balance shaft sprockets begin failing, instability within the lower timing system can contribute to:

• Oil pressure fluctuations
• Oil aeration
• Oil pump instability
• Timing debris contamination
• Reduced oil control at high RPM
• Increased oil temperature instability

In severe cases, catastrophic sprocket failures can contribute to:

• Rod bearing damage
• Main bearing failure
• Oil starvation
• Lower timing chain derailment
• Complete engine destruction

This is one of the primary reasons serious Ecotec racers often eliminate the balance shaft system entirely.

Why Serious Ecotec Racers Delete the Balance Shaft System

Balance shaft delete systems have become one of the most popular reliability upgrades in serious Ecotec racing applications.

Deleting the balance shaft assembly helps eliminate several major failure points while improving overall engine efficiency and high RPM stability.

Benefits of Ecotec balance shaft delete systems include:

• Elimination of balance shaft sprocket failures
• Elimination of balance shaft chain failures
• Reduced rotating mass
• Reduced parasitic drag
• Reduced harmonic loading
• Improved throttle response
• Improved oil system reliability
• Reduced timing instability
• Improved high RPM reliability
• Simplified lower timing system

Many racers also report noticeably improved engine acceleration characteristics and more stable high RPM engine operation after properly deleting the balance shaft system.

Why Timing Stability Matters in Ecotec Racing Engines

As RPM increases, timing stability becomes increasingly important for:

• Camshaft synchronization
• Valve timing accuracy
• Airflow efficiency
• Horsepower production
• Turbocharger response
• Supercharger efficiency
• Overall engine reliability

Even small timing fluctuations caused by harmonic instability can negatively affect performance and durability.

This is why serious Ecotec racing engines commonly upgrade:

• Timing chains
• Timing chain guides
• Manual tensioners
• Adjustable cam gears
• Crankshaft timing keys
• Valve springs
• Balance shaft systems

to improve overall timing control and high RPM durability.

Which GM Ecotec Engines Commonly Experience Balance Shaft Problems?

Balance shaft systems are commonly found in many GM Ecotec engine variants including:

2.0L Ecotec Engines

• LSJ
• LNF
• LDK
• LHU

2.2L Ecotec Engines

• L61
• LAP
• LE8

2.4L Ecotec Engines

• LE5
• LE9
• LAT
• LAF
• LEA
• LUK

Popular applications include:

• Chevrolet Cobalt
• Chevrolet Cobalt SS
• Chevrolet HHR
• Chevrolet HHR SS
• Pontiac Solstice
• Saturn Sky
• Saturn Ion Redline
• Chevrolet Malibu
• GMC Terrain
• Buick Regal
• Polaris Slingshot
• Ecotec-powered race cars and swaps

Final Thoughts

The factory Ecotec balance shaft sprocket system becomes a major reliability limitation once RPM, cylinder pressure, and racing demand exceed factory operating conditions.

While the OEM balance shaft assembly performs adequately in commuter vehicles, sustained high RPM operation exposes major weaknesses in sprocket durability, chain harmonics, timing stability, and oiling system reliability.

Understanding how balance shaft sprocket failures develop allows racers to build more stable, more reliable, and more competitive Ecotec engines.

Whether upgrading the lower timing system or converting to a complete balance shaft delete setup, addressing these issues is one of the most important long-term reliability improvements serious Ecotec racers can make.

If you are serious about high RPM Ecotec reliability, the lower timing system should never be overlooked.
