BK Racing Inner Balance Shaft Delete Sleeves Explained: Why We Leave the Factory Bearing Race in Place

When builders perform a complete Ecotec balance shaft delete on a GM Ecotec engine, one critical step is often overlooked.

Removing the balance shafts is only half the job.

The engine’s oiling system must also be completed correctly.

Specifically, the inner oil passages that once supplied the balance shaft bearings must be sealed while maintaining the integrity of the factory oiling system.

Over the years, builders have developed several methods to accomplish this.

Some relocate the factory bearing race.

Others install various styles of balance shaft delete plugs.

Others machine their own solutions.

At BK Racing, we looked at those methods and asked a different question.

Could we engineer a solution that removes installation variables while allowing the factory components to remain where GM intended?

That question led to the development of the BK Racing Inner Balance Shaft Delete Sleeves.

Understanding the Factory Bearing Race

The factory inner balance shaft bearing race serves two purposes.

First, it supports the balance shaft assembly.

Second, its location within the block determines how oil reaches the balance shaft bearing.

Once the balance shaft assembly has been removed, the bearing is no longer supporting a rotating shaft.

However, the oil passage still exists.

That oil passage must be sealed.

The challenge isn’t deciding whether to block the oil passage.

The challenge is deciding how.

The Traditional Method

For years, one of the most common methods has been relocating the factory inner bearing race.

The process is straightforward.

The bearing race is driven deeper into the block until it covers the oil passage.

When performed correctly, this method can successfully seal the passage.

However, it also introduces another variable.

The bearing race is no longer in the location where GM originally installed it.

For some builders that isn’t a concern.

For us, it became an engineering question.

The Problem With Relocating the Bearing Race

Over the years we’ve spoken with numerous Ecotec builders who attempted to move the factory bearing race.

Some had excellent results.

Others experienced problems.

We’ve heard stories of:

Bearing races driven into the block crooked.
Bearing races cracking during installation.
Bearing races believed to be seated correctly that later shifted.
Oil passages that weren’t completely sealed because the race wasn’t positioned exactly where it needed to be.

Those situations don’t happen every time.

But when they do, they usually aren’t discovered until after the engine has already been assembled.

For a customer who may have thousands of dollars invested in machine work, forged internals, cylinder head development, and assembly, that’s a risk we wanted to eliminate.

A Different Engineering Philosophy

Rather than asking builders to relocate the factory bearing race, we chose to leave it exactly where GM installed it.

Instead of making the bearing race perform another job, we designed a component specifically for sealing the oil passage.

The BK Racing Inner Balance Shaft Delete Sleeve installs inside the factory bearing race.

The bearing race stays exactly where it belongs.

The sleeve performs the sealing function.

It’s a simple concept.

But one that removes a significant installation variable.

Designed Around Installation Consistency

One of the primary goals during development wasn’t simply creating another balance shaft delete component.

It was making installation as repeatable as possible.

The Inner Sleeve is precision-machined to an interference fit that installs directly inside the factory bearing race.

Unlike methods that require determining how far to drive the race into the block, our sleeve has a defined installation position.

There is no guessing.

There is no measuring installation depth.

There is no concern about driving the component too far or not far enough.

Once properly installed, the sleeve seals the oil passage while the factory bearing remains exactly where GM intended.

Precision Manufacturing Matters

Every BK Racing Inner Balance Shaft Delete Sleeve is machined to extremely tight tolerances.

That precision serves two purposes.

First, it creates the proper interference fit required to securely retain the sleeve inside the factory bearing race.

Second, it provides installation consistency from one engine to the next.

We recommend placing the sleeves in a freezer overnight before installation.

Cooling the sleeves causes them to contract slightly, making installation easier.

Once the sleeves return to room temperature, they expand back to their original dimensions and create a secure interference fit inside the bearing race.

This is a common engineering practice used throughout the automotive industry whenever precision interference-fit components are installed.

Designed for Real Engine Builders

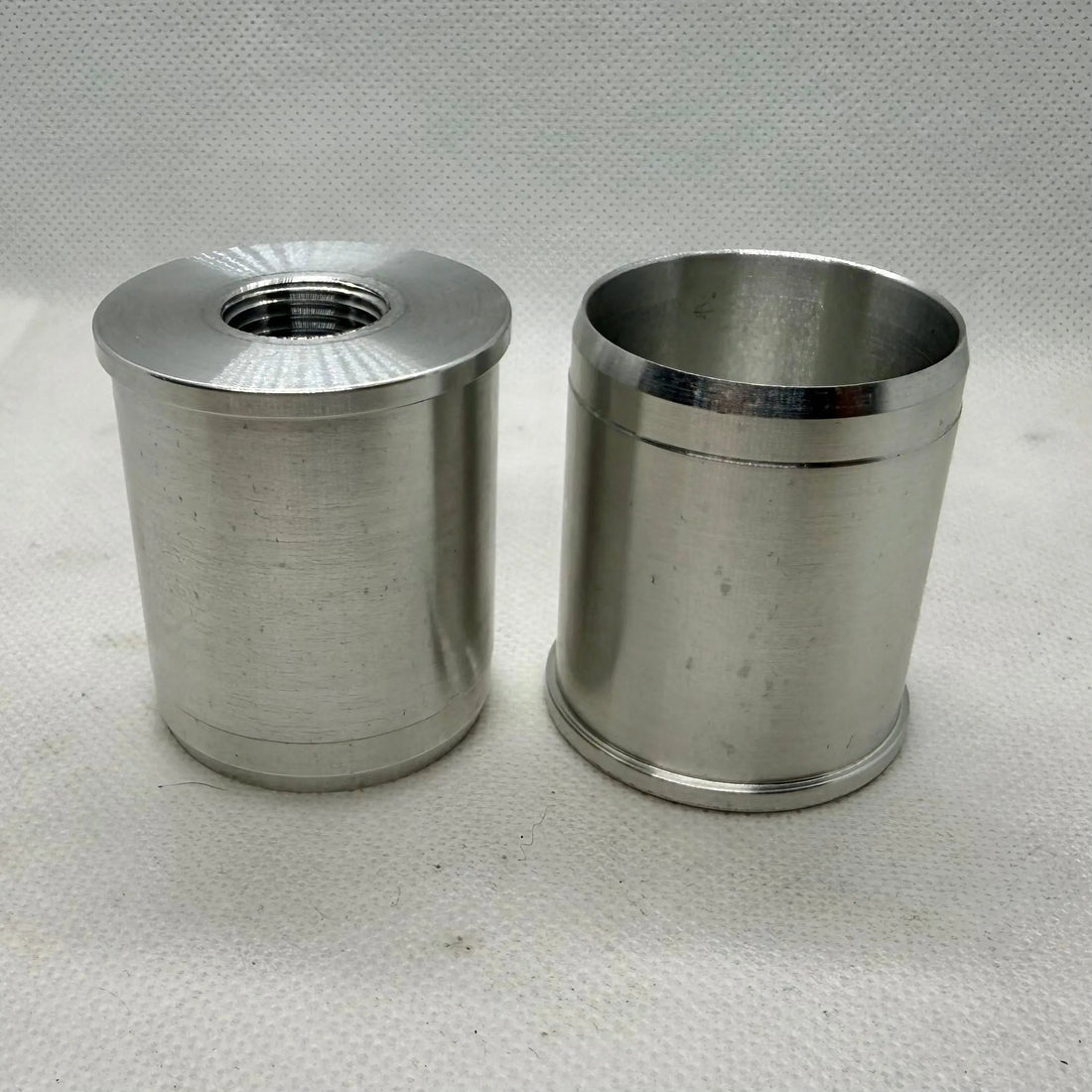

Several features were intentionally incorporated into the BK Racing Inner Sleeves to make installation easier.

Each sleeve includes:

A precision-machined interference fit.
A tapered lead to help the sleeve start square in the bearing race.
A threaded center for installation or future removal using a threaded rod or slide hammer.

None of these features increase horsepower.

They simply make the installation cleaner, more repeatable, and easier for the engine builder.

That’s exactly what we wanted.

Why We Didn’t Build Another “Delete Plug”

Many builders search online for Ecotec balance shaft delete plugs.

The terminology has become common throughout forums and social media.

Technically, our Inner Sleeves perform the same function—they permanently seal the required oil passages after the balance shafts have been removed.

However, we intentionally chose not to design them as traditional press-in plugs.

Instead, we engineered them to work with the factory bearing race rather than replace it.

We believe maintaining the original GM bearing location while allowing a dedicated precision-machined sleeve to perform the sealing function is a more controlled engineering solution.

Built for Reliability

Throughout every BK Racing product, one philosophy remains the same.

Reliability first.

Horsepower numbers get attention.

Reliability wins races.

The Inner Balance Shaft Delete Sleeves weren’t developed because existing methods couldn’t work.

They were developed because we believed we could reduce installation variables, simplify the process, and provide builders with greater confidence during engine assembly.

That’s the same philosophy behind every BK Racing balance shaft delete product.

The Bottom Line

The BK Racing Inner Balance Shaft Delete Sleeves weren’t designed to reinvent the Ecotec balance shaft delete.

They were designed to improve it.

By leaving the factory bearing race exactly where GM installed it, sealing the oil passage with a dedicated precision-machined sleeve, and eliminating unnecessary installation variables, we believe we’ve created one of the most consistent and builder-friendly solutions available for complete Ecotec balance shaft removal.

For us, that’s what engineering is all about.

Not changing parts simply for the sake of being different.

Creating solutions that improve reliability, simplify installation, and give builders confidence that the job has been done correctly.

Frequently Asked Questions

Why doesn’t BK Racing relocate the factory bearing race?

We designed our Inner Sleeve to install inside the factory bearing race, allowing the bearing to remain in its original GM-installed position while the sleeve seals the oil passage. We believe this reduces installation variables and creates a more repeatable process.

Are the sleeves difficult to install?

No. We recommend freezing the sleeves overnight before installation. As they cool, they contract slightly, making installation easier. Once installed, they return to room temperature and create a secure interference fit.

Can the sleeves be removed later?

Yes. Each sleeve includes a threaded center that allows removal using a threaded rod or slide hammer if future engine service is required.

Why are the sleeves tapered?

The tapered lead helps the sleeve start square in the factory bearing race, reducing the likelihood of cocking during installation.

Continue Learning: What Does an Ecotec Balance Shaft Delete Actually Change?

Understanding how the GM Ecotec balance shaft system works is the first step in deciding whether a balance shaft delete is right for your engine. As you've learned, GM engineered the system to reduce second-order engine vibration and improve refinement in production vehicles. However, the demands placed on a dedicated race engine are very different from those of a daily driver, which is why many performance builders choose to remove the balance shaft assembly entirely.

Not all balance shaft deletes are the same. Cut shafts, neutral balance shafts, complete balance shaft removal, and short-chain delete systems each affect the engine differently. Choosing the right approach depends on your performance goals, intended use, and how the engine will be operated.

Whether you're performing a complete balance shaft delete or a short-chain conversion, selecting the correct components is just as important as understanding the modification itself. Depending on your chosen method, you may need BK Racing Complete Balance Shaft Delete Kit, Outer Balance Shaft Bushings, Inner Balance Shaft Delete Sleeves, Modified Upper Short Chain Guide, Shortened Water Pump Chain, and other supporting components to complete the installation properly. If you're performing a complete delete, don't forget to add the BK Racing Inner Balance Shaft Delete Sleeves to your order—they're a required part of a proper installation.

The next guide explores what actually changes after removing the balance shaft assembly, including rotating mass, parasitic losses, vibration, engine reliability, and why balance shaft deletes have become a common modification in naturally aspirated, turbocharged, supercharged, and circle track GM Ecotec engines.
