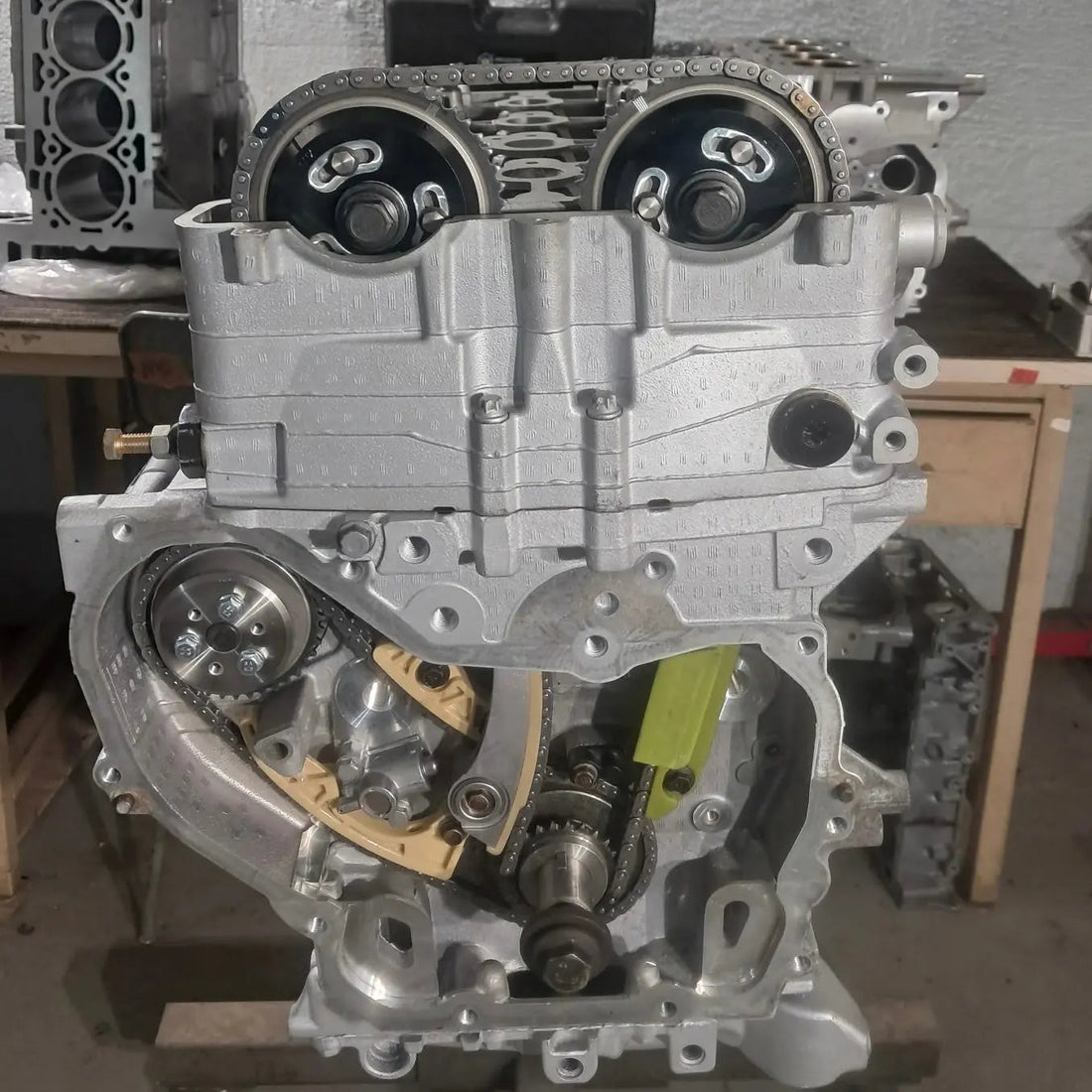

GM Ecotec Balance Shaft Delete Guide

The GM Ecotec balance shaft system was designed to solve a real production-engine problem: reducing the inherent second-order vibration characteristics of an inline four-cylinder engine.

For a street-driven production vehicle, that makes sense. GM wanted engines that felt smooth during normal acceleration, cruising, and everyday operation. Noise, vibration, and harshness matter when an engine is installed in a passenger car expected to spend most of its life at relatively low engine speeds.

Performance and racing applications create a very different problem.

A race Ecotec may spend much of its operating life at 6,000, 7,000, 8,000 RPM or higher. The factory balance shafts continue operating in that environment, and the balance shafts rotate at approximately twice crankshaft speed.

That means a conservative 7,000 RPM race engine can place the balance shaft system near 14,000 RPM.

At 8,000 crankshaft RPM, that becomes approximately 16,000 balance shaft RPM.

At 9,000 crankshaft RPM, approximately 18,000 balance shaft RPM.

This changes the balance shaft conversation completely.

The real question is not simply:

“Can I remove the balance shafts to gain horsepower?”

The more important question is:

“Why continue operating a production balance shaft system at extreme rotational speed when its original vibration-control function is no longer a priority—and what is the best way to eliminate it without creating a new problem?”

That is the problem an Ecotec balance shaft delete should solve.

But not every method solves it the same way.

Cut shafts, neutral balance shafts, complete shaft removal, and the BK Racing Short Chain Balance Shaft Delete can all eliminate the original counterbalancing function. Mechanically, however, they leave very different systems inside the engine.

In a high-RPM racing application, those differences matter.

What Problem Does the Factory Ecotec Balance Shaft System Solve?

An inline four-cylinder engine has an inherent vibration characteristic caused by the motion of its rotating and reciprocating assembly.

Even when the crankshaft, connecting rods, pistons, wrist pins, and other components are properly balanced, the engine can still produce second-order vibration.

This does not mean the rotating assembly was balanced incorrectly.

The issue comes from piston motion and connecting-rod geometry.

As the crankshaft rotates, connecting-rod angularity causes piston acceleration near top dead center to differ from piston acceleration near bottom dead center. The resulting forces do not completely cancel each other.

The factory balance shafts are designed to create an opposing force that reduces what the driver and passengers feel.

In simple terms:

The inline-four engine produces an inherent second-order vibration, and the balance shafts generate an opposing correction intended to reduce it.

That distinction matters.

The balance shafts do not “balance” the crankshaft in the same way an engine machine shop balances a rotating assembly. They are a separate vibration-control system designed primarily around vehicle refinement.

Why Did GM Use Balance Shafts in the Ecotec?

GM designed the Ecotec for production vehicles, not just race cars.

A production engine must satisfy priorities such as:

smooth everyday operation
reduced vibration through the chassis
passenger comfort
acceptable idle quality
quiet cruising
reduced noise, vibration, and harshness
refinement through normal street-driving RPM ranges

A street car may spend a large percentage of its life below approximately 3,000 crankshaft RPM.

At those engine speeds, the balance shaft system can provide useful vibration correction in exactly the operating range where a production customer is most likely to notice engine harshness.

For that application, the system has a legitimate purpose.

The problem is that a race engine operates under a radically different duty cycle.

Why Does High-RPM Racing Change the Balance Shaft Equation?

The Ecotec balance shaft system operates at approximately twice crankshaft speed.

That relationship is one of the most important facts to understand when evaluating the system for racing.

Approximate rotational speeds look like this:

Crankshaft RPM	Balance Shaft RPM
2,000 RPM	4,000 RPM
3,000 RPM	6,000 RPM
5,000 RPM	10,000 RPM
7,000 RPM	14,000 RPM
8,000 RPM	16,000 RPM
9,000 RPM	18,000 RPM

Now compare two very different applications.

A normal production street vehicle may spend much of its operating life below 3,000 crankshaft RPM. In that environment, the balance shaft system commonly operates below roughly 6,000 RPM for extended periods.

A race engine may spend lap after lap near 7,000 crankshaft RPM.

That means the balance shaft system can be operating around 14,000 RPM repeatedly and for sustained periods.

At 8,000 crankshaft RPM, that becomes approximately 16,000 RPM.

At 9,000 crankshaft RPM, approximately 18,000 RPM.

This is not the same duty cycle as a production street engine that occasionally passes through high RPM during acceleration.

A circle-track engine may live there.

That raises a legitimate question for any serious Ecotec race build:

How much confidence should we place in retaining unnecessary balance shaft sprockets, bearings, and rotating components at sustained speeds far beyond the normal street-driving duty cycle?

For BK Racing, this is one of the strongest reasons to evaluate the balance shaft system as a racing reliability issue—not merely as a source of potential parasitic loss.

Why Do Ecotec Builders Delete the Balance Shafts?

The traditional answer is often:

“To free up horsepower.”

That answer is incomplete.

The factory balance shaft system contains components the engine must drive, support, and lubricate. Depending on the configuration, the system includes:

counterweighted rotating shafts
sprockets
chain-drive components
guides
tensioning hardware
bearings
oil-fed internal components

For a production vehicle, that system exists to improve refinement.

For a performance or racing engine, builders may choose to eliminate the balance shaft function for broader reasons:

removing unnecessary high-speed rotating components
reducing internal complexity
eliminating balance shaft drive components
reducing the number of potential failure points
simplifying a purpose-built engine
eliminating an NVH-focused system that is no longer a priority
configuring the engine around sustained high-RPM use

The horsepower discussion may still be relevant, but it should not overshadow the mechanical reality.

In racing, reliability and system architecture matter.

What Is an Ecotec Balance Shaft Delete?

The term “balance shaft delete” is used to describe several very different modifications.

A builder may:

cut the factory balance shafts
modify the factory shafts
install neutral balance shafts
stop driving portions of the factory system
completely remove the balance shaft assemblies
retain factory bearings and install delete sleeves
use a short-chain arrangement that eliminates the need to drive the balance shaft system

These methods may all remove the original counterbalancing effect.

They do not create the same mechanical result.

The important questions are:

Is the factory counterbalancing function gone?
What components remain inside the engine?
What components continue rotating?
At what speed are those components rotating?
How are the remaining oil passages managed?
What new loading conditions has the modification created?

This is why the delete method matters.

Does Removing the Ecotec Balance Shafts Cause Noticeable Vibration?

This is one of the most common concerns surrounding an Ecotec balance shaft delete, and years of forum discussion have made the issue sound far more dramatic than many owners actually experience.

The engineering principle is straightforward.

The inline-four engine has an inherent second-order vibration characteristic. The factory counterweighted balance shafts create an opposing correction intended to reduce that vibration.

When the counterbalancing function is eliminated, the factory correction is gone.

That is true whether the builder:

cuts the factory shafts
installs neutral balance shafts
completely removes the shafts
uses another true delete method
or installs the BK Racing Short Chain Balance Shaft Delete

The critical point is:

Once the counterbalancing function has been eliminated, the factory vibration correction has been eliminated.

The method used may create major mechanical differences, but it does not somehow preserve the original counterbalancing function after that function has already been removed.

This is why claims that a true delete will automatically create dramatically more vibration than neutral shafts, cut shafts, or another method need to be examined carefully.

If none of those methods retains the original timed counterweighted correction, then none is still providing the factory vibration-canceling effect.

What Does Real-World Street Experience Show?

Real-world experience does not always match the warnings repeated online.

BK Racing has seen many performance-oriented street customers, including turbocharged Ecotec owners, move forward with balance shaft elimination despite being warned that the vehicle would develop severe or objectionable vibration.

Many have been completely satisfied.

They are not returning with complaints that the vehicle suddenly became unpleasant to drive. They are not reporting that the car became unusable on the street. In many cases, the feared vibration problem simply has not materialized in the dramatic way forum discussions predicted.

That experience matters.

This does not mean the factory balance shafts serve no purpose. They do.

It means there is an important difference between:

a measurable change in vibration characteristics

and

a vibration increase the driver actually notices or considers objectionable

Those are not automatically the same thing.

Modified street and turbo cars also operate in a different environment than the original production vehicle. They may already use:

stiffer engine mounts
solid mounts
performance exhaust systems
aggressive clutches
modified suspension
increased engine output
altered idle characteristics
reduced interior insulation

For many performance-oriented owners, the practical effect of removing the factory balance shaft correction has been far less dramatic than the old forum narrative suggests.

Why Cutting the Factory Ecotec Balance Shafts Is a Serious Racing Concern

One older modification is to cut the factory balance shafts while retaining the sprocket and a portion of the original shaft assembly.

At first glance, this can look like a simple solution.

The counterweighted portion is removed. The original vibration correction is eliminated. The remaining sprocket can continue operating.

But mechanically, this can create a serious problem.

The original shaft was designed as a complete rotating assembly. When the shaft is cut, the remaining sprocket and shaft section no longer operate with the same support and loading arrangement GM designed.

Removing the shaft section can place additional side force and bearing load on the remaining sprocket assembly.

Now combine that altered loading condition with the speed relationship discussed earlier.

At 7,000 crankshaft RPM, the remaining balance shaft sprocket arrangement can be operating around:

14,000 RPM

At 8,000 crankshaft RPM:

16,000 RPM

At 9,000 crankshaft RPM:

18,000 RPM

This is why BK Racing views cutting the factory balance shafts as a major risk in a racing application.

The modification may eliminate the counterweight, but it can leave behind:

an extremely high-speed rotating sprocket
retained bearing interfaces
altered shaft support
increased side loading
components operating at twice crankshaft speed
a potential failure point inside the engine

Failures have occurred where the sprocket has come off the remaining cut-shaft arrangement.

For a dedicated race engine, BK Racing considers cut balance shafts a ticking time bomb.

The issue is not that cutting the shafts causes more vibration than another delete method.

The issue is that the modification can leave a mechanically compromised, extremely high-speed sprocket and bearing arrangement inside the engine.

Neutral Balance Shafts: Better Than Cutting, but the High-Speed Bearing System Remains

Neutral balance shafts are a more complete mechanical approach than simply cutting off the factory shafts.

A properly designed neutral shaft can retain a supported shaft arrangement while eliminating the original counterweighted second-order correction.

This avoids the same altered support condition created by cutting the shaft.

That is an important distinction.

However, neutral shafts do not eliminate every racing concern.

The neutral shaft assembly still uses the balance shaft bearing architecture, and the system can still operate at approximately twice crankshaft speed.

At:

7,000 crank RPM, approximately 14,000 shaft RPM
8,000 crank RPM, approximately 16,000 shaft RPM
9,000 crank RPM, approximately 18,000 shaft RPM

So while neutral shafts can eliminate the original counterbalancing effect without creating the same cut-shaft loading condition, the engine is still relying on a high-speed shaft and bearing system.

For a race engine spending sustained time at high RPM, that matters.

The question becomes:

If the engine no longer needs the factory counterbalancing correction, why continue spinning a neutral shaft and its bearing system at twice crankshaft speed?

That is the limitation of the neutral-shaft approach.

Cut Shafts, Neutral Shafts, and True Deletes: What About Vibration?

This distinction is important.

A cut shaft eliminates the original counterweighted correction.

A neutral shaft eliminates the original counterweighted correction.

A true delete eliminates the original counterweighted correction.

The BK Racing Short Chain Balance Shaft Delete eliminates the original counterweighted correction.

Therefore, the meaningful differences between these systems are primarily mechanical—not a claim that one method magically retains factory vibration correction after the counterbalancing function has already been removed.

Once the counterweighted second-order correction is gone, it is gone.

The real questions become:

What remains rotating?
What remains supported by bearings?
What is still operating at twice crankshaft speed?
What loading conditions exist?
What failure points remain?
How is the oiling system managed?

That is where the delete methods separate themselves.

Why the BK Racing Short Chain Balance Shaft Delete Is the Preferred Racing Solution

The BK Racing Short Chain Balance Shaft Delete was developed around the larger racing problem.

The goal is not simply to eliminate the factory vibration correction.

Cut shafts can do that.

Neutral shafts can do that.

The goal is to eliminate the need to continue operating unnecessary balance shaft components at extreme rotational speed.

The BK Racing Short Chain Balance Shaft Delete removes the balance shaft system from the drive strategy while maintaining the timing-chain function the engine requires.

For a high-RPM race engine, this directly addresses the concern of leaving balance shaft components operating at:

14,000 RPM
16,000 RPM
18,000 RPM

depending on engine speed.

The advantages are mechanical:

no cut-shaft high-speed sprocket arrangement
no altered cut-shaft side-loading concern
no neutral balance shaft assembly continuing to spin at twice crankshaft speed
fewer unnecessary high-speed rotating components
reduced reliance on the original balance shaft bearing system
a solution better aligned with sustained high-RPM competition use

This is why BK Racing considers the Short Chain Balance Shaft Delete the preferred solution for racing applications.

The key point is not that it somehow prevents vibration while every other method causes it.

The key point is that it eliminates the unnecessary high-speed balance shaft drive problem rather than modifying it and leaving major portions of it operating inside the engine.

What About Complete Balance Shaft Removal?

Complete shaft removal is another true-delete strategy.

When the balance shaft assemblies are physically removed, the builder eliminates the rotating shafts entirely.

However, this creates another issue that must be handled correctly:

The oiling system.

The Ecotec balance shaft system is integrated into the engine’s lubrication architecture. The factory shaft and bearing locations interact with oil passages designed around the original components.

Removing the shafts without understanding those oil paths is not a complete delete strategy.

The builder must address what remains after the shaft assemblies are gone.

This is where purpose-built delete sleeves become relevant.

Why Oiling Matters During Complete Balance Shaft Removal

Simply pulling the shafts out and reassembling the engine can create problems.

The balance shaft bearing locations and associated oil passages were designed around the factory system. Once the shafts are removed, the builder must understand how oil is controlled through the remaining locations.

An improperly handled delete can create an uncontrolled oil leak path or otherwise change internal oil distribution.

Potential consequences can include:

unnecessary internal oil leakage
reduced oil pressure
altered oil distribution
bearing protection concerns
long-term reliability problems

This is why a complete balance shaft delete should never be treated as:

“Pull the shafts out and put the engine back together.”

The oiling strategy is part of the modification.

How the BK Racing Inner Balance Shaft Delete Sleeve Method Works

For builders performing complete shaft removal, BK Racing developed inner balance shaft delete sleeves designed to work with the retained factory bearings.

The factory bearings remain in their existing positions, and the delete sleeves install into the inner bearing races.

This allows the existing bearing locations to become part of the delete strategy.

The BK Racing sleeves include practical features designed around actual installation.

Tapered Lead-In

The sleeves use a tapered design to help them start square as they enter the factory bearing race.

This is especially valuable because the inner bearing locations can be difficult to access directly.

Threaded Center

The sleeves are threaded through the center.

This provides installation and removal options using suitable threaded tooling, threaded rod, or an appropriate slide-hammer arrangement.

Practical Installation

A common installation method is to secure the sleeve to a large socket using tape and attach the socket to a suitable extension.

This gives the installer the reach needed to guide the sleeve into the inner bearing race.

Freezing the sleeves before installation can also help by temporarily reducing their dimensions slightly.

The goal is controlled installation and proper alignment.

Why Retain the Factory Balance Shaft Bearings?

Retaining the factory bearings can simplify the complete-delete strategy because the builder is working with components already positioned in the block.

Instead of removing the bearings and developing another method for managing the remaining locations, the inner sleeve approach uses the existing bearing races as part of the solution.

This can make sense when:

the factory bearings are in good condition
the bearings remain correctly positioned
the builder wants complete shaft removal
the engine is already being disassembled deeply enough for the work

Inspection still matters.

Damaged, displaced, or questionable bearings should not automatically be considered suitable simply because sleeves are being installed.

How Much Does a Balance Shaft Delete Cost?

The cost of a balance shaft delete depends on the method you choose and how much supporting work the build requires.

A simple cut-shaft modification may appear inexpensive up front, but it can carry higher mechanical risk.

Neutral balance shafts, complete balance shaft removal, and short-chain delete kits each involve different parts, labor, and installation considerations.

The real cost question is not only the price of the parts.

Builders should also consider the cost of proper oiling management, the condition of retained components, and whether the chosen method fits the intended RPM range and reliability goals.

The cheapest option is not always the best option for a performance Ecotec build.

Does an Ecotec Balance Shaft Delete Add Horsepower?

This question deserves a careful answer.

The balance shaft system contains driven rotating components. Changing or eliminating those components changes what the engine must drive and accelerate.

However, BK Racing does not believe this modification should be marketed around exaggerated guaranteed horsepower claims.

The measurable difference can depend on:

engine speed
delete method
components retained
whether shafts continue rotating
engine configuration
testing method

A cut-shaft arrangement, neutral shaft system, complete shaft removal, and short-chain delete are mechanically different.

They should not automatically be expected to produce identical results.

The stronger racing argument is often:

eliminating unnecessary high-speed rotating components
reducing internal complexity
removing potential failure points
eliminating a system no longer needed for the application
configuring the engine around sustained high-RPM use

Any horsepower benefit should be considered in the context of the actual system being removed.

Does a Balance Shaft Affect Engine Performance?

Yes. Balance shafts affect engine performance in more than one way.

On a production Ecotec, balance shafts improve refinement by reducing the vibration the driver feels through the chassis.

On a performance build, they also add rotating mass, moving parts, and a system that must be driven at speed.

That means the effect of the balance shaft system depends on the application.

In a daily driver, it can improve comfort and drivability.

In a high-RPM race engine, the same system may be less desirable because it adds unnecessary complexity and high-speed rotating components.

The right choice depends on how the engine is actually used.

Is a Balance Shaft Delete Only for Race Cars?

No.

Dedicated race engines are an obvious application because production-car NVH refinement is usually a low priority.

But balance shaft deletes are also successfully used in modified street and turbocharged Ecotec vehicles.

BK Racing has seen customers move forward despite years of warnings that deleting the balance shaft correction would make the vehicle unpleasant to drive.

Many have been completely satisfied.

Street use alone should not automatically disqualify a balance shaft delete.

The decision should consider:

engine configuration
vehicle use
mount setup
performance goals
stage of engine assembly
owner expectations

The old assumption that removing the balance shaft correction automatically makes an Ecotec unsuitable for street driving does not match the experience of many owners who have actually done it.

Is the Ecotec 2.4 an Interference Engine?

The Ecotec 2.4 is commonly discussed in the context of engine swaps, rebuilds, and performance modifications, but interference-engine questions are separate from balance shaft delete selection.

If you are planning a balance shaft delete during a teardown, it is still important to verify the exact engine variant and condition before disassembly and reassembly.

For a delete job, the critical issue remains the condition of the internal components and the oiling strategy, not just the engine’s displacement.

Which Ecotec Balance Shaft Delete Method Should You Choose?

The correct answer depends on the build.

For a High-RPM Race Engine

BK Racing prefers eliminating the unnecessary high-speed balance shaft drive problem rather than cutting the factory shafts or continuing to spin neutral shafts at twice crankshaft speed.

For many racing applications, the BK Racing Short Chain Balance Shaft Delete is the preferred solution.

For a Bare-Block Competition Build

Complete shaft removal may make sense, particularly when the engine is already fully disassembled and the remaining oiling system can be addressed correctly with a purpose-built strategy such as delete sleeves.

For a Modified Street or Turbo Build

The decision depends on the stage of assembly, intended RPM range, and how much engine disassembly is practical.

The important point is not to choose a method based solely on old forum claims about vibration.

Choose based on the actual mechanical system that remains afterward.

The BK Racing Approach

BK Racing works with Ecotec engines in real performance and racing applications.

Our position is straightforward:

Cutting the factory balance shafts is not a solution we recommend for racing.

The combination of:

altered shaft support
additional side loading
retained high-speed sprocket components
original bearing architecture
operation at approximately twice crankshaft speed

creates a failure risk we do not believe belongs in a serious race engine.

Neutral shafts are a more mechanically complete approach than cutting the shafts, but they still leave the engine operating a shaft and bearing system at extreme rotational speed.

For high-RPM racing applications, the BK Racing Short Chain Balance Shaft Delete addresses the larger problem by eliminating the need to continue driving the balance shaft system.

For builders performing complete shaft removal, BK Racing inner delete sleeves provide another strategy for addressing the retained factory bearing locations and oiling considerations.

Different builds may require different approaches.

But the decision should be based on mechanical reality—not fear, folklore, or an oversimplified horsepower claim.

Final Thoughts

The GM Ecotec balance shaft system was designed to solve a legitimate production-engine problem.

The inline-four engine produces an inherent second-order vibration characteristic, and the factory counterweighted shafts generate an opposing correction to improve refinement.

For a production street vehicle, that makes sense.

For a high-RPM race engine, the duty cycle is radically different.

At 7,000 crankshaft RPM, the balance shaft system can be operating around 14,000 RPM.

At 8,000 crankshaft RPM, around 16,000 RPM.

At 9,000 crankshaft RPM, around 18,000 RPM.

That is why the method matters.

Cutting the shafts may eliminate the counterweight, but it can leave a high-speed sprocket and bearing arrangement operating under altered support and side-loading conditions. In racing, BK Racing considers that a ticking time bomb.

Neutral shafts avoid the same cut-shaft support problem, but they still retain a shaft and bearing system operating at approximately twice crankshaft speed.

Complete removal eliminates the shafts but requires the builder to correctly address the remaining oiling system.

The BK Racing Short Chain Balance Shaft Delete addresses the racing problem differently:

Stop driving an unnecessary balance shaft system at extreme rotational speed.

And despite years of forum warnings, real-world experience from many modified street and turbocharged Ecotec owners shows that eliminating the factory counterbalancing correction does not automatically create an objectionable vibration problem.

The real question is not simply:

“Should I delete the balance shafts?”

It is:

“What method removes the problem without leaving a new one behind?”

For serious high-RPM racing applications, that is exactly why BK Racing developed and recommends the Short Chain Balance Shaft Delete.

Continue Learning: What Does an Ecotec Balance Shaft Delete Actually Change?

Understanding how the GM Ecotec balance shaft system works is the first step in deciding whether a balance shaft delete is right for your engine. As you've learned, GM engineered the system to reduce second-order engine vibration and improve refinement in production vehicles. However, the demands placed on a dedicated race engine are very different from those of a daily driver, which is why many performance builders choose to remove the balance shaft assembly entirely.

Not all balance shaft deletes are the same. Cut shafts, neutral balance shafts, complete balance shaft removal, and short-chain delete systems each affect the engine differently. Choosing the right approach depends on your performance goals, intended use, and how the engine will be operated.

Whether you're performing a complete balance shaft delete or a short-chain conversion, selecting the correct components is just as important as understanding the modification itself. Depending on your chosen method, you may need BK Racing Complete Balance Shaft Delete Kit, Outer Balance Shaft Bushings, Inner Balance Shaft Delete Sleeves, Modified Upper Short Chain Guide, Shortened Water Pump Chain, and other supporting components to complete the installation properly. If you're performing a complete delete, don't forget to add the BK Racing Inner Balance Shaft Delete Sleeves to your order—they're a required part of a proper installation.

The next guide explores what actually changes after removing the balance shaft assembly, including rotating mass, parasitic losses, vibration, engine reliability, and why balance shaft deletes have become a common modification in naturally aspirated, turbocharged, supercharged, and circle track GM Ecotec engines.

Continue Reading

Tags:

Engine Building
