GM Ecotec Cloyes Timing Chain & Short-Chain Balance Shaft Delete Kit

Cloyes upper timing components with a short-chain balance shaft delete

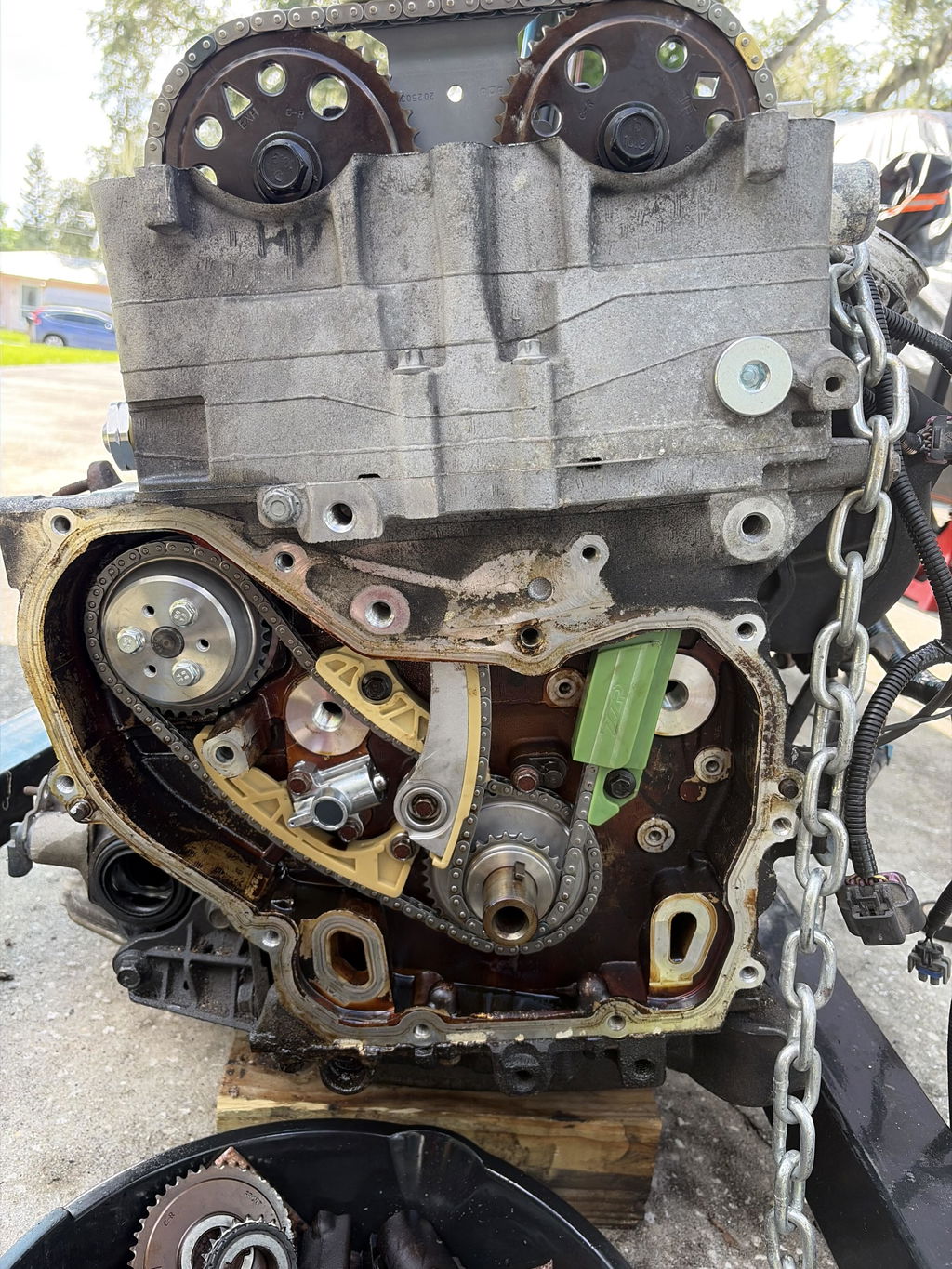

This BK Racing package combines Cloyes upper timing components with a short-chain water-pump drive conversion for compatible GM Ecotec builds. The delete layout removes both balance shafts and their sprockets while retaining the mechanical water pump.

The upper camshaft timing chain and shortened water-pump chain perform separate jobs. The short chain does not drive the oil pump.

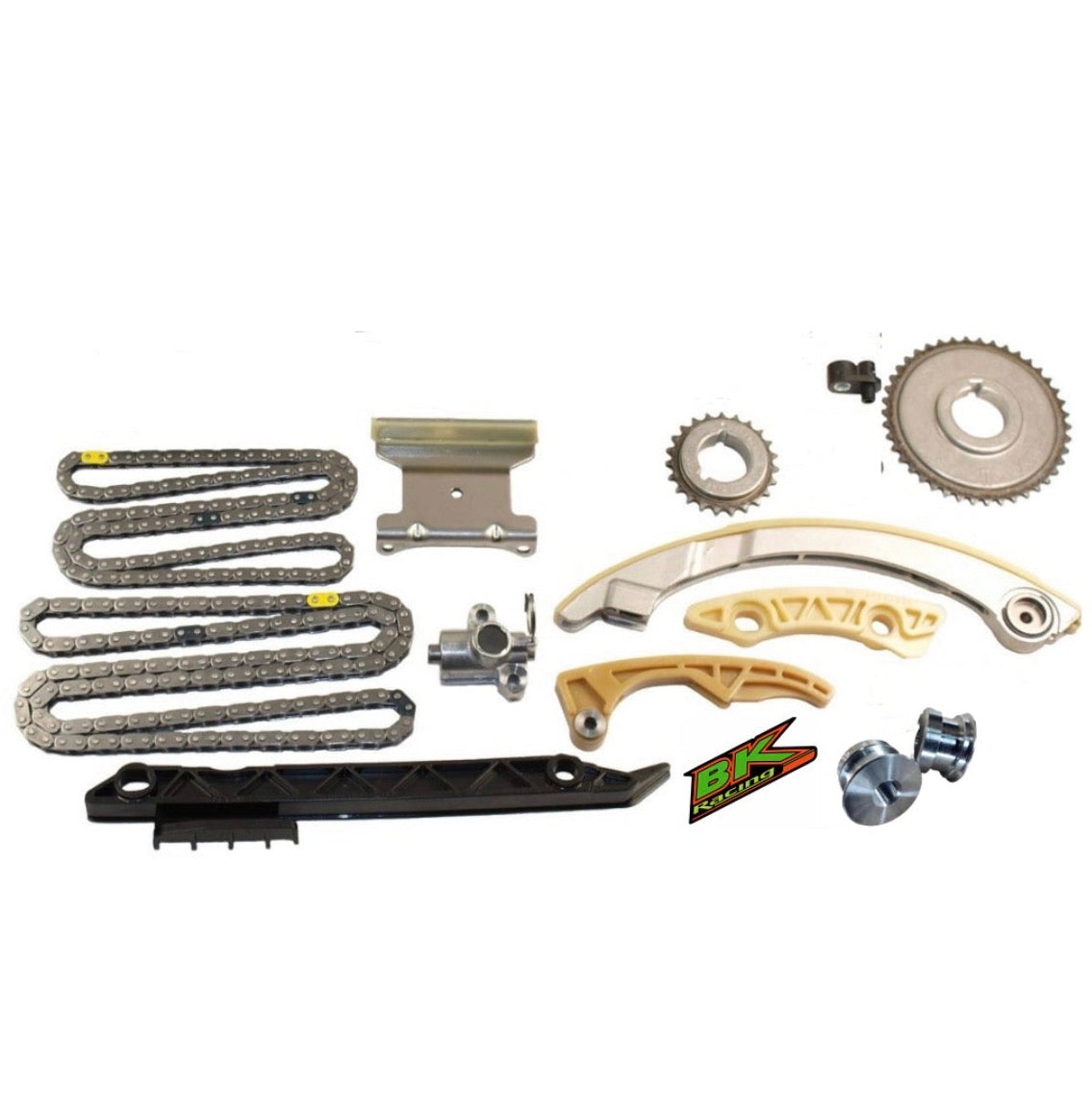

Base kit contents

• Cloyes Primary Timing Chain
• 2 Timing Chain Guides
• Top Timing Chain Guide
• Timing Chain Crank Sprocket
• Shortened Water Pump Chain
• Outer Balance Shaft Delete Sleeves
• Modified Balance Shaft Guide
• Chain Oiler
• Water Pump Chain Tensioner
• Water Pump Chain Sprocket

Cam gears are not included. Verify VVT/non-VVT requirements and the exact engine application before ordering.

Oil-passage blocking

Inner sleeves are sold separately. Follow the correct oil-passage blocking procedure for the components used in your build. BK Racing inner delete sleeves provide an option that leaves the factory inner bearing races in place.

Fitment and installation

Confirm the engine code, block and cylinder-head generation, timing components and water-pump drive layout. Professional installation is recommended. Check guide alignment, chain routing, tensioner operation, oil-passage sealing and engine timing before startup.

Removing the factory balancing system can change vibration. No specific horsepower increase is guaranteed. Off-road and competition use only. Ask BK Racing about your combination before ordering if fitment is uncertain.
