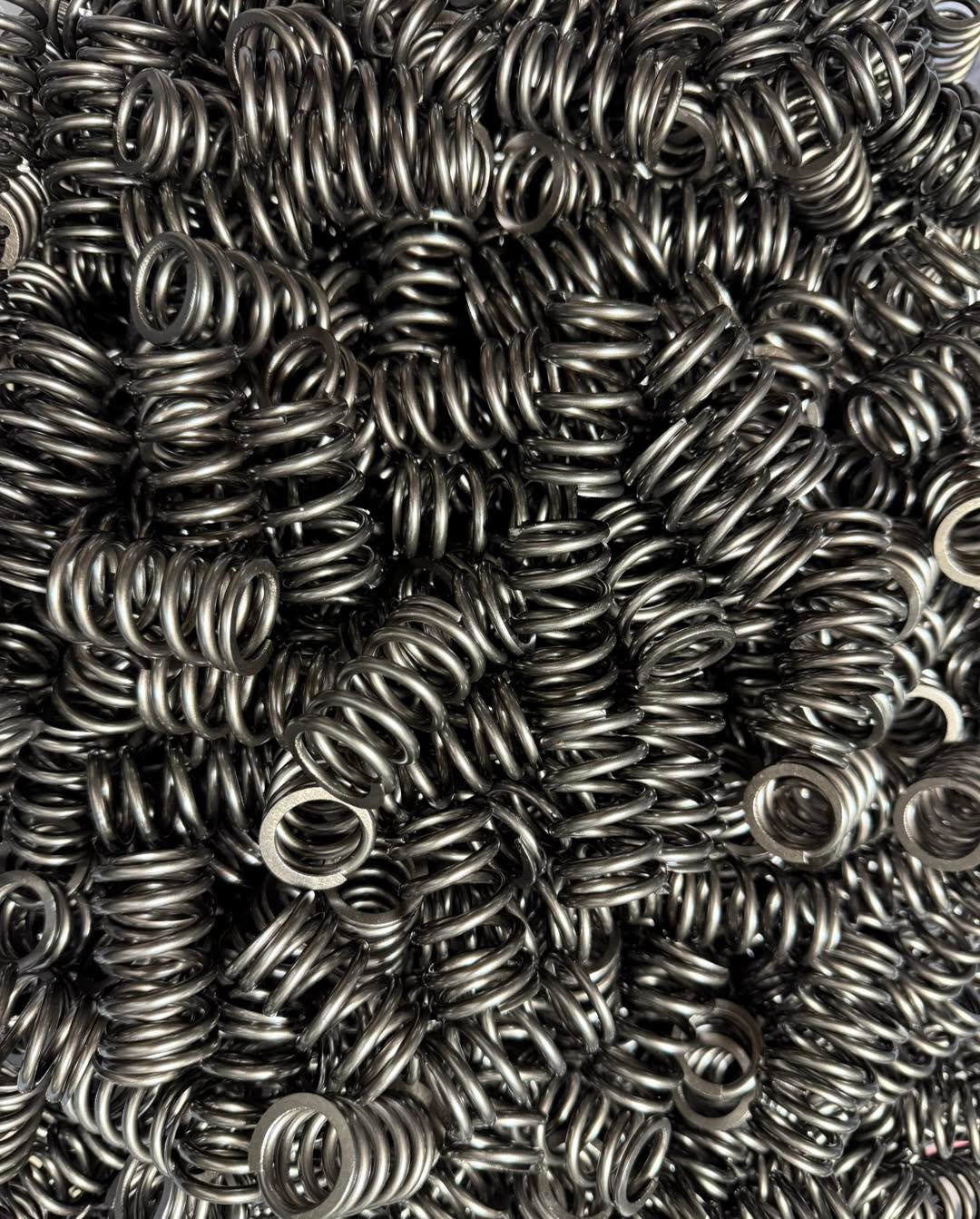

GM Ecotec Valve Springs: The Complete Performance Guide

Valve springs are one of the most important—and frequently misunderstood—components in a GM Ecotec valvetrain.

Whether you are building a stock replacement 2.2L L61, a naturally aspirated 2.4L LE5 circle-track engine, a supercharged LSJ, a turbocharged LNF, or an aggressive camshaft combination, the valve spring has one fundamental job:

Keep the valve, rocker/follower, lash adjuster, and camshaft operating as a controlled system throughout the entire valve event.

That becomes increasingly difficult as engine RPM, valve lift, camshaft acceleration, boost pressure, and valvetrain demands increase.

Choosing Ecotec camshaft valve springs based only on their advertised seat pressure can therefore be misleading. A complete valve spring evaluation should consider installed height, seat pressure, open pressure, spring rate, available travel, coil bind, retainer-to-seal clearance, camshaft profile, valvetrain mass, RPM, and intended use.

This guide explains those measurements and relationships so Ecotec builders can make informed decisions instead of simply choosing the spring with the largest advertised pressure number.

BK Racing developed the BK Racing 83 lb Ecotec Valve Springs, BK Racing Titanium Valve Spring Retainers, BK Racing Extra-Clearance Spring Seats, and BK Racing Press-On Viton Valve Seals around these same principles.

What Does a Valve Spring Actually Do?

The valve spring does considerably more than close the valve.

As a camshaft rotates, the cam lobe accelerates the valvetrain away from the valve seat, brings the valve toward maximum lift, reverses its direction, and then controls its return toward the seat.

The spring must maintain sufficient force throughout this event to keep the valvetrain following the intended camshaft motion.

At lower engine speeds, this is relatively easy.

As RPM increases, the amount of time available for each valve event decreases dramatically. The valve, retainer, rocker/follower and other moving components must accelerate and change direction increasingly quickly.

If the spring can no longer maintain control, the actual motion of the valvetrain can begin deviating from the motion commanded by the camshaft.

The result can include:

Valve float
Valve bounce
Rocker or follower instability
Inconsistent valve seating
Loss of high-RPM power
Increased valvetrain stress
In severe cases, mechanical damage

This is why valve spring selection becomes increasingly important as an Ecotec engine is modified for higher RPM or more aggressive camshafts.

Understanding GM Ecotec Valve Spring Specifications

Valve springs are commonly advertised using one pressure number.

For example:

83 lb valve spring

94 lb valve spring

That number by itself tells only a small part of the story.

To properly compare valve springs, you need to understand several measurements together.

Installed Height

Installed height is the distance occupied by the valve spring when the valve is fully closed and the spring is installed between its seat and retainer.

Spring pressure depends directly on this dimension.

The BK Racing spring, for example, is specified at:

83 lb @ 1.325" installed height.

Without the installed height, simply saying a spring produces 83 lb of seat pressure provides incomplete information.

A spring installed shorter will generally produce more seat pressure. Installed taller, it will generally produce less.

Cylinder-head machining, valve-seat work, valves, retainers, spring seats and other changes can alter installed height.

That is why installed height should be verified when building a performance cylinder head.

Seat Pressure vs. Open Pressure

Seat Pressure

Seat pressure is the force exerted by the spring when the valve is closed.

Adequate seat pressure helps keep the valve seated and maintains valvetrain stability as the valve approaches and leaves the seat.

Open Pressure

Open pressure is the spring force at a specified amount of valve lift.

For the BK Racing spring:

Seat pressure: 83 lb @ 1.325" installed height

Open pressure: approximately 230 lb @ .500" lift

This illustrates why comparing springs only by seat pressure can be misleading.

Two springs might both produce approximately 82–83 lb at their specified installed heights while producing substantially different pressures as valve lift increases.

The spring must control the valvetrain throughout the entire valve event, not just when the valve is closed.

Understanding Valve Spring Rate

Spring rate describes how quickly spring force increases as the spring is compressed.

A conventional linear spring might gain approximately the same amount of force for every additional increment of compression. Progressive designs can behave differently as they move through their travel.

The BK Racing 83 lb spring uses a progressive oval-wire design with an effective rate of approximately 294 lb/in through the relevant operating range. BK Racing's published specifications list approximately 230 lb of open pressure at .500" lift. BK Racing

This is another reason seat pressure cannot be evaluated in isolation.

The questions should be:

How much pressure does the spring have when the valve is closed?

and

How much pressure does it develop as the valve approaches maximum lift?

What Is Valve Spring Coil Bind?

Coil bind occurs when a valve spring is compressed to the point that its coils can no longer move closer together.

This represents a mechanical limit, not an acceptable operating point.

An engine should never be intentionally operated with the spring reaching coil bind.

There must be adequate clearance between the spring's operating height at maximum valve lift and its coil-bind height.

This distinction becomes extremely important when comparing advertised maximum-lift specifications.

Mechanical Travel Is Not Recommended Valve Lift

Suppose a spring assembly physically has enough travel to reach a particular lift before something mechanically contacts.

That does not automatically mean the engine should be operated at that lift.

A properly engineered maximum-lift recommendation should account for a safety margin.

This is why BK Racing advertises the 83 lb spring at a conservative:

.520" (Conservative) maximum recommended valve lift

rather than simply advertising the largest number the assembly can physically achieve.

In BK Racing's testing, the spring itself has demonstrated approximately .567" of mechanical travel in the appropriate configuration, but that is not the same thing as recommending .567" operating lift.

That distinction matters.

Coil Bind Isn't the Only Lift Limitation

A common mistake is assuming that if the spring doesn't reach coil bind, the valvetrain has adequate clearance.

There are several potential mechanical limitations that must be considered.

These include:

Spring coil bind
Retainer-to-valve-seal clearance
Retainer-to-guide clearance
Spring-seat configuration
Rocker/follower clearance
Installed height
Piston-to-valve clearance

Whichever component reaches its safe limit first determines the practical limit of the combination.

This is one reason BK Racing developed complementary Extra-Clearance Spring Seats and Press-On Viton Valve Seals rather than treating the spring as an isolated component.

What Is Valve Float?

Valve float occurs when the valvetrain can no longer accurately follow the motion commanded by the camshaft.

As RPM increases, the moving components of the valvetrain must accelerate and decelerate more rapidly.

Eventually, an insufficient spring or an unsuitable combination can lose control.

But the first symptom is not necessarily a dramatic valve hanging open.

Ecotec valvetrain instability can appear as:

Rocker/follower unloading
Valve bounce
Inconsistent valve seating
High-RPM power loss
Unstable valvetrain motion
Rocker displacement

BK Racing has observed these types of issues in high-RPM Ecotec applications, which was one of the reasons we began developing our own valvetrain components.

Valve Float, Valve Bounce and Spring Surge Are Not the Same Thing

These terms are frequently used interchangeably, but they describe different phenomena.

Valve Float

The valvetrain loses accurate control relative to the intended camshaft motion.

Valve Bounce

The valve reaches the seat but does not remain cleanly seated. It can rebound before stabilizing.

Spring Surge

Oscillations travel through the valve spring itself, producing dynamic behavior that can interfere with consistent valve control.

A spring therefore needs more than adequate static pressure.

Its geometry, rate, mass, construction and dynamic behavior all influence its ability to control the valvetrain.

This is one reason the stiffest spring is not automatically the best spring.

How RPM Affects Ecotec Valve Spring Requirements

Increasing RPM dramatically increases the demands placed on the valvetrain.

At higher engine speeds, the same valve motion must occur in less time.

That requires increasingly rapid acceleration and deceleration of the valve and associated valvetrain components.

A factory spring designed around a production engine's expected operating range may therefore become inadequate when that engine is operated continuously at racing RPM.

This is particularly relevant in circle-track racing.

An engine that occasionally touches a particular RPM during a street pull is experiencing a very different duty cycle from an engine that repeatedly operates near its upper RPM range lap after lap.

Spring selection should therefore consider both maximum RPM and how the engine is actually used.

Matching Ecotec Valve Springs to Camshafts

RPM is only one factor.

The camshaft itself can dramatically change spring requirements.

Three characteristics deserve particular attention:

Valve Lift

Additional valve lift compresses the spring farther.

That:

Increases open pressure
Reduces remaining spring travel
Reduces coil-bind clearance
Reduces retainer-to-seal clearance

Duration

Duration influences how long the valve remains open and is one part of the overall valve-motion profile.

However, duration by itself does not determine spring requirements.

Lobe Aggressiveness

This is frequently overlooked.

Two camshafts can have similar maximum lift while accelerating the valve very differently.

A more aggressive lobe can require the valvetrain to accelerate and change direction more rapidly.

Therefore:

Two .500" lift camshafts do not necessarily require the same valve spring.

The entire cam profile matters.

Why Maximum Camshaft Lift Must Be Checked

A camshaft advertised at a particular valve lift should not automatically be considered compatible with a spring simply because the spring manufacturer advertises the same maximum lift.

The complete installed combination needs to be considered.

Before operating a performance Ecotec cylinder head, builders should verify the relevant mechanical clearances for their particular combination.

Changes such as:

Cylinder-head decking
Valve jobs
Replacement valves
Different retainers
Different spring seats
Different valve seals
Camshaft changes

can alter the final geometry or available clearance.

Single vs. Dual Ecotec Valve Springs

Another common assumption is that a dual valve spring is automatically superior to a single spring.

That isn't necessarily true.

Dual springs can offer advantages for certain combinations, particularly where very high loads, aggressive profiles, or specific harmonic-control requirements exist.

But they can also introduce:

Additional mass
More components
Different retainers
Different spring seats
Seal-clearance considerations
Additional installation requirements
Higher cost

A properly designed single spring can provide substantial pressure and travel while maintaining a simpler package.

The correct question isn't:

Single or dual—which is better?

It is:

Which spring system provides the required valve control, pressure, travel, clearance and durability for the actual engine combination?

Drop-In vs. Modified Ecotec Valve Spring Systems

The term drop-in valve spring can also be misleading.

A spring physically fitting into an Ecotec cylinder head doesn't automatically mean every camshaft, retainer, seal and installed-height combination will have adequate clearance.

A true performance installation should still verify:

Installed height
Seat pressure
Maximum lift
Coil-bind clearance
Retainer clearance
Seal clearance
Rocker/follower clearance

This becomes increasingly important as valve lift increases.

Comparing Popular GM Ecotec Valve Springs

The Ecotec aftermarket has offered several spring combinations over the years.

These have included factory springs, aftermarket single springs and dual-spring systems from companies such as BK Racing, ZZPerformance, Supertech and Racing Engine Technologies.

Published specifications vary considerably—and sometimes the specifications manufacturers choose to publish make direct comparisons difficult.

For example, ZZPerformance currently advertises its 82 lb Ecotec spring as compatible with 2.0L, 2.2L and 2.4L Ecotec engines and publishes 82 lb seat pressure and 200 lb at .420" lift. ZZPerformance

Historical Ecotec discussions also show racers comparing 76 lb and 94 lb Supertech dual-spring systems against 82 lb single-spring alternatives, demonstrating that this debate has existed in the Ecotec community for years. Cobaltss

But comparing these systems by their names alone—76 lb, 82 lb, 83 lb or 94 lb—doesn't tell us which is appropriate for a particular engine.

A useful comparison requires actual specifications.

Why Spring Pressure Alone Doesn't Tell the Whole Story

This may be the most important lesson in this guide.

Consider two hypothetical springs:

Spring A: 83 lb

Spring B: 94 lb

It would be easy to assume Spring B provides better valvetrain control simply because 94 is greater than 83.

That conclusion ignores almost everything else about the spring.

A proper comparison should consider:

Installed height
Seat pressure
Open pressure
Spring rate
Coil-bind height
Usable travel
Recommended maximum lift
Retainer mass
Spring mass and construction
Retainer-to-seal clearance
Camshaft profile
RPM
Valvetrain mass
Engine application

Spring pressure matters.

It simply isn't the only thing that matters.

Naturally Aspirated vs. Boosted Ecotec Valve Spring Requirements

Boosted engines introduce another consideration.

Intake manifold pressure acts across the exposed area of the intake valve and can contribute additional opening force against the valve.

However, spring selection still shouldn't be reduced to a rule such as:

More boost = buy the highest-pressure spring available.

Camshaft profile, RPM, valve mass, intended boost level, valvetrain geometry and the complete spring package still need to be considered.

The appropriate spring is the one that provides adequate control for the combination without introducing unnecessary spring load.

Why Excessive Spring Pressure Isn't Automatically Better

If insufficient spring pressure can cause problems, it can be tempting to assume that more pressure is always safer.

It isn't.

Additional spring pressure increases loads throughout the valvetrain.

Depending on the system, unnecessary spring pressure can increase loading on:

Camshaft lobes
Rockers/followers
Lash adjusters
Valve stems
Valve seats
Timing components

The engineering goal should therefore be:

Enough spring to maintain control—with appropriate safety margin—not simply the stiffest spring that physically fits.

Choosing Ecotec Valve Springs for Street and Performance Builds

A relatively stock Ecotec operating near its intended factory RPM range has very different requirements from a purpose-built race engine.

When choosing springs, consider:

Engine family
Camshaft
Maximum valve lift
Intended RPM
Naturally aspirated or boosted operation
Retainer
Valve mass
Installed height
Spring seat
Valve seal
Intended duty cycle

A street engine that occasionally sees elevated RPM is not the same application as a circle-track engine spending significant time near peak RPM.

Choosing Ecotec Valve Springs for Circle Track Racing

Circle-track engines create a particularly demanding valvetrain environment.

The engine can spend long periods at elevated RPM while repeatedly accelerating and decelerating throughout a race.

That means spring performance must be considered over repeated cycles rather than only during a brief dyno pull.

For a racing application, we are particularly concerned with:

Sustained RPM
Valve control
Heat cycles
Spring fatigue
Camshaft aggressiveness
Rocker/follower stability
Consistency throughout an event
Long-term durability

This racing environment heavily influenced BK Racing's approach to Ecotec valve spring development.

The BK Racing 83 lb Ecotec Valve Spring

BK Racing developed its 83 lb spring around the requirements we were encountering in real Ecotec performance and racing combinations.

The objective wasn't to create the largest seat-pressure number.

It was to develop a practical single-spring package capable of providing strong valve control, substantial usable travel, and compatibility with the Ecotec valvetrain.

Current published specifications include:

Specification	BK Racing 83 lb Spring
Seat Pressure	83 lb @ 1.325"
Open Pressure	Approx. 230 lb @ .500"
Effective Spring Rate	Approx. 294 lb/in
Recommended Maximum Lift	.520" (Conservative)
Construction	Progressive oval wire
Surface Treatment	Nitride treated
Configuration	Single spring

These are the specifications BK Racing currently publishes for the product. BK Racing

The important part isn't any single number.

It's the combination.

Why BK Racing Advertises .520" Maximum Lift

We intentionally advertise the BK Racing spring at a conservative .520" recommended maximum lift.

That isn't because .520" represents the absolute point where the spring physically stops moving.

Our development work has demonstrated greater mechanical travel in the appropriate configuration.

But mechanical limit and recommended operating limit are two different specifications.

We would rather publish a usable specification that incorporates reasonable clearance than advertise the largest number we can generate by compressing a spring until something nearly touches.

That philosophy applies throughout our valvetrain development.

Building a Complete Ecotec Valve Spring System

As our Ecotec valvetrain development progressed, it became clear that maximum usable lift couldn't be addressed through the spring alone.

That led to development of complementary components including:

BK Racing 83 lb Ecotec Valve Springs

BK Racing Titanium Valve Spring Retainers

BK Racing Extra-Clearance Spring Seats

BK Racing Press-On Viton Valve Seals

The objective is to allow builders to configure the cylinder head around the actual camshaft and intended use while maintaining the necessary mechanical clearances.

This is why we refer to it as a valve spring system, rather than treating every component independently.

Why Retainer Design Matters on an Ecotec

The retainer is part of the moving valvetrain mass the spring must control.

Reducing unnecessary retainer mass can help reduce the inertial load placed on the spring at high RPM.

But weight isn't the only consideration.

Retainer geometry also needs to maintain proper clearance around the Ecotec rocker/follower arrangement.

BK Racing developed its retainers around the different generations of Ecotec rocker configurations so that reducing mass does not create a new clearance problem elsewhere in the valvetrain.

Why Valve Spring Seats and Valve Seals Matter

As valve lift increases, the distance between the retainer and components below it decreases.

A bulky factory-style seal or seat arrangement can therefore become the limiting factor before the spring itself reaches its mechanical travel limit.

Our extra-clearance spring seats and press-on Viton valve seals were developed to provide additional room where required while maintaining proper spring location and valve-stem sealing.

This becomes particularly useful with aggressive camshaft combinations approaching the upper end of the spring system's recommended lift range.

Measuring Every Performance Ecotec Cylinder Head

Published specifications are starting points.

The actual assembled cylinder head determines the final numbers.

For a serious performance build, we recommend verifying the relevant measurements rather than assuming every cylinder head is identical.

Check:

Installed spring height
Actual valve lift
Coil-bind clearance
Retainer-to-seal clearance
Spring-seat fitment
Rocker/follower clearance
Piston-to-valve clearance where applicable

Cylinder-head machining can change these dimensions.

A valve job can change them.

Different valves can change them.

Different retainers can change them.

The safest approach is simple:

Measure the engine you are actually building.

Frequently Asked Questions About GM Ecotec Valve Springs

What valve springs fit GM Ecotec engines?

Compatibility depends on the specific spring system and cylinder-head configuration. Some aftermarket systems are marketed across multiple 2.0L, 2.2L and 2.4L Ecotec applications. Always verify the manufacturer's fitment and the assembled clearances for your particular engine. For example, ZZPerformance currently states that its 82 lb spring fits 2.0L, 2.2L and 2.4L Ecotec engines.

How do I know what valve springs I need for my cam?

Match the spring to the camshaft's lift, profile, intended RPM and installed height, then verify coil-bind and retainer-to-seal clearance on your assembled head. Similar lift numbers do not always mean the same spring requirement.

What are the signs that my valve springs are faulty?

Common signs include valve float, valve bounce, unstable valvetrain motion, high-RPM power loss, and inconsistent valve seating. If the engine begins losing control at RPM it used to handle, the springs should be inspected.

What are the downsides of having stiffer valve springs?

Too much spring pressure can increase load on cam lobes, rockers/followers, lash adjusters, valve stems, valve seats and timing components. More pressure is not automatically better if the combination does not need it.

Do you have to change valve springs when changing cam?

Not always, but you should always verify the new cam's lift, lobe aggressiveness and clearance requirements. A cam change can make an existing spring inadequate even when the advertised lift seems similar.

How much valve spring pressure does an Ecotec need?

There is no single correct pressure for every Ecotec. Camshaft profile, RPM, valve lift, valvetrain mass, boost and intended use all affect the requirement.

Are 94 lb springs automatically better than 83 lb springs?

No. Seat pressure is only one specification. Open pressure, spring rate, travel, coil bind, dynamic behavior, component mass and the intended camshaft/application also matter.

What is valve spring installed height?

Installed height is the spring's installed dimension between the spring seat and retainer with the valve closed. It is necessary for determining the spring's actual installed pressure.

What is valve spring coil bind?

Coil bind is the point at which the spring has been compressed until its coils can no longer move closer together. An operating valvetrain needs clearance before this mechanical limit.

Can I run the spring right up to coil bind?

No. Mechanical travel should not be confused with safe operating travel.

Do aftermarket Ecotec cams require upgraded valve springs?

It depends on the camshaft's lift, profile, intended RPM and the existing spring. More aggressive camshaft motion can increase spring requirements even when maximum lift appears similar.

Do I need dual valve springs for a high-RPM Ecotec?

Not automatically. The required spring configuration depends on the actual valvetrain combination. A properly engineered single spring may be sufficient for many combinations, while more extreme applications may justify a dual-spring system.

Why do Ecotec engines lose rockers?

There can be multiple causes. At elevated RPM, valvetrain instability can contribute to follower unloading and rocker displacement. Spring control, camshaft profile, lash-adjuster behavior, component condition and valvetrain geometry should all be considered rather than assuming every lost rocker has one cause.

How often should racing valve springs be checked?

There is no universal replacement interval that applies to every combination. Racing springs should be inspected and periodically tested for changes in pressure, free height, physical condition and consistency. Duty cycle, temperature, RPM and camshaft aggressiveness all influence service life.

The BK Racing Approach to Ecotec Valve Springs

Our philosophy is straightforward:

Measure it. Understand it. Test it. Then publish the numbers.

We don't believe an Ecotec racer should have to choose a spring based solely on a number printed in a product title.

That's why this Knowledge Center series goes deeper into installed height, spring pressure, coil bind, spring rate, camshaft profiles, spring fatigue, rocker clearance, valve seals, retainers and real-world Ecotec racing applications.

Throughout this series, we'll also compare available Ecotec valve spring systems using published specifications and our own measurements whenever possible.

Our goal isn't simply to tell you which spring to buy.

Our goal is to give Ecotec builders enough information to understand why a particular spring system is—or isn't—appropriate for their engine.

Continue Learning: GM Ecotec Valve Springs

Valve spring pressure is only one part of maintaining stable valve control in a performance Ecotec. Continue through the BK Racing GM Ecotec Valve Spring Knowledge Center to learn how installed height, spring rate, coil bind, camshaft lift, RPM, retainers, spring seats and valve seals work together as a complete valvetrain system. When planning your combination, also explore the BK Racing 83 lb Ecotec Valve Springs, BK Racing Titanium Valve Spring Retainers, BK Racing Extra-Clearance Spring Seats, and BK Racing Press-On Viton Valve Seals.

Tags:

Engine Building
