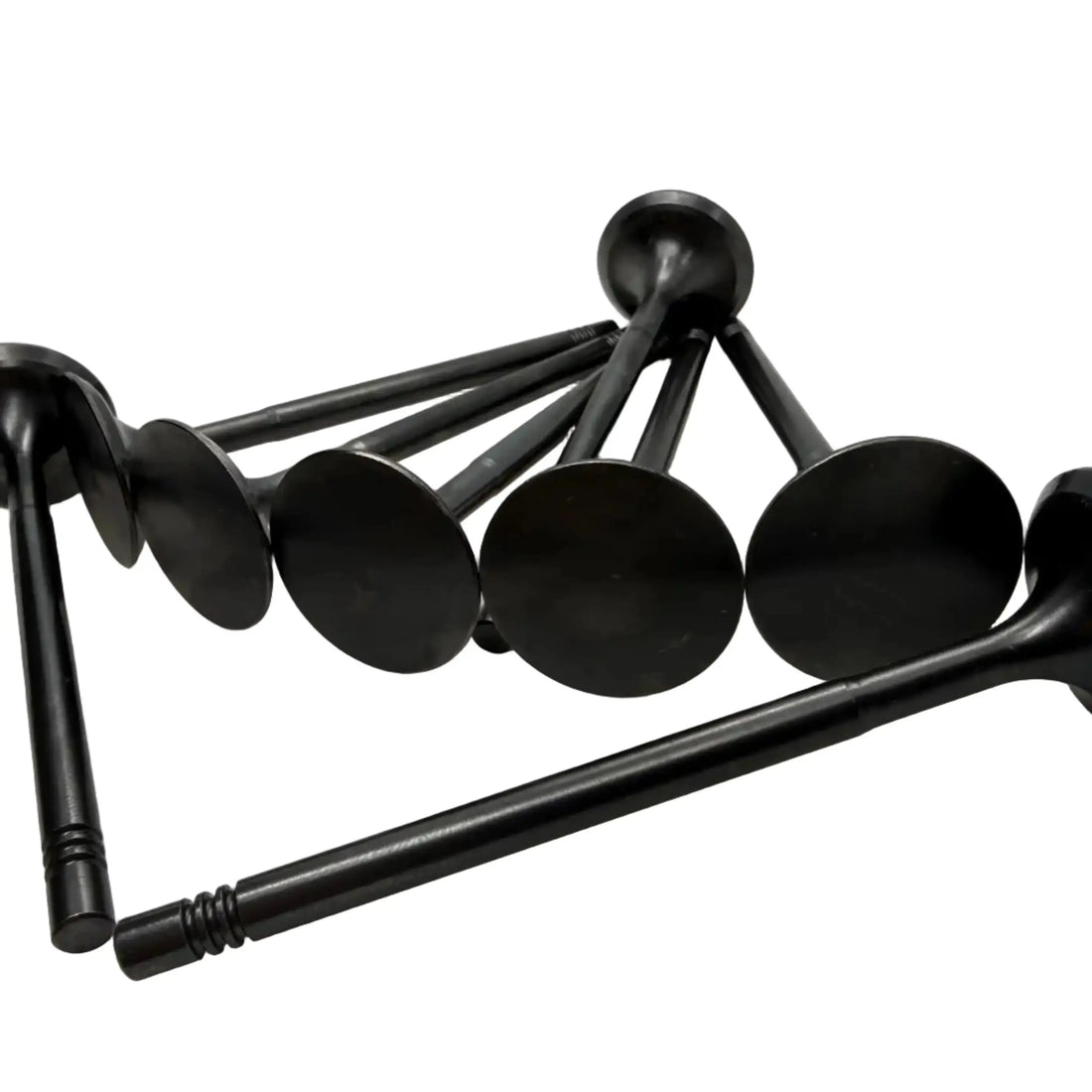

GM Ecotec Exhaust Valves: The Basics

The exhaust valves in a GM Ecotec engine have a demanding job. Every time the engine completes a combustion cycle, the exhaust valves open into extremely hot exhaust gases while controlling the flow leaving the combustion chamber. At higher engine speeds, they must repeat this process thousands of times per minute while maintaining a reliable seal against the valve seat when closed.

For a stock street engine operating within its intended RPM range, the factory exhaust valve was designed around the requirements GM established for that particular engine. Racing changes those requirements considerably. An Ecotec circle-track engine can spend extended periods at high RPM and high load, repeatedly accelerating and decelerating throughout a race. That combination of temperature, cylinder pressure, RPM and continuous valve cycling places considerably different demands on the exhaust side of the valvetrain.

The Ecotec family also includes several different engines and applications. This guide focuses primarily on the 2.2L L61 and LAP, 2.4L LE5 and LE9, 2.0L supercharged LSJ, and 2.0L turbocharged LNF engines. Although these engines share a great deal of Ecotec architecture, differences in their original applications and valvetrain components make it important to understand exactly what is being compared before choosing a replacement or performance exhaust valve.

----------------------------------------------------------------------------------------------------A Performance Exhaust Valve Is More Than a Bigger Valve

One of the biggest misconceptions surrounding performance valves is that increasing valve diameter automatically increases airflow. Valve diameter is only one part of the equation.

The shape of the valve head, backside or tulip profile, margin thickness, seat and back-cut geometry, stem diameter and the transition between the stem and valve head can all influence how air moves through the valve curtain and into the exhaust port. Material selection and surface treatments can also affect durability in demanding applications.

The valve doesn't operate by itself, either. Valve springs, retainers, rocker arms, lash adjusters, camshaft profile and installed geometry all contribute to how effectively the valve can be controlled as engine speed increases.

That is why throughout this guide we'll look beyond simply comparing valve diameters. We'll examine the differences between OEM and performance Ecotec exhaust valves, the materials they're manufactured from, how valve geometry can influence airflow, what happens as RPM increases, and what flow-bench testing can tell us about different designs.

Before getting into those details, however, we need to establish which exhaust valves belong to which engines.

--------------------------------------------------------------------------------------------------Ecotec Exhaust Valve Application Guide

One reason choosing an exhaust valve for a GM Ecotec can become confusing is the amount of shared architecture across the engine family. The 2.2L L61 and LAP, 2.4L LE5 and LE9, 2.0L supercharged LSJ, and 2.0L turbocharged LNF use closely related cylinder-head and valvetrain designs, but that does not mean every factory valve should automatically be treated as identical.

For performance builds, it is important to separate two questions: Will the valve physically fit the cylinder head? and Is the valve actually appropriate for the engine and application?

Aftermarket catalogs demonstrate just how much dimensional commonality exists. For example, Supertech's Ecotec catalog lists its standard-size GEVN-0010 exhaust valve at approximately 30.1 mm head diameter, 5.96 mm stem diameter and 101.3 mm overall length and applies the same basic valve across multiple 2.0L, 2.2L and 2.4L Ecotec applications. Ferrea likewise lists its F1961P Ecotec exhaust valve at 30.1 mm head diameter, 5.96 mm stem and approximately 101.5 mm length, with fitment listings including L61, LE5 and LNF applications.



Common Ecotec Exhaust Valve Applications

Engine	Displacement	Typical application	Exhaust-valve considerations
L61	2.2L	Cavalier, Sunfire, Cobalt, Ion and others	Early naturally aspirated Ecotec; common performance-valve application
LAP	2.2L	Later Cobalt and related applications	Later-generation 2.2L; verify complete valvetrain compatibility when mixing components
LE5	2.4L	Cobalt SS/NA, HHR, Solstice, G5 and others	Popular naturally aspirated racing platform; shares many basic valve dimensions with other Ecotecs
LE9	2.4L	Later 2.4L applications	Closely related to LE5 but application and cylinder-head details should still be verified
LSJ	2.0L	Cobalt SS Supercharged, Ion Red Line	Factory supercharged performance application
LNF	2.0L	Cobalt SS Turbo, HHR SS, Solstice GXP, Sky Red Line	Turbocharged application; OEM exhaust-valve construction differs from some naturally aspirated applications

The dimensional similarities are important because they allow aftermarket manufacturers to design valves that cover a broad portion of the Ecotec family. However, dimensions alone don't tell the entire story.

An exhaust valve can share the appropriate head diameter, stem diameter and overall length with another Ecotec valve while differing in material, head and face geometry, keeper configuration, tip geometry, weight or thermal characteristics. Those differences can become particularly important when combining cylinder heads, cams, springs and other valvetrain components from different Ecotec generations.

The LNF is a good example of why interchangeability needs more explanation than simply comparing dimensions. Ecotec builders have long investigated using LNF exhaust valves in other cylinder heads because of the LNF's factory turbocharged application and valve construction. At the same time, documented builder discussions show that valves with similar basic dimensions can have different head shapes that can affect combustion-chamber volume and compression when installed in another Ecotec head.

For that reason, we don't recommend selecting an Ecotec exhaust valve solely because an aftermarket catalog lists several engines under the same part number.

Later in this guide we'll look more closely at OEM versus performance valves, materials, valve geometry, airflow and high-RPM operation. We also have a dedicated interchangeability guide covering the L61, LAP, LE5, LE9, LSJ and LNF for builders considering mixing components between Ecotec generations.

Next, however, we need to establish the dimensions and design features we're actually comparing.

----------------------------------------------------------------------------------------------------OEM Ecotec Exhaust Valve Design & Specifications

Before comparing aftermarket exhaust valves, it helps to understand what GM started with. The Ecotec family shares a great deal of valvetrain architecture, but there is not one single OEM exhaust-valve specification that applies to every L61, LAP, LE5, LE9, LSJ and LNF.

A good example is GM 12615936, a factory replacement exhaust valve used across numerous naturally aspirated 2.2L and 2.4L Ecotec applications. GM currently specifies this valve with a 29.8 mm head, 5.9525 mm stem, 99.7 mm overall length, 45.5° seat angle and triple keeper grooves. GM classifies it as a standard-size steel OE valve. GM Parts

Those dimensions provide a useful baseline for understanding what changes when moving to a performance exhaust valve.



OEM Ecotec Exhaust Valve Baseline

Feature	GM 12615936
Valve head diameter	29.8 mm
Stem diameter	5.9525 mm
Overall length	99.7 mm
Seat angle	45.5°
Keeper configuration	Triple groove
GM-listed material	Steel
Oversized	No

GM also identifies 12615936 as replacing the earlier 12596034, demonstrating another complication when researching Ecotec valves: part numbers and service replacements changed during the long production life of the engine family. GM Parts Giant

--------------------------------------------------------------------------------------------------Not Every Factory Ecotec Exhaust Valve Is the Same

The performance-oriented Ecotec engines introduce additional differences. The LNF turbocharged 2.0L, for example, was equipped with sodium-filled exhaust-valve technology to help transfer heat away from the valve head and toward the stem and guide area. That makes sense in a turbocharged application where exhaust-gas temperatures and thermal loading can be considerably different from those of a naturally aspirated production engine. Wikipedia

This is an important distinction because two valves can appear dimensionally similar and still be very different parts.

When evaluating an OEM or aftermarket Ecotec exhaust valve, we therefore look at more than head diameter. Important characteristics include stem diameter, overall length, keeper-groove design, valve-tip height, seat angle, margin thickness, head thickness, backside profile and material.



Factory Dimensions Are Only the Starting Point

Aftermarket manufacturers demonstrate how closely related these engines are dimensionally. Supertech, for example, lists its standard Ecotec performance exhaust valve at 30.1 mm head diameter, 5.96 mm stem diameter and 101.3 mm overall length, with a triple-groove keeper configuration. EPARTRADE

But changing a valve from roughly 29.8–30.1 mm to a larger diameter doesn't automatically mean the engine will flow more air. Likewise, replacing an OEM valve with a stronger material doesn't necessarily improve airflow.

The dimensions tell us whether a valve can potentially work within the cylinder-head architecture. The design of the valve determines what it actually does once installed.

That distinction becomes increasingly important in a racing Ecotec, where we're interested not only in replacing a factory component but in improving its suitability for sustained high-RPM operation.

In the next section, we'll look at exactly what changes when moving from an OEM Ecotec exhaust valve to a purpose-built performance exhaust valve.

---------------------------------------------------------------------------------------------------Stock vs Performance Ecotec Exhaust Valves

At first glance, a stock Ecotec exhaust valve and a performance exhaust valve may look very similar. Both have the same basic job, and many aftermarket replacements stay close to the factory valve diameter. The important differences are often found in the material, surface treatment, valve-head geometry, backside profile, stem design and overall intended operating environment.

That distinction matters because replacing a stock valve with a performance valve isn't simply about installing a larger part.



What Changes With a Performance Exhaust Valve?

The factory exhaust valve was engineered to meet GM's requirements for the original engine, including durability, emissions, manufacturing cost and the expected operating range. A performance valve can instead be designed around a more specific objective, such as sustained high-RPM operation, increased exhaust temperature or improved airflow.

Material is one obvious difference. Performance exhaust valves are commonly available in high-temperature stainless alloys or nickel-based alloys such as Inconel. Supertech, for example, offers black-nitrided stainless performance valves and describes its Inconel 751 valves as intended for applications experiencing particularly high exhaust temperatures. supertechperformance.com

But material is only part of the story.

A performance valve can also change the shape of the valve itself. The backside of the valve head, transition into the stem, margin, back-cut and stem profile all occupy space in the airflow path when the valve opens. Supertech specifically identifies a swirl-polished underhead as an airflow feature of its performance exhaust-valve design. supertechperformance.com

Ferrea takes a similar approach with its Ecotec Competition Plus valves. Its stock-size F1961P uses a 30.1 mm head and 5.96 mm stem and is identified as a “22 Degree Flo.” design. Ferrea also offers the F1962P with the same basic stem dimensions but a 31.1 mm head, making it 1 mm oversized.

This illustrates an important point: there are multiple ways to approach a performance Ecotec exhaust valve.



Bigger Doesn't Automatically Mean Better

It is tempting to assume that a larger exhaust valve must flow more air. In practice, airflow through the cylinder head depends on much more than valve diameter.

Valve curtain area, seat and throat dimensions, port shape, combustion-chamber shrouding, backside geometry and the stem all interact. Increasing valve diameter without considering the rest of the cylinder head can therefore produce a very different result than expected.

That's why we believe flow testing matters more than simply comparing valve diameters or catalog descriptions.

A stock-size performance valve can potentially improve airflow through changes to its geometry while remaining close to the original valve diameter. Conversely, an oversized valve isn't automatically an airflow improvement simply because its head is larger.

We'll examine that subject—and our own Ecotec flow-bench results—in much greater detail later in this guide.



Performance Valves Should Be Part of a System

The exhaust valve also cannot be considered separately from the rest of the valvetrain.

As engine speed increases, the valve spring, retainer, rocker arm, lash adjuster and camshaft profile all influence how accurately the valve follows the intended motion of the camshaft. Valve length and tip geometry can become particularly important when using reground camshafts or changing other valvetrain components.

For a street replacement, an OEM-style valve may be completely appropriate. For a purpose-built racing Ecotec that spends significant time at elevated RPM, however, there are additional factors worth considering beyond simply whether the valve fits the cylinder head.

That's ultimately the difference between replacing an exhaust valve and engineering an exhaust valve for a particular application.

In our dedicated Stock vs Performance Ecotec Exhaust Valves: What Actually Changes? article, we'll go deeper into each of these differences. For now, the next major question is the material itself—OEM steel, performance stainless or Inconel—and what each actually brings to an Ecotec build.

----------------------------------------------------------------------------------------------------Exhaust Valve Materials: OEM, Stainless & Inconel

Exhaust valve material gets a lot of attention when building a performance Ecotec, and for good reason. The exhaust valve operates directly in the path of hot combustion gases and must repeatedly transfer heat through the valve seat and stem while maintaining its shape and sealing surface.

However, there isn't one material that is automatically “best” for every Ecotec. Engine combination, exhaust temperature, RPM, boost level and intended use all matter.



OEM Ecotec Exhaust Valves

GM designed the original exhaust valves around the requirements of each engine. A naturally aspirated 2.2L or 2.4L street engine does not necessarily place the same thermal demands on an exhaust valve as a turbocharged LNF.

This is why looking at the entire Ecotec family as though every factory exhaust valve is identical can be misleading. GM used different solutions as engine requirements changed. The turbocharged 2.0L LNF, for example, used sodium-filled exhaust valves, which improve heat transfer from the valve head toward the stem. GM documentation describing the LNF specifically identifies sodium-filled exhaust valves as part of its high-temperature durability strategy.

For a stock or mildly modified engine operating within its original intended range, the OEM valve can be entirely adequate. Racing changes the operating environment, particularly when an engine spends extended periods at high load and high RPM.



Stainless-Steel Performance Valves

Performance manufacturers commonly use stainless alloys specifically selected for exhaust-valve service.

One of those materials is 21-4N stainless steel. It is an austenitic valve steel developed for elevated-temperature service and has been widely used for performance exhaust valves because of its combination of strength, wear resistance and resistance to high-temperature corrosion.

The material can also be paired with surface treatments such as nitriding. Nitriding hardens the surface of the valve without requiring the entire component to have the same hardness. This can improve wear resistance in areas such as the stem, keeper grooves and tip.

This is the approach we selected for the BK Racing Ecotec exhaust valve: 21-4N stainless steel with a nitrided surface. The objective wasn't simply to replace the factory material. We wanted a material and surface treatment appropriate for the sustained RPM and loading encountered in racing while still allowing us to develop the valve geometry around airflow and the Ecotec cylinder head.



What About Inconel?

Inconel represents another step in high-temperature capability. Rather than being stainless steel, Inconel is a family of nickel-based superalloys designed to retain mechanical properties in extremely demanding thermal environments.

This makes it attractive for exhaust valves subjected to very high exhaust-gas temperatures, particularly in heavily boosted or otherwise severe applications.

Supertech, for example, offers Ecotec exhaust valves in Inconel 751 as well as stainless-steel versions. The company describes Inconel 751 as particularly suitable for high-temperature exhaust-valve applications.

But that doesn't mean every naturally aspirated Ecotec race engine needs an Inconel valve.



Material Is Only One Part of the Valve

This is where performance-valve discussions sometimes become too focused on the alloy.

An expensive high-temperature material does not automatically make a valve flow better. Material selection primarily addresses the mechanical and thermal demands placed on the component. Airflow is heavily influenced by geometry.

A 21-4N stainless valve with carefully developed head, backside, margin, back-cut and stem geometry can have very different airflow characteristics from another valve made from the same alloy. Likewise, switching to Inconel doesn't automatically create a CFM gain.

For an Ecotec builder, the better question therefore isn't simply:

“Is Inconel better than stainless?”

It is:

“What material, design and surface treatment make sense for the temperatures, RPM and cylinder-head combination this engine will actually experience?”

That distinction becomes even more important when we move from valve material to the physical shape of the valve. In the next section, we'll look at how tulip profile, back-cut, margin and stem geometry can influence airflow through an Ecotec cylinder head.

---------------------------------------------------------------------------------------------------How Exhaust Valve Geometry Affects Airflow

When comparing performance exhaust valves, head diameter tends to get most of the attention. But once the valve begins to lift from the seat, the shape of the valve itself becomes part of the airflow path.

Exhaust gases must travel around the valve head, through the opening between the valve and seat—known as the valve curtain—and then into the exhaust port. The valve's backside profile, margin, seat and back-cut angles, stem diameter and transition into the stem can all influence how efficiently that happens.

This is why two exhaust valves with nearly identical outside diameters can produce different results on a flow bench.



Valve Head and Backside Shape

The underside of an exhaust valve is often described as the backside or tulip. Its shape determines how the valve head transitions into the stem.

A relatively large or abrupt backside can occupy more of the available flow path. A smoother profile can provide a more gradual path around the valve and toward the exhaust port. However, simply removing material isn't automatically better. The valve still needs sufficient strength and thermal capacity for its intended application.

The objective is therefore a balance between airflow, strength, heat management and weight.

This was one of the areas we concentrated on during development of the BK Racing Ecotec exhaust valve. Rather than using an abrupt transition between the valve head and stem, the backside was developed with a continuous transition into the undercut portion of the stem.



Back-Cut and Margin Geometry

The margin is the outer edge of the valve head between the valve face and the combustion-chamber side of the valve. Margin thickness affects durability and heat capacity, but its shape also contributes to the profile presented to the airflow.

Behind the seating surface, a back-cut can be used to change the transition between the valve face and backside of the valve. This can be particularly influential at lower and intermediate valve lifts, where the relationship between the valve and seat strongly controls the available flow area.

More angles are not automatically better, though. The valve, valve job, throat and port need to work together.



The Stem Is Sitting in the Airflow Too

Once gases move past the valve head, they still have to travel around the valve stem.

Reducing stem diameter in the portion exposed to the port can decrease the obstruction presented to the airflow. This is the principle behind an undercut valve stem.

The BK Racing exhaust valve, for example, retains approximately a 5.97 mm main stem diameter while reducing the exposed section to approximately 5.40 mm. That allows the guide-contacting portion of the stem to retain the required diameter while reducing the cross-sectional area occupying the port where appropriate.

We'll examine undercut stems separately later in this guide because there are limits to how aggressively the stem should be reduced.



Bigger Isn't the Only Way to Find Airflow

This brings us back to an important theme throughout this guide: increasing valve diameter is only one way to change airflow.

A larger valve increases potential curtain area, but it can also interact differently with the valve seat, throat, combustion chamber and port. Depending on the combination, simply installing an oversized valve may not produce the expected improvement.

Changing the geometry of a stock-size or near-stock-size valve provides another approach: improve the shape presented to the airflow rather than relying solely on additional diameter.

That's why we chose to validate our Ecotec exhaust-valve development on the flow bench. In MWR testing, the BK Racing design produced 170 CFM at .500-inch lift compared with 167 CFM for the stock valve on the same bench, demonstrating that valve geometry alone can influence measurable airflow without relying on a dramatically oversized valve.

A few CFM may not sound dramatic, but that's precisely why controlled testing matters. We aren't comparing a stock cylinder head with a ported cylinder head or attributing an entire cylinder-head improvement to one component. We're looking at what changing the valve itself can contribute.

We'll break down that testing in the dedicated flow-bench section. First, however, it's worth looking more closely at one of the most common approaches to performance Ecotec valves: increasing the valve diameter—and why a bigger exhaust valve doesn't necessarily mean more airflow.

-------------------------------------------------------------------------------------------------Stock-Size vs Oversized Ecotec Exhaust Valves

When looking for more airflow from an Ecotec cylinder head, increasing valve diameter can seem like an obvious solution. A larger valve can create more potential curtain area at a given lift, which is one reason oversized valves have traditionally been used in performance cylinder heads.

But there is an important difference between creating more potential flow area and actually moving more air through the cylinder head.

The exhaust valve is only one part of the flow path. Valve diameter, seat and throat dimensions, combustion-chamber shape, port design and the geometry of the valve itself all have to work together. If the rest of the cylinder head cannot take advantage of the additional valve diameter, simply installing a larger valve does not guarantee an airflow improvement.



What Does an Oversized Ecotec Exhaust Valve Change?

Most factory Ecotec exhaust valves are approximately 30 mm in diameter, while the performance aftermarket offers both near-stock-size and oversized alternatives.

For example, Ferrea offers its F1961P at 30.1 mm and an F1962P version with a 31.1 mm head, approximately 1 mm larger. Other manufacturers have also offered standard-size and oversized Ecotec exhaust valves.

The reason for increasing diameter is easy to understand. Valve curtain area is influenced by the circumference of the valve and how far it is lifted from the seat. Increasing the valve diameter therefore increases the potential opening available around the valve.

However, that theoretical increase doesn't tell us how much air will actually move through the cylinder head.



The Seat, Throat and Port Still Have to Support It

An oversized exhaust valve normally needs to be considered as part of a complete cylinder-head combination.

The valve seat must be properly machined for the larger valve, while the throat and bowl need enough area to support the additional potential flow. Combustion-chamber clearance and valve shrouding also have to be considered.

If airflow passes around a larger valve only to encounter another restriction immediately afterward, the additional valve diameter may accomplish very little.

This is why comparing valves based only on their outside diameter can be misleading.



Bigger Doesn't Automatically Mean More CFM

We saw this firsthand during development and testing of our Ecotec exhaust valve.

MWR Technologies flow tested multiple valve configurations, including the stock Ecotec valve and an oversized aftermarket exhaust valve. In that particular test configuration, the oversized valve actually flowed less than the stock baseline.

That does not mean oversized Ecotec exhaust valves don't work.

A properly developed cylinder head with the appropriate seat, throat, bowl and chamber work may benefit from a larger valve. What the testing demonstrated is that the larger diameter by itself was not enough to guarantee an improvement.

That distinction became an important part of our development philosophy.



Why We Stayed Close to Stock Diameter

Rather than simply increasing valve diameter and assuming bigger would be better, we concentrated on improving the geometry of the valve itself.

The BK Racing exhaust valve uses an approximately 30.1 mm head, keeping it close to the factory size while allowing us to focus on areas including the backside profile, back-cut, margin, undercut stem and the transition from the valve head into the stem.

The result was measurable.

In back-to-back flow-bench testing, the BK Racing exhaust valve produced a 3 CFM improvement over the stock Ecotec exhaust valve baseline.

That is an important distinction. We aren't comparing a stock cylinder head against a fully ported cylinder head or attributing the gains from an entire valve job to the valve. The objective was to determine whether changing the valve design itself could improve airflow compared with the stock baseline.

The testing showed that it could.



Stock-Size or Oversized: Which Is Better?

There isn't one answer for every Ecotec combination.

An extensively ported cylinder head with modified seats and throats may be able to take advantage of additional valve diameter. A cylinder head that remains much closer to its original configuration may respond differently.

That's why we don't believe valve diameter should be treated as the primary measure of a performance exhaust valve.

Instead, builders should consider the complete combination:

Valve diameter, valve geometry, seat, throat, combustion chamber, exhaust port and intended engine operating range all matter.

The question shouldn't simply be:

“How big of an exhaust valve can I fit?”

A more useful question is:

“What valve design works best with the cylinder head I'm actually using?”

For our Ecotec exhaust valve development, the flow bench reinforced that philosophy: bigger didn't automatically flow better, while careful development of a near-stock-size valve produced a measurable improvement over the stock baseline.

Airflow, however, is only part of what an exhaust valve has to accomplish. In a racing Ecotec, that valve must also survive and remain under control through thousands of cycles at sustained engine speed.

Next, we'll look at Exhaust Valves in High-RPM Ecotec Engines and why the demands of circle-track racing are considerably different from those of normal street operation.

------------------------------------------------------------------------------------------------Exhaust Valves in High-RPM Ecotec Engines

An exhaust valve that performs reliably in a street-driven Ecotec doesn't necessarily experience the same operating conditions as one used in a circle-track engine. Racing can subject the valvetrain to sustained high RPM, repeated acceleration and deceleration, elevated temperatures and thousands of valve events during a single race.

That difference is important.

A street engine may occasionally reach the upper end of its RPM range, but it normally spends relatively little time there. A racing Ecotec can operate near the top of its usable RPM range lap after lap. That means the exhaust valve isn't simply being asked to open and close faster—it has to do so consistently while dealing with significant thermal and mechanical loading.



RPM Dramatically Increases Valve Events

Because an Ecotec is a four-stroke engine, each exhaust valve opens once every two crankshaft revolutions.

At 8,000 RPM, each exhaust valve is therefore completing approximately 4,000 operating cycles every minute.

At 9,000 RPM, that increases to approximately 4,500 cycles per minute.

Over a 20-minute period of operation, that can represent roughly 90,000 cycles for each exhaust valve at 9,000 RPM if the engine remained at that speed continuously.

That helps illustrate why sustained RPM is different from briefly touching the same engine speed.



The Exhaust Valve Also Has to Deal With Heat

The exhaust valve operates in one of the hottest areas of the cylinder head. When it opens, hot combustion gases flow directly around the valve head and into the exhaust port.

When the valve closes against the seat, that contact becomes an important path for transferring heat away from the valve head.

This makes the valve face, margin, seat contact and material selection important considerations in a racing application. Removing material simply to make a valve lighter or thinner isn't automatically an improvement if doing so compromises the durability or thermal characteristics required by the application.

A performance exhaust valve therefore has to balance several objectives:

airflow, weight, strength, wear resistance and heat management.



High RPM Also Makes Valve Control Critical

A stronger exhaust valve by itself doesn't solve every high-RPM valvetrain problem.

As RPM increases, the valve spring must keep the valve, rocker and related valvetrain components following the motion commanded by the camshaft. If the system loses control, the valve may no longer follow the intended cam profile accurately.

This is why valve mass, spring pressure, spring rate, retainer weight, camshaft profile and the rest of the valvetrain need to be considered together.

Simply installing the strongest spring available isn't the answer either. Excessive spring pressure can increase loading and wear elsewhere in the valvetrain. The goal is enough control for the intended RPM and camshaft combination without unnecessarily increasing loads.



Circle-Track Racing Creates a Different Duty Cycle

This is particularly relevant to the way we approach Ecotec development at BK Racing.

Our primary focus isn't a street engine that occasionally makes a high-RPM pull. We're developing components around engines that can spend substantial portions of a race operating at elevated RPM.

That duty cycle influenced the development of our exhaust valve just as much as airflow did. We selected 21-4N stainless steel with a nitrided surface while also developing the valve's head, backside and stem geometry around the Ecotec cylinder head.

The objective wasn't simply to create a valve that could produce a flow-bench improvement. It was to develop a valve appropriate for the environment in which many of our customers actually use these engines.



The Valve Is Only One Part of the High-RPM Combination

Building an Ecotec for sustained RPM requires looking at the valvetrain as a complete system.

The exhaust valve, valve spring, retainer, rocker arm, lash adjuster and camshaft all interact. Changing one component can alter what is required from another.

That is also why an exhaust valve shouldn't be selected solely because it is advertised as a “racing valve.” The intended RPM range, camshaft, spring package, cylinder-head configuration and type of racing should all be considered.

For a dedicated race engine, the better question isn't simply:

“How many RPM can this valve handle?”

A valve doesn't establish the RPM limit by itself.

The better question is:

“Is the complete valvetrain designed and controlled for the RPM this engine will actually see?”

That brings us to the next section: Exhaust Valves as Part of the Complete Ecotec Valvetrain, where we'll look at how the valve works together with springs, lightweight retainers, rocker arms, lash adjusters and camshaft geometry.

----------------------------------------------------------------------------------------------------Exhaust Valves as Part of the Complete Ecotec Valvetrain

A performance exhaust valve doesn't operate independently. Every time the camshaft commands the valve to open and close, several components must work together to control that movement accurately.

In an Ecotec cylinder head, the camshaft, rocker arm, lash adjuster, valve, valve spring and retainer function as a system. At relatively low engine speeds, small differences between these components may not be immediately noticeable. As RPM and camshaft aggressiveness increase, however, the relationship between them becomes increasingly important.

This is why we don't look at an exhaust-valve upgrade as an isolated component change.



Valve Springs Have to Control the Entire System

The valve spring's job is not simply to close the valve. It must maintain control of the valvetrain as the camshaft accelerates and decelerates the valve.

As RPM increases, controlling that motion becomes more difficult. Camshaft profile, valve and retainer mass, spring pressure and spring rate all influence how the system behaves.

Too little spring control can allow the valvetrain to lose contact with the intended cam profile. But simply adding more spring pressure isn't automatically better. Excessive pressure increases loads on the rocker arms, camshafts, valve tips and other components.

The goal is to use enough spring to maintain control for the intended camshaft and RPM range without adding unnecessary load.

This is why we developed and tested our BK Racing 83 lb valve springs as part of a high-RPM Ecotec combination rather than viewing spring pressure as an isolated specification. Our 83 lb spring package has been tested in Ecotec applications to approximately 9,300 RPM.



Retainer Weight Matters Too

The retainer sits at the top of the spring and moves with the valve, making it part of the mass the spring must control.

Reducing unnecessary valvetrain mass can help the spring maintain control at elevated engine speeds. This is one reason titanium retainers are commonly used in performance valvetrains.

There is another Ecotec-specific consideration. GM updated the design of the factory Ecotec rocker arm, Part #12693909, beginning in later production, making the valve-stem side of the rocker taller. That change can create clearance concerns with some aftermarket retainers.

Our BK Racing lightweight titanium retainers were designed with clearance for both the earlier rocker design and the updated version, allowing the spring, retainer and rocker to work together rather than treating each component independently.

Lash Adjusters Change How We Approach the Combination

Most production Ecotec applications use hydraulic lash adjustment. Hydraulic adjusters are convenient and effective in the operating range for which the factory system was designed.

Purpose-built racing combinations can have different requirements.

For applications using our BK Racing solid lash adjusters, valve lash becomes a measured mechanical setting rather than something automatically maintained hydraulically. Our typical starting specification is approximately .008-inch intake and .010-inch exhaust lash, although the final requirement should always match the camshaft and engine combination.

That makes accurate valvetrain setup even more important.



Camshaft Geometry and Valve Length Matter

Camshafts introduce another issue that is particularly relevant to modified Ecotec engines.

When a factory camshaft is reground to create a different profile, material is commonly removed from the base circle. That changes the relationship between the camshaft, rocker arm, lash adjuster and valve.

This is why valve overall length and tip height can matter just as much as head diameter.

The BK Racing exhaust valve was developed with an extended tip specifically to help address valvetrain geometry in combinations using reground camshafts. It can be used with the factory hydraulic system as well as our solid-adjuster combinations when the complete setup is measured and configured appropriately.

We'll examine this subject in much greater detail in our dedicated guide to Reground Ecotec Cams & Valve Stem Height.



Build the Valvetrain as a Combination

This is ultimately the approach we recommend for any serious Ecotec racing engine.

Don't select the exhaust valve based only on material. Don't select the spring based only on seat pressure. Don't select the lightest retainer simply because it's lighter. And don't choose a camshaft without considering what it changes elsewhere in the system.

Instead, look at:

Camshaft profile → rocker geometry → lash adjustment → valve dimensions and mass → spring requirements → retainer design → intended RPM.

Each component affects the others.

For the engines we develop around sustained high-RPM circle-track use, this systems approach is particularly important. A valve that flows well on the bench still has to remain accurately controlled on the racetrack.

And that raises the next question: how do we know whether the changes made to the valve itself actually improved airflow?

That's where controlled flow-bench testing becomes valuable. In the next section, we'll look at What Flow-Bench Testing Taught Us About Ecotec Exhaust Valves and why some of the results challenged the assumption that a larger aftermarket valve must automatically flow better.

----------------------------------------------------------------------------------------------------What Flow-Bench Testing Taught Us About Ecotec Exhaust Valves

When we started developing the BK Racing Ecotec exhaust valve, we didn't want to assume that an aftermarket valve was better simply because it was made from a different material, had a larger head diameter or looked more aggressive than the factory valve.

We wanted to test it.

Flow-bench testing gave us a way to compare different exhaust-valve designs against the stock Ecotec valve baseline and see whether changes to the valve itself actually influenced airflow.

The results reinforced one of the most important lessons from the entire development process:

Bigger doesn't automatically mean better, and aftermarket doesn't automatically mean more airflow.



Establishing the Stock Valve Baseline

The stock Ecotec exhaust valve gave us the reference point.

Rather than focusing on a single peak-flow number, the important part of the testing was establishing how the factory valve performed and then comparing other valve designs against that same baseline.

This matters because flow numbers by themselves can be misleading. Different flow benches, cylinder heads, valve jobs, test pressures and fixtures can produce different absolute numbers.

For development purposes, the most useful information comes from back-to-back testing under the same conditions.

That allowed us to concentrate on the difference created by the valve rather than comparing unrelated numbers from different cylinder heads or different flow benches.



The Oversized Valve Was an Important Lesson

One of the most interesting results came from testing an oversized aftermarket Ecotec exhaust valve.

On paper, the larger valve would seem to have an advantage. Increasing valve diameter creates additional potential curtain area, so it would be reasonable to expect the larger valve to move more air.

That's not what happened.

In the configuration MWR Technologies tested, the oversized aftermarket valve flowed worse than the stock Ecotec valve baseline.

That doesn't prove that oversized exhaust valves are inherently worse. With the correct seat, throat, chamber and port work, a larger valve can certainly be part of a successful cylinder-head combination.

What it demonstrated was something more important for our development:

Valve diameter alone was not going to determine whether our valve worked.



Developing Around Geometry Instead of Diameter

That result pushed the development toward the shape of the valve itself.

Rather than dramatically increasing head diameter, the BK Racing exhaust valve remained close to the factory size at approximately 30.1 mm while we concentrated on the areas directly exposed to the airflow.

That included the backside profile, back-cut, margin, undercut stem and the transition between the valve head and stem.

The objective was straightforward: improve the path available to the exhaust gases without simply making the valve larger.

After revisions and continued testing, the BK Racing exhaust valve produced a 3 CFM improvement over the stock Ecotec exhaust valve baseline during back-to-back flow-bench testing.



Why a 3 CFM Gain Matters

Three CFM isn't a number we're going to exaggerate into a huge horsepower claim.

That's not what makes the result important.

The significance is that the improvement came from developing the valve itself, while remaining close to the factory valve diameter. We weren't comparing a stock cylinder head against a fully ported cylinder head or claiming the gains from extensive port and seat work belonged to the valve.

We wanted to know whether changing the valve design could produce a measurable improvement over stock.

The testing showed that it could.

It also gave us something more valuable than a marketing claim: information we could use to continue refining the design.



Flow Testing Is a Development Tool, Not Just a Number

A flow bench doesn't tell us everything about how an engine will perform on the racetrack. It doesn't reproduce combustion, exhaust temperature, cylinder pressure or the dynamic behavior of the complete running engine.

But it does allow us to make controlled comparisons.

For us, that was the real value.

We were able to establish a stock baseline, test different approaches, identify a configuration that didn't perform as expected, revise the design and measure whether those changes moved airflow in the direction we wanted.

That process ultimately shaped the philosophy behind the finished BK Racing exhaust valve:

Don't assume. Test it.

And don't judge an Ecotec exhaust valve solely by how large it is, what material is stamped on the box or how aggressive it looks.

The better question is whether the complete design has been developed for the application—and whether there is testing behind the claims being made.

Our dedicated Ecotec exhaust-valve flow-bench article will go deeper into the testing methodology, comparisons and results. For this guide, the important takeaway is simple:

A carefully developed near-stock-size exhaust valve produced a measurable airflow gain over the stock baseline, while simply increasing valve diameter did not guarantee an improvement.

Ecotec Exhaust Valve FAQ

What size are stock GM Ecotec exhaust valves?

Most of the Ecotec engines covered in this guide use an exhaust valve approximately 30 mm in diameter, although exact dimensions and valve construction vary by engine and application. For example, GM lists replacement exhaust valve 12615936 with a 29.8 mm head and 5.9525 mm stem. Performance replacements are commonly offered around 30.1 mm, with oversized options also available.

Always verify the specific cylinder head and application rather than assuming every L61, LAP, LE5, LE9, LSJ and LNF valve is identical.



Are L61, LAP, LE5, LE9, LSJ and LNF exhaust valves interchangeable?

There is significant dimensional commonality across the Ecotec family, which is why some aftermarket manufacturers list the same performance valve for multiple Ecotec engines.

That does not mean every OEM valve should automatically be considered interchangeable. Overall length, head diameter, stem diameter, keeper grooves, tip height, material and valve-head geometry all need to be considered.

We cover this subject in greater detail in our dedicated L61, LAP, LE5, LE9, LSJ & LNF Exhaust Valve Interchangeability Guide.



Are bigger Ecotec exhaust valves better?

Not necessarily.

Increasing valve diameter increases potential curtain area, but the valve seat, throat, combustion chamber and exhaust port must be capable of using that additional area.

During our development testing, an oversized aftermarket Ecotec exhaust valve flowed worse than the stock-valve baseline in the configuration tested by MWR Technologies. That doesn't mean oversized valves cannot work; it demonstrates that increasing diameter alone doesn't guarantee additional airflow.



Do performance Ecotec exhaust valves increase airflow?

They can, but the design matters.

Valve-head shape, backside or tulip geometry, margin, back-cut, stem diameter and the transition from the valve head into the stem can all influence airflow.

During back-to-back flow-bench development, the BK Racing exhaust valve produced a 3 CFM improvement over the stock Ecotec exhaust-valve baseline while remaining close to the factory valve diameter.



Does a 3 CFM improvement mean more horsepower?

Not by itself.

Cylinder-head airflow is only one factor influencing engine output, and a flow bench does not reproduce everything occurring inside a running engine. Port design, camshaft profile, compression, intake and exhaust systems, RPM and many other variables contribute to the final result.

We therefore don't translate our 3 CFM flow improvement into an unsupported horsepower claim. The test demonstrates that the valve design itself produced a measurable airflow improvement over the stock baseline under the conditions tested.



What material is best for an Ecotec exhaust valve?

There isn't one material that's best for every application.

OEM valves can be entirely appropriate for stock and mildly modified engines. 21-4N stainless steel is commonly used for performance exhaust valves because of its high-temperature properties and durability. Inconel offers excellent performance in extremely high-temperature environments and can be appropriate for demanding turbocharged applications.

The BK Racing Ecotec exhaust valve uses 21-4N stainless steel with a nitrided surface, selected around the requirements of the racing applications for which we developed the valve.



Do naturally aspirated Ecotec race engines need Inconel exhaust valves?

Not automatically.

Inconel's high-temperature capabilities make it valuable in extremely demanding environments, particularly where exhaust temperatures are exceptionally high. But material selection should match the actual application.

A naturally aspirated circle-track engine has different requirements from a heavily boosted turbocharged engine. Material, valve geometry, weight, surface treatment and the complete valvetrain combination should all be considered rather than selecting a valve based solely on the most exotic material available.



What is an undercut exhaust-valve stem?

An undercut stem reduces the diameter of the portion of the valve stem exposed to the airflow while maintaining the appropriate diameter where the stem operates within the valve guide.

Reducing the exposed stem area can decrease obstruction within the port. The BK Racing exhaust valve uses an approximately 5.97 mm main stem with an undercut section of approximately 5.40 mm.

Undercutting must still maintain sufficient strength for the intended application, so simply making the stem as thin as possible isn't the objective.



What does a back-cut do on an exhaust valve?

A back-cut adds another angle behind the valve's seating surface. Its purpose is to change the transition between the valve face and backside of the valve and can influence how gases move around the valve, particularly while the valve is opening and closing.

Back-cut geometry needs to work with the valve seat, throat and overall valve shape. Adding a back-cut by itself doesn't guarantee additional airflow.



Why does the backside or tulip shape of an exhaust valve matter?

The backside of the valve occupies space directly in the airflow path.

Changing how the valve head transitions into the stem can affect the path available to gases moving around the valve and toward the exhaust port. A smooth transition can reduce unnecessary obstruction, but airflow must be balanced against valve strength, weight and thermal requirements.

This was one of the areas we concentrated on during development of the BK Racing exhaust valve.



Are Ecotec exhaust valves important for high-RPM engines?

Yes, but the exhaust valve alone does not determine an engine's safe RPM.

As RPM increases, the entire valvetrain has to remain controlled. The valve, spring, retainer, rocker arm, lash adjuster and camshaft all influence the system.

For sustained high-RPM racing, we recommend looking at the complete valvetrain combination rather than assigning an RPM rating to one individual component.



Do I need upgraded valve springs with performance exhaust valves?

Not simply because performance valves have been installed.

Spring requirements depend on factors including camshaft profile, valve and retainer mass, installed height, valve lift and intended RPM.

An engine operating at significantly higher RPM or using more aggressive camshafts may require additional spring control, but more spring pressure isn't automatically better. Excessive pressure can increase loads and wear elsewhere in the valvetrain.



Can performance exhaust valves be used with hydraulic lash adjusters?

That depends on the valve dimensions and the complete valvetrain configuration.

The BK Racing exhaust valve was developed to work within both hydraulic and solid-adjuster Ecotec combinations, but valve-tip height and geometry become particularly important when other components have been changed.

Any modified valvetrain should be measured during assembly rather than assuming that a combination is correct simply because the individual components physically fit.



Why does valve-tip height matter with reground Ecotec cams?

Regrinding a camshaft can reduce its base-circle diameter. That changes the geometric relationship between the camshaft, rocker, lash adjuster and valve.

An extended valve tip can help compensate for this change in certain combinations and restore the desired operating geometry.

This is why the BK Racing exhaust-valve program includes an extended-tip design intended to address the geometry encountered with regrind camshafts.



What should I look for when choosing an Ecotec exhaust valve?

Don't make the decision based on a single specification.

Consider the engine family, cylinder head, valve diameter, material, valve geometry, stem design, surface treatment, camshaft, spring package, intended RPM and type of racing or street use.

Most importantly, look for evidence behind performance claims.

A valve being larger, lighter, made from a more exotic material or labeled a “racing valve” doesn't automatically mean it will flow more air or perform better in your particular cylinder head.

For us, that principle became one of the biggest lessons of the entire BK Racing exhaust-valve development program:

Build around the complete combination—and test rather than assume.



---

Continue Learning About Ecotec Exhaust Valves

Building the right Ecotec valvetrain involves more than choosing a single valve. Exhaust-valve material, head and stem geometry, valve springs, retainers, lash adjustment and camshaft geometry all work together—especially in sustained high-RPM racing applications. If you're putting together a complete combination, explore the guides below and see how components such as the BK Racing Ecotec Exhaust Valves, BK Racing 83 lb Valve Springs, BK Racing Lightweight Titanium Retainers and BK Racing Solid Lash Adjusters fit into the complete Ecotec valvetrain.

Stock vs Performance Ecotec Exhaust Valves: What Actually Changes?

Learn what really separates an OEM replacement valve from a purpose-built performance exhaust valve, including material, nitriding, backside geometry, stem design, margin and intended operating environment.

Do Performance Ecotec Exhaust Valves Increase CFM? Our Ecotec Flow-Bench Testing

See what we learned from back-to-back Ecotec flow-bench testing, including why larger valve diameter didn't automatically produce more airflow and how the finished BK Racing Ecotec Exhaust Valve compared with the stock baseline.

Ecotec Exhaust Valve Size Guide: Stock Diameter, Stem Size & Applications

Compare stock and aftermarket Ecotec exhaust-valve head diameters, stem sizes, overall lengths and applications across the L61, LAP, LE5, LE9, LSJ and LNF engines.

21-4N Stainless vs Inconel vs OEM Ecotec Exhaust Valves

Understand the differences between OEM valve materials, 21-4N stainless and Inconel—and why the BK Racing Ecotec Exhaust Valve uses fully nitrided 21-4N stainless for the naturally aspirated, sustained-RPM racing applications it was developed around.

Why Exhaust Valve Shape Matters: Tulip, Back-Cut, Margin & Stem Geometry

Learn how the valve itself becomes part of the airflow path and why tulip shape, back-cut, margin, head thickness and stem geometry can matter just as much as valve-head diameter.

Stock Ecotec Exhaust Valves at High RPM: What Are the Limitations?

See what changes when a production Ecotec valvetrain is subjected to sustained racing RPM and why exhaust valves, BK Racing 83 lb Valve Springs and lightweight retainers should be considered as parts of the same system.

Undercut Valve Stems: Can They Improve Ecotec Exhaust Flow?

Learn how reducing the exposed portion of an exhaust-valve stem can decrease obstruction in the port and why the BK Racing Ecotec Exhaust Valve uses an undercut stem with a smooth transition into the backside of the valve.

Ecotec Valve Springs, Exhaust Valves & RPM: Building the Valvetrain as a System

Go deeper into the relationship between valve mass, spring pressure, installed height, cam profile, retainers and RPM, including how the BK Racing 83 lb Valve Springs, BK Racing Lightweight Titanium Retainers, performance valves and BK Racing Solid Lash Adjusters can be combined into a complete racing valvetrain.

Reground Ecotec Cams & Valve Stem Height: Why Geometry Matters

Learn why reducing a camshaft's base circle changes the relationship between the cam, rocker, lash adjuster and valve—and why the extended-tip geometry of the BK Racing Ecotec Exhaust Valve was developed with reground-cam combinations in mind.

Ecotec Exhaust Valve Comparison: OEM vs Ferrea vs Supertech vs BK Racing

Compare OEM, Ferrea, Supertech and BK Racing Ecotec Exhaust Valves by dimensions, material, geometry and intended application, including where we have actual back-to-back flow-bench data and where we don't.

Are L61, LAP, LE5, LE9, LSJ & LNF Exhaust Valves Interchangeable?

See which Ecotec engines share basic exhaust-valve architecture, where important differences remain and what should be measured before combining valves, cylinder heads and valvetrain components from different Ecotec generations.
