Ultimate Base Fuel Cell Line Installation Kit – The Most Inclusive E85-Compatible Solution for a Complete Fuel System

Explore the Ultimate Base Fuel Cell Kit

Upgrade your race car's fuel system affordably with our Ultimate Base Fuel Cell Line Installation Kit, the most inclusive kit on the market for a complete fuel system, designed for seamless integration in racing, off-road, EFI conversions, or custom automotive builds where you would like to add a performance fuel system. This streamlined kit focuses on the essentials—premium AN fittings for flexible connections, E85-compatible high-durability braided hoses, dual-stage inline filtration for comprehensive contaminant protection, and specialized adapters to link with your pump, regulator, fuel rail, and even the reducers for the fuel cell— providing a complete, leak-proof solution for fuel lines from cell to engine. It supports high-flow applications with robust contaminant protection, ensuring maximum efficiency and durability. Fully compatible with E85, ethanol blends, gasoline, diesel, and methanol for versatile use in boosted or high-horsepower setups. (Vent kit sold separately as needed, which includes the rollover valve for bulkhead safety; add our budget pump and regulator options if required.)

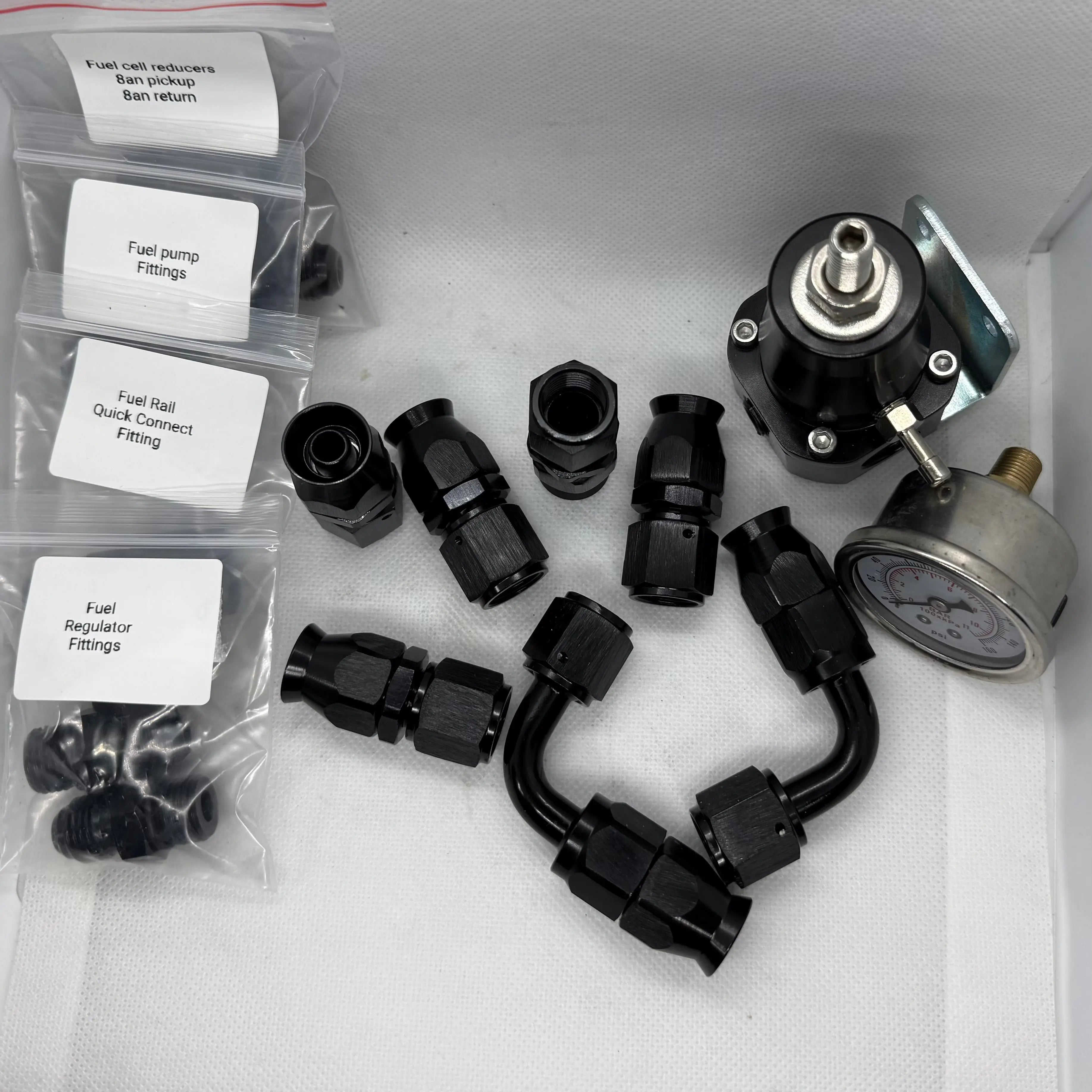

Kit Contents (Per Set):

• Straight 6AN Swivel Hose Ends: 5 PCS – 360° double-swivel for flexible routing around filters, regulator, and pump.
• 6AN Quick-Disconnect 3/8" Fitting: 1 PCS – Tool-free push-on adapter for seamless connection to 3/8" SAE fuel rails for quick maintenance without spills.
• 8AN Female to 6AN Male Reducer: 2 PCS – Straight adapter for downsizing from standard 8AN fuel cell outlets to 6AN lines for supply/vent/return compatibility.
• 90 Degree 6AN to PTFE Hose Fittings: 2 PCS – Elbow swivel ends for tight-space routing..

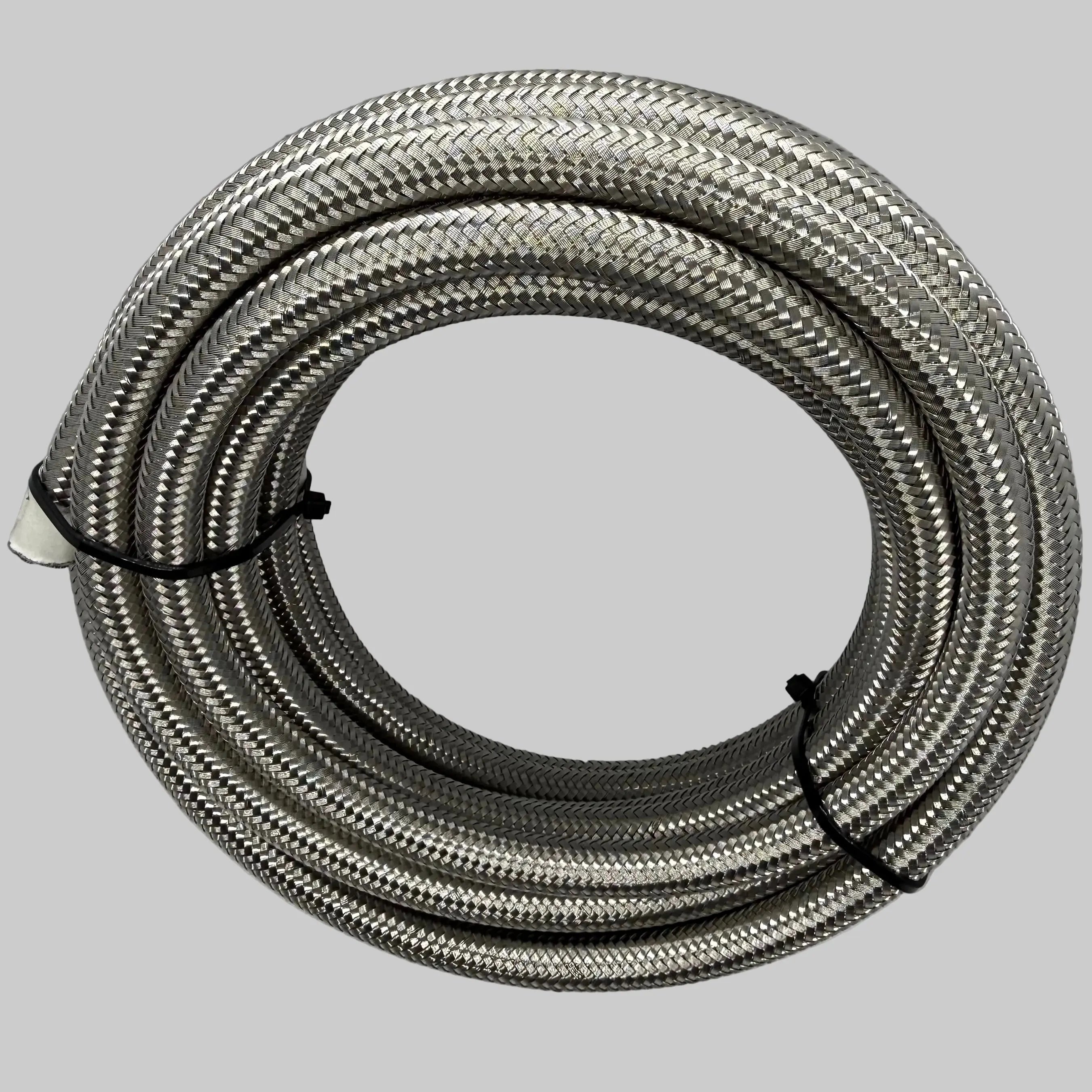

• 6AN Steel Braided PTFE Hose (6m Length): 1 Length – E85-compatible, antistatic PTFE liner with stainless steel braiding, ideal for main fuel runs with minimal flow restriction.

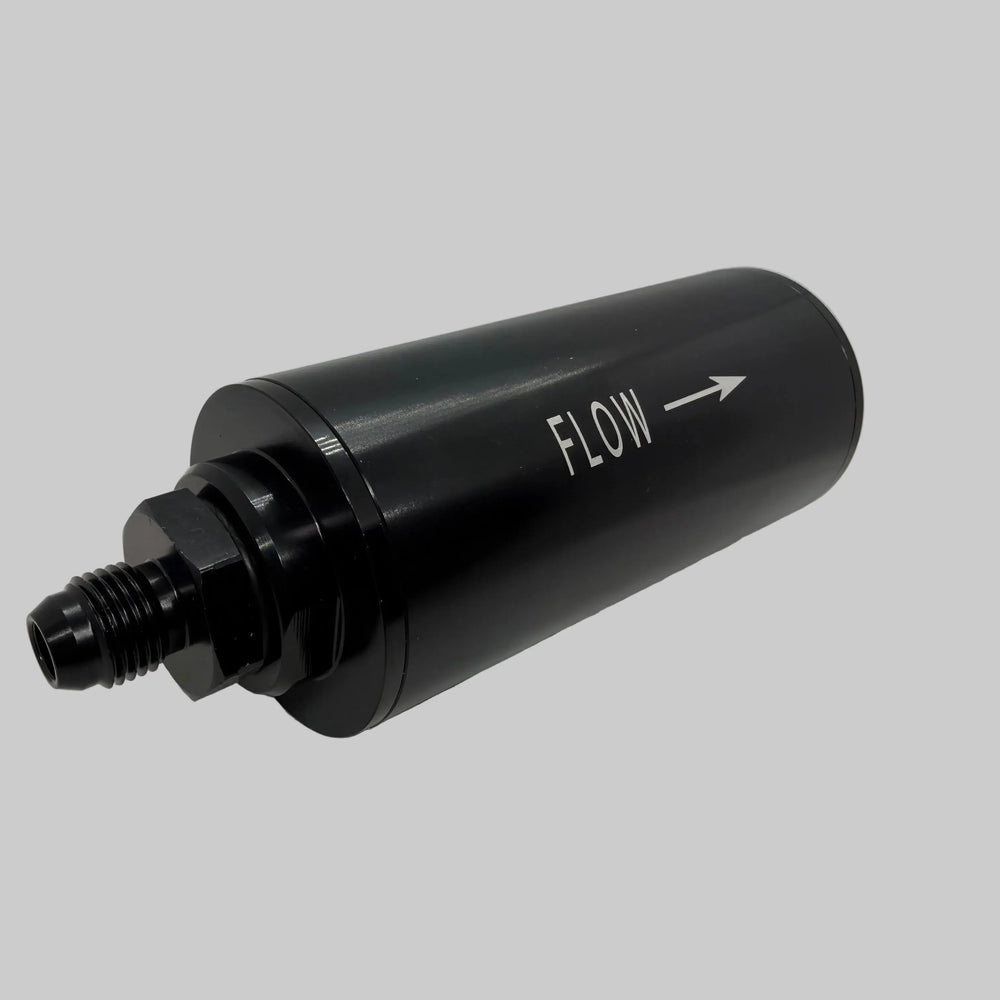

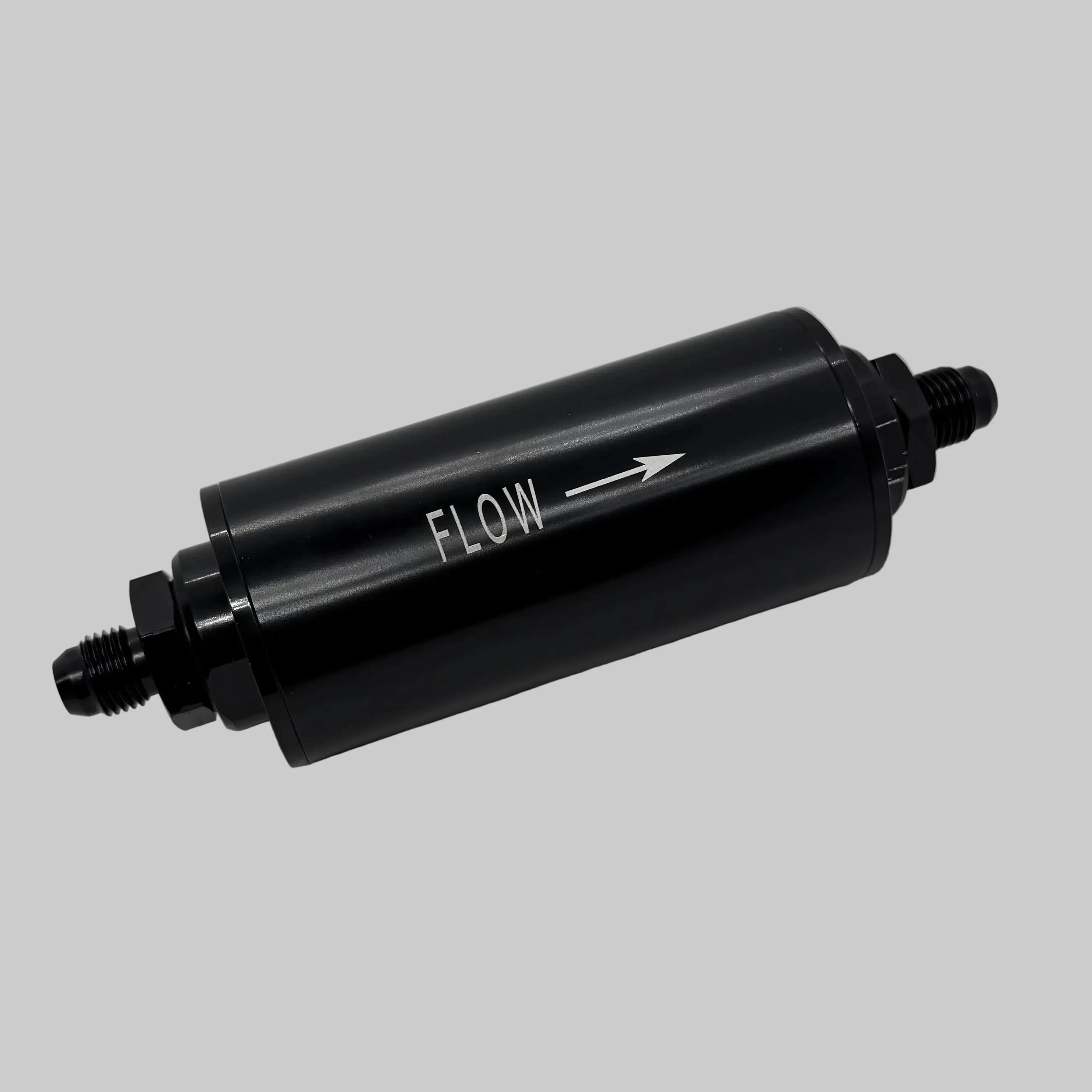

• Inline Fuel Filter (6AN, 30 Micron): 1 PCS – Post-pump/post-regulator fine filter with cleanable stainless steel/microglass element; anodized aluminum housing, protects injectors from micro-debris.
• Inline Fuel Filter (6AN, 100 Micron): 1 PCS – Pre-pump coarse filter, prevents pump clogging from larger contaminants.
• M12 ORB to AN6 Adapter (Fuel Pump Fitting): 1 PCS – Converts pump outlet ORB port to AN6 for expanded compatibility, leak-proof sealing.
• Black ORB M18 to AN6 Adapter (Fuel Pump Fitting): 1 PCS – Adapts pump inlet ORB port to AN6 for reliable performance.
• Black ORB Fuel Pressure Regulator Fittings: 3 PCS – Adapts regulator inlet, outlet and return lines to AN6 for reliable performance.
• Fluid Filled Fuel Pressure Regulator Gauge: 1 PCS – Quality fluid filled gauge reads to 160 psi and threads to regulator for reliable performance.

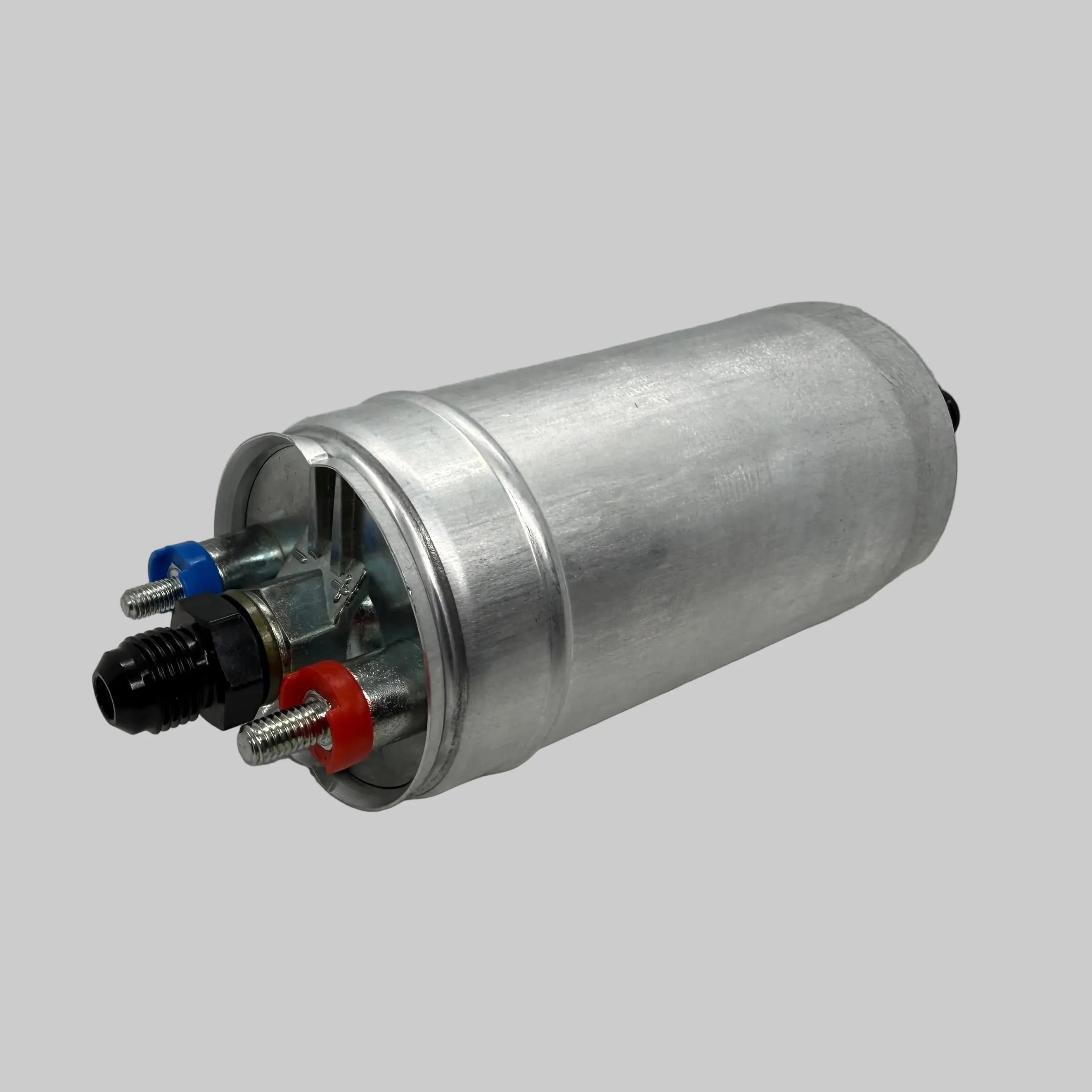

• Standard 380 LPH Inline Fuel Pump: 1 PCS – for reliable performance.
• Standard Fuel Pressure Regulator: 1 PCS – for reliable performance.
• Standard Fuel Pressure Regulator: 1 PCS – for reliable performance.

Comprehensive Solution for Fuel Systems

The Ultimate Base Fuel Cell Kit is designed to provide a complete solution for your fuel system needs. This kit is specifically compatible with E85, ensuring optimal performance and efficiency. It includes all essential components needed for a straightforward installation, so you don't have to worry about sourcing individual parts. This all-in-one approach saves you both time and money, because it simplifies the installation process significantly.

Durable and Reliable Components

Each component in the Base Fuel Cell Kit is crafted with durability in mind. High-quality materials are utilized to ensure that the fuel system operates effectively and withstands harsh conditions. When you choose this kit, you're investing in reliable performance and longevity for your vehicle. Therefore, you can enjoy peace of mind, knowing that your fuel system will function optimally for years to come, despite the challenges posed by different driving conditions.

Easy Installation for All Skill Levels

This installation kit is designed to be user-friendly, making it accessible for both experienced mechanics and DIY enthusiasts. The kit includes detailed instructions that guide you through every step of the process, which simplifies the installation significantly. This design allows even those who are not experts to complete the installation with confidence. So, whether you're upgrading your fuel system or creating a new setup, the Base Fuel Cell Kit is your ideal choice.
