Two Ecotec exhaust valves can have the same 30.1 mm head diameter and still behave very differently.
That's because valve diameter is only one part of the airflow path.
Once an exhaust valve begins lifting away from its seat, exhaust gas has to travel past the seat, around the valve head, across the backside of the valve and past the stem before it can continue through the exhaust port.
That means the valve itself is physically sitting in the airflow.
Its shape matters.
A performance exhaust valve therefore isn't simply a round disc attached to a stem.
The relationship between the valve's:
head diameter, seat, margin, head thickness, backside or tulip profile, back-cut, stem diameter and head-to-stem transition
can influence how the exhaust flow sees the valve.
That's why BK Racing didn't approach its Ecotec exhaust-valve program by simply asking:
How big can we make the valve?
We asked a different question:
How can the valve work better with the airflow path already inside the Ecotec cylinder head?
And then we put that direction on a flow bench.
Quick Answer: Does Exhaust Valve Shape Affect Airflow?
Yes.
Once the valve is open, the exhaust gases have to move around it.
The valve therefore becomes part of the port's effective geometry.
Changing the shape of the valve can alter:
- the available curtain area at a given lift,
- how abruptly the gases have to change direction,
- the obstruction created by the valve head and stem,
- the transition from the valve seat into the port,
- and the relationship between airflow, component mass, strength and heat transfer.
But there is an important qualification:
No individual valve feature works in isolation.
A more aggressive back-cut isn't automatically better.
A thinner margin isn't automatically better.
A thinner head isn't automatically better.
A smaller stem isn't automatically better.
A flatter backside isn't automatically better.
And a larger valve isn't automatically better.
A performance exhaust valve is a combination of geometry.
That's the central idea behind this entire guide.
The Exhaust Valve Is Literally Inside the Airflow Path
It's easy to think of the exhaust port as the part of the cylinder head that controls airflow.
It does.
But before the exhaust gases can move through that port, they have to get past the valve.
When the valve is closed, it seals the combustion chamber.
When the valve begins to open, a narrow opening appears around its circumference.
That opening is commonly called the valve curtain.
As lift increases, curtain area increases.
A simplified expression is:
Valve Curtain Area ≈ π × Valve Diameter × Valve Lift
That equation helps explain why valve diameter gets so much attention.
Increase diameter and theoretical curtain area increases at the same lift.
But the equation tells us only how much geometric opening is available.
It does not tell us how effectively the gases can use it.
That's where valve shape becomes important.
Valve Curtain Area Is Not the Same as CFM
This distinction is critical.
Suppose we have two valves.
One is 30.1 mm.
The other is larger.
At equal lift, the larger valve has more theoretical curtain area.
Does that guarantee more CFM?
No.
The gas still has to negotiate the:
valve seat → valve head → backside → throat → bowl → stem → exhaust port.
If one of those areas is controlling flow, increasing theoretical curtain area may not produce the expected improvement.
We've seen this during our own Ecotec development.
An oversized aftermarket exhaust valve tested during the program did not outperform the stock-valve baseline in that particular cylinder-head configuration.
That doesn't prove oversized valves are bad.
It proves something more useful:
Valve diameter alone doesn't determine airflow.
We Tested the Opposite Theory Too
Instead of only testing larger valves, we deliberately went the other direction.
We produced a BK Racing development exhaust valve that was intentionally smaller than the stock valve.
That wasn't a manufacturing mistake.
It was an experiment.
We wanted to know whether the direction of our valve geometry could improve airflow without receiving any advantage from increased valve diameter.
The logic was straightforward.
If we increased diameter and airflow improved, we'd still have to ask:
Did the geometry work, or did we simply gain curtain area?
So we deliberately removed that advantage.
The development valve was smaller.
Then MWR Technologies tested it against the stock baseline.
The result:
+3 CFM over the stock Ecotec exhaust-valve baseline
That's an important result because the valve gained airflow despite giving up diameter.
It doesn't prove smaller valves are better.
It doesn't prove any one feature added 3 CFM.
And it doesn't establish the final production valve's CFM.
What it demonstrates is that valve diameter wasn't responsible for the measured improvement.
Something about the complete development-valve configuration allowed the cylinder head to move more air.
That's exactly what we wanted the experiment to tell us.
So What Parts of Exhaust-Valve Shape Can Affect Airflow?
This is where valve design gets considerably more interesting than a catalog diameter.
The major geometric areas include:
| Valve Feature | What It Can Influence |
|---|---|
| Head diameter | Potential curtain area |
| Seat/face geometry | Initial airflow transition and sealing |
| Back-cut | Transition immediately behind the seat |
| Margin | Edge strength, heat behavior and local geometry |
| Head thickness | Strength, mass and backside geometry |
| Tulip/backside profile | How flow moves around the valve head |
| Head-to-stem transition | Flow continuity and structural transition |
| Stem diameter | Obstruction in the port |
| Undercut stem | Reduced exposed obstruction and potentially mass |
| Overall valve geometry | How all of these features interact |
This is why comparing two valves solely by:
30.1 mm vs 30.1 mm
tells us very little about their airflow behavior.
What Is the Tulip on an Exhaust Valve?

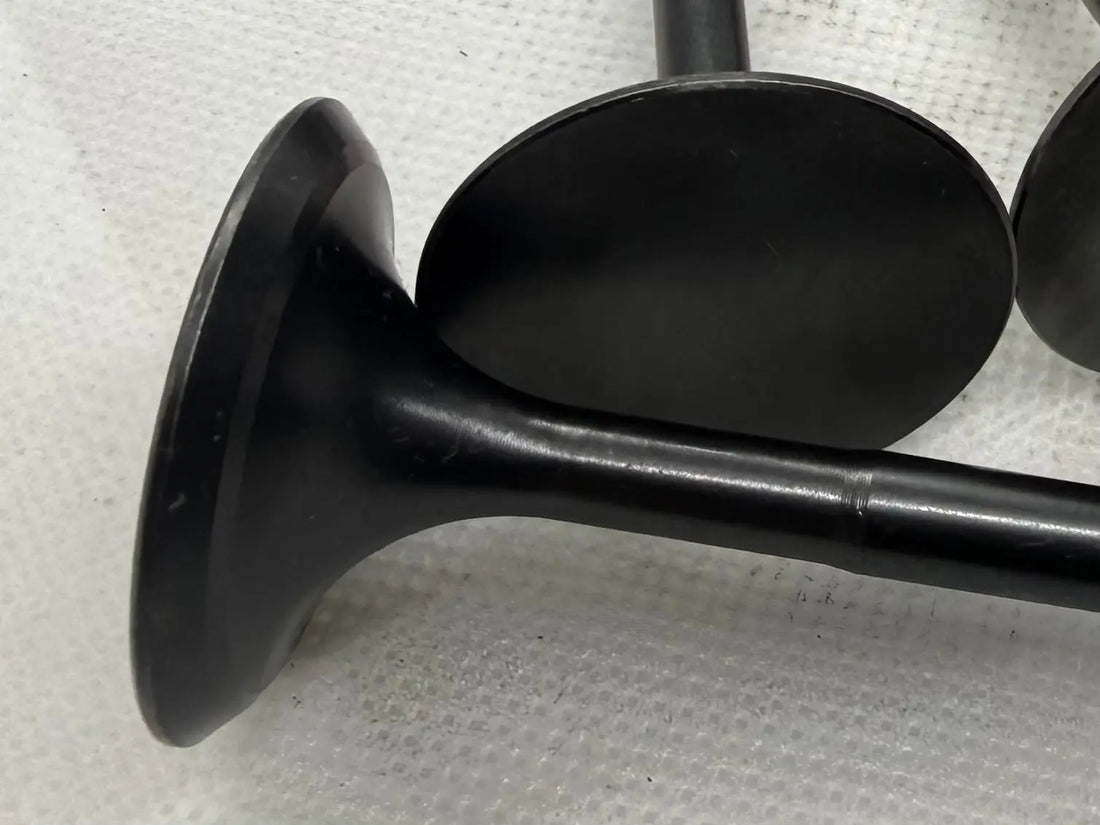

The tulip generally refers to the curved backside region of the valve head as it transitions toward the stem.
Look at an engine valve from the side and you'll see that the combustion-side face and the backside don't necessarily form a simple flat disc.
The backside can transition toward the stem with different amounts of curvature.
Some designs have a more pronounced tulip.
Others are flatter.
Others use more complex blended transitions.
That backside shape is important because when the exhaust valve is open, gases are moving past it.
The backside is therefore part of the flow path.
Why Does Tulip Shape Matter?
Imagine airflow moving around a sharp obstacle.
Then imagine it moving around a smoother transition.
Those shapes can influence how the flow turns, accelerates, separates and reattaches.
A valve isn't exactly an airplane wing and an exhaust port isn't a wind tunnel, so simplistic analogies should be avoided.
But the basic principle remains:
The shape presented to the moving gas matters.
A tulip profile can influence the transition between the valve head and stem and the amount of physical obstruction presented in that region.
However, this doesn't mean:
more tulip = more flow
or:
flatter valve = more flow.
The appropriate shape depends on the cylinder head, valve size, seat, throat, port and intended application.
Is a Flatter Exhaust-Valve Backside Better?
Not automatically.
A flatter backside can potentially remove material and change the way the valve occupies the flow path.
But valve design isn't simply an exercise in removing as much material as possible.
The valve head still needs:
mechanical strength, thermal capability, adequate seat support and durability.
And the resulting shape still needs to work with the cylinder head.
A very aggressive shape that looks impressive in a photograph may not produce the best airflow—or the best durability.
That's why the flow bench is useful.
It lets us test rather than judge the valve visually.
What Is the Head-to-Stem Transition?
The backside eventually has to become the stem.
That transition can be abrupt or gradual depending on the valve design.
From an airflow perspective, an abrupt geometric change can present a different shape to the exhaust stream than a smooth blended transition.
From a mechanical perspective, however, this is also an important structural area of the valve.
That means we can't simply optimize it for airflow without considering strength.
The objective is a transition that satisfies both requirements.
The BK Racing development program paid considerable attention to this area.
We're happy to explain why.
We're not publishing the exact geometry used to accomplish it.
Why BK Racing Uses a Developed Backside Transition
Our goal wasn't to make a valve that simply looked different from stock.
The objective was to create a more deliberate path from the valve head toward the stem while balancing:
airflow, material distribution, strength, mass and durability.
That's one of the areas where a performance valve can differ significantly even when its nominal head diameter remains nearly identical to stock.
This is also where we draw the line between technical education and proprietary design information.
We can tell customers what we're trying to accomplish.
We can publish the testing.
But the exact radii, transition locations and dimensional relationships remain part of the BK Racing design.
What Is a Valve Back-Cut?
A back-cut is an additional angle machined on the backside of the valve adjacent to the primary seating area.
It changes the transition immediately behind the seat.
This can potentially influence airflow because the gases encounter that region as they move past the opening valve.
Instead of the backside geometry transitioning directly from the seating area into the remainder of the valve head, a back-cut can create another stage in that transition.
This is particularly interesting at lower and intermediate valve lifts, where the seat and immediate surrounding geometry can have substantial influence on the available flow path.
Does a Back-Cut Increase CFM?
It can.
But “back-cut = more CFM” isn't a universal rule.
The result depends on:
valve diameter
seat angle
seat width
throat diameter
chamber shape
valve lift
backside profile
and port geometry.
A back-cut that helps one cylinder head may not produce the same result in another.
And changing the angle or width doesn't guarantee that increasingly aggressive cuts will keep increasing airflow.
At some point, durability, seat support or the flow behavior itself can move in the wrong direction.
This is why a back-cut should be developed as part of the valve/seat combination.
Why Low-Lift Flow Matters
Peak lift gets most of the attention because it's easy to quote.
But an engine valve doesn't teleport from closed to maximum lift.
It passes through every lift point on the way open.
Then it passes through them again on the way closed.
That means the engine spends substantial parts of the valve event at partial lift.
Seat geometry, back-cuts and the immediate backside of the valve can be especially relevant during those portions of the event.
That's why evaluating only one maximum-lift CFM number can hide useful information.
A flow curve tells a much better story.
Why We Don't Build a Valve Around One Peak CFM Number
A cylinder head is not operating at maximum valve lift for the entire exhaust event.
The valve accelerates open.
Moves through intermediate lifts.
Approaches maximum lift.
Then reverses direction.
Returns through those intermediate lifts.
And finally closes.
So an exhaust valve that gains airflow across useful portions of the lift curve can be more interesting than one designed merely to produce an impressive single peak number.
That's one reason BK's development isn't centered around publishing one flashy CFM figure.
The flow bench is a development tool.
The engine is the final application.
What Is Valve Margin?
The margin is the thickness at the outside edge of the valve head between the valve face and the outer edge.
It's easy to overlook because it's a relatively small part of the valve.
But it performs important functions.
The margin contributes to the amount of material present around the outer edge of the valve head.
For an exhaust valve, that area is subjected to significant heat and repeated loading.
Changing margin geometry can affect:
edge strength, material mass, thermal behavior and the shape presented near the valve opening.
Is a Thinner Valve Margin Better for Flow?
Not automatically.
Reducing unnecessary material can change the shape and potentially reduce mass.
But an exhaust valve isn't a disposable flow-bench fixture.
The margin still has to survive:
combustion temperature
seat loading
repeated cycling
and long-term racing use.
Make it too conservative and you may carry unnecessary material.
Make it too aggressive and you can compromise durability.
The correct margin is therefore another balance, not a competition to make the smallest number possible.
Why Exhaust-Valve Margin Matters More Than It Looks
The margin is near one of the hottest areas of the valve.
It's also close to the region where gases begin moving around the valve head.
So it sits at the intersection of:
airflow and durability.
That's exactly the kind of feature that can be overlooked when customers compare performance valves only by diameter and material.
Two 30.1 mm valves can have different margin strategies.
They can therefore present different geometry to the flow and carry different amounts of material at the valve edge.
Again:
Same diameter doesn't mean same valve.
What Is Exhaust-Valve Head Thickness?
Head thickness is exactly what it sounds like: the amount of material through the valve head.
But its implications extend much further than the simple dimension.
Changing head thickness can influence:
valve mass
mechanical strength
heat capacity
backside geometry
and the amount of material occupying the airflow region.
That's why head thickness is another parameter that has to be optimized rather than minimized.
Is a Thinner Valve Head Better?
Not automatically.
A thinner head can remove mass and may permit a different backside profile.
But the exhaust valve is one of the hottest components in the cylinder head.
It still needs sufficient material to survive combustion pressure, thermal cycling and repeated seat impact.
So the design question isn't:
How thin can we make it?
It's:
How much material does this application need, and where should that material be located?
That's a much more useful engineering question.
Why Valve Weight and Head Thickness Are Connected
The valve spring has to control the moving valve.
Reducing unnecessary mass can therefore be beneficial in a high-RPM valvetrain.
But removing material from the wrong area can compromise durability.
This creates another design tradeoff:
Less mass helps valvetrain control.
Adequate material helps the valve survive.
The objective isn't the lightest possible exhaust valve.
It's the appropriate combination of mass, strength, temperature capability and airflow.
What Is an Undercut Valve Stem?
A performance valve doesn't necessarily use the same stem diameter from the tip all the way to the head.
The portion traveling inside the guide needs the proper guide diameter.
But the portion exposed to the airflow can sometimes be reduced.
That's an undercut stem.
The basic idea is straightforward:
Reduce unnecessary obstruction where the stem is exposed to airflow while retaining the required guide relationship where the stem runs in the guide.
This is another example of optimizing the valve as part of the port.
Can an Undercut Stem Increase CFM?
Potentially.
The valve stem occupies physical cross-sectional area inside the port.
Reducing exposed stem diameter reduces that obstruction.
But the actual CFM change depends on:
port velocity
stem location
valve lift
port shape
backside geometry
and the rest of the cylinder head.
So we don't make the claim:
“Our undercut stem adds X CFM.”
We haven't isolated that one variable in a controlled A/B test.
What we know is that the complete development valve gained 3 CFM over the stock baseline.
The undercut stem was part of the complete design.
That's the defensible claim.
Why Not Make the Entire Stem Smaller?
Because the stem isn't only an airflow obstruction.
It's also a mechanical component.
It needs to:
guide the valve
resist bending
transfer load
maintain stability
and contribute to heat transfer.
The valve guide also requires the proper operating clearance.
So simply reducing the entire stem diameter to chase airflow would introduce other problems.
The smarter approach is to determine where the material is needed and where reducing obstruction may be useful.
Why the Undercut Transition Matters
If the stem changes diameter, those two diameters have to meet somewhere.
That creates another geometric transition.
A sharp step and a smooth transition aren't mechanically or aerodynamically identical.
This is an area where airflow and stress considerations overlap.
The transition has to be developed carefully enough to reduce unnecessary obstruction without introducing a poor structural feature.
Again, the exact BK Racing geometry is proprietary.
The engineering principle isn't.
Does an Undercut Stem Make the Valve Lighter?
Generally, removing material reduces mass.
But how much depends on:
the amount removed, the length over which it's removed and the density of the valve material.
We shouldn't overstate this benefit.
The primary reason to discuss an undercut stem in this article is airflow obstruction.
Any mass reduction is part of the complete finished-valve result.
Valve Shape vs Valve Diameter: Which Matters More?
This is a trick question.
They interact.
Diameter determines part of the available opening.
Shape influences how effectively the airflow can negotiate the valve.
The cylinder head determines whether the port can use what the valve provides.
A larger valve with poor integration into the seat and port may disappoint.
A smaller valve with well-developed geometry can sometimes perform surprisingly well.
We know that because we tested one.
Our Undersized Test Is the Best Example
The intentionally undersized BK Racing development valve is valuable because it helps isolate the concept.
We deliberately gave up diameter.
That meant we deliberately gave up theoretical curtain area relative to what a larger version could provide.
Yet the development valve still produced:
+3 CFM over the stock baseline.
So the result could not be explained by:
“BK just made the valve bigger.”
We didn't.
That's precisely why we ran the test.
Does That Mean Smaller Exhaust Valves Are Better?
No.
This is where technical accuracy matters.
The test does not prove that reducing exhaust-valve diameter generally increases airflow.
It proves that our intentionally undersized development valve outperformed the stock baseline in that test configuration.
If everything else remained identical and we simply kept reducing diameter, airflow would not continue increasing forever.
Likewise, simply increasing diameter won't necessarily continue increasing airflow.
There is an interaction between:
diameter + geometry + seat + throat + bowl + chamber + port.
That's the real lesson.
Why the Final BK Racing Exhaust Valve Is 30.1 mm
After learning from the development program, our final production exhaust valve returned to the intended:
30.1 mm head diameter
That's within the stock-size performance Ecotec architecture.
We didn't need to make the production valve oversized just to put a bigger number in the product description.
The undersized experiment had already shown us that there was airflow potential in the design direction itself.
Returning to the intended stock-size diameter gives the production valve the appropriate dimensional architecture without requiring us to build the product around an oversized-valve strategy.
Will the 30.1 mm Production Valve Flow More Than the Undersized Development Valve?
That's a reasonable development hypothesis.
But it isn't something we should publish as a measured result until we test it.
Increasing from the intentionally undersized development diameter to the final 30.1 mm production diameter restores potential curtain area.
That gives us a reason to test whether the production configuration improves further.
But the entire point of our development program is that airflow doesn't depend on diameter alone.
So we're not going to predict a CFM number.
We'll test it.
Why Seat Geometry and Valve Shape Have to Work Together
The valve doesn't flow independently from the valve seat.
When the valve first begins opening, the available passage is strongly influenced by the relationship between the valve face and seat.
As lift increases, other portions of the valve and port become increasingly important.
That's why:
valve diameter, seat angle, seat width, back-cut, throat diameter and chamber geometry
can't be treated as completely independent variables.
A performance valve installed on an inappropriate seat isn't being given the environment it was designed around.
Why Throat Diameter Matters With Valve Diameter
Immediately below the seat is the throat.
If valve diameter increases but the throat remains restrictive, the additional theoretical curtain area may not translate into additional airflow.
Conversely, aggressively enlarging the throat without considering seat support, velocity and the rest of the port can create different problems.
This is one reason oversized valves generally make the most sense when they're part of a complete cylinder-head program.
You aren't just changing a valve.
You're changing the relationship between the valve and the head.
Why Combustion-Chamber Shape Matters
The combustion chamber surrounds the valve on the cylinder side.
At lower valve lifts, the chamber wall can influence the space available for gases to move around different parts of the valve circumference.
This means the same valve can potentially behave differently in two cylinder heads with different chamber shapes.
Again, that's why:
There is no universally perfect valve geometry independent of the cylinder head.
The valve needs to be developed for the application.
Why Port Shape Matters
After the gases pass the valve and throat, they still have to travel through the exhaust port.
If the port becomes the controlling restriction, additional valve flow area may produce diminishing returns.
This is another reason peak valve diameter isn't the entire answer.
The complete airflow path is:
combustion chamber → valve curtain → seat → throat → bowl → port → exhaust system
The valve participates in the beginning of that path.
It doesn't operate separately from it.
Why Flow-Bench Testing Matters
A CAD model can tell us dimensions.
A calculator can tell us theoretical curtain area.
A photograph can tell us what a valve looks like.
None of those directly tells us how much air the cylinder head actually flows with that valve installed.
That's where the flow bench becomes useful.
It lets us compare changes under controlled conditions.
Stock valve.
Development valve.
Oversized valve.
Different configuration.
Measure the result.
Instead of saying:
“This should flow better because it looks more aerodynamic.”
we can ask:
“Did it actually move more air?”
That's a much better development process.
Why Back-to-Back Testing Is More Valuable Than Random Internet CFM Numbers
Flow benches and testing procedures differ.
Test pressure can differ.
Bore fixtures can differ.
Exhaust tubes can differ.
Cylinder heads can differ.
Valve jobs can differ.
That makes absolute numbers from unrelated sources difficult to compare directly.
A controlled back-to-back comparison is much more useful when we're trying to evaluate a component change.
Keep as much as possible consistent.
Change the valve.
Measure again.
That's how the +3 CFM development result should be understood.
Why We Won't Say One Feature Added 3 CFM
This distinction separates actual development from marketing.
Our development valve included multiple differences from the stock valve.
Therefore, the flow-bench result belongs to:
the complete development valve.
It would be misleading for us to say:
The tulip added 1 CFM.
The back-cut added 1 CFM.
The undercut stem added 1 CFM.
We didn't conduct those isolated tests.
Maybe one feature contributed more.
Maybe the interaction between several features mattered.
Maybe one feature helped at one lift and another mattered elsewhere.
Without controlled A/B testing of each variable, assigning individual numbers would be guesswork.
We're not going to do that.
This Is Why Valve Development Is About Relationships
The most interesting dimension on a performance valve may not be any single dimension.
It may be the relationship between dimensions.
Backside profile relative to head thickness.
Back-cut relative to the seat.
Margin relative to the head.
Stem diameter relative to the port.
Undercut relative to the guide section.
Head diameter relative to the throat.
And all of it relative to the cylinder head.
That's where a lot of the real development work happens.
It's also exactly where we stop publishing dimensions.
Why BK Racing Doesn't Publish Every Valve Dimension
We want our customers to understand what they're buying.
So we'll publish the dimensions necessary to identify and correctly use the valve.
For example:
30.1 mm production head diameter
and the appropriate application information.
But there is a difference between publishing customer specifications and publishing a manufacturing blueprint.
The exact:
backside geometry
radii
back-cut relationships
margin specification
head thickness
undercut dimensions
transition geometry
and internal tolerances
are part of the development work behind the product.
Those stay with BK Racing.
The result is for sale.
The blueprint isn't.
Can You Judge a Performance Valve by Looking at It?
You can learn some things.
You may be able to see:
a pronounced or reduced tulip,
an undercut stem,
a back-cut,
a different margin,
or obvious differences in head shape.
But visual inspection can't tell you:
exact dimensions,
material properties,
surface-treatment depth,
runout,
weight,
seat quality,
or actual flow.
And a valve that looks extremely aggressive isn't automatically the better valve.
The flow bench doesn't care which one looks faster.
Does a Bigger Tulip Mean More Flow?
No universal rule says that.
Tulip geometry changes how the valve head transitions toward the stem.
Whether more or less curvature helps depends on the complete cylinder-head combination.
This is why copying a tulip profile from a different engine doesn't guarantee a gain on an Ecotec.
A valve should be developed around the head it's intended to work with.
Does a Bigger Back-Cut Mean More Flow?
Again, no.
A back-cut modifies the transition behind the seat.
Changing its angle or width changes geometry, but that doesn't mean increasingly aggressive cuts create increasingly better airflow.
The valve seat and surrounding port determine how the change behaves.
More isn't automatically better.
Is the Thinnest Margin the Best Performance Margin?
No.
An exhaust-valve margin also contributes to the mechanical and thermal durability of the valve edge.
Reducing unnecessary material can be useful.
Removing necessary material isn't.
The correct specification balances the competing requirements.
Is the Thinnest Valve Head the Best?
No.
A thinner head can potentially reduce mass and alter the backside profile, but an exhaust valve has to survive temperature, cylinder pressure, seat impact and repeated fatigue cycles.
Again:
Optimize. Don't simply minimize.
Is the Smallest Stem the Best?
No.
A reduced exposed stem can lower obstruction.
But the stem still has to guide the valve, maintain stability, withstand loading and contribute to heat transfer.
That's why an undercut design is different from simply making the entire stem undersized.
Why This Matters More at High RPM
At 9,000 RPM, each exhaust valve completes approximately:
4,500 events per minute
or:
75 events every second.
Now consider what we're asking that component to do.
Accelerate.
Open.
Expose the airflow path.
Reverse direction.
Close.
Seal combustion.
Transfer heat.
Repeat.
Seventy-five times every second.
That's why we refuse to view airflow geometry and durability as separate problems.
A valve that produces an excellent flow-bench result but can't survive the intended engine isn't a successful design.
Exhaust Valve Shape and Valvetrain Mass
Valve geometry also influences how material is distributed.
Material distribution influences mass.
Mass influences the demands placed on the spring.
That's another connection between airflow design and valvetrain design.
An aggressive performance valve isn't simply trying to remove material everywhere.
It's trying to place material where it's needed and avoid carrying unnecessary material where it isn't.
This becomes increasingly valuable as RPM rises.
The Spring Still Has to Control the Valve
No amount of valve-flow development eliminates the need for proper spring control.
That's why the BK Racing exhaust-valve program belongs alongside our:
BK Racing 83 lb Valve Springs
and
BK Racing Lightweight Titanium Retainers.
A valve can have excellent airflow geometry, but if the spring can't maintain control over the complete moving system, the engine won't realize the intended benefit reliably.
Likewise, excessively increasing spring pressure isn't automatically the answer.
The system needs to be matched.
Camshaft Geometry Still Matters Too
The cam determines the valve motion we're asking the valvetrain to follow.
A reground camshaft can also change base-circle diameter, which affects the geometric relationship through the rocker and lash-adjustment system.
That's why valve-tip and overall geometry are another part of the BK Racing valve program.
Airflow development doesn't exist in isolation from the mechanical valvetrain.
The same valve has to perform both jobs.
Exhaust Valve Shape vs Material: Which Is More Important?
Another trick question.
They solve different problems.
Material asks:
Can the valve survive the mechanical and thermal environment?
Surface treatment asks:
Can we improve characteristics such as wear behavior at the surface?
Geometry asks:
How does the physical valve interact with airflow and the valvetrain?
A serious performance valve needs all three questions answered.
That's why a valve shouldn't be judged solely because it's:
Inconel
or:
21-4N
or:
30.1 mm
or:
undercut
or:
back-cut.
The complete design matters.
What Makes the BK Racing Ecotec Exhaust Valve Different?
Our production valve combines the features we selected around the intended application:
30.1 mm stock-size architecture
21-4N performance stainless
full nitriding
developed backside geometry
undercut-stem design
performance-oriented valve geometry
and
actual flow-bench development with MWR Technologies.
But the important part isn't how many features we can fit into a product description.
It's that we approached those features as a system.
And before finalizing the production direction, we deliberately tested whether our design could outperform the stock baseline while working with less valve diameter.
It did.
+3 CFM.
That's the development result we're willing to stand behind.
Why We Stayed With Stock-Size Architecture
It would have been easy to make an oversized valve and market:
BIGGER VALVE = MORE FLOW.
The problem is that our testing didn't support such a simplistic conclusion.
An oversized aftermarket valve didn't outperform the stock baseline in the particular configuration we tested.
Then our intentionally undersized development valve did outperform the stock baseline.
That gave us a clear reason to continue focusing on geometry rather than simply chasing diameter.
The final production valve is therefore 30.1 mm.
Stock-size architecture.
Not stock thinking.
Exhaust Valve Geometry FAQ
Does exhaust-valve shape really affect airflow?
Yes. Once the valve opens, exhaust gases must move around the valve head and stem, making the valve part of the airflow path.
What is an exhaust-valve tulip?
The tulip is the backside region of the valve head where it transitions toward the stem. Its shape influences the geometry presented to exhaust flow.
Is a larger tulip better?
Not necessarily. The appropriate backside shape depends on the valve, seat, throat, chamber and exhaust port.
What is a valve back-cut?
A back-cut is an additional geometric transition adjacent to the primary valve seating area on the backside of the valve.
Does a back-cut increase flow?
It can influence airflow, particularly where seat-area geometry is important, but the result depends on the complete valve and cylinder head.
What is valve margin?
The margin is the thickness at the outside edge of the valve head. It contributes to edge strength and thermal durability while also affecting local geometry.
Is a thinner margin better?
Not automatically. Reducing unnecessary material can have benefits, but an exhaust valve needs adequate material for durability.
Does valve-head thickness matter?
Yes. It influences material mass, strength, thermal behavior and the available backside geometry.
What is an undercut valve stem?
An undercut stem uses a reduced diameter in an appropriate exposed portion of the stem while retaining the required guide diameter where the valve operates in the guide.
Does an undercut stem improve CFM?
It can reduce physical obstruction, but its actual airflow effect depends on the complete cylinder head and valve design.
How much CFM does BK's undercut stem add?
We don't assign a separate CFM gain to the undercut stem because we haven't isolated it in a controlled stem-only A/B test. The complete intentionally undersized development valve gained 3 CFM over the stock baseline.
Does a larger valve always flow more?
No. A larger diameter creates additional theoretical curtain area, but the seat, throat, bowl, chamber and port have to be capable of using it.
Did BK test an oversized valve?
Yes. An oversized aftermarket exhaust valve did not outperform the stock baseline in the particular development configuration tested.
Why did BK test an undersized valve?
We wanted to determine whether the design direction could improve airflow without relying on increased valve diameter.
What happened?
The intentionally undersized development valve produced 3 CFM more airflow than the stock Ecotec exhaust-valve baseline.
Is the production BK valve undersized?
No. The production BK Racing Ecotec exhaust valve is 30.1 mm, which retains the stock-size performance architecture.
Does the production 30.1 mm valve gain 3 CFM?
That's not what we're claiming. The +3 CFM result belongs to the intentionally undersized development valve. The final production configuration should be tested before assigning it a production CFM number.
Why doesn't BK publish all of its valve dimensions?
We publish the information customers and engine builders need to select and use the product. The exact geometric relationships developed during the program remain proprietary.
The Bottom Line: Diameter Is Only the Beginning
When someone compares two Ecotec exhaust valves and sees:
30.1 mm vs 30.1 mm
it's tempting to assume they're basically the same.
They're not necessarily even close.
Behind that single diameter are dozens of design decisions involving:
tulip shape
backside contour
seat relationship
back-cut
margin
head thickness
stem geometry
undercut
transitions
material
surface treatment
mass
and complete valvetrain geometry.
That's why BK Racing didn't develop its exhaust valve by simply making the stock valve larger.
We intentionally tested the opposite.
We gave our development valve less diameter than stock and asked it to prove whether the design direction could still move more air.
The result was:
+3 CFM over the stock baseline.
That doesn't tell us smaller valves are better.
It tells us something much more important:
The shape of the valve matters.
Our final production valve returns to the 30.1 mm stock-size architecture, uses fully nitrided 21-4N stainless, and incorporates the lessons learned during development.
The exact geometry stays with us.
The reasoning behind it—and the test results—we're happy to explain.
Continue Learning About Ecotec Exhaust Valves
Valve shape is only one part of the complete Ecotec valvetrain. Material, valve diameter, stem design, springs, retainers, camshaft geometry and lash control all interact. Continue through the BK Racing technical library to see how the BK Racing Ecotec Exhaust Valves, BK Racing 83 lb Valve Springs, BK Racing Lightweight Titanium Retainers and BK Racing Solid Lash Adjusters fit together.
Stock vs Performance Ecotec Exhaust Valves: What Actually Changes?
Learn why two valves with similar outside dimensions can be completely different performance components.
Do Performance Exhaust Valves Increase CFM? Our Ecotec Flow-Bench Testing
See what happened when we tested stock, oversized and intentionally undersized Ecotec exhaust valves.
Ecotec Exhaust Valve Size Guide: Stock Diameter, Stem Size & Applications
Compare stock and aftermarket valve diameters, stem dimensions, overall lengths and applications.
21-4N Stainless vs Inconel vs OEM Ecotec Exhaust Valves
Learn why material selection and airflow geometry solve different engineering problems.
Stock Ecotec Exhaust Valves at High RPM: What Are the Limitations?
Understand how sustained racing RPM changes the thermal and mechanical demands placed on an exhaust valve.
Undercut Valve Stems: Can They Improve Ecotec Exhaust Flow?
Take a deeper look at stem obstruction, guide diameter and why the transition between them matters.
Ecotec Valve Springs, Exhaust Valves & RPM: Building the Valvetrain as a System
See why valve design can't be separated from spring control, retainer mass, cams, rockers and lash adjustment.
Reground Ecotec Cams & Valve Stem Height: Why Geometry Matters
Learn why changing camshaft base circle affects the mechanical side of valve geometry.
Ecotec Exhaust Valve Comparison: OEM vs Ferrea vs Supertech vs BK Racing
Compare different manufacturers' approaches to Ecotec valve diameter, material and design.
Are L61, LAP, LE5, LE9, LSJ & LNF Exhaust Valves Interchangeable?
Learn why similar dimensions don't automatically make two Ecotec exhaust valves functionally identical.
Start With the Complete Guide
The Complete Guide to GM Ecotec Exhaust Valves: L61, LAP, LE5, LE9, LSJ & LNF
Use the pillar guide to connect valve geometry with material, sizing, airflow, high-RPM operation, engine compatibility and complete valvetrain setup.
For SEO, I'd make the title “Exhaust Valve Shape & Airflow: Tulip, Back-Cut, Margin & Stem Geometry” and keep the H1 above. The meta description I'd use is: “How does exhaust valve shape affect airflow? Learn how tulip profile, back-cuts, margin, head thickness and undercut stems affect Ecotec exhaust-valve design.”
The strategic advantage of this article is that we're giving Google a genuinely useful technical resource while repeatedly demonstrating something that directly supports the BK product: 30.1 mm doesn't tell you whether two valves are equivalent. That makes it much harder for a customer to compare BK against Ferrea, Supertech or another valve based on diameter and material alone—and it does so without making an unsupported claim that we're better than either company.
make it stronger!
Absolutely. The way to make it stronger is not just to make it longer. It needs a sharper thesis:
Valve diameter tells you how big the valve is. It does not tell you how well the valve is designed.
Then we make this article the page people land on when searching exhaust valve shape, tulip valve, back-cut valve, valve margin, undercut valve stem, or what makes a performance valve flow better. And every section should reinforce why BK developed geometry instead of just selling a bigger valve.
I'd rewrite it like this:
Why Exhaust Valve Shape Matters: Tulip, Back-Cut, Margin, Head Thickness & Stem Geometry
A 30.1 mm exhaust valve is not just a 30.1 mm exhaust valve.
Two exhaust valves can have the same head diameter, fit the same Ecotec cylinder head and look nearly interchangeable on a specification sheet—yet present very different shapes to the airflow.
That's because valve diameter is only one dimension of a three-dimensional airflow component.
Once the exhaust valve opens, the gases leaving the cylinder don't simply pass through a hole equal to the valve diameter.
They have to move:
out of the combustion chamber → across the valve seat → through the valve curtain → around the valve head → past the backside of the valve → around the stem → into the exhaust port.
The valve is sitting directly in the middle of that path.
Its shape matters.
Its stem matters.
Its backside matters.
Its margin matters.
Its relationship with the seat and throat matters.
And simply making the valve larger doesn't guarantee that any of those relationships improve.
That's one of the most important lessons we learned while developing the BK Racing Ecotec Exhaust Valve.
Instead of beginning with the assumption that a larger exhaust valve had to flow more air, we deliberately tested the opposite.
We produced a development valve smaller than the stock Ecotec exhaust valve and asked it to overcome its diameter disadvantage through the complete design.
Back-to-back flow-bench testing with MWR Technologies showed:
+3 CFM over the stock Ecotec exhaust-valve baseline.
The development valve was smaller.
Yet it flowed more.
That doesn't mean smaller exhaust valves are inherently better.
It means something much more important:
Valve diameter alone does not determine airflow.
And that's where exhaust-valve geometry becomes interesting.
The Short Answer: Why Does Exhaust Valve Shape Matter?
An exhaust valve becomes part of the airflow path the moment it begins lifting away from its seat.
Its shape can influence how effectively exhaust gas moves through the valve opening and into the exhaust port.
Important geometric areas include:
| Valve Feature | Why It Matters |
|---|---|
| Head diameter | Determines potential valve circumference and curtain area |
| Seat/face geometry | Influences sealing and the initial flow transition |
| Back-cut | Changes the transition immediately behind the seat |
| Margin | Balances edge strength, heat and local geometry |
| Head thickness | Influences strength, mass and backside shape |
| Tulip/backside profile | Shapes the path around the back of the valve |
| Head-to-stem transition | Influences flow continuity and structural loading |
| Stem diameter | Physically occupies area inside the port |
| Undercut stem | Can reduce exposed stem obstruction |
| Complete geometry | Determines how all of those features interact |
This is why comparing performance valves solely by diameter can be misleading.
A catalog can tell you:
30.1 mm head diameter.
It cannot tell you from that number alone what shape the airflow actually sees.
An Exhaust Valve Is an Airflow Component
Most people understand that port shape affects cylinder-head airflow.
The same principle applies to the valve.
Look through an exhaust port with the valve open and the reason becomes obvious:
The valve is physically occupying part of the flow path.
Exhaust gas has to move around it.
So the valve shouldn't be treated as nothing more than a seal that moves up and down.
When the valve is open, it effectively becomes another piece of port geometry.
That's why changing the valve while leaving the cylinder head unchanged can sometimes change measured airflow.
We know because that's exactly what we were testing.
Start With Valve Curtain Area
When a valve lifts away from the seat, it creates an annular opening around its circumference.
This is commonly called valve curtain area.
A simplified calculation is:
Curtain Area = π × Valve Diameter × Valve Lift
The equation immediately explains the attraction of oversized valves.
Increase valve diameter while holding lift constant and theoretical curtain area increases.
For example, comparing a 30.1 mm valve with a 31.1 mm valve:
31.1 ÷ 30.1 ≈ 1.033
So the larger valve has approximately:
3.3% more circumference
and therefore approximately 3.3% more theoretical curtain area at the same lift.
That sounds like an obvious airflow improvement.
But there's a problem.
Theoretical curtain area isn't the same thing as measured CFM.
Why More Curtain Area Doesn't Guarantee More CFM
The gases still have to get through the rest of the cylinder head.
Increasing valve diameter doesn't automatically enlarge the:
throat, bowl, port, short-side region or exhaust outlet.
It also doesn't automatically improve the chamber's relationship with the valve.
So you can create additional theoretical opening around the valve without creating an airflow path capable of using all of it.
This is one reason serious oversized-valve cylinder heads typically involve more than simply installing a larger valve.
The seat may need to change.
The throat may need to change.
The bowl may need to change.
The chamber may need work.
The port may need development.
The larger valve creates potential. The cylinder head determines whether that potential can be used.
We Tested a Larger Ecotec Exhaust Valve
During development, MWR Technologies evaluated an oversized aftermarket Ecotec exhaust valve.
In the particular cylinder-head configuration being tested:
The oversized valve did not outperform the stock exhaust-valve baseline.
We aren't identifying the manufacturer because the purpose of the testing was development, not a competitor attack.
And that result should not be misinterpreted.
It does not prove oversized Ecotec exhaust valves are bad.
It does not prove the same valve couldn't work extremely well in a cylinder head developed around it.
It proves something narrower—and more useful:
Increasing exhaust-valve diameter alone did not guarantee additional airflow.
That observation changed the direction of our next experiment.
So We Intentionally Made Our Development Valve Smaller
This is where the BK Racing development program gets interesting.
If we had simply made our valve larger and gained CFM, we'd have had a problem interpreting the result.
Was the improvement caused by the geometry?
Or was it simply the additional diameter?
So we deliberately removed that question.
Instead of giving our development valve more diameter, we gave it less.
The valve was intentionally produced smaller than the stock valve.
That created a much harder test.
We were effectively asking:
Can the complete valve design overcome a disadvantage in valve diameter?
If it couldn't, we'd learn something.
If it merely matched stock, we'd learn something.
If it actually outflowed stock, we'd have evidence that increasing diameter wasn't necessary to produce the improvement.
Then we put it on the flow bench.
The Smaller Development Valve Gained 3 CFM
The result was:
+3 CFM over the stock Ecotec exhaust-valve baseline.
That's much more interesting than simply saying:
“Our valve gained 3 CFM.”
The context is the important part.
It gained 3 CFM while being intentionally smaller than the stock valve.
Therefore the improvement could not be explained by additional valve diameter.
That gave us evidence that the complete valve-development direction was influencing airflow.
But we need to be equally careful about what that result does not prove.
It doesn't tell us that the tulip added 3 CFM.
It doesn't tell us that the undercut stem added 3 CFM.
It doesn't tell us that the back-cut added 3 CFM.
And it doesn't tell us that smaller valves inherently flow better.
The test changed multiple characteristics as part of a complete development valve.
Therefore:
The +3 CFM belongs to the complete development valve.
Anything more specific would require controlled A/B testing of individual features.
What Is Exhaust-Valve Tulip Geometry?
Turn an exhaust valve over and look at the backside of the head.
The valve head has to transition into the stem.
That transition is often referred to as the tulip or backside profile.
Depending on the valve, this region may be:
more curved,
less curved,
relatively flat,
steep,
gradual,
or blended through multiple geometric transitions.
Why does that matter?
Because exhaust gases have to move around it.
The backside of the valve is effectively part of the exhaust port whenever the valve is open.
Why Tulip Shape Can Affect Airflow
Airflow doesn't respond only to how much area exists.
It also responds to the shape of the path.
The backside profile influences how much material occupies the region behind the valve head and how the shape transitions toward the stem.
A different profile can therefore alter what the exhaust stream encounters as it moves away from the valve seat.
This doesn't mean there is one universal “high-flow tulip.”
There isn't.
A profile that works well in one cylinder head may behave differently in another because the surrounding:
seat, throat, bowl, chamber and port
are different.
The correct question isn't:
What's the best tulip shape?
It's:
What backside geometry works with this cylinder head and application?
Tulip vs Nailhead Valve: What's the Difference?
This is useful terminology because people searching performance-valve information frequently encounter both.
A tulip-style valve generally has a more pronounced curved transition from the backside of the head toward the stem.
A nailhead-style valve generally has a flatter backside appearance.
Neither description automatically means:
better
or
worse.
They're geometric approaches.
A pronounced tulip may work well with one port configuration.
A flatter backside may work well with another.
The only reliable way to determine which direction benefits a particular cylinder head is to evaluate the combination.
Appearance is not airflow data.
Why “More Tulip” Isn't Automatically Better
It's tempting to look at a smooth, sweeping valve backside and assume:
That has to flow better.
Maybe.
Maybe not.
Increasing the tulip changes the amount and location of material behind the valve head.
That can influence airflow, but it can also affect:
valve mass, head strength and thermal behavior.
Likewise, making the backside extremely flat isn't automatically the answer.
Performance valve design isn't about pushing every feature to its maximum.
It's about finding the combination that works.
The Head-to-Stem Transition May Matter as Much as the Tulip
Eventually, the backside of the valve has to become the stem.
That sounds obvious, but it's a very important area.
If the head and stem were two unrelated components, we could optimize them separately.
They're not.
They're connected by a transition that has to satisfy both:
airflow requirements
and
structural requirements.
A poorly considered transition can present unnecessary material to the airflow.
But an excessively aggressive transition can introduce mechanical compromises.
The objective is therefore not:
remove everything possible.
It's:
put material where the valve needs it and avoid unnecessary obstruction where it doesn't.
This Is One of the Areas We Developed Heavily
The transition from the backside of the BK Racing valve toward the stem received significant attention during development.
We wanted the valve head and stem to behave like a continuous design, rather than two shapes simply joined together.
But this is also where we're intentionally going to stop giving dimensions.
The exact:
radii, transition locations, dimensional relationships and profiles
are part of the BK Racing design.
We'll explain the engineering.
We'll publish the testing.
We'll sell the finished valve.
We're not publishing the blueprint.
What Is an Exhaust-Valve Back-Cut?
The valve face contains the surface that seals against the valve seat.
Immediately behind that seating region, the valve geometry transitions into the backside of the head.
A back-cut introduces an additional angle into this region.
Instead of transitioning directly from the primary seating geometry into the backside profile, the additional cut can create a more progressive transition.
This matters because when the valve is opening, the gases are moving directly through this region.
Why Back-Cuts Can Affect Low- and Mid-Lift Flow
At relatively small valve openings, the valve curtain and seat region are particularly important.
The gases are moving through a comparatively narrow opening.
That means the immediate geometry around the valve face and seat can strongly influence the path.
A back-cut changes that geometry.
Depending on the cylinder head and valve, it may improve how flow transitions past the valve.
But once again:
A back-cut isn't automatically an airflow improvement.
Its interaction with the seat and throat matters.
Why More Back-Cut Isn't Automatically Better
If one back-cut helps, why not make it more aggressive?
Because performance-engine development rarely works that way.
Changing the cut can also change:
material thickness, seat support, local geometry and durability.
At some point, the additional change may provide no airflow benefit.
Or it may hurt.
Or it may compromise another requirement.
That's why a properly developed performance valve isn't simply the most aggressively machined valve.
Every feature has to earn its place.
What Is Valve Margin?
The margin is the material thickness around the outer edge of the valve head.
It's located between the valve face and the outer edge.
It doesn't look dramatic.
It isn't something most product pages spend much time discussing.
But for an exhaust valve, it's an important region because it sits close to:
combustion temperature, seat contact and the airflow opening.
Changing margin affects how much material remains at the edge of the valve.
Why Valve Margin Is an Engineering Compromise
A thicker margin provides additional material.
A thinner margin removes material.
Neither is automatically superior.
Reducing unnecessary material may:
reduce mass and alter local airflow geometry.
But the margin also contributes to:
edge strength and thermal durability.
This is especially important on an exhaust valve because the valve head is operating in an extremely hot environment.
So the correct question isn't:
How thin can we make the margin?
It's:
How much margin does this application actually need?
That's a much better design philosophy.
Why the Margin Can Influence Airflow
The outside edge of the valve is directly adjacent to the curtain area.
Changing the shape or thickness in this region changes what the gases encounter as they move through the opening.
The effect isn't independent of the seat or chamber.
But it's another reason two valves with identical head diameter can present different effective geometry to the airflow.
Diameter describes the outside measurement. It doesn't describe the shape inside that measurement.
What Is Valve-Head Thickness?
Head thickness refers to the amount of material contained through the valve head.
This is another dimension most customers never see on a product page.
Yet it influences several important characteristics:
strength
mass
thermal behavior
backside profile
and material distribution.
A thicker head contains more material.
A thinner head can remove mass and allow a different backside geometry.
Neither automatically makes the valve better.
Why You Can't Just Make the Valve Head As Thin As Possible
Because this isn't a flow-bench-only component.
The exhaust valve has to survive combustion.
It has to seal cylinder pressure.
It has to repeatedly contact the seat.
It has to tolerate heat.
And it has to do all of this thousands of times per minute.
An ultra-thin valve that produces an attractive static-flow number but lacks adequate durability isn't a successful racing component.
That's why our target is never:
minimum material.
It's:
minimum unnecessary material.
That's a major difference.
Head Thickness Also Changes Valve Mass
The valve spring has to control the mass of the valve.
At high RPM, unnecessary moving mass becomes increasingly undesirable.
So reducing unnecessary material in the valve head can be useful.
But again, we can't evaluate mass separately from strength.
A good racing valve has to strike a balance between:
low unnecessary mass and adequate material where loads require it.
That's engineering.
Simply making everything thinner isn't.
What Is an Undercut Valve Stem?
Now we reach one of the easiest valve features to understand visually.
The main valve stem has to operate correctly inside the valve guide.
That requires an appropriate guide diameter.
But the entire stem isn't inside the guide.
A portion is exposed to the airflow.
An undercut stem reduces diameter in an appropriate exposed section while retaining the required guide diameter where the valve runs through the guide.
The purpose is straightforward:
Reduce unnecessary stem obstruction in the airflow path.
The Valve Stem Really Is an Airflow Obstruction
Look through the exhaust port with the valve open.
The stem is sitting there.
Airflow has to move around it.
The cross-sectional area occupied by a round stem is:
A = πr²
That means reductions in diameter reduce the cross-sectional area occupied by the stem.
But we're deliberately not going to publish BK's exact undercut dimensions and calculate the percentage reduction.
Why?
Because that's moving from explaining the concept to publishing part of our design recipe.
Customers need to understand why we use an undercut.
They don't need the dimensions required to reproduce it.
Does an Undercut Stem Increase CFM?
Potentially.
Reducing the amount of material occupying the port can reduce obstruction.
But the actual effect depends on:
port shape
velocity
valve lift
stem position
backside geometry
and the complete cylinder head.
Therefore we don't claim:
“The BK undercut adds 3 CFM.”
That's not what we tested.
Our measured result belongs to the complete development valve.
That's an important distinction.
Why Not Undercut the Entire Stem?
Because the stem has more jobs than staying out of the airflow.
It has to:
guide the valve
maintain alignment
resist bending
transfer mechanical load
and help transfer heat.
The guide also needs the correct operating clearance around the stem.
So a properly designed undercut doesn't mean:
make the whole stem tiny.
It means:
retain material where it's needed and reduce unnecessary obstruction where appropriate.
Notice the recurring theme?
That's essentially the philosophy behind the entire valve.
Why the Undercut Transition Matters
If one portion of the stem has a different diameter from another, those diameters have to transition.
That transition matters.
A sudden geometric step and a properly developed transition don't present the same shape to the airflow.
They also don't distribute stress in exactly the same way.
So the undercut isn't simply:
Diameter A → Diameter B.
The transition between them is part of the design.
That's another area we developed.
And another area where the exact BK geometry remains proprietary.
How All These Features Work Together
This is where the article comes together.
Imagine changing only the tulip.
That changes one part of the flow path.
Now change the back-cut.
That changes another.
Change the margin.
Change the head thickness.
Undercut the stem.
Blend the transition.
Change the head diameter.
Each decision influences the physical valve.
But the final result isn't simply the sum of isolated features.
They interact.
That's why the real engineering question is:
How does the complete valve behave?
Not:
Does it have an undercut stem?
Not:
Does it have a back-cut?
Not:
Is it 30.1 mm?
Not:
Is it stainless or Inconel?
The complete valve matters.
Why Copying One Feature Doesn't Copy a Valve
This is worth discussing because performance components are frequently reduced to visible features.
Someone sees:
an undercut stem
and assumes that's the secret.
Or:
a certain backside shape.
Or:
a back-cut.
But copying one visible feature doesn't reproduce the relationship between all the others.
The tulip interacts with the head thickness.
The head thickness interacts with mass.
The margin interacts with the seat region.
The back-cut interacts with the seat.
The stem interacts with the port.
The transition connects the stem to the head.
Performance is in the combination.
That's much harder to copy from a photograph.
The Flow Bench Doesn't Care How Good the Valve Looks
This is why we test.
A beautifully machined valve can flow worse.
A larger valve can flow worse.
A valve that looks nearly stock can flow better.
A smaller valve can flow better.
The flow bench doesn't care about:
brand name, price, marketing claims or visual appearance.
It measures airflow.
That's what made our undersized experiment so useful.
We deliberately made the test harder for ourselves.
And the valve still improved the measured result.
Flow-Bench Development vs Flow-Bench Marketing
There's a difference.
Flow-bench marketing:
“Here's the biggest number we got.”
Flow-bench development:
“What changed, what happened, and what did we learn?”
Our undersized test wasn't intended to produce the largest possible CFM number.
If that had been the only goal, deliberately reducing valve diameter would have made little sense.
The test was designed to answer a question:
Is the design direction working independently of increased valve diameter?
The +3 CFM result answered that question.
That's development data.
Why We Don't Convert +3 CFM Into Horsepower
Because a flow bench isn't an engine.
The running engine adds:
piston motion
combustion
changing pressure differentials
cam timing
exhaust pressure waves
temperature
and RPM.
There isn't a responsible universal conversion where:
3 CFM = X horsepower.
The defensible conclusion is:
The development valve measurably improved static exhaust airflow under the conditions tested.
That's what we know.
That's what we'll publish.
Why We Don't Claim the Production Valve Gains 3 CFM
This is equally important.
The valve that produced the +3 CFM result was our intentionally undersized development valve.
The final BK Racing production exhaust valve is:
30.1 mm
and retains stock-size performance architecture.
The production configuration needs to be tested under the same controlled conditions before we attach a production CFM number to it.
We have a logical reason to be optimistic.
Restoring diameter restores potential curtain area.
But our own testing taught us that airflow doesn't follow diameter alone.
So we'll do what we did before:
Test it.
Why 30.1 mm Was the Production Direction
After testing oversized, stock and intentionally undersized concepts, we didn't see a reason to make the final BK valve oversized simply for the sake of marketing a larger number.
Our development showed us that:
geometry could produce measurable airflow improvement without increased diameter.
So the production valve returned to the intended 30.1 mm stock-size architecture.
That means our focus could remain on the complete design rather than depending on an oversized conversion as the product's primary performance story.
Why Stock Size Can Be a Feature
“Stock size” sometimes sounds like:
less performance.
It doesn't have to mean that.
Stock-size diameter can mean maintaining compatibility with the basic seat architecture while developing other areas of the valve.
The valve can still differ in:
material
surface treatment
backside geometry
stem geometry
mass distribution
and valvetrain considerations.
This is exactly why:
30.1 mm vs 30.1 mm does not mean identical valves.
Shape Also Has to Work With the Valve Seat
A performance valve can't fix an inappropriate valve job.
The valve and seat form a matched interface.
Seat width.
Seat location.
Seat angle.
Throat.
Concentricity.
All matter.
The best valve geometry in the world can be compromised by poor machine work.
That's why serious cylinder-head preparation remains important even when using a high-quality performance valve.
Shape Also Has to Work With the Throat
The throat is immediately below the seat.
If the throat is the controlling restriction, additional valve area may provide little benefit.
This becomes particularly relevant when considering oversized valves.
A larger valve can create more theoretical curtain area.
But if the throat can't use it, the airflow result may disappoint.
Again:
The valve and cylinder head are a system.
Shape Also Has to Work With the Combustion Chamber
The chamber surrounds the valve.
At lower lifts especially, the chamber can influence how freely gases can move around different portions of the valve circumference.
This is why a valve developed for one head shouldn't automatically be assumed optimal for another simply because both use the same stem diameter.
The surrounding geometry matters.
Shape Also Has to Work With the Exhaust Port
Eventually the gases leave the valve region and enter the port.
If the port becomes the dominant restriction, further improvements at the valve may have diminishing returns.
That doesn't make valve development irrelevant.
It means the complete airflow path needs to be understood.
Chamber → curtain → seat → throat → bowl → port.
The best results come when the pieces work together.
Shape Also Has to Survive Racing
This may be the most important difference between a real race valve and a flow-bench experiment.
The valve needs to work when the engine is:
hot,
loaded,
vibrating,
and turning serious RPM.
At 9,000 RPM:
each exhaust valve completes about 4,500 cycles per minute.
That's:
75 every second.
For 20 minutes at that engine speed, that's approximately:
90,000 exhaust-valve events per valve.
So every time we discuss:
thinner margin
thinner head
smaller stem
less material
we have to remember what we're asking that component to survive.
Airflow Without Durability Isn't Performance
A valve that flows beautifully for ten minutes on a bench but can't survive the engine isn't a performance improvement.
Likewise, a nearly indestructible valve that unnecessarily obstructs airflow or adds avoidable mass may not be optimal for a high-RPM naturally aspirated race engine.
The objective is the intersection of:
Airflow + Strength + Temperature + Mass + Wear + Valvetrain Control
That's the real design problem.
This Is Why BK Uses Fully Nitrided 21-4N
Geometry isn't the only thing we're developing.
For our naturally aspirated, sustained-high-RPM application, we chose 21-4N stainless steel with full nitriding.
The material addresses the structural and thermal requirements.
The nitriding addresses surface characteristics and wear considerations.
The geometry addresses airflow and mechanical relationships.
The 30.1 mm head diameter maintains the stock-size performance architecture.
They're different parts of the same valve.
And This Is Why We Treat the Whole Valvetrain as a System
The valve doesn't operate alone.
The camshaft tells it where to go.
The rocker transfers motion.
The lash-adjustment system establishes the mechanical relationship.
The spring controls the valve.
The retainer moves with it.
That's why the BK Racing Ecotec Exhaust Valve, BK Racing 83 lb Valve Springs, BK Racing Lightweight Titanium Retainers and BK Racing Solid Lash Adjusters belong in the same technical conversation.
Better airflow is useful.
Keeping the valve under control is mandatory.
Exhaust Valve Geometry FAQ
Does exhaust-valve shape affect CFM?
Yes. The valve occupies part of the airflow path, so its physical geometry can influence measured cylinder-head airflow.
Is valve diameter the most important dimension?
It's important, but it doesn't determine airflow by itself. Seat, throat, backside geometry, stem obstruction and port shape all interact with diameter.
What is a tulip exhaust valve?
A tulip valve has a curved backside transition from the valve head toward the stem. The degree and shape of that transition vary by design.
Is a tulip valve better than a nailhead valve?
Not universally. The appropriate backside geometry depends on the cylinder head and application.
What does a valve back-cut do?
A back-cut changes the transition immediately behind the primary valve-seat region and can influence airflow through that area.
Does every exhaust valve need a back-cut?
No universal back-cut is ideal for every cylinder head. It should work with the seat and surrounding geometry.
What is valve margin?
Margin is the material thickness at the outside edge of the valve head.
Why does valve margin matter?
It influences edge strength, thermal durability, material mass and the geometry adjacent to the valve curtain.
Is a thinner margin better?
Not automatically. The objective is sufficient material for durability without unnecessary mass or obstruction.
Does valve-head thickness affect performance?
It can influence mass, strength, thermal behavior and backside geometry.
What is an undercut valve stem?
An undercut stem reduces diameter in an appropriate exposed portion of the stem while retaining the required guide diameter.
Why undercut a valve stem?
Reducing exposed stem area can reduce physical obstruction in the port and can also remove some mass.
Why not make the whole stem smaller?
Because the stem also guides the valve, carries mechanical load, maintains stability and contributes to heat transfer.
How much CFM does an undercut stem add?
There is no universal number. BK hasn't isolated its undercut in a stem-only A/B test, so we don't assign it an individual CFM gain.
Did BK's development valve gain airflow?
Yes. An intentionally undersized BK Racing development valve produced 3 CFM more airflow than the stock Ecotec exhaust-valve baseline during back-to-back testing with MWR Technologies.
Was that because of one specific feature?
We don't claim that. The result belongs to the complete development valve.
Why was the development valve intentionally undersized?
To determine whether the design direction could improve airflow without relying on additional valve diameter.
Is the production BK exhaust valve undersized?
No. The production BK Racing exhaust valve is 30.1 mm, retaining the stock-size performance architecture.
Has the 30.1 mm production valve gained 3 CFM?
The +3 CFM result belongs to the intentionally undersized development valve. We will not transfer that number to the final production valve until the production configuration is tested.
The Bottom Line: A Valve Is a Shape, Not Just a Diameter
If you remember one thing from this guide, make it this:
Valve diameter tells you how big the valve is. It doesn't tell you how well the valve is designed.
A 30.1 mm valve can have a completely different:
tulip
backside profile
back-cut
margin
head thickness
stem profile
undercut
transition
mass
material
and surface treatment
from another 30.1 mm valve.
Those differences matter because the exhaust valve isn't merely opening the airflow path.
It is part of the airflow path.
That's why BK Racing didn't begin its exhaust-valve program by asking how large a valve we could sell.
We deliberately made a development valve smaller than stock.
Then we asked it to prove the design direction.
It produced:
+3 CFM over the stock baseline.
That doesn't prove smaller is better.
It proves bigger wasn't responsible for the improvement.
The final BK Racing exhaust valve returns to a 30.1 mm stock-size architecture, uses fully nitrided 21-4N stainless, and incorporates the lessons learned through development.
We can tell you what we were trying to accomplish.
We can show you what testing taught us.
We can explain the engineering behind it.
But the exact radii, dimensions, transitions and relationships?
Those are part of what you're buying when you buy the valve—not something we're giving competitors for free.
Continue Learning About Ecotec Exhaust Valves
Building the right Ecotec valvetrain involves more than choosing a single valve. Exhaust-valve material, head and stem geometry, valve springs, retainers, lash adjustment and camshaft geometry all work together—especially in sustained high-RPM racing applications. If you're putting together a complete combination, explore the guides below and see how components such as the BK Racing Ecotec Exhaust Valves, BK Racing 83 lb Valve Springs, BK Racing Lightweight Titanium Retainers and BK Racing Solid Lash Adjusters fit into the complete Ecotec valvetrain.
Stock vs Performance Ecotec Exhaust Valves: What Actually Changes?
Learn what really separates an OEM replacement valve from a purpose-built performance exhaust valve, including material, nitriding, backside geometry, stem design, margin and intended operating environment.
Do Performance Exhaust Valves Increase CFM? Our Ecotec Flow-Bench Testing
See what we learned from back-to-back Ecotec flow-bench testing, including why larger valve diameter didn't automatically produce more airflow and how the finished BK Racing Ecotec Exhaust Valve compared with the stock baseline.
Ecotec Exhaust Valve Size Guide: Stock Diameter, Stem Size & Applications
Compare stock and aftermarket Ecotec exhaust-valve head diameters, stem sizes, overall lengths and applications across the L61, LAP, LE5, LE9, LSJ and LNF engines.
21-4N Stainless vs Inconel vs OEM Ecotec Exhaust Valves
Understand the differences between OEM valve materials, 21-4N stainless and Inconel—and why the BK Racing Ecotec Exhaust Valve uses fully nitrided 21-4N stainless for the naturally aspirated, sustained-RPM racing applications it was developed around.
Stock Ecotec Exhaust Valves at High RPM: What Are the Limitations?
See what changes when a production Ecotec valvetrain is subjected to sustained racing RPM and why exhaust valves, BK Racing 83 lb Valve Springs and lightweight retainers should be considered as parts of the same system.
Undercut Valve Stems: Can They Improve Ecotec Exhaust Flow?
Learn how reducing the exposed portion of an exhaust-valve stem can decrease obstruction in the port and why the BK Racing Ecotec Exhaust Valve uses an undercut stem with a smooth transition into the backside of the valve.
Ecotec Valve Springs, Exhaust Valves & RPM: Building the Valvetrain as a System
Go deeper into the relationship between valve mass, spring pressure, installed height, cam profile, retainers and RPM, including how the BK Racing 83 lb Valve Springs, BK Racing Lightweight Titanium Retainers, performance valves and BK Racing Solid Lash Adjusters can be combined into a complete racing valvetrain.
Reground Ecotec Cams & Valve Stem Height: Why Geometry Matters
Learn why reducing a camshaft's base circle changes the relationship between the cam, rocker, lash adjuster and valve—and why the extended-tip geometry of the BK Racing Ecotec Exhaust Valve was developed with reground-cam combinations in mind.
Ecotec Exhaust Valve Comparison: OEM vs Ferrea vs Supertech vs BK Racing
Compare OEM, Ferrea, Supertech and BK Racing Ecotec Exhaust Valves by dimensions, material, geometry and intended application, including where we have actual back-to-back flow-bench data and where we don't.
Are L61, LAP, LE5, LE9, LSJ & LNF Exhaust Valves Interchangeable?
See which Ecotec engines share basic exhaust-valve architecture, where important differences remain and what should be measured before combining valves, cylinder heads and valvetrain components from different Ecotec generations.
Start With the Complete Guide
The Complete Guide to GM Ecotec Exhaust Valves: L61, LAP, LE5, LE9, LSJ & LNF
Our complete Ecotec exhaust-valve resource brings together valve sizing, materials, airflow, geometry, high-RPM operation, camshaft compatibility and valvetrain setup in one place. It's the best starting point if you're planning an Ecotec cylinder-head or valvetrain combination and want to understand how all of these areas work together.
