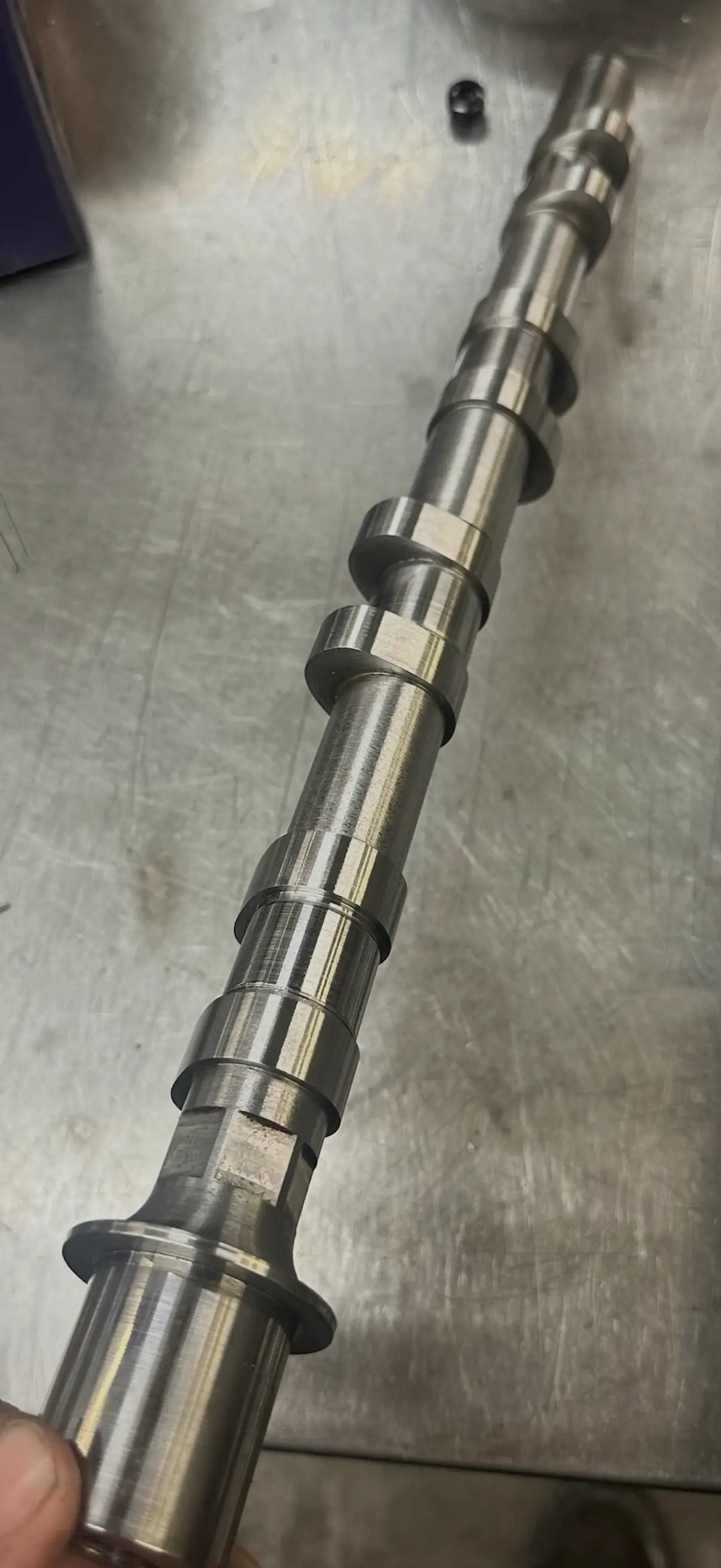

A reground Ecotec camshaft can make power.
But changing the camshaft can also change something that doesn't show up in the horsepower number printed on the cam card:
Valvetrain geometry.
When an Ecotec camshaft is reground, the finished base circle can become smaller. That changes the physical relationship between the:
camshaft, rocker arm, lash adjuster and valve tip.
The factory hydraulic lash adjuster may be able to extend farther and take up the additional clearance.
But that leads to one of the most important principles in a properly built Ecotec valvetrain:
Taking up clearance is not the same thing as correcting geometry.
BK Racing designed its performance valvetrain around that problem.
The BK Racing Ecotec Exhaust Valve uses an extended-tip design because we knew these valves would be used with performance and reground cams.
The BK Racing Solid Lash Adjusters allow the engine builder to establish a fixed, measurable mechanical lash rather than depending on hydraulic compensation.
The BK Racing Lightweight Titanium Retainers reduce unnecessary moving mass while addressing clearance with both early and updated Ecotec rocker designs.
And the BK Racing 83 lb Valve Springs provide the valve control required for serious high-RPM combinations without using excessive spring pressure to compensate for problems elsewhere in the valvetrain.
These parts weren't selected independently.
They were developed around the way serious Ecotec race engines are actually built.
Why Reground Ecotec Cams Create a Geometry Problem
A camshaft lobe has a base circle and a lobe profile.
When the valve is closed, the rocker operates around the base-circle portion of the cam.
When a stock camshaft is reground into a more aggressive performance profile, material may be removed in a way that results in a smaller finished base circle.
Now the camshaft surface is physically farther away from the rocker when the valve is closed.
Something has to account for that difference.
With the factory hydraulic system, the lash adjuster can potentially extend farther.
With a solid-lash system, the builder mechanically establishes the required clearance.
And with an extended-tip performance valve, we gain another tool on the valve side of the rocker for addressing the changed relationship.
That's why the complete geometry matters.
The Factory Ecotec Valvetrain Wasn't Designed Around Your Reground Race Cam
This distinction matters.
GM designed the original Ecotec valvetrain around a specific production combination:
factory camshaft geometry
factory valve geometry
factory rocker geometry
hydraulic lash adjustment
production RPM requirements
production durability requirements
and production-car maintenance expectations.
Change the camshaft and we've changed one of the major components around which that system was designed.
Change the base circle and we've changed an important dimensional relationship.
Add higher RPM, stronger springs and racing duty and we're moving even farther away from the original operating environment.
That doesn't mean the factory system is poorly designed.
It means:
Your race engine isn't stock anymore.
So why build the rest of the valvetrain as though it is?
This Is Exactly Why BK Racing Developed an Extended-Tip Ecotec Valve
When we developed the BK Racing Ecotec Exhaust Valve, we weren't interested in simply duplicating the factory valve in a different material.
That would have been easy.
We looked at how these engines are actually being modified.
A serious naturally aspirated Ecotec race engine may use:
reground performance cams
higher valve lift
increased RPM
upgraded springs
lightweight retainers
solid lash adjustment
and a modified cylinder head.
So we asked a different question:
What should the valve look like if we're designing it for the modified engine instead of copying the valve from the production engine?
That's one reason the BK valve incorporates an:
Extended-tip design.
The additional tip geometry gives the engine builder another tool for dealing with the changed mechanical relationship created by performance and reground camshafts.
It's not there for appearance.
It's not there simply to make the valve longer.
And it isn't there to artificially increase valve lift.
We put it there because valvetrain geometry matters.
Why a Conventional Stock-Geometry Valve Doesn't Solve the Same Problem
A conventional stock-geometry replacement valve is designed primarily to reproduce the dimensional relationships of the original production valve.
That makes sense when the rest of the valvetrain remains close to the configuration GM intended.
But once we install a reground cam with a reduced base circle, we're no longer working with the original camshaft relationship.
A stock-style valve doesn't necessarily give the builder additional valve-tip geometry to work with.
The BK performance valve does.
That's a meaningful distinction.
We're not simply replacing the stock valve. We're giving the engine builder another adjustment tool for a modified valvetrain.
That's one of the reasons BK's extended-tip valve makes particular sense in a serious reground-cam Ecotec.
Why We Don't Publish the Exact Tip Extension
Because the concept is useful technical information.
The exact manufacturing geometry is BK Racing's development work.
The relationship among the:
tip height
keeper position
overall length
stem geometry
backside geometry
and finished valve design
is part of what we developed.
Customers need to understand what the feature does and how to correctly use it.
Competitors don't need our manufacturing blueprint.
The result is for sale. The blueprint isn't.
Hydraulic Lash Can Hide the Change Without Correcting It
This is where a lot of Ecotec builds can become misleading.
Install a reduced-base-circle cam.
The hydraulic lash adjuster extends.
The obvious clearance disappears.
The engine turns over.
Everything appears fine.
So it's tempting to conclude:
“The hydraulic adjuster compensated for the cam.”
It may have compensated for clearance.
That's not necessarily the same thing as restoring the intended mechanical relationship.
The adjuster's operating position has changed.
The rocker relationship can change.
The valve-tip relationship can change.
And the contact behavior through the valve event may no longer be identical to the original configuration.
That's why:
Zero lash does not prove correct geometry.
And it's a major reason BK Racing prefers a properly set solid-lash arrangement for serious racing combinations.
Why BK Racing Solid Lash Adjusters Are the Better Choice for a Serious Race Ecotec
The factory hydraulic lash adjuster is an excellent production component.
It was designed to provide:
automatic compensation
quiet operation
low maintenance
cold-start functionality
broad temperature operation
and long production-engine service life.
Those are excellent priorities for a street car.
They aren't necessarily our priorities in a purpose-built race engine.
For a race engine, we would rather have:
A known mechanical clearance that we can set, measure, record and inspect.
That's what the BK Racing Solid Lash Adjusters give us.
Instead of relying on a hydraulic element to determine the lash relationship, the engine builder establishes it mechanically.
For the type of Ecotec engine we're building, that's the better tool.
Solid Lash Removes a Variable
This is the real advantage.
A hydraulic adjuster is a hydraulic device.
Its operation is part of the oil-fed valvetrain system.
A solid adjuster is mechanical.
Once properly established:
The clearance is what we set it to be.
That doesn't mean solid lash fixes everything.
The spring still needs to control the valve.
The cam still needs to be appropriate.
The rocker geometry still needs to be checked.
The valve-tip relationship still matters.
But we've removed one variable from a race valvetrain that may be operating at 8,000, 8,500, 9,000 RPM or beyond depending on the combination.
That's exactly the kind of simplification we want in a dedicated race engine.
Why Solid Lash Makes Even More Sense With Reground Cams
This is where the BK combination starts working together.
A reground cam can reduce the base circle.
That changes the cam side of the rocker relationship.
The BK extended-tip valve gives us additional geometry on the valve side.
The BK Solid Lash Adjuster lets us mechanically establish the clearance between those components.
Now we're not simply asking:
Can the hydraulic adjuster extend far enough to make the clearance disappear?
We're asking:
What mechanical relationship do we actually want in this engine?
That's a much better way to build a racing valvetrain.
BK Racing's Common Solid-Lash Starting Point
For appropriate BK Racing solid-adjuster combinations, our common starting targets are approximately:
.008-inch intake
and:
.010-inch exhaust.
The final setting still needs to be appropriate for the camshaft and engine combination.
But the major advantage is that we now have a known mechanical value.
We can:
set it
record it
check it
and monitor it.
That's particularly valuable in a race engine.
Solid Lash Turns Lash Into Useful Information
Some people view having to check lash as a disadvantage.
For a street car, that argument makes sense.
For a race engine, we look at it differently.
We're already inspecting the engine.
If the engine was originally set at a known mechanical lash and that lash begins changing, we've learned something.
A change can indicate that something elsewhere in the valvetrain deserves inspection.
So solid lash gives us another measurable condition.
For a race program, measurable is valuable.
Why the Extended-Tip BK Valve and Solid Lash Belong Together
This is where the product strategy becomes very clear.
The reground cam changes the base-circle relationship.
The BK extended-tip valve gives the builder additional valve-side geometry.
The BK solid adjuster provides a mechanically established lash.
The engine builder measures the finished relationship.
That's a system.
Compare that with:
Install reground cam.
Reuse conventional valve geometry.
Let the hydraulic adjuster extend.
Assume everything is correct because the clearance disappeared.
Those are two very different approaches.
For a serious racing engine:
BK Racing chooses the first one.
Does the Extended Tip Increase Valve Lift?
No.
This is important because it's easy to misunderstand what we're doing.
The extended tip isn't a shortcut for creating more lift.
The camshaft and rocker relationship command valve motion.
The tip changes the physical contact relationship on the valve side of the rocker.
That's why:
The BK extended tip is a geometry feature—not a lift gimmick.
Does a Longer Tip Automatically Make a Valve Better?
No.
Just as more spring pressure isn't automatically better, more tip height isn't automatically better.
The objective is the correct relationship.
That's why we didn't simply make the longest valve tip we could manufacture.
The tip is part of a complete valve design.
The:
seat position
keeper location
retainer relationship
stem
and usable tip geometry
all have to work together.
Purpose-designed is better than simply “more.”
Overall Valve Length Doesn't Tell You the Whole Story
This is important when comparing performance valves.
Two valves can have similar overall lengths while having different:
keeper locations
usable tip heights
seat relationships
and valvetrain geometry.
Likewise, a longer overall valve doesn't automatically mean it provides the geometry required by a particular camshaft.
That's why looking at one catalog dimension doesn't tell you whether two performance valves are equivalent.
The complete relationship matters.
Why the Keeper Location Matters
The keeper grooves determine where the retainer locates on the valve.
That affects the relationship among the:
valve
retainer
spring
and installed height.
Tip geometry exists above that relationship.
That's why an extended-tip valve isn't simply the same thing as moving the entire valve upward.
A properly developed performance valve allows these areas to be engineered for different purposes.
That's exactly why BK approached the valve as a complete design.
Why Valve Stem Height Can Change Even Without Changing the Cam
There's another variable that gets overlooked:
The valve job.
When the cylinder-head seats are machined, the finished position of the valve can change.
That can alter effective stem height.
Now imagine the typical performance head:
valve seats have been machined
performance valves installed
reground cams installed
different retainers installed
solid lash installed
and:
spring installed height adjusted.
At that point, assuming the original factory geometry still exists doesn't make much sense.
Measure the finished assembly.
That's how BK builds these combinations.
Why This Matters Even More at High RPM
At 9,000 engine RPM, each valve completes approximately:
4,500 valve events every minute.
That's:
75 events every second.
A small geometry problem isn't happening once.
It's being repeated thousands of times.
And in a circle-track application, the engine may remain near the upper part of its RPM range for extended periods.
That means the valvetrain needs to be:
controlled
stable
properly aligned
and mechanically predictable.
This is exactly where the BK Racing valvetrain system starts making sense as a package.
Geometry Becomes Even More Important as Spring Load Increases
The spring loads the rest of the valvetrain.
That load travels through components including the:
valve
valve tip
rocker
camshaft
retainer
and keeper system.
If the geometry isn't right, adding more spring pressure doesn't correct it.
It simply adds more load to the relationship that's already wrong.
That's why:
You don't fix a geometry problem with more spring pressure.
This is also one reason BK doesn't believe the answer to every high-RPM problem is simply installing the highest-pressure spring available.
Why BK Racing's 83 lb Valve Spring Is the Better Approach
Spring pressure is necessary.
Excessive spring pressure isn't free.
Higher spring loads increase forces throughout the valvetrain and can increase:
friction
wear
contact loading
and parasitic power loss.
That's why BK's objective isn't:
Put the strongest spring we can fit in the head.
It's:
Use enough spring pressure to maintain control without imposing unnecessary load.
The BK Racing 83 lb Valve Spring is designed around approximately:
83 lb at 1.325-inch installed height
with a working spring rate of approximately:
294 lb/in
and approximately:
230 lb around .500-inch valve lift
from that nominal installed-height reference.
That gives us serious valve control without treating excessive pressure as a feature.
Extra Spring Pressure Can Cost Horsepower
This deserves to be stated plainly.
A valve spring stores and returns energy, so the entire spring force isn't simply “lost horsepower.”
But the valvetrain isn't frictionless.
Higher spring loads increase contact forces.
Higher contact forces can increase frictional losses.
So once we have enough spring pressure to maintain the required valve control:
Additional unnecessary spring pressure can cost power while increasing component load.
There isn't a responsible universal formula that says:
X pounds of spring = Y horsepower.
It depends on the complete combination.
But unnecessary spring load isn't free.
That's why BK would rather optimize:
valve mass
retainer mass
geometry
lash
and spring pressure
together.
Why the BK Titanium Retainer Is Part of the Same Strategy
If the spring is controlling moving mass, another way to improve the system is to reduce unnecessary moving mass.
That's exactly what the BK Racing Lightweight Titanium Retainer does.
Rather than simply adding more spring pressure to control a heavier assembly, we reduce part of the mass the spring has to accelerate and decelerate.
That means:
We're attacking the high-RPM problem from both directions.
Provide the spring control.
Reduce unnecessary moving mass.
That's smarter than brute force.
The BK Titanium Retainer Solves Another Ecotec Problem Too
Weight wasn't the only reason we designed it.
GM updated the Ecotec rocker-arm design, including the configuration associated with part number 12693909, with a taller valve-stem-side profile.
That updated geometry can create interference with some aftermarket retainers.
So BK didn't simply make a lightweight retainer.
We designed it to accommodate:
Both the earlier and updated rocker configurations.
That matters.
Because a retainer can be incredibly light and still be the wrong part if the rocker hits it.
Again:
Geometry matters.
Why the BK Products Work Better as a Package
Now put everything together.
BK Racing Extended-Tip Performance Valve
Addresses:
airflow
material
surface durability
valve geometry
and reground-cam valvetrain geometry.
BK Racing Solid Lash Adjuster
Provides:
a fixed
measurable
repeatable mechanical lash
instead of relying on hydraulic compensation.
BK Racing 83 lb Valve Spring
Provides:
the valve control required for serious performance combinations without treating excessive spring pressure as the solution to every problem.
BK Racing Lightweight Titanium Retainer
Provides:
reduced moving mass
high strength
and clearance for early and updated Ecotec rocker designs.
Now look at what we've accomplished.
We've addressed:
Cam geometry.
Valve-tip geometry.
Lash control.
Spring control.
Moving mass.
Rocker clearance.
That's why these products make more sense together than treating the valvetrain as a shopping list.
Compare the Two Approaches
Typical Parts-Change Approach
Install reground cam.
Let hydraulic lash adjuster compensate.
Install a high-pressure spring.
Install whatever retainer fits.
Reuse stock-style valve geometry.
Assume the system is correct.
BK Racing System Approach
Understand the reduced cam base circle.
Use extended-tip valve geometry developed with performance cams in mind.
Use solid lash to establish a known mechanical clearance.
Reduce unnecessary moving mass with titanium retainers.
Use enough spring pressure to control the system without unnecessary load.
Verify rocker clearance.
Measure installed height.
Measure lash.
Check the finished geometry.
One approach installs parts.
The other builds a valvetrain.
Why This Matters for Circle-Track Ecotec Engines
A street engine may see its maximum RPM briefly.
A circle-track engine can spend a significant amount of time operating near the upper end of its usable range.
At 9,000 RPM:
4,500 valve events per minute
becomes approximately:
45,000 events in ten minutes
and:
90,000 events per valve in twenty minutes
if continuously operated at that speed.
That changes the question.
We're not asking:
Can the engine hit 9,000 RPM?
We're asking:
Can the valvetrain remain controlled and mechanically stable while it races there?
That's what BK Racing develops around.
How We Would Build a Serious Reground-Cam Ecotec Valvetrain
The parts alone aren't enough.
Here's the process.
1. Start With the Camshaft
Determine:
base-circle configuration
profile
lift
intended RPM
and lash requirements.
Understand what changed from stock.
2. Use the BK Racing Performance Valve
Now we have a valve designed with performance and reground-cam combinations in mind rather than simply duplicating stock valve-tip geometry.
The extended tip gives us additional geometry to work with.
3. Use the Actual Rocker
Establish the geometry with the rocker that will actually be installed in the engine.
Don't mock it up with one rocker design and substitute another later.
4. Install the BK Solid Lash Adjuster
Now we're mechanically establishing the lash rather than relying on hydraulic take-up.
For appropriate combinations, BK's common starting targets are approximately:
.008-inch intake
and:
.010-inch exhaust.
Final settings should match the camshaft and finished engine.
5. Install the BK Titanium Retainer
Now we've reduced unnecessary moving mass while using a retainer designed around the Ecotec rocker-clearance problem.
6. Install the BK 83 lb Spring
Set and measure installed height.
The nominal BK target is approximately:
83 lb at 1.325-inch installed height.
Don't assume.
Measure every position.
7. Check the Complete Geometry
Inspect:
cam-to-rocker relationship
rocker-to-valve relationship
valve-tip position
retainer clearance
and the complete motion through the valve event.
8. Check Every Mechanical Clearance
Verify:
spring travel
coil-bind clearance
retainer-to-seal clearance
retainer-to-guide clearance
rocker-to-retainer clearance
and piston-to-valve clearance.
9. Record the Setup
Record:
lash
installed height
spring pressure
and important clearances.
Now we have a baseline.
That's valuable when the engine comes back after racing.
Common Reground Ecotec Cam Mistakes
Assuming Hydraulic Take-Up Means the Geometry Is Correct
It doesn't necessarily.
It means the hydraulic adjuster took up clearance.
Trying to Fix Everything With Spring Pressure
More spring doesn't correct rocker geometry.
Comparing Valves Only by Overall Length
Tip position, keeper location and other relationships matter.
Ignoring the Valve Job
Seat machining can change effective stem height.
Assuming Every Reground Cam Needs the Same Correction
Different cams can have different base circles.
Ignoring Retainer Clearance
Especially with updated GM rocker geometry.
Treating Solid Lash as a Drop-In RPM Upgrade
Solid lash provides a known mechanical setting. The rest of the valvetrain still has to be correct.
Not Measuring the Finished Assembly
This is the biggest one.
Performance parts don't eliminate measurement. They make correct measurement more valuable.
Reground Ecotec Cam & Valve Geometry FAQ
Why does a reground Ecotec cam affect valve geometry?
Because regrinding can reduce the camshaft's base-circle diameter, changing its relationship with the rocker, lash adjuster and valve.
Can't the factory hydraulic lash adjuster compensate?
It can potentially take up additional clearance. That doesn't necessarily mean the original mechanical geometry has been restored.
Why is BK's extended-tip valve better for a reground-cam combination?
Because the additional tip geometry gives the engine builder another tool on the valve side of the rocker when the cam's base-circle relationship has been changed.
Does the extended tip increase valve lift?
No. It's a geometry feature, not a lift modification.
Why doesn't BK publish the exact extension?
Because the exact dimensional relationship is part of BK Racing's proprietary valve design. We publish what the builder needs to select and correctly use the component without publishing the manufacturing blueprint.
Is a longer tip always better?
No. Correct geometry is the objective, not maximum tip length.
Why is solid lash better for a serious race Ecotec?
For the applications BK develops, solid lash provides a fixed, measurable mechanical clearance rather than relying on a hydraulic mechanism to establish the lash relationship.
Are hydraulic lash adjusters bad?
No. They're excellent production components. A dedicated race engine simply has different priorities.
What lash does BK use?
Common starting targets for appropriate BK combinations are approximately .008-inch intake and .010-inch exhaust, subject to the camshaft and complete engine combination.
Does solid lash prevent valve float?
No. The valve spring still controls the moving valvetrain.
Why use the BK 83 lb spring instead of a higher-pressure spring?
Because the objective is enough spring pressure to maintain control without adding unnecessary friction, loading and wear.
Can excessive spring pressure cost horsepower?
Yes. Higher loads can increase frictional losses in the valvetrain. The exact horsepower difference depends on the complete combination, so there is no universal horsepower-per-pound conversion.
Why use BK titanium retainers?
They reduce unnecessary moving mass while being designed to provide clearance with both earlier and updated Ecotec rocker configurations.
Can a valve job change stem height?
Yes. Machining the valve seat can change the finished valve position and therefore the assembled valvetrain relationship.
Can I use the BK valve with hydraulic lash adjusters?
Yes, when appropriate for the complete combination. But for serious high-RPM racing combinations, BK prefers a properly set solid-lash arrangement.
Does every reground cam require an extended-tip valve?
Not necessarily. The finished geometry should determine the requirement. The advantage of the BK design is that reground-cam applications were considered during development.
Will a stronger spring correct bad geometry?
No. It can actually increase the loads transmitted through the incorrect relationship.
What's the most important thing to check after installing a reground cam?
The finished valvetrain as a system: cam/rocker relationship, valve-tip geometry, lash, installed height and mechanical clearances.
The Bottom Line: BK Racing Designed the Parts Around the Problem
This is what separates the BK Racing approach from simply selling another replacement Ecotec valve.
We knew racers were using:
reground cams.
We knew reduced base circles could change the valvetrain relationship.
We knew serious race engines were being operated at sustained high RPM.
We knew relying on additional spring pressure wasn't the smartest answer to every high-RPM problem.
And we knew the factory hydraulic system was developed around production-engine priorities—not necessarily the priorities of a purpose-built race engine.
So we developed components around those problems.
The BK Racing Ecotec Exhaust Valve
uses an extended-tip design to give the engine builder additional geometry for performance and reground-cam combinations, while also incorporating the airflow, material and durability features developed through our valve program.
The BK Racing Solid Lash Adjusters
replace hydraulic lash compensation with a fixed, measurable mechanical setting for the serious race combinations we prefer to build.
The BK Racing 83 lb Valve Springs
provide serious high-RPM valve control without using excessive spring pressure as a substitute for proper geometry or low moving mass.
The BK Racing Lightweight Titanium Retainers
reduce unnecessary moving mass while addressing an actual Ecotec-specific clearance issue created by early and updated rocker designs.
Put them together and we're addressing the valvetrain from multiple directions:
correct the geometry
establish the lash
reduce the moving mass
provide the spring control
maintain the clearance
and:
measure the finished system.
That's why we don't look at the BK extended-tip valve as simply another aftermarket Ecotec exhaust valve.
And we don't look at our springs, retainers and solid lash adjusters as unrelated upgrades.
They're parts of the same solution.
If you're building a basically stock street Ecotec, the factory valvetrain architecture was designed to do that job.
If you're building a serious racing Ecotec with reground cams, sustained RPM and a purpose-built valvetrain, you're no longer asking the engine to do the job GM designed it for.
That's where the BK Racing valvetrain makes sense.
Not because we simply made the parts stronger.
Not because we simply added more spring pressure.
And not because we copied stock components in different materials.
Because we developed the parts around the problems a modified Ecotec actually creates.
Continue Learning About Ecotec Exhaust Valves
Building the right Ecotec valvetrain involves more than choosing a single valve. Exhaust-valve material, head and stem geometry, valve springs, retainers, lash adjustment and camshaft geometry all work together—especially in sustained high-RPM racing applications. If you're putting together a complete combination, explore the guides below and see how components such as the BK Racing Ecotec Exhaust Valves, BK Racing 83 lb Valve Springs, BK Racing Lightweight Titanium Retainers and BK Racing Solid Lash Adjusters fit into the complete Ecotec valvetrain.
Stock vs Performance Ecotec Exhaust Valves: What Actually Changes?
Learn what really separates an OEM replacement valve from a purpose-built performance exhaust valve, including material, nitriding, backside geometry, stem design, margin and intended operating environment.
Do Performance Exhaust Valves Increase CFM? Our Ecotec Flow-Bench Testing
See what we learned from back-to-back Ecotec flow-bench testing, including why larger valve diameter didn't automatically produce more airflow and how the finished BK Racing Ecotec Exhaust Valve compared with the stock baseline.
Ecotec Exhaust Valve Size Guide: Stock Diameter, Stem Size & Applications
Compare stock and aftermarket Ecotec exhaust-valve head diameters, stem sizes, overall lengths and applications across the L61, LAP, LE5, LE9, LSJ and LNF engines.
21-4N Stainless vs Inconel vs OEM Ecotec Exhaust Valves
Understand the differences between OEM valve materials, 21-4N stainless and Inconel—and why the BK Racing Ecotec Exhaust Valve uses fully nitrided 21-4N stainless for the naturally aspirated, sustained-RPM racing applications it was developed around.
Why Exhaust Valve Shape Matters: Tulip, Back-Cut, Margin & Stem Geometry
Learn how the valve itself becomes part of the airflow path and why tulip shape, back-cut, margin, head thickness and stem geometry can matter just as much as valve-head diameter.
Stock Ecotec Exhaust Valves at High RPM: What Are the Limitations?
See what changes when a production Ecotec valvetrain is subjected to sustained racing RPM and why exhaust valves, BK Racing 83 lb Valve Springs and lightweight retainers should be considered as parts of the same system.
Undercut Valve Stems: Can They Improve Ecotec Exhaust Flow?
Learn how reducing the exposed portion of an exhaust-valve stem can decrease obstruction in the port and why the BK Racing Ecotec Exhaust Valve uses an undercut stem with a smooth transition into the backside of the valve.
Ecotec Valve Springs, Exhaust Valves & RPM: Building the Valvetrain as a System
Go deeper into the relationship between valve mass, spring pressure, installed height, cam profile, retainers and RPM, including how the BK Racing 83 lb Valve Springs, BK Racing Lightweight Titanium Retainers, performance valves and BK Racing Solid Lash Adjusters can be combined into a complete racing valvetrain.
Ecotec Exhaust Valve Comparison: OEM vs Ferrea vs Supertech vs BK Racing
Compare OEM, Ferrea, Supertech and BK Racing Ecotec Exhaust Valves by dimensions, material, geometry and intended application, including where we have actual back-to-back flow-bench data and where we don't.
Are L61, LAP, LE5, LE9, LSJ & LNF Exhaust Valves Interchangeable?
See which Ecotec engines share basic exhaust-valve architecture, where important differences remain and what should be measured before combining valves, cylinder heads and valvetrain components from different Ecotec generations.
Start With the Complete Guide
The Complete Guide to GM Ecotec Exhaust Valves: L61, LAP, LE5, LE9, LSJ & LNF
Our complete Ecotec exhaust-valve resource brings together valve sizing, materials, airflow, geometry, high-RPM operation, camshaft compatibility and valvetrain setup in one place. It's the best starting point if you're planning an Ecotec cylinder-head or valvetrain combination and want to understand how all of these areas work together.
