Building a high-RPM Ecotec valvetrain isn't about installing the stiffest valve spring you can find.
In fact, that's one of the easiest ways to approach the problem incorrectly.
The spring has to provide enough force to maintain control of the valve, retainer and rocker throughout the intended RPM range. But every pound of spring pressure beyond what the combination actually needs increases the loads the engine has to deal with.
That can mean more:
friction, valvetrain load, component stress, wear and parasitic horsepower loss.
So the goal shouldn't be:
Maximum spring pressure.
It should be:
Maximum valve control with the minimum spring pressure required to achieve it reliably.
That's an important part of the philosophy behind the BK Racing Ecotec valvetrain system.
Rather than trying to solve high RPM with spring pressure alone, we attack the problem from several directions.
The BK Racing 83 lb Valve Springs provide the spring control.
The BK Racing Lightweight Titanium Retainers reduce unnecessary moving mass.
The BK Racing performance valves are developed around airflow, durability, material distribution and valvetrain geometry.
And for serious racing applications, the BK Racing Solid Lash Adjusters replace the hydraulic lash-control element with a fixed, measurable mechanical lash.
The camshaft determines what all of those components have to follow.
Each component has a different job.
Together, they allow us to build a valvetrain around:
Control, stability and efficiency instead of brute-force spring pressure.
Quick Answer: What Makes a Good High-RPM Ecotec Valvetrain?
A high-RPM Ecotec valvetrain needs enough spring control to keep the moving components following the motion commanded by the camshaft.
But spring pressure is only one variable.
The complete system includes:
| Component / Variable | What It Does |
|---|---|
| Camshaft profile | Determines commanded valve motion |
| Rocker/follower | Transfers cam motion to the valve |
| Lash adjuster | Establishes or maintains the mechanical relationship |
| Valve | Controls airflow and contributes moving mass |
| Valve spring | Controls the moving valvetrain |
| Retainer | Retains the spring and contributes moving mass |
| Keepers/locks | Secure the valve and retainer |
| Installed height | Establishes the spring's starting condition |
| Valve lift | Determines spring compression during the event |
| Spring rate | Determines how spring force changes with compression |
| RPM | Determines how quickly the valve event repeats |
| Temperature | Changes the operating environment |
| Duty cycle | Determines how long the system must remain controlled |
This is why:
“What valve spring do I need for 9,000 RPM?”
doesn't have one universal answer.
Before choosing the spring, we need to understand:
What is the spring actually being asked to control?
RPM Alone Does Not Determine Valve-Spring Requirements
RPM gets most of the attention because it's easy to understand and easy to advertise.
But two Ecotec engines operating at exactly the same RPM can place very different demands on their valve springs.
Consider two engines at 8,500 RPM.
Engine A
Moderate cam profile
Moderate lift
Heavier valve
Heavier retainer
Engine B
Aggressive race cam
Different valve acceleration
Performance valve
Lightweight titanium retainer
Same RPM.
Different valvetrain.
Now change installed height.
We've changed spring pressure.
Change valve lift.
We've changed open pressure and available spring travel.
Change the cam profile.
We've changed the acceleration demanded from the valve.
Change the valve or retainer weight.
We've changed the moving mass.
This is why:
RPM is only one variable in a high-RPM valvetrain.
The Camshaft Starts the Entire Valve Event
To understand valve-spring requirements, start with the camshaft.
The cam doesn't simply determine:
how far the valve opens.
It also influences:
when the valve opens, how quickly it begins moving, how rapidly it accelerates, how it approaches maximum lift, how it reverses direction and how it returns toward the seat.
Two camshafts can have similar maximum lift while placing very different demands on the valvetrain.
That's why choosing a spring solely from:
maximum lift
or:
maximum RPM
can be misleading.
Valve Lift and Valve Acceleration Are Not the Same Thing
Suppose two cams both produce similar maximum valve lift.
That doesn't mean they move the valve the same way.
One profile may reach that lift relatively gently.
Another may accelerate the valve considerably harder.
The spring has to control the motion the cam actually commands.
So:
Maximum lift tells us how far the spring is compressed.
Cam profile helps determine how difficult the moving assembly is to control.
Both matter.
Why RPM Makes Cam Profile Even More Important
A four-stroke engine completes one full operating cycle every two crankshaft revolutions.
That means each valve completes approximately:
3,000 valve events per minute at 6,000 RPM
3,500 valve events per minute at 7,000 RPM
4,000 valve events per minute at 8,000 RPM
4,500 valve events per minute at 9,000 RPM
At 9,000 RPM, that's:
75 valve events every second.
Per valve.
The physical cam profile hasn't changed.
But the amount of time available for the valvetrain to follow it has.
That's why a camshaft that is easily controlled at one RPM can become substantially more demanding as engine speed rises.
The Valve Spring's Job Is Control
The valve spring's central dynamic responsibility is straightforward:
Keep the valvetrain following the camshaft's intended motion.
The spring has to control the moving components as they:
accelerate,
decelerate,
reverse direction,
and return to the seat.
If the spring can no longer maintain adequate control, the actual motion of the valvetrain can begin deviating from the motion intended by the camshaft.
That's where instability can begin.
More Valve-Spring Pressure Is Not Automatically Better
This is one of the most important concepts in the entire article.
If spring pressure helps control the valve, it's easy to assume:
More pressure must mean more control and therefore a better spring.
That's incomplete.
Additional spring pressure also creates additional load.
That load is transmitted through components including the:
camshaft
rocker/follower
valve tip
valve
keeper grooves
retainer
spring seat
and other valvetrain interfaces.
More pressure can therefore increase:
contact loads
friction
wear
and mechanical stress.
So the objective isn't:
Use the strongest spring possible.
It's:
Use enough spring to maintain control with an appropriate margin without imposing unnecessary load.
That's a major part of BK Racing's approach to the Ecotec valvetrain.
Can Excessive Valve-Spring Pressure Cost Horsepower?
Yes—but it needs to be explained correctly.
A valve spring stores energy as it's compressed and returns much of that energy as it expands.
So it would be inaccurate to look at the spring's open pressure and treat that entire force as horsepower being permanently consumed.
But the valvetrain isn't a lossless system.
Greater spring forces increase contact loads and friction throughout the system.
As spring pressure rises unnecessarily, the engine can experience greater parasitic losses along with additional mechanical loading.
That's why there isn't a responsible universal formula such as:
“Every additional 10 lb of spring pressure costs X horsepower.”
The actual loss depends on the complete valvetrain.
But the principle remains:
Unnecessary spring pressure can consume power and increase valvetrain load without providing a performance benefit if the valve was already under control.
That's why BK Racing doesn't simply chase the largest spring-pressure number.
The Goal Is Enough Spring—Not Maximum Spring
There are two sides to this problem.
Too little spring pressure:
The valvetrain may lose control.
Too much spring pressure:
The engine carries unnecessary load, friction, wear and stress.
Correct spring pressure:
The valvetrain remains controlled with appropriate operating margin without unnecessary load.
That's the target.
The Best Way to Need Less Spring Is to Give the Spring Less Work to Do
This is where the rest of the BK Racing system becomes important.
If the spring is controlling a heavier moving assembly, its job becomes more difficult.
If we can remove unnecessary moving mass while maintaining the required strength, we've attacked the problem from the other side.
Instead of saying:
Heavy valvetrain? Add more spring.
we can ask:
Why are we making the spring control unnecessary mass in the first place?
That's where performance valves and lightweight titanium retainers become important.
Why Valve Mass Matters
The valve is one of the primary moving components in the valvetrain.
Every valve event requires it to:
accelerate,
decelerate,
reverse direction,
and return to the seat under control.
At 9,000 RPM, this process occurs approximately:
75 times every second per valve.
The spring has to control that motion.
So unnecessary valve mass matters.
But the answer isn't simply to make the valve as light as physically possible.
An exhaust valve also has to survive:
combustion temperature
seat impact
mechanical loading
fatigue
and sustained racing use.
The real objective is:
Remove unnecessary material—not necessary strength.
That's one of the principles behind the BK Racing performance-valve program.

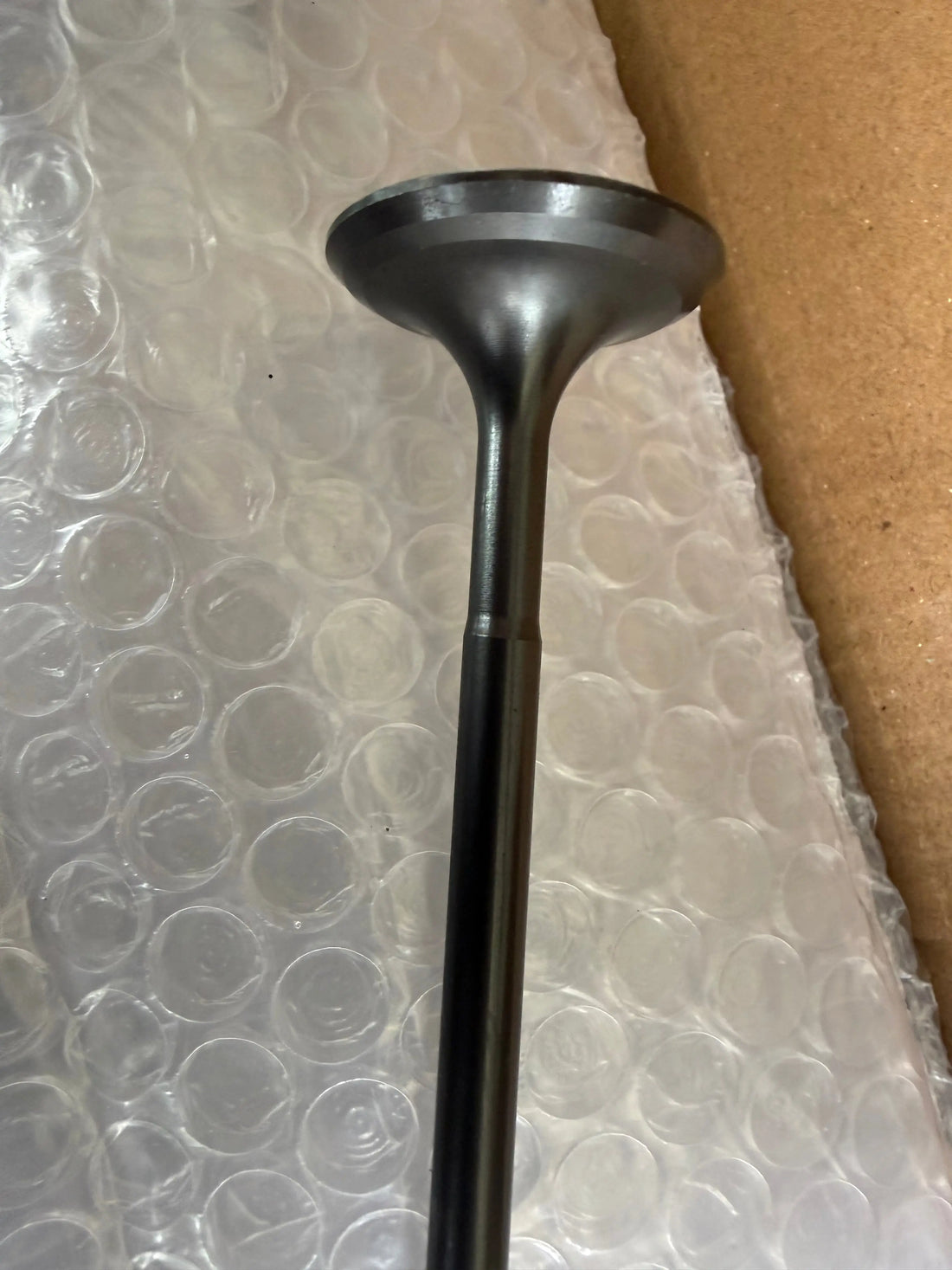

Why the BK Racing Exhaust Valve Is Part of the High-RPM System
We didn't develop the BK Racing Ecotec Exhaust Valve simply as an OEM replacement manufactured from a different material.
The valve was developed around several objectives simultaneously:
airflow
high-temperature capability
surface durability
moving mass
valvetrain geometry
and sustained-RPM racing use.
The production valve incorporates:
21-4N stainless steel
full nitriding
developed backside geometry
an undercut stem
a smooth stem-to-head transition
and
an extended-tip design intended for appropriate performance valvetrain combinations.
The point isn't that one individual feature creates the performance.
It's that the complete valve was developed around the same racing environment in which our spring, retainer and solid-lash components operate.
Why an Undercut Stem Helps the System in More Than One Way
The primary reason for an undercut stem is airflow.
Part of the valve stem sits directly in the exhaust airflow.
Reducing unnecessary stem area in the appropriate exposed region can reduce physical obstruction.
But removing unnecessary material also removes some moving mass.
That means an appropriately designed undercut can potentially address:
Airflow
Less exposed stem obstruction.
Valvetrain mass
Less unnecessary material for the spring to control.
We're intentionally not publishing BK Racing's exact undercut dimensions or transition geometry.
Those are part of the proprietary valve design.
But the philosophy is straightforward:
Keep material where the valve needs it. Remove unnecessary material where it doesn't.
Why the Retainer Matters
The valve isn't the only moving mass the spring has to control.
The retainer moves with the valve assembly.
Every time the valve opens, the retainer accelerates.
Every time the valve changes direction, the retainer changes direction.
At serious racing RPM, that happens thousands of times every minute.
That makes the retainer one of the logical places to eliminate unnecessary moving mass.
Why BK Racing Uses Lightweight Titanium Retainers
The purpose of the BK Racing Lightweight Titanium Retainer isn't simply to put the word “titanium” in the product description.
The objective is to produce a strong retainer while reducing unnecessary moving mass.
That directly complements the valve spring.
The spring provides control.
The lightweight retainer reduces part of the mass the spring has to control.
Those are different functions working toward the same objective:
High-RPM valvetrain stability without relying solely on additional spring pressure.
Less Moving Mass Can Reduce the Demand Placed on the Spring
This doesn't mean titanium retainers automatically allow a certain amount of spring pressure to be removed.
There is no universal conversion.
Cam profile, valve mass, RPM, spring dynamics and other variables still matter.
But the fundamental relationship is important:
The spring controls moving mass.
Reducing unnecessary moving mass improves one side of that equation.
That's why lightweight retainers aren't cosmetic.
They're part of valvetrain engineering.
BK Racing Retainers Also Address an Ecotec-Specific Problem
Weight wasn't our only consideration.
GM updated the factory Ecotec rocker-arm design, including the rocker associated with GM part number 12693909, with a taller valve-stem-side configuration.
That updated geometry can interfere with some aftermarket retainers.
The BK Racing Lightweight Titanium Retainers were designed to accommodate both the earlier and updated rocker configurations.
So the objective wasn't simply:
make it lighter.
It was:
Reduce mass + maintain strength + provide the necessary Ecotec rocker clearance.
A lightweight retainer that interferes with the rocker isn't a performance upgrade.
Now the Spring Has Less Unnecessary Mass to Control
This is where the system begins coming together.
Instead of using a heavy valve and heavy retainer and compensating with excessive spring pressure, we can attack the problem intelligently.
Develop the valve.
Remove unnecessary moving mass.
Use a lightweight retainer.
Then provide the spring pressure required to maintain control.
That's the philosophy behind the BK Racing 83 lb Valve Spring.
Why BK Racing Uses an 83 lb Spring Instead of Chasing a Bigger Number
Spring pressure is one of the easiest specifications to market.
If one company advertises an 83 lb spring and another advertises 94 lb, it's easy to assume:
94 must be better than 83.
That's not how valvetrain engineering works.
We need to know:
83 or 94 lb at what installed height?
What is the spring rate?
What is the open pressure?
What is the valve mass?
What does the retainer weigh?
What cam profile is being used?
What is the valve lift?
What RPM?
What duty cycle?
A properly designed 83 lb spring controlling an optimized valvetrain can be a better racing solution than unnecessarily loading the same engine with more spring pressure.
The biggest seat-pressure number doesn't automatically identify the best spring.
BK Racing 83 lb Valve Spring Specifications
The BK Racing spring is designed around approximately:
83 lb at 1.325-inch installed height
with a working spring rate of approximately:
294 lb/in
and approximately:
230 lb around .500-inch valve lift
from the intended installed-height reference.
Those specifications tell us considerably more than simply calling it an:
“83 lb spring.”
We know its starting pressure.
We know approximately how force increases as the spring is compressed.
And we know approximately what force is available near a significant performance valve lift.
That's how a spring should be evaluated.
Why Installed Height Matters
An “83 lb spring” doesn't produce 83 lb regardless of how it's installed.
The target pressure corresponds to a defined installed height.
For the BK Racing spring, that's approximately:
1.325 inches.
Install the spring taller and seat pressure decreases.
Install it shorter and seat pressure increases.
So:
Installed height is part of the spring specification.
It isn't an afterthought.
Why Every Valve Position Should Be Measured
A DOHC Ecotec cylinder head has 16 valve positions.
Even with 16 matched springs, that doesn't guarantee every spring will have exactly the same installed height once assembled.
Differences can come from:
valve-seat machining
valve dimensions
retainer dimensions
keeper position
spring seats
previous cylinder-head work
and normal manufacturing tolerances.
For a serious race cylinder head, measure every position.
Don't assume.
Why We Don't Recommend Adding Spring Pressure Just Because You Can
Shimming a spring shorter can increase seat pressure.
That doesn't mean doing so automatically improves the engine.
If the valvetrain is already controlled, additional pressure may provide no useful benefit while increasing load.
That's the opposite of optimization.
The better question is:
What pressure does this cam, valve, retainer and RPM combination actually require?
Then build around that.
Open Pressure Matters Too
Seat pressure only describes the spring at the valve-closed position.
The spring also has to control the valvetrain while the valve is open and moving.
As the valve opens, the spring compresses and spring force rises.
That's why spring comparisons should include:
seat pressure
installed height
spring rate
open pressure
and available travel.
For the BK Racing 83 lb spring, the combination of approximately:
83 lb at 1.325-inch installed height
and approximately:
230 lb around .500-inch lift
provides a much more useful description than seat pressure alone.
Why Maximum Lift Is More Than a Coil-Bind Number
The spring physically needs enough travel to accommodate valve lift.
But coil bind isn't the only possible limitation.
The assembled valvetrain also needs adequate:
retainer-to-seal clearance
retainer-to-guide clearance
rocker clearance
and piston-to-valve clearance.
The first unsafe mechanical interference determines the practical limit.
That's why a spring's theoretical maximum travel should never automatically become the engine's recommended maximum lift.
Mechanical limit and recommended operating limit are not the same thing.
Where Solid Lash Becomes the Next Advantage
Now we've addressed:
valve mass
retainer mass
and spring pressure.
The next question is:
How do we establish and maintain the mechanical relationship between the camshaft, rocker and valve?
The factory Ecotec uses hydraulic lash adjustment.
For a production engine, that makes sense.
Hydraulic lash adjusters offer:
automatic compensation
low maintenance
quiet operation
and production-car convenience.
Those are valuable qualities in a street vehicle.
But a dedicated race engine has different priorities.
Why BK Racing Prefers Solid Lash for Serious Racing
For a serious high-RPM racing Ecotec, BK Racing prefers a properly set solid lash arrangement.
Instead of relying on a hydraulic mechanism to continuously establish the lash relationship, the engine builder mechanically establishes the clearance.
That gives us:
A known, measurable mechanical lash.
We can set it.
Measure it.
Record it.
Check it.
And maintain it.
For a purpose-built race engine, that's a significant advantage.
Hydraulic Lash Was Designed Around Production-Engine Priorities
This doesn't mean the factory hydraulic lash adjuster is a bad component.
It isn't.
GM needed a production engine to:
start cold
operate quietly
automatically compensate for normal changes
require minimal maintenance
work over a broad temperature range
and potentially operate for hundreds of thousands of miles.
A hydraulic lash adjuster makes excellent sense for those priorities.
A race engine doesn't have the same priorities.
We're willing to accept:
manual setup and periodic lash inspection
in exchange for:
A fixed, known mechanical setting.
That's why BK Racing favors solid lash for serious racing combinations.
Solid Lash Removes a Hydraulic Variable
This is one of the most important advantages.
With hydraulic lash adjustment, the lash-control system contains a hydraulic mechanism influenced by its operating conditions.
With solid lash:
The clearance is mechanically established.
That doesn't eliminate the need for proper spring control.
It doesn't fix incorrect rocker geometry.
And it doesn't make an inappropriate camshaft work.
But it removes one hydraulic variable from a valvetrain operating at serious racing RPM.
For the applications BK Racing develops around, we consider that an advantage.
Solid Lash Does Not Replace the Valve Spring
This distinction matters.
The solid lash adjuster establishes the mechanical lash.
The spring controls the moving valvetrain.
Those are different jobs.
If the spring cannot control the valve at the intended RPM:
Installing solid lash does not fix the spring problem.
Likewise, if mechanical lash is incorrect:
Installing a stronger spring doesn't fix the lash problem.
This is exactly why the valvetrain has to be treated as a system.
Why Solid Lash Can Be Especially Useful With Reground Cams
Reground Ecotec camshafts introduce another consideration.
Regrinding can reduce camshaft base-circle diameter.
That changes the mechanical relationship among the:
camshaft
rocker
lash adjuster
and valve tip.
A hydraulic adjuster may be capable of taking up additional clearance.
But:
Taking up clearance is not necessarily the same thing as restoring correct geometry.
That's a critical distinction.
Why BK Racing Uses an Extended-Tip Performance Valve Design
This is where the BK performance valve becomes more than an airflow component.
An extended-tip design gives the engine builder another tool when working with appropriate reground-cam combinations.
If the reduced cam base circle alters the mechanical relationship, valve-tip position becomes one of the dimensions that can matter.
The extended tip does not simply create additional valve lift.
It's a:
Valvetrain-geometry feature.
The finished engine still needs to be measured.
Why Solid Lash and Extended-Tip Valves Work Together Conceptually
Look at the complete strategy.
Reground cam changes the base-circle relationship.
Extended-tip valve provides another geometry tool.
Solid lash lets us mechanically establish the required clearance.
Now we're actually building the valvetrain around the modified camshaft rather than simply expecting a hydraulic component to compensate for every change.
That's a much more deliberate approach for a race engine.
BK Racing Solid Lash Starting Point
For appropriate BK Racing solid-lash combinations, common starting targets are approximately:
.008-inch intake
and
.010-inch exhaust.
The final lash still needs to match the camshaft and engine combination being used.
But the advantage is that the mechanical clearance can now be:
set
measured
recorded
checked
and maintained.
Why Periodic Lash Checks Are an Advantage in a Race Engine
Solid lash requires maintenance.
We don't hide that.
But in a serious race engine, we're already inspecting the engine.
A periodic lash check gives the engine builder another measurable condition to monitor.
If lash changes unexpectedly, that information can point toward changes elsewhere in the valvetrain.
So while hydraulic lash offers convenience, a mechanically adjustable system gives the race program another measurable parameter.
For us, that's a worthwhile trade.
Now Look at the Complete BK Racing Valvetrain
This is where the product strategy becomes clear.
BK Racing Performance Valves
Developed around:
airflow
material selection
full nitriding
valve geometry
undercut stem design
moving mass
and performance valvetrain geometry.
BK Racing 83 lb Valve Springs
Designed to provide high-RPM valve control without treating excessive spring pressure as a virtue.
BK Racing Lightweight Titanium Retainers
Reduce unnecessary moving mass while maintaining strength and providing clearance for early and updated Ecotec rocker designs.
BK Racing Solid Lash Adjusters
Replace hydraulic lash compensation with a mechanically established clearance for serious racing applications.
These aren't four unrelated products.
They're four different solutions to four interconnected valvetrain problems.
The Wrong Way to Build a High-RPM Ecotec Valvetrain
A simplistic approach looks like this:
Install the biggest cam.
Then:
Install the strongest spring.
Then:
Assume the hydraulic adjuster will take care of the rest.
That isn't how BK Racing wants to approach a serious racing Ecotec.
Our approach is:
Determine the cam requirement.
Develop the airflow.
Reduce unnecessary moving mass.
Use enough spring pressure to maintain control without excessive load.
Use a lightweight retainer.
Establish mechanical lash where appropriate.
Address reground-cam geometry correctly.
Measure installed height.
Verify every clearance.
Test the finished combination.
That's a system.
Why the BK Approach Can Preserve Horsepower
This is one of the most important advantages of the complete strategy.
We don't want the engine carrying unnecessary valvetrain loads simply because a larger spring-pressure number sounds better on a product page.
If we can maintain control through the combination of:
appropriate spring pressure
plus:
reduced unnecessary moving mass
plus:
correct geometry
plus:
stable mechanical lash
then we can build a more efficient valvetrain than simply throwing excessive spring pressure at the problem.
There is no responsible universal horsepower number we can assign to this.
But the principle is straightforward:
Spring pressure should solve a valve-control problem—not create unnecessary friction and load.
Why the Same Approach Can Improve Durability
Unnecessary spring load doesn't only affect efficiency.
It also increases contact forces throughout the valvetrain.
That increases the demands placed on:
cam lobes
rockers
valve tips
keepers
retainers
valve seats
and related interfaces.
So avoiding unnecessary spring pressure can benefit both:
efficiency
and:
component life.
Enough pressure is essential.
Excess pressure isn't a free safety margin.
Why a Lightweight Retainer Can Be Better Than Simply Adding More Spring
Suppose we want additional high-RPM control margin.
One option is:
Add spring pressure.
Another is:
Reduce unnecessary moving mass.
If we can replace a heavier retainer with a strong lightweight titanium component, we've reduced part of what the spring has to control without simply increasing valvetrain load.
That's why lightweight retainers aren't racing jewelry.
They're a legitimate high-RPM valvetrain component.
Why a Purpose-Designed Valve Can Be Better Than Simply Adding More Spring
The same principle applies to the valve.
A performance valve developed around:
appropriate material distribution
airflow
strength
surface durability
and moving mass
can contribute to a more optimized system.
Again:
Build the system smarter instead of simply making the spring stronger.
What About 9,000 RPM?
The BK Racing 83 lb spring package has demonstrated operation in serious high-RPM Ecotec combinations, including combinations operating into the 9,000-RPM range.
But that does not mean:
83 lb = every Ecotec is automatically safe at 9,000 RPM.
A spring doesn't know the RPM number printed on a product page.
It responds to:
cam acceleration
moving mass
installed height
valve lift
spring dynamics
temperature
and the complete valvetrain.
Change those variables and you've changed the system.
The correct takeaway is:
BK's 83 lb spring has demonstrated serious high-RPM capability without treating excessive spring pressure as the only path to valve control.
Peak RPM Isn't the Same as Sustained Racing RPM
This matters enormously for circle-track engines.
An engine that briefly touches 9,000 RPM during a dyno pull isn't experiencing the same duty cycle as one repeatedly operating near the top of its range lap after lap.
At 9,000 RPM:
4,500 valve events occur per minute per valve.
Ten minutes would represent approximately:
45,000 valve events per valve
if continuously operated at that speed.
Twenty minutes:
90,000 valve events per valve.
That's why BK Racing isn't interested only in whether an engine can touch a particular RPM.
We're interested in whether the valvetrain remains controlled when the engine has to race there.
Why Circle-Track Racing Changes the Requirement
Circle-track engines can spend substantial time under:
high RPM
high load
high temperature
and repeated acceleration.
That increases the importance of:
spring stability
moving mass
valve durability
retainer strength
mechanical lash
and correct geometry.
That's exactly the environment around which the BK Racing valvetrain program has been developed.
Building the Complete BK Racing High-RPM Combination
For a serious naturally aspirated Ecotec racing combination, the package can include:
BK Racing Performance Intake & Exhaust Valves
BK Racing 83 lb Valve Springs
BK Racing Lightweight Titanium Retainers
BK Racing Solid Lash Adjusters
along with the appropriate:
camshafts
keepers
spring seats
valve seals
and correctly prepared cylinder head.
But buying the parts isn't the final step.
The engine still needs to be assembled correctly.
Step 1: Know the Camshaft
Start with:
cam profile
valve lift
base-circle configuration
and intended RPM range.
The camshaft defines what motion the rest of the valvetrain has to follow.
Step 2: Select the Valve
Consider:
material
mass
airflow requirements
stem geometry
tip configuration
and intended duty cycle.
The valve needs to flow.
But it also has to survive the race and remain controllable.
Step 3: Reduce Unnecessary Retainer Mass
Use a retainer that:
fits the spring
fits the keeper system
maintains adequate strength
clears the rocker
and avoids unnecessary mass.
That's where the BK Racing Lightweight Titanium Retainer fits.
Step 4: Measure Installed Height
Don't assume the cylinder head is automatically at the intended installed height.
Measure every spring position.
For the BK Racing 83 lb spring, the nominal target is approximately:
1.325 inches.
Installed height determines the spring's starting condition.
Step 5: Verify Spring Pressure
With installed height known, verify the spring.
The BK Racing spring's nominal specification is approximately:
83 lb at 1.325 inches.
Now we know the actual starting pressure rather than relying on the name printed on the box.
Step 6: Understand Open Pressure
Take actual valve lift into account.
With the BK spring's nominal rate and installed height, the spring produces approximately:
230 lb around .500-inch valve lift.
That tells us considerably more about the spring's operating range.
Step 7: Verify Mechanical Clearance
Check:
coil-bind clearance
retainer-to-seal clearance
retainer-to-guide clearance
rocker clearance
and piston-to-valve clearance.
Never assume coil bind is the first limit.
Step 8: Establish the Lash System
For a hydraulic combination, verify proper adjuster operation and geometry.
For a serious BK solid-lash race combination:
Set the mechanical lash.
Common BK starting targets for appropriate combinations are:
.008-inch intake
and:
.010-inch exhaust.
Then verify them against the camshaft and finished engine.
Step 9: Check Reground-Cam Geometry
If the engine uses reground cams, evaluate:
base-circle change
rocker position
valve-tip relationship
and complete contact geometry.
This is where the BK extended-tip valve design may provide an important advantage.
Don't confuse:
Hydraulic take-up
with:
Correct geometry.
Step 10: Test the Combination
This is the final piece.
Don't assume.
Flow bench for airflow.
Spring tester for pressure.
Measure installed height.
Physically verify clearance.
Dyno the engine.
Then test it in the environment it was actually built for.
That's how BK Racing approaches development.
High-RPM Ecotec Valvetrain FAQ
Is more valve-spring pressure better?
No. The spring needs enough pressure to maintain control, but unnecessary pressure increases valvetrain loads, friction, wear and stress.
Can excessive valve-spring pressure cost horsepower?
Yes. Increased spring loads can increase frictional and mechanical losses. There is no universal horsepower-per-pound conversion, but unnecessary spring pressure isn't free.
Why doesn't BK simply use the highest-pressure spring possible?
Because the goal is valve control, not the largest number on a specification sheet. Excess pressure adds load after the required control has already been achieved.
Why is the BK spring 83 lb?
The BK spring was developed around the pressure, spring rate, open-force and high-RPM requirements of the Ecotec combinations it was intended to control rather than simply chasing a larger advertised seat-pressure number.
What installed height is the BK Racing 83 lb spring designed around?
Approximately 1.325 inches.
What is the BK spring's approximate open pressure?
Approximately 230 lb around .500-inch valve lift from the nominal installed-height reference.
What is the approximate spring rate?
Approximately 294 lb/in.
Why do lightweight titanium retainers help?
They reduce unnecessary moving mass, reducing part of the mass the valve spring has to accelerate and control.
Does a lighter retainer automatically mean I can reduce spring pressure?
No. Cam profile, valve mass, RPM, lift and spring dynamics still determine the complete requirement.
Why did BK design its own titanium retainer?
In addition to reducing moving mass, the BK retainer was designed to provide clearance with both earlier and updated Ecotec rocker configurations.
Is solid lash better than hydraulic for racing?
For the serious high-RPM race combinations BK Racing develops, we prefer solid lash because it provides a fixed, measurable mechanical clearance instead of relying on a hydraulic lash-control element.
Are factory hydraulic lash adjusters bad?
No. They're an effective solution for the production applications they were designed around. A dedicated race engine simply has different priorities.
Does solid lash automatically add horsepower?
We don't assign a universal horsepower gain to solid lash. Its primary advantages in this application are mechanical control, repeatability and a known lash setting.
Does solid lash prevent valve float?
No. Valve float is a valve-control problem. The spring still has to control the moving assembly.
What lash does BK Racing use?
Common starting targets for appropriate BK solid-adjuster combinations are approximately .008-inch intake and .010-inch exhaust, subject to the camshaft and complete engine combination.
Why do reground cams affect valvetrain geometry?
Regrinding can reduce camshaft base-circle diameter, changing the relationship among the cam, rocker, lash adjuster and valve tip.
Why not simply let the hydraulic adjuster compensate for a smaller base circle?
Hydraulic take-up may remove clearance, but removing clearance isn't necessarily the same thing as restoring the desired rocker and valve-tip geometry.
Why does BK use an extended-tip valve design?
The extended tip provides another geometry tool for appropriate performance and reground-cam combinations. It isn't simply a method of increasing valve lift.
Can BK 83 lb springs be used with stock valves?
Yes, provided the complete combination, installed height, valve lift and mechanical clearances are appropriate.
Do I need the complete BK Racing valvetrain package?
Not necessarily. Each component addresses a specific part of the valvetrain. The advantage of the complete approach is that the components address different parts of the same high-RPM problem.
Is 83 lb enough for 9,000 RPM?
Seat pressure alone cannot determine an RPM limit. The BK spring has demonstrated operation in high-RPM Ecotec combinations, but actual capability depends on the camshaft, moving mass, installed height, lift and complete valvetrain.
Why measure all 16 installed heights?
Valve jobs, valve dimensions, retainers, keepers and machining tolerances can create differences among positions. A serious race cylinder head should be measured rather than assumed.
Is coil bind the only maximum-lift limitation?
No. Retainer-to-seal, retainer-to-guide, rocker and piston-to-valve clearances can become limiting before coil bind.
The Bottom Line: Don't Control a Heavy Valvetrain With Excessive Spring Pressure
A brute-force high-RPM valvetrain strategy says:
More RPM? Add more spring.
The BK Racing approach is different.
Reduce unnecessary moving mass.
Use a purpose-developed performance valve.
Use a lightweight titanium retainer.
Then use the spring pressure actually required to maintain control.
Measure installed height.
Understand open pressure.
Match the spring to the cam.
And for serious racing combinations:
Replace hydraulic lash compensation with a known mechanical lash using BK Racing Solid Lash Adjusters.
Now we're not relying on one component to solve every problem.
The BK Racing performance valves address airflow, material, durability, moving mass and geometry.
The BK Racing Lightweight Titanium Retainers reduce unnecessary moving mass and address Ecotec-specific rocker-clearance concerns.
The BK Racing 83 lb Valve Springs provide valve control without treating excessive spring pressure as a virtue.
The BK Racing Solid Lash Adjusters give the race-engine builder a fixed, measurable mechanical lash.
And the extended-tip valve design provides another tool when reground cams alter the valvetrain's mechanical relationship.
That's not a collection of unrelated parts.
That's a valvetrain strategy.
The objective isn't to put the biggest spring-pressure number on a product page.
It isn't to make an Ecotec touch 9,000 RPM once.
It's to build a valvetrain that's:
Light enough to control.
Strong enough to survive.
Efficient enough not to waste power fighting unnecessary spring load.
And stable enough to live at the RPM where the engine actually races.
That's the difference between buying valvetrain parts and:
Engineering the Ecotec valvetrain as a system.
Continue Learning About Ecotec Exhaust Valves
Building the right Ecotec valvetrain involves more than choosing a single valve. Exhaust-valve material, head and stem geometry, valve springs, retainers, lash adjustment and camshaft geometry all work together—especially in sustained high-RPM racing applications. If you're putting together a complete combination, explore the guides below and see how components such as the BK Racing Ecotec Exhaust Valves, BK Racing 83 lb Valve Springs, BK Racing Lightweight Titanium Retainers and BK Racing Solid Lash Adjusters fit into the complete Ecotec valvetrain.
Stock vs Performance Ecotec Exhaust Valves: What Actually Changes?
Learn what really separates an OEM replacement valve from a purpose-built performance exhaust valve, including material, nitriding, backside geometry, stem design, margin and intended operating environment.
Do Performance Exhaust Valves Increase CFM? Our Ecotec Flow-Bench Testing
See what we learned from back-to-back Ecotec flow-bench testing, including why larger valve diameter didn't automatically produce more airflow and how the finished BK Racing Ecotec Exhaust Valve compared with the stock baseline.
Ecotec Exhaust Valve Size Guide: Stock Diameter, Stem Size & Applications
Compare stock and aftermarket Ecotec exhaust-valve head diameters, stem sizes, overall lengths and applications across the L61, LAP, LE5, LE9, LSJ and LNF engines.
21-4N Stainless vs Inconel vs OEM Ecotec Exhaust Valves
Understand the differences between OEM valve materials, 21-4N stainless and Inconel—and why the BK Racing Ecotec Exhaust Valve uses fully nitrided 21-4N stainless for the naturally aspirated, sustained-RPM racing applications it was developed around.
Why Exhaust Valve Shape Matters: Tulip, Back-Cut, Margin & Stem Geometry
Learn how the valve itself becomes part of the airflow path and why tulip shape, back-cut, margin, head thickness and stem geometry can matter just as much as valve-head diameter.
Stock Ecotec Exhaust Valves at High RPM: What Are the Limitations?
See what changes when a production Ecotec valvetrain is subjected to sustained racing RPM and why exhaust valves, BK Racing 83 lb Valve Springs and lightweight retainers should be considered as parts of the same system.
Undercut Valve Stems: Can They Improve Ecotec Exhaust Flow?
Learn how reducing the exposed portion of an exhaust-valve stem can decrease obstruction in the port and why the BK Racing Ecotec Exhaust Valve uses an undercut stem with a smooth transition into the backside of the valve.
Reground Ecotec Cams & Valve Stem Height: Why Geometry Matters
Learn why reducing a camshaft's base circle changes the relationship between the cam, rocker, lash adjuster and valve—and why the extended-tip geometry of the BK Racing Ecotec Exhaust Valve was developed with reground-cam combinations in mind.
Ecotec Exhaust Valve Comparison: OEM vs Ferrea vs Supertech vs BK Racing
Compare OEM, Ferrea, Supertech and BK Racing Ecotec Exhaust Valves by dimensions, material, geometry and intended application, including where we have actual back-to-back flow-bench data and where we don't.
Are L61, LAP, LE5, LE9, LSJ & LNF Exhaust Valves Interchangeable?
See which Ecotec engines share basic exhaust-valve architecture, where important differences remain and what should be measured before combining valves, cylinder heads and valvetrain components from different Ecotec generations.
Start With the Complete Guide
The Complete Guide to GM Ecotec Exhaust Valves: L61, LAP, LE5, LE9, LSJ & LNF
Our complete Ecotec exhaust-valve resource brings together valve sizing, materials, airflow, geometry, high-RPM operation, camshaft compatibility and valvetrain setup in one place. It's the best starting point if you're planning an Ecotec cylinder-head or valvetrain combination and want to understand how all of these areas work together.
