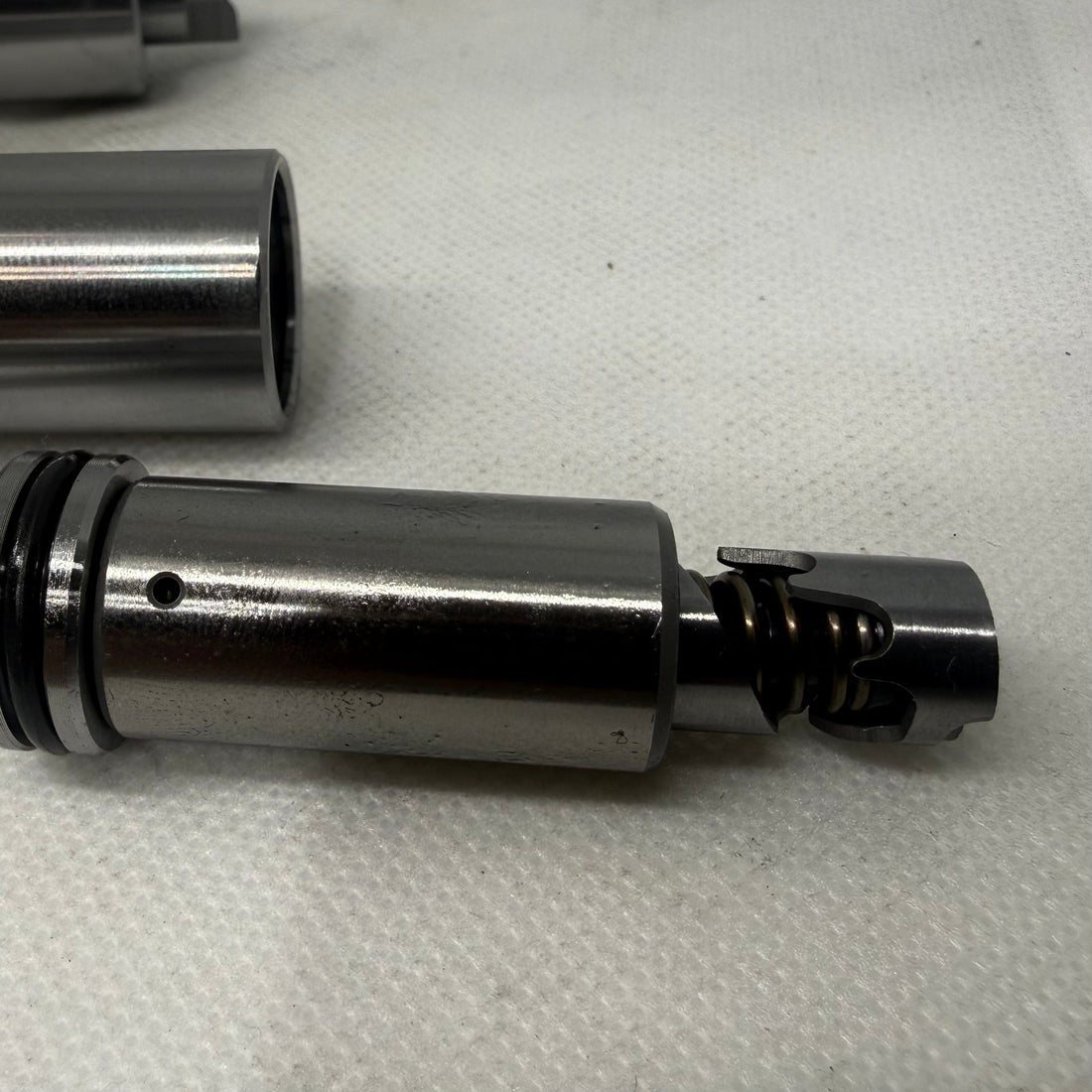

Symptoms of a Bad GM Ecotec Timing Chain Tensioner

A bad GM Ecotec timing chain tensioner can contribute to startup rattle, persistent timing chain noise, chain slap, excessive chain movement, and other timing-system problems. However, one of the most important points in diagnosing an Ecotec is this:

The same symptoms can also be caused by a worn timing chain, damaged guides, incorrect tensioner installation, improper tensioner activation, lubrication problems, incorrect mechanical timing, or other worn timing components.

That means timing chain noise alone does not prove the tensioner is bad.

The GM Ecotec timing chain tensioner is one component within a complete primary timing drive. Its job is to act through the movable timing chain guide and help control available chain slack and unwanted chain movement.

When that control is compromised, the engine may begin showing warning signs.

This guide explains the most common symptoms associated with a bad or malfunctioning GM Ecotec timing chain tensioner, what those symptoms may actually indicate, and how to avoid replacing the wrong part.

It also explains when an updated OEM hydraulic timing chain tensioner may be appropriate and when the BK Racing Manual Timing Chain Tensioner may make more sense for serious performance and racing applications.

The Most Important Diagnostic Rule: A Symptom Is Not a Diagnosis

Before discussing individual symptoms, this point needs to be clear:

Timing chain rattle does not automatically mean the tensioner has failed.

A noisy Ecotec timing system may involve:

A worn timing chain
Excessive available chain slack
Worn timing chain guides
Broken or damaged guides
A hydraulic tensioner problem
Incorrect tensioner installation
Improper tensioner activation
Lubrication or oil-supply concerns
Worn sprockets
Incorrect mechanical timing
Variable valve timing faults on equipped engines
Multiple worn components operating together

The complete timing system should be evaluated.

Replacing a tensioner without determining why the chain is noisy can result in an incomplete repair.

Not Every GM Ecotec Timing Chain Tensioner Is the Same

This is especially important when diagnosing an Ecotec timing system.

GM used multiple primary timing chain tensioner designs across 2.0L, 2.2L, and 2.4L Ecotec applications.

Published technical guidance from Cloyes identifies three GM primary tensioner designs:

An early two-piece design with an O-ring and larger piston
A second similar design without the O-ring
A later one-piece superseding design with no O-ring and a smaller piston

The later superseding design also differs in how it is supplied, installed, activated, and deactivated.

Because these designs differ, BK Racing does not recommend assuming that every Ecotec tensioner:

Resets the same way
Activates the same way
Uses identical internal components
Produces identical symptoms when a problem develops

Before diagnosing a suspected bad Ecotec timing chain tensioner, identify the actual component and timing system being inspected.

What Causes an Ecotec Timing Chain Tensioner Problem?

A hydraulic timing chain tensioner can develop problems for several reasons.

Depending on the exact tensioner design and engine condition, possible concerns may include:

Internal wear
Contamination
Sludge or debris
Restricted oil supply
Damaged tensioner components
Incorrect installation
Improper activation
Excessive timing system wear
Operation near the limit of available tensioner travel
Damage to the tensioner housing or mounting area

It is also possible for a correctly functioning tensioner to appear ineffective because another component is worn.

For example, if the timing chain has accumulated significant joint wear and increased in effective length, or if the guide surfaces are heavily worn, the tensioner may be forced to extend farther simply to control the additional available slack.

In that situation, the tensioner may not be the root cause.

Symptom #1 — Timing Chain Rattle During Startup

Startup rattle is one of the most common reasons Ecotec owners begin investigating the timing system.

The noise may be described as:

Brief metallic rattle
Chain rattle
Front-cover rattle
Rapid clattering
Loose-chain noise immediately after startup

A factory-style hydraulic tensioner operates as part of the engine’s oil-fed timing system. When the engine is not running, normal operating oil pressure is absent.

However, it is too simplistic to say:

“Startup rattle always means the tensioner leaked down.”

Possible contributors to startup timing chain rattle include:

Hydraulic tensioner problems
Excessive timing chain wear
Worn guides
Excessive available slack
Improper tensioner activation
Incorrect installation
Oil-supply concerns
Other worn timing components

The duration and frequency of the noise matter.

A brief noise after an engine has been disassembled is not automatically the same diagnostic condition as a rattle that occurs every cold start and progressively lasts longer.

If startup rattle becomes:

More frequent
Louder
Longer in duration
Present after shorter shutdown periods
Accompanied by other timing symptoms

then the complete timing system deserves inspection.

Symptom #2 — Persistent Timing Chain Rattle

Persistent timing chain rattle is more concerning than a brief, isolated noise.

If metallic rattling continues after startup or remains present with the engine running, possible causes may include:

Excessive chain slack
Timing chain wear
Worn guides
Damaged guides
A tensioner that is not controlling chain movement correctly
Incorrect tensioner installation
Improper tensioner activation
Lubrication concerns
Other mechanical timing-system problems

The location of the noise matters, but sound alone can be misleading.

Noise from the front of the engine should not automatically be diagnosed as a timing chain tensioner failure. Accessory-drive components and other mechanical sources should also be considered during diagnosis.

Persistent timing chain noise should be investigated rather than dismissed as normal Ecotec operation.

Symptom #3 — Ecotec Chain Slap

Chain slap generally describes excessive or uncontrolled chain movement that allows the chain to impact or load guides and surrounding timing components abnormally.

Possible contributors include:

Excessive available chain slack
Timing chain wear
Guide wear
Guide damage
Tensioner problems
Incorrect assembly
Improper tensioner activation

Chain movement can also change with engine operating conditions.

Noise may become more noticeable during:

Startup
Rapid RPM changes
Acceleration
Deceleration
Load transitions

However, BK Racing does not recommend diagnosing chain slap solely from when the noise occurs.

A dedicated inspection is still required.

Repeated chain impact can accelerate wear of already compromised timing components. If guide material is damaged or missing, the timing system should be inspected carefully rather than simply installing another tensioner.

For a complete discussion of these different noises, continue to:

Ecotec Timing Chain Noise, Rattle & Chain Slap Explained

Symptom #4 — Camshaft-to-Crankshaft Correlation Codes

A timing-system problem may eventually be accompanied by diagnostic trouble codes related to crankshaft and camshaft position correlation.

Depending on the exact engine, model year, control system, and fault, relevant codes may include correlation-related faults such as:

P0016
P0017

Other timing-system or engine-position codes may also appear depending on the application.

However:

A correlation code does not prove the timing chain tensioner is bad.

Possible causes can include:

Incorrect mechanical timing
Timing chain wear
Excessive chain slack
Timing chain jump
Camshaft actuator or VVT-related problems
Sensor problems
Wiring problems
Reluctor or trigger-related concerns
Other engine-specific faults

This is why BK Racing does not recommend replacing a timing chain tensioner based only on a diagnostic trouble code.

The exact code definition and diagnostic procedure should be verified for the specific engine and vehicle.

Important Note About P0008

P0008 is often included in generic timing-chain articles, but it should not be presented as a universal “bad Ecotec tensioner code.”

Code support and diagnostic meaning depend on the specific vehicle and engine-management system.

For professional diagnosis, verify the exact code using application-specific service information.

Symptom #5 — Rough Running or Poor Engine Performance

A significant mechanical timing problem can affect engine operation.

Possible symptoms may include:

Rough idle
Reduced power
Poor throttle response
Hard starting
Misfire symptoms
Abnormal engine operation
Check engine light

However, these symptoms are extremely broad.

A rough idle does not prove the timing chain tensioner is bad.

Reduced power does not prove the chain is stretched.

Hard starting does not prove the tensioner has failed.

These symptoms become more meaningful when combined with additional evidence such as:

Confirmed timing-system noise
Correlation faults
Known timing component wear
Incorrect mechanical timing
Excessive chain slack found during inspection

Diagnosis should be based on the complete set of evidence.

Symptom #6 — Excessive Timing System Wear Found During Inspection

Sometimes the strongest evidence appears only after the timing system is opened for inspection.

Warning signs may include:

Heavy guide wear
Deep grooving in guide surfaces
Cracked guides
Missing guide material
Damaged guide mounting points
Abnormal chain movement
Visible sprocket wear
A tensioner operating near the limit of available travel

A tensioner near maximum travel deserves particular attention.

General hydraulic timing chain tensioner technical guidance notes that excessive tensioner extension can indicate significant chain wear and that the complete system requires further inspection.

This does not automatically mean:

“The tensioner is bad.”

It may mean the tensioner has extended because the chain and guides have accumulated wear.

Replacing only the tensioner may leave the actual problem unchanged.

Symptom #7 — The Tensioner Will Not Prepare, Retain, or Activate Correctly

A tensioner that does not behave correctly during bench preparation or installation should not be ignored.

Depending on the exact tensioner design, warning signs may include:

The tensioner will not remain in the required installation condition
The tensioner will not activate correctly
Movement is rough or abnormal
The housing is damaged
Threads are damaged
The component is contaminated
The tensioner cannot be prepared according to the applicable procedure

This is especially important because not every Ecotec tensioner uses the same reset and activation procedure.

The later superseding tensioner documented by Cloyes is installed in a deactivated condition and should not be installed activated.

Using the wrong procedure can create a problem even when the tensioner itself is new.

For detailed information, refer to:

How to Reset an Ecotec Timing Chain Tensioner

and:

How to Install an Ecotec Timing Chain Tensioner

Symptom #8 — Timing Chain Noise Returns After Tensioner Replacement

If timing chain noise returns shortly after replacing the tensioner, do not automatically assume the new tensioner is defective.

Possible causes may include:

Worn timing chain
Worn guides
Damaged guides
Incorrect tensioner installation
Improper activation
Incorrect timing assembly
Oil-supply concerns
Another mechanical noise source
A timing system already near the limit of serviceability

This is a common reason BK Racing emphasizes complete-system diagnosis.

A new tensioner cannot reverse physical wear elsewhere in the timing drive.

Symptom #9 — Broken or Missing Timing Chain Guide Material

Guide damage is not proof that the tensioner alone caused the failure.

However, broken or heavily worn guides are a major warning sign that the timing system requires careful inspection.

If guide material is:

Cracked
Broken
Missing
Deeply grooved
Impact damaged

do not simply install a new tensioner and close the engine.

Inspect:

Timing chain condition
Remaining guides
Sprockets
Guide mounting points
Tensioner operation
Oil system where relevant
Possible location of missing debris

A damaged guide can alter chain control even if the tensioner itself is functional.

Symptom #10 — Excessive Tensioner Extension

A tensioner that has extended a significant distance may be responding to wear elsewhere in the system.

Possible contributors include:

Timing chain joint wear
Increased effective chain length
Guide wear
Combination of chain and guide wear

This is why the phrase “stretched timing chain” should be understood carefully.

A timing chain generally becomes effectively longer as wear accumulates through its joints and internal bearing surfaces. The chain does not simply stretch like an elastic band.

As the effective chain length increases, the tensioner may need to extend farther to control available slack.

If the tensioner is near the limit of its travel, inspect the complete timing system.

Do not assume installing another tensioner restores worn components.

Visible Chain Slack With the Engine Off Does Not Automatically Mean the Tensioner Is Bad

This deserves its own section because it is a common source of misdiagnosis.

With the engine stopped:

Normal hydraulic oil pressure is absent
Camshaft loading depends on where the engine stopped
Valve spring forces can influence the timing drive
Slack may appear on different chain spans

General hydraulic tensioner technical guidance notes that chain slack can move depending on camshaft loading and engine position.

Therefore:

Seeing some chain movement with the engine off does not automatically prove tensioner failure.

The complete system must be evaluated.

How to Diagnose a Suspected Bad Ecotec Timing Chain Tensioner

A timing chain tensioner should not be diagnosed in isolation.

A professional inspection should consider:

Exact engine code
Model year
Tensioner design
Timing chain condition
Guide condition
Sprocket condition
Tensioner installation
Tensioner activation
Available tensioner travel
Oil-supply concerns
Mechanical timing
Relevant diagnostic trouble codes
Noise location
When the noise occurs

Ask specific questions:

Does the noise occur only at startup?
Does it continue after oil pressure is established?
Is it present hot and cold?
Does it change with RPM?
Did it begin after timing system service?
Was the tensioner activated correctly?
Is the chain visibly worn?
Are the guides damaged?
Are correlation codes present?
Is the tensioner near maximum travel?

The answers help separate a suspected tensioner problem from a complete timing-system wear problem.

Should You Replace Only the Timing Chain Tensioner?

Sometimes replacing only the tensioner may be appropriate.

For example:

The timing system is otherwise serviceable
The exact tensioner problem has been identified
The chain and guides remain acceptable
The correct replacement component is available
The installation procedure is verified

But if inspection finds:

Significant chain wear
Damaged guides
Missing guide material
Worn sprockets
Excessive tensioner extension
Multiple worn components

then replacing only the tensioner may not be a complete repair.

The condition of the entire timing drive should determine the repair strategy.

Can a Manual Tensioner Quiet a Worn Ecotec Timing System?

Yes, and this needs to be discussed accurately.

Many customers install a manual timing chain tensioner because the engine already has:

Timing chain rattle
Chain slap
Excessive chain slack
A worn timing system

A manual tensioner can mechanically take up additional slack.

In the real world, this may:

Reduce timing chain rattle
Reduce chain slap
Improve control of a loose timing chain
Make the engine noticeably quieter

That improvement can be real.

However:

A manual tensioner can compensate for slack, but it does not reverse the physical wear that created the slack.

If the chain is worn, it remains worn.

If the guides have lost material, that material is still missing.

If the sprockets are damaged, additional adjustment does not repair them.

BK Racing does not recommend using a manual tensioner indefinitely to hide a timing system that is physically worn beyond serviceable condition.

A quieter engine is not automatically a repaired engine.

Updated OEM Hydraulic Timing Chain Tensioner

For customers who want factory-style hydraulic operation, an updated OEM hydraulic timing chain tensioner may be the appropriate choice.

It may make sense for:

Stock replacement
Daily-driven vehicles
Street-oriented builds
Engines remaining close to factory configuration
Customers who prefer automatic hydraulic operation
Customers who do not want routine manual adjustment

BK Racing offers the updated OEM hydraulic option because not every customer wants a manual tensioner.

That is a valid choice.

BK Racing Manual Timing Chain Tensioner

The BK Racing Manual Timing Chain Tensioner gives the builder direct mechanical control over the tensioner adjustment.

Instead of relying on hydraulic operation to establish the adjustment, the builder mechanically sets and locks the tensioner position.

BK Racing highly recommends the Manual Timing Chain Tensioner for serious performance and racing applications such as:

Circle track racing
High-RPM naturally aspirated Ecotec engines
Drag racing
Road racing
Dedicated competition engines
Aggressive camshaft combinations
Upgraded valve spring combinations
Solid lash adjuster applications
Adjustable cam gear combinations

The reason is not that every hydraulic tensioner automatically fails at high RPM.

The reason is not that a manual tensioner automatically creates horsepower.

BK Racing’s preference is based on direct mechanical control of a critical timing system adjustment.

Why Circle Track Racing Deserves Special Consideration

Circle track racing can expose the timing system to conditions that a normal street engine may rarely experience.

In a manual-transmission race car, a spin with the clutch still engaged can allow the driveline to force the engine backward.

BK Racing considers reverse engine rotation a serious racing-specific timing-system concern because:

Crankshaft direction changes
Timing chain loading changes direction
Slack can transfer to a different span of the timing drive
The engine’s oil-fed systems are no longer operating under normal forward-rotation conditions

BK Racing does not claim that every reverse-rotation event causes timing failure.

We also do not claim that every brief reverse event instantly removes all hydraulic tensioner control.

However, on a system with:

Existing chain slack
Guide wear
A compromised tensioner
Marginal chain control

BK Racing considers reverse rotation a credible additional risk.

This is one reason our recommendation for the BK Racing Manual Timing Chain Tensioner becomes stronger in serious circle track applications.

Manual Does Not Mean Maximum Chain Tightness

A manual timing chain tensioner should never be treated as a device for tightening the chain as much as possible.

More tension is not automatically better.

Excessive adjustment can unnecessarily increase load on:

Timing chain
Chain guides
Sprockets
Camshaft drive components

Insufficient adjustment can allow unwanted chain movement.

The goal is controlled chain preload—not maximum chain tightness.

A manual tensioner must be adjusted correctly and inspected as part of the engine’s service program.

GM Ecotec Engine Applications

Depending on the exact engine, model year, timing components, and tensioner design, this information may be relevant to many GM Ecotec applications, including:

2.0L LSJ
2.0L LNF
2.0L LHU
2.2L L61
2.2L LAP
2.2L LE8
2.4L LE5
2.4L LE9
2.4L LAT
2.4L LAF
2.4L LEA

Always verify the exact engine code, model year, timing set, and tensioner design before applying a specific service procedure.

Not every Ecotec component or procedure is interchangeable.

When Should You Stop Driving an Ecotec With Timing Chain Noise?

There is no universal number of miles that is safe once abnormal timing chain noise begins.

If the engine develops:

Persistent metallic timing noise
Severe chain slap
Sudden increase in rattle
Correlation codes combined with mechanical noise
Evidence of broken guides
Confirmed excessive chain slack
Abnormal resistance during manual engine rotation

continuing to operate the engine may increase the risk of additional damage.

The safest approach is to diagnose the problem rather than assuming the noise will remain unchanged.

Final Thoughts

The symptoms of a bad GM Ecotec timing chain tensioner can include:

Startup timing chain rattle
Persistent timing chain noise
Chain slap
Abnormal chain movement
Timing correlation faults
Rough or inconsistent engine operation
Excessive tensioner extension
Abnormal tensioner behavior during installation
Timing noise that returns after an incomplete repair

But none of these symptoms should automatically be treated as proof that the tensioner alone has failed.

The most important diagnostic principle is:

Inspect the complete timing system.

The timing chain, guides, sprockets, tensioner, mechanical timing, installation procedure, activation procedure, and oil-fed operation all need to be considered.

Sometimes the correct repair is an updated OEM hydraulic tensioner.

Sometimes the complete timing system needs replacement.

Sometimes a manual tensioner can control additional slack in a worn system—but should not be used to permanently hide physical wear.

And for serious performance and racing applications, BK Racing highly recommends the BK Racing Manual Timing Chain Tensioner because it gives the builder direct mechanical control over the tensioner adjustment.

Diagnose first.

Then choose the repair that matches the actual condition of the engine.

Continue the BK Racing GM Ecotec Timing Chain Series

Previous Article: How the GM Ecotec Timing Chain Tensioner Works

Next Article: Ecotec Timing Chain Noise, Rattle & Chain Slap Explained

Start at the Main Guide: GM Ecotec Timing Chain Tensioner Guide: Reset, Replacement, Noise & Manual Upgrades

Related Article: How to Reset an Ecotec Timing Chain Tensioner

Related Article: How to Install an Ecotec Timing Chain Tensioner

Engine Building
