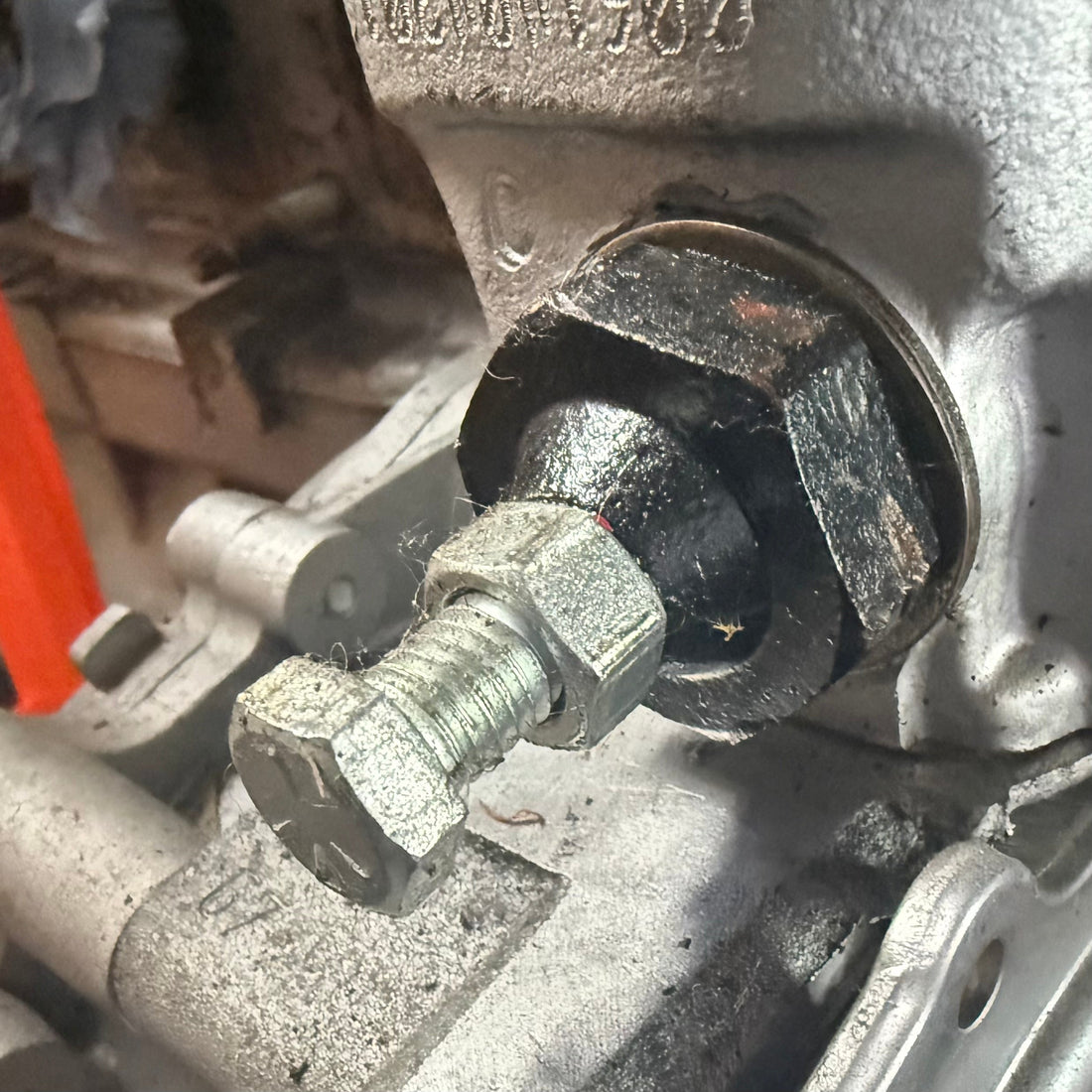

How to Install an Ecotec Timing Chain Tensioner

Installing a GM Ecotec timing chain tensioner correctly is a critical part of timing chain service. The tensioner controls slack in the primary timing chain by applying force through the movable timing chain guide.

If the tensioner is installed incorrectly, left unactivated when activation is required, or used with worn timing components, the result can be:

Ecotec timing chain noise
Startup rattle
Chain slap
Accelerated guide wear
Excessive chain movement
Incorrect mechanical timing
Timing system failure

The most important fact to understand before beginning is that GM used multiple primary timing chain tensioner designs across the 2.0L, 2.2L, and 2.4L Ecotec engine family.

Not every Ecotec timing chain tensioner should be treated as though it resets, installs, and activates the same way.

This guide explains the installation principles that matter, the documented differences between Ecotec tensioner designs, how to avoid common installation mistakes, and why identifying the exact tensioner being installed is essential before assembly.

Identify the Ecotec Timing Chain Tensioner Before Installation

Do not begin installation until you know which tensioner design you are working with.

Published technical guidance from Cloyes identifies three different GM Ecotec primary timing chain tensioner designs.

The first design used:

A rubber O-ring
A larger tensioner piston
A two-piece construction

The second design was similar but eliminated the O-ring.

The later superseding design:

Uses no O-ring
Uses a smaller tensioner piston
Uses a one-piece design
Is installed in a deactivated condition

This distinction matters because the later superseding tensioner is installed in a deactivated condition and activated only after installation.

Do not assume an older tensioner and a later superseding tensioner use the same preparation procedure.

Do not assume every Ecotec timing chain tensioner can simply be compressed externally and reused.

Do not install an already activated later-style tensioner as though it were still in the correct pre-installation condition.

If there is any uncertainty about the tensioner design, identify the part before continuing.

Understand the Difference Between Installation and Activation

One of the most important points in Ecotec timing chain tensioner service is that installation and activation are separate steps on the documented later replacement design.

The tensioner is installed first.

The timing system is verified.

Then the tensioner is activated against the movable timing chain guide.

Published Cloyes technical guidance for the later replacement design documents activation after installation by fully compressing and then releasing the tensioner piston against the chain-guide system.

This is why simply threading the tensioner into the engine and assuming the job is complete is not an acceptable installation procedure.

Installing the tensioner and activating the tensioner are not always the same step.

Before Installing the Ecotec Timing Chain Tensioner

Do not begin with the tensioner.

Before installing the tensioner, verify that the timing drive has been assembled according to the correct procedure for the specific engine and timing set being used.

Confirm:

The correct timing chain set is being used for the engine.
The crankshaft is positioned correctly for the engine-specific timing procedure.
The intake camshaft sprocket is positioned correctly.
The exhaust camshaft sprocket is positioned correctly.
The chain is fully seated on the crankshaft sprocket.
The chain is fully seated on both camshaft sprockets.
The fixed timing chain guides are installed correctly.
The movable tensioner guide is installed correctly.
Guide mounting points and hardware are secure.
The designated timing links are aligned according to the instructions for the exact chain set being installed.
The hydraulic tensioner oil supply path is clean and unobstructed where applicable.

The tensioner should apply force to a correctly assembled timing system.

It should not be used to pull an incorrectly routed chain into position.

Inspect the Timing Chain Before Installing a New Tensioner

A new tensioner is not a repair for an excessively worn timing chain.

Before installation, inspect the chain and the rest of the timing drive for evidence of wear or damage.

Look for:

Excessive chain wear
Abnormal slack
Poor engagement with sprocket teeth
Damaged chain links
Abnormal sprocket wear
Evidence of chain contact
Excessive guide wear
Broken or missing guide material

A worn timing chain can create symptoms that are easily blamed on the tensioner, including:

Ecotec timing chain noise
Startup rattle
Chain slap
Timing correlation faults
Inconsistent mechanical timing
Accelerated guide wear

If the timing chain is worn beyond acceptable limits, replace the worn timing components rather than expecting a new tensioner to compensate for the entire problem.

Inspect the Timing Chain Guides

The timing chain guides are a critical part of the system.

The tensioner controls the chain through the movable guide. If that guide is cracked, heavily worn, incorrectly installed, binding, or damaged at its mounting point, the tensioner cannot properly control the chain.

Inspect the guides for:

Cracks
Missing material
Deep wear grooves
Abnormal chain contact
Damaged mounting points
Loose hardware
Binding of the movable guide
Evidence of previous chain slap

If guide material is missing, do not simply install a new tensioner and continue.

Determine the extent of the damage and inspect the timing system carefully.

Verify the Timing Chain Marks

Do not assume every Ecotec replacement chain uses the same colored-link pattern.

GM used different timing-system configurations, and replacement timing sets may use their own identification system.

Before installing the tensioner, confirm:

The crankshaft sprocket timing reference
The intake camshaft sprocket timing reference
The exhaust camshaft sprocket timing reference
The designated chain-link positions for the exact timing set being used

If you are installing a Cloyes chain, follow the Cloyes timing-mark instructions for that exact set.

If you are installing another manufacturer’s chain, follow that manufacturer’s identification and alignment procedure.

Do not rely only on link color when the chain manufacturer or part number is unknown.

Step 1: Confirm the Tensioner Is in the Correct Pre-Installation State

Before installation, verify the condition of the exact tensioner design being used.

For the later superseding Ecotec tensioner design documented by Cloyes, the tensioner is installed deactivated.

Published Cloyes guidance identifies the deactivated condition by free movement of the tensioner piston.

Do not install that design already activated.

This is a critical correction to many generic online instructions that treat every Ecotec hydraulic tensioner as though it can simply be reset in the same manner.

If the later-style tensioner has already been activated, do not improvise an external reset procedure.

Published technical guidance documents a specific deactivation procedure involving internal disassembly and reassembly of the tensioner mechanism.

If the tensioner design or condition is uncertain, stop and verify it before installation.

Step 2: Inspect the Tensioner Mounting Location

Before installing the tensioner, inspect the mounting area on the engine.

Check for:

Damaged threads
Dirt
Metal debris
Sludge
Old sealing material
Obstructions
Oil-passage contamination
Damage that could prevent correct seating

The tensioner must seat correctly against the engine.

A new tensioner cannot function correctly if its mounting location is damaged or if the hydraulic oil supply is obstructed.

Step 3: Install the Tensioner Without Forcing It

Position the tensioner according to the mounting arrangement used on the specific engine and tensioner design.

Where the tensioner threads into the engine, begin engagement carefully.

Do not force it.

If the tensioner does not start normally, stop and inspect for:

Cross-threading
Damaged threads
Debris
Incorrect part number
Incorrect tensioner design
Misalignment

Never use the mounting threads to force an extended or incorrectly prepared tensioner into position.

The tensioner must be in the correct pre-installation state before it is installed.

Step 4: Tighten the Tensioner to the Correct Specification

Tighten the tensioner using verified service information for the exact engine, model year, and tensioner design being serviced.

BK Racing does not recommend publishing one universal torque value for every Ecotec application.

The Ecotec family includes multiple engine codes and timing-system configurations, including:

Use the correct service specification for the exact application.

Do not guess.

Do not assume a torque value from one Ecotec variant automatically applies to another.

Step 5: Recheck the Complete Timing System Before Activation

Before activating the hydraulic tensioner, inspect the timing system again.

Confirm:

Crankshaft timing position
Intake camshaft timing position
Exhaust camshaft timing position
Chain routing
Designated timing-link alignment
Fixed-guide installation
Movable-guide installation
Full chain engagement with each sprocket

This check occurs before tensioner activation.

That sequence matters.

Once activated, the tensioner applies force through the movable guide and loads the timing chain system.

Catch a timing or routing error before the system is loaded.

Step 6: Activate the Ecotec Hydraulic Timing Chain Tensioner

For the documented later GM Ecotec replacement tensioner procedure, the tensioner is activated after installation.

Published Cloyes technical guidance describes activation by fully compressing the tensioner piston and then releasing it against the chain-guide system.

This is a critical activation step.

Do not assume:

Threading the tensioner into the engine activates it.
Oil pressure will correct an unactivated tensioner.
The engine should be started first and allowed to activate the tensioner itself.
Every tensioner design uses the same activation method.

After activation, confirm that the tensioner is applying load through the movable timing chain guide.

Failure to properly activate a tensioner that requires activation can leave the timing system without the intended chain control.

Step 7: Inspect the Timing Drive After Activation

After the tensioner has been activated, inspect the complete timing drive.

Confirm:

The movable guide is loaded correctly.
The chain remains fully seated on the crankshaft sprocket.
The chain remains fully seated on the intake camshaft sprocket.
The chain remains fully seated on the exhaust camshaft sprocket.
No guide has shifted.
No component appears to be binding.
No obvious uncontrolled chain slack remains.

If anything appears abnormal, stop and correct it before rotating or starting the engine.

Step 8: Rotate the Engine by Hand

Before using the starter motor, rotate the engine manually in its normal direction of rotation.

Turn the crankshaft slowly.

You are checking for:

Unexpected mechanical resistance
Abrupt stopping
Chain binding
Possible valve-to-piston interference
Incorrect timing
Abnormal timing-drive movement

If the engine stops unexpectedly, do not force it through the resistance.

Stop and determine the cause.

Manual rotation is an inspection step.

It is not a method for forcing an incorrectly assembled engine through interference.

Step 9: Verify Mechanical Timing After Rotation

After rotating the engine according to the verification procedure for the specific application, return the crankshaft to the appropriate checking position and verify the mechanical timing relationship.

Check:

Crankshaft position
Intake camshaft position
Exhaust camshaft position
Chain control
Guide position
Overall freedom of movement

Use the correct engine-specific verification procedure.

Important: Do Not Expect the Marked Chain Links to Realign After Two Revolutions

This is one of the most common sources of confusion during Ecotec timing chain installation.

After the engine is rotated, the marked chain links generally will not all realign with the sprocket timing marks after only a couple of test rotations.

The marked links are primarily installation references.

Once the crankshaft has been rotated, do not diagnose incorrect timing simply because the colored or marked chain links no longer line up with all of the original sprocket marks.

Verify mechanical timing using the correct procedure for the engine.

This is more reliable than expecting the colored links to return after two crankshaft revolutions.

Step 10: Perform a Final Inspection Before Startup

Before attempting to start the engine, inspect the complete timing system and work area.

Verify:

Mechanical timing has been checked.
The chain is routed correctly.
The guides are secure.
The tensioner is correctly installed.
The hydraulic tensioner has been properly activated where required.
The timing drive rotates without abnormal resistance.
Required oil passages are unobstructed.
Engine oil level is correct.
No tools remain in the timing area.
No loose fasteners remain in the engine.
No debris is present around the timing drive.

Do not use the starter motor as the first test of a newly assembled timing system.

What to Watch for During Initial Startup

Listen carefully during the initial startup after timing chain service.

Shut the engine down and investigate if you observe:

Persistent metallic timing chain rattle
Continued chain slap
Abnormal front-cover noise
Oil-pressure concerns
Timing-related diagnostic trouble codes
A sudden change in mechanical noise

Do not assume persistent timing chain noise will simply “wear in.”

A correctly assembled timing system should not depend on prolonged abnormal operation to become acceptable.

Common Ecotec Timing Chain Tensioner Installation Mistakes

Treating Every Ecotec Tensioner as the Same Design

GM used multiple primary tensioner designs.

Identify the tensioner before applying a reset or activation procedure.

Installing the Later-Style Tensioner Already Activated

The later superseding design documented by Cloyes is installed deactivated.

Do not install it activated.

Failing to Activate the Tensioner After Installation

For the documented later replacement design, installation alone is not enough.

The tensioner must be activated after installation.

Assuming Oil Pressure Will Activate an Unactivated Tensioner

Do not start the engine expecting oil pressure to correct an installation step that was never completed.

Follow the correct activation procedure before startup.

Using the Tensioner to Force the Chain Into Position

The chain, sprockets, and guides should already be correctly assembled.

The tensioner is not a tool for forcing an incorrectly routed chain into place.

Forcing the Tensioner Into the Engine

If the tensioner does not install normally, stop.

Check the threads, mounting location, part number, and tensioner condition.

Replacing Only the Tensioner on a Worn Timing System

A new tensioner cannot repair:

A worn chain
Broken guides
Damaged sprockets
Failed mounting points
Lubrication problems

Inspect the complete timing drive.

Assuming Every Timing Chain Noise Is a Bad Tensioner

Timing chain noise can also result from:

Chain wear
Guide damage
Lubrication problems
Incorrect assembly
Improper tensioner activation
Other timing-system faults

Diagnose the complete system.

Expecting the Colored Links to Realign After Two Revolutions

The marked links will not necessarily return to their original sprocket marks after only a couple of test rotations.

Verify mechanical timing correctly instead.

Installing the BK Racing Manual Timing Chain Tensioner

The BK Racing Manual Timing Chain Tensioner is not a hydraulic tensioner and should not be installed or adjusted as though it were one.

That distinction is critical.

A factory-style hydraulic tensioner uses an internal mechanism together with the engine’s oil-fed system to control the timing chain through the movable guide.

The BK Racing Manual Timing Chain Tensioner gives the builder direct mechanical control over the tensioner adjustment.

Because of that difference, a manual tensioner should never be adjusted using a:

“Tighten it until the chain feels tight”

approach.

More tension is not automatically better.

Excessive mechanical preload can unnecessarily increase load on:

Timing chain
Chain guides
Sprockets
Camshaft drive components

Insufficient adjustment can allow unwanted chain movement.

The goal is controlled chain preload—not maximum chain tightness.

For performance and racing applications, BK Racing highly recommends the BK Racing Manual Timing Chain Tensioner.

We also sell the updated OEM hydraulic tensioner because not every customer wants a manual timing chain tensioner.

Some builders prefer factory-style automatic operation, particularly for stock replacement and street-oriented applications.

However, when customers ask what BK Racing recommends for serious performance and racing Ecotec builds, our preference is the BK Racing Manual Timing Chain Tensioner.

Can a Manual Tensioner Be Used on a Worn Timing System?

Yes, but this needs to be understood correctly.

Many customers install a manual timing chain tensioner because the engine already has:

Timing chain rattle
Chain slap
Excessive chain slack
A worn timing system
A hydraulic tensioner that is no longer controlling the available slack effectively

A manual tensioner can mechanically take up additional slack.

In practice, this may:

Reduce timing chain rattle
Reduce chain slap
Improve control of a loose timing chain
Make the engine noticeably quieter

That improvement can be real.

However:

A manual tensioner can compensate for slack, but it does not reverse the physical wear that created the slack.

If the chain is worn, it remains worn.

If the guides have lost material, that material is still missing.

If the sprockets are damaged, additional adjustment does not repair them.

BK Racing does not recommend using a manual tensioner indefinitely to hide a timing system that is physically worn beyond serviceable condition.

A quieter engine is not automatically a repaired engine.

Updated OEM Hydraulic or BK Racing Manual Timing Chain Tensioner?

The correct choice depends on the engine and the customer’s goals.

Updated OEM Hydraulic Timing Chain Tensioner

An updated OEM hydraulic tensioner remains an option for builders who want:

Factory-style automatic operation
Stock replacement
Street-oriented use
A conventional hydraulic tensioning system
No routine manual adjustment

BK Racing offers this option because not every customer wants a manual tensioner.

BK Racing Manual Timing Chain Tensioner

The BK Racing Manual Timing Chain Tensioner is our highly recommended option for performance-focused builds, including:

Circle track racing
High-RPM naturally aspirated engines
Drag racing
Road racing
Aggressive camshaft combinations
Upgraded valve springs
Solid lash adjusters
Adjustable cam gears
Dedicated competition engines

BK Racing sells both because not every customer wants a manual tensioner.

For serious performance and racing applications, we highly recommend the BK Racing Manual Timing Chain Tensioner.

GM Ecotec Engine Applications

Depending on the exact engine, model year, timing components, and tensioner design, this information may be relevant to many GM Ecotec applications, including:

2.0L LSJ
2.0L LNF
2.0L LHU
2.2L L61
2.2L LAP
2.2L LE8
2.4L LE5
2.4L LE9
2.4L LAT
2.4L LAF
2.4L LEA

Always verify the exact engine code, model year, timing set, and tensioner design before applying a specific service procedure.

Not every Ecotec component or procedure is interchangeable.

Final Thoughts

A professional GM Ecotec timing chain tensioner installation begins by identifying the exact tensioner design.

That matters because GM used multiple primary tensioner designs, and the later superseding design should not be treated exactly like earlier versions.

The correct process is to:

Identify the engine and tensioner design.
Verify the timing chain, sprockets, guides, and timing references.
Confirm the tensioner is in the correct pre-installation state.
Install the tensioner without forcing it.
Tighten it using verified application-specific specifications.
Recheck timing before activation.
Activate the hydraulic tensioner using the correct procedure for that design.
Inspect the loaded timing drive.
Rotate the engine manually.
Verify mechanical timing before startup.

The most important lesson is simple:

Do not treat every Ecotec timing chain tensioner as though it installs and activates the same way.

Identify the component, follow the correct procedure for that design, verify the timing system before activation, and never use the starter motor as the first test of a newly assembled engine.

A correctly installed timing chain tensioner is only one part of a reliable timing system, but getting this step wrong can put the entire engine at risk.

Continue the BK Racing GM Ecotec Timing Chain Series

Previous Article: How to Reset an Ecotec Timing Chain Tensioner

Next Article: Updated OEM Hydraulic vs. BK Racing Manual Timing Chain Tensioner

Start at the Main Guide: GM Ecotec Timing Chain Tensioner Guide: Reset, Replacement, Noise & Manual Upgrades

Related Article: How the GM Ecotec Timing Chain Tensioner Works

Engine Building
