How to Reset a GM Ecotec Timing Chain Tensioner

Resetting a GM Ecotec timing chain tensioner is one of the most misunderstood procedures in the Ecotec timing system.

A large part of the confusion comes from one simple fact:

GM used multiple primary timing chain tensioner designs across the 2.0L, 2.2L, and 2.4L Ecotec engine family.

Not every Ecotec timing chain tensioner resets the same way.

Not every tensioner can be compressed externally and locked with a vise.

Not every tensioner should be installed in an activated condition.

And on the later superseding tensioner design documented in published technical guidance, returning an activated tensioner to its deactivated installation state requires disassembly.

That distinction matters.

A generic “compress the plunger and lock it” procedure can be misleading when applied to the wrong Ecotec timing chain tensioner.

This guide explains how to identify the condition of the later-style Ecotec hydraulic timing chain tensioner, what “reset” actually means, why the tensioner must be deactivated before installation, and when replacement is a better decision than attempting to reuse an existing tensioner.

First: Identify the Ecotec Timing Chain Tensioner Design

Do not begin by placing the tensioner in a vise.

Begin by identifying the tensioner.

Published technical information for the GM Ecotec timing system identifies multiple primary timing chain tensioner designs.

These include:

• An earlier two-piece design using an O-ring and larger piston
• A later similar design without the O-ring
• A one-piece superseding design using no O-ring and a smaller piston

The later superseding design is especially important because its preparation and activation procedure differs from the generic reset procedures commonly repeated online.

For that design:

• The tensioner is installed deactivated
• The piston moves freely when deactivated
• The tensioner is activated after installation
• An activated tensioner cannot simply be returned to the deactivated state by externally compressing the piston
• Deactivation requires disassembly

This is why BK Racing does not recommend one universal reset procedure for every Ecotec timing chain tensioner.

What Does “Resetting” an Ecotec Timing Chain Tensioner Actually Mean?

The word “reset” is commonly used online, but it can create confusion.

For the later superseding Ecotec tensioner design, the more technically accurate term is:

Deactivating the tensioner for installation.

The tensioner must be in the correct deactivated condition before installation.

Published technical guidance identifies the deactivated condition by the piston moving freely back and forth.

That is different from simply forcing the piston into the housing.

Once the tensioner has been activated, its internal mechanism has changed state.

Returning it to the correct installation condition requires the internal mechanism to be reset through disassembly and reassembly.

That is the key point this procedure must establish.

Before You Attempt to Reset or Deactivate the Tensioner

Inspect the tensioner carefully.

Do not automatically assume that every used tensioner should be reused simply because it can be disassembled.

Consider replacement if you observe:

• Damaged housing
• Damaged mounting threads
• Heavy corrosion
• Abnormal scoring
• Sludge contamination
• Restricted oil passages
• Damaged piston surfaces
• Missing components
• Damaged snap ring
• Abnormal internal wear
• Questionable ratchet operation
• Evidence of timing system failure

Also inspect the complete timing system.

A tensioner should never be evaluated in isolation.

Check:

• Timing chain condition
• Timing chain guide wear
• Broken or missing guide material
• Crankshaft sprocket condition
• Camshaft sprocket condition
• Guide mounting points
• Evidence of chain slap
• Evidence of abnormal chain contact
• Overall timing system wear

A reset tensioner cannot repair a physically worn timing system.

When Does the Later-Style Ecotec Tensioner Need to Be Deactivated?

The later superseding tensioner is installed in its deactivated condition.

If the tensioner is already deactivated and has not been activated, there may be nothing to “reset.”

Verify its condition before doing unnecessary work.

For the documented later-style design, the piston should move freely back and forth when the tensioner is deactivated.

If the tensioner has already been activated, it should not be installed as though it were still in the correct pre-installation condition.

The tensioner must first be returned to its deactivated state.

For this design, that requires disassembly.

Tools and Work Area

The exact tools required can vary with the tensioner and service approach, but a clean work area is essential.

Typical requirements may include:

• Clean workbench
• Safety glasses
• Appropriate snap-ring pliers
• Clean shop towels
• Clean engine oil for assembly where appropriate
• Suitable small hand tools for controlled component handling

Avoid contaminating the internal components.

The tensioner operates as part of the engine’s oil-fed timing system. Dirt, abrasive debris, or damaged internal components can compromise operation.

Step 1: Confirm That the Tensioner Is Actually Activated

Before disassembling anything, determine the tensioner’s current condition.

For the later superseding Ecotec tensioner design, the deactivated condition is identified by a piston that moves freely back and forth.

If the piston moves freely as specified for the deactivated condition, do not assume the tensioner needs further resetting.

If the tensioner is activated, it must be returned to the correct deactivated installation condition before reuse.

Do not simply place it in a vise and force the piston inward.

Step 2: Remove the Retaining Snap Ring

For the later-style tensioner procedure, deactivation begins with disassembly.

Carefully remove the retaining snap ring that secures the piston assembly within the tensioner housing.

Control the components during disassembly.

Do not allow internal parts to launch from the housing or fall onto a contaminated work surface.

Inspect the snap ring during removal.

If it is damaged, distorted, or no longer retains correctly, do not blindly reuse the tensioner.

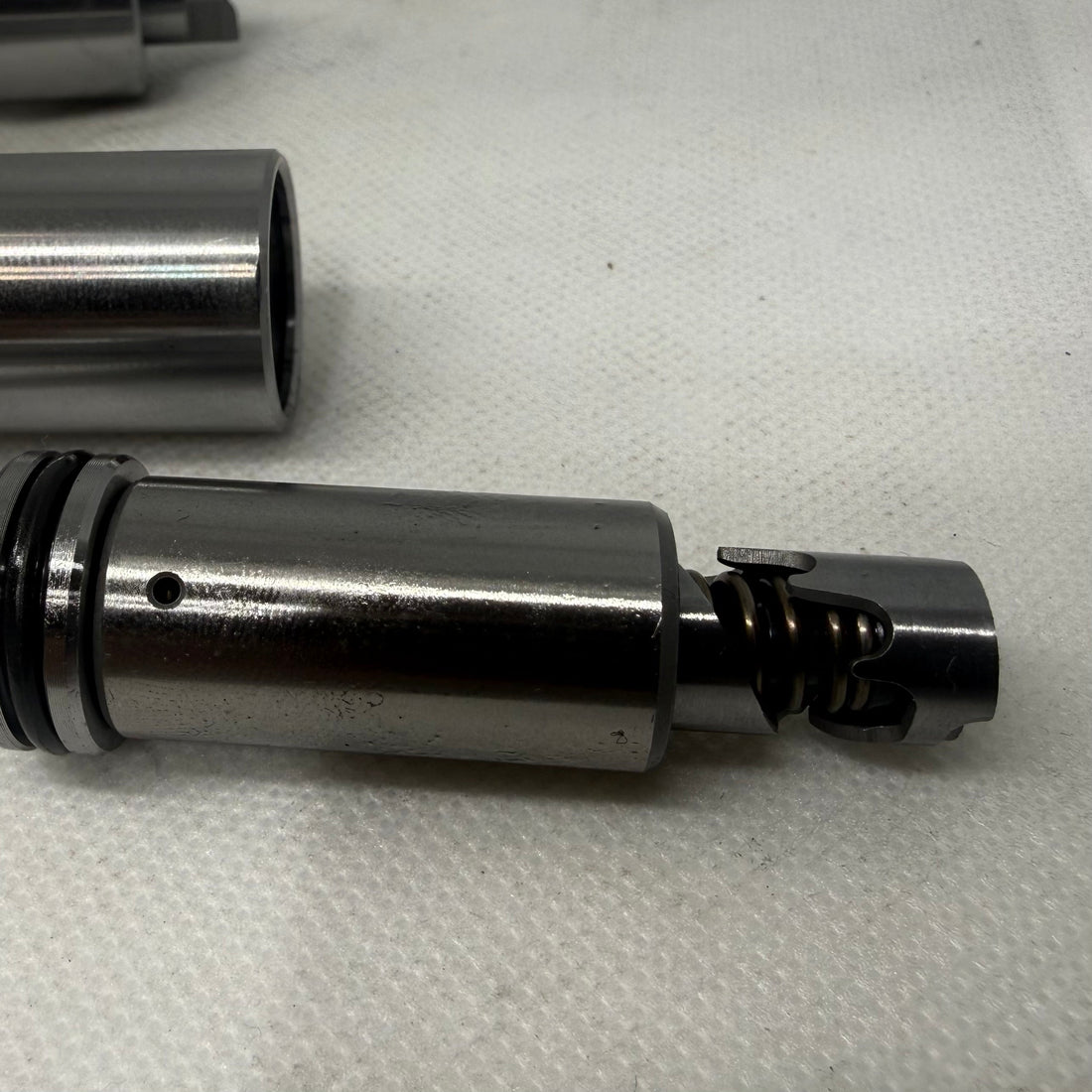

Step 3: Remove the Piston Assembly From the Housing

Carefully remove the piston assembly from the tensioner housing.

Keep the internal components organized.

Do not grind, file, sand, or modify the internal parts.

Inspect for:

• Scoring
• Abnormal wear
• Contamination
• Sludge
• Damaged surfaces
• Broken components
• Evidence of binding

If the internal condition is questionable, replacement is generally the better choice.

The goal is not to save every used tensioner at any cost.

The goal is a reliable timing system.

Step 4: Reset the Internal Ratchet Cage Mechanism

This is the critical step that generic online procedures often miss.

For the documented later Ecotec tensioner design, published technical guidance describes deactivation by compressing the ratchet cage mechanism into the piston while rotating the cage clockwise until it stops.

This resets the internal mechanism to the correct deactivated condition.

The important point is that the reset occurs through the internal ratchet cage mechanism.

It is not accomplished by simply crushing the assembled tensioner piston back into the housing with a vise.

Do not force the components.

Do not pry aggressively.

Do not modify the ratchet mechanism.

If the internal mechanism will not reset correctly, replace the tensioner.

Step 5: Reassemble the Tensioner

Once the internal ratchet cage mechanism has been correctly reset, reassemble the piston assembly into the tensioner housing.

Reinstall the retaining components correctly.

Verify that the snap ring is properly seated.

A partially seated retaining ring is not acceptable.

Inspect the complete tensioner after reassembly.

Step 6: Verify the Deactivated Condition

This is one of the most important checks in the entire procedure.

For the later superseding design, the tensioner is deactivated when the piston moves freely back and forth.

Verify that condition before installation.

Do not install the tensioner activated.

Do not assume that reassembly automatically means the reset was successful.

Confirm the actual piston behavior.

If the piston does not behave as expected for the deactivated condition, stop and inspect the tensioner again.

Step 7: Keep the Tensioner Deactivated Until Installation

Once the tensioner has been correctly deactivated, avoid accidentally activating it before installation.

The tensioner should remain in the proper pre-installation condition until it is installed in the engine.

If it becomes activated before installation, do not simply force it into position.

Return it to the correct deactivated state using the proper procedure for that design.

Installing the Deactivated Ecotec Timing Chain Tensioner

The timing system should already be correctly assembled before the tensioner is activated.

Before installation, verify:

• Correct timing chain for the application
• Correct crankshaft position
• Correct intake camshaft position
• Correct exhaust camshaft position
• Correct chain routing
• Correct timing references
• Correct fixed-guide installation
• Correct movable-guide installation
• Full chain engagement on every sprocket
• Secure guide mounting points

The tensioner should control a correctly assembled timing system.

It should not be used to force an incorrectly routed chain into position.

Install the Tensioner in the Correct Condition

For the later superseding design discussed in this guide:

Install the tensioner deactivated.

Do not install it activated.

Tighten the tensioner using verified service information for the exact engine, model year, and tensioner design being serviced.

BK Racing does not recommend publishing one universal torque value across every Ecotec application without confirming the exact engine and component.

Recheck Timing Before Activation

Before activating the tensioner, verify the timing system again.

Confirm:

• Crankshaft timing position
• Intake camshaft timing position
• Exhaust camshaft timing position
• Chain routing
• Timing references
• Guide installation
• Full sprocket engagement

This inspection should occur before the timing system is loaded by the activated tensioner.

Activate the Tensioner After Installation

For the documented later-style replacement tensioner procedure, activation occurs after installation.

Published technical guidance describes activation by fully compressing the tensioner piston and then releasing it against the chain guide.

This activation step matters.

Do not assume:

• Threading the tensioner into the engine automatically activates it
• Engine oil pressure should be used as a substitute for the documented activation step
• The engine should be started with the tensioner still deactivated
• Every tensioner design uses the same procedure

After activation, verify that the tensioner is applying load through the movable timing chain guide.

Rotate the Engine by Hand Before Startup

Before using the starter motor, rotate the engine manually in its normal direction of rotation.

Turn the crankshaft slowly.

Check for:

• Unexpected resistance
• Abrupt stopping
• Chain binding
• Incorrect timing
• Abnormal guide movement
• Possible mechanical interference

If the engine stops unexpectedly, do not force it.

Stop and determine the cause.

The starter motor should not be the first test of a newly assembled timing system.

Important: The Marked Chain Links Will Not Realign After Two Revolutions

This is another common source of confusion.

The colored or marked chain links are installation references.

After the crankshaft has been rotated, do not expect every marked chain link to immediately return to its original sprocket timing mark after only two crankshaft revolutions.

That does not automatically mean the engine is out of time.

Verify mechanical timing using the correct procedure for the specific engine.

Do not diagnose incorrect timing solely because the colored links do not immediately realign.

Common Ecotec Timing Chain Tensioner Reset Mistakes

Assuming Every Ecotec Tensioner Resets the Same Way

This is the biggest mistake.

GM used multiple tensioner designs.

Identify the component before applying a reset procedure.

Compressing the Assembled Later-Style Tensioner in a Vise

The later superseding design documented in technical guidance cannot simply be deactivated by externally compressing the assembled piston.

Deactivation requires disassembly.

Using a Pick to “Release the Ratchet” Without Identifying the Design

Do not blindly insert tools into a tensioner because a generic online guide says to release an internal ratchet.

The correct procedure depends on the tensioner design.

Installing the Later-Style Tensioner Activated

The documented later-style tensioner is installed deactivated.

Do not install it activated.

Failing to Activate the Tensioner After Installation

Installation and activation are separate steps.

For the documented replacement design, the tensioner must be activated after installation.

Assuming Oil Pressure Will Correct an Unactivated Tensioner

Do not start the engine expecting oil pressure to complete an installation step that was not performed.

Follow the correct activation procedure before startup.

Reusing a Questionable Tensioner

The fact that a tensioner can be disassembled does not mean it should be reused.

If internal condition is questionable, replace it.

Ignoring the Rest of the Timing System

A reset tensioner cannot repair:

• A worn timing chain
• Broken guides
• Missing guide material
• Damaged sprockets
• Failed guide mounting points
• Lubrication problems

Inspect the complete timing drive.

Should You Reset or Replace the Ecotec Timing Chain Tensioner?

Resetting or deactivating a used hydraulic tensioner may make sense when:

• The exact tensioner design is known
• The correct procedure is known
• The tensioner is physically serviceable
• The internal mechanism operates correctly
• The timing chain is serviceable
• The guides are in good condition
• The sprockets are serviceable
• The engine was not opened because of a major timing-system failure

Replacement may be the better decision when:

• The tensioner design is uncertain
• The tensioner is damaged
• The internal mechanism is questionable
• The engine has significant timing-system wear
• The timing chain is being replaced
• The guides are worn or damaged
• The engine has repeated timing chain rattle
• The engine has experienced chain slap
• The tensioner cannot be correctly deactivated
• There is any doubt about reliable operation

Updated OEM Hydraulic Timing Chain Tensioner

For customers who want factory-style automatic operation, BK Racing offers an Updated OEM Hydraulic Timing Chain Tensioner.

This option makes sense for many:

• Stock replacement engines
• Daily-driven vehicles
• Street-oriented builds
• Customers who prefer hydraulic operation
• Customers who do not want manual adjustment responsibility

BK Racing sells the updated OEM hydraulic option because not every customer wants a manual timing chain tensioner.

BK Racing Manual Timing Chain Tensioner

For serious performance and racing applications, BK Racing highly recommends the BK Racing Manual Timing Chain Tensioner.

The manual tensioner gives the builder direct mechanical control over the tensioner adjustment.

It is especially suited to applications such as:

• Circle track racing
• High-RPM naturally aspirated engines
• Drag racing
• Road racing
• Dedicated competition engines
• Aggressive camshaft combinations
• Upgraded valve spring combinations
• Solid lash adjusters
• Adjustable cam gears

The BK Racing Manual Timing Chain Tensioner is not billet, and it should not be described as a billet tensioner.

It also should not be adjusted by simply tightening the chain as much as possible.

The goal is controlled chain preload, not maximum chain tightness.

Can a Manual Tensioner Hide a Worn Timing System?

Yes, and this needs to be discussed accurately.

A manual timing chain tensioner can mechanically take up additional slack in a worn timing system.

In the real world, that may:

• Reduce timing chain rattle
• Reduce chain slap
• Improve chain control
• Quiet a worn timing system

That improvement can be real.

However:

A manual tensioner can compensate for slack. It cannot reverse the physical wear that created the slack.

If the chain is worn, it remains worn.

If the guides are damaged, the manual tensioner does not replace missing material.

If the sprockets are worn, additional tension does not repair them.

BK Racing does not recommend using a manual timing chain tensioner indefinitely to hide a timing system that is physically worn beyond serviceable condition.

Final Thoughts

The correct way to reset a GM Ecotec timing chain tensioner begins with identifying the tensioner design.

That is the most important correction to generic reset procedures.

For the later superseding Ecotec tensioner design:

• The tensioner is installed deactivated
• Free piston movement identifies the deactivated condition
• An activated tensioner requires disassembly to be returned to the deactivated state
• The internal ratchet cage mechanism must be reset correctly
• The tensioner is reassembled and verified
• The tensioner is installed deactivated
• Timing is checked before activation
• The tensioner is activated after installation
• The engine is rotated manually before startup

Do not place an unknown Ecotec tensioner in a vise and assume that forcing the piston inward is a universal reset procedure.

Identify the design.

Follow the correct procedure.

Inspect the complete timing system.

And if the condition of the tensioner is questionable, replacement is often the smarter decision.

Continue the BK Racing GM Ecotec Timing Chain Series

Previous Article: When to Reset vs. Replace an Ecotec Timing Chain Tensioner

Next Article: How to Install an Ecotec Timing Chain Tensioner

Start at the Main Guide: GM Ecotec Timing Chain Tensioner Guide: Reset, Replacement, Noise & Manual Upgrades

Related Article: How the GM Ecotec Timing Chain Tensioner Works

Related Article: Symptoms of a Bad GM Ecotec Timing Chain Tensioner

Related Article: Ecotec Timing Chain Noise, Rattle & Chain Slap Explained

Related Article: Updated OEM Hydraulic vs. BK Racing Manual Timing Chain Tensioner
