Ecotec Upgraded Timing Guide Bolts – Billet Shoulder Bolt Fix

Ecotec Upgraded Timing Guide Bolts – Billet Shoulder Bolt Fix for Common Factory Failure

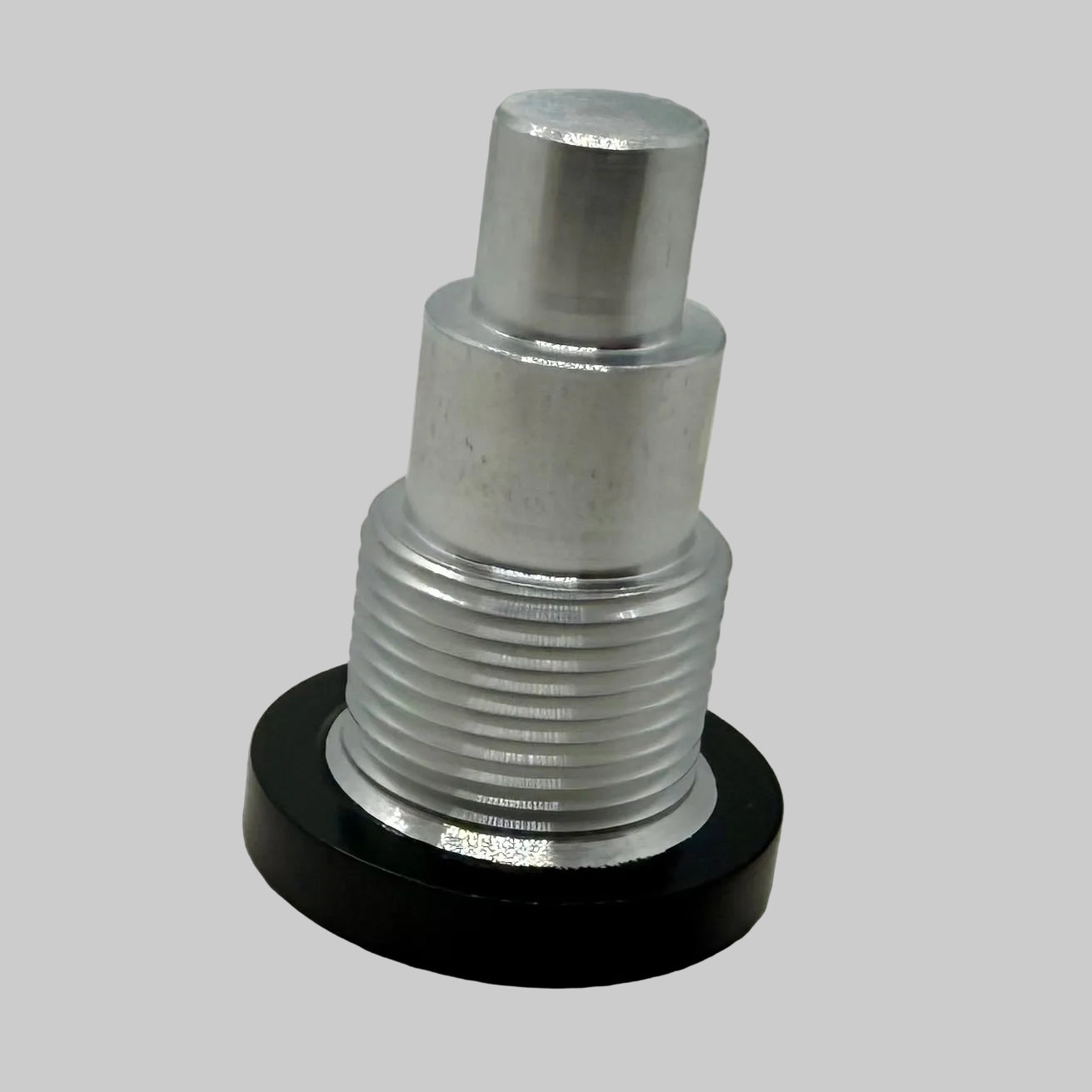

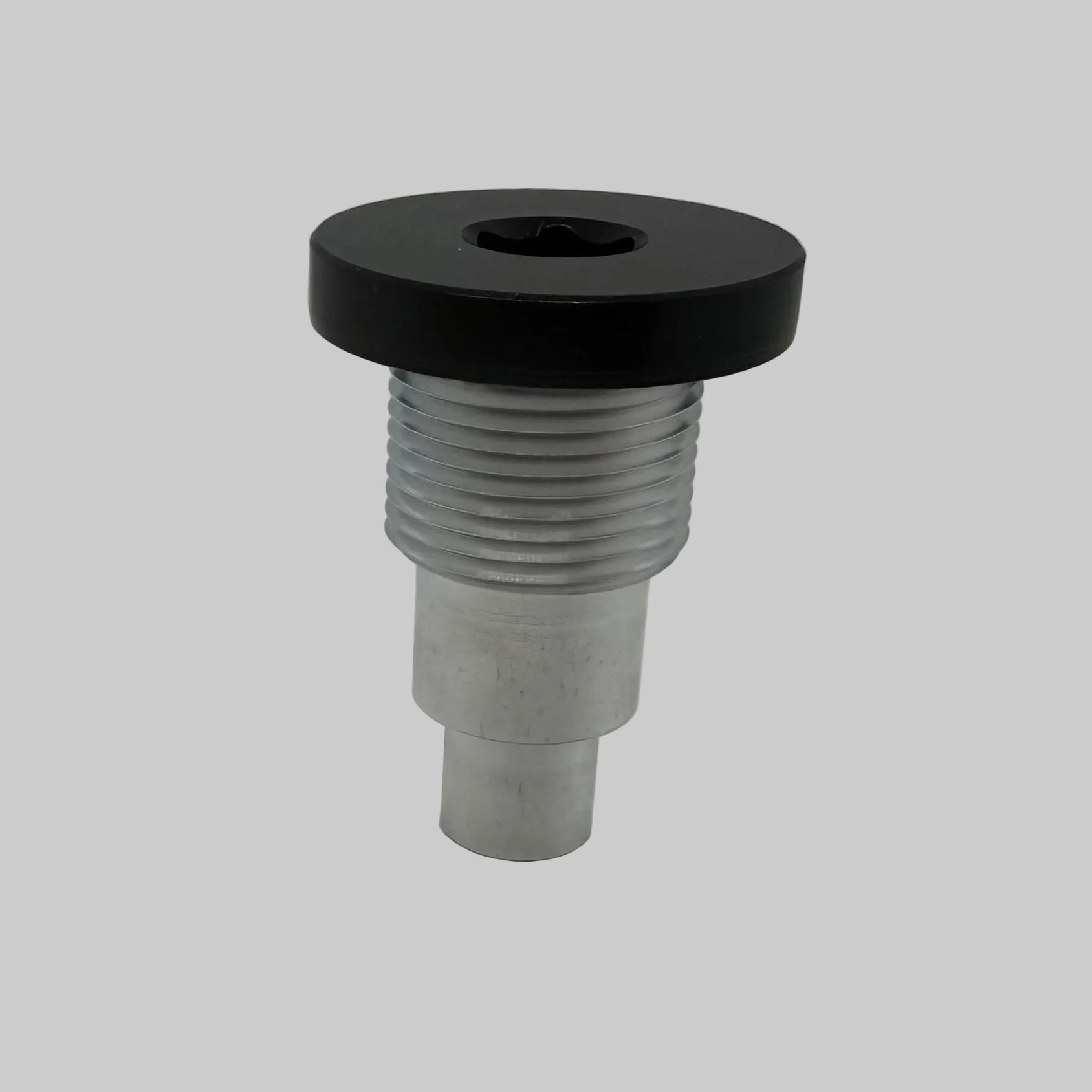

Eliminate one of the most common and catastrophic Ecotec timing system failures with the BK Racing Ecotec Upgraded Timing Guide Bolts — precision-machined billet stepped shoulder bolts engineered to replace the weak factory upper timing guide rail bolt found in GM Ecotec 2.0L, 2.2L, and 2.4L engines.

Factory Ecotec timing chain guide bolts are well known for shearing under high RPM harmonics, timing chain vibration, heat cycling, and long-term fatigue. Once the OEM timing chain guide bolt breaks, the upper timing guide rail can become unstable or detach entirely, allowing severe timing chain movement that can quickly damage the timing system, destroy the cylinder head, cause chain jump, or lead to catastrophic engine failure.

The BK Racing upgraded billet shoulder bolt was developed specifically to address this weak point with significantly improved strength, fatigue resistance, and long-term reliability for both performance and daily-driven Ecotec applications.

Unlike the fragile OEM stepped bolt design, the BK Racing replacement is precision CNC-machined from high-strength billet material with superior tensile properties and more consistent load handling under demanding racing and high RPM conditions.

Why Factory Ecotec Timing Guide Bolts Fail

The factory upper timing guide stepped bolt experiences constant timing chain harmonics, guide loading, heat cycling, and vibration during engine operation. As RPM increases, chain instability and guide movement place additional stress on the narrow factory shoulder section, eventually causing fatigue cracking or complete bolt shear.

Once failure occurs, the upper guide can move excessively or break free entirely, often damaging:

• Cylinder heads

• Timing chains

• Timing guides

• Cam timing

• Front covers

• Valvetrain components

This becomes even more common in:

• High RPM Ecotec engines

• Turbocharged and supercharged applications

• Aggressive camshaft setups

• Worn timing systems

• Sustained racing environments

• Engines experiencing chain harmonics or guide instability

Performance Benefits

• Helps prevent catastrophic upper timing guide failure

• Significantly stronger than the factory stepped shoulder bolt

• Improved fatigue resistance under high RPM operation

• Increased reliability for racing and boosted Ecotec applications

• Helps stabilize upper timing guide positioning

• Reduces risk of timing chain instability and guide movement

• Excellent preventative maintenance upgrade during timing service

Key Features

• Precision CNC-machined billet construction

• Direct drop-in replacement for factory stepped shoulder bolt

• Exact OEM fitment and geometry

• Corrosion-resistant finish for long-term durability

• Designed specifically around common Ecotec timing guide failures

Perfect To Pair With

• BK Racing Upper Timing Chain Kits

• BK Racing Upgraded Timing Guides

• BK Racing Manual Timing Chain Tensioners

• BK Racing Balance Shaft Delete Kits

• BK Racing Crankshaft Timing Keys

Compatibility

GM Ecotec Engines Including:

• 2.0L LSJ Supercharged

• 2.0L LNF / LDK / LHU Turbocharged

• 2.2L L61 / LAP / LE8

• 2.4L LE5 / LE9 / LAT / LAF / LEA / LUK

Popular Applications:

• Chevrolet Cobalt & Cobalt SS

• Chevrolet HHR & HHR SS

• Chevrolet Malibu / Equinox

• Pontiac Solstice / G5 / G6

• Saturn Ion / Sky / Vue / Aura

• Saab 9-3

• Buick Regal / Verano

• GMC Terrain

• Polaris Slingshot

• Custom Ecotec swaps and racing applications

Installation Note

Recommended during timing chain service or preventative maintenance. Torque to factory specifications and inspect upper timing guide condition during installation.

BK Racing specializes in Ecotec timing reliability and racing durability upgrades engineered around real-world Ecotec failures. If you are searching for the best Ecotec timing guide bolt upgrade, LSJ upper guide bolt fix, LNF timing guide reliability upgrade, or billet Ecotec stepped shoulder bolt replacement, BK Racing delivers the proven solution serious builders trust.

FAQ

What does the Ecotec upgraded timing guide bolt do?

It replaces the weak factory upper timing guide stepped bolt with a stronger billet shoulder bolt to help prevent guide instability and timing system damage.

When should I install this part?

It is recommended during timing chain service or as preventative maintenance, especially in high RPM, boosted, or racing applications.

Is this a direct replacement?

Yes, it is designed as a direct drop-in replacement with OEM fitment and geometry.
