21-4N Stainless Ecotec Intake Valves: Why Post-Machining Nitriding Matters
Material and Surface Treatment Are Different Choices

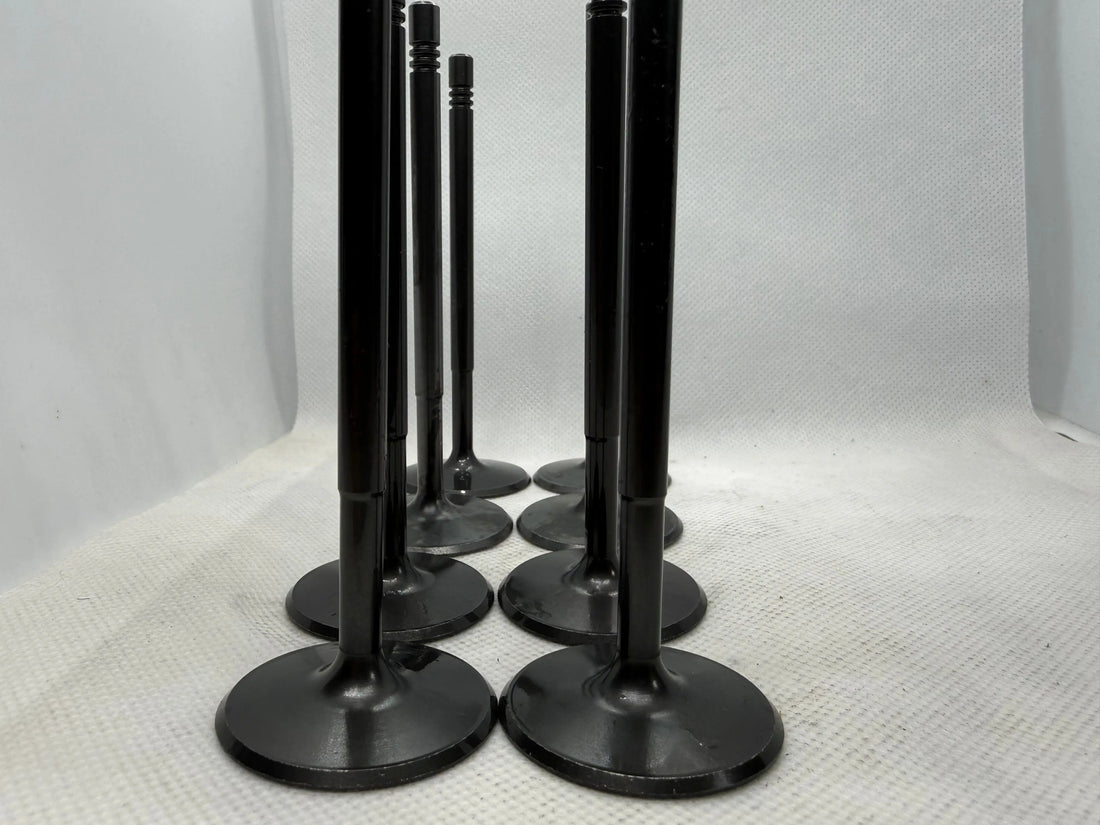

The HF35.6 intake valves use 21-4N stainless steel and are nitrided after final machining. The stainless alloy is the valve material. Nitriding is a surface treatment applied to the finished component. One description should not be used as a substitute for the other.
BK specifies the valve’s geometry before treatment, including the keeper and tip areas. This manufacturing sequence lets the treatment be applied to those finished surfaces rather than cutting the final shape through a previously treated layer.
Why Later Grinding Needs Consideration
Grinding or machining a treated surface can remove some of the treated material. If a builder proposes changing tip height, seat geometry or another finished feature, discuss the procedure with the component supplier and head machinist first.
An extended tip should be selected because the assembly needs that configuration. It should not be treated as unrestricted material to grind away until the assembly appears to fit. Cam and rocker geometry still need to be established deliberately.
What the Material Name Cannot Tell You
The alloy description does not establish a universal RPM, boost or horsepower rating. Loads, temperature, guide fit, spring control, camshaft motion and installation all influence service conditions.
It also does not establish airflow. Valve profile and the finished cylinder head need their own evaluation. The reported MWR intake prototype result is airflow evidence from a test combination, not a material-property measurement.
Choosing the Supporting Parts
The BK exhaust valves and complete valve set can be considered for the same head build. Evaluate intake and exhaust duties separately rather than assuming the same temperature or flow requirement applies to both.
Pair the valves with suitable springs and retainers, then verify locks, clearances and lubrication requirements during head assembly. The finished system matters as much as the catalog material description.
Frequently Asked Questions
Does nitriding change the valve into a different base alloy?
No. The valve remains 21-4N stainless with a nitrided surface.
Can I assume a competitor uses a different process?
No. Compare documented specifications for the exact part number; do not infer another manufacturer’s process from its product name.
Start With the Complete Intake Valve Guide
GM Ecotec Intake Valves: Stock vs Performance, Sizes, Materials & Fitment brings the sizing, geometry, testing, tip selection and installation topics together.
