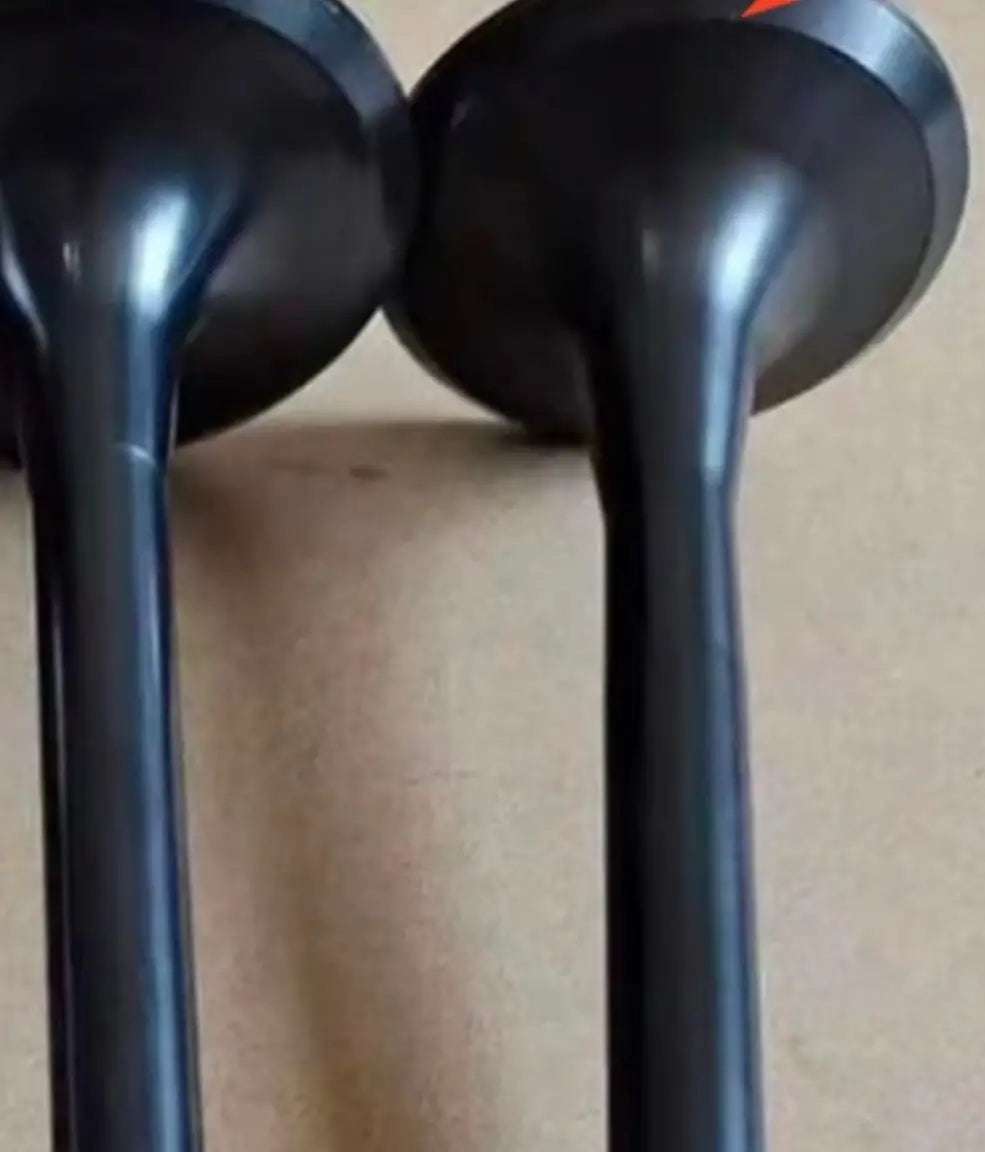

Ecotec Exhaust Valve Size Guide: Stock Diameter, Stem Size & Applications
Ecotec Exhaust Valve Size Guide: Stock Diameter, Stem Size & Applications
If you're trying to determine the correct exhaust-valve size for a GM Ecotec, you'll quickly discover that the answer isn't as simple as finding one universal number.
Depending on the source, a “stock-size” Ecotec exhaust valve may be listed at 29.8 mm, 30.0 mm or 30.1 mm. Aftermarket manufacturers also offer oversized Ecotec exhaust valves ranging beyond 30 mm, while overall valve length, keeper configuration, material and valve-tip dimensions can vary even when the head and stem diameters look nearly identical.
So what is the actual stock Ecotec exhaust-valve size?
For the commonly modified L61, LAP, LE5, LE9, LSJ and LNF Ecotec engines, the basic exhaust-valve architecture is approximately:
30 mm valve head diameter
6 mm valve stem diameter
But those two measurements alone do not establish whether two Ecotec exhaust valves are truly interchangeable.
This guide breaks down the important dimensions, explains the difference between OEM and aftermarket “stock size,” compares several available Ecotec performance valves, and shows why head diameter, stem diameter, overall length and valvetrain geometry all need to be considered together.
Quick Answer: What Size Is an Ecotec Exhaust Valve?
A common GM OE exhaust valve, part number 12615936, is officially specified by GM at:
| Specification | GM 12615936 |
|---|---|
| Valve head diameter | 29.8 mm |
| Stem diameter | 5.9525 mm |
| Overall length | 99.7 mm |
| Seat angle | 45.5° |
| Keeper grooves | 3 |
| Material | Steel |
| Classification | OE |
| Oversized | No |
These are current published GM specifications—not measurements inferred from an aftermarket valve. GM Parts
But this is where things get interesting.
Two major performance-valve manufacturers identify 30.1 mm as a standard or stock-size Ecotec performance exhaust valve.
Ferrea's F1961P is 30.1 mm, and Ferrea explicitly identifies it as stock size. Ferrea Racing
Supertech likewise lists its GEVN-0010 at 30.1 mm as its standard Ecotec exhaust valve. MAR Motorsport Online
And the production BK Racing Ecotec Exhaust Valve is 30.1 mm.
So when discussing performance Ecotec exhaust valves, approximately 30.0–30.1 mm represents the stock-size architecture, while larger diameters should be evaluated as oversized applications.
Ecotec Exhaust Valve Size Comparison
Here's a quick reference comparing the published dimensions of several Ecotec exhaust valves:
| Exhaust Valve | Head Diameter | Stem Diameter | Overall Length | Size Classification |
|---|---|---|---|---|
| GM 12615936 | 29.8 mm | 5.9525 mm | 99.7 mm | OE standard |
| Ferrea F1961P | 30.1 mm | 5.96 mm | 101.5 mm | Stock size |
| Ferrea F1962P | 31.1 mm | 5.96 mm | 101.5 mm | +1 mm oversized |
| Supertech GEVN-0010 | 30.1 mm | 5.96 mm | 101.3 mm | Standard |
| Supertech GEVI-0012S | 30.6 mm | 5.96 mm | 101.3 mm | +0.5 mm oversized |
| BK Racing Production Exhaust Valve | 30.1 mm | ~6 mm architecture | Performance configuration | Stock size |
GM's specifications come directly from its current OE service-parts listing. GM Parts Ferrea publishes 30.1 × 5.96 × 101.5 mm for its F1961P and 31.1 × 5.96 × 101.5 mm for the +1 mm F1962P. Ferrea Racing Supertech's catalog lists 30.1 × 5.96 × 101.3 mm for GEVN-0010 and 30.6 × 5.96 × 101.3 mm for its oversized Inconel-Nimonic GEVI-0012S. MAR Motorsport Online
That table immediately reveals something important:
Valve head diameter isn't the only dimension changing between OEM and performance Ecotec valves.
Overall length can change too.
We'll come back to why that's important.
Why Is the GM Valve 29.8 mm but Performance Valves Are 30.1 mm?
This is one of the most useful questions to answer because someone comparing catalogs can easily assume one of the specifications must be wrong.
They aren't necessarily contradictory.
GM lists the actual OE service-valve specification for 12615936 at 29.8 mm. GM Parts
Performance-valve manufacturers commonly describe approximately 30.1 mm as the standard or stock-size performance architecture.
Ferrea explicitly calls its 30.1 mm F1961P “Stock size.” Ferrea Racing
Supertech similarly categorizes its 30.1 mm valve as STD in its Ecotec catalog. MAR Motorsport Online
So when someone says:
“The stock Ecotec exhaust valve is 30 mm.”
that's a perfectly useful general description.
If we're discussing an exact GM service part, however, we should use its published specification:
GM 12615936 = 29.8 mm
And if we're discussing common stock-size performance valves:
30.1 mm is a common aftermarket stock-size specification.
That distinction eliminates a lot of confusion.
What Size Is the BK Racing Ecotec Exhaust Valve?
The production BK Racing Ecotec Exhaust Valve has a 30.1 mm head diameter.
That places it within the same basic stock-size performance architecture used by Ferrea and Supertech rather than making it an oversized-valve conversion.
That decision wasn't simply based on copying the common aftermarket diameter.
It came after actual development and flow-bench testing.
During our development program with MWR Technologies, we intentionally tested a BK Racing development valve that was smaller than the stock valve.
Despite giving up valve diameter, that development valve produced:
3 CFM more airflow than the stock Ecotec exhaust-valve baseline.
That result reinforced an important part of our development direction:
We didn't need to rely on a larger valve diameter to find airflow.
The production BK Racing exhaust valve therefore returns to the 30.1 mm stock-size architecture.
Importantly, the measured +3 CFM result belongs to the intentionally undersized development valve—not the final 30.1 mm production valve. We won't assign a production-valve CFM number until that exact configuration is tested.
Ecotec Exhaust Valve Size by Engine
This is where searches for Ecotec valve dimensions often become confusing.
The L61, LAP, LE5, LE9, LSJ and LNF all belong to the Ecotec family, but they span different generations, displacements and operating environments.
| Engine | Displacement | Induction | General Exhaust-Valve Architecture | Important Consideration |
|---|---|---|---|---|
| L61 | 2.2L | Naturally aspirated | ~30 mm head / ~6 mm stem | Early Ecotec performance platform |
| LAP | 2.2L | Naturally aspirated | ~30 mm / ~6 mm architecture | Later-generation 2.2L |
| LE5 | 2.4L | Naturally aspirated | ~30 mm / ~6 mm architecture | Popular circle-track/performance application |
| LE9 | 2.4L | Naturally aspirated | Similar Ecotec architecture | Verify generation and valvetrain combination |
| LSJ | 2.0L | Supercharged | ~30 mm / ~6 mm performance architecture | Boosted application |
| LNF | 2.0L | Turbocharged DI | Similar basic dimensional architecture | Different thermal/application requirements |
The important phrase is general architecture.
We shouldn't turn this table into a claim that every OEM valve from every engine is identical.
They're not necessarily identical simply because their head and stem dimensions are similar.
That's why we have a separate guide devoted specifically to L61, LAP, LE5, LE9, LSJ and LNF exhaust-valve interchangeability.
L61 Exhaust Valve Size
The L61 2.2L Ecotec is one of the applications most commonly associated with the traditional Ecotec performance-valve dimensions.
Ferrea lists its 2.2 Ecotec F1961P exhaust valve at:
30.1 mm head diameter
5.96 mm stem diameter
101.5 mm overall length
and specifically identifies that valve as stock size. Ferrea Racing
Ferrea also offers the F1962P at:
31.1 mm head diameter
5.96 mm stem diameter
101.5 mm overall length
and identifies it as 1 mm oversized. Ferrea Racing
This gives us one of the clearest aftermarket references for what is considered stock-size versus oversized in the Ecotec performance market.
LAP Exhaust Valve Size
The later LAP 2.2L Ecotec maintains much of the basic Ecotec valvetrain architecture.
For someone building an LAP cylinder head, however, we'd still avoid choosing a valve solely because a catalog says “2.2 Ecotec.”
Cylinder-head generation matters.
Overall length matters.
Keeper configuration matters.
Valve-tip height matters.
The spring and retainer combination matters.
And if performance camshafts are involved, final valvetrain geometry matters.
The correct question isn't simply:
“Is this approximately a 30 mm valve?”
It's:
“Does the complete valve specification match the cylinder head and valvetrain I'm building?”
LE5 Exhaust Valve Size
The 2.4L LE5 is particularly important to us because it's heavily used in naturally aspirated Ecotec performance and circle-track applications.
The basic exhaust-valve architecture remains around the same 30 mm head / 6 mm stem family seen elsewhere in the Ecotec platform.
That commonality is one reason performance valvetrain manufacturers frequently group 2.0L, 2.2L and 2.4L Ecotec applications together.
Supertech's catalog, for example, groups its GM Ecotec LSJ / 2.0 / 2.2 / 2.4 applications together and specifies a 30.1 mm standard exhaust valve with a 5.96 mm stem. MAR Motorsport Online
For a modified LE5 cylinder head, though, we still need to consider much more than those two numbers.
LE9 Exhaust Valve Size
The LE9 2.4L Ecotec is closely related to the later 2.4L architecture, but once again, engine code and generation should be verified rather than assuming every component listed for an “Ecotec 2.4” is automatically identical.
For performance builds, we're particularly interested in:
valve head diameter, stem/guide compatibility, valve length, keeper configuration, installed stem height, retainer compatibility and spring installed height.
Those dimensions determine whether the valve works as part of the complete valvetrain.
LSJ Exhaust Valve Size
The 2.0L supercharged LSJ is one of the best-supported Ecotec performance platforms.
Supertech specifically identifies its Ecotec valvetrain section around the GM Ecotec LSJ / 2.0 / 2.2 / 2.4 family and lists its standard exhaust valve at:
30.1 mm head
5.96 mm stem
101.3 mm length
with black-nitrided stainless construction and triple keeper grooves. MAR Motorsport Online
This again reinforces approximately 30.1 × 5.96 mm as a common performance-valve architecture for the Ecotec platform.
But the LSJ is supercharged, which introduces different thermal and performance considerations from a naturally aspirated L61 or LE5.
Physical dimensions are only part of choosing the valve.
LNF Exhaust Valve Size
The 2.0L turbocharged LNF deserves additional attention because its operating environment is substantially different from a naturally aspirated Ecotec.
Even when basic valve dimensions are similar, the exhaust valve in a turbocharged application can face significantly greater thermal demands.
That's why material selection becomes particularly important when comparing an LNF exhaust valve with an exhaust valve intended primarily for a naturally aspirated racing application.
This is an important general rule:
Dimensional compatibility and application suitability are not the same thing.
A valve can fit the guide and seat without necessarily being the material or configuration we'd choose for the engine's actual operating environment.
What Is the Ecotec Exhaust Valve Stem Diameter?
For the commonly discussed Ecotec performance valves, the answer is approximately:
5.95–5.96 mm
GM specifies the stem of OE valve 12615936 at 5.9525 mm. GM Parts
Ferrea specifies 5.96 mm for both its stock-size and +1 mm Ecotec exhaust valves. Ferrea Racing
Supertech likewise lists 5.96 mm for its standard and oversized Ecotec exhaust valves. MAR Motorsport Online
That's a remarkably consistent dimension across the available references.
But there is another distinction we need to make.
Main Stem Diameter vs Undercut Stem Diameter
A performance valve can have more than one stem diameter.
The portion operating inside the valve guide needs to maintain the correct relationship with the guide.
But the portion of the stem exposed to the airflow can potentially be reduced.
That's called an undercut stem.
So when a catalog says an exhaust valve has a 5.96 mm stem, that doesn't necessarily tell you the diameter of every section of the stem.
It normally identifies the primary stem/guide diameter.
That's an important distinction because the exposed stem is physically sitting in the exhaust airflow path.
The production BK Racing valve incorporates an undercut stem, but we're intentionally not publishing the proprietary undercut dimensions or transitions used in our design.
For installation purposes, what matters is that the valve retains the appropriate Ecotec guide architecture.
For competitors, that's where the public specification ends.
Why Exhaust Valve Stem Diameter Matters
The stem has to perform several jobs simultaneously.
It guides the valve.
It transfers mechanical load.
It contributes to heat transfer.
It affects valve mass.
And part of it sits directly in the airflow path.
This creates an engineering compromise.
A larger stem can provide strength and thermal capacity but creates additional obstruction.
A smaller exposed stem can reduce obstruction and mass, but it still has to provide adequate durability for the intended application.
That's why performance-valve design is about balance, not simply finding the smallest possible number.
What Is the Stock Ecotec Exhaust Valve Length?
This is where the comparison becomes particularly interesting.
GM specifies 12615936 at:
99.7 mm overall length GM Parts
But commonly available performance valves can be longer.
Ferrea's F1961P and F1962P are both listed at:
101.5 mm overall length Ferrea Racing
Supertech's current catalog lists its standard and oversized Ecotec exhaust valves at:
101.3 mm overall length MAR Motorsport Online
So we have published exhaust valves within the same general Ecotec family ranging from approximately 99.7 to 101.5 mm overall length.
That is not a trivial difference.
Why Does Ecotec Exhaust Valve Length Matter?
Because the valve is part of a mechanical system.
Overall length and valve-tip position influence the relationship between the:
valve → rocker → lash adjuster → camshaft.
They can also influence installed stem height and the spring/retainer relationship depending on how the valve and keeper location are designed.
This becomes particularly important when using reground Ecotec camshafts.
A reground cam can have a reduced base-circle diameter.
That changes the dimensional relationship through the valvetrain.
This is why a performance valve's overall length or tip geometry shouldn't be dismissed as an irrelevant catalog specification.
It's also why we have an entire technical article dedicated to:
Reground Ecotec Cams & Valve Stem Height: Why Geometry Matters.
Overall Length Doesn't Tell the Whole Story Either
Here's another important distinction.
Two valves with the same overall length don't necessarily place the valve tip or keeper grooves in exactly the same functional position.
Why?
Because overall length includes the entire valve.
The manufacturer can change the relationship between the valve head, keeper grooves and tip while maintaining a similar total measurement.
So for serious engine building, we want to know more than:
overall valve length.
We also care about:
installed stem height, keeper position, tip height and final rocker/lash geometry.
This is particularly important when mixing components from different manufacturers.
What Do Triple-Groove and Single-Groove Ecotec Valves Mean?
The keeper grooves near the top of the valve stem lock the valve to the retainer through the valve locks or keepers.
GM's 12615936 uses three keeper grooves. GM Parts
Ferrea's stock-size performance valve retains its specified performance configuration, while Supertech's catalog distinguishes between its standard triple-groove valve and oversized single-groove option. MAR Motorsport Online
This matters because:
The valve, keepers and retainer must be compatible with one another.
You should never assume a retainer designed for one keeper configuration will work correctly with another.
This is another reason valve interchangeability can't be determined from head and stem diameter alone.
Stock-Size vs Oversized Ecotec Exhaust Valves
Now we can put the available performance options into context.
Stock-size architecture
Approximately 30.0–30.1 mm
Examples include:
Ferrea F1961P — 30.1 mm. Ferrea Racing
Supertech GEVN-0010 — 30.1 mm. MAR Motorsport Online
BK Racing production exhaust valve — 30.1 mm.
Mild oversized
Supertech GEVI-0012S — 30.6 mm, approximately +0.5 mm. MAR Motorsport Online
Larger oversized
Ferrea F1962P — 31.1 mm, +1 mm from Ferrea's standard performance size. Ferrea Racing
Those are meaningfully different approaches.
Does a 31.1 mm Ecotec Exhaust Valve Flow More Than a 30.1 mm Valve?
It has more potential curtain area at the same lift.
That doesn't automatically mean it will produce more measured CFM.
A larger valve also needs the cylinder head around it to take advantage of the additional diameter.
That includes the:
valve seat → throat → bowl → port → combustion chamber.
This isn't theoretical for us.
During development of the BK Racing exhaust valve, an oversized aftermarket exhaust valve was evaluated and did not outperform the stock-valve baseline in that particular test configuration.
That doesn't mean oversized valves don't work.
It means the cylinder head and valve have to work together.
Our Undersized Valve Test Taught Us the Opposite Lesson
We also intentionally tested a BK Racing development valve that was smaller than the stock valve.
The purpose was to determine whether our valve-development direction could improve airflow without using additional valve diameter as an advantage.
The intentionally undersized development valve produced:
+3 CFM over the stock Ecotec exhaust-valve baseline
That was important because it demonstrated that the measured airflow improvement couldn't simply be attributed to a larger valve.
We don't publish the proprietary dimensions of that development valve.
What matters is the test result:
smaller than stock, yet +3 CFM over the stock baseline.
Our production valve then returned to the 30.1 mm stock-size architecture.
Does This Mean 30.1 mm Is the Best Ecotec Exhaust Valve Size?
Not universally.
And that's an important distinction.
For an engine using a relatively conventional Ecotec exhaust seat and port architecture, a stock-size performance valve can make considerable sense.
For a heavily developed cylinder head where the seat, throat, bowl and chamber are being modified around additional valve diameter, an oversized valve may provide another path.
The correct valve size depends on the cylinder head.
What our testing showed is simply that increasing diameter wasn't required to improve airflow in our development program.
That's different from saying larger valves never work.
How Much Larger Is a 31.1 mm Valve Than a 30.1 mm Valve?
The diameter increase is:
1.0 mm, or approximately 0.039 inch.
That sounds small.
But circumference increases with diameter, meaning the theoretical curtain area available around the valve also increases.
At the same valve lift, a 31.1 mm valve has approximately 3.3% more theoretical circumference/curtain area than a 30.1 mm valve.
That's potential area.
Whether the cylinder head actually converts that additional potential into airflow is something the flow bench can help determine.
How Much Larger Is a 30.6 mm Valve Than a 30.1 mm Valve?
The difference is:
0.5 mm, or approximately 0.020 inch.
The circumference—and therefore theoretical curtain area at equal lift—is approximately 1.7% greater.
Again, that isn't a prediction of CFM.
It's simply the geometric difference in potential opening area.
This is why we separate:
theoretical valve area
from:
measured cylinder-head airflow.
Does a Larger Exhaust Valve Require Cylinder-Head Machining?
Potentially, yes.
Once valve diameter increases beyond the seat architecture the cylinder head was designed around, the valve seat may need to be machined appropriately.
The throat and bowl may also need development to take advantage of the larger valve.
This is where simply installing an oversized valve without considering the rest of the port can become counterproductive.
An engine builder should evaluate the valve with the cylinder head, not independently from it.
Can You Measure an Ecotec Exhaust Valve With Calipers?
Yes, but understanding where you're measuring matters.
Head diameter can be measured across the valve head.
Stem diameter should be measured on the appropriate unworn guide-contact portion of the stem using suitable precision equipment.
Overall length is measured from the valve face/head reference to the tip according to the manufacturer's dimensional convention.
But a used valve introduces another variable:
wear.
A used stem or valve face may no longer represent its original production dimension.
If you're trying to identify a mystery valve, published manufacturer specifications and part numbers are preferable whenever available.
Can You Identify an Ecotec Valve by Diameter Alone?
Usually not with confidence.
A roughly 30 mm exhaust valve with an approximately 6 mm stem tells us that it resembles the common Ecotec architecture.
It doesn't tell us:
material,
overall length,
keeper configuration,
keeper position,
tip height,
backside profile,
valve weight,
or intended engine application.
That's why identifying an unknown performance valve by measuring only the head is risky.
What Size Valve Guide Does an Ecotec Exhaust Valve Use?
This is another search where terminology matters.
The valve stem diameter is not the same thing as the valve-guide inside diameter.
The guide needs operating clearance around the stem.
Therefore, you should not machine a guide to exactly the published stem diameter.
Correct stem-to-guide clearance depends on the valve material, guide material, intended use and manufacturer's specification.
This becomes particularly important with exhaust valves because of their operating temperature.
For a performance engine, stem-to-guide clearance should be established by actual measurement—not by assuming “6 mm valve = exactly 6 mm guide.”
What Size Valve Seat Does an Ecotec Exhaust Valve Need?
The same principle applies here.
A 30.1 mm valve doesn't mean the seat should simply be machined to 30.1 mm.
The valve-seat contact width and its position on the valve face need to be established correctly.
The throat below the seat also needs to work with the valve diameter.
And once an oversized valve is introduced, those relationships can change significantly.
This is why valve size and valve-job design shouldn't be treated as separate decisions on a performance cylinder head.
Does Exhaust Valve Size Affect Compression Ratio?
Potentially, but usually through valve-head shape and chamber displacement, not simply the nominal diameter.
Two valves with the same outside diameter can have different combustion-side profiles.
One may occupy slightly more combustion-chamber volume than another.
For an ordinary replacement engine, that difference may be insignificant.
For a high-compression naturally aspirated race engine where chamber volume, piston volume, deck height and gasket thickness are being carefully measured, it's another reason to actually measure the finished combination.
Does Valve Weight Change With Valve Size?
Generally, increasing dimensions can add material and therefore mass, but valve weight depends on much more than head diameter.
Material density, head thickness, backside geometry, stem design and overall length all contribute.
That's important because the valve spring has to control the valve's moving mass.
So when comparing two performance valves, bigger and heavier aren't automatically interchangeable concepts, just as smaller doesn't automatically mean lighter.
The actual component should be measured if valve mass is important to the build.
What Exhaust Valve Size Should I Use for a High-RPM Ecotec?
There isn't one diameter that automatically makes an Ecotec capable of high RPM.
High-RPM operation involves the entire valvetrain:
camshaft → rocker → lash adjustment → valve → spring → retainer.
Valve size and mass matter, but so do spring pressure, spring rate, installed height, cam acceleration, retainer mass and final geometry.
That's why our Ecotec valvetrain program includes the BK Racing 83 lb Valve Springs, BK Racing Lightweight Titanium Retainers and BK Racing Solid Lash Adjusters alongside the exhaust valve.
Choosing the largest exhaust valve available isn't a substitute for building a controlled valvetrain.
What Exhaust Valve Size Should I Use With Reground Ecotec Cams?
Head diameter isn't the primary concern here.
Valve-tip position and complete valvetrain geometry become much more important.
Regrinding a camshaft can reduce its base-circle diameter.
That changes the relationship between the cam, rocker, lash adjuster and valve.
This is one reason overall valve length and tip geometry deserve attention when comparing performance valves.
A valve can have exactly the head diameter you want and still be the wrong choice for the valvetrain geometry you're trying to establish.
Ecotec Exhaust Valve Size FAQ
What is the stock Ecotec exhaust valve diameter?
Approximately 30 mm. GM currently specifies OE valve 12615936 at 29.8 mm, while Ferrea and Supertech both offer 30.1 mm valves classified as standard or stock-size performance valves. GM Parts
What is the stock Ecotec exhaust-valve stem diameter?
Approximately 5.95–5.96 mm. GM specifies 5.9525 mm, while Ferrea and Supertech publish 5.96 mm for common performance Ecotec exhaust valves. GM Parts
What size is the BK Racing Ecotec exhaust valve?
The production BK Racing exhaust valve has a 30.1 mm head diameter and uses the stock-size Ecotec architecture.
Is 30.1 mm considered stock size?
In the performance-valve market, yes. Ferrea explicitly describes its 30.1 mm F1961P as stock size, while Supertech lists its 30.1 mm GEVN-0010 as STD. Ferrea Racing
What is an oversized Ecotec exhaust valve?
Common aftermarket examples include 30.6 mm (+0.5 mm) from Supertech and 31.1 mm (+1 mm) from Ferrea. MAR Motorsport Online
Does a larger Ecotec exhaust valve automatically flow more?
No. A larger valve creates additional potential curtain area, but the seat, throat, bowl, port and chamber must be capable of using it.
Did BK Racing test an oversized exhaust valve?
Yes. An oversized aftermarket exhaust valve tested during development did not outperform the stock baseline in that particular cylinder-head configuration.
What size valve produced BK Racing's 3 CFM improvement?
It was an intentionally undersized development valve. We're deliberately not publishing its proprietary dimensions. Despite being smaller than stock, it produced a measured 3 CFM improvement over the stock exhaust-valve baseline.
Is the 3 CFM result from the 30.1 mm production valve?
No. The +3 CFM measurement belongs to the intentionally undersized development valve. We will not attribute that number to the final production valve until the production configuration is tested.
Are L61, LAP, LE5, LE9, LSJ and LNF exhaust valves the same size?
They share substantial basic Ecotec valve architecture, but similar dimensions don't establish that every OEM valve is identical or automatically interchangeable. Engine generation, material, overall length, keeper configuration and intended operating environment still need to be considered.
Can an LSJ exhaust valve fit an LE5?
Some aftermarket valves are cataloged across multiple 2.0L, 2.2L and 2.4L Ecotec applications, demonstrating significant dimensional commonality. Supertech, for example, groups LSJ / 2.0 / 2.2 / 2.4 Ecotec applications together. MAR Motorsport Online But exact interchangeability should be verified from the complete valve and cylinder-head specifications rather than head diameter alone.
Is valve overall length important?
Absolutely. Overall length, keeper position and tip height can affect installed geometry, particularly with performance cylinder heads and reground camshafts.
Ecotec Exhaust Valve Size: The Numbers to Remember
If you're looking for the quick reference, these are the dimensions worth remembering:
| Specification | Typical Ecotec Reference |
|---|---|
| General stock exhaust-valve diameter | ~30 mm |
| GM 12615936 head diameter | 29.8 mm |
| Common performance stock-size diameter | 30.1 mm |
| BK Racing production diameter | 30.1 mm |
| Typical main stem diameter | ~5.95–5.96 mm |
| Supertech mild oversized example | 30.6 mm |
| Ferrea +1 mm oversized example | 31.1 mm |
GM, Ferrea and Supertech's published specifications support those OEM and aftermarket reference dimensions. GM Parts
But if there's one thing to take away from this guide, it shouldn't simply be a number.
It should be this:
Valve size tells you whether a valve might fit. It doesn't tell you how the valve will perform.
The head diameter, stem, overall length, keeper arrangement, material, airflow geometry, cylinder-head preparation and complete valvetrain combination all matter.
That's why our BK Racing production exhaust valve remains 30.1 mm stock size.
Our development work showed us that we could find airflow without depending on increased valve diameter. An intentionally undersized development valve still produced 3 CFM more airflow than the stock baseline.
For us, that was more valuable than simply making the biggest valve we could fit in the head.
Continue Learning About Ecotec Exhaust Valves
Building the right Ecotec valvetrain involves more than choosing a single valve. Exhaust-valve material, head and stem geometry, valve springs, retainers, lash adjustment and camshaft geometry all work together—especially in sustained high-RPM racing applications. If you're putting together a complete combination, explore the guides below and see how components such as the BK Racing Ecotec Exhaust Valves, BK Racing 83 lb Valve Springs, BK Racing Lightweight Titanium Retainers and BK Racing Solid Lash Adjusters fit into the complete Ecotec valvetrain.
Stock vs Performance Ecotec Exhaust Valves: What Actually Changes?
Learn what really separates an OEM replacement valve from a purpose-built performance exhaust valve, including material, nitriding, backside geometry, stem design, margin and intended operating environment.
Do Performance Exhaust Valves Increase CFM? Our Ecotec Flow-Bench Testing
See what we learned from back-to-back Ecotec flow-bench testing, including why larger valve diameter didn't automatically produce more airflow and how the finished BK Racing Ecotec Exhaust Valve compared with the stock baseline.
21-4N Stainless vs Inconel vs OEM Ecotec Exhaust Valves
Understand the differences between OEM valve materials, 21-4N stainless and Inconel—and why the BK Racing Ecotec Exhaust Valve uses fully nitrided 21-4N stainless for the naturally aspirated, sustained-RPM racing applications it was developed around.
Why Exhaust Valve Shape Matters: Tulip, Back-Cut, Margin & Stem Geometry
Learn how the valve itself becomes part of the airflow path and why tulip shape, back-cut, margin, head thickness and stem geometry can matter just as much as valve-head diameter.
Stock Ecotec Exhaust Valves at High RPM: What Are the Limitations?
See what changes when a production Ecotec valvetrain is subjected to sustained racing RPM and why exhaust valves, BK Racing 83 lb Valve Springs and lightweight retainers should be considered as parts of the same system.
Undercut Valve Stems: Can They Improve Ecotec Exhaust Flow?
Learn how reducing the exposed portion of an exhaust-valve stem can decrease obstruction in the port and why the BK Racing Ecotec Exhaust Valve uses an undercut stem with a smooth transition into the backside of the valve.
Ecotec Valve Springs, Exhaust Valves & RPM: Building the Valvetrain as a System
Go deeper into the relationship between valve mass, spring pressure, installed height, cam profile, retainers and RPM, including how the BK Racing 83 lb Valve Springs, BK Racing Lightweight Titanium Retainers, performance valves and BK Racing Solid Lash Adjusters can be combined into a complete racing valvetrain.
Reground Ecotec Cams & Valve Stem Height: Why Geometry Matters
Learn why reducing a camshaft's base circle changes the relationship between the cam, rocker, lash adjuster and valve—and why the extended-tip geometry of the BK Racing Ecotec Exhaust Valve was developed with reground-cam combinations in mind.
Ecotec Exhaust Valve Comparison: OEM vs Ferrea vs Supertech vs BK Racing
Compare OEM, Ferrea, Supertech and BK Racing Ecotec Exhaust Valves by dimensions, material, geometry and intended application, including where we have actual back-to-back flow-bench data and where we don't.
Are L61, LAP, LE5, LE9, LSJ & LNF Exhaust Valves Interchangeable?
See which Ecotec engines share basic exhaust-valve architecture, where important differences remain and what should be measured before combining valves, cylinder heads and valvetrain components from different Ecotec generations.
Start With the Complete Guide
The Complete Guide to GM Ecotec Exhaust Valves: L61, LAP, LE5, LE9, LSJ & LNF
Our complete Ecotec exhaust-valve resource brings together valve sizing, materials, airflow, geometry, high-RPM operation, camshaft compatibility and valvetrain setup in one place. It's the best starting point if you're planning an Ecotec cylinder-head or valvetrain combination and want to understand how all of these areas work together.
