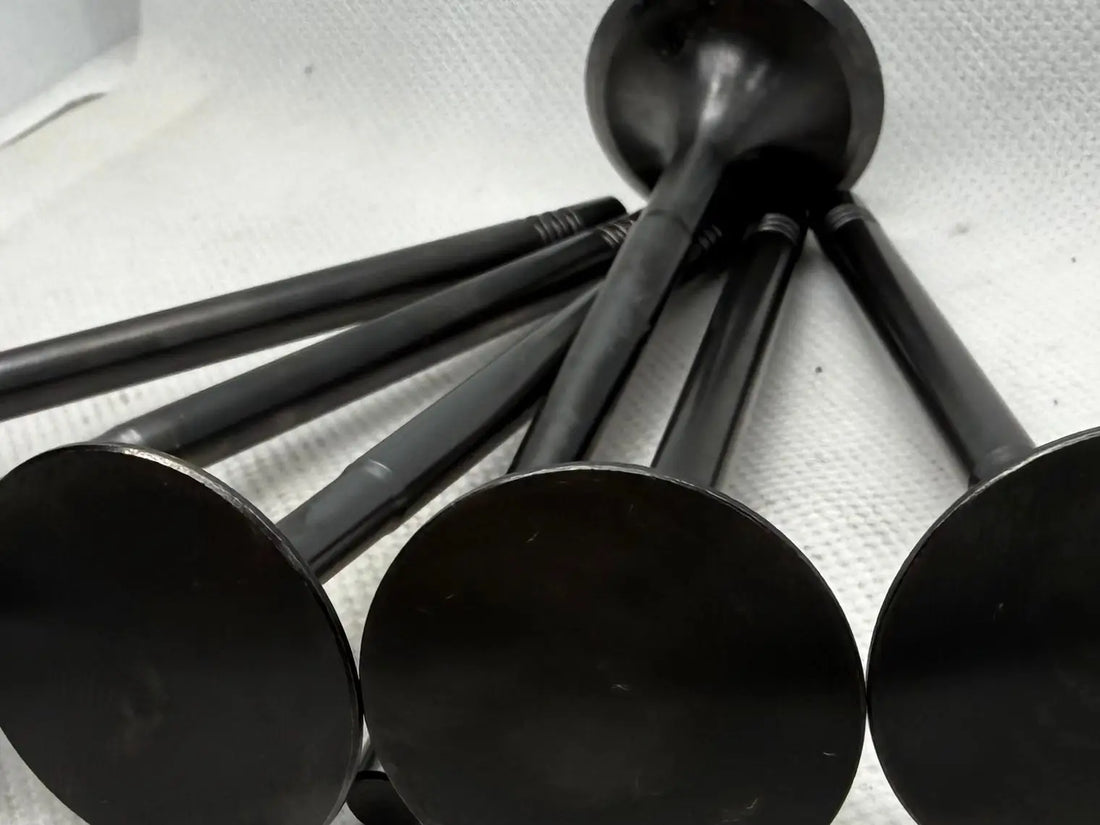

Undercut Valve Stem: Can It Improve Ecotec Exhaust Flow?
Undercut Valve Stem: Can They Improve Ecotec Exhaust Flow?
When most people compare performance exhaust valves, they start with the valve-head diameter.
That's understandable—but it ignores another component sitting directly in the airflow path:
The valve stem.
Every time an Ecotec exhaust valve opens, exhaust gas has to move past the valve head, around the backside of the valve and past the portion of the stem exposed inside the exhaust port.
That stem occupies physical space.
An undercut valve stem reduces the diameter of the appropriate exposed portion of the stem while maintaining the required stem diameter through the valve-guide area.
The concept sounds simple:
Less material in the airflow path can mean less obstruction.
But like almost everything involving cylinder-head airflow, simply making something smaller doesn't guarantee more CFM.
Stem diameter, undercut length, transition shape, valve backside geometry, guide location, port shape, strength and heat transfer all have to be considered together.
That's why the BK Racing Ecotec Exhaust Valve doesn't simply use a reduced stem.
It uses an undercut stem integrated into the complete backside geometry of the valve, with a smooth transition between the two.
And during development, we intentionally tested whether our overall valve design could improve airflow without relying on a larger valve head.
The result?
An intentionally undersized BK Racing development valve produced a measurable:
+3 CFM over the stock Ecotec exhaust-valve baseline
in back-to-back flow-bench testing performed by MWR Technologies.
That result belongs to the complete development valve, not the undercut stem alone.
But it demonstrates exactly why details beyond valve-head diameter deserve attention.
Quick Answer: Can an Undercut Valve Stem Improve Exhaust Flow?
Yes, it can.
Reducing the diameter of the portion of the valve stem exposed to the airflow can reduce the physical obstruction presented by the stem.
That can potentially improve airflow through the port.
But the actual result depends on the complete combination, including:
stem location, port shape, valve lift, backside geometry, valve-seat geometry, throat size, gas velocity and the shape of the undercut transition.
An undercut stem is therefore better understood as an airflow-development tool than a guaranteed CFM modification.
And there's another important limitation:
The stem is not there just to obstruct airflow.
It also has to guide the valve, maintain alignment, carry mechanical loads and help transfer heat.
The objective isn't to make the stem as small as possible.
It's to determine:
Where does the valve need material—and where is that material unnecessarily obstructing airflow?
That's the engineering problem.
What Is an Undercut Valve Stem?
A conventional engine valve generally has a main stem diameter designed to operate inside the valve guide.
That relationship is critical.
The valve guide keeps the valve properly located relative to the seat while allowing it to move through thousands of opening and closing cycles.
An undercut valve uses a different strategy for the portion of the stem that doesn't need to operate inside the guide.
Instead of maintaining the full guide diameter throughout the entire exposed region, part of the stem is reduced.
Conceptually:
Full-diameter stem through guide area → transition → reduced exposed stem → transition into valve head
The guide still gets the stem diameter it requires.
The airflow sees less material where appropriate.
That's the basic principle.
Where Is the Valve Stem in the Ecotec Exhaust Airflow?
This is easier to understand if you visualize the exhaust path.
During the exhaust event, gas moves approximately through:
Combustion chamber → valve curtain → seat → throat → bowl → valve stem region → exhaust port
The exact flow behavior is obviously three-dimensional and considerably more complicated than that simple sequence.
But the important point is:
The stem is physically inside the port.
Airflow has to go around it.
That means the stem effectively consumes some of the port's available cross-sectional area.
How Much Area Does a Valve Stem Occupy?
The cross-sectional area of a round stem can be described with the basic circle-area equation:
Area = πr²
This is important because area changes with the square of radius.
So reducing stem diameter doesn't merely change circumference.
It reduces the physical cross-sectional area presented by that section of the stem.
That's the fundamental geometric argument behind an undercut stem.
But we're deliberately not going to publish the exact BK Racing undercut diameter, length or resulting percentage-area reduction.
Those dimensions are part of the valve-development work.
The important customer-facing point is the engineering principle:
The exposed portion of the stem can be optimized differently from the portion that operates inside the guide.
Why Doesn't BK Racing Publish the Exact Undercut Dimensions?
Because there's a difference between explaining how a component works and publishing the information required to reproduce it.
Customers should understand:
what an undercut stem is, why we use one, what its potential advantages are, what the tradeoffs are, and how it fits into the complete valve design.
They don't need the exact:
undercut diameter
undercut length
transition location
transition profile
or relationship to the backside geometry
to select or install the valve.
Those are part of the BK Racing design.
We'll explain the engineering.
We'll publish the testing.
The recipe stays with us.
Why Can a Smaller Stem Improve Airflow?
Think of the valve stem as an object placed inside a flowing passage.
If the object becomes smaller, there's potentially more space available around it.
But an exhaust port isn't a simple straight tube.
Gas velocity varies throughout the port.
The stem isn't necessarily centered in the highest-velocity portion of the flow.
The flow approaches the stem from different directions.
And the backside of the valve affects how gases reach that region in the first place.
That's why we say an undercut stem can improve airflow rather than saying it automatically will.
The real question is:
Is the stem a meaningful restriction in this particular port at this particular point in the valve event?
That's what testing helps determine.
Stem Diameter vs Port Area
Suppose we simply calculated the cross-sectional area of two different stem diameters.
That would tell us exactly how much less physical area the smaller stem occupies.
But it still wouldn't tell us the CFM gain.
Why?
Because:
Geometric area isn't the same as effective airflow.
We've already seen the same principle with valve-head diameter.
A larger valve creates additional theoretical curtain area.
That doesn't guarantee the cylinder head can use it.
Likewise, a smaller stem reduces theoretical obstruction.
That doesn't guarantee a proportional increase in CFM.
The flow has to actually be interacting with that region in a way that benefits from the reduction.
Why the Exhaust Port Determines How Much the Stem Matters
Not every exhaust port will respond identically to an undercut valve.
Imagine one port where a substantial portion of the flow is moving quickly around the stem.
Reducing the stem could potentially be meaningful.
Now imagine another port where the primary restriction is farther upstream at the:
seat, throat or bowl.
Removing some stem obstruction may have less effect because something else is controlling airflow first.
This is why:
A performance valve has to be developed with the cylinder head—not independently from it.
Why Valve Lift Can Change the Importance of the Stem
At relatively low valve lift, the valve curtain and seat region can dominate the available flow area.
As the valve opens farther, the relative importance of different restrictions can change.
At some point, the valve curtain may no longer be the primary restriction.
The throat, bowl, stem or port may become increasingly important.
That means an undercut stem doesn't necessarily produce the same effect at every lift.
This is another reason a complete flow curve is more useful than a single peak number.
Low-Lift Flow and High-Lift Flow Are Different Problems
At low lift, gases have relatively little area available between the valve and seat.
Seat geometry, valve-face geometry, back-cut and chamber relationship can have substantial influence.
As lift increases, more curtain area becomes available.
Now the gas has more room to get past the valve.
Other restrictions can become more significant.
That's where features farther downstream—including the stem—may become increasingly relevant.
This doesn't mean:
undercut stems only work at high lift.
It means the significance of different parts of the airflow path can change throughout the valve event.
Why the Stem Can't Be Designed Separately From the Valve Head
This is where an undercut valve becomes more interesting than simply turning down a piece of stem.
The gases don't encounter:
valve head
and then suddenly encounter an unrelated:
valve stem.
The head and stem are connected.
The backside of the valve transitions into the stem.
So the airflow sees a continuous three-dimensional shape.
That's why the relationship between:
backside profile → head-to-stem transition → undercut stem
matters.
The complete shape is more important than any one diameter.
The Transition Is One of the Most Important Parts
Imagine reducing a stem diameter but creating an abrupt shoulder where the reduction begins.
You've reduced one obstruction but introduced another geometric feature.
From an airflow perspective, that may not be ideal.
From a mechanical perspective, abrupt changes in section also deserve consideration because stress distribution matters.
That's why the BK Racing Ecotec Exhaust Valve uses a smooth transition into its undercut stem design.
The objective isn't merely:
Make this section smaller.
It's:
Integrate the reduced section into the rest of the valve.
That distinction matters.
Smooth Doesn't Mean There Is One Universal Perfect Radius
This is another place where we're intentionally avoiding a common performance-parts mistake.
There isn't a universal:
“Use this radius and every exhaust valve will flow better.”
The appropriate transition depends on:
valve-head geometry
stem dimensions
port architecture
material requirements
strength requirements
and intended application.
BK Racing developed its transition as part of the complete Ecotec valve.
The exact geometry remains proprietary.
Undercut Stem vs Straight Stem
A straight-stem valve generally carries essentially the guide-size stem farther toward the valve head.
An undercut valve reduces an appropriate exposed section.
That creates several potential differences:
| Feature | Straight Stem | Undercut Stem |
|---|---|---|
| Guide-area diameter | Correct guide size | Correct guide size |
| Exposed stem obstruction | Greater | Potentially reduced |
| Stem mass | More material | Some material removed |
| Transition geometry | Simpler | Requires developed transition |
| Potential airflow effect | Baseline | May reduce obstruction |
| Strength consideration | More section | Must be properly engineered |
| Heat-transfer consideration | Conventional | Must remain appropriate for application |
The key word is:
Potential.
A valve shouldn't be judged as automatically superior simply because the product description says “undercut stem.”
The execution matters.
Does an Undercut Stem Automatically Flow More CFM?
No.
This deserves a direct answer because it should rank for exactly that question.
An undercut stem can reduce physical obstruction.
But actual airflow depends on the entire cylinder head.
If the stem isn't a meaningful restriction in the tested configuration, reducing it may produce little measurable difference.
If another portion of the port is controlling airflow, the result may also be limited.
And if the undercut is integrated poorly into the backside geometry, simply reducing diameter doesn't guarantee an improvement.
Less obstruction creates an opportunity. Testing tells you whether the cylinder head uses it.
How Much CFM Does an Undercut Valve Stem Add?
There is no universal answer.
And BK Racing isn't going to invent one.
You'll sometimes see individual performance features described as though each has an independent horsepower or CFM value.
Real cylinder-head development doesn't work that neatly.
To determine exactly how much CFM only the undercut stem contributes, we would need two otherwise identical valves:
same head diameter,
same material,
same seat,
same back-cut,
same margin,
same head thickness,
same backside profile,
same cylinder head,
same valve job,
same test procedure,
with only the exposed stem geometry changed.
Then we'd perform controlled back-to-back testing.
We have not performed that isolated test.
Therefore we don't claim:
“Our undercut stem adds X CFM.”
That's not what our data shows.
What Our Flow Testing Actually Shows
This is where we can make a much stronger claim because we have the testing behind it.
During development of the BK Racing Ecotec Exhaust Valve, we wanted to determine whether our complete valve-design direction could improve airflow without simply increasing valve diameter.
So we deliberately made the development valve smaller than the stock Ecotec exhaust valve.
That's important.
We intentionally gave the development valve less diameter, not more.
Why?
Because if we simply made a larger valve and gained CFM, we would still have to ask:
Did the valve geometry improve airflow—or did we simply gain theoretical curtain area from the larger diameter?
The undersized experiment removed that advantage.
MWR Technologies then performed back-to-back flow-bench testing.
The result:
The intentionally undersized BK Racing development valve gained 3 CFM over the stock baseline.
That gave us evidence that the complete design direction was working independently of an increase in valve diameter.
Did the Undercut Stem Create the 3 CFM Gain?
We don't know—and we're not going to pretend we do.
The undercut stem was one component of a complete development valve.
Other design elements were changed as part of that development.
Therefore:
The +3 CFM result belongs to the complete development valve.
Not just the undercut.
Not just the backside.
Not just the back-cut.
Not just the margin.
That's the technically defensible way to report the result.
If we later conduct a controlled stem-only A/B test, then we can publish the isolated effect.
Until then, the data says what it says.
Why That Makes the Result More Interesting
Our development valve didn't get its measured airflow improvement by simply becoming larger.
It was intentionally smaller than stock.
That means it started with a theoretical diameter disadvantage.
Yet the complete design still produced a measurable improvement.
This doesn't prove that smaller valves are better.
It demonstrates something much more useful:
The details of the valve matter.
Stem geometry is one of those details.
We Also Tested the Other Direction
During development, an oversized aftermarket Ecotec exhaust valve was also evaluated.
In that particular test configuration, it did not outperform the stock baseline.
Again, this doesn't mean oversized valves don't work.
An oversized valve may perform extremely well in a cylinder head with the appropriate:
seat
throat
bowl
chamber
and port work.
The result simply reinforces the same lesson:
Diameter alone doesn't determine airflow.
Neither does stem diameter.
The complete combination does.
Why Not Just Make the Stem Extremely Small?
If reducing stem obstruction can help airflow, why stop?
Why not make the stem as thin as possible?
Because the valve stem has critical mechanical and thermal jobs.
It has to:
keep the valve aligned with the seat
operate correctly in the guide
resist bending
carry repeated dynamic loads
survive fatigue
and contribute to heat transfer.
This is especially important on an exhaust valve.
The valve is not an airflow-only component.
It's a highly loaded, high-temperature mechanical component that happens to sit in the airflow.
The Exhaust-Valve Stem Helps Guide the Valve
The valve guide establishes the valve's path.
The relationship between the guide and stem helps keep the valve aligned with the seat.
Too much clearance can allow excessive movement.
Too little clearance can create problems as temperatures change.
That's why the guide portion of an undercut valve retains the appropriate stem diameter.
The undercut is applied where it makes sense—not indiscriminately across the entire stem.
Valve Stem Diameter and Heat Transfer
The exhaust valve has to get rid of heat.
One important path is through the valve seat when the valve is closed.
Another is through the stem and valve guide.
That means stem design also participates in the valve's thermal behavior.
Reducing material everywhere simply to chase airflow would ignore that function.
This is another reason:
Smallest possible isn't the same as optimized.
Exhaust Valves Make the Tradeoff More Important
The intake valve spends much of its operating life exposed to incoming charge.
The exhaust valve lives in a considerably more severe thermal environment.
That's why exhaust-valve development has to balance airflow improvements against:
temperature capability
strength
fatigue resistance
seat durability
stem durability
and heat transfer.
A geometry that looks attractive from an airflow perspective still has to survive sustained racing.
Why 21-4N Matters Here
The BK Racing Ecotec Exhaust Valve is manufactured from 21-4N performance stainless steel and fully nitrided.
Material selection and stem geometry address different parts of the design problem.
The 21-4N material supports the mechanical and elevated-temperature requirements of the application.
The full nitriding addresses surface and wear considerations.
The undercut stem and backside geometry address the physical valve design and airflow path.
None of these features should be treated as a substitute for the others.
A valve is the combination.
Does an Undercut Stem Reduce Valve Weight?
Yes—removing material reduces mass.
But we need to keep the significance in perspective.
An undercut stem isn't primarily a magic weight-reduction trick.
The actual mass reduction depends on:
how much material is removed
where it's removed
the length of the reduced section
and the material density.
We aren't publishing those BK dimensions, so we're not going to manufacture a percentage just for marketing.
What matters is that unnecessary material can be removed from an appropriate region.
That may provide both:
less airflow obstruction
and
some reduction in moving mass.
Why Valve Mass Matters at High RPM
Every time the camshaft opens the valve, the valvetrain has to accelerate its moving components.
Then decelerate them.
Then reverse direction.
Then control the valve back toward the seat.
At 8,000 RPM, each exhaust valve completes approximately:
4,000 valve events per minute.
At 9,000 RPM:
4,500 events per minute.
That's:
75 events every second per exhaust valve at 9,000 RPM.
Unnecessary moving mass therefore becomes increasingly undesirable as RPM and camshaft demand increase.
But once again:
The goal isn't minimum mass at any cost.
It's removing unnecessary mass while maintaining the strength and durability required by the application.
Why the Valve Spring Cares About Valve Mass
The spring has to control the moving valvetrain.
The heavier the moving assembly, the more demanding that job can become as acceleration increases.
That's why we can't discuss:
BK Racing Ecotec Exhaust Valves
without eventually discussing:
BK Racing 83 lb Valve Springs
and
BK Racing Lightweight Titanium Retainers.
The undercut valve stem can remove some unnecessary material.
The titanium retainer addresses another portion of the moving mass.
The spring controls the resulting assembly.
That's how the parts become a system.
Undercut Stem vs Lightweight Retainer
These two modifications attack moving mass in different places.
The undercut stem modifies the valve itself and can also reduce airflow obstruction.
The titanium retainer reduces mass at the top of the valve/spring assembly.
The spring then has to control both.
So while the reasons for using them aren't identical, they complement the same high-RPM strategy:
Avoid unnecessary moving mass without compromising required strength.
Why the BK Stem Doesn't Simply Have a Sharp Step
This is an important distinction in the design.
An undercut stem could be produced with a relatively abrupt transition between diameters.
That's not the direction we wanted.
The BK Racing valve uses a smooth transition between the undercut stem and developed backside region.
This lets us treat:
stem → transition → backside → valve head
as a continuous shape.
That matters both conceptually and mechanically.
Again, the exact geometry stays proprietary.
But the reason behind it doesn't have to.
Why Smooth Transitions Matter in Airflow
When gases encounter changes in shape, they have to respond to those changes.
An abrupt step presents a different boundary than a progressive transition.
Depending on location and velocity, abrupt geometry can influence flow separation, turbulence and the effective path available to the gas.
That doesn't mean every smooth radius automatically adds CFM.
It means the transition deserves to be designed rather than ignored.
That's what we've done.
Why Smooth Transitions Matter Structurally
There's another reason not to treat the undercut as simply a machining trick.
Changes in cross-section can influence how stresses are distributed through a component.
A performance exhaust valve is exposed to repeated cyclic loading.
So the transition between different stem sections has to satisfy more than an airflow requirement.
It has to make sense as part of the mechanical valve.
This is why airflow and durability development can't be completely separated.
Can You Undercut a Stock Ecotec Valve?
In theory, material can be removed from many components.
That doesn't mean it's a good idea.
Machining a finished OEM valve stem changes a safety-critical engine component whose:
material
heat treatment
surface condition
geometry
fatigue strength
and intended stress distribution
were established around the original design.
A purpose-built undercut valve is designed and manufactured around that geometry from the beginning.
For a racing engine, that's a very different proposition from simply putting a stock valve in a lathe and removing material.
Does an Undercut Stem Require Different Valve Guides?
Not necessarily.
That's one of the advantages of a properly designed undercut valve.
The portion of the stem operating inside the guide retains the appropriate guide diameter.
The reduction occurs in the appropriate exposed region.
So the guide isn't running on the reduced section during normal operation.
Correct guide clearance still needs to be established for the valve and application.
Does the Undercut Change Valve Lash?
The undercut itself does not determine valve lash.
Lash is controlled by the mechanical relationship among the:
camshaft
rocker/follower
lash adjuster
and valve tip.
However, because we're discussing a complete performance valve, overall valve geometry still matters.
That's particularly relevant with reground Ecotec camshafts where changes in base-circle diameter can alter valvetrain geometry.
The undercut and valve-tip geometry solve different problems.
Does an Undercut Stem Change Valve Lift?
No.
Valve lift is determined by the camshaft and valvetrain geometry.
An undercut stem doesn't create additional cam lift.
Its purpose is related primarily to the physical valve design—not changing the camshaft's commanded motion.
Does an Undercut Stem Make More Horsepower?
That's not something we can responsibly assign a universal number to.
Even if an isolated stem change produces a measurable CFM improvement on a particular cylinder head, the running engine introduces many additional variables:
cam timing
pressure differential
RPM
combustion
exhaust-system behavior
temperature
and wave dynamics.
There is no responsible universal equation:
Undercut stem = X horsepower.
The correct approach is to measure airflow changes on the bench and engine performance on the dyno or track.
Flow Bench vs Running Engine
A flow bench is extremely valuable because it allows controlled comparison.
Keep the:
cylinder head
valve job
fixture
test procedure
and conditions
as consistent as possible.
Change the component.
Measure the result.
That helps isolate development direction.
But the running engine is dynamic.
Pressure changes constantly.
The piston is moving.
The camshaft controls valve timing.
The exhaust system produces pressure waves.
Temperature is much higher.
So flow-bench testing should be treated as:
A development tool—not an engine simulation.
Why Back-to-Back Testing Matters
Comparing a random CFM number from one company's website with a number measured on another bench can be misleading.
Flow benches differ.
Fixtures differ.
Heads differ.
Valve jobs differ.
Test procedures differ.
That's why the most useful part of BK's development result isn't simply the absolute CFM number.
It's that the development valve and baseline were evaluated in a controlled back-to-back comparison.
That's how we know a measurable change occurred.
Why We Won't Assign CFM to Features We Didn't Isolate
This is an important part of how BK Racing should present technical data.
If we didn't isolate a variable, we shouldn't pretend we know exactly how much it contributed.
So we won't say:
Undercut stem = +1 CFM
Back-cut = +1 CFM
Backside profile = +1 CFM
and conveniently arrive at +3.
That's not engineering.
The real development valve incorporated several changes simultaneously.
Therefore:
Complete valve = measured +3 CFM development result.
Individual feature contribution = not isolated.
That's transparent—and considerably more credible.
Why This Matters When Comparing Performance Valves
Two valves can both advertise:
undercut stem.
That doesn't mean the stems are equivalent.
They can differ in:
where the undercut begins
where it ends
how much material is removed
how the transition is shaped
how it blends into the backside
material
surface treatment
and complete valve geometry.
That's why checking a box labeled:
✓ Undercut stem
doesn't tell you how well the valve was developed.
The feature is only part of the story.
Undercut Stem vs Oversized Valve: Two Different Approaches
These two modifications attack airflow from different directions.
Oversized valve:
Attempts to increase potential curtain area through greater valve diameter.
Undercut stem:
Attempts to reduce obstruction presented by the stem.
Neither approach guarantees additional CFM.
And they're not mutually exclusive.
A cylinder head could use both.
But our Ecotec development testing reinforced an important principle:
Increasing diameter isn't the only way to improve airflow.
That's significant for applications where maintaining stock-size valve architecture is desirable.
Why BK Racing Focused on Geometry Instead of Just Diameter
We could have developed a valve around an easy marketing story:
Bigger valve. More flow. Buy it.
Our testing showed us that the real story was more interesting.
An oversized aftermarket valve didn't outperform the stock baseline in the particular configuration tested.
Then our intentionally undersized development valve did outperform stock.
That pointed us toward:
geometry
transitions
airflow obstruction
and complete valve design
rather than simply chasing valve-head diameter.
The undercut stem became part of that complete approach.
Stock-Size Architecture Doesn't Mean Stock Geometry
This distinction is worth emphasizing.
A performance valve can retain stock-size head architecture while changing other characteristics.
That can include:
material
surface treatment
backside shape
stem geometry
transition design
and valvetrain-related features.
So when two valves are both described as “stock size,” that doesn't mean they're the same performance component.
Same nominal diameter does not mean same airflow geometry.
Why This Matters for Naturally Aspirated Ecotec Engines
In a naturally aspirated engine, cylinder filling and evacuation depend heavily on pressure differential, port geometry, valve events and exhaust behavior.
There isn't a compressor forcing additional mass through the cylinder head.
That makes airflow development particularly interesting.
Small improvements throughout the system can matter.
But again, the objective isn't to maximize one individual dimension.
The objective is to improve the complete airflow path while maintaining the durability required for racing.
That's the environment around which the BK Racing valve was developed.
Why This Matters for Circle-Track Engines
Circle-track use adds another requirement:
The valve has to keep doing it.
Lap after lap.
Heat cycle after heat cycle.
Thousands upon thousands of valve events.
A feature that creates an attractive bench number but compromises durability isn't a successful race-valve feature.
That's why the BK design balances:
airflow
strength
material
surface treatment
mass
and sustained-RPM durability.
The undercut stem is one piece of that balance.
What Should You Look for in an Undercut Performance Valve?
Don't just ask:
Does it have an undercut stem?
Ask:
Is the guide section still correctly sized?
Is the exposed stem appropriately reduced?
How does the reduced section transition?
How does it blend into the backside?
What material is the valve made from?
What surface treatment does it use?
Was the valve developed for the intended application?
Has the complete design actually been tested?
Those questions tell you much more than the words “undercut stem” on a product page.
Undercut Valve Stem FAQ
What is an undercut valve stem?
An undercut valve stem has a reduced-diameter section in an appropriate portion of the stem while retaining the required diameter where the valve operates in the guide.
Why undercut an exhaust-valve stem?
The primary airflow reason is to reduce the amount of stem material obstructing the exhaust port.
Can an undercut valve stem increase CFM?
Potentially. Reducing exposed stem obstruction can benefit airflow, but the actual result depends on the complete valve and cylinder-head combination.
How much CFM does an undercut stem add?
There is no universal number. BK has not performed a controlled stem-only A/B test, so we don't assign an isolated CFM gain to the undercut.
Did BK's valve gain CFM?
Yes. An intentionally undersized BK Racing development valve produced a measurable 3 CFM improvement over the stock baseline in back-to-back testing by MWR Technologies.
Was the 3 CFM gain caused by the undercut stem?
We don't make that claim. The undercut was part of a complete development valve containing multiple design changes. The +3 CFM result belongs to the complete development configuration.
Why was the BK development valve intentionally undersized?
To determine whether the valve-design direction could improve airflow without relying on increased valve-head diameter.
Does a smaller stem always flow better?
No. The stem's influence depends on the port, valve lift, velocity and surrounding geometry. It also has structural and thermal functions.
Why not make the entire valve stem smaller?
The guide section needs the proper stem diameter for alignment, operating clearance, mechanical stability and heat transfer.
Does an undercut stem reduce valve weight?
Removing material reduces some mass, although the amount depends on the specific design.
Does lower valve weight help at high RPM?
Reducing unnecessary moving mass can make the spring's control task easier, but strength and durability still have to be maintained.
Does an undercut stem require different guides?
Not inherently. A properly designed undercut valve retains the appropriate diameter through the guide region.
Can I undercut my stock Ecotec valves?
BK does not recommend arbitrarily removing material from a finished OEM exhaust valve. A purpose-built performance valve should be engineered around its final geometry and intended use.
Does the undercut affect valve lash?
Not directly. Lash is determined by the camshaft, rocker/follower, lash-adjustment system and valve-tip relationship.
Does an undercut stem increase valve lift?
No. It doesn't change the camshaft's commanded lift.
Does an undercut stem make horsepower?
There is no responsible universal horsepower value that can be assigned to the feature alone.
Why does the transition matter?
The reduced stem has to transition into the rest of the valve. That transition affects the shape presented to airflow and is also a mechanically important region.
Why doesn't BK publish the exact undercut dimensions?
Those dimensions and geometric relationships are part of the proprietary valve design. BK publishes the specifications customers need to correctly select and use the component without publishing the manufacturing recipe.
The Bottom Line: Reduce Obstruction Without Compromising the Valve
An undercut valve stem sounds simple:
Make part of the stem smaller.
But doing it correctly is considerably more involved.
The stem has to guide the valve.
It has to maintain alignment.
It has to carry mechanical loads.
It participates in heat transfer.
It has to survive thousands of high-RPM cycles.
And at the same time, part of it is sitting directly in the exhaust airflow.
The engineering challenge is therefore not:
How small can we make the stem?
It's:
How much material does the valve need, where does it need it, and where can unnecessary obstruction be removed?
That's the philosophy behind the BK Racing Ecotec Exhaust Valve.
We use an undercut stem.
We integrate it into the developed backside of the valve with a smooth transition.
We manufacture the valve from fully nitrided 21-4N stainless for the naturally aspirated, sustained-RPM racing environment it was developed around.
And most importantly, we didn't assume those design decisions worked.
We tested the development direction.
An intentionally undersized BK Racing development valve produced:
+3 CFM over the stock Ecotec exhaust-valve baseline.
Not because it was bigger.
It wasn't.
Not because we can assign the gain to one individual feature.
We can't.
It gained airflow as a complete valve design.
And that's the real lesson:
A valve stem isn't just holding the valve head. It's sitting in the airflow.
How you design it matters.
Continue Learning About Ecotec Exhaust Valves
Building the right Ecotec valvetrain involves more than choosing a single valve. Exhaust-valve material, head and stem geometry, valve springs, retainers, lash adjustment and camshaft geometry all work together—especially in sustained high-RPM racing applications. If you're putting together a complete combination, explore the guides below and see how components such as the BK Racing Ecotec Exhaust Valves, BK Racing 83 lb Valve Springs, BK Racing Lightweight Titanium Retainers and BK Racing Solid Lash Adjusters fit into the complete Ecotec valvetrain.
Stock vs Performance Ecotec Exhaust Valves: What Actually Changes?
Learn what really separates an OEM replacement valve from a purpose-built performance exhaust valve, including material, nitriding, backside geometry, stem design, margin and intended operating environment.
Do Performance Exhaust Valves Increase CFM? Our Ecotec Flow-Bench Testing
See what we learned from back-to-back Ecotec flow-bench testing, including why larger valve diameter didn't automatically produce more airflow and how the finished BK Racing Ecotec Exhaust Valve compared with the stock baseline.
Ecotec Exhaust Valve Size Guide: Stock Diameter, Stem Size & Applications
Compare stock and aftermarket Ecotec exhaust-valve head diameters, stem sizes, overall lengths and applications across the L61, LAP, LE5, LE9, LSJ and LNF engines.
21-4N Stainless vs Inconel vs OEM Ecotec Exhaust Valves
Understand the differences between OEM valve materials, 21-4N stainless and Inconel—and why the BK Racing Ecotec Exhaust Valve uses fully nitrided 21-4N stainless for the naturally aspirated, sustained-RPM racing applications it was developed around.
Why Exhaust Valve Shape Matters: Tulip, Back-Cut, Margin & Stem Geometry
Learn how the valve itself becomes part of the airflow path and why tulip shape, back-cut, margin, head thickness and stem geometry can matter just as much as valve-head diameter.
Stock Ecotec Exhaust Valves at High RPM: What Are the Limitations?
See what changes when a production Ecotec valvetrain is subjected to sustained racing RPM and why exhaust valves, BK Racing 83 lb Valve Springs and lightweight retainers should be considered as parts of the same system.
Ecotec Valve Springs, Exhaust Valves & RPM: Building the Valvetrain as a System
Go deeper into the relationship between valve mass, spring pressure, installed height, cam profile, retainers and RPM, including how the BK Racing 83 lb Valve Springs, BK Racing Lightweight Titanium Retainers, performance valves and BK Racing Solid Lash Adjusters can be combined into a complete racing valvetrain.
Reground Ecotec Cams & Valve Stem Height: Why Geometry Matters
Learn why reducing a camshaft's base circle changes the relationship between the cam, rocker, lash adjuster and valve—and why the extended-tip geometry of the BK Racing Ecotec Exhaust Valve was developed with reground-cam combinations in mind.
Ecotec Exhaust Valve Comparison: OEM vs Ferrea vs Supertech vs BK Racing
Compare OEM, Ferrea, Supertech and BK Racing Ecotec Exhaust Valves by dimensions, material, geometry and intended application, including where we have actual back-to-back flow-bench data and where we don't.
Are L61, LAP, LE5, LE9, LSJ & LNF Exhaust Valves Interchangeable?
See which Ecotec engines share basic exhaust-valve architecture, where important differences remain and what should be measured before combining valves, cylinder heads and valvetrain components from different Ecotec generations.
Start With the Complete Guide
The Complete Guide to GM Ecotec Exhaust Valves: L61, LAP, LE5, LE9, LSJ & LNF
Our complete Ecotec exhaust-valve resource brings together valve sizing, materials, airflow, geometry, high-RPM operation, camshaft compatibility and valvetrain setup in one place. It's the best starting point if you're planning an Ecotec cylinder-head or valvetrain combination and want to understand how all of these areas work together.
