Centrifugal Casting vs Conventional Casting

Understanding How the Casting Process Affects GM Ecotec Cylinder Sleeve Performance

Introduction

Not all cylinder sleeves are manufactured the same way. While two sleeves may appear nearly identical from the outside, the casting process used to produce them can significantly influence their internal structure, machining characteristics, wear resistance, and long-term durability.

One manufacturing method commonly used for high-performance cylinder sleeves is centrifugal casting. Many premium sleeve manufacturers choose this process because it helps produce a dense, uniform casting capable of withstanding demanding engine conditions. Other sleeves are produced using more conventional casting methods that remain well suited for many production and general-purpose applications.

Understanding the differences between these manufacturing processes helps engine builders evaluate cylinder sleeves based on engineering principles rather than marketing terminology. This guide explains how centrifugal casting differs from conventional casting and why many high-performance GM Ecotec cylinder sleeves are manufactured using this method.

What Is Conventional Casting?

Conventional casting is one of the oldest and most widely used metal manufacturing processes.

Molten metal is poured into a mold where it cools and solidifies into the desired shape. Once the casting has cooled, it is removed from the mold and machined to its final dimensions.

This manufacturing method is used throughout the automotive industry because it is efficient, repeatable, and capable of producing complex parts at high production volumes. Engine blocks, cylinder heads, transmission cases, and countless other components begin life using conventional casting techniques.

When properly engineered and manufactured, conventionally cast components provide excellent performance in many applications. General Motors has successfully used cast iron and aluminum castings in millions of production engines over several decades.

What Is Centrifugal Casting?

Centrifugal casting uses a different manufacturing approach.

Instead of allowing molten metal to cool in a stationary mold, the rotating mould spins at high speeds while the metal solidifies. Centrifugal force pushes the molten material uniformly against the inner surface of the mold throughout the casting process.

This continuous force helps create a dense, uniform cylinder wall while reducing the likelihood of internal voids, gas pockets, and other casting irregularities. The result is a cylindrical casting particularly well suited for components such as cylinder sleeves, where consistent material properties throughout the bore are especially important.

Because cylinder sleeves are naturally cylindrical components, centrifugal casting is especially well matched to their geometry.

Why Material Density Matters

Cylinder sleeves operate under tremendous mechanical and thermal loads.

Every combustion event attempts to expand the cylinder while piston rings continually slide against the bore surface thousands of times each minute. Over time, these repeated loads demand a material capable of maintaining its shape while resisting wear.

A dense, uniform casting helps provide consistent mechanical properties throughout the sleeve. Uniform material structure contributes to predictable machining, stable cylinder geometry, and consistent long-term performance.

This is one reason many premium performance sleeves utilize centrifugal casting as part of their manufacturing process.

Machining Consistency

Professional engine builders place tremendous importance on machining accuracy.

A sleeve that machines consistently allows the finished cylinder to achieve the desired bore geometry, surface finish, and piston clearance more predictably.

Because centrifugal casting produces a relatively uniform material structure throughout the sleeve, many machinists appreciate its predictable machining characteristics during boring and honing operations. That consistency also works well with CNC machining and careful finish work.

Consistent machining ultimately contributes to accurate piston ring seating and long-term engine performance.

Directional Solidification and Controlled Cooling

Another advantage of centrifugal casting is the way it supports controlled solidification during the casting process.

As the mold rotates, the outer surface begins to solidify while the molten metal is continuously forced outward. This promotes directional solidification, which helps form a dense outer surface and a stable cylindrical wall.

For sleeve manufacturers, this controlled cooling behavior can contribute to a more uniform grain structure and a more predictable finished part. In applications where wall thickness, bore stability, and repeatable machining matter, that consistency is especially valuable.

This is one reason centrifugal casting is often associated with high-reliability applications.

Vertical and Horizontal Centrifugal Casting

Centrifugal casting can be performed in vertical and horizontal setups depending on the part being produced.

Horizontal centrifugal casting is commonly used for long cylindrical parts such as pipes, sleeves, and other thin-walled cylinders. Vertical centrifugal casting is better suited to parts where the casting orientation helps control geometry, wall thickness, and solidification behavior.

In both cases, the core idea remains the same: rotational speed and centrifugal force help shape the molten metal against the mold wall while the part solidifies.

For cylinder sleeves, the geometry often makes horizontal centrifugal casting a natural fit.

Why Material Density Matters

Cylinder sleeves operate under tremendous mechanical and thermal loads.

Every combustion event attempts to expand the cylinder while piston rings continually slide against the inner diameter thousands of times each minute. Over time, these repeated loads demand a material capable of maintaining its shape while resisting wear.

This is one reason many premium performance sleeves utilize centrifugal casting as part of their manufacturing process.

Wear Resistance and Durability

The manufacturing process itself does not determine wear resistance.

Instead, wear resistance results from the combination of material composition, casting quality, heat treatment, machining practices, and operating conditions.

Centrifugal casting provides an excellent foundation by producing a dense, high-quality casting, while alloy composition—such as ductile iron with chromium-enhanced wear resistance—determines many of the material’s mechanical characteristics.

Together, these factors contribute to a sleeve capable of maintaining cylinder geometry and resisting wear throughout demanding operating conditions.

Why Many Performance Sleeve Manufacturers Use Centrifugal Casting

High-performance engine builders expect cylinder sleeves to operate under conditions far beyond those experienced by typical passenger vehicles.

Higher cylinder pressures, elevated engine speeds, aggressive piston ring packages, forced induction, and sustained racing environments all place increased demands on the cylinder wall.

For these applications, many manufacturers choose centrifugal casting because it produces a high-quality cylindrical casting well suited to precision machining and long-term durability.

This doesn’t mean conventionally cast sleeves are unsuitable for every application. Rather, centrifugal casting offers manufacturing characteristics that align particularly well with the requirements of premium performance cylinder sleeves.

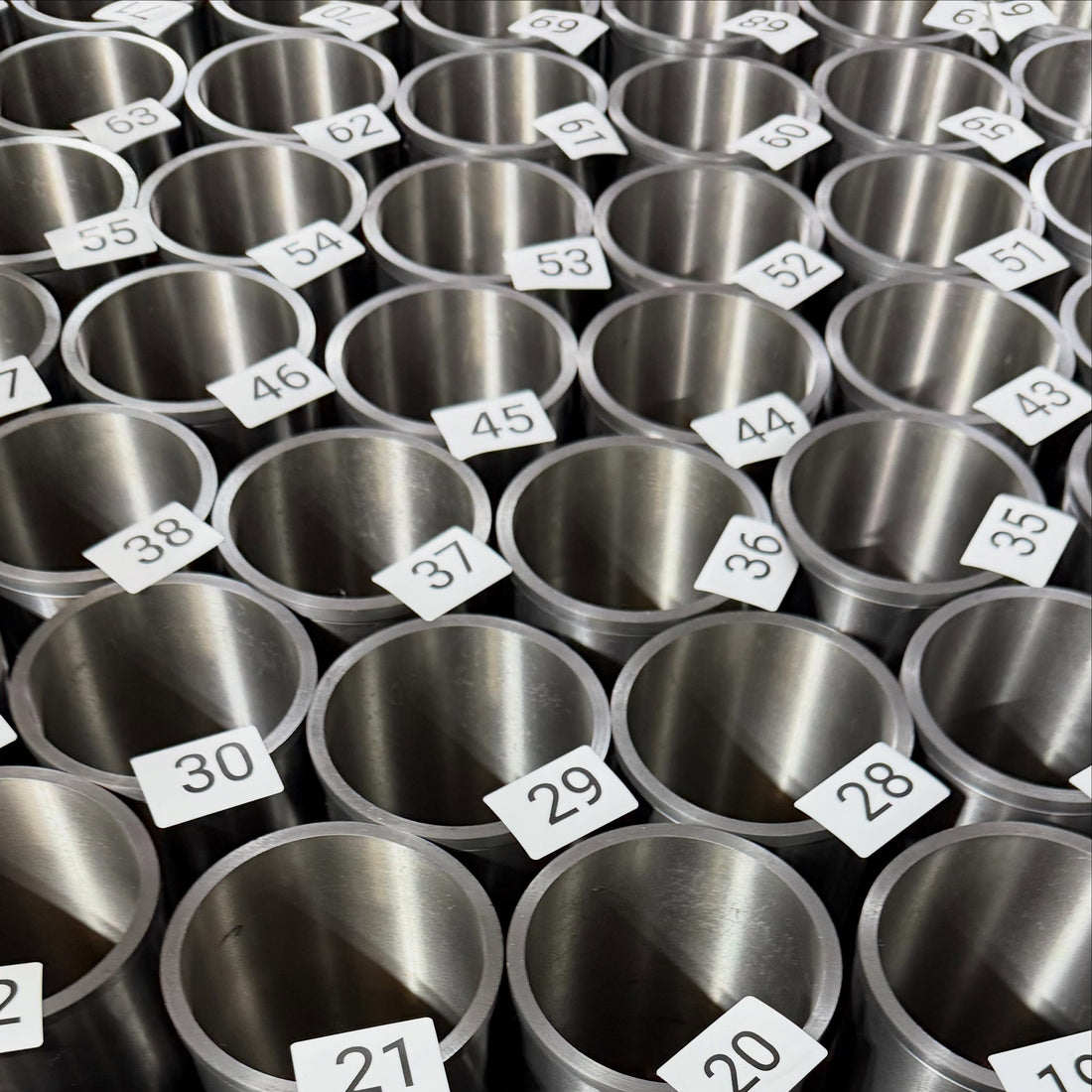

Why BK Racing Uses Centrifugally Cast Sleeves

BK Racing GM Ecotec Engine Sleeves are manufactured from centrifugally cast ductile iron with chromium-enhanced wear resistance because this combination provides an excellent balance of material density, dimensional stability, machinability, and long-term durability.

Rather than relying on a single feature, the sleeves combine high-quality materials with a manufacturing process specifically chosen for demanding naturally aspirated, turbocharged, supercharged, and circle track racing applications.

When combined with precision machining, proper interference fit, torque plate honing, and careful engine assembly, centrifugally cast sleeves provide a strong foundation for serious Ecotec engine builds.

Frequently Asked Questions

Is centrifugal casting stronger than conventional casting?

Centrifugal casting is valued because it helps produce dense, uniform cylindrical castings with consistent material properties. Overall sleeve performance still depends on material selection, machining quality, and proper installation.

What are the disadvantages of centrifugal casting?

Centrifugal casting is best suited to round or cylindrical parts, so it is not ideal for every component shape. It also depends on specialized equipment and careful process control.

What are the three types of centrifugal casting?

The three commonly referenced types are true centrifugal casting, semi-centrifugal casting, and centrifuging. Each uses centrifugal force differently depending on the part design.

Do all performance sleeves use centrifugal casting?

Many premium performance sleeves do, but manufacturing methods vary among manufacturers depending on the intended application and design.

Does centrifugal casting increase horsepower?

No.

The manufacturing process itself does not create horsepower. Its value lies in producing a high-quality sleeve capable of supporting demanding engine conditions over the long term.

Is conventional casting bad?

Not at all.

Conventional casting is widely used throughout the automotive industry and produces many excellent engine components. The manufacturing method should always be evaluated alongside the material, design, and intended application.

Why are centrifugally cast sleeves popular in racing engines?

They provide a dense, consistent casting that is well suited for precision machining and demanding operating environments where long-term durability and cylinder stability are important.

Conclusion

The way a cylinder sleeve is manufactured plays an important role in its overall quality, but manufacturing method is only one part of the equation. Conventional casting has served the automotive industry exceptionally well for decades, producing millions of reliable engine components. Centrifugal casting builds upon those manufacturing principles by creating dense, uniform cylindrical castings particularly well suited for high-performance cylinder sleeves.

For GM Ecotec builders, understanding the differences between these manufacturing methods provides valuable insight into how premium cylinder sleeves are engineered. When combined with ductile iron, chromium-enhanced wear resistance, precision machining, and proper installation, centrifugally cast sleeves provide a durable foundation capable of supporting demanding naturally aspirated, turbocharged, supercharged, and circle track racing applications.

Continue Learning About GM Ecotec Engine Building

Understanding how cylinder sleeves are manufactured is only one part of building a reliable high-performance Ecotec engine. Continue exploring our GM Ecotec technical guides to learn more about sleeve materials, machining procedures, bore sizing, and race-proven engine building practices. Want to dive deeper into Ecotec engine building? Explore our complete collection of technical guides:

Performance Parts

BK Racing GM Ecotec Engine Sleeves are manufactured from centrifugally cast ductile iron with chromium-enhanced wear resistance and precision matched into four-cylinder sets. Designed for 88mm through 92mm bore sizes, they provide a premium foundation for naturally aspirated, turbocharged, supercharged, and circle track racing applications where strength, consistency, and durability matter.
