Repairing Damaged GM Ecotec Engine Blocks

Introduction

Discovering damage inside a GM Ecotec engine block is never something an engine builder wants to see. Whether it’s a deeply scored cylinder wall, a cracked sleeve, piston damage, or evidence of severe overheating, many builders immediately assume the block is beyond repair. Fortunately, that isn’t always the case. Modern machining techniques and properly installed cylinder sleeves allow many damaged Ecotec blocks to be returned to service while providing an excellent foundation for future performance upgrades.

The key is understanding what type of damage you’re dealing with. Some failures affect only the cylinder bore and can often be repaired with precision machining and sleeve installation. Others compromise the structural integrity of the block itself, making replacement the more practical solution. Knowing the difference can save both time and money during an engine build.

This guide explains how experienced machine shops evaluate damaged Ecotec blocks, when sleeves are an effective repair, and when it’s better to start with another casting.

Can a Damaged Ecotec Block Be Repaired?

One of the biggest misconceptions in engine building is that any damage to an aluminum engine block automatically means the block must be replaced. In reality, many Ecotec engine blocks that appear severely damaged can often be successfully repaired, provided the damage is limited to the cylinder bore and the surrounding casting remains structurally sound.

Every repair begins with a complete inspection. Before machining is considered, the block should be checked for cracks, deck distortion, main bore alignment, corrosion, damaged threads, and overall casting integrity. The goal is not simply to determine whether a cylinder can be repaired, but whether the entire block is still capable of supporting a reliable engine build.

Experienced engine builders rarely make this decision based on appearance alone. Precision measurements determine whether the block is suitable for machining, and those measurements often reveal that a block with significant cylinder damage is still an excellent candidate for repair.

Common Types of Ecotec Block Damage

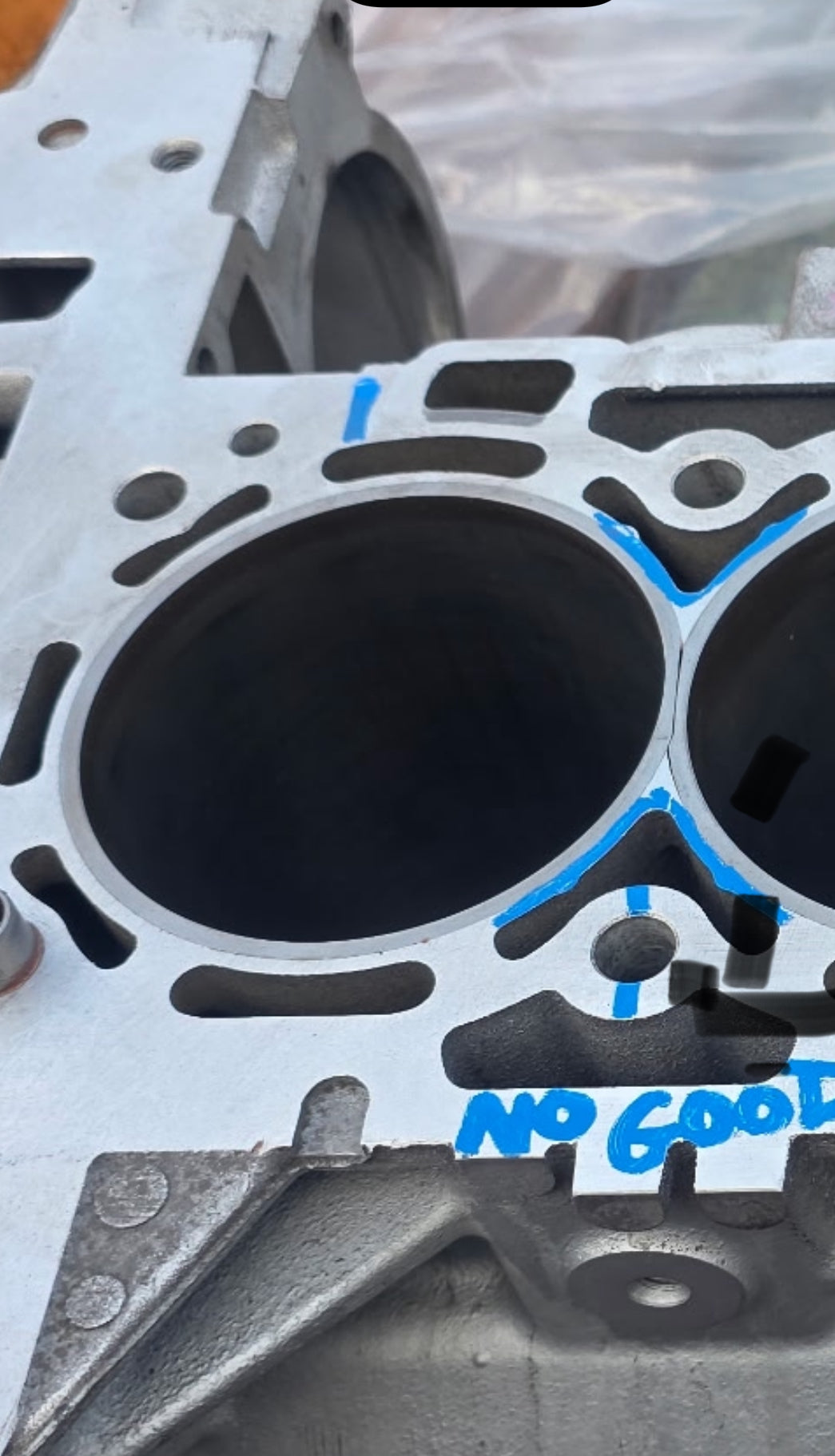

Cylinder wall damage is by far the most common reason builders consider installing sleeves. Deep scoring caused by piston failure, broken rings, lubrication problems, or debris entering the cylinder often extends beyond what can safely be removed during a normal overbore. When this happens, a cylinder sleeve allows the damaged material to be completely machined away before restoring the cylinder to its proper dimensions.

Cracked cylinder walls present another common repair scenario. Detonation, excessive boost pressure, freezing coolant, or severe overheating can all create cracks that extend through the cylinder wall. On many turbocharged Ecotec builds, high cylinder pressure from a 2.0L turbo setup can make this type of damage more likely if tuning or cooling is not managed correctly. If the damage is confined to the bore itself, installing a sleeve may restore the cylinder while maintaining the strength of the surrounding block. However, cracks extending into the deck surface, water jacket, or main bearing structure require much closer evaluation and may render the casting unusable.

Not all damage can be repaired with sleeves. Blocks that have suffered catastrophic connecting rod failures often lose large sections of aluminum or crack through critical structural areas. Likewise, severe overheating may distort the block enough that proper geometry cannot be restored economically. Sleeves repair damaged cylinders—they cannot restore the structural integrity of a destroyed engine block.

How the Ecotec Engine Family Affects Repair Decisions

The Ecotec engine family includes several versions used in popular GM applications such as the Chevrolet Malibu, Chevrolet Camaro, Cadillac ATS, and GMC Terrain. These engines can differ in displacement, induction, and internal hardware, so the repair strategy should always match the exact casting and engine code rather than the vehicle badge alone.

Many later Ecotec designs use direct fuel injection, variable valve timing, and continuously variable valve timing to improve drivability and efficiency. Some turbocharged versions also use an air-to-air intercooler, an electronically controlled wastegate, and engine control module tuning to manage boost and airflow. Those systems do not change the sleeve repair process directly, but they do make proper diagnosis more important before the block goes to the machine shop.

When evaluating a damaged block, builders should also consider related components such as the timing chain, variable-displacement oil pump, and sodium-filled exhaust valves, since these parts can influence whether the engine failed from oiling, timing, or heat-related issues in the first place.

When Cylinder Sleeves Become the Best Repair

Cylinder sleeves are often the preferred solution whenever damage is isolated to the cylinder bore. Rather than attempting to remove excessive material through boring alone, the damaged cylinder is machined oversize before a new sleeve is installed using a precision interference fit. Once installed, the block is decked, bored, and torque plate honed to produce a finished cylinder ready for final assembly.

This process restores the cylinder while providing a fresh machining surface capable of supporting new pistons and rings. Many builders also choose sleeves when creating larger bore combinations because they provide additional machining flexibility while strengthening the engine’s foundation for future performance upgrades.

The success of the repair depends far more on machining quality than on the sleeve itself. Proper interference fit, accurate sleeve height, correct boring procedures, and precision torque plate honing all contribute to the finished engine’s durability.

Repair or Replace?

Deciding whether to repair or replace an Ecotec block ultimately comes down to the condition of the casting and the intended use of the engine. A block with a damaged cylinder but otherwise excellent geometry may be an outstanding candidate for sleeve installation. Conversely, a block with cracked main webs, severe deck damage, or major structural fractures may cost more to repair than replacing it altogether.

Performance engine builders also consider future goals. If the engine is already being machined for forged pistons, upgraded connecting rods, or increased displacement, installing sleeves during the rebuild may eliminate the need for additional machine work later. In many cases, strengthening the block while it is already apart becomes a logical investment rather than an unnecessary expense.

Frequently Asked Questions

Is the Ecotec engine a good engine?

Yes, the Ecotec engine is generally regarded as a solid GM platform, especially when it is properly maintained and matched to the right application. Its mix of efficiency, modern valvetrain design, and available turbocharged variants makes it popular with both daily drivers and performance builders.

What cars have the Ecotec engine?

Ecotec engines have been used in a wide range of GM vehicles, including the Chevrolet Malibu, Chevrolet Camaro, Cadillac ATS, and GMC Terrain. Because the Ecotec family spans multiple generations and displacements, it’s important to verify the exact engine version before sourcing parts or planning repairs.

Is a 2.4 Ecotec a good engine?

The 2.4 Ecotec has a strong reputation for everyday use and can be dependable when serviced correctly. As with any engine, long-term reliability depends on maintenance, operating conditions, and whether the engine has been modified or pushed beyond its original design.

Can one Ecotec cylinder be sleeved?

Yes. If the damage is isolated to a single cylinder and the rest of the block remains structurally sound, an experienced machine shop can often repair that cylinder by installing one replacement sleeve. This is a common repair for engines with localized cylinder damage caused by piston failure, ring failure, or excessive wear.

However, many performance builders choose to install sleeves in all four cylinders during a complete engine build. Doing so provides consistent cylinder dimensions, greater flexibility for future bore sizes, and a stronger foundation for engines expected to see increased power or sustained racing use.

Can cylinder sleeves repair a cracked Ecotec cylinder?

In many cases, yes.

If the crack is confined to the cylinder bore itself, installing a properly fitted sleeve may completely eliminate the damaged area and restore the cylinder. The damaged material is machined away before the new sleeve is installed, creating an entirely new cylinder surface.

The success of the repair depends on the location and severity of the crack. Damage extending into the deck surface, water jacket, or structural portions of the block may not be suitable for repair and should always be evaluated by an experienced machine shop.

Can cylinder sleeves repair scored cylinder walls?

Absolutely.

Deep cylinder scoring is one of the most common reasons builders install performance sleeves. Minor scratches can often be removed during normal boring and honing operations, but severe scoring may require removing more material than the factory sleeve can safely accommodate.

Installing a new sleeve restores the cylinder while allowing the engine to be machined to the desired bore size.

Can a windowed Ecotec block be repaired?

Usually not.

If a connecting rod has broken through the side of the block or damaged the main bearing structure, the casting itself has often suffered structural damage beyond what cylinder sleeves can repair. While every engine should be inspected individually, most windowed blocks are replaced rather than rebuilt.

Cylinder sleeves repair damaged cylinders—they cannot restore missing aluminum or rebuild the structural integrity of the block.

Should I sleeve one cylinder or all four?

There is no single correct answer.

For a street engine with localized damage, replacing a single sleeve is often a perfectly acceptable repair. For high-performance or racing applications, many builders choose to sleeve all four cylinders while the block is already being machined.

Installing a complete matched sleeve set provides greater consistency throughout the block while allowing future bore changes and performance upgrades without revisiting the short block.

Is repairing an Ecotec block worth it?

Often, yes.

A quality Gen 3 Ecotec block can be difficult to replace, and many damaged blocks can be restored with precision machining and properly installed sleeves. When combined with forged rotating assemblies, upgraded pistons, and professional machine work, a repaired block can become the foundation for an engine capable of supporting significantly greater performance than it originally produced.

The decision ultimately depends on the condition of the casting, the cost of repairs, and the intended goals of the engine build.

Conclusion

Finding damage inside a GM Ecotec engine block doesn’t automatically mean the engine is beyond repair. In many cases, scored cylinders, cracked cylinder walls, or excessive bore wear can be successfully repaired through professional machining and cylinder sleeve installation. Modern machining techniques allow experienced engine builders to restore damaged blocks while creating a stronger foundation for future performance.

The key is accurately evaluating the condition of the block before machining begins. While sleeves are an excellent solution for repairing damaged cylinders, they cannot compensate for severe structural damage, poor machine work, or problems elsewhere in the engine. Every successful repair begins with careful inspection, precise measurements, and selecting the correct repair strategy for the application.

For many builders, repairing a damaged block is more than simply restoring an engine to service. It’s an opportunity to strengthen the foundation, increase bore capability, and prepare the engine for naturally aspirated, turbocharged, supercharged, or circle track racing applications. When combined with proper machining and quality components, a sleeved Ecotec block can provide years of reliable performance in even the most demanding environments.
