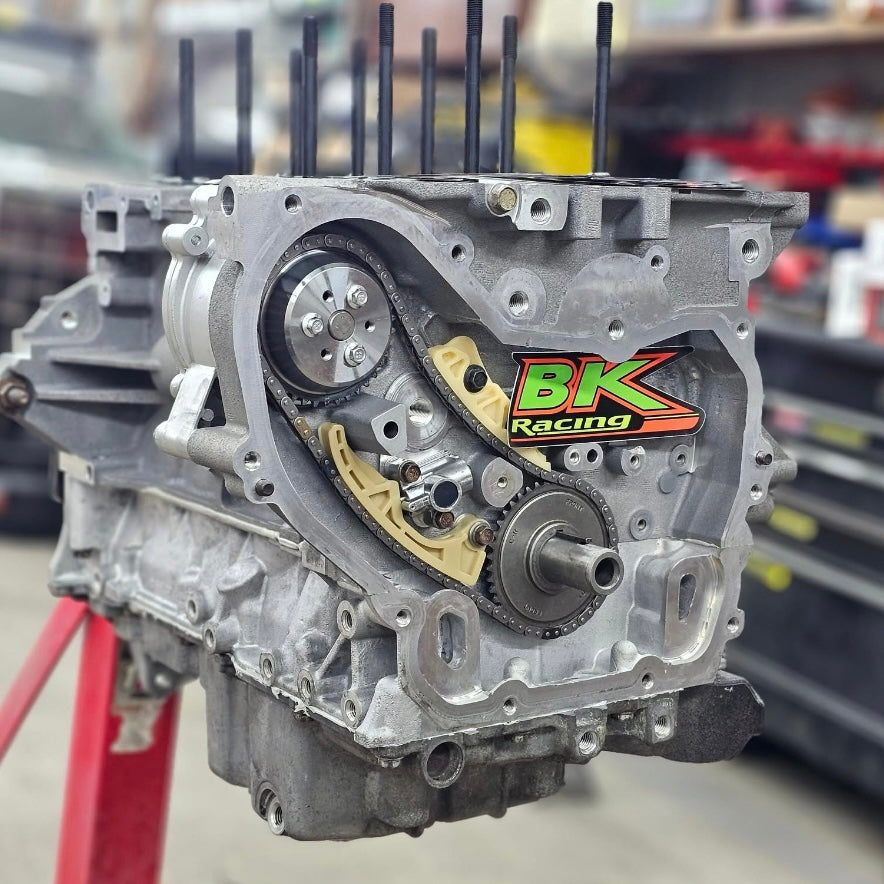

How to Install GM Ecotec Cylinder Sleeves

Installing Ecotec cylinder sleeves is one of the most critical machining operations performed on a GM Ecotec engine block. While premium sleeves provide the foundation for a stronger engine, the quality of the machining ultimately determines how well the finished engine performs.

Whether you’re repairing a damaged block, building a naturally aspirated race engine, or preparing a high-horsepower turbocharged combination, proper cylinder sleeve removal/installation and sleeve fitting are essential for maintaining cylinder stability, ring seal, and long-term durability.

This guide walks through the complete installation process for GM Ecotec cylinder sleeves, explains why each machining operation matters, and highlights common mistakes that can shorten engine life.

If you’re still deciding whether your engine needs sleeves, start by reading our Complete GM Ecotec Cylinder Sleeve Guide before continuing.

Why Proper Installation Matters
Required Equipment
Inspecting the Engine Block
Measuring the Factory Cylinders
Determining the Correct Sleeve Size
Machining the Cylinder Bore
Creating the Correct Interference Fit
Preparing the Sleeve
Installing the Sleeve
Checking Sleeve Height
Decking the Block
Finish Boring
Torque Plate Honing
Final Cleaning
Measuring the Finished Bore
Common Installation Mistakes
Frequently Asked Questions

1. Why Proper Installation Matters

Cylinder sleeves do not simply “drop into” an engine block.

They become a structural part of the block itself.

When properly installed, the sleeve and aluminum casting work together to support combustion pressure while maintaining precise cylinder geometry under extreme operating conditions.

Improper installation can lead to:

Poor ring seal
Coolant leaks
Sleeve movement
Cracked decks
Head gasket failure
Excessive oil consumption
Premature engine failure

Even the highest-quality sleeve cannot compensate for poor machine work.

2. Required Equipment

Professional sleeve installation typically requires:

Precision boring machine
Vertical machining center or boring mill
Cylinder sleeve installation tooling
Hydraulic press (where applicable)
Deck surfacing machine
Precision dial bore gauges
Outside micrometers
Torque plates
Cylinder hone
Surface finish measuring equipment
Sleeve drivers
Precision measuring tools

Most installations should be performed by an experienced engine machine shop.

3. Inspecting the Engine Block

Before machining begins, thoroughly inspect the cylinder block.

Check for:

Cracked decks
Main web damage
Cylinder wall cracks
Corrosion
Previous sleeve repairs
Freeze damage
Warped deck surfaces
Main bore alignment

If the block has suffered catastrophic connecting rod failure, carefully inspect the entire casting before investing in machining.

4. Measuring the Factory Cylinders

Before machining:

Measure every cylinder.

Record:

Bore diameter
Out-of-round
Taper
Deck flatness
Sleeve depth
Wall thickness (if applicable)

These measurements establish the machining strategy and help identify hidden problems before material is removed.

5. Determining the Correct Sleeve Size

The sleeve should be selected before machining begins.

Factors include:

Finished bore diameter
Intended horsepower
Piston selection
Remaining wall thickness
Interference fit
Deck flange dimensions

BK Racing sleeves support finished bore diameters from 88mm through 92mm, providing flexibility for both repair and performance engine applications on 2.0L, 2.2L, and 2.4L Ecotec builds.

6. Machining the Cylinder Bore

The original cylinder is machined to accept the new cylinder bore sleeve.

The machinist establishes:

Bore diameter
Bore depth
Counterbore dimensions
Deck register
Concentricity

Every dimension must be held accurately because the sleeve depends entirely on this bore for support.

7. Creating the Correct Interference Fit

One of the most important steps is establishing the proper interference fit.

The sleeve should be slightly larger than the machined cylinder bore.

This interference fit locks the sleeve into the block after installation and prevents movement during engine operation.

Too little interference may allow sleeve movement.

Too much interference can distort the cylinder or damage the block.

Every sleeve manufacturer specifies recommended interference based on sleeve material, diameter, and intended application.

8. Preparing the Sleeve

Before installation:

Measure every sleeve
Verify flange dimensions
Inspect for shipping damage
Clean thoroughly
Remove burrs if necessary
Verify orientation

Many machine shops also chill the sleeves prior to installation to make assembly easier while reducing installation force.

9. Installing the Sleeve

The sleeve is carefully installed into the prepared cylinder using proper installation tooling.

The sleeve must remain perfectly square throughout installation.

Excessive force or cocking the sleeve can damage both the sleeve and the engine block.

Once fully seated, the sleeve should contact the counterbore uniformly around its entire circumference.

10. Checking Sleeve Height

After installation, verify sleeve protrusion above the deck.

Most performance sleeves intentionally remain slightly proud of the deck before machining.

The block will then be surfaced to establish the final sleeve height and perfectly flat deck.

11. Decking the Block

Once all sleeves have been installed, the deck is resurfaced.

Decking:

Produces a perfectly flat sealing surface
Equalizes sleeve height
Improves head gasket sealing
Restores deck finish

This operation should always be completed before finish boring.

12. Finish Boring

After decking, each cylinder is bored close to its final diameter.

This prepares the cylinder for the final honing process while establishing the proper geometry.

Only a small amount of material remains for finish honing.

13. Torque Plate Honing

Torque plate honing simulates the distortion created by the installed cylinder head.

Because the cylinder changes shape when the head is torqued into place, professional builders hone cylinders with a torque plate installed.

This results in:

Better ring seal
More consistent compression
Improved oil control
Longer engine life

Many experienced engine builders consider torque plate honing essential for serious performance engines.

14. Final Cleaning

Machining debris is extremely abrasive.

After honing:

Wash the block thoroughly
Brush every oil passage
Clean coolant passages
Dry immediately
Apply rust preventative where appropriate

The block should remain perfectly clean before assembly begins.

15. Measuring the Finished Bore

Before assembly:

Verify:

Bore diameter
Roundness
Straightness
Surface finish
Crosshatch angle
Piston-to-wall clearance

Never assume the finished dimensions are correct.

Measure everything.

16. Common Installation Mistakes

Avoid these common errors:

Incorrect interference fit
Not decking after installation
Skipping torque plate honing
Improper sleeve protrusion
Incorrect piston clearance
Poor surface finish
Inadequate cleaning
Mixing unmatched sleeves
Improper measuring procedures

Nearly every major sleeve-related engine failure can be traced back to machine work rather than the sleeve itself.

Frequently Asked Questions

Can cylinder sleeves be installed at home?

Not realistically. Precision machining equipment is required.

Should the block be decked after installing sleeves?

Yes. Decking establishes the final sleeve height and produces the sealing surface for the head gasket.

Is torque plate honing necessary?

For performance engine builds, it is strongly recommended and considered standard practice by many professional engine builders.

Can one cylinder be sleeved?

Yes.

Many damaged Ecotec blocks are repaired by sleeving only the affected cylinder, while performance builds often sleeve all four cylinders for consistency.

Should sleeves be finish honed after installation?

Absolutely.

Final boring and torque plate honing are required after installation.
