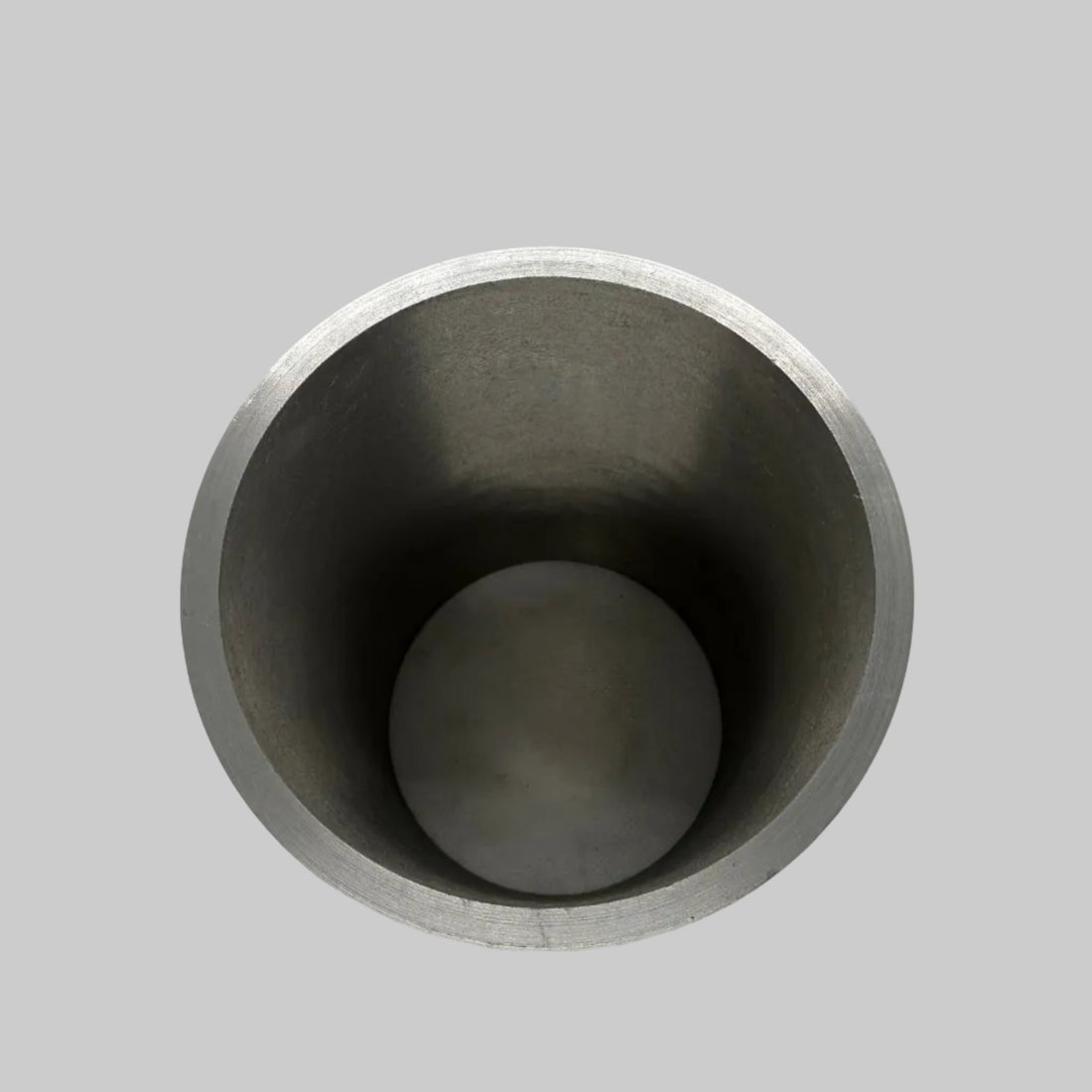

Why Ductile Iron Matters

Q: Is ductile iron stronger than regular cast iron?

Ductile iron generally offers greater toughness and resistance to cracking than traditional cast iron while maintaining excellent wear resistance, making it well suited for demanding engine applications.

Why Ductile Iron Is the Preferred Material for High-Performance GM Ecotec Cylinder Sleeves

Introduction

When researching performance cylinder sleeves, you’ll often see terms like ductile iron, ductile cast iron, nodular iron, spheroidal graphite iron, or centrifugally cast iron used to describe the material. While these specifications sound impressive, many engine builders don’t fully understand why they matter or how they influence the performance and durability of a finished engine.

The truth is that cylinder sleeves perform one of the most demanding jobs inside an engine. Every combustion event exposes the cylinder wall to extreme pressure, rapid temperature changes, piston side loading, and constant contact with the piston rings. Over thousands of revolutions per minute, these loads are repeated millions of times throughout the life of the engine.

Material selection determines how well the sleeve resists those forces. The right material helps maintain cylinder geometry, supports consistent piston ring seal, resists surface wear, and provides the strength and durability required for demanding naturally aspirated, turbocharged, supercharged, and circle track racing applications.

This guide explains why ductile iron has become the preferred material for many high-performance GM Ecotec cylinder sleeves and why material selection is just as important as proper machining.

What Is Ductile Iron?

Despite its name, ductile iron is not a weak or flexible material.

The term ductile refers to the material’s ability to deform slightly under extreme loading before fracturing. This characteristic makes it significantly more resistant to cracking than many traditional cast irons while still maintaining the hardness and wear resistance required for engine components.

The difference comes from the material’s internal microstructure. Instead of forming long, brittle graphite flakes, the graphite exists as small rounded nodules distributed throughout the iron. This seemingly small change has a dramatic effect on how the material handles stress.

Rather than allowing cracks to propagate easily through the casting, the nodular graphite structure helps interrupt crack growth while improving the material’s overall toughness.

For engine builders, that translates into a sleeve capable of handling demanding operating conditions without sacrificing wear resistance.

Why Material Selection Matters

Cylinder sleeves operate under some of the harshest conditions inside the engine.

Combustion pressure attempts to expand the cylinder during every firing event while the piston rings continuously slide against the bore surface. At the same time, heat from combustion flows through the sleeve into the surrounding aluminum block before repeating the entire process thousands of times every minute.

The sleeve must maintain its shape throughout these constantly changing mechanical and thermal loads.

A material that resists wear but lacks toughness may become more susceptible to cracking under severe operating conditions. Conversely, a material with excellent toughness but poor wear resistance may allow the cylinder bore to wear prematurely.

Ductile iron provides an excellent balance between strength and durability, making it well suited for high-performance engine applications.

Improved Toughness

One of ductile iron’s greatest advantages is its ability to absorb stress without becoming brittle.

High-performance engines frequently experience elevated cylinder pressure from increased compression ratios, turbocharging, supercharging, nitrous oxide, or sustained racing operation. These conditions create tremendous loads on the cylinder wall.

The improved toughness of ductile iron allows the sleeve to better withstand these repeated stress cycles while maintaining the dimensional stability required for reliable engine operation.

This characteristic becomes increasingly valuable as engine demands continue to increase.

Excellent Wear Resistance

Cylinder wear directly affects piston ring seal, oil control, and compression.

A sleeve that wears quickly gradually loses its ability to support an effective seal between the piston rings and cylinder wall. Blow-by increases, oil consumption rises, and engine performance slowly declines.

Ductile iron provides excellent wear resistance while remaining highly machinable. Combined with proper honing techniques and quality piston rings, it helps maintain consistent cylinder geometry over extended periods of operation.

This is one reason ductile iron has become so widely accepted throughout the performance engine industry.

Stable Cylinder Geometry

Maintaining cylinder geometry is one of the primary responsibilities of any cylinder sleeve.

Every combustion event attempts to distort the cylinder while piston side loading continually pushes against the cylinder wall throughout the engine’s operating range.

A stable sleeve helps maintain a consistent cylinder bore under these loads, allowing the piston rings to maintain effective contact with the cylinder wall.

Better cylinder stability contributes directly to improved ring seal, reduced blow-by, and consistent engine performance.

Why Ductile Iron Works So Well in Aluminum Blocks

The GM Ecotec combines an aluminum engine block with iron cylinder sleeves.

This combination allows builders to take advantage of aluminum’s lightweight construction and excellent heat dissipation while relying on iron to provide the wear surface required for the piston rings.

Ductile iron complements this design particularly well because it offers excellent dimensional stability while remaining compatible with precision machining operations required during sleeve installation.

When combined with proper interference fit, deck machining, and torque plate honing, ductile iron sleeves become an integral structural component of the finished engine.

Why Performance Builders Choose Ductile Iron

The choice to use ductile iron is not based on marketing.

It is based on decades of experience throughout the performance engine industry.

Engine builders consistently choose ductile iron because it offers an excellent balance of strength, toughness, wear resistance, machinability, and dimensional stability. Those characteristics become increasingly valuable as engine output, cylinder pressure, and operating demands continue to rise.

For builders investing significant time and money into a performance engine, selecting the proper sleeve material simply becomes another part of creating a reliable foundation.

Frequently Asked Questions

What is ductile iron used for?

Ductile iron is used in industrial applications where strength and durability matter, including engine components, pipe, gears, machine bases, and heavy-duty castings. In performance engines, it is commonly used for cylinder sleeves and other wear-critical parts.

Is ductile iron stronger than regular cast iron?

Ductile iron generally offers greater tensile strength, yield strength, toughness, and resistance to cracking than traditional cast iron while maintaining excellent wear resistance, making it well suited for demanding engine applications.

Is ductile iron better than cast iron?

For many high-stress applications, yes. Compared with cast iron that has graphite flakes, ductile iron’s nodules rather than flakes improve impact resistance and help reduce crack propagation. The best choice still depends on the specific application.

Does ductile iron increase horsepower?

No.

Ductile iron does not create horsepower by itself. Its value comes from providing a durable, stable cylinder capable of supporting demanding engine combinations over the long term.

Why don’t all engines use ductile iron blocks?

Modern aluminum engine blocks reduce vehicle weight and improve heat transfer. Using ductile iron sleeves allows engineers to combine the advantages of both materials.

Will ductile iron rust?

Yes, ductile iron can rust if it is exposed to moisture without protection. Like other iron-based materials, it benefits from proper storage, oiling, and corrosion resistance when needed.

Does ductile iron improve ring seal?

Indirectly, yes.

Its dimensional stability and wear resistance help maintain consistent cylinder geometry, allowing piston rings to perform as intended.

Is ductile iron only beneficial for race engines?

No.

Although race engines often place the greatest demands on cylinder sleeves, the material’s durability and wear resistance also benefit many high-performance street engines.

Conclusion

Ductile iron has earned its reputation throughout the performance engine industry because it offers an outstanding combination of toughness, wear resistance, dimensional stability, and machinability. Those characteristics make it an excellent choice for cylinder sleeves operating under demanding conditions where maintaining cylinder geometry and long-term durability are critical.

For GM Ecotec builders, understanding why ductile iron matters is less about selecting the strongest material available and more about selecting the right material for the intended application. Combined with proper machining, accurate installation, and precision engine assembly, ductile iron sleeves provide a reliable foundation capable of supporting everything from high-performance street engines to dedicated circle track and forced induction race builds.

Continue Learning About GM Ecotec Engine Building

Selecting the proper sleeve material is only one part of building a reliable high-performance Ecotec engine. Continue exploring our GM Ecotec technical guides to learn more about cylinder sleeves, bore sizing, machining procedures, ring seal, and race-proven engine building practices. Want to dive deeper into Ecotec engine building? Explore our complete collection of technical guides:

Performance Parts

BK Racing GM Ecotec Engine Sleeves are manufactured from centrifugally cast ductile iron with chromium-enhanced wear resistance and precision matched into four-cylinder sets. Designed for 88mm through 92mm bore sizes, they provide a strong foundation for naturally aspirated, turbocharged, supercharged, and circle track racing applications where long-term durability and cylinder stability matter.
