Dry Sleeves vs. Wet Sleeves Explained

Q: Do dry sleeves support high-horsepower Ecotec engines?

Absolutely. Properly installed dry sleeves provide a stable cylinder foundation capable of supporting elevated cylinder pressures and larger bore combinations.

Q: Do cylinder sleeves increase horsepower?

No. Cylinder sleeves do not directly create additional horsepower; they provide a stronger and more stable cylinder that can support higher power levels.

Q: How much does sleeving an engine cost?

The cost varies based on the block, the number of cylinders sleeved, machining requirements, and whether the work is for repair or performance.

Why Nearly Every High-Performance GM Ecotec Engine Uses Dry Sleeves

Introduction

If you’ve been researching GM Ecotec engine sleeves, you’ve almost certainly encountered the terms dry sleeves and wet sleeves. At first glance, they appear to serve the same purpose. Both provide the cylinder wall that the piston and piston rings ride against, both are used to repair damaged engine blocks, and both can support high-performance engine builds. Yet despite these similarities, they are engineered very differently and are intended for completely different engine architectures.

One of the most common questions we receive at BK Racing is whether the GM Ecotec can use wet sleeves or whether a wet sleeve conversion would somehow be superior to a traditional dry sleeve installation. It’s an understandable question, especially when many high-horsepower racing engines and heavy-duty diesel engines utilize wet sleeves. However, comparing the two without understanding how each system was designed can often lead to confusion.

The reality is that General Motors engineered every aluminum Ecotec engine around a dry cylinder sleeve. This wasn’t simply a manufacturing decision—it was a deliberate engineering choice that allowed the aluminum block and cast iron sleeve to function together as a single structural assembly. That relationship between the sleeve and the block plays a critical role in cylinder stability, piston ring seal, oil control, heat transfer, and ultimately the long-term reliability of the engine.

For performance builders, understanding the differences between dry and wet sleeves goes far beyond learning terminology. It explains why modern aluminum performance engines are designed the way they are, why cylinder rigidity becomes increasingly important as horsepower rises, and why proper sleeve installation is just as critical as selecting quality pistons, connecting rods, or crankshafts.

In this guide, we’ll explain exactly how dry sleeves and wet sleeves work, why the GM Ecotec was designed around a dry sleeve architecture, and how sleeve design influences everything from naturally aspirated circle track engines to high-horsepower turbocharged race cars. Whether you’re repairing a damaged block or building an engine from scratch, understanding the engineering behind the cylinder sleeve will help you make more informed decisions throughout the entire build process.

What Is a Cylinder Sleeve?

Before comparing dry and wet sleeves, it’s important to understand what a cylinder sleeve actually does.

Many people think of a cylinder sleeve as simply a replaceable cylinder wall, but in reality it performs several of the most demanding jobs inside the engine. Every time combustion occurs, thousands of pounds of pressure are generated above the piston. That pressure attempts to force the cylinder walls outward while the piston rings simultaneously slide against the cylinder surface at extremely high speeds. During this process, the cylinder sleeve must contain combustion pressure, support the piston, provide a precision wear surface for the piston rings, transfer heat into the engine block, and maintain an extremely accurate cylinder shape throughout millions of combustion cycles.

In an aluminum engine like the GM Ecotec, the piston cannot ride directly against the aluminum casting. Although aluminum offers excellent weight savings and heat transfer, it simply isn’t hard enough to survive continuous contact with modern piston rings. Instead, GM installs cast iron cylinder sleeves into the aluminum block, combining the lightweight characteristics of aluminum with the durability and wear resistance of iron.

As engine performance increases, the demands placed on these sleeves increase dramatically. Higher compression ratios, greater boost pressure, increased engine speeds, and larger bore sizes all create additional stress on the cylinder walls. Under these conditions, the cylinder sleeve becomes far more than a wear surface—it becomes one of the primary structural components responsible for maintaining cylinder geometry and supporting reliable engine operation.

Understanding this relationship is the first step toward understanding why dry sleeve design has become the standard for modern aluminum performance engines.

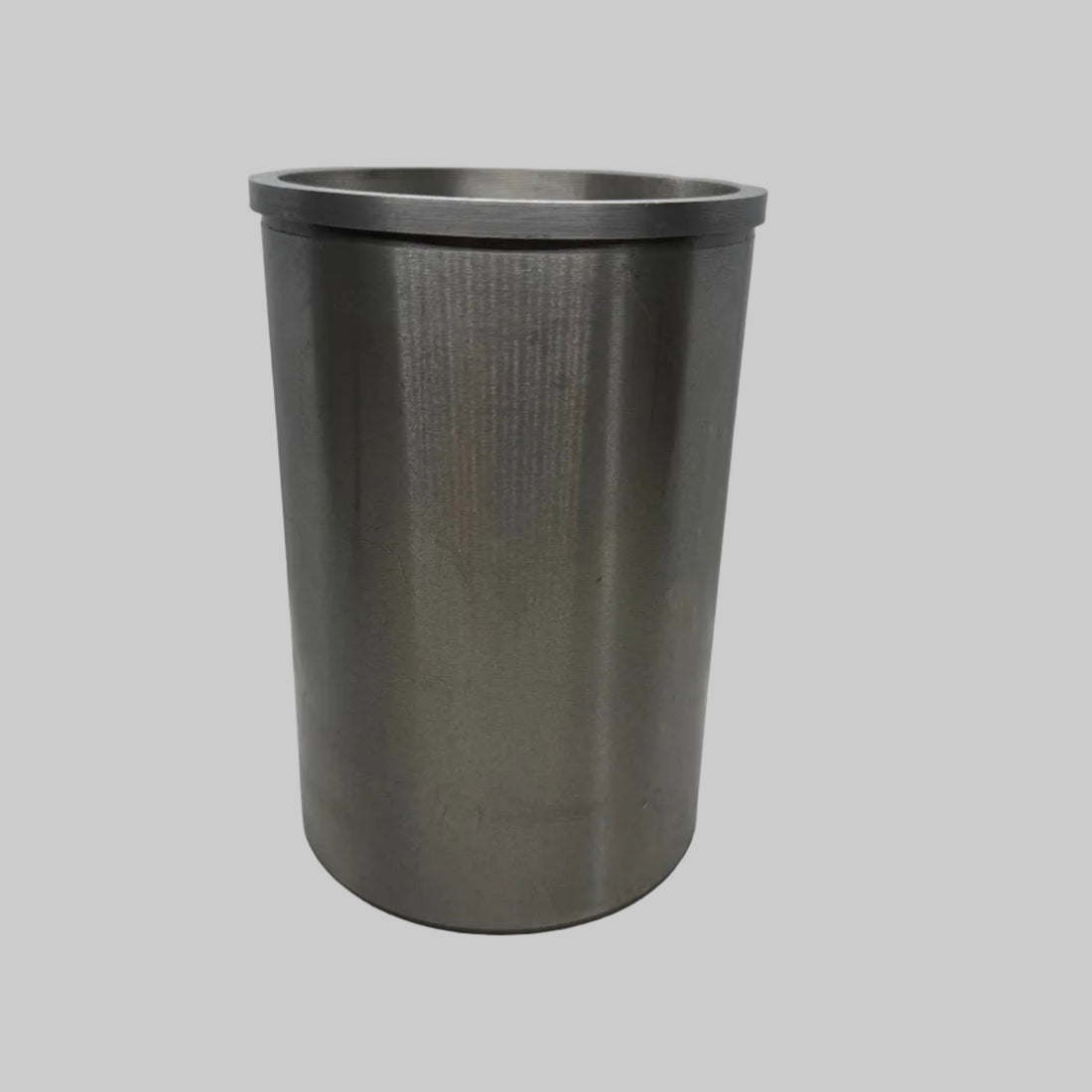

What Is a Dry Sleeve?

A dry sleeve is a cylinder liner installed into a precision-machined bore within the engine block using a carefully controlled interference fit. Once installed, the sleeve is completely surrounded by the parent block, allowing the aluminum casting to support the sleeve around its entire outside diameter.

Unlike wet sleeves, coolant never comes into direct contact with the outside of the cylinder liner. Instead, heat generated during combustion travels from the piston into the sleeve, through the interference fit, and into the surrounding aluminum block before being carried away by the engine’s cooling system.

From an engineering standpoint, the most important characteristic of a dry sleeve isn’t that it remains dry—it’s that the sleeve and the engine block function together as a single structural assembly.

Every combustion event attempts to expand the cylinder outward. Because the sleeve is fully supported by the surrounding aluminum, that force is distributed throughout the engine block rather than being carried by the sleeve alone. The result is a rigid cylinder capable of maintaining its shape under demanding operating conditions.

This stability has a direct influence on several critical aspects of engine performance. A more stable cylinder bore allows the piston rings to maintain more consistent contact with the cylinder wall, improving compression retention, reducing blow-by, improving oil control, and producing more repeatable power throughout the engine’s operating range.

This is one of the primary reasons dry sleeves have become the standard design for virtually every modern aluminum automotive engine, including the entire GM Ecotec engine family.

What Is a Wet Sleeve?

Although wet sleeves serve the same basic purpose as dry sleeves, they are engineered very differently.

Rather than being completely supported by the surrounding engine block, a wet sleeve is designed to function as an independent cylinder. The outside of the sleeve is exposed directly to engine coolant, with sealing rings or O-rings preventing coolant from entering the crankcase.

Because the sleeve itself forms the complete cylinder wall, the surrounding engine block provides significantly less structural support than it does in a dry sleeve design. Instead, the engine block is specifically engineered around the wet sleeve architecture from the beginning.

One of the major advantages of wet sleeves is serviceability. In many heavy-duty diesel engines, individual sleeves can be replaced without extensive machining, allowing engines to be rebuilt multiple times over their service life. This makes wet sleeves particularly attractive for commercial applications where minimizing downtime is a priority.

For this reason, wet sleeves are commonly found in:

Heavy-duty diesel engines
Agricultural equipment
Marine engines
Industrial power plants
Certain purpose-built racing engines

These applications often prioritize ease of rebuilding, field serviceability, and continuous heavy-load operation.

While wet sleeves offer excellent cooling characteristics due to direct coolant contact, they require an engine block specifically engineered for their unique sealing and support requirements. They are not simply another style of sleeve that can be installed into a dry sleeve engine.

Why GM Designed the Ecotec Around Dry Sleeves

When General Motors developed the Ecotec engine family, engineers weren’t simply designing a lightweight production engine. They were creating an aluminum engine platform capable of delivering excellent durability, low emissions, efficient heat management, and impressive performance potential.

One of the key design decisions was pairing a rigid aluminum deep-skirt block with fully supported dry cylinder sleeves.

The aluminum block provides exceptional stiffness while keeping overall engine weight low. The dry sleeves are then installed with an interference fit that allows them to become an integral part of the block rather than functioning as separate components. Instead of relying solely on the sleeve to resist combustion pressure, the surrounding aluminum helps support the cylinder throughout its entire length.

This shared load path offers several important engineering advantages.

As combustion pressure increases, the surrounding block helps maintain cylinder geometry, reducing bore distortion and allowing the piston rings to maintain a more consistent seal. Heat generated within the cylinder is efficiently transferred through the sleeve and into the aluminum casting, where it can be removed by the cooling system. At the same time, the rigid deep-skirt architecture provides excellent support for the crankshaft and rotating assembly.

The result is an engine platform that has become one of the most successful four-cylinder performance engines ever produced.

Whether powering naturally aspirated circle track cars, turbocharged street cars, drag racing builds, or road racing applications, the Ecotec’s dry sleeve architecture continues to demonstrate why GM’s original engineering philosophy remains highly effective decades after its introduction.

How Dry Sleeves Increase Cylinder Stability

Perhaps the greatest advantage of a dry sleeve isn’t found in the sleeve itself—it’s found in the relationship between the sleeve and the engine block.

Imagine trying to squeeze an empty steel tube in your hand. Now imagine placing that same tube inside a precisely machined aluminum housing that supports it around its entire circumference. The tube becomes dramatically more resistant to deformation because the surrounding material shares the load.

The same principle applies inside a GM Ecotec engine.

Every combustion event attempts to force the cylinder wall outward. As horsepower, compression ratio, boost pressure, and engine speed increase, those forces become progressively greater. Because a dry sleeve is fully supported by the surrounding aluminum block, much of that load is transferred into the block itself rather than being carried solely by the sleeve.

For engine builders, maintaining cylinder stability is one of the keys to long-term performance. A cylinder that remains round under load allows the piston rings to maintain consistent contact with the cylinder wall, preserving compression, minimizing blow-by, improving oil control, and producing repeatable horsepower throughout the engine’s operating range.

This is why professional engine builders often focus less on maximum bore size and more on maintaining cylinder rigidity. A stable cylinder almost always produces a more reliable engine than one that simply maximizes displacement at the expense of structural support.

Ultimately, the strength of a dry sleeve system doesn’t come from the sleeve alone. It comes from the way the sleeve and the engine block work together as a single engineered assembly—a philosophy that remains at the core of every GM Ecotec engine and one that continues to make the platform an outstanding foundation for serious performance applications.

Why Cylinder Stability Matters

Understanding how a dry sleeve is supported by the engine block naturally leads to a much more important question: why does cylinder stability matter in the first place?

The answer lies in what happens inside the cylinder every time the spark plug fires.

During combustion, the expanding gases don’t simply push the piston downward. They apply tremendous force equally in every direction, including outward against the cylinder walls. At low engine speeds and moderate loads, those forces are relatively easy for the engine block to manage. As compression ratio, engine speed, and cylinder pressure increase, however, the loads acting on the cylinder become dramatically greater. A naturally aspirated street engine may experience these conditions only briefly, while a turbocharged drag engine or a circle track engine operating near the rev limiter may subject the cylinders to these forces continuously.

Although these forces are invisible once the engine is assembled, they influence nearly every aspect of engine performance. Every cylinder attempts to change shape under load, and even microscopic amounts of distortion can affect how well the piston rings seal against the cylinder wall. Professional engine builders spend countless hours discussing block rigidity, deck strength, torque plate honing, and cylinder wall thickness because they all influence one fundamental objective—maintaining a round, stable cylinder throughout the engine’s operating range.

A stable cylinder creates a stable environment for every component operating inside it. When the bore maintains its shape, the piston remains better supported, the piston rings maintain more consistent contact with the cylinder wall, and combustion pressure stays where it belongs—above the piston. That translates into improved compression retention, reduced blow-by, better oil control, and more consistent power production throughout the engine’s life.

For this reason, experienced engine builders rarely judge an engine block by horsepower potential alone. They evaluate how well it maintains cylinder geometry under load, because every horsepower-producing component in the engine ultimately depends on the cylinder remaining stable.

How Dry Sleeves Improve Ring Seal

If cylinder stability provides the foundation, piston ring seal is where that stability begins producing measurable results.

Modern piston rings perform one of the most demanding jobs inside an internal combustion engine. During every revolution of the crankshaft they must contain combustion pressure, regulate the engine’s oil film, and transfer heat from the piston into the cylinder wall—all while traveling thousands of feet every minute. They accomplish these tasks remarkably well, but only when the cylinder they ride against maintains a consistent shape.

Many enthusiasts imagine piston rings simply wearing themselves into the cylinder until everything seals. Modern engine building is far more precise than that. Today’s piston rings are manufactured to extremely tight tolerances and rely on a carefully machined cylinder finish to create an effective seal. The cylinder bore itself becomes just as important as the rings installed inside it.

When combustion pressure causes the cylinder to distort, the rings must constantly adapt to a changing surface. Instead of maintaining uniform contact around the circumference of the bore, portions of the ring may lose contact while others become overloaded. This increases combustion leakage, allows additional gases to enter the crankcase, and reduces the ring’s ability to control oil effectively.

A properly supported dry sleeve helps minimize these changes by allowing the surrounding engine block to share the combustion loads acting on the cylinder. Maintaining bore geometry allows the piston rings to operate under more consistent conditions, preserving compression, reducing blow-by, and improving long-term durability.

This relationship between cylinder stability and ring seal is one of the reasons professional machine shops place such emphasis on precision boring, torque plate honing, and accurate piston-to-wall clearances. Every machining operation ultimately supports the ability of the piston rings to perform their job as efficiently as possible.

Heat Transfer and Cooling

Cylinder sleeves do far more than support the piston and contain combustion pressure. They also serve as a critical path for transferring heat out of the combustion chamber.

Every combustion event generates an enormous amount of thermal energy. While much of that energy is converted into useful work, a significant portion must be removed to prevent excessive temperatures from damaging the piston, cylinder head, valves, and piston rings. The cylinder sleeve plays an important role in moving that heat away from the combustion chamber and into the engine’s cooling system.

One of the most common misconceptions surrounding dry sleeves is that they somehow cool less effectively than wet sleeves because coolant does not directly contact the outside of the sleeve. While this assumption appears logical at first, it overlooks how the Ecotec engine was engineered.

A dry sleeve installed with the proper interference fit maintains intimate contact with the surrounding aluminum block along its entire outer surface. Aluminum is an excellent conductor of heat, allowing thermal energy to move efficiently from the sleeve into the surrounding casting before reaching the coolant passages. Rather than relying solely on the sleeve to dissipate heat, the entire engine block participates in the cooling process.

This becomes particularly beneficial in sustained performance applications where engines experience repeated heat cycles over long periods of operation. Instead of concentrating thermal loads within an unsupported cylinder liner, the dry sleeve architecture distributes those loads throughout the surrounding block, helping maintain dimensional stability as temperatures rise.

Proper cooling is therefore determined by the complete thermal path from the combustion chamber to the coolant—not simply whether coolant touches the outside of the sleeve.

Dry Sleeves in Naturally Aspirated Performance Engines

When enthusiasts discuss performance engine builds, attention often shifts toward turbocharged combinations. However, naturally aspirated racing engines place equally demanding stresses on the cylinder block, particularly when they operate at sustained engine speeds for extended periods.

Circle track engines, road race engines, and endurance applications frequently spend entire races operating near their maximum RPM. During that time, the cylinders experience millions of combustion events while continually cycling through heat, pressure, and mechanical loading. Maintaining cylinder stability under these conditions becomes every bit as important as producing peak horsepower.

Many successful naturally aspirated engine builders intentionally choose combinations that prioritize durability over maximum displacement. Rather than chasing the largest possible bore, they recognize that preserving cylinder wall thickness and maintaining excellent ring seal often produces more consistent power throughout an entire race season.

This philosophy aligns closely with the engineering principles behind the GM Ecotec. By integrating the dry sleeve into the surrounding aluminum block, the engine maintains a rigid cylinder structure capable of supporting sustained high-RPM operation while preserving the bore geometry necessary for consistent ring seal and reliable performance.

Dry Sleeves in Turbocharged Ecotec Engines

Turbocharging changes the operating environment inside the cylinder more dramatically than almost any other engine modification.

As boost pressure increases, combustion pressure rises proportionally, placing significantly greater loads on the pistons, connecting rods, crankshaft, cylinder head, and cylinder walls. Every increase in boost asks the cylinder to resist additional outward force while still maintaining the precise geometry required for effective ring seal.

For this reason, the foundation of a turbocharged engine becomes increasingly important as horsepower climbs. Before considering larger turbochargers or more aggressive tuning, experienced builders focus on strengthening the block, selecting appropriate pistons, optimizing clearances, and ensuring the cylinders remain stable under elevated loads.

The dry sleeve architecture of the Ecotec provides an excellent foundation for these applications because the cylinder is supported by the surrounding aluminum block rather than functioning as an independent liner. That support helps preserve cylinder geometry under increasing combustion pressure, allowing the piston rings to continue sealing effectively as engine demands increase.

Of course, no cylinder sleeve can compensate for poor tuning, detonation, inadequate fuel quality, or improper machining. Like every component in a performance engine, the sleeve is only one part of a complete system. Nevertheless, maintaining a rigid and properly supported cylinder provides the stable foundation upon which every successful high-performance engine is built.

Why Circle Track Racers Value Cylinder Stability

Few forms of motorsports expose an engine to the continuous demands experienced in circle track racing.

Unlike drag racing, where maximum power is required for only a few seconds, circle track engines often spend twenty, thirty, or even fifty laps operating near peak engine speed. Throughout an entire feature race the cylinders are subjected to continuous combustion pressure, repeated thermal cycling, and constant acceleration and deceleration.

Under these conditions, consistency becomes more valuable than absolute peak horsepower.

An engine that produces identical compression and ring seal on the final lap as it did on the opening lap will almost always outperform one that gradually loses efficiency as temperatures rise. Maintaining stable cylinder geometry allows the piston rings to continue sealing effectively throughout the race, helping preserve compression, reduce oil consumption, and maintain repeatable horsepower.

This emphasis on consistency has shaped many of the products developed at BK Racing. Our focus has always been on improving long-term reliability rather than chasing impressive dyno numbers. Whether developing cylinder sleeves, balance shaft delete systems, or oil control products, the objective remains the same—help builders create engines capable of delivering dependable performance every time they take the green flag.

Comparing Dry Sleeves and Wet Sleeves

By now, it’s clear that dry sleeves and wet sleeves are designed around two fundamentally different engineering philosophies. Although both provide a hardened cylinder wall for the piston and piston rings, the similarities largely end there. Each system was developed to meet the needs of a specific type of engine, and understanding those design priorities makes it much easier to appreciate why General Motors engineered the Ecotec platform around a dry sleeve architecture.

Rather than asking which design is universally “better,” a more accurate question is this: Which design best matches the engine you’re building? For a heavy-duty diesel expected to accumulate hundreds of thousands of miles before being rebuilt in the field, the answer may be very different than for a lightweight aluminum performance engine expected to operate at high RPM. The intended application—not marketing claims—should always determine the appropriate design.

Structural Design

Perhaps the most significant difference between dry sleeves and wet sleeves is how they interact with the engine block itself.

A dry sleeve becomes an integral part of the block once it has been installed with the proper interference fit. The surrounding aluminum supports the sleeve along its entire outside diameter, allowing combustion loads to be distributed throughout the block rather than concentrating them solely within the cylinder liner. Instead of functioning independently, the sleeve and engine block operate together as a single structural assembly.

A wet sleeve follows a different engineering philosophy. Because coolant surrounds much of the outside diameter, the sleeve itself becomes the primary structural component forming the cylinder wall. The engine block is specifically designed to support this architecture, with sealing surfaces and O-rings preventing coolant from entering the crankcase while allowing the sleeve to remain removable.

Neither approach is inherently right or wrong—they simply solve different engineering problems. The Ecotec was designed from the beginning as a lightweight, rigid aluminum engine, making a fully supported dry sleeve the logical solution for achieving both durability and performance.

Cooling Characteristics

One of the most persistent misconceptions surrounding cylinder sleeves is that wet sleeves always provide superior cooling simply because coolant comes into direct contact with the sleeve.

While it is true that wet sleeves transfer heat directly into the coolant, that alone does not determine the overall cooling efficiency of the engine. Heat follows a complete path, beginning in the combustion chamber before moving through the piston, cylinder wall, engine block, and finally into the coolant. Every part of that thermal path contributes to temperature control.

In a dry sleeve engine such as the GM Ecotec, the interference fit between the sleeve and the aluminum block creates intimate contact over the entire outer surface of the sleeve. Because aluminum conducts heat extremely well, thermal energy moves efficiently into the surrounding block before reaching the coolant passages. Rather than concentrating heat within an isolated cylinder liner, the entire block participates in absorbing and dissipating thermal energy.

This approach provides excellent temperature stability while simultaneously preserving the structural rigidity that makes dry sleeves so effective in modern aluminum performance engines.

Serviceability and Engine Rebuilding

One area where wet sleeves offer a clear advantage is serviceability.

Many heavy-duty diesel engines are expected to remain in operation for decades while accumulating hundreds of thousands—or even millions—of miles. Rather than replacing the entire engine block when the cylinders become worn, technicians can remove the existing wet sleeves and install new ones with minimal machining. This significantly reduces downtime while lowering rebuilding costs for commercial operators.

Passenger car engines follow a different philosophy.

Modern automotive engines are designed around precision machining rather than field serviceability. When a GM Ecotec requires cylinder repair or performance upgrades, the block is typically machined to accept new dry sleeves before being decked, bored, and torque plate honed. Although this process requires specialized equipment, it also allows the finished cylinders to be machined with exceptional accuracy and consistency.

For performance engine builders, precision generally outweighs ease of replacement. Once the sleeves have been professionally installed and machined, they become a permanent part of the engine block capable of supporting years of demanding operation.

Machining Requirements

Regardless of sleeve design, machining quality ultimately determines engine reliability.

Installing dry sleeves requires careful measurement, precise boring, proper interference fit, accurate sleeve installation, deck resurfacing, final boring, and torque plate honing. Every machining operation builds upon the previous one, meaning accuracy during the early stages directly influences the finished engine.

Wet sleeves simplify some aspects of replacement because the block is designed specifically around removable liners. However, that convenience should not be mistaken for simplicity. Proper liner protrusion, sealing ring installation, block preparation, and sleeve height remain critical machining operations that require the same level of precision expected in any professional engine build.

No cylinder sleeve—dry or wet—can compensate for poor machining practices.

Whether the goal is repairing a damaged block or building a high-horsepower race engine, precision remains the single most important factor influencing long-term reliability.

Performance Applications

As performance demands increase, the priorities of the engine builder begin to shift.

Instead of focusing solely on ease of rebuilding, attention turns toward maintaining cylinder geometry under increasing combustion pressure, preserving ring seal throughout extended operating conditions, and providing a stable foundation for high engine speeds.

This is where the design philosophy behind the dry sleeve architecture becomes particularly effective.

By allowing the surrounding engine block to share combustion loads, dry sleeves help maintain cylinder rigidity as horsepower, compression ratio, and boost pressure increase. A more stable cylinder allows piston rings to perform more consistently, contributing to reliable compression, improved oil control, and repeatable power production throughout the engine’s operating range.

This engineering approach explains why virtually every modern aluminum performance engine—including the GM Ecotec—continues to utilize dry sleeves despite the existence of alternative sleeve designs.

Common Misconceptions About Dry and Wet Sleeves

Because cylinder sleeves are frequently discussed on internet forums, several misconceptions continue to circulate among enthusiasts. While often repeated, many of these statements oversimplify complex engineering concepts.

One common belief is that wet sleeves automatically cool better than dry sleeves. In reality, cooling performance depends on the complete thermal path throughout the engine rather than whether coolant directly contacts the sleeve. A properly engineered dry sleeve system transfers heat extremely efficiently through the surrounding aluminum block.

Another misconception is that wet sleeves are inherently stronger because they are used in many diesel engines. Heavy-duty diesel engines are designed around entirely different operating conditions, engine architecture, and service requirements than lightweight aluminum automotive engines. Comparing the two without considering those differences often leads to misleading conclusions.

Some enthusiasts also assume that installing aftermarket sleeves automatically increases horsepower. Cylinder sleeves do not create horsepower on their own. Instead, they provide a stronger, more stable foundation capable of supporting higher cylinder pressures, larger bore sizes, and more demanding engine combinations. The horsepower comes from the complete engine package—not the sleeve itself.

Finally, many builders believe the largest possible bore is always the best choice. In practice, preserving cylinder rigidity often produces more consistent performance than maximizing displacement. Experienced engine builders understand that a stable cylinder with excellent ring seal frequently outperforms a larger bore suffering from excessive distortion.

Why Performance Engine Builders Continue Choosing Dry Sleeves

As engine technology has evolved, so have the expectations placed on cylinder sleeves.

Today’s performance engines demand exceptional dimensional accuracy, consistent ring seal, efficient heat management, and long-term durability under conditions far more demanding than those encountered in normal passenger vehicle use. These requirements have reinforced the importance of integrating the cylinder sleeve into the structure of the engine block rather than treating it as an isolated component.

For the GM Ecotec platform, this philosophy has proven remarkably successful.

The combination of a rigid aluminum deep-skirt block and fully supported dry sleeves has allowed the Ecotec to excel in applications ranging from daily driven street cars to championship-winning circle track cars, road race machines, drag cars, and high-horsepower turbocharged builds.

Rather than relying on a single component to achieve performance, the Ecotec’s architecture demonstrates the value of designing the entire engine as a complete structural system.

Frequently Asked Questions

What is a dry sleeve?

A dry sleeve is a cylinder liner installed into the engine block with an interference fit. The sleeve is fully supported by the surrounding block, and coolant does not contact the outside of the liner.

What is the difference between a wet sleeve and a dry sleeve?

A wet sleeve is exposed directly to coolant and is designed as a more independent cylinder liner, while a dry sleeve is supported by the engine block and functions as part of a single structural assembly. Wet sleeves are more common in heavy-duty diesel and industrial engines; dry sleeves are standard in modern aluminum performance engines.

Are all GM Ecotec engines equipped with dry cylinder sleeves?

Yes. Every production aluminum GM Ecotec engine utilizes a dry cylinder sleeve architecture. Although displacement, cylinder head design, and induction systems vary across the Ecotec family, the engines share the same fundamental philosophy of supporting the cylinder sleeve within the surrounding aluminum block. This design has proven itself in millions of production vehicles while also serving as the foundation for countless naturally aspirated, turbocharged, supercharged, drag racing, road racing, and circle track performance builds.

Can a GM Ecotec engine be converted to wet sleeves?

In theory, almost anything can be engineered with enough time and resources. In practice, converting a GM Ecotec to a wet sleeve design would require redesigning the engine block itself. The Ecotec casting was never intended to support removable wet sleeves, coolant sealing rings, or the structural requirements associated with that type of cylinder liner. For virtually every performance application, professionally installed dry sleeves remain the proper solution.

Do dry sleeves support high-horsepower Ecotec engines?

Absolutely.

Many of the highest-performing GM Ecotec engines in competition rely on properly installed dry sleeves because they provide a stable cylinder foundation capable of supporting elevated cylinder pressures and larger bore combinations. However, cylinder sleeves are only one component of a successful engine build. Proper machine work, accurate piston clearances, quality components, effective tuning, and a well-designed cooling system all contribute to long-term reliability.

Do cylinder sleeves increase horsepower?

Cylinder sleeves should not be viewed as a horsepower modification.

Installing performance sleeves does not directly create additional horsepower. Instead, sleeves provide a stronger and more stable cylinder capable of supporting the engine combination required to produce higher power levels. They also allow builders to repair damaged cylinders and increase bore size when appropriate. Ultimately, horsepower comes from the complete engine package—not from any single component.

How much does sleeving an engine cost?

The cost of sleeving an engine can vary widely based on the block, the number of cylinders being sleeved, machining requirements, and whether the work is being done for repair or performance. Because dry sleeve installation requires precision machining and professional assembly, it is best treated as a specialized engine-building service rather than a simple parts replacement.

Is the largest possible bore always the best choice?

Not necessarily.

While increasing bore diameter adds displacement and can improve airflow by reducing valve shrouding, it also reduces cylinder wall thickness. Every engine represents a balance between displacement, cylinder stability, ring seal, cooling efficiency, and intended operating conditions.

Experienced engine builders rarely ask, “What’s the biggest bore I can run?” Instead, they ask, “What bore size best supports the goals of this engine?”

That approach consistently produces more reliable and repeatable performance.

Can one damaged cylinder be sleeved?

Yes.

Many machine shops repair individual damaged cylinders by installing a single replacement sleeve. When performed correctly, a sleeved cylinder can restore an otherwise unusable engine block to service.

Performance engine builders often sleeve all four cylinders when planning larger bore combinations or building engines expected to operate under elevated cylinder pressures. The appropriate approach depends on the condition of the block and the goals of the engine build.

Why do professional engine builders emphasize machine work so heavily?

Because precision machining determines how well every component inside the engine functions.

Even the highest-quality cylinder sleeve cannot compensate for improper bore geometry, incorrect interference fit, poor deck preparation, or inaccurate honing. Likewise, premium pistons and piston rings cannot perform as intended if the cylinder itself is not machined correctly.

Successful engines are built through precision—not shortcuts.

Why BK Racing Builds Dry Sleeves for the GM Ecotec

At BK Racing, we didn’t develop our GM Ecotec cylinder sleeves because the market needed another sleeve manufacturer.

We developed them because serious Ecotec builders deserved a product specifically engineered for the demands of modern performance applications.

Our sleeves are manufactured from premium centrifugally cast ductile iron with chromium-enhanced wear resistance, providing exceptional strength, dimensional stability, and long-term durability. Each sleeve is individually measured, inspected, and grouped into matched four-cylinder sets to improve consistency during installation and machining.

Just as importantly, we recognize that quality components deserve quality information.

That’s why we’ve invested heavily in creating one of the most comprehensive GM Ecotec technical libraries available anywhere. Our goal isn’t simply to sell performance parts—it’s to help builders understand the engineering behind them so they can make informed decisions and build more reliable engines.

Whether you’re restoring a damaged block, increasing bore size, or building a championship-winning race engine, our objective remains the same:

Provide builders with the strongest possible foundation for their next GM Ecotec engine.

Conclusion

The debate between dry sleeves and wet sleeves often centers around which design is “better.” In reality, the answer depends entirely on the engine platform and its intended purpose.

Wet sleeves excel in applications where field serviceability and rapid cylinder replacement are priorities, making them an excellent choice for many heavy-duty diesel, industrial, and marine engines.

The GM Ecotec was engineered around a different philosophy.

By integrating fully supported dry sleeves into a rigid aluminum deep-skirt block, General Motors created an engine architecture capable of maintaining excellent cylinder stability, efficient heat transfer, consistent ring seal, and outstanding long-term durability. Those same characteristics have helped establish the Ecotec as one of the most versatile four-cylinder performance platforms available today.

As horsepower, compression ratio, boost pressure, and engine speed increase, the importance of maintaining cylinder geometry only becomes greater. Cylinder sleeves do far more than provide a wear surface for the piston rings—they become an integral part of the engine’s structural foundation.

For builders pursuing reliable performance, understanding how that foundation works is every bit as important as selecting the correct pistons, connecting rods, crankshaft, or cylinder head.

At BK Racing, we believe informed builders build better engines. By understanding the engineering behind dry sleeves, you’ll be better equipped to make decisions that improve reliability, maximize performance, and keep your GM Ecotec performing at its best for years to come.

Continue Learning About GM Ecotec Engine Building

Building a reliable, high-performance Ecotec engine involves far more than selecting the right cylinder sleeves. Explore our complete collection of GM Ecotec technical guides to learn more about engine machining, bore sizing, piston selection, and race-proven engine building practices.

Performance Parts

If you’re planning your next engine build, explore BK Racing GM Ecotec Engine Sleeves, engineered specifically for Gen 3 GM Ecotec engines and precision manufactured from centrifugally cast ductile iron with chromium-enhanced wear resistance. Every sleeve set is individually measured, matched, and designed to support bore sizes from 88mm to 92mm, providing a strong foundation for naturally aspirated, turbocharged, supercharged, and circle track racing applications.

Tags:

Engine Building
