Engine Building

Introduction

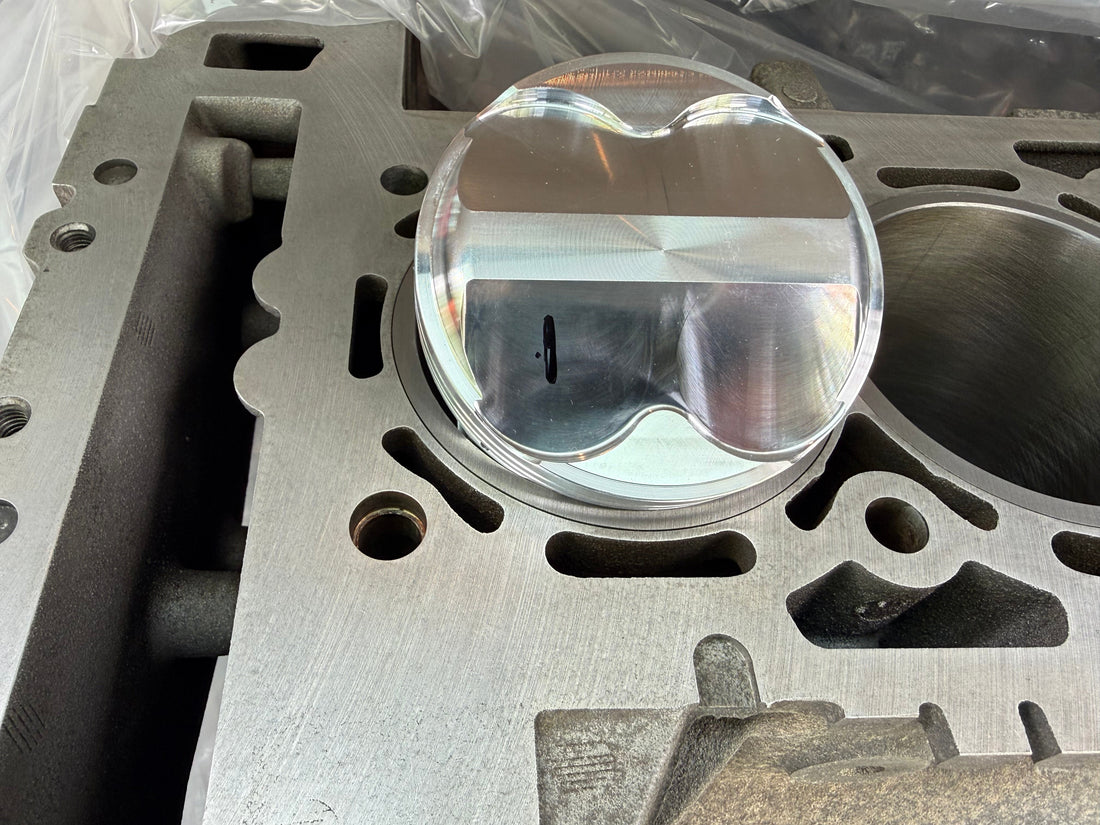

Selecting the correct bore size is one of the most important decisions you’ll make when building a GM Ecotec engine. Bore diameter affects engine displacement, cylinder wall thickness, piston selection, ring seal, cooling efficiency, combustion characteristics, and long-term reliability.

While many builders automatically assume that a larger bore produces more power, that’s only part of the equation. Every increase in bore size removes material from the cylinder wall, changing how the block handles cylinder pressure and heat. The best bore size depends on your application, intended power level, available machine work, and whether you’re using factory cylinders or aftermarket sleeves.

In this guide, we’ll explain the advantages and disadvantages of every common Ecotec bore size from 88mm through 92mm, helping you choose the right combination for your next engine build. We’ll also touch on related fitment details like piston sizing and how bore size differs from bolt pattern measurements.

What Is Bore Size?

The bore is the diameter of each cylinder inside the engine block. Combined with the crankshaft stroke, bore determines the engine’s total displacement.

Increasing bore size increases cylinder volume, allowing the engine to move more air and fuel during each combustion cycle. Larger bores also expose more of the combustion chamber to the valves, reducing valve shrouding and improving airflow in many cylinder head designs.

However, increasing bore diameter also reduces cylinder wall thickness. Removing too much material can decrease cylinder stability under high cylinder pressures, making proper bore selection a balance between airflow, displacement, and durability.

For performance engines, choosing the correct bore size is far more important than simply selecting the largest possible piston.

Stock GM Ecotec Bore Sizes

GM produced several generations of Ecotec engines using different bore diameters depending on displacement and application.

Common factory bore sizes include:

Factory cylinders were designed for production durability, emissions compliance, and hundreds of thousands of miles of normal driving. They were not designed around large overbores, sustained high RPM racing, or extreme cylinder pressure.

As performance demands increase, many builders install aftermarket cylinder sleeves to safely support larger bore sizes and improve long-term durability.

Why Builders Increase Bore Size

There are several reasons why an engine builder may increase the bore diameter during a rebuild.

One of the most common reasons is to remove cylinder damage. Years of use can leave scoring, taper, or out-of-round cylinders that require machining before new pistons and rings can be installed.

Performance builders also increase bore size to gain additional displacement. Although each millimeter of bore only adds a small amount of cubic inches, every increase improves airflow potential and slightly increases engine capacity.

Another advantage is piston availability. Many aftermarket piston manufacturers offer more compression ratios, ring packages, and custom options in popular oversizes such as 88.5mm, 89mm, or 90mm.

Finally, larger bores reduce valve shrouding by moving the cylinder wall farther away from the intake and exhaust valves. On properly prepared cylinder heads, this can improve airflow and increase power.

88mm Bore

An 88mm bore is considered the baseline performance size for larger Ecotec engines and remains one of the most reliable combinations available.

Builders often choose an 88mm bore when restoring a standard Gen 3 Ecotec block or installing aftermarket sleeves while maintaining maximum cylinder wall thickness. Because very little material is removed, the cylinders retain excellent rigidity, making this size well suited for engines expected to see long service life or sustained racing conditions.

Advantages include:

• Maximum cylinder wall support
• Excellent ring seal potential
• Outstanding long-term durability
• Ideal for endurance and circle track racing
• Minimal machining required on sleeved blocks

For many naturally aspirated race engines, 88mm provides an excellent balance between durability and performance.

88.5mm Bore

An 88.5mm bore is one of the most popular sizes among Ecotec engine builders.

Removing only 0.5mm from the cylinder diameter provides a fresh machining surface while allowing builders to use a wide variety of aftermarket forged pistons. The increase in displacement is modest, but the availability of piston options makes this size extremely attractive for custom builds.

Because cylinder wall thickness remains relatively generous, 88.5mm is commonly used in both naturally aspirated and forced induction applications.

Builders frequently select 88.5mm when installing aftermarket sleeves because it offers an excellent compromise between displacement, strength, and piston selection.

Advantages include:

• Excellent piston availability
• Strong cylinder stability
• Popular forged piston size
• Suitable for turbocharged or naturally aspirated builds
• Very good long-term durability

89mm Bore

A 89mm bore is another popular choice for performance Ecotec builds and is often selected when builders want additional displacement without pushing cylinder wall thickness to its practical limit.

Many aftermarket forged piston manufacturers offer 89mm pistons in a wide range of compression ratios, making this size attractive for naturally aspirated, turbocharged, and custom race engines.

Although removing an additional 0.5mm of material compared to an 88.5mm bore has only a small effect on displacement, every increase reduces cylinder wall thickness. Builders should ensure the block is suitable for the intended power level and that all machining is performed by an experienced machine shop.

For most performance applications using aftermarket sleeves, a 89mm bore still provides an excellent balance between airflow, displacement, and long-term durability.

Ideal applications include:

• High-performance street engines
• Naturally aspirated race engines
• Moderate turbocharged combinations
• Circle track engines using aftermarket sleeves

90mm Bore

Once an Ecotec reaches a 90mm bore, the engine begins moving into dedicated performance territory.

The larger cylinder diameter increases displacement while further reducing valve shrouding around the combustion chamber. Larger bores can improve cylinder head airflow when combined with properly developed cylinder heads and camshaft combinations.

Because additional material has been removed from the cylinder wall, overall cylinder rigidity becomes increasingly dependent on sleeve quality, block condition, and machine work.

Builders considering a 90mm bore should focus on the complete engine package rather than displacement alone. Proper piston-to-wall clearance, torque plate honing, deck preparation, and ring selection become increasingly important as bore size increases.

Advantages include:

• Increased displacement
• Improved airflow potential
• Excellent for custom race engines
• Large aftermarket piston selection

91mm Bore

A 91mm bore is generally reserved for serious performance applications where maximizing displacement is more important than preserving maximum cylinder wall thickness.

This size is commonly seen in dedicated race engines using premium aftermarket sleeves, forged rotating assemblies, and professional machine work.

At this level, the entire engine combination must be considered. Compression ratio, cooling capacity, piston design, combustion chamber shape, and cylinder pressure all influence long-term reliability.

Builders should not assume that simply increasing bore size will automatically produce more horsepower. Proper cylinder head development and camshaft selection often contribute significantly more power than a single millimeter of additional bore diameter.

92mm Bore

A 92mm bore represents the practical upper limit for most sleeved GM Ecotec race engines.

With BK Racing sleeves, approximately 0.058 inch of cylinder wall thickness remains at a finished 92mm bore. While this can be successfully used in properly engineered race combinations, it leaves considerably less material than smaller bore sizes.

For this reason, 92mm is typically reserved for specialized applications where maximizing displacement is the primary objective.

Factors that become increasingly important include:

• Accurate sleeve installation
• Proper interference fit
• Precision boring
• Torque plate honing
• Controlled piston clearances
• Effective cooling system design

When properly machined, 92mm sleeves have been successfully used in naturally aspirated and forced induction competition engines. However, every engine should be evaluated individually based on its intended use.

How Bore Size Affects Cylinder Wall Thickness

Cylinder wall thickness plays a major role in engine durability.

As bore diameter increases, more material is removed from the cylinder. Thinner cylinder walls become less rigid and are more susceptible to distortion from combustion pressure and operating temperature.

Cylinder distortion reduces ring seal, increases blow-by, accelerates ring wear, and can ultimately reduce horsepower.

This is one reason professional race builders often select the smallest bore capable of meeting their performance objectives.

A properly supported cylinder typically produces more consistent power than the largest possible bore with excessive cylinder distortion.

How Bore Size Changes Engine Displacement

Increasing bore size also increases engine displacement.

Although the gains appear small on paper, every increase allows the engine to move more air and fuel.

Approximate displacement increases vary depending on crankshaft stroke, but larger bores generally produce:

• Slightly increased torque
• Improved airflow potential
• Better valve unshrouding
• Larger combustion chamber exposure

Displacement should always be considered alongside cylinder head flow, camshaft selection, compression ratio, and intake system design.

Naturally Aspirated Recommendations

For naturally aspirated engines, reliability often outweighs maximum displacement.

Many successful circle track and road racing builders intentionally choose moderate bore sizes because maintaining excellent ring seal throughout an entire race often produces more average horsepower than chasing maximum displacement.

For most naturally aspirated Ecotec builds, bore sizes between 88mm and 90mm provide an outstanding balance of durability and performance.

Turbocharged Recommendations

Turbocharged engines generate significantly higher cylinder pressures than naturally aspirated combinations.

Higher cylinder pressure places additional stress on the cylinder walls, making rigidity even more important.

For many turbocharged applications, smaller bore sizes combined with high-quality sleeves provide better long-term durability than aggressively maximizing displacement.

Builders should evaluate boost pressure, intended horsepower, fuel type, and engine operating conditions before selecting a finished bore size.

Circle Track Recommendations

Circle track engines present unique demands.

Unlike drag racing, where engines experience short bursts of acceleration, circle track engines often operate near peak RPM for extended periods.

Maintaining consistent ring seal, stable oil control, and cylinder geometry over hundreds of laps is often more valuable than a small increase in displacement.

Many experienced builders prioritize durability and cylinder stability over the largest possible bore.

Matching Pistons to Bore Size

Selecting the proper piston is just as important as selecting the bore size.

Important considerations include:

• Compression height
• Compression ratio
• Ring package
• Wrist pin diameter
• Piston skirt design
• Material
• Thermal expansion characteristics

Piston manufacturer recommendations should always be followed when establishing piston-to-wall clearance.

Machine Shop Considerations

Installing performance sleeves requires precision machining.

Professional installation typically includes:

• Block inspection
• Bore alignment verification
• Sleeve interference measurement
• Block machining
• Sleeve installation
• Deck resurfacing
• Rough boring
• Torque plate honing
• Final cleaning

Attempting shortcuts during the machining process often results in reduced ring seal and shorter engine life.

Common Bore Size Mistakes

Several common mistakes can reduce engine performance and reliability.

These include:

• Choosing the largest possible bore without considering cylinder wall thickness.
• Selecting pistons before determining the finished bore size.
• Skipping torque plate honing.
• Failing to measure piston-to-wall clearance.
• Using incorrect ring end gaps.
• Ignoring deck flatness after sleeve installation.

Careful planning and precision machining produce far better results than simply increasing displacement.

Frequently Asked Questions

What does bore size mean?

Bore size means the diameter of a cylinder in an engine block. It is one of the key measurements used to determine displacement and piston fitment.

Is bore just diameter?

Yes. In engine terms, bore is the cylinder diameter. It is different from stroke, which measures how far the piston travels up and down.

How do I know my bore size?

The most accurate way is to measure the cylinders with the proper tooling at a machine shop. You can also confirm the factory specification by engine code before any machining is done.

What is the largest bore size for a GM Ecotec engine?

Most sleeved performance Ecotec engines are commonly bored up to 92mm, although the appropriate bore size depends on the block, sleeves, application, and machine work.

Do larger bores always make more horsepower?

No. While larger bores increase displacement and can improve airflow, cylinder head development, camshaft selection, compression ratio, and ring seal generally have a much greater impact on engine performance.

Should I sleeve my Ecotec before boring it?

If significant overbores or high-performance applications are planned, aftermarket sleeves provide increased strength and allow larger bore sizes than factory cylinders.

Is 92mm safe?

A properly machined 92mm sleeved Ecotec can be successful in racing applications, but it leaves less cylinder wall thickness than smaller bores. The intended power level, cooling system, tuning, and machine work all influence reliability.

Can damaged Ecotec cylinders be repaired with sleeves?

Yes. Installing performance sleeves is a common method of repairing scored, cracked, or otherwise damaged cylinders while restoring the block for future performance use.

Conclusion

Choosing the right bore size involves much more than selecting the largest piston available. Bore diameter influences cylinder wall thickness, ring seal, airflow, displacement, durability, and the overall success of the engine build.

Whether you’re rebuilding a stock engine, repairing a damaged block, or designing a high-horsepower competition engine, selecting the correct bore size begins with understanding your performance goals and working with experienced machine shops using high-quality components.

At BK Racing, we’ve developed our GM Ecotec cylinder sleeves to provide builders with the strength, consistency, and machining flexibility required for serious performance applications. From 88mm race engines to custom 92mm combinations, our sleeves are engineered to provide a solid foundation for naturally aspirated, turbocharged, supercharged, and circle track builds.
