Common Cylinder Sleeve Installation Mistakes

Avoid These Common Mistakes When Installing GM Ecotec Cylinder Sleeves

Introduction

Installing cylinder sleeves is one of the most precise machining operations performed during an engine build. Unlike replacing bearings or installing pistons, cylinder sleeve installation permanently changes the structure of the engine block. Every machining operation performed before, during, and after installation influences the finished cylinder geometry and ultimately determines how well the engine performs.

The cylinder sleeve itself is only one part of the process. Proper block preparation, accurate machining, correct interference fit, deck resurfacing, final boring, and torque plate honing all work together to produce a finished cylinder capable of supporting reliable performance. Skipping or rushing any of these steps can compromise ring seal, reduce durability, and shorten the life of an otherwise well-built engine.

Fortunately, most cylinder sleeve installation problems are completely preventable. Understanding why these mistakes occur allows builders and machine shops to avoid them before the engine is assembled.

This guide explains the most common cylinder sleeve installation mistakes made during GM Ecotec engine builds and why proper machining practices remain the foundation of every successful sleeved engine.

Beginning With the Wrong Engine Block

The quality of a sleeved engine begins long before the first cut is made.

Many builders become focused on repairing a damaged cylinder while overlooking the condition of the rest of the block. Before any machining takes place, the entire casting should be inspected for deck distortion, cracks, damaged threads, main bore alignment, corrosion, freeze damage, and structural integrity.

Installing sleeves into a compromised block rarely solves the underlying problem. A damaged main web, warped deck surface, or cracked water jacket can create reliability issues that no amount of precision machining can overcome.

Professional engine builders always begin by determining whether the block deserves to be repaired before deciding how it should be repaired.

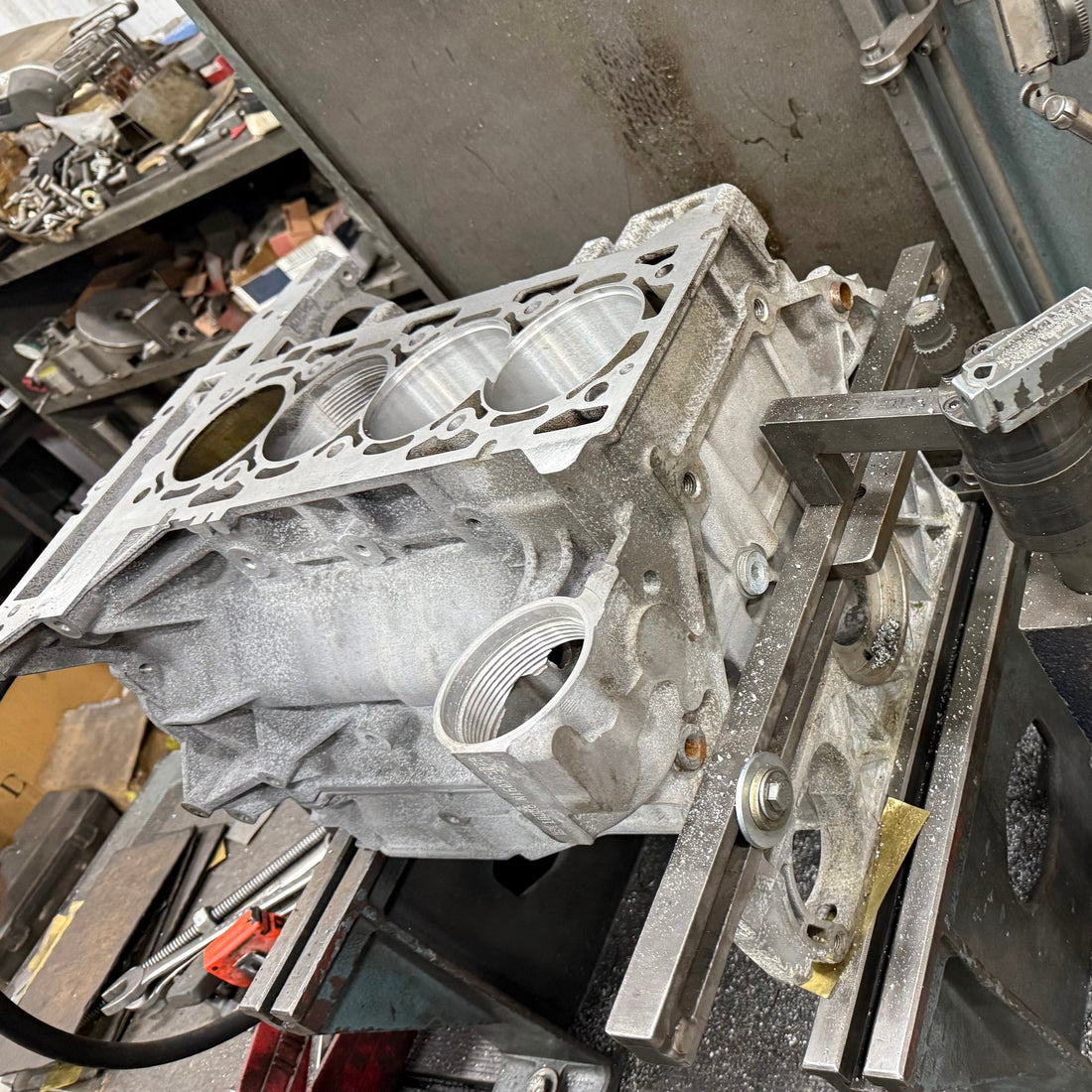

Improper Block Machining

Cylinder sleeves depend on precision.

Before a sleeve can be installed, the original cylinder must be machined to produce the correct bore diameter, surface finish, and geometry required for the intended interference fit. Removing too much material reduces sleeve retention, while insufficient machining can create excessive installation stresses that distort the sleeve or damage the block.

The machining process must also maintain proper alignment with the crankshaft centerline and adjacent cylinders. Any error introduced during this stage becomes part of the finished engine and cannot be corrected by simply honing the cylinder afterward.

This is why cylinder sleeve installation should always be performed using precision equipment by machine shops experienced with aluminum performance engine blocks and cast iron blocks alike.

Incorrect Interference Fit

One of the most critical aspects of cylinder sleeve installation is establishing the proper interference fit between the sleeve and the surrounding block.

The interference fit creates the mechanical relationship that allows the sleeve and aluminum block to function as one structural assembly. Too little interference may reduce sleeve retention and heat transfer, while excessive interference can distort the sleeve before the engine is ever assembled.

Because every sleeve design and engine block is different, the proper interference fit should always follow the sleeve manufacturer’s recommendations and the machine shop’s established procedures. In some slip fit installation applications, builders may use a recommended anaerobic sealer such as Loctite 518, but the fit must still be machined to exact specifications.

Precision measurements—not assumptions—determine whether the finished installation will perform as intended.

Failing to Machine the Deck After Sleeve Installation

Installing a sleeve changes the block.

Even when installed correctly, the sleeve flange and surrounding deck require finish machining before final assembly.

Deck resurfacing ensures the cylinder head gasket seals against a perfectly flat surface while also establishing proper sleeve height relative to the deck.

Skipping this operation may compromise head gasket sealing and produce inconsistent sleeve protrusion from cylinder to cylinder.

Professional engine builders treat deck machining as an essential part of cylinder sleeve installation rather than an optional finishing step.

Improper Final Boring and Honing

Installing the sleeve is only the beginning of the machining process.

After installation, the sleeve must be finish bored and honed to achieve the exact diameter, geometry, and surface finish required for the chosen piston and ring package.

This stage determines piston-to-wall clearance, ring seating characteristics, oil retention, and final cylinder geometry.

Removing too much material cannot be undone. Removing too little prevents the engine from being assembled correctly. Builders should verify the outside diameter and inside diameter with an od micrometer, id micrometer, and bore gauge to confirm the bore is clean and free of taper or out-of-round conditions.

Every measurement during this process directly influences engine performance and long-term durability.

Skipping Torque Plate Honing

One of the most common shortcuts during engine machining is finishing the cylinders without a torque plate.

As discussed in our dedicated Torque Plate Honing guide, tightening the cylinder head changes the geometry of the engine block by applying substantial clamping force to the deck surface.

Finishing the cylinders without simulating those loads means the bore may no longer be perfectly round once the engine is assembled.

Torque plate honing minimizes this change by allowing the cylinders to be machined under conditions that closely replicate their operating state. Many shops also rely on #280 grit stones to create a plateau finish that supports early ring seal and a reliable engine.

For performance Ecotec engines, this additional machining step often contributes directly to improved ring seal and long-term consistency.

Selecting the Wrong Piston Clearance

Cylinder sleeves do not determine piston clearance.

The piston manufacturer does.

Every piston design requires a specific piston-to-wall clearance based on its alloy, intended operating temperature, and application.

Assuming a clearance based on previous engine builds or different piston designs can lead to excessive piston noise, poor ring seal, piston scuffing, or catastrophic engine damage.

Proper measurements should always be taken using the actual pistons that will be installed in the finished engine.

Rushing the Assembly Process

Precision machining deserves careful assembly.

Even perfectly machined sleeves cannot compensate for improper cleaning, contaminated oil passages, incorrect ring installation, poor fastener preparation, or inaccurate torque procedures.

Many experienced engine builders spend as much time cleaning and measuring during assembly as they do installing performance components.

Before final assembly, all surfaces should be clean and free of debris, and any sleeve or liner should be handled carefully to avoid damage the sleeve during installation. On some wet sleeves and flanged sleeve designs, builders may also use a mandrel or a vibratory table to help the component drop into place without nicking the bore or upsetting the fit.

Attention to detail during final assembly ensures the benefits of precision machining are preserved throughout the completed engine.

Choosing the Wrong Machine Shop

Perhaps the biggest mistake occurs before any machining begins.

Cylinder sleeve installation requires specialized equipment, accurate measuring tools, and experience working with aluminum performance engine blocks.

Not every automotive machine shop performs sleeve installation regularly, and not every shop has experience with the unique requirements of the GM Ecotec platform.

Selecting a machine shop based solely on price often becomes far more expensive if the work must later be corrected or repeated.

Experienced builders choose machine shops based on reputation, equipment, and demonstrated machining quality.

How Are Cylinder Sleeves Held in Place?

Most cylinder sleeves are held in place by a precisely machined interference fit between the sleeve and the block. In some applications, builders may also use an anaerobic sealer such as Loctite 518 where recommended by the manufacturer, but the sleeve should never rely on sealer alone for retention. Proper fit, clean surfaces, and correct installation methods are what keep the sleeve secure and help maintain heat transfer and ring seal.

When to Repair Sleeve a Cylinder?

A technician should sleeve a cylinder when the original bore is damaged, worn beyond service limits, or needs to be repaired for a performance build. Sleeving is also common when building high-output performance engines, especially when extra strength is needed in aluminum blocks or when a larger bore size is required. The decision should be based on block condition, intended use, and the machine shop’s ability to machine to exact specifications.

Frequently Asked Questions

Can I install Ecotec sleeves myself?

Cylinder sleeve installation requires precision machining equipment that is generally beyond the capabilities of a home garage. While experienced machinists may perform the work themselves, most builders should have sleeves professionally installed.

Do all sleeved blocks need to be decked afterward?

Yes. Finish machining the deck after sleeve installation helps establish proper sleeve height and provides a flat sealing surface for the cylinder head gasket.

Is torque plate honing really necessary?

For serious performance builds, it is strongly recommended because it allows the cylinders to be finished under conditions that more closely represent the assembled engine.

Can poor sleeve installation be corrected?

Sometimes.

Minor machining issues may be corrected depending on the amount of remaining material. Severe errors often require replacing the sleeve or, in some cases, replacing the engine block.

Why is piston clearance so important?

Proper piston-to-wall clearance allows the piston to expand normally while maintaining correct ring seal and oil control. Incorrect clearances can significantly reduce engine reliability.

Conclusion

Installing cylinder sleeves successfully involves far more than pressing a new liner into the engine block. Every stage of the process—from inspecting the casting and machining the block to establishing the proper interference fit, decking, boring, honing, and final assembly—contributes to the finished engine’s reliability and performance.

The good news is that nearly every common installation mistake is preventable through careful planning, accurate measurements, and professional machining practices. Builders who understand the purpose behind each operation consistently produce engines with better ring seal, improved durability, and greater long-term reliability.

For GM Ecotec performance engines, cylinder sleeves provide an outstanding foundation when installed correctly. Like every aspect of engine building, success comes from viewing the engine as a complete system where precision, patience, and attention to detail matter at every stage of the build.
