What Is a Cylinder Sleeve? GM Ecotec Cylinder Sleeves

Everything You Need to Know Before Sleeving an Ecotec Engine

When building a high-performance GM Ecotec engine, few upgrades have a greater impact on the strength, reliability, and long-term durability of the engine block than properly installed cylinder sleeves. Whether you’re repairing a damaged cylinder, building a naturally aspirated race engine, or pushing the limits of a turbocharged or supercharged combination, understanding how cylinder sleeves work is essential before investing in expensive machine work.

The GM Ecotec engine family has earned a reputation for producing impressive horsepower from a lightweight aluminum block. Factory cylinder sleeves perform exceptionally well in stock and mildly modified applications, but as horsepower, cylinder pressure, bore size, and sustained engine speeds increase, the demands placed on the cylinder walls increase dramatically.

Performance cylinder sleeves allow engine builders to restore damaged blocks, increase bore size, improve cylinder stability, and build a stronger foundation capable of surviving demanding racing environments.

In this guide, we’ll explain what cylinder sleeves are, how GM Ecotec cylinder sleeves work, when they’re necessary, the differences between factory and performance sleeves, how they’re installed, and how to determine whether your next engine build will benefit from sleeving the block.

Whether you’re assembling your first Ecotec or building a championship-winning race engine, this guide will help you understand the engineering behind one of the most important upgrades you can make to the bottom end of your engine.

1. What Are Cylinder Sleeves?

Cylinder sleeves, also known as cylinder liners, are precision-machined cylinders installed into the engine block that provide the wear surface for the piston rings. Every time the engine completes a combustion cycle, the piston travels thousands of times per minute inside these cylinders while the rings maintain compression, control oil, and transfer heat into the engine block.

In aluminum engine blocks like the GM Ecotec, the cylinder itself cannot simply be machined directly into the aluminum. Aluminum is lightweight and dissipates heat exceptionally well, but it lacks the wear resistance necessary to withstand constant friction from piston rings over hundreds of thousands of engine cycles.

Instead, GM installs cast iron cylinder sleeves inside the aluminum block. The aluminum provides the structural foundation and better cooling, while the iron sleeve provides the durable cylinder wall that supports the piston assembly.

Performance sleeves perform the same basic function as factory sleeves but are designed for applications where increased cylinder pressure, larger bore sizes, higher RPM, or racing conditions place demands beyond what the original sleeves were intended to handle.

For performance engine builders, cylinder sleeves become more than simply a wear surface—they become a structural component that directly influences cylinder stability, ring seal, bore distortion, and ultimately engine durability.

2. Why GM Uses Cylinder Sleeves

GM’s Ecotec engine family was designed to achieve an excellent balance of weight, strength, cooling efficiency, manufacturing consistency, and long-term reliability. One of the keys to accomplishing this was combining an aluminum engine block with cast iron cylinder sleeves.

Aluminum offers several advantages for engine blocks. It is significantly lighter than cast iron, transfers heat efficiently into the cooling system, and allows engineers to build a rigid deep-skirt block without excessive weight. These characteristics are a major reason the Ecotec platform has become so popular for both production vehicles and motorsports.

However, aluminum alone cannot provide the wear resistance required for piston rings to operate reliably over the life of the engine. Cast iron offers a much harder, more durable surface while maintaining excellent compatibility with modern piston ring materials.

The result is an engine block that benefits from the strength and better cooling characteristics of aluminum while using iron only where it is needed most.

For stock power levels, this design works exceptionally well. Many factory Ecotec engines accumulate hundreds of thousands of miles without significant cylinder wear.

As engine output increases, however, the factory sleeves become one of the limiting factors that engine builders must evaluate.

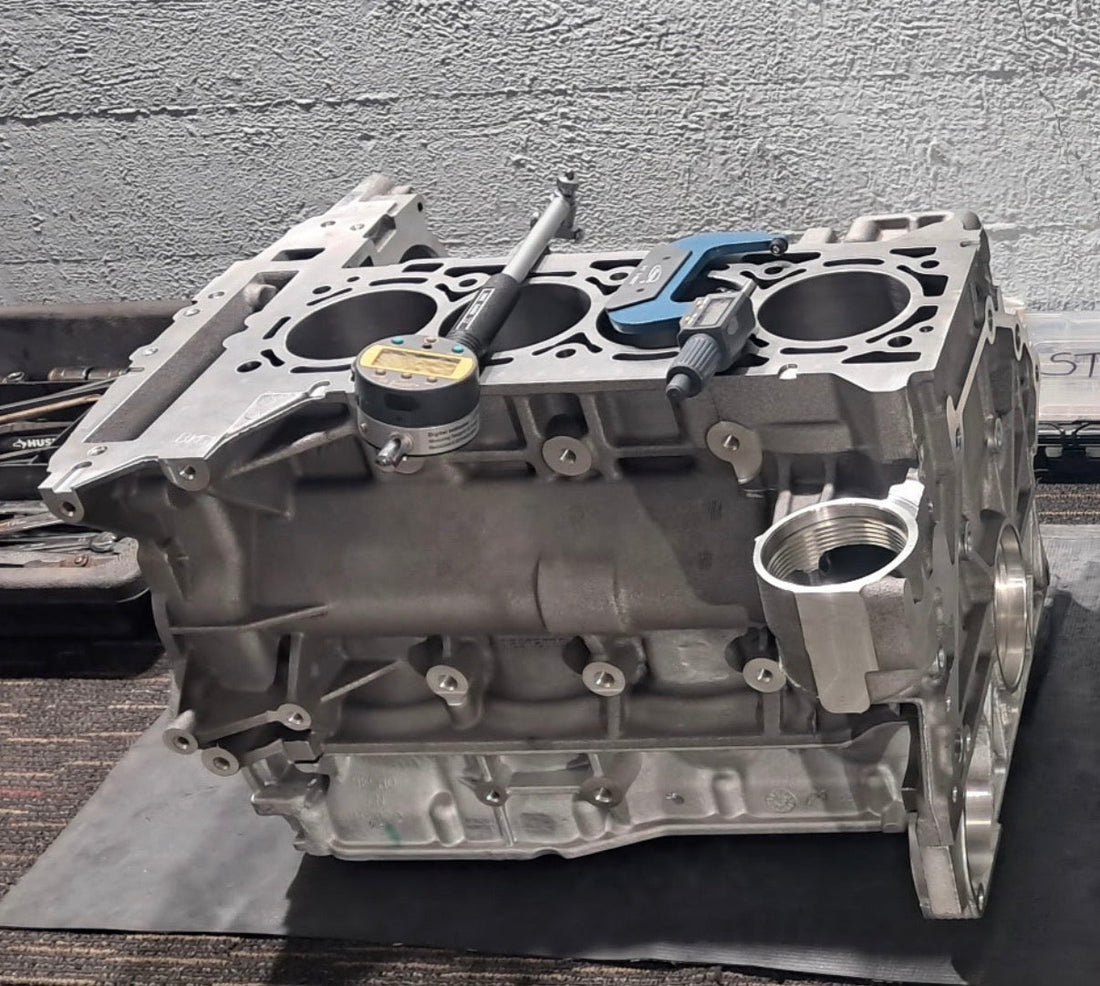

3. Understanding the GM Ecotec Block

One of the reasons the GM Ecotec has become such a successful performance platform is the strength of its aluminum block design.

Unlike many lightweight production engines, the Ecotec utilizes a deep-skirt block architecture that extends below the crankshaft centerline. This design increases rigidity throughout the lower portion of the engine and reduces block movement under heavy loads.

The block is further reinforced by a structural bedplate that ties all of the main bearing caps together into a single assembly. Rather than using individual main caps, the bedplate creates a much more rigid bottom end capable of maintaining crankshaft alignment during high RPM operation.

Combined with cross-bolted main fasteners and an aluminum casting that efficiently dissipates heat, the Ecotec block provides an outstanding foundation for performance engine builds.

Despite these strengths, the cylinder sleeves remain one of the most highly stressed components in the engine. Combustion pressure acts directly against the cylinder wall every time the engine fires. As boost pressure, compression ratio, bore diameter, and engine speed increase, the forces acting on the sleeves increase accordingly.

Understanding where the factory block excels—and where its limitations begin—is one of the first steps toward building a reliable high-performance Ecotec.

4. When Should You Sleeve an Ecotec Engine?

Not every Ecotec engine requires performance cylinder sleeves.

For many street cars and mild performance builds, the factory sleeves are more than capable of supporting the intended power level while providing excellent reliability.

Performance sleeves become a worthwhile investment when the engine is expected to operate beyond the conditions for which the factory sleeves were originally designed.

Common reasons builders choose to sleeve an Ecotec include:

Repairing cracked or damaged cylinders
Correcting severe cylinder wall damage
Building large-bore engine combinations
Increasing cylinder stability under high cylinder pressure
Turbocharged racing applications
Supercharged competition engines
High-compression naturally aspirated race engines
Circle track engines subjected to sustained high RPM
Custom engine programs where maximum durability is the priority

The decision to sleeve an engine should never be based solely on horsepower. Bore size, intended engine speed, cylinder pressure, cooling system performance, and overall engine design all play an important role in determining whether performance sleeves are beneficial.

One of the biggest misconceptions in the performance industry is that every high-horsepower engine automatically requires sleeves. In reality, the correct answer depends on the complete engine combination and how the vehicle will be used.

5. Factory Sleeves vs. Performance Sleeves

Factory Ecotec sleeves were engineered to satisfy the requirements of a production passenger vehicle. They needed to deliver excellent durability, consistent manufacturing quality, low emissions, quiet operation, and hundreds of thousands of miles of reliable service while keeping production costs reasonable.

For those goals, GM’s factory sleeves perform exceptionally well.

Performance engine building introduces an entirely different set of priorities.

Instead of designing for daily commuting, performance sleeves are intended to withstand higher cylinder pressures, greater thermal loading, larger bore sizes, and the sustained high RPM commonly encountered in competitive motorsports.

A quality performance sleeve is designed to provide increased dimensional stability under load, helping the cylinder remain round as combustion pressure rises. Maintaining cylinder geometry allows the piston rings to seal more consistently, reducing blow-by and helping preserve horsepower.

Performance sleeves also provide builders with greater flexibility when machining damaged blocks or creating larger bore combinations that would otherwise exceed the capabilities of many factory sleeves.

It’s important to understand that performance sleeves do not automatically increase horsepower. Their primary purpose is to create a stronger, more stable foundation that allows the rest of the engine combination to perform reliably under demanding conditions.

The best engine builds aren’t simply built to make power—they’re built to keep making power, race after race. Performance cylinder sleeves play a critical role in achieving that reliability.

6. Dry Sleeves vs. Wet Sleeves

One of the first questions many builders ask is whether the GM Ecotec uses dry sleeves or wet sleeves. The answer is simple—the Ecotec engine is designed around a dry sleeve architecture.

A dry sleeve is completely supported by the aluminum engine block. Unlike a wet sleeve, coolant never comes into direct contact with the outside of the sleeve. Instead, the sleeve is installed with an interference fit into the aluminum casting, becoming a structural part of the block itself.

This design offers several important advantages for performance engine builders.

Because the sleeve is fully supported by the surrounding aluminum, cylinder rigidity is improved under combustion pressure. The interference fit also helps transfer heat from the sleeve into the aluminum block where it can be carried away by the cooling system.

Wet sleeves, on the other hand, are surrounded directly by engine coolant and are commonly found in heavy-duty diesel engines or purpose-built racing engines designed for quick cylinder replacement. While wet sleeves offer advantages in certain applications, they require an engine block specifically designed around that architecture.

The GM Ecotec block was never engineered for wet sleeves, making high-quality dry sleeves the preferred solution for performance builds.

For the overwhelming majority of naturally aspirated, turbocharged, supercharged, and circle track Ecotec engines, dry sleeves provide the strength, stability, and durability necessary for reliable operation.

7. Which GM Ecotec Engines Can Be Sleeved?

One of the advantages of the GM Ecotec engine family is the common architecture shared across many engine variants.

BK Racing cylinder sleeves are designed for Gen 3 GM Ecotec aluminum engine blocks, including:

LNF 2.0L Turbo
LDK 2.0L Turbo
LE9 2.4L
LAF 2.4L
LEA 2.4L

Although these engines differ in displacement, induction, cylinder heads, and vehicle applications, they utilize the same basic Gen 3 block architecture, allowing them to accept the same style performance sleeves.

Builders should always verify their specific block casting before beginning any machining operations, particularly when working with engines that may have undergone previous repairs or modifications.

Because cylinder sleeve installation requires precision machining, every block should be thoroughly inspected before deciding whether sleeving is the appropriate solution.

8. Bore Size Options (88mm–92mm)

One of the primary reasons builders install performance cylinder sleeves is to gain additional flexibility when selecting piston size and final bore diameter.

BK Racing GM Ecotec cylinder sleeves are capable of supporting finish bore sizes from:

88.0mm
88.5mm
89.0mm
89.5mm
90.0mm
91.0mm
92.0mm

This range allows builders to restore damaged cylinders, repair worn engine blocks, or create large-bore racing combinations that would not be practical with many factory sleeves.

For most naturally aspirated performance engines, bore sizes between 88mm and 90mm offer an excellent balance of cylinder wall thickness, durability, and displacement.

Builders pursuing maximum displacement or custom piston combinations may choose larger bore sizes, but every increase in bore diameter reduces remaining sleeve wall thickness and should be evaluated as part of the complete engine combination.

Selecting the largest possible bore is not always the best solution. The ideal bore size depends on horsepower goals, compression ratio, intended RPM, cooling system performance, piston availability, and overall engine design.

9. Choosing the Correct Bore Size

Every engine build has different priorities, and the correct bore size should always complement the intended application rather than simply maximize displacement.

A street performance engine may prioritize long-term durability and conservative cylinder wall thickness.

A naturally aspirated circle track engine may benefit from maximizing displacement while maintaining excellent ring seal throughout extended high-RPM operation.

A turbocharged engine producing substantial cylinder pressure may require a more conservative bore size to maintain maximum cylinder stability.

Machine shops should also consider piston availability, desired piston-to-wall clearance, compression ratio targets, head gasket dimensions, and cooling characteristics before selecting the final bore diameter.

Rather than asking, “What’s the biggest bore I can run?”, experienced engine builders typically ask, “What bore size best supports the goals of this engine?”

That approach consistently produces more reliable engines.

10. Cylinder Wall Thickness

Cylinder wall thickness plays a significant role in engine durability, ring seal, heat transfer, and cylinder stability.

As bore diameter increases, the remaining sleeve wall becomes thinner. While larger bores increase displacement, they also reduce the amount of material available to resist combustion pressure and maintain cylinder geometry.

This is why cylinder wall thickness should never be considered independently.

Horsepower, boost pressure, compression ratio, operating temperature, RPM, and intended use all influence how much cylinder support is required.

BK Racing sleeves are designed to provide sufficient material for bore sizes up to 92mm, with approximately 0.058 inch of remaining sleeve wall at maximum bore.

Although larger bore sizes are possible, proper machining practices, engine design, and realistic performance goals become increasingly important as wall thickness decreases.

A well-designed 89mm engine will often outperform a poorly planned 92mm engine over the course of an entire racing season.

11. Sleeve Materials Explained

Not all cylinder sleeves are manufactured from the same material.

Material selection directly affects wear resistance, machinability, dimensional stability, thermal characteristics, and long-term durability.

BK Racing cylinder sleeves are manufactured from premium centrifugally cast ductile iron with chromium-enhanced wear resistance.

Ductile iron offers an excellent combination of strength, toughness, and machining characteristics, making it one of the preferred materials for high-performance cylinder sleeves.

Compared to conventional gray cast iron, ductile iron provides greater resistance to cracking while maintaining excellent compatibility with modern piston ring materials.

The addition of chromium further improves wear resistance, allowing the cylinder surface to maintain its finish under demanding operating conditions.

Material alone does not determine sleeve quality, but selecting a proven alloy provides a stronger foundation for high-performance engine builds where reliability is critical.

12. Centrifugal Casting vs. Conventional Casting

The manufacturing process used to produce a cylinder sleeve is just as important as the material itself.

BK Racing sleeves are manufactured using a centrifugal casting process, which produces a denser, more uniform iron structure than conventional static casting methods.

During centrifugal casting, molten iron is poured into a rapidly rotating mold. Centrifugal force distributes the material evenly against the mold wall while helping minimize porosity and internal imperfections.

The result is a sleeve with a finer grain structure, greater density, improved consistency, and excellent machining characteristics.

Conventional castings can still produce quality components, but centrifugal casting has become the preferred manufacturing method for many premium racing sleeves because of its ability to produce more uniform material throughout the finished part.

For engine builders investing significant time and money into a performance build, starting with a high-quality sleeve manufactured from premium material provides confidence that the foundation of the engine is as strong as the components installed above it.

13. Why Ductile Iron Matters

The material used to manufacture a cylinder sleeve has a direct impact on its strength, wear resistance, machinability, and long-term durability. While several iron alloys have been used throughout the automotive industry, high-quality ductile iron has become one of the preferred materials for high-performance engine applications.

Unlike traditional gray cast iron, ductile iron contains graphite in the form of small spherical nodules rather than flakes. This change in microstructure dramatically improves toughness and crack resistance while maintaining the excellent wear characteristics required for piston rings.

For a performance engine, those properties become increasingly important as horsepower and cylinder pressure rise.

Every combustion event attempts to force the cylinder wall outward. The sleeve must resist that pressure while maintaining its shape, supporting the piston rings, and transferring heat into the surrounding engine block. A stronger, tougher material is better equipped to handle those repeated stress cycles over the life of the engine.

Ductile iron also machines exceptionally well, allowing professional engine builders to achieve the precise surface finish and dimensional accuracy required for modern piston rings.

For these reasons, premium ductile iron has become the material of choice for many high-performance cylinder sleeves used in naturally aspirated, turbocharged, supercharged, and endurance racing engines.

14. Chromium Wear Resistance Explained

Material selection is only part of the equation. Alloying elements also influence how a cylinder sleeve performs over thousands of miles—or thousands of laps.

Chromium is commonly added to high-performance iron alloys because it improves wear resistance while helping the cylinder maintain its surface finish under demanding operating conditions.

Every time the engine runs, the piston rings slide against the cylinder wall thousands of times per minute. That constant contact gradually wears both the rings and the cylinder surface.

A properly engineered chromium-enhanced alloy helps reduce wear by creating a more durable cylinder wall capable of maintaining its finish for a longer period of time. A more stable surface also contributes to consistent ring seal throughout the life of the engine.

It’s important to understand that chromium is not a coating applied to the sleeve. It is part of the alloy itself, contributing to the material’s overall wear characteristics while preserving the machinability required for precision honing.

Combined with quality manufacturing and proper machine work, chromium-enhanced ductile iron provides an excellent foundation for demanding performance applications.

15. How Cylinder Sleeves Improve Ring Seal

One of the primary goals of any engine builder is maintaining consistent ring seal.

The piston rings are responsible for sealing combustion pressure, controlling engine oil, and transferring heat from the piston into the cylinder wall. Their ability to perform these functions depends almost entirely on the condition and stability of the cylinder bore.

As cylinder pressure increases, the cylinder wall is subjected to greater forces that can contribute to distortion if the bore is unable to maintain its shape.

A properly installed performance cylinder sleeve provides a stable, precision-machined surface that helps maintain consistent bore geometry under demanding operating conditions.

When the cylinder remains round and dimensionally stable, the piston rings are better able to maintain contact with the cylinder wall.

Improved ring seal can contribute to:

Reduced combustion leakage
Improved compression retention
More consistent power production
Better oil control
Reduced blow-by
Increased long-term durability

While cylinder sleeves alone do not create horsepower, they help provide the stable foundation necessary for the piston rings to perform as intended.

Proper machining, correct piston-to-wall clearance, ring selection, and professional honing remain equally important components of achieving excellent ring seal.

16. How Sleeves Increase Block Strength

One of the biggest misconceptions surrounding performance cylinder sleeves is that they simply replace worn cylinders.

In reality, they become an integral structural component of the engine block.

When properly installed with the correct interference fit, a dry cylinder sleeve works together with the surrounding aluminum block to support combustion pressure and maintain cylinder stability.

Rather than functioning as an independent component, the sleeve and block become a single assembly designed to resist the tremendous forces generated during combustion.

This added structural support becomes increasingly important in applications involving:

Large bore combinations
High-compression naturally aspirated engines
Turbocharged engines
Supercharged engines
Sustained high-RPM racing
High cylinder pressure applications

By providing a stronger, more stable cylinder wall, performance sleeves help reduce bore distortion while maintaining consistent cylinder geometry under load.

It’s important to remember that sleeves are only one part of a complete engine package. Proper machine work, correct interference fit, accurate boring and honing, deck preparation, and quality engine assembly all contribute to the overall strength and reliability of the finished engine.

Performance cylinder sleeves should not be viewed as a shortcut to making horsepower. Instead, they provide a stronger foundation capable of supporting the performance goals of the complete engine combination.

17. High Horsepower Applications

As horsepower increases, so do the demands placed on every component inside the engine. While connecting rods, pistons, crankshafts, and cylinder heads often receive the most attention, the cylinder block itself must also withstand significantly higher combustion pressures.

Every power stroke attempts to force the cylinder walls outward. As boost pressure, compression ratio, ignition timing, and engine output increase, those forces become substantially greater than what the factory engine was originally designed to experience.

Performance cylinder sleeves provide a stronger, more stable cylinder wall capable of supporting demanding engine combinations while maintaining consistent bore geometry under load. That stability helps create the conditions necessary for proper ring seal, reliable piston operation, and long-term durability.

It’s important to remember that sleeves are only one part of a complete engine combination. Proper tuning, fuel quality, cooling system performance, machining accuracy, and component selection all contribute to building a reliable high-horsepower Ecotec engine.

Rather than thinking of cylinder sleeves as a horsepower modification, it’s more accurate to view them as an investment in the foundation of the engine. As performance goals increase, the importance of that foundation increases as well.

18. Turbocharged Applications

Turbocharging dramatically increases cylinder pressure compared to naturally aspirated operation. Every pound of boost increases the load placed on the pistons, connecting rods, head gasket, cylinder head, and cylinder walls.

For many moderate street builds, the factory Ecotec sleeves provide excellent durability when combined with proper tuning and conservative boost levels.

As boost pressure and power output continue to increase, however, many builders choose performance sleeves to provide additional cylinder support and improve long-term reliability.

The goal isn’t simply to survive peak horsepower numbers on a dyno. It’s to maintain consistent cylinder geometry after repeated heat cycles, sustained boost, and countless combustion events.

Proper tuning remains the single most important factor in turbocharged engine reliability. Even the strongest cylinder sleeves cannot compensate for excessive detonation, poor fuel quality, or an unsafe calibration.

When combined with quality machine work and a properly engineered engine combination, performance sleeves help provide a stronger foundation capable of supporting demanding turbocharged applications.

19. Naturally Aspirated Applications

Cylinder sleeves are often associated with turbocharged engines, but naturally aspirated racing engines can place equally demanding loads on the cylinder block.

High compression ratios, aggressive camshaft profiles, elevated engine speeds, and sustained operation near the rev limiter all contribute to increased stress throughout the engine.

Circle track, drag racing, and road racing engines may spend long periods operating at engine speeds far beyond those encountered in normal passenger vehicle use. Under these conditions, maintaining cylinder stability and consistent ring seal becomes increasingly important.

Many naturally aspirated performance builds also utilize larger bore sizes to increase displacement and improve airflow. Performance sleeves provide builders with greater flexibility when selecting bore diameter while creating a durable cylinder foundation capable of supporting these combinations.

For serious naturally aspirated race engines, reliability is often every bit as important as peak horsepower. An engine capable of maintaining consistent performance throughout an entire racing season is typically far more valuable than one capable of producing slightly higher dyno numbers but requiring frequent rebuilds.

20. Circle Track Applications

Few forms of motorsports place the same continuous demands on an engine as circle track racing.

Unlike drag racing, where peak power is produced for only a few seconds, circle track engines often spend an entire feature operating near maximum RPM while experiencing repeated heat cycles, constant throttle changes, and continuous loading.

Those operating conditions create tremendous stress throughout the engine.

The cylinder block must maintain bore geometry while supporting thousands of combustion events every minute, lap after lap.

For builders competing in naturally aspirated or forced induction circle track classes, engine reliability often determines race results just as much as horsepower.

At BK Racing, many of the products we develop are driven by the needs of circle track racers. Our focus has always been building components that improve reliability while helping racers spend more time on the track and less time rebuilding engines.

Performance cylinder sleeves fit perfectly within that philosophy by providing a stronger foundation for demanding racing applications where durability is every bit as important as power.

21. Repairing Damaged Ecotec Blocks

Not every cylinder sleeve installation begins with a high-performance race engine.

One of the most common reasons builders install performance sleeves is to repair an otherwise unusable engine block.

Cylinder wall damage can occur for many reasons, including:

Broken piston rings
Connecting rod failures
Overheating
Foreign object damage
Severe scoring
Improper previous machining
Corrosion
Excessive cylinder wear

Rather than discarding an otherwise valuable engine block, installing a properly fitted cylinder sleeve often allows the block to be returned to service.

After the damaged cylinder is machined to accept the new sleeve, the sleeve is installed with the proper interference fit before the block is decked, bored, and torque plate honed to the final finished size.

When performed correctly by a qualified machine shop, sleeving can restore both the structural integrity and dimensional accuracy of the damaged cylinder.

For many builders, performance sleeves serve two purposes simultaneously: repairing an engine block while also providing a stronger foundation for future performance upgrades.

A sleeved block isn’t simply a repaired block—it can become the starting point for an engine capable of supporting significantly more demanding applications than the original damaged cylinder ever could.

22. Cylinder Sleeve Installation Overview

Proper cylinder sleeve installation is a precision machining operation that should always be performed by an experienced machine shop. The sleeve itself is only one component of the process. The quality of the machining ultimately determines how well the finished engine performs.

Installation typically begins by machining the damaged or factory cylinder to create the correct interference fit for the new sleeve. The sleeve is then chilled and installed into the prepared block. Once installed, the deck surface is machined to establish the proper sleeve height before the cylinders are finish bored and torque plate honed to the final piston clearance.

Every step affects the next. An improperly machined bore, incorrect interference fit, or poor honing procedure can compromise even the highest quality sleeve.

For a complete step-by-step explanation, read our How to Install GM Ecotec Cylinder Sleeves guide.

23. Decking the Block

After cylinder sleeves have been installed, the block should be resurfaced to establish a perfectly flat deck and ensure all sleeves are at the correct finished height.

Decking removes minor inconsistencies created during installation while producing a sealing surface for the head gasket.

A properly machined deck also helps ensure consistent combustion chamber volume across all four cylinders while improving head gasket sealing under high cylinder pressure.

Because final sleeve height is established during machining, decking should always be considered part of the installation process rather than an optional finishing operation.

24. Torque Plate Honing

One of the most overlooked steps in engine machining is torque plate honing.

When the cylinder head is bolted onto the block, the clamping force slightly distorts the cylinder bores. While this movement is often measured in only a few ten-thousandths of an inch, modern piston rings are sensitive enough that these changes can influence ring seal.

Torque plate honing duplicates the stress created by the installed cylinder head while the cylinders are being finish honed.

This allows the bores to be machined into their correct operating shape rather than simply their unloaded shape.

Professional engine builders generally consider torque plate honing one of the most important machining operations performed on a high-performance engine.

25. Final Bore and Hone

The final boring and honing operation establishes the finished cylinder diameter, piston-to-wall clearance, surface finish, and crosshatch pattern that the piston rings will operate against.

Modern piston manufacturers specify extremely precise clearances depending on piston material, intended use, and expected operating temperature.

Likewise, modern piston ring manufacturers often specify particular surface finishes designed to promote rapid ring seating while maintaining excellent oil control.

The objective is not simply achieving the correct bore diameter.

The objective is producing four cylinders that are straight, round, dimensionally consistent, and properly finished to support excellent ring seal throughout the life of the engine.

26. Common Cylinder Sleeve Installation Mistakes

Cylinder sleeve installation is unforgiving.

Small machining errors can create problems that become expensive engine failures later.

Some of the most common mistakes include:

Incorrect interference fit
Sleeves installed out of square
Failure to deck the block after installation
Improper sleeve height
Finish honing without a torque plate
Incorrect piston-to-wall clearance
Improper surface finish for the selected piston rings
Failure to thoroughly clean the block before final assembly

Many of these mistakes cannot be corrected once the engine has been assembled.

Choosing an experienced machine shop and following proven machining procedures are every bit as important as selecting quality sleeves.

27. Frequently Asked Questions

Are cylinder sleeves necessary?

Not always. Many stock and mild performance engines run reliably without needing performance sleeves. Sleeves become more important when the block will see high cylinder pressure, large bores, damaged cylinders, or racing use.

Does every engine have cylinder sleeves?

No. Many engines use sleeveless cylinder bores, while others use factory sleeves or liners depending on the block material and design.

How much does it cost to have a cylinder sleeve?

The cost varies depending on the engine, machine work required, sleeve material, and whether one cylinder or the full block is being sleeved. A qualified machine shop can provide the most accurate estimate.

Can you replace a cylinder sleeve?

Yes. A damaged or worn sleeve can often be machined out and replaced by an experienced machine shop, provided the block is suitable for repair.

Do all GM Ecotec engines use cylinder sleeves?

Yes. GM Ecotec aluminum engine blocks utilize iron cylinder sleeves to provide the wear surface for the piston rings.

Can factory Ecotec sleeves support high horsepower?

Many factory sleeves perform exceptionally well in moderate performance applications. Whether performance sleeves are required depends on horsepower goals, cylinder pressure, bore size, intended use, and the condition of the engine block.

Do performance sleeves increase horsepower?

Not directly.

Performance sleeves create a stronger, more stable cylinder foundation that supports reliable power production. They do not create horsepower on their own.

Can damaged Ecotec blocks be repaired with sleeves?

In many cases, yes.

Properly installed sleeves can restore damaged cylinders and return otherwise unusable engine blocks to service.

Are BK Racing sleeves dry sleeves?

Yes.

BK Racing cylinder sleeves are premium dry sleeves designed specifically for GM Gen 3 Ecotec engine blocks.

What bore sizes are available?

BK Racing sleeves support finish bore sizes from 88mm through 92mm, allowing builders to select the bore size that best matches their engine combination.

Are larger bores always better?

No.

The best bore size depends on horsepower goals, compression ratio, piston selection, cooling system performance, and intended use.

Can sleeves be installed at home?

Cylinder sleeve installation requires specialized machining equipment and should be performed by an experienced machine shop.

Why are BK Racing sleeves sold as matched sets?

Every sleeve is individually measured and grouped into matched four-cylinder sets to improve installation consistency and reduce dimensional variation across the engine block.

Are BK Racing sleeves suitable for racing?

Yes.

They are designed for demanding naturally aspirated, turbocharged, supercharged, drag racing, road racing, and circle track applications.

28. Why BK Racing Cylinder Sleeves?

At BK Racing, we don’t simply sell performance parts—we develop products specifically for the GM Ecotec platform.

Our cylinder sleeves were created after years of working with Ecotec engine builders, racers, and machine shops who demanded a stronger foundation for serious performance applications.

Every sleeve is manufactured from premium centrifugally cast ductile iron with chromium-enhanced wear resistance, precision machined, individually inspected, and grouped into matched four-cylinder sets to improve consistency during installation.

Just as importantly, we believe builders deserve more than quality parts—they deserve accurate technical information.

That’s why we’ve created an expanding library of Ecotec engine-building resources covering cylinder sleeves, engine machining, balance shaft deletes, cylinder heads, rotating assemblies, lubrication systems, and much more.

Our goal is simple:

Help builders make informed decisions, build stronger engines, and keep more GM Ecotec-powered vehicles on the road and on the racetrack.

Continue Learning

Want to dive deeper into Ecotec engine building? Explore our complete collection of technical guides:

Tags:

Engine Building

GM Ecotec Cylinder Sleeve Guide
