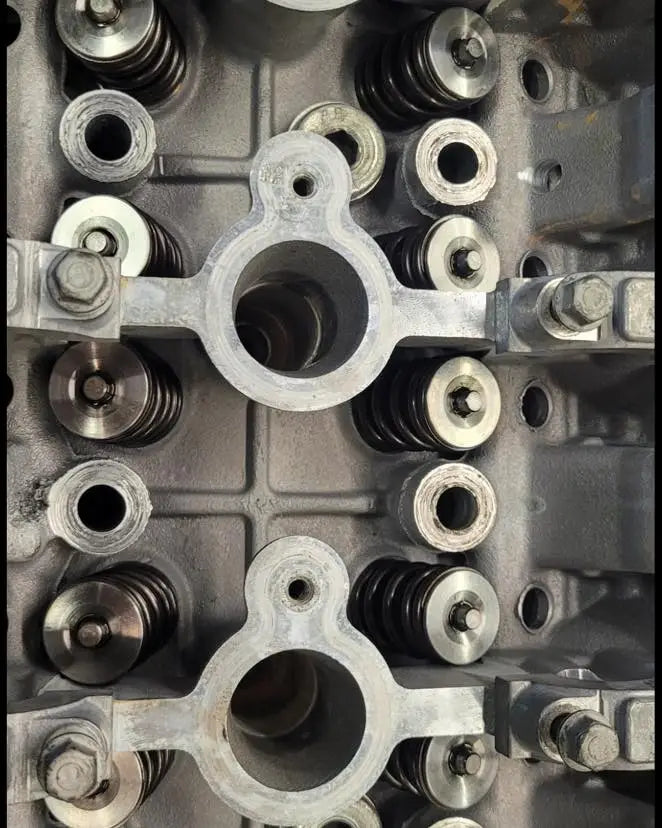

Common GM Ecotec Valve Spring Installation Mistakes

Installing performance valve springs in a GM Ecotec cylinder head looks straightforward: remove the original springs, install the upgraded springs, reinstall the retainers and locks, and put the engine back together.

But a spring that physically fits is not necessarily a spring that has been properly installed.

Small errors in installed height, spring-seat configuration, retainer clearance, valve-seal clearance, or camshaft compatibility can change:

Seat pressure
Open pressure
Available valve lift
Coil-bind clearance
Valvetrain geometry
High-RPM stability
Component life

These issues become increasingly important as an Ecotec moves from a stock valvetrain into higher lift, more aggressive camshafts, and sustained racing RPM.

This article covers the most common GM Ecotec valve spring installation mistakes and, more importantly, explains why they matter.

For the fundamentals behind these measurements, start with GM Ecotec Valve Springs: The Complete Performance Guide, then review Ecotec Valve Spring Installed Height: Why It Matters and Ecotec Valve Spring Coil Bind and Maximum Valve Lift.

Mistake #1: Assuming “Drop-In” Means Install and Go

This may be the most common misconception surrounding aftermarket Ecotec valve springs.

A spring advertised as drop-in generally means it is designed to fit the existing cylinder-head spring location without requiring major machining simply to install the spring.

It does not mean:

Install the springs without measuring anything.

Even with a drop-in spring, the builder should verify:

Installed height

Seat pressure

Open pressure

Coil-bind clearance

Retainer-to-seal clearance

Retainer-to-guide clearance

Retainer and rocker/follower clearance

For more on that distinction, see Drop-In vs. Modified GM Ecotec Valve Spring Systems.

Mistake #2: Not Measuring Installed Height

Installed height is the distance between the spring's upper and lower locating surfaces when the valve is completely closed.

It establishes the spring's starting compression.

For the BK Racing 83 lb Ecotec Valve Spring, the reference specification is:

83 lb @ 1.325" installed height

If the spring is installed taller than intended, seat pressure generally decreases.

If it is installed shorter, seat pressure generally increases—but available spring travel also decreases.

This is why simply installing an “83 lb spring” does not guarantee that it is actually producing 83 lb in your cylinder head.

Our detailed article Ecotec Valve Spring Installed Height: Why It Matters explains this relationship in depth.

Mistake #3: Measuring One Valve and Assuming All 16 Are the Same

An Ecotec cylinder head has 16 valves.

Don't assume that because one spring measures correctly, all 16 will have exactly the same installed height.

Variations can result from:

Valve-seat machining
Valve dimensions
Retainers
Locks
Spring seats
Previous cylinder-head work
Manufacturing tolerances

A properly assembled performance cylinder head should be checked across the complete valvetrain.

For a serious racing build, the objective isn't simply:

“One of them measured 1.325 inches.”

We want to know what the entire set looks like.

Mistake #4: Assuming the Pressure Printed on the Box Is What You Have

A spring called an:

82 lb

83 lb

85 lb

or:

94 lb

spring only produces its specified pressure under the conditions used to establish that rating.

Change the installed height and you change the pressure.

That is why a useful spring specification should look like:

83 lb @ 1.325"

rather than simply:

83 lb.

This is also why we built the article Why Valve Spring Pressure Alone Doesn't Tell the Whole Story into this series.

Spring pressure has to be understood in context.

Mistake #5: Correcting Installed Height Without Understanding What the Shim Changes

Spring shims can be useful for correcting installed height.

But installing a shim changes more than one thing.

Suppose you add:

.020" of shim.

You have effectively reduced installed height by approximately .020", assuming the rest of the assembly remains unchanged.

That generally:

increases seat pressure

but also:

reduces remaining spring travel.

So after shimming, recheck:

Installed height
Seat pressure
Open pressure
Coil-bind clearance
Maximum usable lift

Never use a shim simply to chase a pressure number without checking what happened to the rest of the spring geometry.

Mistake #6: Confusing Mechanical Lift With Recommended Lift

This is particularly important with high-lift Ecotec camshafts.

Throughout the BK Racing valve spring technical series, we distinguish between:

Mechanical Lift Capability

and:

Recommended Maximum Lift.

For the BK Racing 83 lb system, we have measured approximately:

.567" mechanical capability

in the appropriate configuration.

Our conservative recommended maximum is:

.520".

That approximately:

.047" difference

is intentional.

Do not look at a spring's mechanical boundary and automatically choose a camshaft that operates at that number.

For the complete explanation, see Understanding GM Ecotec Valve Spring Specifications and Ecotec Valve Spring Coil Bind and Maximum Valve Lift.

Mistake #7: Treating Coil Bind as the Operating Limit

Coil bind occurs when the spring is compressed to the point that its coils can no longer continue moving normally.

That is a mechanical boundary.

It is not the target operating condition.

A valve spring needs clearance before coil bind.

Why?

Because a running valvetrain is dynamic.

At high RPM it experiences:

Spring oscillation
Deflection
Heat
Manufacturing tolerances
Dynamic motion
Repeated high-speed cycling

This becomes particularly important in circle-track engines where the spring may operate near the upper end of its range lap after lap.

The goal is not:

How close can we get to coil bind?

The goal is:

How much operating margin does the complete valvetrain have?

Mistake #8: Checking Coil Bind but Ignoring Retainer-to-Seal Clearance

A spring can have plenty of remaining travel and the engine can still have insufficient valve lift clearance.

Why?

Because the retainer may hit the valve seal first.

As the valve opens, the retainer moves toward the:

valve seal

and:

valve guide.

If the retainer contacts either one before the spring reaches its safe travel limit, then the spring's coil-bind specification doesn't matter.

The assembly has already reached another mechanical boundary.

Our article Ecotec Retainer-to-Seal Clearance and Spring Seat Clearance covers this relationship in detail.

Mistake #9: Assuming the Factory Valve Seal Will Work With Every High-Lift Combination

The factory-style seal arrangement may be perfectly suitable for many Ecotec combinations.

But as valve lift increases, packaging becomes tighter.

This is one reason BK Racing offers Press-On Viton Valve Seals as part of our high-lift Ecotec valvetrain system.

They can be combined with the appropriate BK Racing spring-seat and retainer configuration when additional clearance is required.

The important point is not that every engine needs different seals.

It is:

Check the actual clearance before deciding that it doesn't.

That philosophy carries through the entire BK Racing Ecotec Valve Spring System.

Mistake #10: Changing Spring Seats Without Remeasuring Installed Height

Spring seats are not just pieces of material sitting underneath the spring.

Their dimensions affect the installed spring geometry.

Changing seat thickness can change:

Installed height

which changes:

Seat pressure

and:

Remaining spring travel.

BK Racing offers Extra-Clearance Spring Seats as part of our modular Ecotec valvetrain system, particularly where the combination requires additional clearance around the valve-seal area.

Any time the lower spring location changes, installed height needs to be checked again.

Mistake #11: Installing the Spring Upside Down

Not every valve spring is symmetrical.

This is especially important with springs using:

Progressive coil spacing
Variable pitch
Different upper and lower geometry

The BK Racing 83 lb spring uses a progressive oval-wire design.

A progressive spring should be installed in the orientation specified for that particular spring.

Do not assume that because the spring physically fits either way, orientation doesn't matter.

Follow the spring manufacturer's installation instructions.

Mistake #12: Not Checking That the Spring Is Properly Seated

The bottom of the spring needs to sit correctly on its spring seat or locator.

The upper end needs to locate correctly in the retainer.

A spring that is:

Cocked
Partially off its seat
Incorrectly located in the retainer
Sitting on debris

can create incorrect geometry and loading.

Before compressing the spring for final assembly, make sure it is properly centered and seated.

Mistake #13: Reusing Components Without Inspecting Them

An upgraded spring does not make damaged surrounding components good again.

Before assembly, inspect the:

Valves
Valve tips
Locks/keepers
Retainers
Spring seats
Valve guides
Valve seals
Roller finger followers
Lash adjusters

A performance spring can increase load on components that were already marginal.

The valvetrain should be treated as a system.

Mistake #14: Failing to Confirm the Valve Locks Are Fully Seated

The valve locks—or keepers—secure the retainer to the valve stem.

After releasing the spring compressor, visually verify that both locks are properly seated.

A keeper that is:

Crooked
Partially engaged
Damaged
Incorrect for the valve/retainer combination

can become a catastrophic failure point.

This is not an area where “looks close enough” is acceptable.

Mistake #15: Mixing Retainers and Locks Without Confirming Compatibility

Retainers and locks are designed around specific valve-stem and keeper geometries.

Do not assume that every aftermarket retainer can be combined with every factory or aftermarket lock.

Verify:

Valve keeper groove

Lock geometry

Retainer taper

Installed position

and:

Retainer seating

as a complete combination.

This is especially important when mixing components from different manufacturers.

Mistake #16: Installing Lightweight Retainers but Never Checking Rocker Clearance

A titanium retainer can reduce moving valvetrain mass, which can improve high-RPM control.

But physical clearance still matters.

The Ecotec uses roller finger followers positioned close to the upper valvetrain.

Different retainer geometry can change available clearance.

This is not theoretical: some aftermarket Ecotec spring/retainer packages specifically warn that certain later GM rocker designs can interfere with their retainers.

That is why BK Racing recommends physically checking the complete assembly.

For more on why retainer mass matters, see How RPM Affects Ecotec Valve Spring Requirements and Understanding the BK Racing Ecotec Valve Spring System.

Mistake #17: Assuming More Spring Pressure Will Fix Every Rocker Problem

This is particularly important on racing Ecotec engines.

A kicked roller follower is often immediately blamed on:

valve float.

Valve float absolutely can contribute to valvetrain instability.

But it is not the only possible cause.

Ecotec rocker instability can also involve:

Valve bounce
Spring surge
Hydraulic lash-adjuster behavior
Incorrect geometry
Mechanical interference
Component failure

This is why our What Causes Valve Float in GM Ecotec Engines? article should be read alongside our technical content covering Ecotec solid lash adjusters and kicked-rocker problems.

More spring pressure only solves a problem caused by insufficient spring control.

It does not fix every possible valvetrain problem.

Mistake #18: Ignoring the Hydraulic Lash Adjuster

The factory Ecotec valvetrain uses hydraulic lash control.

That means the spring is only one part of the high-RPM system.

Hydraulic instability can include:

Bleed-down
Collapse
Pump-up
Internal sticking
Check-valve instability

Installing stronger valve springs does not automatically eliminate these behaviors.

For aggressive race combinations, review the BK Racing technical content on Ecotec Solid Lash Adjusters and the relationship between lash control and kicked roller followers.

Spring control and lash control are related—but they are not the same thing.

Mistake #19: Choosing the Spring From Camshaft Lift Alone

Suppose a camshaft has:

.500" valve lift.

You cannot choose a spring simply because its catalog says:

“.500 lift.”

You also need to consider:

Camshaft duration
Lobe acceleration
RPM
Valve mass
Retainer mass
Spring pressure
Spring rate
Mechanical margin

Two camshafts with identical .500" lift can place very different demands on the spring.

For a deeper explanation, see How Camshaft Lift Affects Ecotec Valve Spring Selection and How Camshaft Duration and Aggressive Lobe Profiles Affect Ecotec Valve Springs.

Mistake #20: Choosing the Spring From RPM Alone

The same problem occurs with RPM ratings.

There is no universal rule that says:

7,000 RPM = X pressure

8,000 RPM = Y pressure

9,000 RPM = Z pressure.

The camshaft determines how aggressively the valve must move during each revolution.

The spring has to control that motion.

An aggressive camshaft at a lower RPM can potentially place greater demand on the spring than a mild camshaft operating somewhat faster.

That relationship is covered in How RPM Affects Ecotec Valve Spring Requirements.

Mistake #21: Choosing the Highest-Pressure Spring Because It Sounds Safer

This is a very common performance-engine mistake.

If:

83 lb is good

it can be tempting to assume:

94 lb is safer

and:

104 or 128 lb must be even safer.

That's not how spring selection works.

Additional pressure creates additional load.

That load is transmitted through:

Camshaft
Roller follower
Valve
Valve seat
Retainer
Locks
Lash-control system
Timing drive

The correct spring provides enough pressure to maintain control with appropriate margin.

Unnecessary pressure is still unnecessary load.

See Why Valve Spring Pressure Alone Doesn't Tell the Whole Story for the complete explanation.

Mistake #22: Assuming a Dual Spring Is Automatically Better

The same misconception applies to spring architecture.

A dual spring can provide:

Higher pressure
Different dynamic behavior
Different natural frequencies
Additional control in demanding applications

But simply having two springs does not automatically make the system superior.

Some single Ecotec springs produce greater seat or open pressure than some dual systems.

Likewise, mechanical travel varies independently of spring count.

Our article Single vs. Dual Valve Springs for GM Ecotec Engines breaks down those differences.

Mistake #23: Not Checking Piston-to-Valve Clearance After a Camshaft Change

This isn't technically a valve-spring clearance—but it belongs in the same installation process.

Installing springs capable of supporting a high-lift camshaft does not prove that the engine has enough piston-to-valve clearance for that camshaft.

Piston-to-valve clearance can change with:

Camshaft
Cam timing
Adjustable cam gears
Head milling
Block decking
Head-gasket thickness
Piston design

This becomes particularly important on modified Ecotec engines using BK Racing Adjustable Cam Gears or engines where the cylinder head or block has been machined.

The spring can have plenty of travel while the valve is physically too close to the piston.

Always verify the engine combination.

Mistake #24: Forgetting That Decking or Milling Changes the Combination

If the cylinder head has been milled or the block decked, the relationship between the crankshaft, piston, valves, and camshafts changes.

This is why adjustable cam timing can become useful on heavily machined Ecotec engines.

BK Racing's Adjustable Ecotec Cam Gears allow cam timing to be corrected or optimized rather than assuming factory timing remains ideal after significant machining.

Spring selection and camshaft installation therefore connect directly to the rest of the engine build.

Mistake #25: Installing Springs on a Dirty Cylinder Head

Performance valvetrain assembly should be clean.

Debris underneath a spring seat or around a retainer can affect:

Seating
Installed height
Component alignment

Keep the:

Spring pockets
Seats
Valve stems
Retainers
Locks

clean during assembly.

Do not introduce abrasive debris into the valve-guide or lash-adjuster areas.

Mistake #26: Damaging the Valve Seal During Installation

A new valve seal is only useful if it survives installation.

The valve stem and keeper grooves can damage the sealing lip if the seal is forced over them carelessly.

Use the correct installation method and protect the sealing surface during assembly.

Once installed, verify that the seal is:

Fully seated
Straight
Undamaged
Secure on the guide

This becomes especially important when installing the BK Racing Press-On Viton Valve Seals as part of a high-lift configuration.

Mistake #27: Assuming All 16 Springs Are Identical Without Testing

Quality springs should be consistent.

For serious performance and racing applications, however, there is value in actually checking the set.

BK Racing evaluates valve springs using measured:

Free height
Seat pressure
Open pressure
Spring rate
Coil bind
Consistency

That process is covered in How BK Racing Tests and Measures Ecotec Valve Springs.

A racing engine is only as good as the weakest spring in the set.

Mistake #28: Never Rechecking Springs After Racing

Valve springs are fatigue components.

They experience repeated load cycles and heat.

For a street engine, that may accumulate relatively slowly.

For a circle-track engine, a tremendous number of high-RPM cycles can accumulate quickly.

During periodic engine service, springs can be checked for changes in:

Free height

Seat pressure

Open pressure

and:

set-to-set consistency.

A spring doesn't need to be visibly broken to have changed.

Mistake #29: Mixing Up a Spring's Mechanical Capability With the Complete Head's Capability

This distinction is critical.

Suppose the spring itself has:

.567" mechanical capability.

That does not mean the assembled cylinder head automatically has .567" of usable valve travel.

The head may instead be limited by:

Retainer-to-seal clearance

Retainer-to-guide clearance

Rocker clearance

or even:

Piston-to-valve clearance.

The lowest mechanical limit in the complete system wins.

This is why the BK Racing high-lift system includes related components such as Titanium Retainers, Extra-Clearance Spring Seats, and Press-On Viton Valve Seals.

Mistake #30: Building the Spring Package as Separate Parts Instead of a System

This is ultimately the mistake that connects nearly everything in this article.

The spring does not operate alone.

A performance Ecotec valvetrain includes:

Camshaft

↓

Roller Finger Follower

↓

Valve + Lash Control

↓

Retainer + Locks

↓

Valve Spring

↓

Spring Seat

with the:

Valve Seal + Guide

controlling part of the available physical space.

Then the entire system has to operate within the required:

RPM + Camshaft Profile + Valve Lift + Duty Cycle.

That is why BK Racing developed the Ecotec valvetrain as a group of related components rather than treating the valve spring as an isolated upgrade.

A Better Ecotec Valve Spring Installation Process

Before calling the cylinder head finished, verify the following:

Confirm the spring is correct for the camshaft and intended RPM.
Inspect valves, retainers, locks, seats, seals, followers, and lash components.
Install the correct spring seats and valve seals.
Verify spring orientation where applicable.
Measure installed height across the cylinder head.
Correct installed height appropriately if required.
Verify seat pressure.
Verify open pressure at the intended valve lift.
Check coil-bind clearance.
Check retainer-to-seal and retainer-to-guide clearance.
Verify retainer-to-rocker/follower clearance.
Confirm locks are completely seated.
Verify piston-to-valve clearance when changing camshafts, cam timing, head height, block height, pistons, or head-gasket thickness.
Rotate the complete valvetrain through the engine cycle and verify there is no mechanical interference.
Document the measurements.

That last step matters more than many builders realize.

If the engine is serviced later, documented measurements give you an actual baseline for determining whether anything has changed.

How the BK Racing Components Work Together

For higher-performance Ecotec combinations, the BK Racing system can include:

BK Racing 83 lb Ecotec Valve Springs
Provides the spring pressure, rate, and travel required for the intended performance range.

BK Racing Titanium Valve Spring Retainers
Reduce moving mass while providing the appropriate spring-retainer interface.

BK Racing Extra-Clearance Spring Seats
Help configure the lower spring and seal area for increased-clearance combinations.

BK Racing Press-On Viton Valve Seals
Provide a compact sealing solution where additional retainer clearance is needed.

BK Racing Solid Lash Adjusters
Address the lash-control side of aggressive high-RPM Ecotec valvetrains.

BK Racing Adjustable Cam Gears
Allow cam timing to be corrected or optimized when using performance camshafts or after machining changes cam-to-crank geometry.

These products are related because they address different parts of the same mechanical system.

That is why the technical content surrounding them should be read together.

The Most Important Ecotec Valve Spring Installation Rule

If you remember one thing from this article:

Never assume that because an Ecotec valve spring physically fits, the valvetrain is correctly assembled.

A proper installation verifies:

Installed Height

Seat Pressure

Open Pressure

Coil-Bind Clearance

Retainer-to-Seal Clearance

Retainer-to-Guide Clearance

Rocker Clearance

and, where applicable:

Piston-to-Valve Clearance.

Then those measurements need to be evaluated against:

Camshaft Lift + Camshaft Profile + RPM + Valvetrain Mass + Duty Cycle.

That's the difference between simply installing upgraded springs and building an Ecotec valvetrain correctly.

Continue Learning: GM Ecotec Valve Springs

Valve spring pressure is only one part of maintaining stable valve control in a performance Ecotec. Continue through the BK Racing GM Ecotec Valve Spring Knowledge Center to learn how installed height, spring rate, coil bind, camshaft lift, RPM, retainers, spring seats and valve seals work together as a complete valvetrain system. When planning your combination, also explore the BK Racing 83 lb Ecotec Valve Springs, BK Racing Titanium Valve Spring Retainers, BK Racing Extra-Clearance Spring Seats, and BK Racing Press-On Viton Valve Seals.

For aggressive racing combinations, also review BK Racing's Solid Lash Adjusters and related kicked-rocker technical information to understand the separate lash-control side of the Ecotec valvetrain.

Supporting search topics:
Ecotec valve spring installation, how to install Ecotec valve springs, Ecotec installed height, Ecotec valve spring coil bind, Ecotec retainer clearance, Ecotec valve seal clearance, Ecotec spring seat, Ecotec high lift cams, Ecotec kicked rockers, Ecotec solid lash adjusters, L61 valve springs, LSJ valve springs, LNF valve springs, LE5 valve springs, BK Racing 83 lb valve springs.

Tags:

Engine Building
