Understanding the BK Racing Ecotec Valve Spring System

A performance valve spring should not be treated as an isolated component.

The spring operates as part of a complete valvetrain that includes the:

Valve
Valve spring
Spring seat
Valve seal
Retainer
Valve locks
Roller finger follower
Lash adjuster
Camshaft
Timing system

Change one component and you can change the operating conditions of several others.

That becomes increasingly important as GM Ecotec engines move beyond factory valve lift and RPM.

This is why BK Racing did not approach the BK Racing 83 lb Ecotec Valve Spring as simply another replacement spring.

We developed an Ecotec valve spring system around the problems encountered when combining higher valve lift, aggressive camshafts, reduced valvetrain mass, increased RPM, and sustained racing use.

The system can include:

BK Racing 83 lb Ecotec Valve Springs

BK Racing Titanium Valve Spring Retainers

BK Racing Extra-Clearance Spring Seats

BK Racing Press-On Viton Valve Seals

and, for applications where hydraulic lash control becomes a concern:

BK Racing Solid Lash Adjusters

Not every engine requires every component.

That is intentional.

The system is modular so the cylinder head can be configured around the actual camshaft, RPM, lift, and racing application rather than forcing every Ecotec into the same valvetrain package.

Why Think of Valve Springs as a System?

A valve spring's job sounds simple:

Keep the valve following the camshaft.

Actually accomplishing that at high RPM involves much more.

The spring needs to provide enough force to control the moving valvetrain while maintaining sufficient physical clearance throughout the valve event.

That means we need to consider two different sides of the problem.

Dynamic Control

The spring needs the correct:

Seat pressure

Open pressure

Spring rate

Dynamic behavior

to maintain valve control.

Mechanical Clearance

The assembled cylinder head needs sufficient:

Spring travel

Coil-bind clearance

Retainer-to-seal clearance

Retainer-to-guide clearance

Rocker/follower clearance

A spring can satisfy one side of that equation and fail the other.

That's why the complete system matters.

Start With the BK Racing 83 lb Ecotec Valve Spring

The foundation of the system is the BK Racing 83 lb Ecotec Valve Spring.

Its key specifications are:

Installed Height: 1.325"

Seat Pressure: 83 lb

Open Pressure: Approximately 230 lb @ .500" lift

Effective Spring Rate: Approximately 294 lb/in through the relevant operating range

Recommended Maximum Lift: .520"

Construction: Progressive oval-wire single spring

Material: Chrome-silicon

Treatment: Nitride treated

In the appropriate BK Racing seat and seal configuration, we have measured approximately:

.567" mechanical capability

But our conservative recommended maximum remains:

.520".

That difference is intentional.

Why We Don't Advertise the Mechanical Limit as the Recommended Limit

This has become one of the central principles throughout our GM Ecotec Valve Spring Knowledge Center.

There is a difference between:

what physically fits

and:

where we recommend operating it.

Mechanical travel tells us where a physical limitation occurs.

Recommended lift should account for an appropriate operating margin.

With approximately:

.567" mechanical capability

and:

.520" recommended lift

the BK Racing system maintains approximately:

.047"

between those two figures.

For a spring intended to survive sustained high-RPM racing, we believe that distinction is important.

For a deeper explanation, see Ecotec Valve Spring Coil Bind and Maximum Valve Lift and Understanding GM Ecotec Valve Spring Specifications.

Those articles explain why comparing advertised maximum-lift numbers without understanding how they were established can be misleading.

Why We Chose 83 lb of Seat Pressure

We covered the engineering behind this decision in Why We Designed the BK Racing 83 lb Ecotec Valve Spring.

The goal was never to produce the largest seat-pressure number in the Ecotec market.

We wanted enough seat pressure to provide meaningful valve control without automatically applying the additional valvetrain loading associated with substantially higher-pressure springs.

This is particularly important when comparing the BK spring with popular:

82 lb

85 lb

94 lb

and higher-pressure Ecotec springs.

As we demonstrated in Comparing Popular GM Ecotec Valve Spring Options, seat pressure is only the beginning of the comparison.

83 lb Doesn't Mean 83 lb Throughout the Valve Event

At the recommended installed height, the spring begins at:

83 lb @ 1.325".

As the valve opens, pressure increases.

At approximately .500" lift, the BK Racing spring produces approximately:

230 lb.

This is where the spring's effective rate becomes important.

The spring doesn't simply need pressure while the valve is closed.

It needs increasing force as the valve moves through the camshaft event.

For a complete explanation of this relationship, see:

Ecotec Valve Spring Seat Pressure vs. Open Pressure

and:

Understanding Ecotec Valve Spring Rate.

Those articles should be directly linked from this section because they explain the specifications behind the BK spring rather than forcing the customer to take the numbers at face value.

Why Progressive Spring Design Matters

The BK Racing 83 lb spring uses a:

progressive oval-wire design.

That distinction matters.

A valve spring isn't simply a piece of wire that gets harder to compress.

Its:

Wire geometry
Coil spacing
Active coil count
Mass
Rate
Natural frequency

all influence how it behaves.

At high RPM, dynamic behavior becomes increasingly important because the spring is no longer behaving like a slowly compressed component on a bench tester.

It is cycling thousands of times per minute.

For more on that side of the system, link directly to:

Ecotec Valve Float vs. Valve Bounce vs. Spring Surge

and:

How RPM Affects Ecotec Valve Spring Requirements.

These articles explain why static pressure measurements are important but cannot completely describe a spring's high-RPM behavior.

Why We Use Oval Wire

The Ecotec cylinder head gives us a limited amount of physical space.

We need to package:

pressure

and:

travel

inside that available area.

Oval-wire construction provides another design tool for balancing:

Spring strength
Available travel
Packaging
Spring rate
Stress

This helped us develop a single spring with substantial open pressure while maintaining useful mechanical travel.

That's particularly important for the high-lift camshafts increasingly being used in performance Ecotec engines.

Why We Stayed With a Single-Spring Design

Dual springs absolutely have a place in performance engine building.

BK Racing's position has never been that dual springs are bad or unnecessary.

The question is:

Does the engine actually require a dual spring?

A properly designed single spring can provide:

Strong seat pressure
Strong open pressure
Useful spring rate
Adequate mechanical travel
Lower complexity
Reduced spring-system mass
Easier installation

The BK Racing 83 lb spring was developed to push the useful performance range of a single-spring Ecotec system.

For a complete explanation, see Single vs. Dual Valve Springs for GM Ecotec Engines.

That article should be strongly linked here because it addresses one of the first questions customers will have when seeing a serious racing spring that remains a single-spring design.

Why the Retainer Is Part of the System

Once we start increasing RPM and camshaft aggressiveness, spring pressure isn't the only way to improve control.

We can also reduce the mass the spring has to control.

That's why the BK Racing Titanium Ecotec Valve Spring Retainers are an important companion to the 83 lb spring.

The retainer moves with the valve.

Every time the camshaft opens the valve, the spring has to control the retainer along with the other moving valvetrain components.

Reducing unnecessary retainer mass reduces inertial demand on the spring.

Why Lightweight Retainers Matter More as RPM Increases

Inertial forces increase rapidly as valvetrain speed increases.

That means reducing moving mass becomes increasingly valuable at elevated RPM.

This creates two basic ways of increasing valvetrain control:

Add more spring force

or:

Reduce the mass the spring needs to control.

In practice, a properly engineered valvetrain often uses some combination of both.

BK Racing's approach is not simply:

Keep adding spring pressure.

We want to optimize the entire system.

That is why the BK Racing Titanium Retainers should be internally linked alongside How RPM Affects Ecotec Valve Spring Requirements and What Causes Valve Float in GM Ecotec Engines?

The product and technical articles reinforce each other.

Spring Pressure and Valvetrain Mass Work Together

Consider two otherwise identical engines.

Engine A uses a heavier retainer.

Engine B uses a lighter titanium retainer.

The spring in Engine B has less moving mass to control.

This does not mean a lightweight retainer eliminates the need for adequate spring pressure.

It means:

Spring requirement cannot be completely separated from valvetrain mass.

This is another reason simply comparing:

83 lb vs. 94 lb

doesn't describe the complete system.

For more detail, see Why Valve Spring Pressure Alone Doesn't Tell the Whole Story.

Why the Spring Seat Matters

The bottom of the spring also needs to be properly located and supported.

The spring seat affects:

Installed height
Spring location
Available clearance
Spring pressure
Mechanical travel

A change in spring-seat thickness can change installed height.

And as explained in Ecotec Valve Spring Installed Height: Why It Matters, installed height directly affects the spring's operating condition.

This is why the spring seat should not be treated as an insignificant piece of hardware.

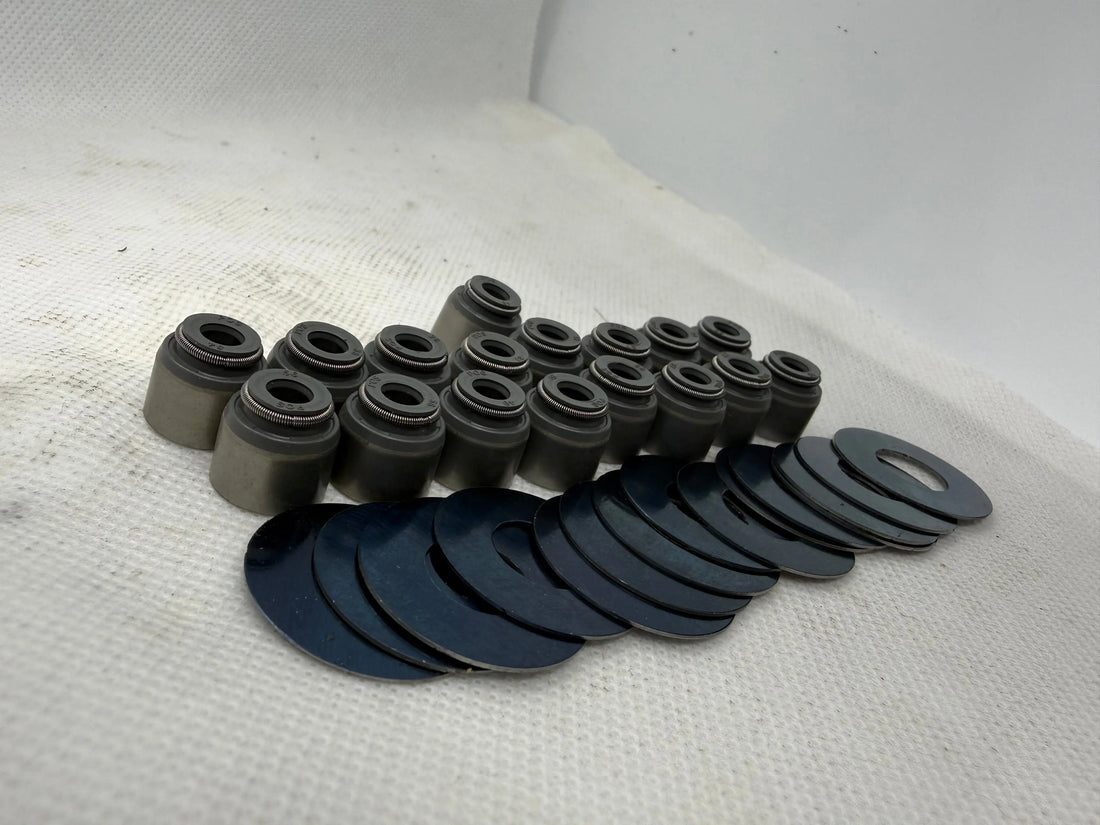

BK Racing Extra-Clearance Spring Seats

BK Racing developed Extra-Clearance Ecotec Spring Seats to work within higher-lift valvetrain configurations where maximizing usable space becomes increasingly important.

The objective is not to change components simply for the sake of replacing factory parts.

The objective is to create the required clearance while maintaining the correct spring geometry.

That becomes increasingly important as camshaft lift approaches the upper operating range of the spring system.

This product should be internally linked directly to:

Ecotec Retainer-to-Seal Clearance and Spring Seat Clearance

and:

How Camshaft Lift Affects Ecotec Valve Spring Selection.

Why Valve Seal Clearance Matters

A spring can have plenty of remaining travel and still encounter another mechanical limit.

One of the most important is:

retainer-to-seal clearance.

As the valve opens, the retainer moves toward the valve seal and guide.

If the retainer contacts the seal before the spring reaches its safe travel limit, then the spring's remaining travel doesn't matter.

The seal has become the limiting component.

BK Racing Press-On Viton Valve Seals

The BK Racing Press-On Viton Valve Seals are another part of the high-lift system.

They allow the cylinder head to be configured for additional retainer clearance when required while maintaining positive valve-guide sealing.

This becomes particularly useful as:

camshaft lift increases

and:

available retainer travel decreases.

The relevant internal link here is Ecotec Retainer-to-Seal Clearance and Spring Seat Clearance.

That article explains why coil bind is not the only mechanical limitation in a high-lift Ecotec cylinder head.

The Complete Mechanical Clearance Chain

When checking a high-lift Ecotec valvetrain, the builder should verify the entire chain.

Spring

Does it have sufficient travel before coil bind?

Retainer

Does it properly locate the spring and clear the follower?

Valve Seal

Does the retainer clear it at maximum lift?

Valve Guide

Is sufficient retainer-to-guide clearance available?

Roller Finger Follower

Does the retainer maintain proper rocker/follower clearance?

Piston

Does the valve maintain adequate piston-to-valve clearance?

The maximum usable valve lift is determined by the first component that reaches its safe limit.

Not simply by the spring's coil-bind number.

This Is Why “Drop-In” Still Requires Measurement

The BK Racing spring is designed to simplify the Ecotec performance spring installation.

But drop-in does not mean measure-free.

Every performance cylinder head should still have its:

Installed height measured

Seat pressure verified

Open pressure verified

Coil-bind clearance checked

Retainer-to-seal clearance checked

Retainer-to-guide clearance checked

Rocker clearance checked

For more detail, see Drop-In vs. Modified GM Ecotec Valve Spring Systems.

That article is particularly relevant for builders deciding whether they actually need a heavily modified spring pocket or whether the required performance can be achieved within a properly configured drop-in system.

Not Every Engine Needs the Extra-Clearance Components

This is one of the biggest advantages of treating the BK Racing components as a system rather than forcing them into one package.

A moderate-lift engine may be able to use:

BK Racing 83 lb Springs

without requiring every high-lift component we offer.

As lift increases, the builder can evaluate whether additional:

Retainer clearance
Seal clearance
Seat configuration

is necessary.

This keeps the system modular.

Use what the engine requires.

Camshaft Lift Determines How Much of the System You Need

As camshaft lift increases, mechanical clearance becomes increasingly important.

A relatively mild cam may leave substantial room throughout the valvetrain.

A cam operating near:

.500"

requires much closer attention.

And as the engine approaches the BK Racing:

.520" recommended maximum

the complete spring/retainer/seat/seal geometry should be verified carefully.

See How Camshaft Lift Affects Ecotec Valve Spring Selection for the full explanation.

Camshaft Aggressiveness Determines How Hard the System Works

Lift isn't the entire camshaft.

Two cams can both produce:

.500" valve lift

while creating very different spring demands.

A more aggressive lobe can accelerate the valve much harder.

That increases the dynamic load placed on the:

spring

retainer

valve

follower

and:

lash-control system.

That's why How Camshaft Duration and Aggressive Lobe Profiles Affect Ecotec Valve Springs should be linked directly from this discussion.

The spring needs to be matched to the motion of the valve, not simply the maximum lift number.

The Roller Finger Follower Is Part of the System Too

The Ecotec does not use a traditional pushrod valvetrain.

Camshaft motion is transferred through the roller finger follower.

Maintaining control of that follower is critical.

If the valve and follower no longer remain where the camshaft expects them to be, the valvetrain can become unstable.

Potential problems can include:

Valve float
Valve bounce
Lash instability
Rocker/follower displacement

This is where the spring system begins connecting directly to another major BK Racing Ecotec technical topic:

kicked rockers.

Valve Float and Kicked Rockers Are Related—but Not Identical

We need to be precise here.

A kicked Ecotec rocker should not automatically be diagnosed as:

“Not enough valve spring.”

Loss of valve control can contribute to follower instability.

But other problems can also be involved, including:

Valve bounce
Spring surge
Hydraulic lash instability
Incorrect geometry
Component problems

This is why our article What Causes Valve Float in GM Ecotec Engines? should link into our Ecotec kicked-rocker technical content, and vice versa.

The customer searching for one problem needs to understand the other possibilities.

That is both technically useful and an excellent internal-link connection between the two BK Racing knowledge clusters.

The Hydraulic Lash Adjuster Is Another Part of the System

The factory Ecotec valvetrain uses hydraulic lash adjusters.

Those adjusters need to maintain the correct relationship between the:

camshaft

roller follower

and:

valve.

At increasingly aggressive RPM and camshaft conditions, hydraulic behavior becomes another potential source of instability.

Importantly:

A stronger spring does not eliminate every hydraulic problem.

More spring pressure cannot automatically fix:

Bleed-down
Collapse
Pump-up
Internal sticking
Check-valve instability

Those are separate issues.

Why BK Racing Solid Lash Adjusters Belong in the Same Technical Network

For racing applications where hydraulic lash control becomes undesirable, BK Racing offers Solid Lash Adjusters.

These address the lash-control side of the valvetrain.

The 83 lb spring addresses the spring-control side.

They solve different problems.

This distinction is extremely important.

We do not want customers believing:

83 lb springs prevent every kicked rocker

or:

solid lash means spring pressure no longer matters.

A high-RPM valvetrain requires both sides of the system to remain stable.

This article should therefore link directly to the BK Racing Solid Lash Adjusters, our solid-lifter technical article, What Causes Valve Float in GM Ecotec Engines?, and the related kicked-rocker article.

Those pages form a natural Ecotec high-RPM valvetrain cluster.

How the Complete System Works Together

At this point, the logic of the BK Racing system becomes much clearer.

83 lb Valve Spring

Provides the required spring force and travel.

Titanium Retainer

Reduces unnecessary moving mass while locating the upper spring.

Extra-Clearance Spring Seat

Helps optimize spring installation and available clearance.

Press-On Viton Valve Seal

Provides additional clearance where required for higher-lift configurations.

Solid Lash Adjuster

Removes the hydraulic variable when the racing application requires mechanical lash control.

Camshaft

Determines the valve motion the entire system must follow.

Roller Finger Follower

Transfers that camshaft motion to the valve.

All of these components interact.

The System Should Be Built Around the Camshaft

The correct sequence is not:

Buy the biggest spring and then choose a cam.

Start with the engine combination.

Determine:

1. Camshaft lift

2. Camshaft profile

3. Intended RPM

4. Valve and retainer mass

5. Boost, if applicable

6. Racing duty cycle

Then configure the spring system around those requirements.

Our article How to Match Valve Springs to Ecotec Camshafts goes into this process in much greater detail and should be one of the strongest internal links from this page.

The System Should Also Be Built Around RPM

As RPM rises, the amount of time available to complete each valve event decreases dramatically.

This increases the importance of:

Spring control
Reduced moving mass
Stable lash
Proper geometry
Dynamic spring behavior

For a street engine that briefly touches high RPM, this is important.

For a circle-track Ecotec that operates at elevated RPM lap after lap, it becomes critical.

See How RPM Affects Ecotec Valve Spring Requirements and Choosing GM Ecotec Valve Springs for Street, Performance, and Racing Applications.

Why Circle Track Racing Influenced the System

BK Racing's experience is heavily rooted in Ecotec circle-track racing.

That changes how we look at valvetrain components.

We are not simply concerned with:

Can the engine hit this RPM once?

We are concerned with:

Can the valvetrain remain stable while repeatedly operating there throughout a race?

That means considering:

heat

fatigue

harmonics

repeated spring cycling

rocker stability

and:

mechanical margin.

This is one reason we are conservative with our recommended lift limit.

A Race Engine Needs Margin

A race engine does not become more reliable because every component is operated at its absolute mechanical boundary.

Quite the opposite.

The closer the system gets to:

Coil bind
Seal contact
Guide contact
Piston contact
Spring-control limits

the less tolerance remains for dynamic movement, heat, wear, and manufacturing variation.

BK Racing's approach is therefore to build margin into the complete system.

The BK Racing Spring System Is Not About Chasing One Number

We did not design the system to claim:

highest seat pressure

or:

largest advertised lift

or:

most springs.

Those are easy marketing comparisons.

The engineering objective is more complicated:

Provide the valve control the engine requires while maintaining appropriate mechanical clearance, reducing unnecessary moving mass, and avoiding unnecessary spring load.

That requires balancing multiple components.

Why the 83 lb Spring Is the Center of the System

The 83 lb spring gives us a strong foundation:

83 lb seat pressure

~230 lb @ .500"

~294 lb/in effective rate

progressive oval-wire construction

.520" recommended lift

and:

~.567" measured mechanical capability in the appropriate configuration.

From there, the rest of the system allows us to optimize:

mass

clearance

installed geometry

and:

lash control

for the particular engine.

Where the BK Racing System Fits

The system is particularly relevant to:

Cammed street Ecotecs
High-RPM naturally aspirated engines
Circle-track engines
Drag racing
Road racing
Autocross
Boosted performance engines
High-lift cylinder-head combinations

That does not mean every application needs every component.

It means the system gives the builder the ability to configure the valvetrain around the application.

Where the System May Not Be Enough

There are also Ecotec combinations beyond the intended range of the 83 lb spring.

Extreme combinations may require:

More seat pressure
More open pressure
Different spring architecture
Different installed height
More extensive cylinder-head modification

That's where higher-pressure dual-spring racing systems can become appropriate.

BK Racing's goal is not to claim the 83 lb spring replaces every spring on the market.

It is to cover a broad and useful performance range extremely well.

Measuring the Completed BK Racing System

Regardless of the components selected, the completed cylinder head should be measured before operation.

Verify:

Installed Height

Seat Pressure

Open Pressure

Coil-Bind Clearance

Retainer-to-Seal Clearance

Retainer-to-Guide Clearance

Rocker/Follower Clearance

and, with aftermarket cams or significant engine modifications:

Piston-to-Valve Clearance

These measurements are part of proper engine building.

A performance component should never replace measurement.

The BK Racing Ecotec Valvetrain Knowledge Network

If you are building an Ecotec cylinder head, the spring system connects directly to several other areas of the BK Racing technical library.

For spring fundamentals, continue through the GM Ecotec Valve Spring Knowledge Center.

For camshaft selection and compatibility, see our Ecotec camshaft technical articles and How to Match Valve Springs to Ecotec Camshafts.

For high-RPM follower problems, continue to our Ecotec kicked-rocker technical content.

For hydraulic instability and mechanical lash control, see the BK Racing Solid Lash Adjusters and our Ecotec solid-lifter technical guide.

For the physical limits of higher-lift camshafts, see Ecotec Retainer-to-Seal Clearance and Spring Seat Clearance and Ecotec Valve Spring Coil Bind and Maximum Valve Lift.

And when selecting the individual components, see the:

BK Racing 83 lb Ecotec Valve Springs

BK Racing Titanium Valve Spring Retainers

BK Racing Extra-Clearance Spring Seats

BK Racing Press-On Viton Valve Seals

BK Racing Solid Lash Adjusters

Together, those pages form a much more complete picture of the Ecotec valvetrain than any single product page can provide.

The Most Important BK Racing Valve Spring System Rule

If you remember one thing from this article:

The spring is only one component of the valvetrain system.

The spring provides force.

The retainer affects moving mass and spring location.

The seat affects installed geometry.

The valve seal can determine available lift.

The camshaft determines the motion.

The follower transfers that motion.

The lash adjuster maintains the mechanical relationship between those components.

And the entire system has to remain controlled at the intended RPM.

That is why BK Racing developed more than an 83 lb spring.

We developed a group of Ecotec valvetrain components that can be configured around the actual engine.

Pressure + Rate + Travel + Clearance + Mass + Lash Control + Camshaft + RPM

That is the BK Racing Ecotec valve spring system.

Continue Learning: GM Ecotec Valve Springs

Valve spring pressure is only one part of maintaining stable valve control in a performance Ecotec. Continue through the BK Racing GM Ecotec Valve Spring Knowledge Center to learn how installed height, spring rate, coil bind, camshaft lift, RPM, retainers, spring seats and valve seals work together as a complete valvetrain system. When planning your combination, also explore the BK Racing 83 lb Ecotec Valve Springs, BK Racing Titanium Valve Spring Retainers, BK Racing Extra-Clearance Spring Seats, and BK Racing Press-On Viton Valve Seals.

For aggressive racing combinations, also review BK Racing's Solid Lash Adjusters and related kicked-rocker technical information to understand the separate lash-control side of the Ecotec valvetrain.

Supporting search topics:
BK Racing 83 lb valve springs, Ecotec valve spring kit, Ecotec titanium retainers, Ecotec high lift valve springs, Ecotec spring seats, Ecotec valve seals, Ecotec solid lash adjusters, Ecotec high RPM valvetrain, Ecotec kicked rockers, Ecotec racing valve springs, Ecotec camshaft valve springs, L61 valve springs, LSJ valve springs, LNF valve springs, LE5 valve springs.

Tags:

Engine Building
