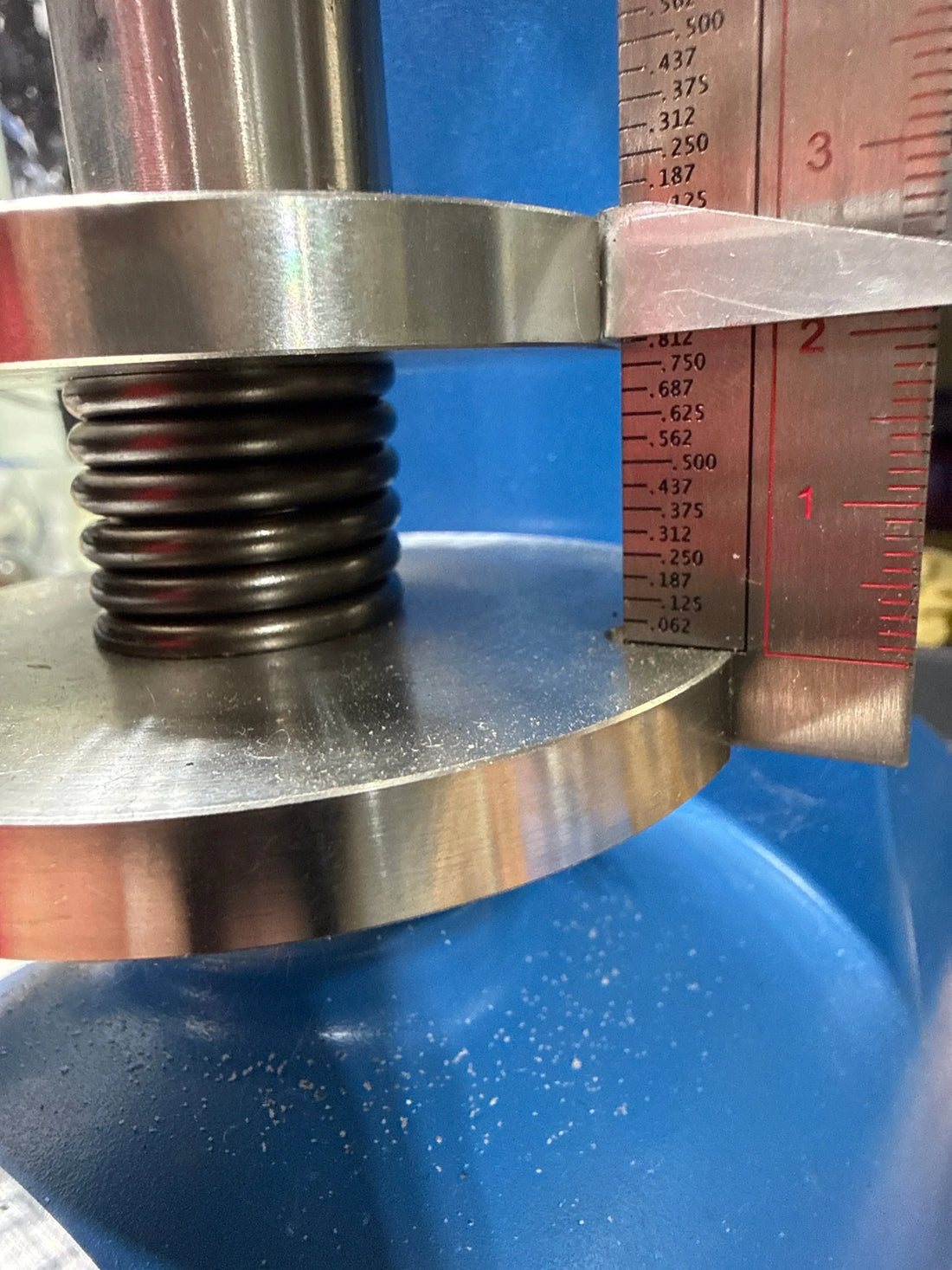

Ecotec Valve Spring Coil Bind and Maximum Valve Lift

Valve spring coil bind is one of the most important mechanical limits in a GM Ecotec valvetrain.

It is also one of the most commonly misunderstood.

A spring may physically compress far enough to support a certain amount of valve lift, but that does not mean the engine should be operated at that exact mechanical limit.

For performance Ecotec engines, maximum usable valve lift must consider more than coil bind alone. It also depends on:

Installed height
Spring travel
Retainer-to-seal clearance
Retainer-to-guide clearance
Spring-seat configuration
Rocker/follower clearance
Piston-to-valve clearance
Camshaft profile
RPM
Intended duty cycle

This is why BK Racing distinguishes between mechanical lift capability and recommended maximum lift.

For the BK Racing 83 lb Ecotec Valve Spring System, the appropriate configuration has demonstrated approximately:

.567" mechanical lift capability

while BK Racing advertises a much more conservative:

.520" recommended maximum lift

That difference is intentional.

What Is Valve Spring Coil Bind?

A valve spring is made up of multiple coils separated by space.

As the camshaft opens the valve, the spring is compressed.

The gaps between the coils become smaller.

Eventually, the spring reaches the point where the coils can no longer safely move closer together.

That point is called:

coil bind

Once a spring reaches coil bind, it has effectively run out of mechanical compression travel.

The spring is no longer functioning as a normal elastic component.

Any additional attempted movement creates extremely high loads in the valvetrain.

Why Coil Bind Is a Mechanical Limit

Coil bind should be thought of as a hard mechanical boundary.

It is not:

A target operating point
A recommended maximum lift
A safe place to run the spring
A substitute for measuring the complete valvetrain

If the camshaft attempts to compress the spring beyond coil bind, the movement has nowhere to go.

The resulting load can be transferred into components such as:

Camshaft lobes
Roller finger followers
Hydraulic lash adjusters
Valve stems
Retainers
Valve locks
Timing components
Valves
Cylinder head

A serious valvetrain should always retain clearance before coil bind.

Coil Bind Height

Coil-bind height is the spring height at or near the point where its coils have reached their minimum practical spacing.

For example, if a spring has:

Installed height: 1.325"

and:

Coil-bind height: .800"

then the theoretical spring travel from installed height to coil bind would be approximately:

1.325" − .800" = .525"

But even that number does not mean the spring should be operated at .525" lift.

That would place the spring right at the mechanical limit.

A proper operating specification needs a safety margin.

Available Spring Travel

Available spring travel can be estimated as:

Installed Height − Coil-Bind Height

This tells you approximately how much physical spring compression exists between the installed position and coil bind.

But this is only:

mechanical spring travel

It is not automatically:

safe valve lift

That distinction matters because the spring may not be the first component in the valvetrain to run out of clearance.

Mechanical Spring Travel vs. Mechanical Valve Lift

These two terms should not automatically be treated as identical.

Mechanical Spring Travel

How much farther the spring itself can physically compress.

Mechanical Valve Lift

How much valve movement the complete installed valvetrain can accommodate before one of its components reaches a mechanical limitation.

The spring may still have travel remaining while:

The retainer contacts the valve seal
The retainer approaches the valve guide
The rocker/follower contacts another component
Piston-to-valve clearance becomes insufficient

So:

spring travel does not automatically equal usable valve lift.

What Is Maximum Valve Lift?

Maximum valve lift can mean different things depending on how the specification is being used.

This creates confusion in aftermarket product listings.

A manufacturer might publish:

Maximum lift: .500"

But that number could mean:

Lift to actual coil bind
Lift with a small coil-bind margin
Lift before retainer-to-seal contact
Recommended operating lift
Mechanical travel calculated from dimensions

Those are not the same thing.

Whenever you see a maximum-lift specification, ask:

What exactly does that number represent?

Mechanical Lift vs. Recommended Maximum Lift

This is the most important distinction in this article.

Mechanical Lift

Mechanical lift describes the physical travel available in the tested installed configuration before a mechanical limitation is reached.

Recommended Maximum Lift

Recommended maximum lift is the operating limit the manufacturer is comfortable specifying while maintaining reasonable mechanical clearance.

The two numbers should not automatically be identical.

For the BK Racing Ecotec valve spring system:

Approx. .567" = measured mechanical lift capability in the appropriate configuration

Approx. .520" = conservative recommended maximum operating lift

That leaves approximately:

.047"

between the recommended .520" operating point and the measured .567" mechanical boundary in that configuration.

Why BK Racing Advertises .520" Instead of .567"

We could advertise:

Maximum lift: .567"

It is a larger number.

But it would blur the difference between:

what the system can physically travel

and:

where we recommend operating it

A racing engine does not operate in the same conditions as a spring slowly compressed on a bench.

At high RPM, the valvetrain experiences:

Dynamic loading
Component deflection
Heat
Spring oscillation
Manufacturing tolerances
Cylinder-to-cylinder variation
Repeated acceleration and deceleration

That is why BK Racing intentionally publishes a more conservative .520" recommended maximum lift.

We would rather give the engine builder usable operating guidance than advertise the absolute mechanical edge of the assembly.

Why a Safety Margin Matters

Mechanical clearances should include room for the system to operate dynamically.

Imagine a spring that measures:

.010" from coil bind

on a static bench.

Would you want to run that spring at sustained racing RPM?

Probably not.

The spring and surrounding components are moving, heating, flexing, and oscillating.

A sensible clearance margin provides room for these real-world effects.

This is especially important in circle-track racing, where the engine may spend significant time near peak operating RPM.

Coil-Bind Clearance

Coil-bind clearance is the distance remaining between the spring's operating position at maximum valve lift and its coil-bind limit.

In simplified form:

Mechanical Spring Travel − Actual Valve Lift = Remaining Coil-Bind Clearance

For example, if an assembled system has:

.567" mechanical capability

and is operated at:

.520" valve lift

then the difference is approximately:

.047"

Again, this does not guarantee every assembled Ecotec cylinder head has exactly .047" clearance.

The actual engine must be measured.

Why Every Ecotec Cylinder Head Should Be Checked

Installed geometry can vary.

Differences may come from:

Valve jobs
Valve seat depth
Aftermarket valves
Valve length
Retainer design
Keeper location
Spring-seat thickness
Previous cylinder-head machining
Manufacturing tolerances

That means one cylinder head may not have exactly the same mechanical travel as another even when they use the same spring.

For serious performance builds, measure the finished assembly.

Coil Bind Is Not the Only Limit

This is one of the biggest mistakes in valvetrain setup.

A builder checks coil bind, sees adequate clearance, and assumes the valvetrain is safe.

But another component may run out of clearance first.

Important mechanical limits include:

Spring coil bind
Retainer-to-seal clearance
Retainer-to-guide clearance
Spring-seat configuration
Rocker/follower clearance
Piston-to-valve clearance

The smallest safe clearance in the complete combination ultimately determines the practical valve-lift limit.

Retainer-to-Seal Clearance

As the valve opens, the retainer moves toward the valve seal and guide area.

At higher valve lift, this clearance becomes smaller.

It is entirely possible for the retainer to approach or contact the valve seal before the spring itself reaches coil bind.

That means a spring could advertise substantial mechanical travel while the assembled cylinder head cannot safely use all of it.

This is one reason BK Racing developed Extra-Clearance Spring Seats and Press-On Viton Valve Seals as part of the complete valve spring system.

The goal is to maximize usable valvetrain clearance—not merely spring travel.

Retainer-to-Guide Clearance

Depending on the valve guide, seal, and retainer configuration, the retainer may also approach the guide itself.

This is another clearance that should be checked independently.

Do not assume that adequate spring travel guarantees adequate guide clearance.

Rocker/Follower Clearance

The Ecotec uses a roller finger follower system.

Retainer geometry has to work within that layout.

A retainer that physically fits the spring does not automatically guarantee sufficient rocker/follower clearance.

This is one reason BK Racing designed its Titanium Valve Spring Retainers around maintaining positive rocker clearance across the Ecotec rocker configurations the system is intended to support.

High-lift valvetrain development needs to account for the entire geometry.

Spring Seats and Maximum Lift

The spring seat establishes the lower location of the spring.

Changing the seat thickness affects:

Installed height
Seat pressure
Spring travel
Coil-bind clearance
Retainer-to-seal relationship

A thicker seat or shim may increase spring pressure by reducing installed height.

But that also moves the spring closer to coil bind.

This is why shimming for more pressure must always be followed by another clearance check.

Why More Lift Means Less Margin

As camshaft lift increases, the spring compresses farther.

That means:

Open pressure increases

while:

Remaining travel decreases

So increasing lift has two simultaneous effects:

You gain more spring pressure.

You lose mechanical clearance.

This is why a spring can become more heavily loaded while also becoming closer to its physical limit.

Both effects must be considered.

Camshaft Lift vs. Mechanical Lift

A camshaft may be advertised at:

.500"

.520"

.550"

or another lift value.

That does not automatically mean the spring system can safely support it.

The camshaft's advertised lift must be compared against the actual measured mechanical clearances of the assembled cylinder head.

For example, a .520" camshaft may fit comfortably in one combination but become too close to another mechanical limit after:

Valve-seat machining
Different retainers
Different valves
Different spring seats
Cylinder-head modifications

This is why actual measurement matters.

Camshaft Timing Also Matters

Maximum valve lift is not the only camshaft consideration.

Piston-to-valve clearance is heavily influenced by when the valve is open relative to piston position.

A camshaft may have acceptable spring travel but insufficient piston-to-valve clearance depending on:

Cam timing
Duration
Lobe profile
Deck height
Head milling
Piston design
Head gasket thickness

So:

spring clearance and piston-to-valve clearance are separate checks.

Both are necessary.

Mechanical Lift Does Not Equal Camshaft Recommendation

Suppose an Ecotec valvetrain physically supports approximately:

.567" mechanical lift

That does not mean BK Racing recommends every Ecotec builder install a .567" lift camshaft.

The complete camshaft requirement depends on:

Spring pressure
Cam profile
RPM
Valvetrain mass
Rocker/follower behavior
Piston-to-valve clearance
Intended racing use

Mechanical lift tells us what physically fits.

It does not tell us what the entire engine should run.

Why Coil-Bind Numbers Can Be Misleading in Product Comparisons

Suppose one manufacturer lists:

.500" coil bind

while another lists:

.547" maximum lift

and another lists:

.520" recommended maximum lift

Those numbers may appear directly comparable.

They may not be.

One may refer to:

spring travel to bind

another to:

mechanical valve lift

and another to:

recommended operating lift

This is why aftermarket valve spring comparisons need context.

A bigger lift number does not automatically mean greater usable lift.

A Real Ecotec Example

Consider the BK Racing 83 lb spring system.

BK Racing publishes:

83 lb @ 1.325" installed height

~230 lb @ .500" lift

~294 lb/in effective rate

~.520" recommended maximum lift

Development measurements in the appropriate configuration have demonstrated approximately:

.567" mechanical lift capability

The important point is not merely that .567 is larger than .520.

The important point is:

BK Racing intentionally does not use the mechanical limit as the recommended operating specification.

That distinction is one of the core principles behind our valve spring development.

Why a Spring With More Mechanical Travel Isn't Automatically Better

Mechanical travel is valuable.

But it is only one characteristic.

A spring with large travel but inadequate pressure may not control the intended valvetrain.

A spring with enormous pressure but very limited travel may not support the desired camshaft.

A proper spring system needs a balance of:

Seat pressure
Open pressure
Rate
Travel
Clearance
Mass
Durability

The goal is not maximum travel alone.

The goal is usable controlled travel.

Coil Bind and High RPM

High RPM makes clearance discipline even more important.

At elevated engine speed, the spring can experience:

Dynamic compression
Spring surge
Component deflection
Higher temperature
Repeated loading

This is why a static “it doesn't quite touch” test is not enough for a race engine.

The valvetrain needs margin.

That becomes even more important when the engine operates at high RPM lap after lap.

Coil Bind and Spring Fatigue

Operating too close to coil bind can also increase spring stress.

Repeatedly compressing a spring near its physical limit can contribute to:

Increased stress
Heat
Fatigue
Pressure loss over time

A race spring should not be designed around surviving the mechanical edge of its travel on every valve event.

Usable spring travel should include room for durability.

Coil Bind and Dual Springs

Dual springs introduce additional considerations.

Both inner and outer springs have their own geometry.

Their relationship must be evaluated as a complete system.

The inner spring may approach a mechanical limit differently from the outer spring.

This is another reason simply assuming:

dual = more lift

is incorrect.

Actual specifications matter.

Why More Seat Pressure Can Reduce Travel

One way builders sometimes increase spring pressure is by reducing installed height with a shim or thicker seat.

That increases initial spring compression.

But it also reduces the remaining distance to coil bind.

So:

more preload = more pressure

and simultaneously:

less available travel

This is one of the fundamental tradeoffs in spring setup.

Never increase pressure without rechecking mechanical clearance.

How to Check Coil-Bind Clearance

A proper coil-bind check should be performed with the actual spring intended for the engine.

Common methods include:

Spring tester
Installed-height measurement combined with verified coil-bind height
Direct measurement of the spring at intended maximum compression

The key is to establish:

installed spring height

spring height at maximum valve lift

and:

verified mechanical limit

Then determine how much clearance remains.

Do not rely solely on catalog numbers when building a high-performance cylinder head.

Check All 16 Valve Positions

A GM Ecotec cylinder head uses 16 valve springs.

For a serious performance build, don't assume one measurement represents all 16 positions.

Variations in:

Valve-seat depth
Valve length
Retainer position
Spring-seat stack
Machine work

can produce differences across the head.

The most complete approach is to check and document each valve position.

Maximum Lift Should Be Documented During Blueprinting

For a serious race cylinder head, useful blueprint data can include:

Installed height
Seat pressure
Open pressure
Coil-bind height
Mechanical spring travel
Maximum intended valve lift
Remaining coil-bind clearance
Retainer-to-seal clearance
Rocker clearance

That gives the engine builder a real dimensional record of the valvetrain.

It also makes future service easier.

Why BK Racing Uses a Conservative Maximum Lift

BK Racing's approach is simple:

We want the advertised specification to represent a usable operating recommendation, not the largest number we can produce on a bench.

That is why:

.567" mechanical capability

does not become:

.567" recommended maximum lift

Instead:

.520" is the conservative advertised maximum

for the appropriate configuration.

The roughly .047" difference reflects the fact that racing engines should not be designed to operate directly against their static mechanical boundary.

Mechanical Limit vs. Engineering Limit

This is a useful way to think about it.

Mechanical Limit

Where the system physically runs out of travel.

Engineering Limit

Where we choose to operate while maintaining appropriate clearance and reliability.

Those numbers should not always be the same.

A good performance specification is not necessarily the largest number.

It is the number that properly reflects how the component should be used.

The Most Important Coil-Bind Rule

If you remember one thing from this article, remember this:

Coil bind tells you where the spring stops. It does not tell you where the engine should run.

Maximum usable valve lift must consider:

Installed height + coil bind + safety margin + retainer clearance + seal clearance + rocker clearance + piston-to-valve clearance + camshaft profile + RPM

That is why BK Racing distinguishes between:

mechanical lift capability

and:

recommended maximum lift

A properly designed Ecotec valvetrain should have room to operate—not simply room to avoid touching while sitting still.

Continue Learning: GM Ecotec Valve Springs

Valve spring pressure is only one part of maintaining stable valve control in a performance Ecotec. Continue through the BK Racing GM Ecotec Valve Spring Knowledge Center to learn how installed height, spring rate, coil bind, camshaft lift, RPM, retainers, spring seats and valve seals work together as a complete valvetrain system. When planning your combination, also explore the BK Racing 83 lb Ecotec Valve Springs, BK Racing Titanium Valve Spring Retainers, BK Racing Extra-Clearance Spring Seats, and BK Racing Press-On Viton Valve Seals.

Primary search topic:
Ecotec valve spring coil bind

Supporting search topics:
Ecotec maximum valve lift, GM Ecotec valve spring coil bind, Ecotec valve spring clearance, Ecotec mechanical lift, recommended valve lift, Ecotec high lift camshaft, 83 lb Ecotec valve springs, Ecotec spring travel, Ecotec racing valve springs.measure coil bind

coil bind affect performance

stops the valve

recommended valve spring

maximum travel of a valve spring

fully compressed

safely handle

coils of the spring

valve spring kits

damage your engine

valve stem

damage to the cam lobe

lifter

what is coil bind

rocker arm

cam lobe

camshaft manufacturer

pushrod

Tags:

Engine Building
