What is mechanical lift vs. recommended maximum lift?

Mechanical lift is how much physical travel exists before a mechanical limitation is reached; recommended maximum lift is the conservative operating lift BK Racing advises staying within.

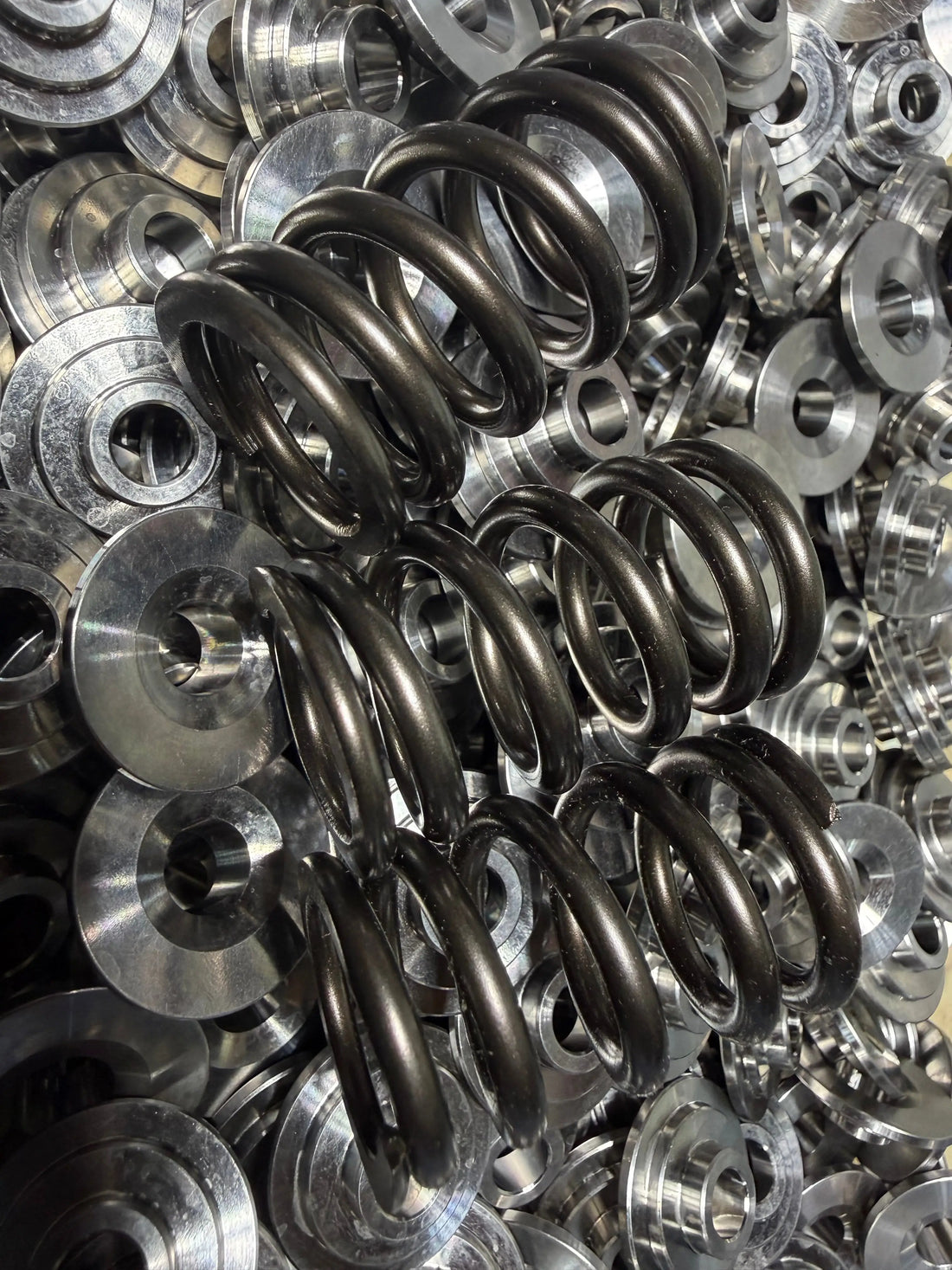

Understanding GM Ecotec Valve Spring Specifications

Q: What is valve spring free height?

Free height is the height of the spring when it is sitting unloaded outside the cylinder head.

Q: What is valve spring installed height?

Installed height is the distance occupied by the spring when the valve is closed and the spring is assembled between its spring seat and retainer.

Q: What is seat pressure?

Seat pressure is the spring force present when the valve is completely closed.

Q: What is open pressure?

Open pressure is the spring force at a specified amount of valve lift.

Q: What is valve spring coil bind?

Coil bind is the mechanical point at which the spring's coils have compressed to the point that the spring cannot safely compress farther.

When comparing GM Ecotec valve springs, the number printed in the product name—75 lb, 82 lb, 83 lb, 94 lb—is only one piece of the specification.

A valve spring should be evaluated as a complete operating system.

To understand whether a spring is appropriate for a stock Ecotec, high-RPM naturally aspirated engine, boosted LSJ or LNF, aggressive camshaft combination, or circle-track race engine, you need to understand:

Installed height
Seat pressure
Open pressure
Spring rate
Free height
Coil-bind height
Mechanical travel
Mechanical lift
Recommended maximum lift
Coil-bind safety margin
Retainer-to-seal clearance
Spring-seat configuration
Retainer compatibility
Spring construction and material
Intended RPM and camshaft profile

One of the biggest sources of confusion in the Ecotec aftermarket is maximum valve lift.

A spring's mechanical lift capability and its recommended operating lift are not the same specification.

BK Racing intentionally distinguishes between the two.

Our BK Racing 83 lb Ecotec Valve Springs have demonstrated approximately .567" of mechanical lift capability in the appropriate BK configuration, but we advertise a much more conservative .520" recommended maximum lift.

Why?

Because the point where a component physically runs out of travel should not automatically become the point where we tell a racer to operate it.

Understanding that difference—and the rest of the specifications that determine valve spring performance—is the purpose of this guide.

What Does an Ecotec Valve Spring Specification Actually Tell You?

A proper valve spring specification describes the spring at more than one point in its travel.

For example, BK Racing currently publishes the following core specifications for our 83 lb Ecotec spring:

Specification	BK Racing 83 lb
Installed Height	1.325"
Seat Pressure	83 lb @ 1.325"
Open Pressure	Approx. 230 lb @ .500" lift
Effective Spring Rate	Approx. 294 lb/in
Recommended Maximum Lift	Approx. .520"
Mechanical Lift*	Approx. .567" in the appropriate configuration
Design	Progressive oval-wire single spring
Treatment	Nitride treated

*Mechanical lift is not the recommended operating lift.

BK Racing's currently published product specifications confirm the 83 lb installed pressure, approximately 230 lb open pressure at .500", 294 lb/in progressive rate and conservative .520" recommended maximum lift. BK Racing

Every one of these specifications describes a different part of the spring's operation.

Valve Spring Free Height

Free height is the height of the spring when it is sitting unloaded outside the cylinder head.

Nothing is compressing it.

Free height provides useful information when inspecting or comparing springs, but it does not tell you how much pressure the spring will produce after installation.

Once installed between the spring seat and retainer, the spring is compressed from its free height.

That initial compression creates the spring's seat pressure.

Free height can also be useful when inspecting used racing springs. A spring that has permanently lost free height may have taken a set and should be evaluated rather than assumed to still meet its original specification.

What Is Valve Spring Installed Height?

Installed height is the distance occupied by the spring when the valve is closed and the spring is assembled between its spring seat and retainer.

For the BK Racing spring, our primary specification is:

83 lb @ 1.325" installed height.

The installed height is critical because valve spring pressure depends on it.

You cannot properly specify:

“This is an 83 lb spring.”

without also knowing where it produces 83 lb.

The complete specification is:

83 lb at 1.325" installed height.

Install that same spring at a different height and its seat pressure will change.

This is why Article 4 of this series is dedicated entirely to Ecotec Valve Spring Installed Height: Why It Matters.

What Is Seat Pressure?

Seat pressure is the spring force present when the valve is completely closed.

Seat pressure helps:

Keep the valve seated
Control the valve as it approaches the seat
Maintain follower/rocker stability
Resist valve bounce
Maintain control as RPM increases

This is normally the number used to name aftermarket valve springs.

That's where terms such as:

75 lb spring

82 lb spring

83 lb spring

94 lb spring

come from.

But seat pressure tells us what the spring is doing at one position.

The valve doesn't remain in that position while the engine is running.

It opens.

And as it opens, spring pressure changes.

What Is Open Pressure?

Open pressure is the spring force at a specified amount of valve lift.

For example:

The BK Racing spring is approximately:

83 lb at 1.325" installed height

and

230 lb at .500" valve lift.

That second number is extremely important.

At high RPM, the spring has to control the valvetrain as the valve accelerates, reaches maximum lift, reverses direction, and returns toward the seat.

A spring's performance therefore cannot be judged by seat pressure alone.

This becomes obvious when we look at currently published Ecotec spring specifications.

ZZPerformance publishes its 82 lb single spring at 82 lb seat pressure and 200 lb at .420" lift. ZZPerformance

The Supertech 94 lb dual-spring kit sold by ZZPerformance is published at 94 lb seat pressure and 232 lb open pressure at 12.5 mm (.492") lift. ZZPerformance

The important lesson isn't that one pressure number automatically makes one spring superior.

It's that seat pressure and open pressure need to be evaluated together.

What Is Valve Spring Rate?

Spring rate describes how much additional force the spring develops as it is compressed.

It is commonly expressed in:

pounds per inch — lb/in

A higher rate means spring pressure increases more rapidly as the spring is compressed.

This helps explain why two springs with similar seat pressures can produce different pressures farther into their travel.

The BK Racing 83 lb spring has an effective rate of approximately:

294 lb/in

through the relevant operating range, with a progressive oval-wire design.

That gives us approximately 230 lb of open pressure at .500" lift.

Spring rate gets its own detailed treatment in Article 6, Understanding Ecotec Valve Spring Rate.

Linear vs. Progressive Valve Springs

Not every valve spring behaves identically throughout its travel.

A linear-rate spring is designed so that its force increases relatively consistently with compression through its normal operating range.

A progressive spring changes effective rate as it moves through its travel.

BK Racing uses a progressive oval-wire single-spring design.

That distinction matters because simply calculating pressure from one published rate can become less accurate when a spring's effective rate changes through its travel.

This is another reason we prefer actual measured pressures at useful operating points rather than relying exclusively on a theoretical calculation.

What Is Valve Spring Coil Bind?

Coil bind is the mechanical point at which the spring's coils have compressed to the point that the spring cannot safely compress farther.

This is an absolute mechanical boundary.

It is not an operating target.

A performance engine should retain clearance before the spring reaches coil bind.

If the camshaft attempts to compress a spring beyond its available travel, extremely high loads can be transferred into the valvetrain.

Potential consequences can include damage to:

Camshaft
Rocker/follower
Valve
Retainer
Locks
Spring
Lash adjuster
Timing components

That is why coil-bind height is important—but even coil-bind height doesn't tell us the whole maximum-lift story.

Mechanical Lift vs. Recommended Maximum Lift

This is one of the most important specifications to understand when comparing Ecotec valve springs.

Mechanical Lift

Mechanical lift describes how much physical travel exists in the assembled system before a mechanical limitation is reached.

Depending on the combination, that limitation may be:

Spring coil bind
Retainer-to-seal contact
Retainer-to-guide contact
Rocker-to-retainer interference
Another mechanical clearance

Mechanical lift answers:

How far can this assembly physically travel?

It does not answer:

How far should I operate it?

Those are different questions.

Why BK Racing Doesn't Advertise .567" as the Recommended Lift

With the appropriate BK Racing configuration, our development measurements have demonstrated approximately:

.567" mechanical lift capability.

We could simply put:

MAX LIFT: .567"

in large letters on the product page.

It would be a bigger number.

It would also blur the distinction between mechanical capability and recommended operating clearance.

Instead, BK Racing advertises approximately:

.520" recommended maximum lift.

That leaves roughly:

.047" between our advertised .520" lift and the measured .567" mechanical limit in that tested configuration.

That is intentional.

We would rather give the engine builder a conservative operating specification than advertise the largest number physically obtainable from the assembly.

Why a Mechanical Limit Needs a Safety Margin

A running engine is not a static fixture on a workbench.

At high RPM, components are experiencing:

Dynamic loading
Spring oscillation
Heat
Component deflection
Manufacturing tolerances
Cylinder-to-cylinder dimensional differences
Repeated acceleration and deceleration
Thousands of valve events per minute

That is why measuring a static mechanical limit and then running the engine directly against it is poor practice.

The available margin gives the system room to operate without approaching the mechanical boundary during normal dynamic operation.

This is especially important in sustained high-RPM applications such as circle-track racing.

Recommended Lift Is a System Specification

Another critical point:

The spring alone does not necessarily determine maximum usable valve lift.

You can have a spring that still has travel available while the retainer is about to contact the valve seal.

Or the spring may physically tolerate more travel while another component reaches its limit first.

Therefore, usable valve lift must consider the complete cylinder-head assembly.

This includes:

Spring

Retainer

Valve seal

Spring seat

Valve guide

Rocker/follower

Camshaft

Valve

That is why BK Racing developed the spring system beyond simply offering an 83 lb spring.

Retainer-to-Seal Clearance

As the valve opens, the retainer moves toward the valve guide and seal.

The greater the valve lift, the smaller this clearance becomes.

Eventually, the retainer can contact the seal or guide before the spring itself reaches coil bind.

This means a spring manufacturer can theoretically advertise impressive mechanical spring travel that isn't actually available in the assembled cylinder head.

The installed system matters.

BK Racing offers Extra-Clearance Spring Seats & Viton Valve Seals specifically to increase installed height and valve-lift capability when used with the BK Racing 83 lb spring system. BK Racing

Why Spring Seats Affect Valve Spring Specifications

The spring seat establishes the lower mounting surface of the spring.

Its thickness and geometry can affect:

Installed height
Spring location
Seat pressure
Available travel
Retainer-to-seal clearance

Changing the spring seat can therefore change the operating characteristics of the same spring.

This is why installed height should always be measured after the actual components intended for the engine are installed.

Why Retainers Affect the System

The valve spring retainer establishes the upper spring location and connects the spring to the valve through the locks or keepers.

Retainer design can influence:

Installed height
Valvetrain mass
Rocker clearance
Spring location
Keeper engagement
Available lift

BK Racing developed its titanium retainers not simply to reduce weight but also to maintain appropriate clearance across the Ecotec rocker/follower configurations the system is intended to support.

This is especially important because aftermarket retainer compatibility isn't universal. For example, ZZPerformance specifically warns that newer GM Ecotec rockers may interfere with its titanium retainers and recommends verifying fitment. ZZPerformance

That is a good example of why retainer geometry belongs in the valve-spring discussion.

What Does Maximum Lift Actually Mean on an Advertisement?

When you see:

Maximum Lift: .500"

or:

Maximum Lift: .550"

you need more information.

Ask:

Is that recommended operating lift?

Is it calculated mechanical travel?

Is it spring travel to coil bind?

How much coil-bind clearance remains?

What installed height was used?

What retainer was used?

What valve seal was used?

What spring seat was used?

Without those answers, two advertised “maximum lift” specifications may not be directly comparable.

This is exactly why BK Racing distinguishes between mechanical lift and recommended lift.

Mechanical Spring Travel vs. Mechanical Valve Lift

These terms also shouldn't automatically be treated as identical.

Spring travel describes how much the spring itself can compress.

Valve lift capability describes how much valve movement the complete installed valvetrain can accommodate.

The spring may have additional travel remaining even though:

The retainer is approaching the seal
The retainer is approaching the guide
The rocker is approaching another component
Piston-to-valve clearance has become insufficient

So:

Spring travel ≠ automatically safe valve lift.

Piston-to-Valve Clearance Is a Separate Limit

Valve spring clearance does not guarantee engine clearance.

An Ecotec cylinder head could theoretically support .520" or more valve lift mechanically while the piston-to-valve relationship of a particular engine combination does not.

Piston-to-valve clearance depends on factors including:

Camshaft timing
Camshaft profile
Valve lift
Piston design
Deck height
Cylinder-head machining
Head-gasket thickness
Connecting-rod and crankshaft combination

This is particularly important on modified Ecotec engines with decked blocks, milled cylinder heads, custom pistons, adjustable cam gears, or non-standard rotating assemblies.

Always verify piston-to-valve clearance independently.

What Is Coil-Bind Clearance?

Coil-bind clearance is the amount of spring travel remaining between the spring's operating height at maximum valve lift and its coil-bind point.

For example, the difference between BK Racing's conservative .520" advertised lift and the approximately .567" measured mechanical capability of the appropriate configuration is approximately:

.047".

That does not mean every Ecotec cylinder head automatically has exactly .047" clearance.

It means that was the margin between those two measured/reference points in the configuration being discussed.

Individual cylinder heads should still be measured.

Why Every Cylinder Head Should Be Checked

Performance engine building should not assume every cylinder head is dimensionally identical.

Installed height can change because of:

Valve jobs
Valve-seat depth
Replacement valves
Valve length
Retainer dimensions
Spring-seat thickness
Manufacturing tolerances
Previous cylinder-head machining

That means the same spring can have slightly different installed pressure and available travel from one cylinder head to another.

For serious performance and racing applications, measure the actual engine.

What Does Spring OD and ID Tell You?

Valve springs also have:

Outside diameter — OD

and

Inside diameter — ID

These dimensions determine how the spring fits the cylinder head, spring seat, retainer, and—on a dual spring—the relationship between the inner and outer springs.

Diameter influences packaging and spring design.

A spring cannot simply be selected by pressure and installed height if its physical dimensions don't correctly locate it within the cylinder head.

Single-Spring vs. Dual-Spring Specifications

A single spring uses one primary spring element.

A dual-spring system uses an outer and inner spring.

Dual springs can be useful for applications requiring particular pressure, rate, travel, or dynamic characteristics, but the existence of two springs does not automatically make a system superior.

Currently published Supertech Ecotec specifications illustrate how much information is required to properly describe a dual spring: separate inner and outer diameters, seat pressure, open pressure, maximum lift, coil bind, and rate are all provided for the system. ZZPerformance

The correct spring architecture depends on the application.

We'll compare single and dual Ecotec systems directly in Article 15.

Spring Material and Construction

Material and manufacturing process also matter.

A performance valve spring is subjected to millions of repeated loading cycles.

Important characteristics include:

Material quality
Wire geometry
Heat treatment
Surface treatment
Fatigue resistance
Dimensional consistency

BK Racing's 83 lb spring uses a progressive oval-wire design with a nitride surface treatment, specifications BK Racing publishes as part of the spring's high-RPM design. BK Racing

These characteristics don't replace pressure and clearance specifications, but they are part of the overall spring design.

Why Spring Pressure Should Be Checked After Use

Valve springs are fatigue components.

Over time, repeated heat and load cycles can change their characteristics.

For a racing engine, periodic spring testing can identify changes before they become a valvetrain-control problem.

Useful measurements include:

Free height
Seat pressure at the specified installed height
Open pressure at a specified lift
Consistency across all 16 springs
Physical condition

This becomes especially valuable in engines exposed to sustained high RPM.

A spring that still looks fine isn't necessarily producing the same pressure it produced when new.

Don't Compare Valve Springs by Seat Pressure Alone

Consider these currently published Ecotec specifications:

BK Racing:
83 lb @ 1.325"
~230 lb @ .500"
~294 lb/in effective rate
Progressive oval-wire single spring
~.520" recommended maximum lift BK Racing

ZZP 82 lb:
82 lb seat
200 lb @ .420"
Advertised .500" coil-bind specification ZZPerformance

Supertech 94 lb Dual:
94 lb @ 34.6 mm installed height
232 lb @ 12.5 mm (.492")
13.9 mm (.547") published maximum lift
20.7 mm coil-bind height ZZPerformance

Those numbers illustrate why saying:

“94 is stronger than 83.”

doesn't constitute a complete spring comparison.

The 94 lb dual has substantially greater seat pressure, yet its published open pressure is approximately 232 lb, while BK publishes approximately 230 lb at .500".

That doesn't make the springs equivalent—their construction, installed heights, rates, pressures, travel, components and intended applications differ.

But it demonstrates exactly why the complete specification sheet matters more than the number in the product name.

How BK Racing Defines a Valve Spring Specification

When BK Racing evaluates an Ecotec valve spring, we want to know more than:

How much pressure does it have on the seat?

We want to know:

At what installed height?

What is the pressure as lift increases?

What is the spring rate?

Where does the spring physically bind?

What is the mechanical travel?

What clearance does the installed assembly actually have?

What retainer is being used?

What seal and seat are being used?

What lift can we reasonably recommend instead of merely physically achieve?

How does the spring behave in a high-RPM Ecotec?

That distinction is central to the BK Racing valve spring program.

We don't want to publish the largest number.

We want to publish a number an engine builder can actually use.

Mechanical Limit Is Not a Performance Target

This deserves repeating:

The point where a component physically stops moving is not where a racing engine should be designed to operate.

For the BK Racing system:

Approximately .567" = measured mechanical capability in the appropriate configuration

Approximately .520" = conservative recommended maximum operating lift

Those numbers answer two completely different questions.

The first tells us where the mechanical boundary is.

The second tells the customer where BK Racing recommends staying.

That is why we advertise .520", not .567".

The Specification That Matters Most Is the Complete Combination

There is no single specification that determines whether an Ecotec valve spring is correct.

Not seat pressure.

Not open pressure.

Not maximum lift.

Not spring rate.

Not coil bind.

The correct evaluation combines all of them:

Installed height + seat pressure + open pressure + spring rate + spring construction + mechanical travel + recommended lift + coil-bind clearance + retainer clearance + seal clearance + camshaft profile + RPM + valvetrain mass + intended application.

That is what turns a valve spring specification sheet into useful engine-building information.

And it is why BK Racing treats the Ecotec spring, retainer, seat, seal, camshaft, rocker/follower, and lash-adjuster relationship as a complete valvetrain system rather than independent parts.

Continue Learning: GM Ecotec Valve Springs

Valve spring pressure is only one part of maintaining stable valve control in a performance Ecotec. Continue through the BK Racing GM Ecotec Valve Spring Knowledge Center to learn how installed height, spring rate, coil bind, camshaft lift, RPM, retainers, spring seats and valve seals work together as a complete valvetrain system. When planning your combination, also explore the BK Racing 83 lb Ecotec Valve Springs, BK Racing Titanium Valve Spring Retainers, BK Racing Extra-Clearance Spring Seats, and BK Racing Press-On Viton Valve Seals.

Primary search topic:
GM Ecotec valve spring specifications

Supporting search topics:
Ecotec valve spring specs, Ecotec valve spring pressure, Ecotec valve spring rate, Ecotec valve spring coil bind, Ecotec maximum valve lift, valve spring mechanical lift, recommended valve spring lift, 83 lb Ecotec valve springs, 82 lb Ecotec valve springs, 94 lb Ecotec valve springs.

compatible with all ecotec

ecotec 2.0, 2.2, 2.4

Tags:

Engine Building
