How BK Racing Tests and Measures Ecotec Valve Springs

A valve spring can look impressive on a product page.

It can be advertised as:

82 lb

83 lb

85 lb

94 lb

or even:

100+ lb.

But until you know how that spring was measured, at what installed height it was measured, what it does throughout its travel, and where its mechanical limits actually are, the number tells only part of the story.

That is why BK Racing approaches Ecotec valve springs as a measured component rather than simply trusting the number printed on the box.

Our BK Racing 83 lb Ecotec Valve Spring is specified at:

83 lb @ 1.325" installed height

Approximately 230 lb @ .500" valve lift

Approximately 294 lb/in effective progressive spring rate

Approximately .520" recommended maximum lift

Those numbers describe much more than simply calling it an “83 lb spring.” BK Racing

More importantly, the measurements are useful because they tell us how the spring behaves through the range where an actual Ecotec valvetrain operates.

This article explains what we measure, why we measure it, and how those measurements relate to real-world Ecotec valvetrain control.

Why BK Racing Tests Valve Springs

The purpose of testing isn't to find the largest number possible.

We want to answer several different questions:

What pressure does the spring produce at the actual installed height?

How much pressure does it develop as the valve opens?

How quickly does that pressure increase?

How much physical travel is available?

Where does the spring reach coil bind?

How much operating margin remains at the recommended lift?

How consistent are the springs?

Those questions tell us considerably more about a spring than its advertised seat pressure.

They also help us determine whether the spring belongs in the complete Ecotec valvetrain system we are building.

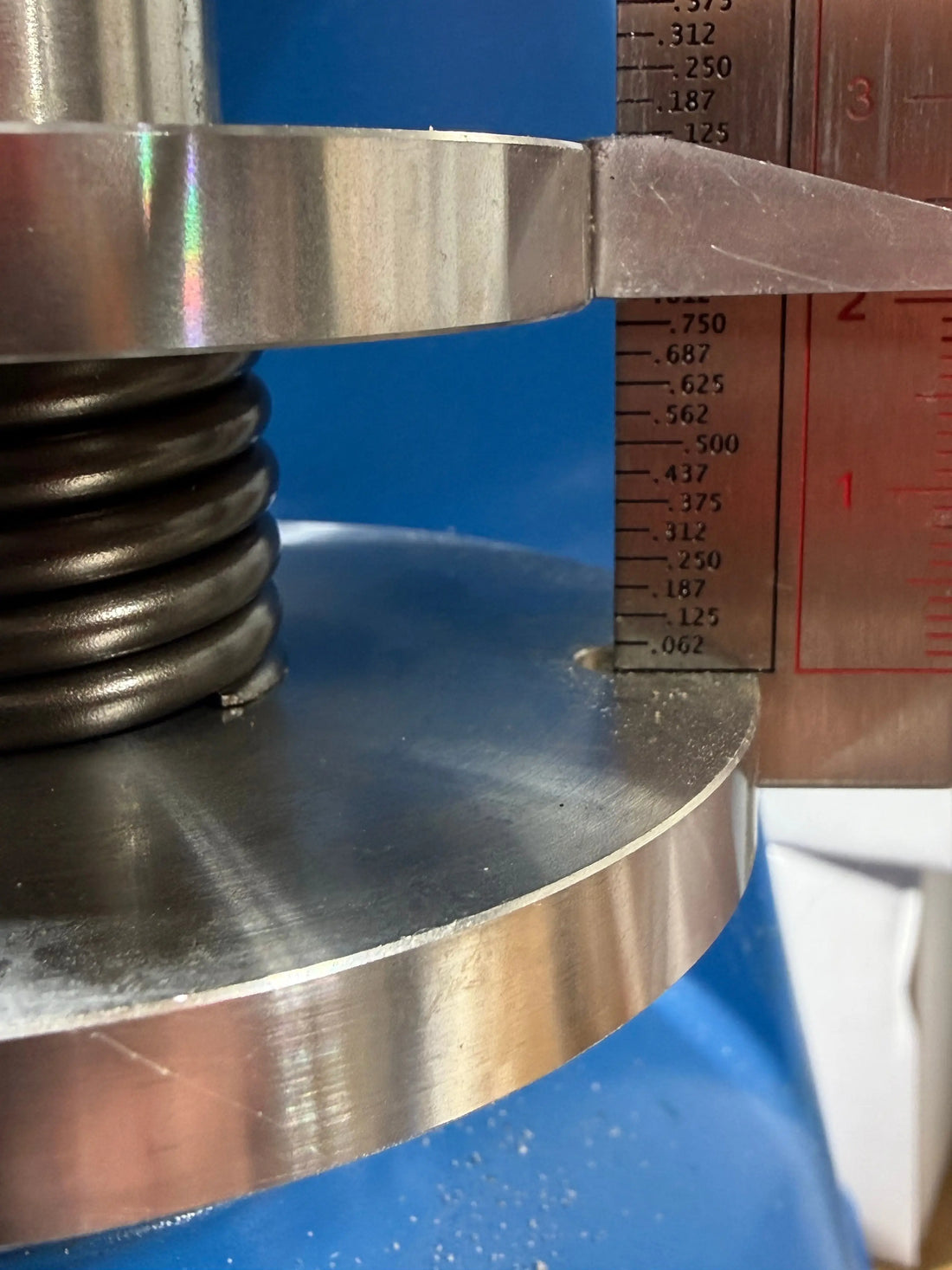

The Valve Spring Tester

A proper valve spring tester measures the force required to compress a spring to a specified height.

This allows us to reproduce the conditions the spring sees inside the cylinder head.

Professional spring testers can measure and calculate values such as:

Installed height
Seat pressure
Open pressure
Coil-bind height
Coil-bind clearance
Spring rate

Those are the same fundamental measurements used when properly evaluating a racing valve spring. Buxton Engineering

The important part is that the spring isn't simply compressed randomly until a pressure number appears.

Spring height and spring pressure have to be recorded together.

Step 1: Measure Free Height

Before loading the spring, we can establish its free height.

Free height is the spring's length when no external load is applied.

This gives us a dimensional baseline.

Free height by itself does not tell us whether the spring will properly control an Ecotec valvetrain, but it can help identify:

Dimensional inconsistencies
Spring relaxation
Changes after extended service
Differences between springs in a set

For a used racing spring, comparing current free height with previous measurements can also be useful when evaluating whether the spring has changed.

Step 2: Establish the Correct Installed Height

This is where meaningful spring-pressure testing begins.

The BK Racing 83 lb spring is specified around:

1.325" installed height. BK Racing

Installed height is the distance between the spring seat and the spring's upper locating surface at the retainer when the valve is closed.

The spring tester therefore needs to compress the spring to the same height it will see in the assembled cylinder head.

This matters because:

Seat pressure without installed height is incomplete information.

Saying:

“This is an 83 lb spring”

is less useful than saying:

“This spring produces 83 lb at 1.325 inches.”

Why Installed Height Changes Pressure

Suppose the same spring is installed shorter than intended.

It is already compressed farther with the valve closed.

Seat pressure increases.

Install it taller and the opposite happens.

Seat pressure decreases.

This means two identical springs can produce different seat pressures if installed at different heights.

That is why BK Racing's published specification includes both:

83 lb

and:

1.325".

They belong together.

Step 3: Measure Seat Pressure

Once the spring is compressed to the intended installed height, we measure its seat pressure.

For the BK Racing spring, the target specification is:

83 lb @ 1.325". BK Racing

Seat pressure is important because it helps maintain valve control as the valve:

Begins opening
Returns toward the seat
Contacts the seat
Transitions into the next valve event

This becomes particularly important with aggressive camshaft closing ramps and elevated RPM.

But as we've established throughout this valve-spring series:

Seat pressure is only the first measurement.

Step 4: Measure the Spring Through Its Travel

This is where spring testing becomes much more informative.

Instead of measuring only the closed position, we continue compressing the spring.

A useful test sequence can record pressure at increments such as:

Installed Height

.100" Lift

.200" Lift

.300" Lift

.400" Lift

.500" Lift

and eventually:

Near the intended maximum operating lift

This creates a much clearer picture of how the spring develops force.

For a progressive spring, this is especially valuable because the effective rate can change as the spring moves through its travel.

Why We Want a Complete Spring Curve

Imagine two springs.

Both measure:

83 lb at the seat.

Spring A reaches:

190 lb @ .500".

Spring B reaches:

230 lb @ .500".

Calling both of them “83 lb springs” hides a major difference.

The valve doesn't operate only at the seat.

It travels through the entire camshaft event.

That's why BK Racing's current 83 lb spring specifications include approximately:

230 lb @ .500". BK Racing

That number tells us what the spring is doing much deeper into the valve event.

Step 5: Measure Open Pressure

Open pressure is the spring force at a specified valve lift.

The words “at a specified lift” are extremely important.

BK Racing publishes approximately:

230 lb @ .500" lift. BK Racing

If another manufacturer publishes:

200 lb @ .420"

we should not simply say:

“BK has 30 pounds more open pressure.”

The springs were measured at different lifts.

A legitimate comparison needs to put both springs at the same installed height and same amount of compression, where applicable.

This Is Why We Don't Guess Competitor Open Pressure

Throughout our Ecotec valve spring comparison articles, we intentionally avoid inventing missing specifications.

If a competitor publishes only:

85 lb

but does not publish:

Installed height
Open pressure
Rate
Coil bind

we mark those specifications:

Not Published

rather than estimating them.

That's important.

An estimated spring curve is not the same thing as a measured spring curve.

Step 6: Determine Spring Rate

Spring rate describes how much additional force is produced as the spring is compressed.

For a conventional linear spring, it can be expressed approximately as:

Change in Pressure ÷ Change in Spring Height

But the BK Racing spring uses a:

progressive oval-wire design. BK Racing

That distinction matters.

A progressive spring should not automatically be treated as though one calculated rate perfectly describes its behavior everywhere throughout its travel.

BK Racing publishes an effective rate of approximately:

294 lb/in

through the relevant operating range. BK Racing

Why Progressive Rate Matters

The BK Racing spring was not designed simply to create the highest possible seat pressure.

The objective is to develop pressure as the valve moves through the event.

That helps explain how we can have:

83 lb seat pressure

while reaching approximately:

230 lb @ .500".

The spring develops substantially more force as it is compressed.

This allows us to maintain moderate initial spring load while still producing strong high-lift pressure.

Step 7: Measure Coil Bind

Eventually, continued spring compression reaches a mechanical boundary.

The coils approach one another until the spring can no longer safely compress farther.

This is:

coil bind.

A spring tester can establish the actual coil-bind height rather than relying only on a catalog value. Professional testers specifically use this measurement to calculate coil-bind clearance at a target installed height and lift. Buxton Engineering

Coil bind is an important measurement.

But it is not a target operating condition.

We Don't Run a Valve Spring at Coil Bind

This distinction is fundamental to the BK Racing spring program.

There is a difference between:

How far can this spring physically travel?

and:

How far should we recommend customers operate it?

Those are not the same question.

A spring reaching coil bind tells us where the physical boundary exists.

It does not automatically establish the recommended camshaft lift.

Step 8: Determine Mechanical Travel

Once installed height and mechanical limit are known, we can determine the spring's available travel.

In simplified form:

Installed Height − Mechanical Limit = Available Mechanical Travel

But even this number requires context.

The spring may not be the first component in the cylinder head to run out of room.

The actual valvetrain can also be limited by:

Retainer-to-seal clearance
Retainer-to-guide clearance
Rocker/follower clearance
Other assembled geometry

This is why spring testing and cylinder-head measurement work together.

Mechanical Lift vs. Recommended Lift

This is a distinction BK Racing intentionally emphasizes.

In the appropriate BK Racing configuration, we have measured approximately:

.567" mechanical capability

while our conservative recommended maximum remains approximately:

.520".

That leaves approximately:

.047"

between those two points.

We do not take the largest mechanical number we can produce on the tester and automatically turn it into our advertised camshaft recommendation.

Why We Leave Mechanical Margin

A running engine is not a static spring tester.

Inside a high-RPM Ecotec engine, components are experiencing:

Heat
Deflection
Rapid acceleration
Oscillation
Repeated loading
Manufacturing tolerance stack-up

A spring that clears something on a stationary bench by a few thousandths is not automatically something we want operating there lap after lap.

This becomes particularly important in circle-track racing, where the engine may spend substantial time in the upper portion of its RPM range.

Our recommended limit is therefore intended to represent an operating specification—not simply the point where the spring physically stops moving.

Step 9: Check Retainer-to-Seal Clearance

The spring isn't the only component that determines maximum lift.

As the valve opens, the retainer moves toward the valve seal and guide.

If the retainer contacts the seal before the spring reaches coil bind, then the spring's theoretical travel doesn't matter.

The assembly has already reached its limit.

That is why we also discuss and measure:

Retainer-to-seal clearance.

This directly links spring testing to our Ecotec Retainer-to-Seal Clearance and Spring Seat Clearance technical article.

Why BK Racing Developed High-Lift Seats and Valve Seals

This is also why BK Racing's Ecotec valvetrain program extends beyond the spring itself.

The BK Racing High-Lift Spring Seats and BK Racing Press-On Viton Valve Seals allow us to address the physical packaging around the spring and retainer when increased camshaft lift requires additional clearance.

The spring can have plenty of travel and still be useless if the rest of the cylinder head runs out of room first.

That's why we treat it as a system.

Step 10: Check the Retainer

Retainer choice affects more than simply holding the spring.

It can influence:

Installed height
Spring location
Mechanical clearance
Rocker clearance
Moving valvetrain mass

The BK Racing Titanium Valve Spring Retainers are intended to reduce moving mass while maintaining the geometry required by the Ecotec valvetrain.

Reducing retainer mass also means the spring has less mass to control at high RPM.

That's another example of improving valvetrain control without simply adding more spring pressure.

The BK Racing valvetrain catalog currently pairs the 83 lb springs directly with titanium retainers, high-lift seats, solid lash adjusters, adjustable cam gears, and other high-RPM components. BK Racing

Step 11: Evaluate Spring Consistency

A racing engine doesn't have one valve spring.

An Ecotec cylinder head uses:

16.

That means consistency matters.

If 15 springs behave similarly and one is significantly weaker, the engine doesn't have a “good average.”

It has one cylinder with a potentially different valvetrain-control condition.

Testing springs individually allows differences to be identified rather than assuming every spring in a box is identical.

What We Want to See Across a Set

When evaluating a spring set, we're interested in consistency of:

Free height
Seat pressure
Pressure through the operating range
Mechanical travel
General spring behavior

The objective isn't simply to calculate an average.

We want the engine's valves operating under a reasonably consistent spring environment.

That becomes increasingly important as RPM and camshaft aggressiveness increase.

Step 12: Recheck Springs After Racing Use

Valve springs are fatigue components.

They live through repeated compression cycles while exposed to:

Heat
Engine vibration
High RPM
Rapid acceleration
Repeated stress

For serious racing applications, springs can be periodically rechecked.

Useful measurements include:

Free Height

Seat Pressure

Open Pressure

and:

Consistency Across the Set

Comparing those numbers with the spring's earlier measurements can help identify a spring that is beginning to change before the problem becomes obvious in the engine.

Why Pressure Loss Matters

A spring does not need to break in half to become a problem.

If it loses enough pressure, its ability to control the valve can deteriorate.

That can contribute to:

Valve float
Valve bounce
Inconsistent seating
Follower instability
Loss of high-RPM power

BK Racing's existing Ecotec technical content documents how spring-control problems can contribute to unstable rocker and follower behavior as RPM and cam aggressiveness increase. BK Racing

This is why periodic measurement can be valuable in a serious race program.

Static Testing vs. Dynamic Testing

This distinction is important.

A spring tester gives us static measurements.

It can tell us:

Pressure
Height
Rate
Coil bind
Travel

Those are essential measurements.

But they do not reproduce every condition inside a running engine.

A spring can have excellent static numbers and still behave differently dynamically because of:

Spring surge
Natural frequency
Camshaft acceleration
Valvetrain mass
Harmonics
RPM

Static testing tells us a tremendous amount.

It does not tell us everything.

Real-World Racing Is Part of the Test

This is where actual Ecotec racing experience becomes important.

BK Racing's spring development is centered around the high-RPM instability problems seen in Ecotec racing applications—particularly sustained operation where factory springs begin struggling to maintain stable valve motion. BK Racing

The spring tester gives us the numbers.

The engine tells us whether the complete valvetrain works.

Both matter.

Why We Don't Rate Springs by RPM Alone

It would be easy to put a large number on a product page:

GOOD TO 9,000 RPM

But RPM alone does not establish spring requirements.

A spring's ability to control the valve also depends on:

Camshaft lift
Camshaft acceleration
Valve mass
Retainer mass
Lash-control system
Installed height
Spring pressure
Spring dynamics

A mild cam at one RPM can be easier to control than an aggressive cam at a lower RPM.

That's why BK Racing focuses on the complete combination.

Camshaft Testing Matters to Spring Selection

Our 83 lb springs have been used around aggressive Ecotec camshaft combinations, including MWR and Comp setups. BK Racing's current product documentation specifically identifies compatibility with aggressive high-RPM camshaft combinations as part of the spring's intended use. BK Racing

But saying:

“Works with performance cams”

does not eliminate the need to measure.

For every serious build, the actual:

lift + installed height + clearance + RPM

still matter.

The Spring Tester Cannot Diagnose Every Kicked Rocker

This is another important point.

If an Ecotec kicks a rocker follower, testing the spring is useful.

But a good spring-test result does not prove the spring was the only possible cause.

High-RPM Ecotec valvetrain instability can involve:

Valve float
Valve bounce
Spring surge
Hydraulic lash-adjuster behavior
Mechanical geometry
Component failure

BK Racing's How Solid Lash Adjusters Help Prevent Kicked Rockers in GM Ecotec Engines article discusses the lash-control side separately. BK Racing

That separation is intentional.

Spring control and lash control are related—but they are not the same problem.

Why Testing the Complete System Matters

This is ultimately why BK Racing has developed more than just a valve spring.

Our Ecotec valvetrain system includes related components such as:

83 lb Valve Springs

Titanium Retainers

High-Lift Spring Seats

Press-On Viton Valve Seals

Solid Lash Adjusters

Adjustable Cam Gears

and other high-RPM timing and valvetrain components. BK Racing

Each component addresses a different part of the system.

A spring tester tells us what the spring does.

Installed-height measurements tell us how it is being used.

Clearance measurements tell us whether the assembly physically fits.

Camshaft data tells us what motion is being demanded.

Racing tells us whether the system remains stable under actual sustained load.

That's the complete picture.

What BK Racing Records When Evaluating an Ecotec Spring

For a useful spring evaluation, the information we want documented includes:

Spring Identification

Which spring are we testing?

Free Height

What does it measure unloaded?

Target Installed Height

At what height is it intended to operate?

Seat Pressure

What does it produce at that height?

Pressure Through Lift

How does pressure develop as the spring compresses?

Open Pressure

What does it produce at the actual intended camshaft lift?

Effective Spring Rate

How rapidly does pressure increase?

Coil-Bind / Mechanical Limit

Where does physical travel end?

Recommended Operating Lift

Where do we actually want customers operating?

Operating Margin

How much room remains?

Set Consistency

Do all 16 springs behave similarly?

This gives us a much more useful record than:

“83 lb springs tested good.”

What We Would Like the Ecotec Industry to Publish

Ideally, every Ecotec valve spring manufacturer would publish the same basic test data.

Something like:

Measurement	Published Value
Free Height	—
Installed Height	—
Seat Pressure	—
Pressure @ .100" Lift	—
Pressure @ .200" Lift	—
Pressure @ .300" Lift	—
Pressure @ .400" Lift	—
Pressure @ .500" Lift	—
Recommended Maximum Lift	—
Mechanical Lift Limit	—
Coil-Bind Height	—
Spring Weight	—
Required Retainer	—
Required Seat/Seal	—

Then customers could compare springs using actual data rather than simply comparing:

82 vs. 83 vs. 85 vs. 94.

That would make the Ecotec market better informed.

Why BK Racing Publishes the Numbers

BK Racing's current 83 lb spring listing publishes installed height, seat pressure, open pressure, effective rate, recommended lift, spring architecture, and treatment. BK Racing

We want builders to understand why a spring is appropriate for their combination.

That's also why this valve-spring technical series exists.

A customer who understands:

installed height

seat pressure

open pressure

spring rate

coil bind

mechanical lift

and:

recommended lift

is much better equipped to build a reliable Ecotec valvetrain.

And that customer can compare our spring against anybody else's using the same criteria.

The BK Racing Testing Philosophy

The philosophy behind the testing process is straightforward:

Measure instead of assume.

Don't assume every spring in a set is identical.

Don't assume advertised installed height matches the assembled cylinder head.

Don't assume a maximum-lift number means coil bind.

Don't assume mechanical travel is recommended operating travel.

Don't assume more seat pressure means better control.

Don't assume a spring that fits physically can control the cam dynamically.

And don't assume every high-RPM Ecotec valvetrain problem is caused by the spring.

Measure the system.

Then make the decision.

The Most Important Valve Spring Testing Rule

If you remember one thing from this article:

A valve spring specification is only meaningful when pressure, height, and travel are documented together.

For the BK Racing 83 lb spring, the story isn't simply:

83 lb.

It's:

83 lb @ 1.325" installed height

Approximately 230 lb @ .500" lift

Approximately 294 lb/in effective progressive rate

Approximately .520" recommended maximum lift

combined with the mechanical clearance and valvetrain components required for the actual Ecotec build. BK Racing

Testing lets us understand where the spring starts, how it develops pressure, where its mechanical boundaries are, and how much margin we're leaving.

That is far more valuable than chasing the biggest number on a product page.

And for an Ecotec racing engine expected to live at sustained high RPM, measurement is part of building the engine—not an optional extra.

Continue Learning: GM Ecotec Valve Springs

Valve spring pressure is only one part of maintaining stable valve control in a performance Ecotec. Continue through the BK Racing GM Ecotec Valve Spring Knowledge Center to learn how installed height, spring rate, coil bind, camshaft lift, RPM, retainers, spring seats and valve seals work together as a complete valvetrain system. When planning your combination, also explore the BK Racing 83 lb Ecotec Valve Springs, BK Racing Titanium Valve Spring Retainers, BK Racing Extra-Clearance Spring Seats, and BK Racing Press-On Viton Valve Seals.

For aggressive racing combinations, also review BK Racing's Solid Lash Adjusters and related kicked-rocker technical information to understand the separate lash-control side of the Ecotec valvetrain.

Supporting search topics:
Ecotec valve spring testing, valve spring tester, Ecotec seat pressure testing, Ecotec open spring pressure, Ecotec installed height, Ecotec coil bind measurement, Ecotec spring rate, Ecotec maximum valve lift, BK Racing 83 lb springs, Ecotec racing valvetrain, Ecotec kicked rockers, Ecotec solid lash adjusters.

BK Racing Buxton Engineering

spring pressures

Tags:

Engine Building
