Why Valve Spring Pressure Alone Doesn't Tell the Whole Story

Valve spring pressure is one of the most important specifications in a GM Ecotec valvetrain.

It is also one of the easiest specifications to misuse.

When comparing aftermarket Ecotec valve springs, customers frequently see names such as:

82 lb

83 lb

85 lb

94 lb

104 lb

and assume that the larger number automatically identifies the more capable spring.

It does not.

That number normally describes seat pressure at one point in the spring's travel—and sometimes the installed height behind that pressure is not even published.

A valve spring has to control the valvetrain through the complete camshaft event.

That means a meaningful comparison also needs to consider:

Installed height
Seat pressure
Open pressure
Spring rate
Spring construction
Mechanical travel
Coil-bind height
Recommended maximum lift
Mechanical lift limit
Safety margin
Valve and retainer mass
Camshaft acceleration
RPM
Dynamic spring behavior
Racing duty cycle

A spring is not a single pressure number.

It is a pressure curve operating inside a dynamic mechanical system.

That distinction is the foundation of the BK Racing approach to GM Ecotec valve springs.

Why Valve Springs Are Named by Seat Pressure

Aftermarket valve springs are commonly identified by their seat pressure because it gives customers a simple reference point.

That is why the Ecotec market contains springs commonly described as:

ZZP 82 lb

BK Racing 83 lb

BradBuilt 85 lb

Supertech 94 lb

and higher-pressure racing options.

The number is useful.

But it tells us only how much force the spring produces with the valve closed at its specified installed height.

It does not tell us what happens after the valve starts opening.

Seat Pressure Is Only the Starting Point

When the valve is closed, the spring is already compressed from its free height.

This creates seat pressure.

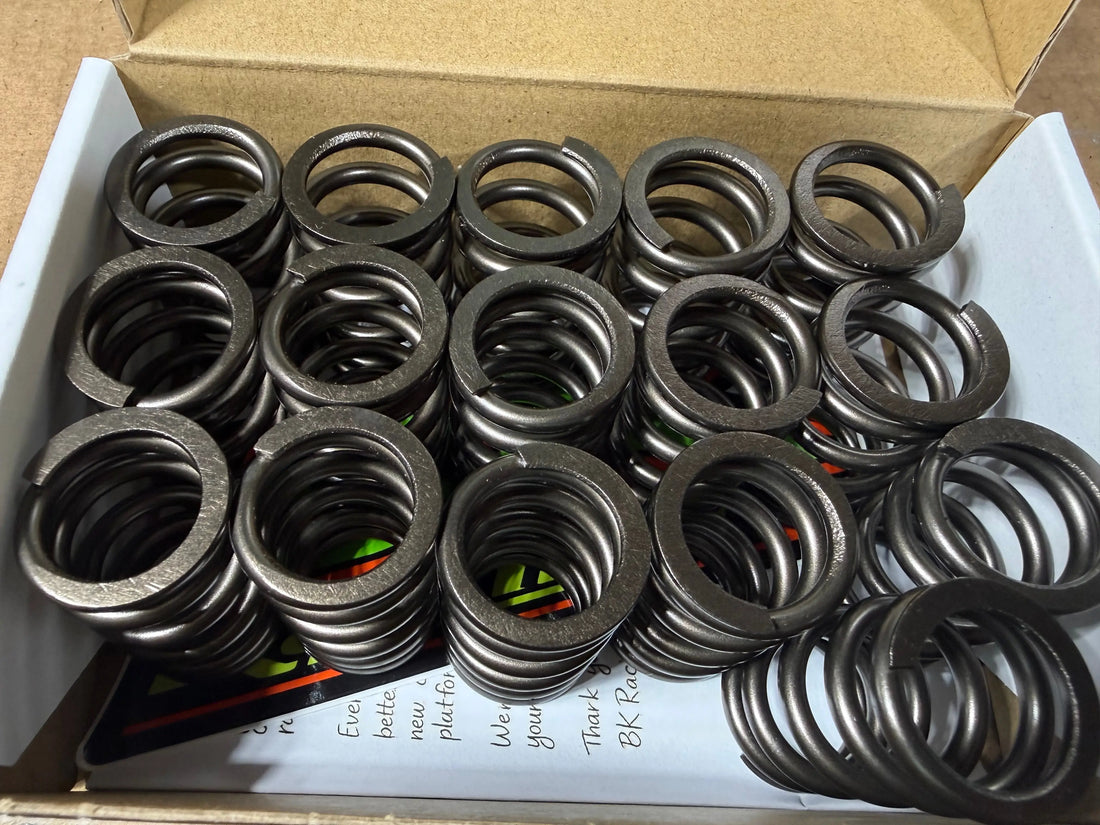

For the BK Racing 83 lb Ecotec Valve Spring, the meaningful specification is:

83 lb @ 1.325" installed height

rather than simply:

83 lb

Installed height matters because changing it changes the spring's pressure.

A spring installed shorter is generally more compressed and produces more seat pressure.

A spring installed taller generally produces less.

So even before comparing two pressure numbers, we need to know:

At what installed height was that pressure measured?

What Happens After the Valve Opens?

Once the camshaft begins opening the valve, the spring compresses farther.

Its pressure increases.

That means an “83 lb spring” does not continue applying 83 lb throughout the valve event.

The BK Racing spring, for example, progresses from approximately:

83 lb @ 1.325" installed height

to approximately:

230 lb @ .500" valve lift

The spring has gained roughly:

147 lb

of force between those two operating points.

That is why the open-pressure number is so important.

Open Pressure Can Completely Change the Comparison

Suppose Spring A has:

83 lb seat pressure

and Spring B has:

94 lb seat pressure.

Looking only at those two numbers, Spring B appears dramatically stronger.

But now suppose their published open pressures near .500" lift are:

Spring A: ~230 lb

Spring B: ~232 lb

Suddenly, the comparison looks very different.

Spring B still has more seat pressure.

That can absolutely be useful in the right application.

But the difference in pressure deeper into the valve event is much smaller than the difference in their product names suggests.

This is why seat pressure alone doesn't tell you how much spring force exists at maximum valve lift.

The BK Racing 83 vs. Supertech 94 Example

This is a real example from the Ecotec market.

The BK Racing 83 lb single spring is approximately:

83 lb @ 1.325"

and:

~230 lb @ .500" lift

The popular Supertech 94 lb dual spring has published specifications of approximately:

94 lb seat pressure

and:

232 lb open pressure

The difference at the seat is:

11 lb

Yet the published open pressures are extremely close.

That does not make the springs identical.

The Supertech uses a dual-spring architecture and provides greater seat pressure.

The BK Racing spring uses a progressive single-spring design and reaches similar high-lift pressure with less initial seat load.

The point is simply:

94 vs. 83 does not describe the complete comparison.

What Does That Extra Seat Pressure Actually Do?

Additional seat pressure can provide valuable control in applications involving:

Extremely aggressive closing ramps
Higher RPM
Heavy valves
Very high boost
Specialized racing combinations

In those applications, the additional load may be desirable.

But more pressure is not free.

The additional force is carried through:

Valve
Valve seat
Camshaft
Roller follower
Lash-adjuster system
Retainer
Locks
Timing system

If the engine genuinely requires the additional pressure, that load is justified.

If it does not, the larger seat-pressure number does not automatically create more horsepower or better performance.

Spring Rate Explains How Pressure Changes

Spring rate describes how rapidly spring force increases as the spring is compressed.

This is one reason two springs starting with similar seat pressure can have very different open pressures.

The BK Racing spring has an effective measured rate of approximately:

294 lb/in

through the relevant operating range.

That helps explain how it progresses from:

83 lb seat

to approximately:

230 lb @ .500".

Another spring could begin at 83 lb but build pressure more slowly.

It would then have less open pressure at .500" despite having the exact same advertised seat-pressure number.

Seat Pressure Plus Spring Rate Still Doesn't Tell the Entire Story

Even after knowing:

seat pressure

and:

spring rate,

we still do not know everything.

A valve spring also has physical limits.

The spring needs enough mechanical travel to accommodate the intended camshaft while maintaining clearance before:

coil bind.

So we now need to consider:

pressure + travel

together.

Mechanical Lift Is Another Completely Different Specification

A spring can have excellent pressure but limited mechanical travel.

Another spring can have lower pressure but substantial travel.

These characteristics are independent.

This becomes very obvious when looking at high-pressure racing springs.

A spring with:

128 lb seat pressure

does not automatically support more valve lift than an 83 lb spring.

It may actually be advertised for less maximum lift depending on its physical geometry.

Pressure tells us how hard the spring pushes.

Mechanical travel tells us how far it can compress.

They are not the same thing.

Mechanical Lift vs. Recommended Lift

This is one of the most important distinctions in the entire BK Racing valve spring series.

There are two different numbers:

Mechanical Lift Limit

The physical amount of travel available before a mechanical boundary is reached.

Recommended Lift Limit

The lift the manufacturer actually recommends operating.

Those numbers should not automatically be identical.

For the BK Racing system:

~.567" = measured mechanical capability in the appropriate configuration

while:

.520" = conservative recommended maximum operating lift

The difference is approximately:

.047".

BK Racing intentionally maintains that distinction.

Why BK Racing Doesn't Advertise .567" as the Maximum Lift

We could advertise:

.567" MAX LIFT

It would be a larger marketing number.

But that would imply that the mechanical boundary is where we recommend customers operate the spring.

It isn't.

The engine operates dynamically.

At high RPM the spring and surrounding components experience:

Heat
Deflection
Oscillation
Manufacturing tolerance stack-up
Repeated acceleration and deceleration

BK Racing therefore advertises a lower:

.520" recommended maximum lift

instead of turning every thousandth of measured mechanical travel into an advertised operating limit.

A Larger Advertised Lift Number Can Be Misleading

The opposite problem also occurs in spring comparisons.

Suppose one manufacturer advertises:

.547" max lift

and another advertises:

.520" recommended lift.

It is tempting to conclude that the .547" spring has .027" more usable lift.

But what if the .547" number represents travel directly to coil bind while the .520" figure includes a .047" operating margin?

Those numbers are not describing the same thing.

This is exactly why the previous article separates:

Mechanical Lift

from:

Advertised / Recommended Lift

in the comparison chart.

Supertech 94 Shows Why Definitions Matter

Using published Supertech dimensions for the commonly marketed 94 lb dual spring:

Installed height: 34.6 mm

Coil-bind height: 20.7 mm

Difference:

13.9 mm

which is approximately:

.547".

Its published maximum lift is also approximately:

13.9 mm / .547".

So the published maximum-lift figure corresponds very closely to the calculated travel from installed height to coil bind.

That is very different from BK Racing deliberately recommending .520" while measuring approximately .567" of mechanical capability in the appropriate configuration.

Neither approach should be hidden.

The important thing is understanding what the numbers mean.

Coil Bind Does Not Tell You Everything Either

Even knowing the spring's coil-bind point does not establish the complete valvetrain's maximum lift.

Another component may reach its mechanical limit first.

Potential limits include:

Retainer-to-seal clearance
Retainer-to-guide clearance
Rocker/follower clearance
Piston-to-valve clearance

So even:

Installed Height − Coil Bind

does not automatically equal usable engine lift.

The cylinder head must be evaluated as a system.

A Spring Can Have Plenty of Travel and Still Be Wrong

Imagine a spring that can physically accommodate:

.550" lift

but only produces:

170 lb open pressure

at the intended operating point.

If the camshaft and RPM require substantially more dynamic control, that mechanical travel does not make the spring suitable.

The opposite can also happen.

A spring could have tremendous pressure but insufficient travel for the camshaft.

A performance spring needs both:

adequate control

and:

adequate mechanical clearance.

Maximum Lift Doesn't Tell You RPM Capability

This is another common misconception.

A spring being mechanically capable of:

.525" lift

does not mean it can control every .525" camshaft at:

8,500 RPM.

Mechanical travel determines whether the spring physically fits the camshaft.

Dynamic spring capability depends on:

Camshaft acceleration
RPM
Valve mass
Retainer mass
Seat pressure
Open pressure
Spring rate
Spring behavior

A spring can physically clear a camshaft and still fail to control it.

RPM Doesn't Tell You the Required Pressure Either

The reverse shortcut is also unreliable.

There is no universal rule saying:

7,500 RPM = 83 lb

or:

9,000 RPM = 104 lb.

A gentle camshaft and lightweight valvetrain can be easier to control at a higher RPM than an aggressive camshaft with heavier components at a lower RPM.

RPM matters tremendously.

But it must be combined with the camshaft and valvetrain.

Camshaft Acceleration May Matter More Than the Lift Number

Two camshafts can both have:

.500" maximum valve lift

and place dramatically different demand on the spring.

Cam A may use relatively gentle opening and closing ramps.

Cam B may reach the same .500" using much more aggressive acceleration.

Cam B requires the spring to control the valve more aggressively even though maximum lift is identical.

This is why a simple statement such as:

“This spring supports .520 lift.”

does not prove compatibility with every .520" camshaft.

Closing Ramp and Seat Pressure Work Together

The valve needs to return to its seat under control.

An aggressive closing ramp can increase valve velocity approaching the seat.

Seat pressure helps control that motion.

This is one area where a higher-seat-pressure spring can provide an advantage.

But the requirement depends on:

camshaft closing profile + valve mass + RPM.

Again, the seat-pressure number needs context.

Open Pressure and the Nose of the Cam

Near maximum lift, the spring is substantially compressed.

Open pressure helps control the valve as it approaches the nose of the cam and reverses direction.

This is where a spring that begins with moderate seat pressure can still provide substantial control if its rate develops enough pressure deeper into the valve event.

This is a major reason the BK Racing spring was developed around the complete pressure curve.

Valve Mass Changes the Required Spring

The spring has to control the moving valve.

A heavier valve requires more force to achieve the same acceleration.

That means the same spring/camshaft/RPM combination can behave differently when valve mass changes.

This becomes particularly relevant with:

Oversized valves
Different valve materials
Different head designs

Pressure should always be matched to the actual moving valvetrain.

Retainer Mass Matters Too

The retainer is also moving with the valve.

Reducing retainer mass lowers the inertial load the spring must control.

That is why the BK Racing Titanium Valve Spring Retainers are an important part of the complete spring system.

Rather than solving every high-RPM problem by increasing spring pressure, we can also reduce unnecessary moving mass.

This is a more complete approach to valvetrain control.

Single vs. Dual Springs Adds Another Layer

Dual springs can provide advantages including:

Additional pressure
Different combined spring rate
Different harmonic behavior
Different natural frequencies

But dual does not automatically mean better.

A single spring can provide greater pressure than some dual systems.

A dual spring can have less usable travel than some single systems.

A single spring can have a more aggressive effective rate than some dual systems.

Again:

Spring count is not a performance specification.

Spring Surge Cannot Be Predicted From Static Pressure Alone

A spring tester measures static force.

The spring inside a running Ecotec is dynamic.

At high RPM, oscillations can travel through the spring.

This is known as:

spring surge.

Spring surge is affected by:

Wire geometry
Coil spacing
Spring mass
Natural frequency
Active coil count
RPM
Camshaft profile

Two springs with identical seat and open pressures could potentially behave differently dynamically.

That is why spring design itself matters.

Why BK Racing Uses a Progressive Oval-Wire Design

The BK Racing 83 lb spring is not simply a conventional uniform spring with a target pressure number.

It uses a:

progressive oval-wire design

with:

nitride-treated chrome-silicon construction.

The progressive architecture allows the spring's operating characteristics to change through its travel rather than relying on one simple constant-rate geometry.

The objective is to combine:

pressure + travel + packaging + dynamic behavior

inside the Ecotec cylinder head.

Material and Treatment Matter

A valve spring performs millions of repeated load cycles.

That means spring material and treatment affect:

Fatigue resistance
Durability
Surface condition
Long-term pressure consistency

A spring that begins with excellent pressure but quickly loses it is not an effective racing spring.

This is especially important for circle-track applications where the spring repeatedly operates at elevated RPM and temperature.

Racing Duty Cycle Changes Everything

A street car might reach:

7,500 RPM

for a second or two.

A circle-track engine can repeatedly operate through its upper RPM range lap after lap.

Those are not equivalent spring environments.

Even if peak RPM is identical, the race spring experiences:

Far more high-speed cycles
Sustained heat
Repeated resonance exposure
Greater fatigue demand

That is why a serious spring comparison also needs to consider:

how the engine is used.

Spring Pressure Changes Over Time

Valve springs are fatigue components.

They can lose pressure after repeated heat and load cycles.

That means the spring's specification when new is not necessarily its specification forever.

For serious racing engines, springs can be periodically checked for:

Free height
Seat pressure
Open pressure
Consistency across the set

One weak spring can create a localized valvetrain-control problem even when the other 15 remain acceptable.

Hydraulic Lash Control Is a Separate Variable

GM Ecotec engines commonly use hydraulic lash adjusters with roller finger followers.

These components create another potential source of high-RPM instability.

A heavier valve spring does not automatically prevent:

Hydraulic bleed-down
Hydraulic collapse
Pump-up
Internal sticking
Check-valve instability

Those problems belong to the lash-control side of the system.

Spring pressure and hydraulic stability should not be confused.

More Spring Pressure Does Not Automatically Prevent Kicked Rockers

This is particularly important in the Ecotec platform.

Kicked rocker followers can involve several mechanisms, including:

Loss of spring control
Valve float
Valve bounce
Spring surge
Hydraulic lash instability
Incorrect mechanical geometry

Installing more spring pressure can help if inadequate spring control is the actual problem.

It does not eliminate every other possible failure mechanism.

That is why BK Racing's 83 lb Valve Springs and Solid Lash Adjusters address different sides of the same overall valvetrain system.

Boost Adds Yet Another Variable

In a boosted Ecotec, intake manifold pressure can apply force across the intake valve.

That can increase the seat-pressure requirement.

But even here:

More boost does not automatically equal “buy the highest-pressure spring.”

You still have to consider:

Valve diameter
Boost level
Camshaft
RPM
Valvetrain mass
Open pressure
Spring rate

A 30 psi street engine and an 8,500 RPM naturally aspirated circle-track engine present very different spring requirements.

Why the BradBuilt 85# Example Is Useful

The BradBuilt / BC Parts spring is marketed as:

85#

and:

“For High Lift.”

But its current public listing does not provide enough technical information to document:

Installed height
Open pressure
Spring rate
Coil bind
Mechanical lift
Numerical recommended lift

That does not mean the spring is good or bad.

It means 85 lb alone does not give us enough information to evaluate it.

That makes it a perfect real-world example of the point of this article.

Why the ZZP 82# Example Is Useful

ZZP publishes more information:

82 lb seat

200 lb @ .420"

and:

“.500 coil bind.”

Now we know considerably more.

But we still do not have a separately published recommended lift limit.

Again, the comparison improves as more specifications are available.

The 82 lb designation by itself was only the beginning.

Why the Supertech 94# Example Is Useful

The Supertech 94 dual publishes enough information to calculate mechanical travel from its installed and coil-bind dimensions.

That allows us to see that:

high seat pressure

high open pressure

and:

maximum mechanical travel

are separate characteristics.

The spring can then be evaluated as a complete design instead of simply calling it:

“the 94 lb spring.”

Why the RET Lineup Proves There Is No One Correct Pressure

RET currently markets Ecotec springs across a wide pressure range, from mild replacement/performance options to very high-pressure racing systems.

That alone demonstrates an important truth:

If the highest pressure were automatically best, there would be no reason to offer the lower-pressure springs.

Different engines need different spring characteristics.

The correct spring is application-specific.

What Should You Compare Instead of Pressure Alone?

When evaluating a GM Ecotec valve spring, build the complete specification sheet:

1. Installed Height
Where does the spring begin operating?

2. Seat Pressure
How much force exists with the valve closed?

3. Open Pressure
How much force exists at the actual camshaft lift?

4. Spring Rate
How rapidly does pressure increase?

5. Mechanical Lift Limit
Where does the physical spring or assembly run out of travel?

6. Recommended Lift Limit
Where does the manufacturer actually recommend operating?

7. Safety Margin
How much room exists between recommended and mechanical limits?

8. Spring Architecture
Single, dual, progressive, wire geometry?

9. Valvetrain Mass
What valve and retainer is the spring controlling?

10. Camshaft Profile
How aggressive is the valve motion?

11. RPM and Duty Cycle
How fast—and for how long—will the spring operate?

That is a real valve spring comparison.

Why BK Racing Publishes More Than the 83 lb Number

The BK Racing spring is commonly referred to as:

the 83 lb spring.

But the number we actually want customers to understand is the complete specification:

83 lb @ 1.325" installed height

~230 lb @ .500"

~294 lb/in effective rate

Progressive oval-wire single spring

~.567" measured mechanical capability in the appropriate configuration

.520" conservative recommended maximum lift

Those numbers together tell the spring's story.

The 83 lb name alone does not.

What BK Racing Is Actually Trying to Achieve

The goal is not:

most seat pressure.

It is not:

largest advertised lift.

It is not:

most springs inside the spring pocket.

The objective is:

Maintain stable valve motion throughout the intended RPM and camshaft range while keeping spring load and mechanical risk appropriate for the application.

That requires balancing:

Pressure

Rate

Travel

Mass

Dynamic behavior

Clearance

Durability

That is the engineering problem.

The Most Important Valve Spring Pressure Rule

If you remember one thing from this article:

Valve spring pressure matters enormously—but pressure by itself does not define a valve spring.

Seat pressure tells you where the spring starts.

Open pressure tells you what it is doing farther into the valve event.

Spring rate tells you how it gets there.

Mechanical lift tells you where it physically stops.

Recommended lift tells you where you should operate.

Camshaft profile and RPM determine how hard the spring has to work.

Valvetrain mass determines how much it has to control.

Spring design influences how it behaves dynamically.

And racing duty cycle determines how long it has to keep doing it.

Only when those specifications are considered together can an Ecotec valve spring be compared intelligently.

That is why 82 lb vs. 83 lb vs. 85 lb vs. 94 lb is only the beginning of the conversation—not the answer.

Continue Learning: GM Ecotec Valve Springs

Valve spring pressure is only one part of maintaining stable valve control in a performance Ecotec. Continue through the BK Racing GM Ecotec Valve Spring Knowledge Center to learn how installed height, spring rate, coil bind, camshaft lift, RPM, retainers, spring seats and valve seals work together as a complete valvetrain system. When planning your combination, also explore the BK Racing 83 lb Ecotec Valve Springs, BK Racing Titanium Valve Spring Retainers, BK Racing Extra-Clearance Spring Seats, and BK Racing Press-On Viton Valve Seals.

For aggressive racing combinations, also review BK Racing's Solid Lash Adjusters and related kicked-rocker technical information to understand the separate lash-control side of the Ecotec valvetrain.

Shopify SEO

Primary search topic:
Why valve spring pressure alone doesn't tell the whole story

Supporting search topics:
Ecotec valve spring pressure, Ecotec seat pressure vs open pressure, best Ecotec valve spring pressure, Ecotec 83 lb vs 94 lb springs, Ecotec spring rate, Ecotec mechanical lift, Ecotec maximum valve lift, Ecotec racing valve springs, BK Racing 83 lb valve springs, ZZP 82 lb springs, BradBuilt 85 lb springs, Supertech 94 lb springs.

stiff valve springs

stiffer valve springs

high spring pressure

roller springs

seat pressures

valve acceleration

drag racing engine

valve train

valvetrain dynamics

valve job

valvetrain failures

engine design

inadequate pressure

entire valve train

spring harmonics

spring life

too light

catastrophic failure

Tags:

Engine Building
