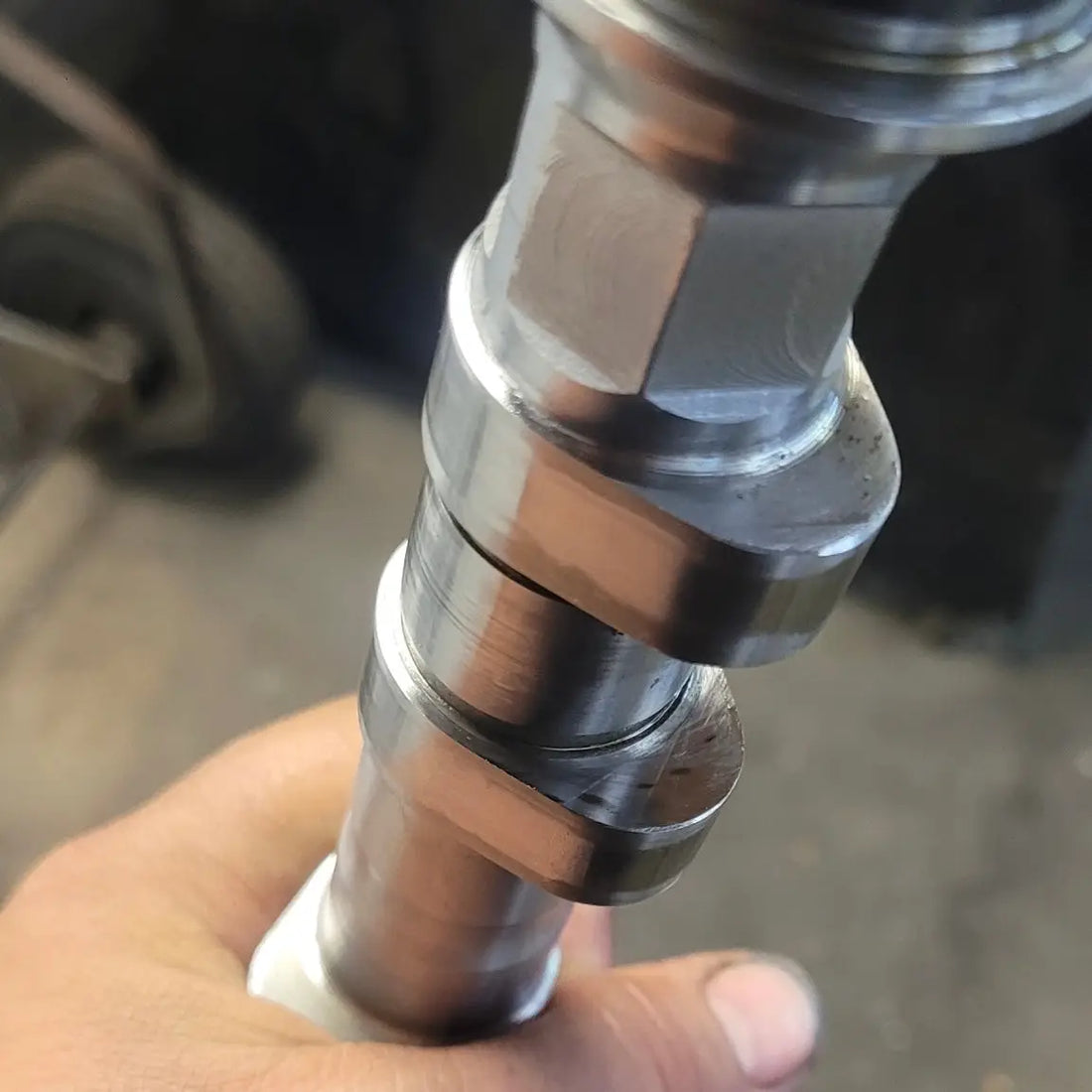

How Camshaft Duration and Aggressive Lobe Profiles Affect Ecotec Valve Springs

Q: What Is an Aggressive Camshaft Lobe?

An aggressive lobe moves the valve more rapidly, opening and closing it faster and increasing dynamic load on the valvetrain.

Q: Why Two Cams With the Same Lift Can Need Different Springs

If one cam has a faster opening ramp and more aggressive closing profile, it creates a more violent valve event and can require more spring control, more open pressure, and better dynamic spring behavior.

Q: Why Duration Alone Does Not Determine Spring Pressure

There is no simple rule based on duration alone; spring requirement depends on actual lobe design, lift, RPM, valve and retainer mass, spring rate, and seat and open pressure.

Q: Why More Spring Pressure Can Help

More spring pressure can help maintain controlled contact in the valvetrain, especially with aggressive ramps, by improving control around maximum lift and during closing.

Q: Why Too Much Spring Pressure Can Hurt

Too much pressure increases load on the camshaft, followers, lash adjusters, valves, seats, retainers, locks, and timing components, so the goal is enough pressure without unnecessary load.

Camshaft duration and lobe aggressiveness can have just as much influence on GM Ecotec valve spring requirements as maximum lift.

This is one of the most important points to understand when matching a spring to a performance camshaft.

A camshaft with moderate lift can still place very high dynamic demand on the valvetrain if it opens and closes the valve aggressively.

That means a spring should never be selected from lift alone.

For a performance Ecotec, the spring needs to be matched to the complete cam profile:

Valve lift
Duration
Opening acceleration
Closing acceleration
Valve velocity
Intended RPM
Valvetrain mass
Seat pressure
Open pressure
Spring rate
Mechanical clearance

This is why BK Racing treats spring selection as a camshaft and valvetrain matching problem, not simply a maximum-lift problem.

What Is Camshaft Duration?

Camshaft duration describes how long the valve remains open during the engine cycle.

It is usually expressed in crankshaft degrees.

A longer-duration cam keeps the valve open for more crankshaft rotation.

That can improve airflow at higher RPM, but duration alone does not tell us how aggressively the valve is being moved.

Two cams can have similar duration and very different lobe shapes.

That means they can place very different demands on the spring.

Duration Is Not the Same as Aggressiveness

This distinction matters.

A long-duration cam is not automatically an aggressive cam.

And a shorter-duration cam can still have very aggressive ramps.

Duration tells us:

how long the valve event lasts

Lobe aggressiveness tells us more about:

how quickly the valve is accelerated and decelerated during that event

The spring has to control the acceleration.

That is why lobe shape matters so much.

What Is an Aggressive Camshaft Lobe?

An aggressive lobe moves the valve more rapidly.

It may:

Open the valve faster
Reach high lift sooner
Spend more time near useful lift
Reverse the valve more quickly
Close the valve faster

This can improve cylinder filling and airflow performance.

But it also increases the dynamic load on the valvetrain.

The spring must control faster-moving components with less time available.

That increases spring demand.

Why Two Cams With the Same Lift Can Need Different Springs

Suppose:

Cam A = .500" lift

Cam B = .500" lift

If Cam B has a much faster opening ramp and more aggressive closing profile, the spring has to control a more violent valve event.

Even though both cams reach the same maximum lift, Cam B can require:

More spring control
More open pressure
Better dynamic spring behavior
Lower valvetrain mass

This is why matching springs based only on:

“The cam is .500 lift.”

is incomplete.

Valve Acceleration Is the Key

The more rapidly a valve accelerates, the more force is required to control it.

That means camshaft acceleration is one of the most important variables in valve spring selection.

At high RPM, aggressive acceleration becomes even more demanding because the valve event is happening faster.

So the spring must handle both:

more aggressive motion

and:

less time to control it

This is why aggressive race cams can become very demanding even when maximum lift appears reasonable.

Opening Ramp Aggressiveness

The opening ramp controls how the valve leaves the seat.

A more aggressive opening ramp can accelerate the valve faster.

That increases dynamic demand on:

Valve
Retainer
Rocker/follower
Spring
Lash-control system

The spring has to remain controlled as it is being compressed rapidly.

If the system cannot keep up, follower and valve motion can become unstable.

Closing Ramp Aggressiveness

The closing side can be even more critical.

The spring is returning the valve toward the seat.

If the cam profile brings the valve back too aggressively for the spring and valvetrain combination, the valve may approach the seat with excessive velocity.

That can contribute to:

Valve bounce
Rocker/follower instability
Increased impact loading
High-RPM power loss

This is why seat pressure matters in addition to open pressure.

Duration Changes the Shape of the Valve Event

Longer duration changes how the valve event is spread across crankshaft rotation.

Depending on the cam design, longer duration may allow the designer to achieve a given lift with gentler acceleration.

But not always.

A race cam can combine:

long duration

with:

high lift

and:

aggressive ramps

That can create a very demanding valvetrain.

So duration cannot be evaluated by itself.

Why Duration Alone Does Not Determine Spring Pressure

There is no rule such as:

“A 250-degree cam needs 90 lb springs.”

That would be oversimplified.

The spring requirement depends on:

Actual lobe design
Valve lift
RPM
Valve mass
Retainer mass
Spring rate
Seat and open pressure

Two cams with similar duration can have very different acceleration characteristics.

So spring selection needs actual camshaft information whenever possible.

Camshaft Lift and Duration Work Together

Lift tells us:

how far the valve moves

Duration tells us:

how long the valve event lasts

Together, they give part of the picture.

But even those two numbers still do not completely describe the lobe.

The missing piece is:

how the valve moves between closed and maximum lift

That is where lobe aggressiveness matters.

Why Area Under the Lift Curve Matters

Performance camshaft design often focuses on getting the valve to useful lift quickly and keeping it there.

A cam with aggressive ramps can increase the amount of time the valve spends at higher effective lift without necessarily increasing the advertised maximum lift dramatically.

That can improve airflow.

But the spring has to control the resulting valve motion.

This is one reason aggressive lobes often need more spring than a simple lift number would suggest.

Aggressive Lobes Increase Valve Velocity

Valve velocity describes how fast the valve is moving at a given point in the event.

A more aggressive cam can create higher valve velocity.

Higher velocity means the spring has to slow and reverse the valve more aggressively.

That increases dynamic load.

This becomes particularly important near:

Maximum lift
Closing ramp
Valve seating

Aggressive Lobes Increase Valve Acceleration

Acceleration is the rate at which velocity changes.

The more quickly the cam changes valve velocity, the greater the force required to control the moving mass.

This means:

higher acceleration = greater spring demand

This is one of the reasons lightweight valvetrain components become more valuable with aggressive cams.

Valvetrain Mass Matters More With Aggressive Cams

The spring has to control moving mass.

That includes:

Valve
Retainer
Locks
Rocker/follower
Part of the spring itself

When camshaft acceleration increases, the effect of that mass becomes more important.

A heavier retainer is harder to control than a lighter retainer under the same acceleration.

That is why the BK Racing Titanium Valve Spring Retainers are an important part of the high-RPM Ecotec system.

Reducing unnecessary moving mass helps the spring control aggressive lobe motion.

Why More Spring Pressure Can Help

More spring pressure can improve the system's ability to maintain controlled contact between:

Camshaft → Rocker/Follower → Valve

This is especially important with aggressive ramps.

Higher open pressure can help control the valvetrain around maximum lift and direction reversal.

Higher seat pressure can help control the valve during closing and seating.

But pressure has to be appropriate.

Why Too Much Spring Pressure Can Hurt

Increasing pressure increases load throughout the valvetrain.

Potentially affected components include:

Camshaft lobes
Roller finger followers
Lash adjusters
Valve stems
Valve seats
Retainers
Locks
Timing components

So the goal is not:

the highest pressure possible

It is:

enough pressure to control the actual lobe profile and RPM without unnecessary load

Spring Rate Matters With Aggressive Lobes

Spring rate determines how quickly spring pressure increases as the valve opens.

A more aggressive cam may benefit from a spring that develops sufficient pressure deeper into the lift event.

The BK Racing 83 lb spring has an effective rate of approximately:

294 lb/in

with reference pressure around:

230 lb @ .500" lift

This illustrates why spring rate and open pressure matter in addition to seat pressure.

Why Seat Pressure Still Matters

An aggressive camshaft does not only create demand near maximum lift.

The closing side of the lobe can be extremely demanding.

Seat pressure helps maintain control as the valve returns to the seat.

If seat pressure is insufficient for the combination, valve bounce can become more likely.

So a spring needs a balanced pressure curve.

High Lift and Aggressive Duration Can Compound the Problem

A camshaft that combines:

High lift
Long duration
Aggressive ramps
High RPM

can place very high demand on the spring.

Each factor adds to the overall challenge.

High lift increases spring compression.

Aggressive ramps increase valve acceleration.

High RPM reduces the time available for each event.

The spring and valvetrain have to handle all of these simultaneously.

Why Circle Track Cams Can Be Especially Demanding

Circle-track camshafts are often designed around maintaining power in a high operating RPM range.

The engine may repeatedly cycle through:

high lift + high RPM + sustained temperature

for an entire race.

That means the spring needs to provide not only peak control but durability and consistency.

A spring that works in a short dyno pull may not have the same margin in sustained racing.

This is one reason BK Racing places so much emphasis on duty cycle.

Camshaft Profile and Valve Float

Valve float occurs when actual valve motion no longer accurately follows the commanded camshaft motion.

Aggressive lobes can cause this to happen sooner because the spring is being asked to control greater acceleration.

This means the valve-float threshold is influenced by cam profile.

There is no universal:

“This spring floats at 8,000 RPM.”

The same spring can behave differently with different cams.

Camshaft Profile and Valve Bounce

The closing ramp can strongly influence valve bounce.

If the valve is returned to the seat too aggressively for the spring and mass combination, the valve can rebound.

This is why:

seat pressure + closing ramp + valvetrain mass

all matter.

Valve bounce is not simply a seat-pressure problem.

Camshaft Profile and Spring Surge

Aggressive cam motion can also excite the spring dynamically.

A rapidly changing load can contribute to spring oscillation.

This is where spring design becomes important.

Spring surge is affected by:

Spring geometry
Rate
Mass
Coil spacing
Natural frequency
RPM

So a spring with excellent static pressure numbers can still behave differently dynamically.

Why Progressive Spring Design Matters

The BK Racing 83 lb Ecotec spring uses a progressive oval-wire design.

That means the spring's effective behavior changes through its travel rather than acting exactly like a simple constant-rate theoretical spring.

This can be useful in balancing:

Seat pressure
Open pressure
Travel
Dynamic behavior

The goal is not simply to maximize one number.

The goal is a pressure curve and geometry appropriate for performance use.

Duration and Hydraulic Lash Adjusters

Aggressive camshafts and high RPM also affect the complete follower and lash-control system.

The spring controls valve motion.

The hydraulic lash adjuster maintains lash and rocker geometry.

Aggressive cam motion can increase the sensitivity of the system to hydraulic instability.

Problems such as:

Bleed-down
Collapse
Pump-up
Internal sticking
Check-valve instability

remain separate from valve-spring behavior.

A stronger spring does not eliminate those hydraulic variables.

Why Solid Lash Can Be Important With Aggressive Cams

For serious racing combinations, solid lash adjusters remove the hydraulic variability.

That gives more predictable lash and rocker geometry.

But solid lash does not replace the valve spring.

The spring still has to control:

Valve acceleration
Valve velocity
RPM
Camshaft closing events

So aggressive cams may require attention to both:

spring control

and:

lash control

Aggressive Cams and Kicked Rockers

Kicked rocker followers are a known concern in high-RPM Ecotec engines.

But it is important not to oversimplify the cause.

Aggressive camshaft motion can increase follower loading and make the valvetrain more sensitive to:

Spring-control loss
Valve bounce
Spring surge
Hydraulic lash instability
Incorrect geometry

The rocker depends on maintaining stable contact through the complete system.

So aggressive cams can increase risk, but the diagnosis should remain system-based.

Duration Does Not Determine Maximum Lift Clearance

A long-duration cam can still have relatively modest lift.

And a short-duration cam can have very high lift.

Mechanical clearance depends primarily on actual valve motion and geometry.

That means:

Coil bind
Retainer-to-seal clearance
Piston-to-valve clearance

must still be checked separately.

Duration does not replace those checks.

Aggressive Duration and Piston-to-Valve Clearance

Long duration and cam timing can significantly affect piston-to-valve clearance.

Often the closest piston-to-valve point occurs near overlap rather than at maximum valve lift.

This is why camshaft timing becomes extremely important with aggressive cams.

Changes to:

Adjustable cam gears
Head milling
Block decking
Piston design
Head gasket thickness

can all affect clearance.

Why Camshaft Timing Matters

Advancing or retarding a cam changes when the valve is open relative to piston position.

That can change:

Piston-to-valve clearance
Effective overlap
Powerband location

without changing maximum cam lift.

So a cam that clears in one timing position may have less clearance after adjustment.

This is especially important on high-performance Ecotec builds using adjustable cam gears.

Matching Springs to an Aggressive Camshaft

Before selecting the spring, establish:

Maximum valve lift

Duration

Opening and closing characteristics

Target RPM

Operating RPM range

Valve and retainer mass

Then evaluate the spring:

Installed height

Seat pressure

Open pressure at actual lift

Spring rate

Mechanical travel

Coil-bind clearance

Retainer-to-seal clearance

That is the correct way to approach the combination.

Don't Assume the Cam Manufacturer's Spring Recommendation Fits Every Ecotec Build

A camshaft manufacturer's recommendation can be a useful starting point.

But your actual engine may differ.

Changes to:

Valves
Retainers
Installed height
Spring seats
Head machining
RPM
Racing duty cycle

can alter the final requirement.

This is why serious engine building still requires measurement.

The BK Racing 83 lb Spring and Aggressive Cams

The BK Racing 83 lb Ecotec Valve Spring was designed around providing meaningful open pressure and usable travel without simply maximizing seat pressure.

Reference specifications include:

83 lb @ 1.325" installed height

~230 lb @ .500" valve lift

~294 lb/in effective rate

Progressive oval-wire design

.520" conservative recommended maximum lift

with approximately:

.567" measured mechanical capability

in the appropriate configuration.

That gives the spring substantial usable range for many performance camshaft combinations while maintaining a practical single-spring system.

When a More Aggressive Spring System May Be Needed

There are combinations where the BK Racing 83 lb system may not be the final answer.

Very aggressive camshafts, extreme RPM, heavy valves, or unusual racing applications can require:

More seat pressure
More open pressure
Different spring rate
Different spring architecture
Dual springs

That is why BK Racing does not claim one spring is correct for every possible Ecotec combination.

The correct spring should match the actual camshaft and engine.

Why the Highest Seat Pressure Is Not Automatically the Best Match

A 94 lb or 104 lb spring may be appropriate for a very aggressive combination.

But it is not automatically better simply because the seat-pressure number is larger.

The relevant questions remain:

What is the open pressure?

What is the rate?

How much travel does it have?

How heavy is the valvetrain?

What does the camshaft require?

What RPM will the engine actually run?

That is the correct comparison.

Aggressive Cam Profiles Require a Complete Valvetrain Strategy

As camshaft aggressiveness increases, the margin for error becomes smaller.

The complete system needs to be considered:

Camshaft

Valve Spring

Valve

Retainer

Rocker/Follower

Lash Adjuster

Spring Seat

Valve Seal

Piston Clearance

This is why serious performance Ecotec valvetrains should be built and measured as systems.

The Most Important Rule About Duration and Aggressive Lobes

If you remember one thing from this article, remember:

Maximum lift tells you how far the valve moves. Duration tells you how long the event lasts. Lobe aggressiveness tells you how hard the spring has to work to control that movement.

That is why two cams with the same lift can require different springs.

The correct spring is the one that provides enough:

Seat Pressure + Open Pressure + Spring Rate + Dynamic Control

for the actual:

Cam Profile + RPM + Valvetrain Mass

while maintaining:

Mechanical Clearance + Reliability

That is the foundation of proper Ecotec camshaft and valve spring matching.

Continue Learning: GM Ecotec Valve Springs

Valve spring pressure is only one part of maintaining stable valve control in a performance Ecotec. Continue through the BK Racing GM Ecotec Valve Spring Knowledge Center to learn how installed height, spring rate, coil bind, camshaft lift, RPM, retainers, spring seats and valve seals work together as a complete valvetrain system. When planning your combination, also explore the BK Racing 83 lb Ecotec Valve Springs, BK Racing Titanium Valve Spring Retainers, BK Racing Extra-Clearance Spring Seats, and BK Racing Press-On Viton Valve Seals.

For aggressive racing combinations, also review BK Racing's Solid Lash Adjusters and related kicked-rocker technical information to understand the separate lash-control side of the Ecotec valvetrain.

Primary search topic:
Ecotec camshaft duration valve spring requirements

Supporting search topics:
Ecotec aggressive cam valve springs, Ecotec camshaft lobe profile, Ecotec valve acceleration, Ecotec high RPM valve springs, Ecotec racing cams, Ecotec camshaft spring pressure, 2.2 Ecotec camshaft springs, 2.4 Ecotec camshaft springs, LSJ cam springs, LNF cam springs.top of the valve guide

valve spring retainer

correct springs

correct pressure

maximum rpm

recommended springs

advertised duration

open and closed pressure

rpm capability

spring height

single spring

cylinder head

full potential

Tags:

Engine Building
