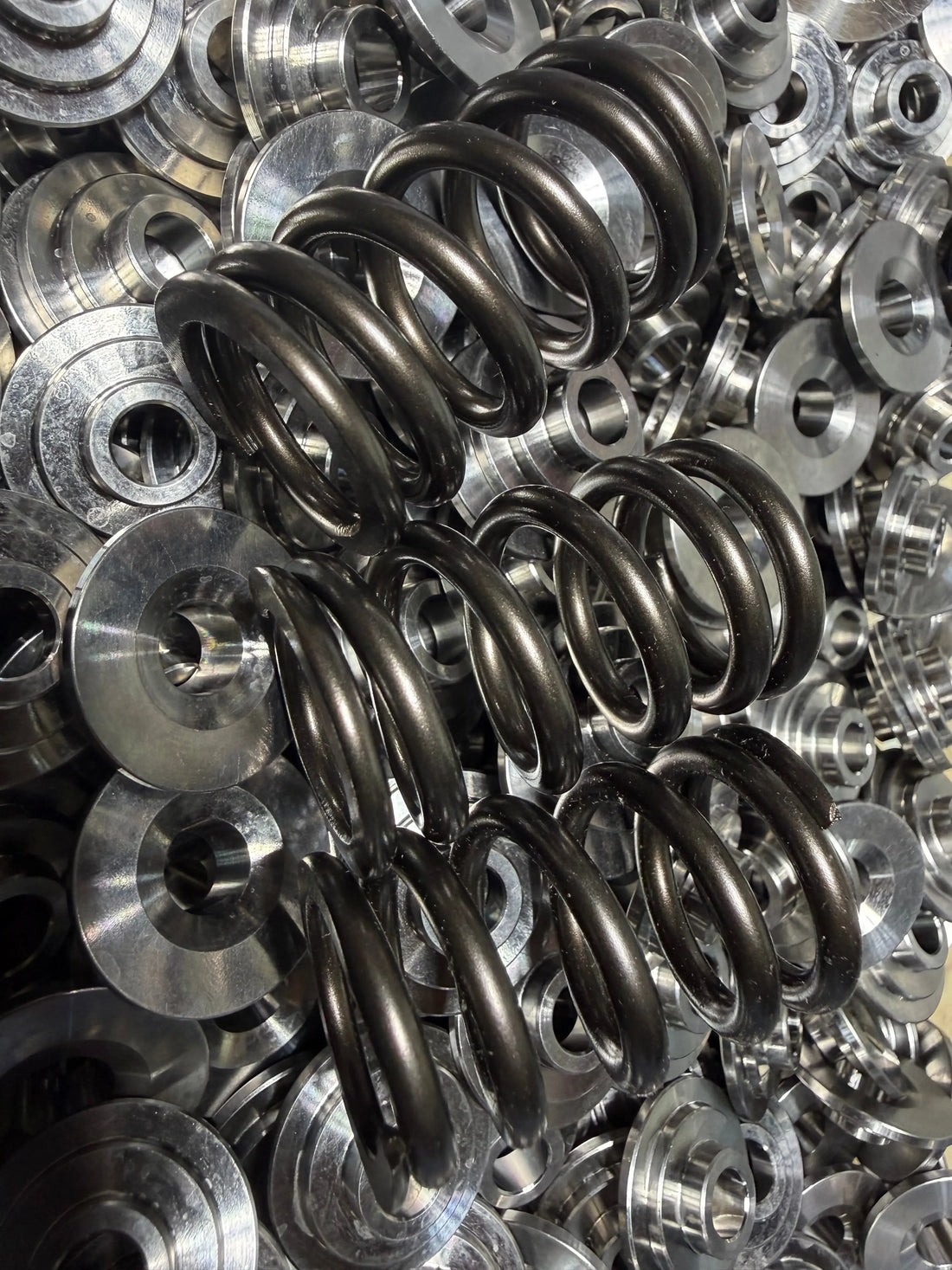

Ecotec Retainer-to-Seal Clearance and Spring Seat Clearance

When determining maximum valve lift in a GM Ecotec cylinder head, valve spring coil bind is only one of the clearances that matters.

A spring can still have plenty of mechanical travel remaining while the valve spring retainer is approaching the valve stem seal or valve guide.

When that happens, retainer-to-seal clearance—not coil bind—becomes the actual valve-lift limitation.

Spring-seat configuration matters as well because it establishes the lower position of the valve spring and contributes to installed height, spring pressure, available travel, and the physical relationship between the spring, retainer, seal, and guide.

For a performance Ecotec valvetrain, these components need to be treated as a system:

Valve Spring → Spring Seat → Valve Seal → Retainer → Valve → Rocker/Follower

This becomes particularly important when using higher-lift camshafts.

It is also why BK Racing developed more than simply an upgraded valve spring. The BK Racing 83 lb Ecotec Valve Spring, BK Racing Titanium Valve Spring Retainers, BK Racing Extra-Clearance Spring Seats, and BK Racing Press-On Viton Valve Seals are intended to work together to provide the pressure, travel, and clearance needed in performance Ecotec applications.

What Is Retainer-to-Seal Clearance?

Retainer-to-seal clearance is the physical distance between the bottom of the valve spring retainer and the upper portion of the valve stem seal or guide assembly.

With the valve closed, there is normally substantial distance between these components.

As the camshaft opens the valve, the valve and retainer move downward toward the cylinder head.

That means:

More valve lift = less retainer-to-seal clearance

Eventually, if valve lift continues increasing, the retainer can physically contact the valve seal or guide.

That is a mechanical limit.

And it can occur before the valve spring reaches coil bind.

Why Retainer-to-Seal Clearance Determines Maximum Valve Lift

Imagine an Ecotec spring that has enough remaining spring travel for .550" of valve lift.

If the retainer contacts the valve seal at .530", the spring's .550" capability doesn't matter.

The assembled system is mechanically limited by the component that reaches its limit first.

That gives us one of the most important rules in high-lift Ecotec valvetrain setup:

Maximum valve lift is determined by the smallest safe clearance in the complete assembly—not simply by the spring's coil-bind height.

That could be:

Spring coil bind
Retainer-to-seal clearance
Retainer-to-guide clearance
Rocker/follower clearance
Piston-to-valve clearance

All need to be considered.

Valve Spring Coil Bind vs. Retainer-to-Seal Contact

These are two completely different mechanical limits.

Coil Bind

The valve spring itself has run out of compression travel.

Retainer-to-Seal Contact

The retainer has moved far enough that it contacts the valve stem seal even though the spring may still have compression travel remaining.

A cylinder head can pass one check and fail the other.

That is why saying:

“The spring can handle .550" lift.”

doesn't necessarily prove that the assembled Ecotec cylinder head can handle .550" lift.

The spring is only one component.

Why This Matters With High-Lift Ecotec Camshafts

A relatively mild camshaft may leave generous clearance throughout the valvetrain.

As valve lift approaches:

.450"

.500"

.520"

or beyond, the available clearance becomes increasingly important.

Every additional .010" of valve lift means the retainer moves approximately another .010" toward the seal, while the spring is also compressed approximately another .010".

So higher lift simultaneously:

Reduces spring travel

and:

Reduces retainer-to-seal clearance

This is why high-lift camshaft selection needs to consider both measurements.

Why Valve Stem Seal Design Matters

The valve stem seal occupies physical space around the valve guide.

Its outside dimensions and installed height can affect how much room remains beneath the retainer.

A relatively tall or bulky seal can become the mechanical limitation in a high-lift combination.

This is why changing the seal design can sometimes create additional usable clearance without changing the valve spring itself.

BK Racing developed its Press-On Viton Valve Seals as part of the high-lift Ecotec valvetrain package specifically to provide a compact sealing arrangement where additional retainer clearance is required.

Why BK Racing Uses a Press-On Viton Seal

The purpose isn't simply to replace an OEM valve seal with a different-looking part.

The objective is to improve the available package around the valve guide while maintaining proper valve-stem oil control.

A compact press-on seal can provide additional room for the retainer as the valve approaches maximum lift.

That becomes increasingly valuable with aggressive camshaft combinations.

But installing a lower-profile seal does not mean maximum lift should simply be increased until something else touches.

The complete assembly still needs an operating margin.

What Is Retainer-to-Guide Clearance?

The valve stem seal is not necessarily the only component beneath the retainer.

The valve guide itself also occupies space.

Depending on the cylinder head, guide height, seal design, and retainer geometry, the retainer may approach the guide.

This gives us another separate measurement:

retainer-to-guide clearance

A lower-profile valve seal does not help if the retainer simply contacts the valve guide underneath it.

Therefore, when establishing maximum mechanical lift, determine what component actually represents the closest point.

Why the Retainer Matters

The valve spring retainer establishes the upper position of the spring and moves with the valve.

Its geometry therefore directly affects clearance.

Retainers can differ in:

Overall thickness
Spring locating diameter
Keeper position
Underside profile
Rocker/follower clearance
Weight
Material

A retainer that fits the spring is not automatically suitable for every Ecotec cylinder head configuration.

The retainer has to work with:

the spring above it, the seal and guide below it, and the rocker/follower around it.

Why Lightweight Retainers Help at High RPM

The retainer is part of the moving valvetrain mass the spring has to control.

Reducing unnecessary retainer mass can reduce inertial demand at elevated RPM.

This is why titanium is commonly used for performance valve spring retainers.

The BK Racing Titanium Valve Spring Retainers were developed not only around reducing mass, but also around maintaining the required geometry and clearance within the Ecotec valvetrain.

A lighter retainer is useful only if it still fits and functions correctly.

Rocker/Follower Clearance Matters Too

GM Ecotec engines use roller finger followers, and the retainer has to maintain sufficient clearance from the surrounding follower geometry.

This is another reason an aftermarket retainer should not be evaluated solely by:

weight

or:

spring fitment

The surrounding Ecotec rocker/follower arrangement matters.

A retainer that interferes with the follower can create a mechanical problem regardless of how good the spring specifications look.

BK Racing's approach is to consider the complete installed geometry rather than treating the retainer as an isolated lightweight component.

What Does the Valve Spring Seat Do?

The valve spring seat is located beneath the spring.

Its basic jobs include:

Locating the bottom of the valve spring
Providing a controlled spring seating surface
Supporting the spring against the cylinder head
Helping establish the spring's installed position

But in a performance cylinder head, the spring seat also becomes part of the dimensional stack that establishes:

installed height

and therefore affects:

seat pressure and available spring travel.

Spring Seat Thickness Changes Installed Height

If the lower spring surface is raised with a thicker seat or shim, the spring becomes more compressed with the valve closed.

That reduces installed height.

Generally:

Thicker seat / additional shim → shorter installed height → greater spring preload

But there is a tradeoff:

Shorter installed height → less remaining spring travel

So increasing spring pressure by reducing installed height also moves the spring closer to coil bind at maximum valve lift.

Nothing is free.

Spring Seats Should Not Be Used Only to Chase Pressure

It can be tempting to use spring seats or shims simply to increase seat pressure.

For example:

“We need another 5 lb, so let's shim the spring.”

That may be appropriate—but only after checking what the change does to the rest of the system.

Reducing installed height also affects:

Open pressure
Available spring travel
Coil-bind clearance
Spring operating position

Any installed-height change should therefore be followed by another complete clearance check.

Why BK Racing Developed Extra-Clearance Spring Seats

As BK Racing developed higher-lift Ecotec valvetrain combinations, it became clear that spring pressure alone wasn't the problem we needed to solve.

We needed a complete package that considered:

Spring location

Installed height

Valve seal packaging

Retainer clearance

Usable valve lift

This led to the BK Racing Extra-Clearance Spring Seat and Viton Valve Seal system.

The purpose is to create additional usable room within the Ecotec cylinder head while properly locating the valve spring.

This becomes particularly useful as camshaft lift approaches the upper end of the spring system's recommended operating range.

Spring Seat Clearance Is Also About Proper Spring Location

A performance spring should not simply sit loosely in the cylinder-head spring pocket.

The seat needs to locate the spring correctly.

Improper spring location can allow the spring to move laterally or contact surrounding components.

The spring seat therefore needs to match the spring configuration properly.

Clearance should not come at the expense of spring control.

The objective is:

Maximum practical clearance while maintaining positive spring location.

Spring OD and Spring Seat Fit

The outside and inside diameters of the spring matter when selecting the spring seat.

The seat needs to properly support and locate the spring without creating interference.

This becomes especially important when changing from:

OEM spring to aftermarket spring
Single spring to dual spring
One aftermarket spring design to another

A spring fitting into the cylinder head does not automatically mean the original spring seat is ideal for that spring.

Retainer-to-Seal Clearance vs. Installed Height

These two measurements are related but different.

Installed Height

Measures the spring between its upper and lower seating surfaces with the valve closed.

Retainer-to-Seal Clearance

Measures how much room exists between the retainer and seal/guide before contact.

Changing the spring seat can affect installed height.

Changing the valve seal can affect retainer clearance.

Changing the retainer can affect both.

That is why performance valvetrain setup requires actual measurements rather than assumptions.

How to Measure Retainer-to-Seal Clearance

The objective is to determine the distance the retainer can travel before contacting the valve seal or guide.

The cylinder head should be assembled with the actual:

Valve
Valve seal
Spring seat
Retainer
Valve locks/keepers

that will be used in the engine.

With the valve seated, measure the available distance between the underside of the retainer and the highest point of the seal/guide assembly that could create interference.

That establishes the mechanical retainer travel.

The intended valve lift can then be subtracted from that available travel to determine the remaining clearance.

Example of Retainer-to-Seal Clearance

Suppose the measured available travel between the retainer and seal is:

.570"

and the camshaft produces:

.520" valve lift

The remaining static clearance would be:

.570" − .520" = .050"

That is very different from simply saying:

“The spring can handle .520."

Now we know the actual assembled system has measurable remaining clearance at that lift.

The same approach should be used for coil bind.

Measure Coil Bind Separately

Suppose the retainer-to-seal system has:

.570" mechanical travel

but the spring reaches its mechanical limit at:

.550"

Then the spring is the limiting component.

Conversely, suppose the spring supports:

.570"

but the retainer contacts the seal at:

.540"

Then the retainer/seal relationship is the limiting component.

The usable mechanical limit is determined by:

whichever runs out of safe travel first.

Recommended Lift Still Needs Margin

Even after finding the smallest mechanical clearance, that number should not automatically become the advertised or operating maximum lift.

This brings us back to the distinction established throughout this Knowledge Center:

Mechanical limit ≠ recommended operating limit

For the BK Racing valve spring system, the appropriate configuration has demonstrated approximately:

.567" mechanical lift capability

while our conservative recommended maximum is:

.520"

That leaves approximately:

.047"

between those reference points.

That margin is intentional.

Why Static Clearance Isn't the Same as Running Clearance

A cylinder head sitting on a bench is static.

A valvetrain operating at racing RPM is not.

During operation, components experience:

Heat
Deflection
Spring oscillation
Dynamic loading
Manufacturing tolerance stack-up
Repeated acceleration and deceleration

This is why a static measurement that shows:

“It clears by a few thousandths.”

is not necessarily an acceptable racing configuration.

The system needs room to operate.

Circle Track Racing Makes Clearance Especially Important

Circle-track Ecotec engines may spend extended periods at elevated RPM.

That creates repeated high-speed valve events lap after lap.

In this environment, we don't want the retainer repeatedly operating extremely close to the valve seal or the spring repeatedly approaching coil bind.

Reliability requires margin.

This is one reason BK Racing's recommended lift philosophy is intentionally conservative.

We are designing around race use, not simply determining what can be made to fit once on an engine stand.

Why Cylinder-Head Machine Work Can Change Clearance

Valve jobs and cylinder-head modifications can alter the assembled geometry.

For example, valve-seat machining can change where the valve sits when closed.

That can change:

Installed height
Retainer position
Seat pressure
Retainer-to-seal clearance

Aftermarket valves can also have different:

Overall lengths
Keeper-groove positions
Tip lengths

Any of these changes can affect the final clearance.

This is why the completed cylinder head needs to be measured with the actual components being used.

Check All 16 Valve Positions

An Ecotec cylinder head contains 16 valve locations.

For a serious performance cylinder head, it is good practice to verify the critical clearances across the entire head.

Don't assume one intake valve represents all eight intake valves.

Don't assume one exhaust valve represents all eight exhaust valves.

Differences can result from:

Valve-seat machining
Valve dimensions
Retainer tolerances
Keeper positioning
Guide dimensions
Previous machine work

Blueprinting is about identifying those differences rather than assuming they don't exist.

Record the Measurements

For a properly documented Ecotec performance cylinder head, useful measurements include:

Measurement	Purpose
Installed Height	Establishes spring operating position
Seat Pressure	Spring force with valve closed
Open Pressure	Spring force at specified lift
Coil-Bind Height	Establishes spring mechanical limit
Coil-Bind Clearance	Remaining spring travel at intended lift
Retainer-to-Seal Clearance	Prevents retainer/seal interference
Retainer-to-Guide Clearance	Prevents retainer/guide interference
Maximum Intended Lift	Actual camshaft requirement
Rocker/Follower Clearance	Confirms retainer/follower compatibility

That creates a much better picture of the valvetrain than simply writing:

“83 lb springs installed.”

Don't Forget Piston-to-Valve Clearance

Even if:

the spring clears

and:

the retainer clears the seal

and:

the rocker clears the retainer

the engine still may not have adequate piston-to-valve clearance.

Piston-to-valve clearance depends on:

Camshaft timing
Camshaft duration
Lobe profile
Piston design
Deck height
Head milling
Head-gasket thickness
Crankshaft and connecting-rod combination

This is an entirely separate measurement.

A cylinder head being mechanically capable of .520" lift does not automatically mean every Ecotec short-block combination can safely use a .520" lift camshaft.

Common Retainer and Spring Seat Clearance Mistakes

Some of the most common mistakes include:

Checking coil bind but not retainer-to-seal clearance
Assuming spring travel equals safe valve lift
Changing retainers without rechecking clearance
Changing valve seals without checking installed dimensions
Adding spring shims without rechecking coil bind
Assuming all valve positions have identical clearance
Assuming an aftermarket spring works perfectly with the OEM seat
Selecting a retainer based only on weight
Ignoring rocker/follower clearance
Using the mechanical limit as the operating limit
Assuming a high-lift camshaft fits because the spring manufacturer's lift number is larger

The solution is straightforward:

Measure the complete assembled valvetrain.

Why the BK Racing System Uses Multiple Components

This is exactly why BK Racing did not stop with an 83 lb spring.

As our Ecotec valvetrain development progressed, each additional component addressed another part of the system.

BK Racing 83 lb Ecotec Valve Springs
Provide the required spring pressure and usable travel.

BK Racing Titanium Valve Spring Retainers
Reduce unnecessary moving mass while maintaining the necessary Ecotec rocker/follower geometry.

BK Racing Extra-Clearance Spring Seats
Properly locate the spring while supporting the intended installed configuration.

BK Racing Press-On Viton Valve Seals
Provide valve-stem sealing in a compact package designed to increase available retainer clearance.

The objective is not simply to sell four components.

The objective is to solve the entire dimensional problem involved in building a higher-lift, higher-RPM Ecotec valvetrain.

Clearance Determines What You Can Actually Use

A valve spring specification might tell you what the spring can physically do.

The assembled cylinder head tells you what the engine can actually use.

That distinction becomes increasingly important as camshaft lift rises.

The correct sequence is not:

Choose .520" cam → assume everything fits.

It is:

Determine intended camshaft lift → establish installed height → verify spring pressure → verify coil bind → verify retainer-to-seal clearance → verify guide clearance → verify rocker clearance → verify piston-to-valve clearance.

Then you know what the combination actually has.

The Most Important Retainer Clearance Rule

If you remember one thing from this article, remember:

The valve spring is not necessarily the component that determines maximum valve lift.

A spring can have travel remaining while the retainer is already approaching the valve seal or guide.

Maximum usable lift is therefore determined by the complete system:

Spring + Retainer + Seal + Guide + Spring Seat + Rocker/Follower + Valve + Camshaft

and ultimately the piston underneath it.

That is why BK Racing treats the Ecotec valve spring package as a complete valvetrain system.

The goal isn't to find the largest mechanical lift number.

The goal is to create enough usable clearance and spring control to operate reliably at the intended lift and RPM.

Continue Learning: GM Ecotec Valve Springs

Valve spring pressure is only one part of maintaining stable valve control in a performance Ecotec. Continue through the BK Racing GM Ecotec Valve Spring Knowledge Center to learn how installed height, spring rate, coil bind, camshaft lift, RPM, retainers, spring seats and valve seals work together as a complete valvetrain system. When planning your combination, also explore the BK Racing 83 lb Ecotec Valve Springs, BK Racing Titanium Valve Spring Retainers, BK Racing Extra-Clearance Spring Seats, and BK Racing Press-On Viton Valve Seals.

Primary search topic:
Ecotec retainer-to-seal clearance

Supporting search topics:
Ecotec valve spring clearance, Ecotec spring seat clearance, Ecotec valve seal clearance, Ecotec retainer clearance, Ecotec maximum valve lift, Ecotec high lift camshaft, Ecotec valve spring seats, Ecotec Viton valve seals, 83 lb Ecotec valve springs.top of the valve guide

height mic

1.750 inches

bottom of the retainer

rocker arms

Tags:

Engine Building
