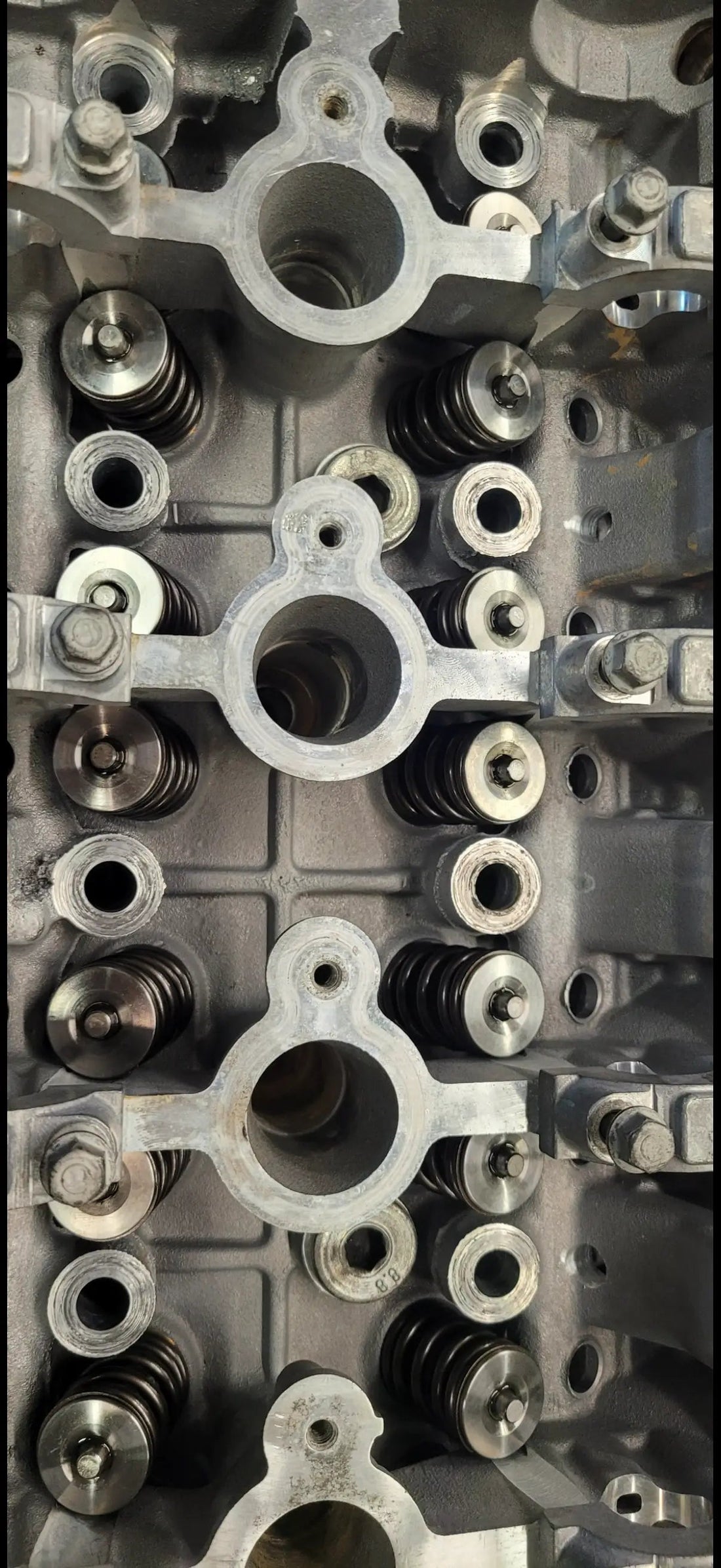

How GM Ecotec Valve Springs Work

GM Ecotec valve springs are responsible for maintaining control of the valves as the camshafts open and close them thousands of times per minute.

That sounds simple, but a valve spring does much more than simply push a valve closed.

In the 2.0L, 2.2L, and 2.4L performance Ecotec engines commonly used in Chevrolet Cobalt, Cavalier, HHR, Pontiac G5, Saturn Ion, and other GM applications, the valvetrain uses dual overhead camshafts, four valves per cylinder, roller finger followers, and hydraulic lash adjusters. GM specifically documents this roller-finger-follower/hydraulic-lash-adjuster arrangement in the Ecotec-powered Cobalt. General Motors

Every time the camshaft rotates, the valve spring must control the movement of this system as the valve accelerates away from the seat, reaches maximum lift, reverses direction, and returns to the seat.

At factory RPM and with factory camshafts, the original valve springs were engineered around the demands of the production engine. Increase RPM, valve lift, camshaft acceleration, boost, or racing duty cycle, however, and the spring's job becomes considerably more demanding.

Understanding how an Ecotec valve spring actually works is the first step toward understanding why spring pressure, installed height, spring rate, coil bind, valvetrain mass, and camshaft profile all matter.

---

Where the Valve Spring Fits in the Ecotec Valvetrain

The Ecotec valvetrain is a system.

The major components include:

• Camshaft
• Roller finger follower/rocker
• Hydraulic lash adjuster
• Valve
• Valve spring
• Spring seat
• Valve stem seal
• Retainer
• Valve locks/keepers

The camshaft determines the intended valve motion.

The follower transfers that motion to the valve.

The hydraulic lash adjuster maintains the appropriate operating relationship within the valvetrain.

The valve spring provides the force required to keep the moving valvetrain under control and return the valve toward its seat.

The retainer and locks secure the spring to the valve, while the spring seat locates the bottom of the spring on the cylinder head.

All of these components have to work together.

Changing one component can affect the requirements of another.

---

What Happens When an Ecotec Camshaft Opens a Valve?

Imagine one cam lobe making a complete rotation.

When the base-circle portion of the cam is positioned over the follower, the valve is closed.

At this point, the valve spring is already compressed from its free length.

The amount of spring force present in this closed position is called seat pressure.

As the camshaft continues rotating, the opening portion of the lobe begins moving the follower.

The follower transfers that movement to the valve.

The valve moves away from its seat, and the valve spring compresses farther.

As the spring compresses:

spring force increases.

The spring therefore has less force at the valve seat than it has near maximum valve lift.

This is why an Ecotec spring cannot be completely described by its seat-pressure number.

An 83 lb spring isn't exerting 83 lb throughout the entire valve event.

For example, the BK Racing 83 lb Ecotec spring is specified at approximately:

83 lb @ 1.325" installed height

and approximately:

230 lb @ .500" valve lift

The spring becomes progressively more loaded as the valve opens.

---

What Happens at Maximum Valve Lift?

Maximum lift is the point at which the camshaft has moved the valve farthest away from its seat.

At this point:

• The valve spring is highly compressed.
• Spring force is substantially greater than seat pressure.
• Remaining spring travel is reduced.
• Coil-bind clearance is reduced.
• Retainer-to-seal clearance is reduced.

The spring is also preparing to perform one of its most important jobs:

reverse the direction of the moving valvetrain and maintain control as the valve begins closing.

This is where looking only at seat pressure becomes particularly misleading.

A spring needs sufficient force and appropriate dynamic behavior throughout the complete lift range.

---

The Valve Spring Doesn't Create Valve Lift

This distinction is important.

The camshaft creates the commanded valve motion.

The valve spring doesn't push the valve open.

Instead, the camshaft and follower compress the spring while opening the valve.

The spring stores energy during this compression and provides the restoring force that helps maintain contact and control as the cam lobe moves through the closing side of the event.

Think of the relationship as:

Camshaft → commands valve motion

Follower → transfers cam motion

Valve spring → maintains control and returns the system toward the closed position

All three must remain synchronized.

---

Why the Spring Must Control More Than the Valve

The spring isn't dealing only with the weight of the valve.

The complete moving valvetrain has effective mass.

Depending on the design and operating point, that includes contributions from the:

• Valve
• Retainer
• Valve locks
• Spring itself
• Roller finger follower/rocker

This is why reducing unnecessary valvetrain mass can be beneficial at elevated RPM.

A lighter component requires less force to produce a given acceleration than a heavier component.

That is one reason lightweight retainers can be useful in a performance valvetrain.

But weight reduction alone doesn't make a retainer better. It still needs adequate strength, correct geometry, proper keeper engagement, and sufficient clearance with the Ecotec rocker/follower arrangement.

That combination of mass, strength, and clearance influenced the design of the BK Racing Titanium Valve Spring Retainers.

---

Why RPM Makes Valve Spring Control More Difficult

At 3,000 RPM, the camshaft has a certain amount of time to complete each valve event.

Double the engine speed, and the same basic valve motion must occur in substantially less time.

The valve therefore has to accelerate and decelerate much more rapidly.

This is the fundamental reason valve springs become so important at high RPM.

The spring isn't simply opening and closing more frequently.

It has to control increasingly aggressive dynamic forces as engine speed rises.

A spring that provides completely adequate control at moderate RPM can therefore become inadequate at elevated engine speed.

---

Why Circle Track Racing Is Especially Demanding

There is also a major difference between briefly reaching high RPM and operating there repeatedly.

A street engine might make an occasional high-RPM pull.

A circle-track Ecotec can spend lap after lap cycling through a relatively narrow high-RPM operating range.

That exposes the valve springs to:

• Repeated high-speed cycling
• Sustained cylinder-head temperature
• Continuous spring compression and recovery
• Repeated acceleration and deceleration of the valvetrain
• Long-duration racing duty cycles

This makes spring consistency and durability particularly important for circle-track applications.

A spring that survives a few dyno pulls hasn't necessarily demonstrated the same thing as a spring subjected to sustained racing use.

---

What Happens When the Spring Can't Keep Up?

When the valve spring can no longer adequately control the valvetrain, actual component motion can begin deviating from the motion intended by the camshaft.

This is commonly described as valve float, although not every form of valvetrain instability is technically valve float.

Potential problems include:

Valve Float

The valvetrain no longer accurately follows the intended cam profile.

Valve Bounce

The valve reaches the seat but rebounds instead of remaining cleanly seated.

Spring Surge

Oscillations develop within the spring itself and interfere with controlled motion.

Rocker/Follower Instability

Loss of controlled contact within the valvetrain can contribute to instability of the Ecotec roller finger follower.

These conditions can produce:

• High-RPM power loss
• Inconsistent valve timing
• Poor valve seating
• Increased component stress
• Rocker/follower problems
• Potential piston-to-valve contact in severe combinations

Article 10. Ecotec Valve Float vs. Valve Bounce vs. Spring Surge will examine these conditions individually.

---

Why More Spring Pressure Can Improve Valve Control

Increasing spring pressure can increase the spring's ability to maintain control of the moving valvetrain.

That is why performance engines frequently use stronger springs when increasing:

• Engine RPM
• Camshaft lift
• Camshaft aggressiveness
• Valvetrain mass
• Boost or cylinder pressure demands

But this leads to an important misconception:

If more spring pressure helps control the valve, then the highest-pressure spring must be best.

That isn't necessarily true.

---

Why Too Much Valve Spring Pressure Isn't Automatically Better

The spring is pushing against other components in the valvetrain.

Increasing spring pressure therefore increases load elsewhere.

Depending on the combination, unnecessary spring pressure can increase loading on:

• Camshaft lobes
• Roller followers
• Hydraulic lash adjusters
• Valve stems
• Valve seats
• Retainers and locks
• Timing components

The objective isn't to install the strongest spring that fits.

The objective is to provide:

Enough spring force to maintain control of the intended camshaft and valvetrain throughout the required RPM range, with appropriate operating margin.

This is an important part of the BK Racing valve spring philosophy.

---

Seat Pressure Controls Only One Part of the Valve Event

Valve springs are frequently marketed by seat pressure:

76 lb

82 lb

83 lb

94 lb

These numbers are useful—but incomplete.

Seat pressure tells us the spring force with the valve closed at a specified installed height.

It doesn't tell us:

• Open pressure
• Spring rate
• Coil-bind height
• Available travel
• Recommended maximum lift
• Spring mass
• Dynamic characteristics
• Retainer requirements
• Seal clearance
• Spring-seat requirements

Two springs with similar seat pressure can behave differently once the valve begins opening.

Likewise, a spring with higher seat pressure isn't automatically superior if another spring provides the necessary open pressure, travel, clearance, and dynamic control for the application.

This is why BK Racing evaluates valve springs as a complete system rather than by one advertised number.

---

How Installed Height Changes the Way a Valve Spring Works

A valve spring's operating pressure depends on how far it is compressed when installed.

This dimension is called installed height.

For example, the BK Racing 83 lb spring is specified at:

83 lb @ 1.325" installed height

If the installed height changes, the actual seat pressure changes.

This means two engines using identical springs can potentially have different installed spring pressures if their cylinder-head geometry differs.

Installed height can be affected by:

• Valve length
• Valve-seat machining
• Retainer design
• Spring-seat thickness
• Cylinder-head modifications
• Component manufacturing tolerances

This is why a properly assembled performance cylinder head should be measured, not simply assumed to match a catalog specification.

Article 4. Ecotec Valve Spring Installed Height: Why It Matters will cover this in detail.

---

How Spring Rate Changes Pressure During Valve Lift

As the valve opens and the spring compresses, spring force increases.

The relationship between additional compression and additional spring force is described by the spring's rate.

That means a spring's pressure at .400", .500", or another lift point depends on more than its seat pressure.

For our BK Racing 83 lb spring, the combination of installed pressure and effective rate results in approximately 230 lb around .500" lift.

This is why open pressure is such an important specification when evaluating performance springs.

Article 6. Understanding Ecotec Valve Spring Rate will go much deeper into this relationship.

---

Why Valve Lift Matters

Increasing camshaft lift compresses the spring farther.

That does several things simultaneously:

Spring pressure increases.

Remaining spring travel decreases.

Coil-bind clearance decreases.

Retainer-to-seal clearance decreases.

Eventually, something reaches its mechanical limit.

That could be the spring itself—or another part of the cylinder-head assembly.

This is why an advertised spring lift specification should never be viewed independently from the rest of the valvetrain.

---

What Is Coil Bind?

A valve spring consists of coils separated by space.

As the spring compresses, those spaces become smaller.

Eventually the coils approach the point where they cannot compress farther.

That is coil bind.

Coil bind represents a mechanical boundary.

A properly configured valvetrain needs clearance before reaching that point.

Running a spring directly to its mechanical travel limit is not the same as establishing a sensible maximum operating lift.

This distinction is why BK Racing advertises our spring at a conservative .520" recommended maximum lift even though greater mechanical travel has been measured in the appropriate configuration.

---

The Spring Isn't Always the First Thing to Run Out of Clearance

A spring can still have remaining travel while another component has already reached its limit.

One common area is:

retainer-to-valve-seal clearance.

As the valve opens, the retainer moves toward the valve seal and guide area.

With increasing lift, that clearance becomes smaller.

This is why performance Ecotec valvetrain development has to consider:

Spring + retainer + seat + seal + rocker clearance

rather than just the spring.

BK Racing developed Extra-Clearance Spring Seats and Press-On Viton Valve Seals specifically to address the complete installed package when additional clearance is required.

---

How Camshaft Design Changes the Spring's Job

Two Ecotec camshafts can have identical maximum valve lift and still place very different demands on the valve spring.

Why?

Because maximum lift tells us only how far the valve moves.

It doesn't tell us how rapidly the camshaft gets it there.

An aggressive cam profile can accelerate the valvetrain more rapidly.

That increases the force required to maintain control.

Therefore, choosing a valve spring based only on maximum camshaft lift can be a mistake.

We also need to consider:

• RPM
• Duration
• Lobe shape
• Valve acceleration
• Valvetrain mass
• Intended use

This is why articles 12–14 of this Knowledge Center will specifically address matching Ecotec valve springs to camshafts.

---

How Boost Changes Valve Spring Requirements

On a boosted Ecotec, pressure acting across the valve can add another force that the spring must work against.

This is particularly relevant to the intake valve, where manifold pressure can contribute force tending to unseat the valve.

However, boost alone still doesn't determine the required spring.

A proper boosted Ecotec spring selection considers the complete combination:

• Boost pressure
• Valve diameter
• Camshaft profile
• RPM
• Valvetrain mass
• Seat pressure
• Open pressure
• Intended duty cycle

A mildly boosted street engine and a high-RPM racing engine operating at the same boost pressure can have very different valvetrain requirements.

---

Why Valve Spring Design Is a Balance

A properly engineered valve spring system balances several competing requirements.

We want:

Enough seat pressure to maintain control near the valve seat.

Enough open pressure to control the valvetrain at maximum lift.

Enough travel to accommodate the camshaft safely.

Adequate coil-bind clearance.

Adequate retainer-to-seal clearance.

Reasonable valvetrain loading.

Low enough moving mass where practical.

Durability over the intended duty cycle.

This is why there is no single valve spring pressure that is automatically correct for every Ecotec.

---

Why BK Racing Developed a Complete Ecotec Valve Spring System

Our development didn't stop after finding a spring that produced the pressure we wanted.

As we worked with higher-lift and higher-RPM Ecotec combinations, it became clear that the spring is only one component of the system.

That led to the development of:

BK Racing 83 lb Ecotec Valve Springs

BK Racing Titanium Valve Spring Retainers

BK Racing Extra-Clearance Spring Seats

BK Racing Press-On Viton Valve Seals

Each component addresses a different part of the valvetrain package.

The spring provides control.

The lightweight retainer reduces unnecessary moving mass while maintaining the required rocker clearance.

The spring seat correctly locates the spring while allowing the intended installed configuration.

The press-on Viton seal helps provide additional retainer clearance where required.

Together, they allow us to approach Ecotec valve control as an engineered system rather than a collection of unrelated parts.

---

The Most Important Thing to Understand About Ecotec Valve Springs

If there is one concept to take away from this article, it is this:

A valve spring cannot be judged by seat pressure alone.

The spring has to control the complete valvetrain throughout the entire camshaft event.

That means evaluating:

Installed height + seat pressure + open pressure + spring rate + available travel + coil bind + component clearance + camshaft profile + valvetrain mass + RPM + intended use.

Understanding how those variables interact is what allows an engine builder to select a spring based on the requirements of the engine rather than simply choosing the largest number advertised.

---
