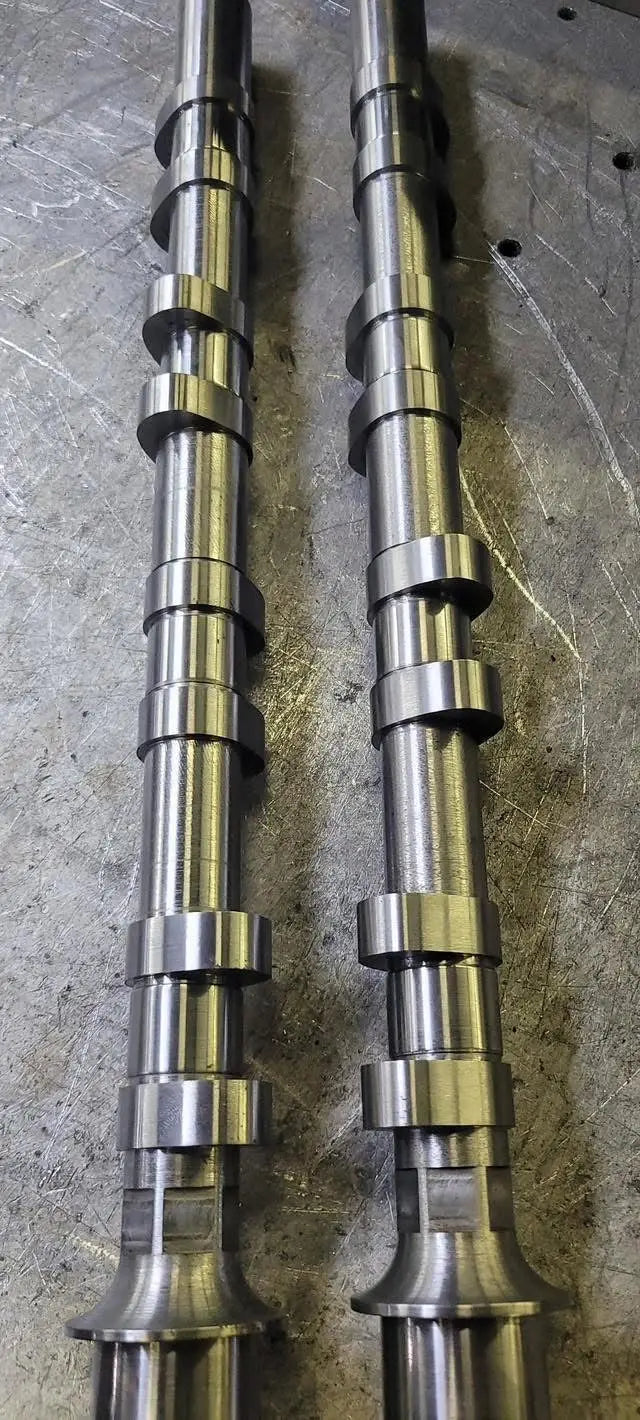

How to Match Valve Springs to Ecotec Camshafts

Matching valve springs to a GM Ecotec camshaft is not simply a matter of finding a spring with enough advertised maximum lift.

A camshaft controls how far the valve opens, how long it remains open, and—just as importantly—how quickly the valve accelerates and decelerates throughout the event.

That means the correct valve spring must be selected around the complete camshaft profile, not just one number from the cam card.

For a performance Ecotec, the important relationship is:

Camshaft profile + valve lift + RPM + valvetrain mass + spring pressure + spring rate + mechanical clearance

When those factors are matched correctly, the spring can maintain controlled valve motion throughout the intended operating range.

When they are not, the engine can experience valve float, valve bounce, spring surge, rocker/follower instability, or unnecessary valvetrain loading.

This is why BK Racing treats camshaft and valve spring selection as part of the same valvetrain system.

Why Camshaft Lift Alone Is Not Enough

Maximum valve lift is one of the first specifications most builders look at.

For example:

.450" lift

.500" lift

.520" lift

That number matters because it tells us how far the valve moves and how far the spring will be compressed.

But it does not tell us how aggressively the valve gets there.

Two cams can both have:

.500" maximum valve lift

and still place very different demands on the spring.

One can open and close the valve relatively gently.

The other can use much more aggressive ramps and acceleration.

The second cam may require substantially more spring control even though the maximum lift is identical.

The Camshaft Determines the Valve Motion

The spring does not decide how the valve moves.

The camshaft does.

The cam lobe establishes:

Opening acceleration
Valve velocity
Maximum lift
Time near peak lift
Closing acceleration
Closing velocity

The valve spring's job is to keep the valve and follower accurately tracking that commanded motion.

So when selecting a spring, ask:

What is the camshaft asking the valvetrain to do?

That question is much more useful than:

“How much lift can this spring handle?”

Match Spring Pressure to the Cam Profile

The spring needs enough force to maintain control throughout the complete valve event.

That means evaluating both:

Seat pressure

and:

Open pressure

Seat pressure helps control the valve near the seat.

Open pressure helps control the valvetrain deeper into the lift event.

For the BK Racing 83 lb Ecotec Valve Spring, the reference specifications are approximately:

83 lb @ 1.325" installed height

and:

230 lb @ .500" valve lift

Those two points describe different parts of the camshaft event.

A camshaft with aggressive opening and closing ramps may require more control than a milder cam with the same maximum lift.

Spring Rate Matters Too

Spring rate determines how quickly spring pressure increases as the valve opens.

A spring with modest seat pressure can still produce substantial open pressure if its effective rate is strong through the operating range.

The BK Racing 83 lb spring has an effective rate of approximately:

294 lb/in

through the relevant measured range.

This is why comparing springs only by the number in their name can be misleading.

An 83 lb spring and a 94 lb spring can have surprisingly similar open pressures near .500" lift depending on their respective rates and installed specifications.

Camshaft Lift Changes Open Pressure

As camshaft lift increases, the spring is compressed farther.

That means:

More lift = more spring compression

which generally means:

More open pressure

But there is a tradeoff.

More lift also means:

Less remaining spring travel

Less coil-bind clearance

Less retainer-to-seal clearance

So the spring has to provide enough pressure without being pushed too close to its mechanical limit.

Mechanical Lift vs. Recommended Lift

This distinction is critical when matching a spring to a camshaft.

A spring may physically be able to travel farther than its recommended operating lift.

For the BK Racing 83 lb system:

Approx. .567" = measured mechanical capability in the appropriate configuration

Approx. .520" = conservative recommended maximum operating lift

That means a camshaft with .520" lift can be within the recommended range while still leaving mechanical margin.

A camshaft approaching the mechanical boundary would require much more careful evaluation and should not be assumed safe just because the spring can physically compress that far.

Camshaft Duration Also Matters

Duration describes how long the valve remains open relative to crankshaft rotation.

Duration alone does not determine spring requirement, but it is part of the camshaft's overall motion profile.

Longer-duration racing cams often come with:

More aggressive lobe shapes
Greater overlap
Higher valve acceleration
More time at elevated lift

These characteristics can all affect spring demand.

This is why spring selection should be based on the actual camshaft design rather than duration alone.

Lobe Aggressiveness Is Often the Hidden Variable

This is one of the most important concepts in camshaft and spring matching.

A camshaft with the same lift and similar duration can still be much harder on the valvetrain if its ramps are more aggressive.

The spring must control the valve as the camshaft accelerates it.

More aggressive acceleration means more force is required to keep the valve following the cam.

This is why high-performance cams can require upgraded springs even when the published lift number does not look extreme.

Opening Ramp vs. Closing Ramp

The opening and closing sides of the camshaft event can place different demands on the spring.

Opening Side

The camshaft is accelerating the valve away from the seat.

The spring is being compressed.

Nose of the Cam

The valve is near maximum lift and preparing to reverse direction.

Closing Side

The spring is helping control the valve as it returns toward the seat.

An aggressive closing ramp can be especially important because the valve must return to the seat without bouncing.

This is why the spring has to provide appropriate control through the entire event, not just near maximum lift.

Matching Springs to Mild Street Camshafts

A mild street camshaft generally places less dynamic demand on the valvetrain.

For this type of application, spring selection may prioritize:

Adequate seat pressure
Good durability
Low valvetrain loading
Compatibility with stock-style components
Sufficient lift clearance

There is little benefit to using substantially more spring pressure than the camshaft actually requires.

Excess spring pressure can increase wear without providing meaningful performance improvement.

Matching Springs to Aggressive Naturally Aspirated Cams

Aggressive naturally aspirated Ecotec cams typically place much greater demand on the spring.

These combinations may involve:

Higher RPM
Higher valve lift
Faster valve acceleration
More aggressive closing ramps

For these engines, both seat and open pressure become increasingly important.

The spring also needs:

Adequate mechanical travel
Adequate coil-bind clearance
Adequate retainer-to-seal clearance
Appropriate spring rate

This is where a complete spring system becomes much more valuable than a simple drop-in replacement.

Matching Springs to Circle Track Camshafts

Circle-track camshaft combinations are especially demanding because the engine can operate at elevated RPM for extended periods.

The spring must remain stable through:

Repeated high-speed valve events
Sustained heat
Long-duration racing cycles
Continuous acceleration and deceleration

A spring that works during a short dyno pull may not provide the same margin over an entire race.

For circle-track use, the spring should be matched not only to peak RPM but also to the RPM range the engine lives in.

Matching Springs to Boosted Ecotec Cams

Boosted Ecotec engines add another consideration.

Manifold pressure can act across the intake valve and increase the force tending to unseat it.

That can increase the importance of seat pressure in some combinations.

But boosted spring selection still depends on:

Camshaft profile
RPM
Valve size
Boost level
Valve lift
Valvetrain mass

A lower-RPM boosted street engine and a high-RPM boosted race engine can require very different spring characteristics.

Valvetrain Mass Changes Spring Requirements

The spring has to control the mass of the moving valvetrain.

That includes contributions from:

Valve
Retainer
Locks
Rocker/follower
Part of the spring itself

A heavier valvetrain generally needs more spring control for a given camshaft and RPM.

This is why lightweight retainers can improve high-RPM control without simply increasing spring pressure.

The BK Racing Titanium Valve Spring Retainers are part of the complete system for this reason.

Why Retainer Weight Matters With Aggressive Cams

Aggressive camshafts increase acceleration.

More acceleration acting on more mass means more force must be controlled.

Reducing retainer mass helps reduce that demand.

This becomes especially valuable with:

High RPM
Aggressive lobe profiles
High valve lift

Again, spring selection and retainer selection should be considered together.

Installed Height Must Be Correct

Even the correct spring can become the wrong spring if it is installed incorrectly.

Installed height determines the spring's starting pressure.

If installed too tall:

Seat pressure may be too low.

If installed too short:

Pressure increases, but available travel decreases.

This is why a camshaft and spring combination should always be evaluated using the actual installed height of the finished cylinder head.

Coil Bind Must Be Checked

The camshaft's maximum lift must remain safely inside the spring's usable travel.

Do not simply compare:

Cam lift

to:

Advertised maximum spring lift

without understanding what that spring number actually means.

You need to know:

Installed height
Coil-bind height
Mechanical travel
Recommended lift
Remaining safety margin

The spring must have room to operate dynamically.

Retainer-to-Seal Clearance Must Be Checked Too

A spring can have adequate coil-bind clearance while the retainer is already approaching the valve seal or guide.

This means the actual camshaft limit may be established by:

retainer-to-seal clearance

rather than spring coil bind.

That is why the complete valvetrain must be measured.

Rocker/Follower Clearance Matters

The Ecotec roller finger follower operates very close to the retainer area.

An aftermarket retainer needs to maintain adequate clearance throughout the valve event.

A lightweight retainer that interferes with the rocker is not a successful upgrade.

This is one reason BK Racing developed its retainer geometry around maintaining positive Ecotec rocker/follower clearance.

Piston-to-Valve Clearance Is Separate

A camshaft can be fully compatible with the spring system and still be incompatible with the engine's piston-to-valve clearance.

That clearance depends on:

Cam timing
Duration
Valve lift
Piston design
Deck height
Head milling
Head gasket thickness

This is especially important when using:

Adjustable cam gears
Decked blocks
Milled cylinder heads
Custom pistons

Spring compatibility does not guarantee piston clearance.

Hydraulic Lash Adjusters Also Affect the Combination

The factory Ecotec valvetrain commonly uses hydraulic lash adjusters.

Aggressive camshafts and high RPM can place additional demands on the complete rocker and lash-control system.

A stronger spring does not eliminate hydraulic problems such as:

Bleed-down
Partial collapse
Pump-up
Internal sticking
Check-valve instability

This is why BK Racing treats spring control and lash control as separate but interacting parts of the valvetrain.

Why Solid Lash Adjusters Can Be Important With Aggressive Cams

For serious high-RPM racing combinations, solid lash adjusters remove the hydraulic variable.

That means:

No hydraulic bleed-down

No hydraulic collapse

No hydraulic pump-up

But solid lash does not eliminate the need for properly matched valve springs.

The camshaft still determines the valve motion.

The spring still has to control it.

Don't Match Springs to Camshafts by RPM Alone

A common shortcut is:

“This cam revs to 8,000, so I need an 8,000-RPM spring.”

That is not enough information.

You also need to know:

Valve lift
Lobe aggressiveness
Valvetrain mass
Installed height
Spring pressure
Spring rate
Mechanical clearance

RPM is part of the requirement—not the entire requirement.

Don't Match Springs to Camshafts by Lift Alone

Likewise:

“The spring is good for .520 lift, so it works with any .520 cam.”

That is also incomplete.

A .520" racing cam with aggressive ramps can require substantially more control than a mild .520" cam.

Mechanical fit and dynamic control are different questions.

Don't Match Springs by Seat Pressure Alone

This is another common mistake.

An 83 lb spring is not automatically weaker than a 94 lb spring throughout the valve event.

What matters is the complete pressure curve.

Compare:

Seat pressure
Open pressure
Spring rate
Installed height
Mechanical travel
Dynamic design

The number in the product name is only the starting point.

A Practical Camshaft and Spring Matching Checklist

Before selecting an Ecotec valve spring, establish:

Camshaft lift

Camshaft duration

Lobe aggressiveness

Target RPM

Operating RPM range

Valve and retainer mass

Installed height

Seat pressure

Open pressure

Spring rate

Coil-bind clearance

Retainer-to-seal clearance

Rocker clearance

Piston-to-valve clearance

If those measurements are known, spring selection becomes much more informed.

The BK Racing 83 lb Spring and Camshaft Matching

The BK Racing 83 lb Ecotec Valve Spring was designed to provide a strong pressure curve while maintaining practical travel for performance camshaft applications.

Reference specifications include:

83 lb @ 1.325" installed height

Approximately 230 lb @ .500" valve lift

Approximately 294 lb/in effective rate

Progressive oval-wire single-spring design

.520" conservative recommended maximum lift

The system has demonstrated approximately:

.567" mechanical capability

in the appropriate configuration, but BK Racing intentionally recommends the lower .520" operating limit to maintain mechanical margin.

That makes the spring useful for many performance camshaft combinations without advertising the absolute mechanical boundary as the recommended limit.

Why the BK Racing System Includes More Than the Spring

Higher-lift and more aggressive camshafts create more than a spring-pressure problem.

They also create:

Retainer clearance issues
Valve seal clearance issues
Installed-height considerations
Moving-mass concerns

This is why the complete BK Racing Ecotec valvetrain system includes:

BK Racing 83 lb Valve Springs

BK Racing Titanium Valve Spring Retainers

BK Racing Extra-Clearance Spring Seats

BK Racing Press-On Viton Valve Seals

These components allow the spring system to be configured around the actual camshaft rather than forcing the camshaft to fit an incomplete spring package.

Camshaft Matching Is About Control, Not Just Fit

This is the most important point.

A camshaft and spring can be mechanically compatible and still be dynamically mismatched.

Mechanical compatibility asks:

Does everything physically clear?

Dynamic compatibility asks:

Can the spring maintain controlled valve motion at the intended RPM?

A proper Ecotec valvetrain needs both.

The Most Important Rule for Matching Ecotec Valve Springs to Camshafts

Do not match a spring to a camshaft using only:

Maximum lift

Seat pressure

or:

Advertised RPM

Match the complete system:

Camshaft Profile + Valve Lift + RPM + Valvetrain Mass + Installed Height + Seat Pressure + Open Pressure + Spring Rate + Mechanical Clearance

That is how the spring can be selected based on what the camshaft actually asks the valvetrain to do.

For a performance or racing Ecotec, the correct valve spring is not simply the one that physically fits the camshaft.

It is the one that keeps the entire valvetrain controlled throughout the engine's actual operating range.

Continue Learning: GM Ecotec Valve Springs

Valve spring pressure is only one part of maintaining stable valve control in a performance Ecotec. Continue through the BK Racing GM Ecotec Valve Spring Knowledge Center to learn how installed height, spring rate, coil bind, camshaft lift, RPM, retainers, spring seats and valve seals work together as a complete valvetrain system. When planning your combination, also explore the BK Racing 83 lb Ecotec Valve Springs, BK Racing Titanium Valve Spring Retainers, BK Racing Extra-Clearance Spring Seats, and BK Racing Press-On Viton Valve Seals.

For aggressive racing combinations, also review BK Racing's Solid Lash Adjusters and related kicked-rocker technical information to understand the separate lash-control side of the Ecotec valvetrain.

Primary search topic:
How to match valve springs to Ecotec camshafts

Supporting search topics:
Ecotec camshaft valve springs, Ecotec valve springs for cams, GM Ecotec camshaft spring requirements, Ecotec high lift cams, Ecotec racing camshafts, Ecotec valve spring pressure, 2.2 Ecotec camshaft springs, 2.4 Ecotec camshaft springs, LSJ camshaft springs, LNF camshaft springs.

wrong valve spring

valve spring test

valve locks

seat pressures

valve lock angle

spring pressures

double springs

engine failure

spring harmonics

rocker arm

Tags:

Engine Building
