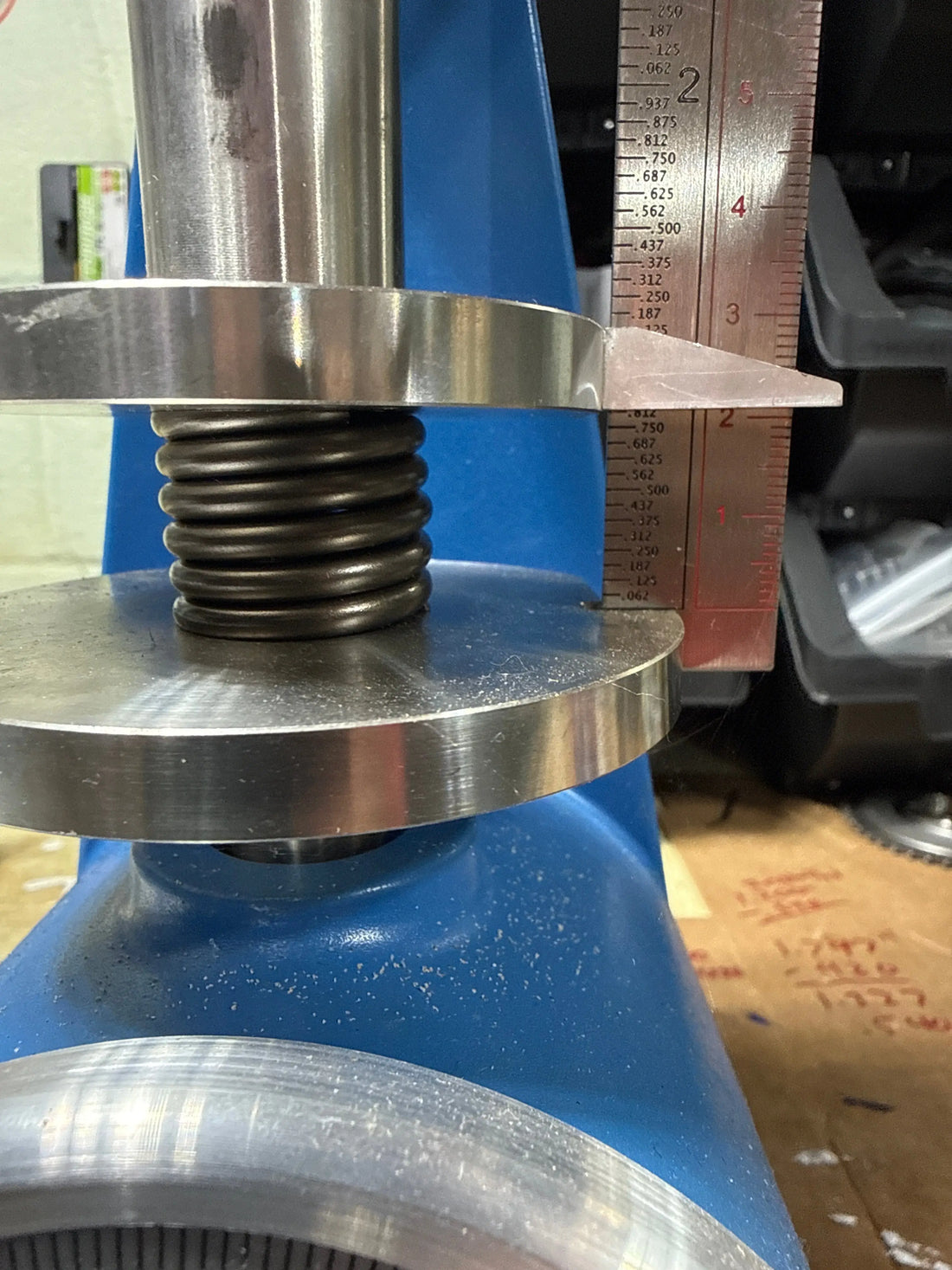

Ecotec Valve Spring Installed Height: Why It Matters

Valve spring installed height is one of the most important measurements in a GM Ecotec valvetrain—and one of the easiest specifications to overlook when comparing aftermarket valve springs.

A spring advertised as an 82 lb, 83 lb, or 94 lb spring does not simply produce that pressure regardless of how it is installed.

Valve spring pressure depends on how far the spring is compressed.

That means a proper specification isn't simply:

83 lb

It is:

83 lb at a specified installed height.

For the BK Racing 83 lb Ecotec Valve Spring, that specification is:

83 lb @ 1.325" installed height.

Change the installed height, and you change the spring's installed pressure, available travel, open pressure at a given valve lift, and relationship to coil bind.

For performance and racing Ecotec engines, installed height therefore isn't just an assembly measurement.

It is part of the valve spring specification.

What Is Valve Spring Installed Height?

Valve spring installed height is the distance between the spring's upper and lower locating surfaces when the valve is completely closed and the valvetrain is assembled.

In simplified terms, it is the height of the spring as it actually sits in the cylinder head with the valve closed.

The spring is located between:

Spring seat → valve spring → retainer

and held to the valve through the valve locks or keepers.

When assembled, the spring is already compressed compared with its unloaded free height.

That initial compression creates the spring's seat pressure.

This relationship is why installed height and seat pressure cannot properly be separated.

Free Height vs. Installed Height

These two specifications are sometimes confused.

Free Height

Free height is the spring's height when it is removed from the cylinder head and completely unloaded.

Installed Height

Installed height is the spring's height after it has been installed between the spring seat and retainer with the valve closed.

Because the installed spring is shorter than its free height, it is already storing energy and applying force to the valve.

The amount it has been compressed helps determine the seat pressure.

Therefore:

Free height tells us about the unloaded spring.

Installed height tells us where the spring begins operating in the engine.

For performance engine building, the second measurement is particularly important.

Why Installed Height Determines Seat Pressure

A valve spring generates increasing force as it is compressed.

If the spring is installed at a shorter height, it begins operation in a more compressed state.

Generally:

Shorter installed height = greater seat pressure

Taller installed height = lower seat pressure

The exact amount of pressure change depends on the spring's rate and design.

For a conventional linear spring, the relationship can be estimated using spring rate:

Pressure Change = Spring Rate × Change in Installed Height

For example, a 300 lb/in linear-rate spring compressed an additional .010" would theoretically gain approximately:

300 × .010 = 3 lb

of additional force.

But not every performance spring is perfectly linear throughout its travel.

The BK Racing 83 lb spring uses a progressive oval-wire design, so actual measured pressure is preferable to relying exclusively on a simple theoretical calculation.

Why “83 lb Spring” Is an Incomplete Specification

Suppose two manufacturers advertise:

Spring A — 83 lb

Spring B — 83 lb

Are they equivalent?

Not necessarily.

One might produce 83 lb at 1.325".

Another could produce 83 lb at a different installed height.

Their spring rates, open pressures, coil-bind heights, construction, available travel, and intended applications could all be different.

This is why BK Racing specifies our spring as:

83 lb @ 1.325" installed height

rather than simply calling it an 83 lb spring and leaving out the measurement that gives the pressure meaning.

When comparing Ecotec valve springs, always ask:

At what installed height was the advertised seat pressure measured?

Without that information, the pressure specification is incomplete.

Installed Height Also Affects Open Pressure

Installed height doesn't only affect seat pressure.

It establishes the spring's starting point for the entire valve event.

When the camshaft opens the valve, the spring is compressed farther by the valve lift.

If the spring begins at a different installed height, its pressure throughout the valve event also changes.

For the BK Racing spring, our reference specifications include:

83 lb @ 1.325" installed height

and approximately:

230 lb @ .500" valve lift

That gives us two useful operating points:

Valve closed → seat pressure

Valve open .500" → open pressure

Both depend on the spring beginning at the intended installed height.

Installed Height Affects Available Spring Travel

This is where installed height becomes especially important when using high-lift Ecotec camshafts.

Imagine two identical springs.

One is installed taller.

One is installed shorter.

The shorter spring begins closer to its compressed mechanical limit.

That generally means:

More installed pressure—but less remaining spring travel.

The taller spring generally begins with:

Less installed pressure—but more remaining travel.

This illustrates one of the fundamental compromises involved in setting installed height.

We cannot simply keep reducing installed height to increase spring pressure without considering what happens to the remaining mechanical clearance.

Installed Height and Coil Bind

Coil bind occurs when the spring is compressed to the point that its coils can no longer safely move closer together.

Installed height is one of the measurements required to determine how much spring travel exists before that point.

In simplified form:

Installed Height − Coil-Bind Height = Available Spring Travel

But that number represents mechanical spring travel, not automatically recommended valve lift.

A running engine needs clearance before coil bind.

And the spring may not even be the first component to reach its mechanical limit.

The retainer, valve seal, valve guide, or another part of the assembly may become the limiting factor first.

That is why Article 7 of this series is dedicated specifically to Ecotec Valve Spring Coil Bind and Maximum Valve Lift.

Installed Height, Mechanical Lift and Recommended Lift

Installed height is also directly connected to an important distinction we've established throughout the BK Racing valve spring program:

Mechanical lift is not the same thing as recommended lift.

Mechanical lift describes how much physical movement the properly configured assembly can accommodate before reaching a mechanical limitation.

Recommended maximum lift is the operating limit we are comfortable specifying while maintaining an appropriate margin.

For the BK Racing 83 lb system, development measurements in the appropriate configuration have demonstrated approximately:

.567" mechanical lift capability

BK Racing nevertheless advertises a conservative:

.520" recommended maximum lift

That leaves approximately:

.047"

between the advertised operating recommendation and that measured mechanical boundary in the tested configuration.

We intentionally do not advertise the mechanical limit as the recommended operating limit.

Why We Don't Recommend Running Directly to the Mechanical Limit

An engine running at high RPM is not a static assembly.

Components experience:

Heat
Deflection
Spring oscillation
Manufacturing tolerances
Dynamic loading
Repeated acceleration and deceleration
Cylinder-to-cylinder variation

A clearance measured while slowly turning an engine by hand is not automatically a sensible zero-margin operating specification at 8,000+ RPM.

This is particularly important in circle-track racing, where the valvetrain can spend extended periods operating at elevated engine speed.

The goal isn't to determine how close we can physically get to a component touching.

The goal is to establish usable operating clearance.

What Determines Installed Height on a GM Ecotec?

Installed height isn't determined by the valve spring alone.

Several components and machining operations can affect it.

These include:

Valve Length

A change in valve dimensions can alter where the valve tip and keeper groove position the retainer relative to the spring seat.

Valve Seat Machining

A valve job can change how deeply the valve sits in the cylinder head.

That can alter the valve's effective position and installed spring height.

Retainer Design

Different retainers can locate the spring differently relative to the valve locks.

Valve Locks or Keepers

The lock and retainer relationship contributes to the final assembled position.

Spring Seat Thickness

Changing the spring seat or adding a shim changes the lower spring location.

Cylinder-Head Machining and Component Tolerances

Production variation and previous machine work can produce differences between heads—and potentially between individual valves within the same head.

This is why the actual assembled cylinder head should be measured.

Why a Valve Job Can Change Installed Height

A valve job isn't completely independent of the valve spring system.

If machining causes the valve to sit deeper in the cylinder head, the position of the valve stem and keeper groove relative to the spring seat changes.

That can change installed height.

Even a relatively small dimensional change can alter spring pressure.

This becomes increasingly important on racing cylinder heads that may have:

Multiple previous valve jobs
Replacement valve seats
Aftermarket valves
Milled surfaces
Non-stock retainers
Different spring seats

Never assume that a used or modified Ecotec cylinder head still has exactly the same installed height it had when it left GM.

Why Aftermarket Valves Can Affect Installed Height

Aftermarket valves can also alter the assembled geometry.

Two valves intended for the same engine may differ in details such as:

Overall length
Keeper-groove location
Valve-seat relationship
Tip length

Small differences can affect the position of the retainer when the valve is seated.

That is another reason a performance cylinder head should be measured with the actual valves, retainers, keepers, seats, and springs that will be used in the engine.

How Spring Seats Change Installed Height

Spring seats provide the lower locating surface for the valve spring.

Increasing the effective thickness beneath the spring generally reduces installed height.

Reducing that stack height can increase installed height.

This allows the spring seat to influence:

Spring location
Installed height
Seat pressure
Remaining spring travel
Maximum mechanical clearance

But spring seats shouldn't be viewed simply as a way to manipulate spring pressure.

The seat also needs to locate the spring properly and protect/support the cylinder-head spring pocket.

How Valve Spring Shims Affect Installed Height

Spring shims are commonly used in engine building to adjust installed height.

Adding a shim underneath the spring raises the spring's lower mounting surface.

That reduces installed height.

For example, adding a:

.015" shim

would reduce the installed spring height by approximately .015", assuming nothing else changes.

That generally increases seat pressure.

But it also moves the spring approximately .015" closer to coil bind at any given valve lift.

This is why shimming a spring isn't “free pressure.”

Every change has consequences.

More Seat Pressure vs. Less Available Travel

This relationship is worth emphasizing.

Suppose you reduce installed height to gain additional seat pressure.

You have simultaneously:

Increased spring preload

and

Reduced remaining spring travel.

That may be perfectly appropriate for a particular combination.

But it needs to be intentional.

A spring should never be shimmed solely because someone wants a larger seat-pressure number without checking:

Open pressure
Coil-bind clearance
Maximum lift
Retainer-to-seal clearance
Camshaft requirements

The complete system has to remain within its usable operating range.

Installed Height and Retainer-to-Seal Clearance Are Different Measurements

This is another important distinction.

Installed height measures the spring between its locating surfaces.

Retainer-to-seal clearance measures the available movement between the retainer and the valve seal/guide area.

Changing one component can affect both, but they are not the same measurement.

A spring can have adequate coil-bind clearance while the retainer is dangerously close to the valve seal.

Likewise, excellent retainer-to-seal clearance does not prove that the spring has adequate coil-bind clearance.

Both need to be checked.

Why BK Racing Developed Extra-Clearance Spring Seats and Viton Seals

As we worked with higher-lift Ecotec camshafts, it became increasingly important to address the entire space available around the spring, retainer, valve guide, and seal.

That is why BK Racing developed complementary Extra-Clearance Spring Seats and Press-On Viton Valve Seals for the valve spring system.

The objective is not simply to make a spring physically fit.

It is to create a combination that provides the necessary:

Installed height

Spring location

Retainer clearance

Seal clearance

Usable valve lift

while maintaining a properly controlled spring package.

For higher-lift combinations, the surrounding components become just as important as the spring itself.

How to Measure Ecotec Valve Spring Installed Height

Installed height should be measured with the components that will actually be used in the finished cylinder head.

The basic assembly includes:

Valve

Spring seat

Retainer

Valve locks/keepers

The valve is installed and fully seated.

The intended spring seat is installed.

The retainer and locks are installed without the spring.

Then the distance between the spring's lower seating surface and the corresponding spring surface of the retainer is measured.

Common engine-building tools for this include:

Valve spring installed-height micrometer
Height gauge
Calipers in some configurations
Known-thickness checking tools

A dedicated installed-height micrometer is generally the clearest method when the cylinder-head geometry allows its use.

Measure Every Valve Position

On a performance Ecotec cylinder head, we recommend checking more than one valve.

Ideally, check all 16 positions.

Why?

Because small differences can exist due to:

Valve-seat machining
Valve dimensions
Retainer tolerances
Keeper position
Spring-seat differences
Previous cylinder-head work

If one valve has a noticeably different installed height, it can have different seat pressure even though all 16 springs came from the same matched set.

A racing cylinder head should be treated as 16 individual assembled valve locations, not merely one theoretical specification multiplied by 16.

Installed Height Consistency Matters

Imagine a cylinder head where most springs are installed at 1.325", but one or two are significantly taller.

Those taller springs could have lower seat pressure.

Now imagine the same engine operating at sustained racing RPM.

Those cylinders may not have exactly the same valvetrain control margin as the others.

This is one reason blueprinting a performance cylinder head involves more than simply installing upgraded parts.

Consistency matters.

For a properly prepared racing cylinder head, we want the spring system to operate as consistently as practical across all valves.

Installed Height Should Be Recorded During a Performance Build

For serious Ecotec engine builds, installed height is worth documenting.

A basic valvetrain blueprint record can include:

Cylinder / Valve Position

Installed Height

Measured Seat Pressure

Measured Open Pressure

Maximum Valve Lift

Coil-Bind Clearance

Retainer-to-Seal Clearance

That gives the engine builder an actual baseline for the cylinder head.

Later, if the springs are removed and tested during service, those original measurements provide useful reference data.

Don't Assume the Catalog Installed Height Is Your Installed Height

A manufacturer may specify:

83 lb @ 1.325"

That tells you the reference point used to characterize the spring.

It does not guarantee that every assembled Ecotec cylinder head automatically measures exactly 1.325".

The actual installed height depends on the actual parts and machining in front of you.

This is especially important with:

Used cylinder heads
Rebuilt heads
Aftermarket valves
Performance valve jobs
Different retainers
Modified spring seats
High-lift camshaft combinations

Catalog specifications tell you what the spring is designed around.

Measurement tells you what your engine actually has.

Installed Height and the BK Racing 83 lb Ecotec Spring

The BK Racing 83 lb Ecotec Valve Spring is specified around a:

1.325" installed height

At that reference installed height, our spring produces approximately:

83 lb seat pressure

and develops approximately:

230 lb around .500" valve lift.

Those numbers are useful because they establish the spring's intended operating reference.

If your assembled cylinder head differs materially from that installed height, don't simply assume you still have exactly 83 lb of seat pressure.

Measure it.

That is especially important when changing other components in the BK Racing valve spring system.

Can Installed Height Be Used to Tune Spring Pressure?

Yes—but it should be done intelligently.

Engine builders routinely use installed height as one tool for establishing desired spring pressure.

However, changing installed height changes more than pressure.

It also affects:

Available spring travel
Coil-bind clearance
Open pressure
The spring's operating range

Therefore, the goal isn't:

“Make installed height as short as possible.”

The goal is:

Establish the correct installed height for the spring, camshaft, RPM, and complete valvetrain combination while maintaining adequate mechanical clearance.

Why Installed Height Matters Even More With High-Lift Ecotec Cams

With a mild-lift camshaft, the spring may retain substantial remaining travel.

As valve lift increases toward .500", .520", or beyond, every part of the available travel becomes more important.

At that point, small differences in installed height can have a much greater impact on:

Coil-bind margin
Open pressure
Retainer-to-seal clearance
Overall mechanical lift capability

This is why high-lift Ecotec combinations should be measured as an assembled system rather than built from catalog numbers alone.

Installed Height Does Not Determine Piston-to-Valve Clearance

One final distinction is important.

Correct valve spring installed height does not mean the engine has adequate piston-to-valve clearance.

Piston-to-valve clearance depends on the relationship between:

Camshaft timing
Camshaft profile
Valve motion
Piston design
Deck height
Cylinder-head machining
Head-gasket thickness
Crankshaft and connecting-rod geometry

You can have a perfectly configured spring system and still have insufficient piston-to-valve clearance.

That must be checked separately on aggressive engine combinations.

Common Installed Height Mistakes

Some of the most common mistakes we see or want Ecotec builders to avoid include:

Assuming all aftermarket springs install at the same height
Comparing seat-pressure numbers without comparing installed height
Installing springs without measuring the finished cylinder head
Assuming all 16 valve locations are identical
Adding shims for more pressure without checking coil bind
Changing retainers without rechecking installed height
Changing valves without rechecking installed height
Assuming a valve job cannot affect spring geometry
Confusing spring free height with installed height
Confusing mechanical travel with recommended maximum lift
Checking coil bind but ignoring retainer-to-seal clearance

The solution to almost all of these problems is the same:

Measure the complete assembly.

The Most Important Installed Height Rule

If you remember only one thing from this article, remember this:

Valve spring pressure means very little without the installed height at which it was measured.

An “83 lb spring” isn't simply an 83 lb spring.

For BK Racing, the meaningful specification is:

83 lb @ 1.325" installed height.

And even then, that specification is only the starting point.

The engine builder still needs to consider open pressure, spring rate, camshaft lift, coil bind, retainer-to-seal clearance, RPM, and the complete valvetrain combination.

Installed height establishes where the spring begins working.

Everything that happens after the camshaft starts opening the valve begins from that point.

Continue Learning: GM Ecotec Valve Springs

Valve spring pressure is only one part of maintaining stable valve control in a performance Ecotec. Continue through the BK Racing GM Ecotec Valve Spring Knowledge Center to learn how installed height, spring rate, coil bind, camshaft lift, RPM, retainers, spring seats and valve seals work together as a complete valvetrain system. When planning your combination, also explore the BK Racing 83 lb Ecotec Valve Springs, BK Racing Titanium Valve Spring Retainers, BK Racing Extra-Clearance Spring Seats, and BK Racing Press-On Viton Valve Seals.

Primary search topic:
Ecotec valve spring installed height

Supporting search topics:
GM Ecotec valve spring installed height, Ecotec valve spring pressure, Ecotec spring height, Ecotec valve spring shims, Ecotec coil bind, Ecotec maximum valve lift, 2.2 Ecotec valve springs, 2.4 Evalve spring height

valve is closed

prevent valve floatcotec valve springs, Ecotec racing valve springs, Ecotec high-lift camshafts.

Tags:

Engine Building
