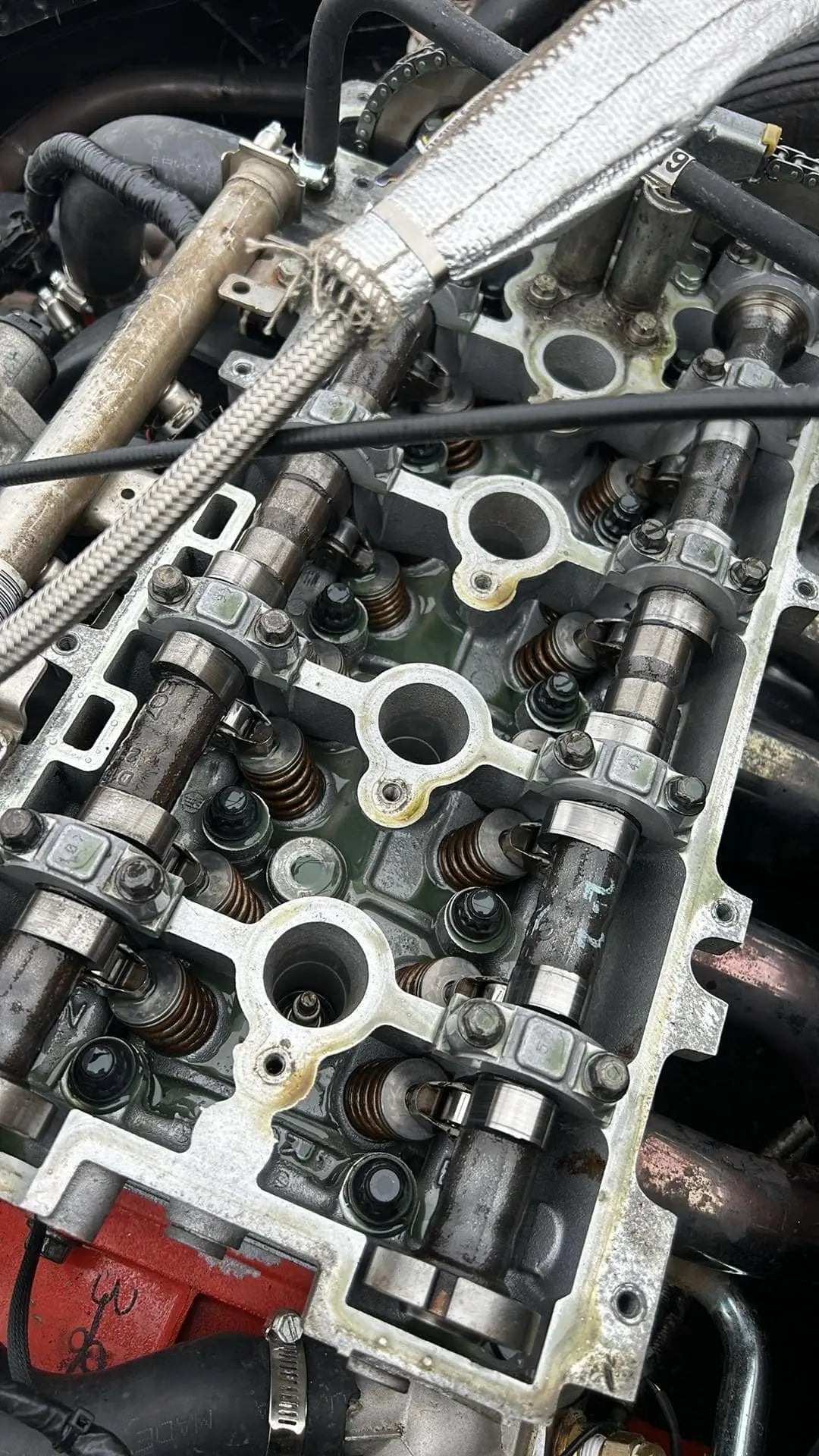

Ecotec Valve Spring Seat Pressure vs. Open Pressure

When comparing GM Ecotec valve springs, seat pressure and open pressure need to be considered together.

An aftermarket spring may be described as a 76 lb, 82 lb, 83 lb, 94 lb, or 104 lb spring, but that number normally refers to its pressure with the valve closed at a specified installed height.

It does not tell you how much force the spring produces as the valve opens.

That distinction is especially important in performance Ecotec engines because the valve spring must maintain control throughout the entire valve event—not just while the valve is sitting on the seat.

For example, the BK Racing 83 lb Ecotec Valve Spring is designed around:

83 lb seat pressure @ 1.325" installed height

and approximately:

230 lb open pressure @ .500" valve lift

Those two numbers together tell us considerably more about the spring than simply calling it an “83 lb spring.”

Understanding the difference between seat pressure and open pressure is essential when selecting valve springs for higher RPM, aggressive camshafts, increased valve lift, boosted applications, and sustained circle-track racing.

What Is Valve Spring Seat Pressure?

Seat pressure is the force exerted by the valve spring when the valve is fully closed.

The spring is already compressed when installed in the cylinder head. That initial compression creates pressure against the valve through the retainer and keepers.

Seat pressure helps maintain control as the valve closes and rests against the valve seat.

Adequate seat pressure helps:

Keep the valve positively seated
Control the valve as it approaches the seat
Reduce the tendency for valve bounce
Maintain rocker/follower stability
Maintain control as engine RPM increases
Resist forces that may attempt to unseat the valve

But seat pressure describes the spring at only one point in its operating range.

Once the camshaft begins opening the valve, spring pressure increases.

Why Installed Height Must Be Included With Seat Pressure

A seat-pressure specification should always include the installed height at which it was measured.

For example:

83 lb @ 1.325"

is a useful specification.

Simply saying:

83 lb

is incomplete.

The same spring installed at a shorter height will generally have more seat pressure.

Installed taller, it will generally have less.

That means comparing two springs only by their advertised seat-pressure numbers can be misleading if they were tested at different installed heights.

This is why the previous article in this series, Ecotec Valve Spring Installed Height: Why It Matters, is so important.

Before comparing pressure, establish where that pressure was measured.

What Is Valve Spring Open Pressure?

Open pressure is the force produced by the spring after the valve has opened a specified distance.

For example:

230 lb @ .500" lift

means the spring produces approximately 230 pounds of force when compressed an additional .500" from its reference installed position.

Open pressure matters because the spring's job becomes increasingly demanding as the valve moves through the camshaft event.

The spring has to help maintain control while the valve:

Accelerates away from the seat → approaches maximum lift → changes direction → accelerates back toward the seat

At high RPM, this happens extremely quickly.

Open pressure gives us important information about the spring's ability to control that motion.

Seat Pressure and Open Pressure Describe Different Parts of the Valve Event

It is useful to think about the valve event in stages.

Valve Closed

The spring is at installed height.

This is where we measure:

Seat pressure

Valve Opening

The camshaft compresses the spring farther.

Spring pressure increases.

Maximum Valve Lift

The spring is near its greatest operating compression.

This is where:

Open pressure is greatest

and where available travel and coil-bind clearance are at their minimum.

Valve Closing

The spring is helping maintain control as the valvetrain follows the closing side of the cam lobe.

Valve Returns to the Seat

Spring force continues controlling the valve as it approaches the seat, where excessive velocity or inadequate control can contribute to valve bounce.

So neither seat pressure nor open pressure tells the complete story independently.

Why an “83 lb Spring” Produces Much More Than 83 lb

The BK Racing spring is commonly called our 83 lb spring because of its seat-pressure specification.

But the spring doesn't remain at 83 lb while the engine is running.

As the camshaft opens the valve, the spring compresses and pressure increases.

At approximately .500" valve lift, the BK Racing spring produces approximately:

230 lb

That means the spring pressure changes substantially through the valve event:

Valve closed → approximately 83 lb

Valve open .500" → approximately 230 lb

That increasing force is a critical part of how the spring controls the valvetrain.

This is why judging the spring only by the 83 lb number ignores much of its actual performance.

Spring Rate Connects Seat Pressure to Open Pressure

The relationship between seat pressure and open pressure is largely determined by the spring's rate and design.

Spring rate describes how much additional force develops as the spring is compressed.

In a simplified linear example:

If a spring has:

83 lb seat pressure

and a rate of:

294 lb/in

then compressing it an additional .500" would theoretically increase pressure by approximately 147 lb.

That would place the theoretical pressure near:

230 lb

This illustrates the relationship between:

Installed pressure + spring compression + spring rate = increasing open pressure

However, the BK Racing 83 lb Ecotec Valve Spring uses a progressive oval-wire design, so actual measured pressures are more useful than assuming the spring behaves as a perfectly linear mathematical spring through its entire travel.

We will examine spring rate much more closely in Article 6, Understanding Ecotec Valve Spring Rate.

Why Open Pressure Matters at High RPM

As RPM increases, the valvetrain must complete the same motion in less time.

The valve and associated moving components have to accelerate and decelerate more rapidly.

That increases the force required to keep the valvetrain following the camshaft's intended motion.

Open pressure becomes particularly important as the valve approaches maximum lift and reverses direction.

If the spring cannot adequately control the moving valvetrain, the system may begin to experience instability.

Potential symptoms include:

High-RPM power loss
Valve float
Rocker/follower instability
Valve bounce
Inconsistent valve motion
Increased valvetrain stress

This is why a spring designed for elevated-RPM use needs to be evaluated throughout its travel—not simply by its closed-valve pressure.

Why Seat Pressure Still Matters

Open pressure is important, but that does not make seat pressure unimportant.

The valve still needs to be controlled as it approaches and leaves the seat.

If seat pressure is inadequate for the combination, the valve may not remain properly controlled during this portion of the event.

The ideal spring therefore needs an appropriate balance.

We want:

Enough seat pressure to control the valve near the seat

and

Enough open pressure to control the valvetrain through maximum lift

without simply adding unnecessary load everywhere.

Why More Seat Pressure Isn't Automatically Better

Consider two hypothetical Ecotec springs:

Spring A — 83 lb seat pressure

Spring B — 94 lb seat pressure

Looking only at their names, it would be easy to conclude:

94 > 83, therefore Spring B must provide considerably greater valve control.

But we haven't been told:

Installed height
Open pressure
Spring rate
Maximum lift
Coil-bind height
Available travel
Spring construction
Retainer mass
Camshaft profile
Intended RPM

Until those specifications are known, the comparison is incomplete.

A spring with greater seat pressure can have a lower rate.

A spring with slightly less seat pressure can build pressure more rapidly as it compresses.

That can result in surprisingly similar open pressures at useful valve lifts.

A Real Ecotec Example: 83 lb vs. 94 lb

This is where the published numbers become interesting.

The BK Racing 83 lb single spring produces approximately:

83 lb @ 1.325" installed height

and approximately:

230 lb @ .500" lift

The commonly marketed Supertech 94 lb dual Ecotec spring has been published at approximately:

94 lb seat pressure

and approximately:

232 lb @ .492" lift

So although the difference in advertised seat pressure is:

11 lb

the published open-pressure numbers near .500" lift are extremely close:

BK Racing 83 lb single: ~230 lb @ .500"

Supertech 94 lb dual: ~232 lb @ .492"

That does not mean the two springs are identical.

They aren't.

They have different designs, installed specifications, rates, components, and dynamic characteristics.

But it demonstrates why looking only at:

83 vs. 94

doesn't adequately describe what happens once the valve actually opens.

This is precisely why Article 18 of this series is titled Why Valve Spring Pressure Alone Doesn't Tell the Whole Story.

Open Pressure Must Include the Lift Measurement

Just as seat pressure should include installed height, open pressure should include the lift at which it was measured.

For example:

230 lb open pressure

is incomplete.

A much more useful specification is:

230 lb @ .500" valve lift

Why?

Because the spring continues gaining pressure as it is compressed.

A spring measured at .400" lift cannot be directly compared to another spring measured at .500" lift without accounting for their rates.

This is particularly important when comparing published Ecotec spring specifications because manufacturers don't always publish open pressure at the same lift.

Why Comparing Open Pressure at Different Lifts Can Be Misleading

Suppose we have:

Spring A — 200 lb @ .420"

and:

Spring B — 230 lb @ .500"

We cannot simply conclude that Spring B is 30 lb stronger throughout the entire operating range.

The measurements were taken at different amounts of compression.

To make a meaningful comparison, we would ideally measure both springs at:

The same installed height methodology

and

The same valve lift

This is one reason BK Racing has physically tested multiple Ecotec spring options rather than relying solely on product names or incomplete advertised specifications.

Why BK Racing Tests Actual Springs

Published specifications are useful, but direct measurement gives us a much clearer picture.

BK Racing has evaluated actual Ecotec valve springs to better understand:

Seat pressure
Pressure at increasing lift
Coil bind
Available travel
Spring behavior
Differences between advertised and measured characteristics

That includes our own BK Racing 83 lb spring, factory Ecotec springs, and aftermarket options we've had available for comparison.

Our objective isn't simply to say:

“Our spring has more pressure.”

We want to understand where the pressure occurs and how the complete spring behaves through its usable travel.

That gives racers information they can actually use when selecting a spring.

Why a High Seat Pressure With Low Open Pressure Can Be Misleading

Imagine a spring with substantial seat pressure but a relatively low spring rate.

It may begin with impressive pressure at the valve seat but gain pressure more slowly as the valve opens.

Another spring might begin with slightly less seat pressure but have a higher effective rate.

By maximum lift, their open pressures could be similar—or the second spring could even produce greater open pressure.

This is why the number printed in the product name doesn't describe the complete spring.

Why a High Open Pressure Isn't Automatically Better Either

The opposite mistake can also occur.

If open pressure helps control the valvetrain, why not simply maximize it?

Because additional spring force increases loading throughout the valvetrain.

Depending on the combination, unnecessary pressure can increase load on:

Camshaft lobes
Roller finger followers
Hydraulic lash adjusters
Valve stems
Valve seats
Retainers
Valve locks
Timing components

The objective isn't maximum pressure.

The objective is appropriate pressure throughout the valve event for the camshaft, RPM, valvetrain mass, and intended application.

Camshaft Lift Changes Open Pressure

Open pressure depends on how far the camshaft compresses the spring.

A .420" lift camshaft and a .500" lift camshaft place the same spring at different points in its travel.

All else being equal, the higher-lift camshaft compresses the spring farther and therefore produces greater spring pressure at maximum lift.

But it also leaves:

Less remaining travel

and:

Less coil-bind clearance

This is why higher valve lift cannot be evaluated by pressure alone.

As lift increases, pressure increases—but mechanical margin decreases.

Camshaft Aggressiveness Matters Too

Two camshafts with identical maximum valve lift can place very different demands on the spring.

A .500" lift camshaft with a relatively gentle lobe can accelerate the valvetrain differently from another .500" lift camshaft with a much more aggressive profile.

Maximum lift tells us:

How far the valve travels.

It does not tell us:

How rapidly the valve gets there.

Therefore, seat and open pressure need to be considered alongside:

Lobe shape
Valve acceleration
Duration
RPM
Valvetrain mass

We will cover this extensively in Articles 12–14.

Valvetrain Mass Changes the Required Spring Force

The spring has to control moving mass.

That includes contributions from components such as the:

Valve
Retainer
Locks
Spring
Rocker/follower

Reducing unnecessary moving mass can reduce the inertial forces the spring must control.

This is one reason lightweight BK Racing Titanium Valve Spring Retainers are part of our Ecotec valve spring system.

Spring pressure and valvetrain mass should be considered together.

Simply adding more spring pressure isn't the only way to improve a valvetrain.

Seat Pressure in Boosted Ecotec Engines

Boosted applications introduce another consideration.

Pressure in the intake manifold acts across the intake valve.

The amount of resulting force depends on both:

Pressure

and:

Effective valve area

That force can oppose the spring's effort to keep the valve seated.

This means boosted applications can require additional consideration of seat pressure.

But it still doesn't mean every boosted Ecotec needs the highest-seat-pressure spring available.

The correct combination depends on:

Boost pressure
Valve size
Camshaft
RPM
Valvetrain mass
Intended use

A high-RPM naturally aspirated circle-track engine and a lower-RPM boosted street engine can place very different demands on a spring.

Seat Pressure and Valve Bounce

Seat pressure becomes particularly important as the valve returns to the seat.

The valve doesn't simply need to reach the seat.

It needs to arrive under control.

If the valvetrain is unstable, the valve can contact the seat and rebound.

That is valve bounce.

Valve bounce is not identical to valve float, although the two can occur as parts of a broader valvetrain-control problem.

Spring pressure, camshaft closing profile, valvetrain mass, RPM, and spring dynamics all influence what happens as the valve approaches the seat.

Open Pressure and Valve Float

Open pressure is often discussed in relation to valve float because the spring needs sufficient force to maintain control as the valve moves through the high-lift portion of the camshaft event.

But again, there isn't one universal open-pressure number that guarantees an Ecotec will not experience valve float.

The actual requirement depends on the complete system.

That is why saying:

“You need 230 lb open pressure at 8,000 RPM”

without specifying the camshaft and valvetrain combination would be overly simplistic.

Pressure is one variable in a dynamic system.

Seat Pressure Can Change Over Time

Valve springs are fatigue components.

After repeated heat cycles and millions of compression cycles, spring characteristics can change.

A racing spring that originally measured:

83 lb

may not necessarily continue producing exactly the same pressure indefinitely.

This is why periodically checking valve spring pressure can be useful in a race engine.

A spring-pressure tester allows the builder to compare:

Current seat pressure

and:

Current open pressure

against the original baseline.

If one spring begins losing pressure faster than the others, that can identify a developing problem before it becomes obvious on the racetrack.

Measure All 16 Springs

A GM Ecotec cylinder head uses 16 valves and therefore 16 valve springs.

For a serious racing cylinder head, we prefer thinking of those as 16 individual measurements, not simply assuming that one tested spring represents the entire set forever.

Useful measurements include:

Installed height
Seat pressure
Open pressure at a specified lift
Free height
Coil-bind height
Consistency across the set

This is particularly useful when blueprinting an Ecotec cylinder head.

A matched set is only truly matched if the springs behave consistently where the engine will actually use them.

Seat Pressure vs. Open Pressure for Circle Track Racing

Circle-track racing makes this relationship especially important.

The spring isn't being asked to control the valve during one brief high-RPM pull.

It can be cycling repeatedly at elevated RPM lap after lap.

That means we care about:

Seat control

High-lift control

Spring temperature

Fatigue resistance

Pressure consistency

Valvetrain mass

Camshaft aggressiveness

Mechanical clearance

This is one of the reasons BK Racing did not simply chase the largest possible seat-pressure number when developing our 83 lb spring.

We wanted a spring system that provides substantial pressure through the valve event while maintaining useful travel and a practical single-spring configuration for the Ecotec.

The BK Racing 83 lb Philosophy

The BK Racing spring is a good example of why we believe valve springs should be evaluated as complete systems.

We could focus exclusively on:

83 lb seat pressure.

Instead, we publish and evaluate:

83 lb @ 1.325" installed height

~230 lb @ .500" valve lift

~294 lb/in effective rate

Progressive oval-wire construction

~.520" conservative recommended maximum lift

along with the mechanical-clearance considerations of the complete system.

The 83 lb number gets the attention.

The rest of the specifications tell you what the spring actually does.

Don't Choose an Ecotec Valve Spring From One Number

When comparing Ecotec valve springs, don't ask only:

How much seat pressure does it have?

Ask:

At what installed height?

What is the open pressure?

At what lift was open pressure measured?

What is the spring rate?

How much travel is available?

Where is coil bind?

What maximum lift is actually recommended?

What retainer is required?

What valve seal and spring seat are being used?

What camshaft will it control?

At what RPM?

For what type of racing?

Those questions tell you considerably more than whether the product name contains 82, 83, 94, or 104.

The Most Important Difference Between Seat and Open Pressure

The simplest way to remember it is:

Seat pressure tells you how much spring force exists with the valve closed.

Open pressure tells you how much spring force exists after the valve has opened a specified amount.

Both matter.

Neither should be evaluated alone.

And both need a reference dimension:

Seat pressure → installed height

Open pressure → valve lift

For the BK Racing 83 lb Ecotec spring:

83 lb @ 1.325" installed height

and approximately:

230 lb @ .500" lift

Those specifications describe two points in the spring's operating range.

The next piece of the puzzle is understanding why the pressure increases between those two points.

That is spring rate.

Continue Learning: GM Ecotec Valve Springs

Valve spring pressure is only one part of maintaining stable valve control in a performance Ecotec. Continue through the BK Racing GM Ecotec Valve Spring Knowledge Center to learn how installed height, spring rate, coil bind, camshaft lift, RPM, retainers, spring seats and valve seals work together as a complete valvetrain system. When planning your combination, also explore the BK Racing 83 lb Ecotec Valve Springs, BK Racing Titanium Valve Spring Retainers, BK Racing Extra-Clearance Spring Seats, and BK Racing Press-On Viton Valve Seals.

Primary search topic:
Ecotec valve spring seat pressure vs. open pressure

Supporting search topics:
Ecotec valve spring pressure, GM Ecotec valve springs, valve spring seat pressure, valve spring open pressure, 83 lb Ecotec valve springs, Ecotec high RPM valve springs, Ecotec racing valve springs, Ecotec camshaft springs, 2.2 Ecotec valve springs, 2.4 Ecotec valve springs.

spring tension

stiff springs

roller cam

bottom coil

flat tappet cam

camshaft lobe

Tags:

Engine Building
