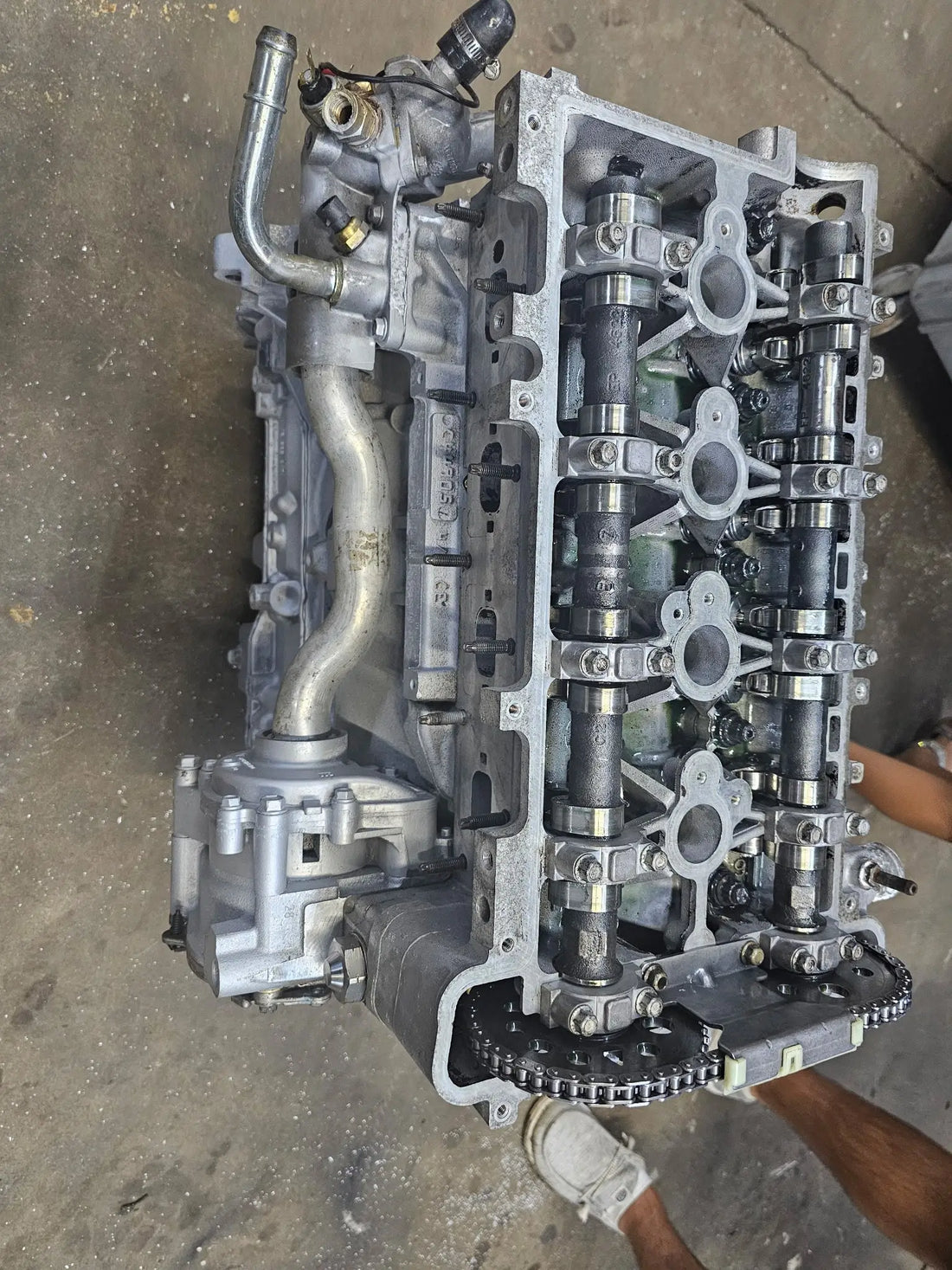

What Causes Valve Float in GM Ecotec Engines?
What Causes Valve Float in GM Ecotec Engines?
Valve float is one of the most discussed—and frequently oversimplified—problems in high-RPM GM Ecotec engines.
When an Ecotec begins losing power, breaking up at high RPM, experiencing unstable valve motion, or kicking rocker followers, it is common to hear:
“It floated the valves.”
But valve float is only one form of valvetrain instability, and not every high-RPM Ecotec valvetrain problem begins with valve float.
This distinction is particularly important in GM Ecotec engines because the factory valvetrain combines valve springs, roller finger followers, and hydraulic lash adjusters. Each component has a different job, and instability in one part of the system can affect the others.
The valve springs are responsible for maintaining controlled valve motion.
The hydraulic lash adjusters are responsible for maintaining the intended lash and rocker geometry.
At elevated RPM, aggressive camshaft acceleration, increased valve lift, spring fatigue, excessive valvetrain mass, or inadequate spring control can cause actual valve motion to begin deviating from what the camshaft is commanding.
At the same time, factory hydraulic lash adjusters introduce their own potential high-RPM problems, including bleed-down, collapse, pump-up, sticking, and internal check-valve instability.
That is why BK Racing approaches the Ecotec valvetrain as a complete system rather than assuming every high-RPM problem can be solved by installing a heavier valve spring. This is also consistent with our existing work on Ecotec solid lash adjusters and kicked-rocker failures. BK Racing
What Is Valve Float?
Valve float occurs when the valvetrain can no longer accurately follow the motion commanded by the camshaft.
The camshaft determines where the valve should be throughout the valve event.
As the cam rotates, the valve must:
Accelerate away from the seat → continue opening → reach maximum lift → reverse direction → return toward the seat → close under control
The valve spring provides the force necessary to maintain control throughout this movement.
When the spring and complete valvetrain can no longer keep the valve following the intended camshaft motion, the system begins losing control.
That is valve float.
But there is an important distinction:
Valve float is not the same thing as every form of high-RPM valvetrain instability.
Valve bounce, spring surge, hydraulic lash-adjuster instability, and rocker/follower instability are related conditions that can interact with valve float without being identical to it.
Valve Float Is Usually a Progressive Loss of Control
Many racers picture valve float as a dramatic event.
The engine reaches a certain RPM, suddenly hits a wall, and begins violently breaking up.
Severe valve float certainly can behave that way.
But valvetrain control can begin deteriorating before the driver experiences an obvious catastrophic float condition.
The early signs can be much more subtle:
- Power begins falling off sooner than expected
- The engine becomes inconsistent near peak RPM
- Valve seating becomes less controlled
- Rocker/follower motion becomes unstable
- Spring oscillation increases
- High-RPM behavior becomes inconsistent
The engine may continue running.
That doesn't necessarily mean the valvetrain is maintaining perfect control.
This is an important part of BK Racing's approach to Ecotec valve spring development: we are interested in maintaining controlled valve motion before the engine reaches an obvious catastrophic failure point. BK Racing
What Actually Causes Valve Float?
There is no single cause and no universal Ecotec RPM where valve float begins.
The threshold depends on the complete combination.
Major factors include:
- Engine RPM
- Camshaft acceleration
- Camshaft closing velocity
- Valve lift
- Valve and retainer mass
- Seat pressure
- Open pressure
- Spring rate
- Spring design
- Spring fatigue
- Installed height
- Operating temperature
- Spring dynamic behavior
Changing any of these variables can change the RPM at which the valvetrain begins losing control.
This is why saying:
“This spring is good to 8,000 RPM.”
without knowing the camshaft and valvetrain combination tells us very little.
RPM Is One of the Biggest Factors
As engine RPM increases, the valve still has to travel essentially the same physical distance.
What changes dramatically is the amount of time available to complete that movement.
At higher RPM, the valve must accelerate away from the seat, reach maximum lift, reverse direction, and return to the seat much faster.
That means the spring has to control the same moving components under increasingly demanding dynamic conditions.
A factory spring may therefore provide completely acceptable control at normal street RPM while becoming increasingly inadequate as racing RPM rises.
Why RPM Alone Doesn't Determine Valve Float
Consider two Ecotec engines both operating at 7,500 RPM.
One has:
- Factory camshafts
- Factory valves
- Factory retainers
The other has:
- Aggressive aftermarket camshafts
- Increased valve lift
- Different valves
- Different retainers
The spring requirements can be dramatically different even though engine speed is identical.
The reason is simple:
RPM determines how frequently the event happens.
The camshaft determines how aggressively the valve is being moved during that event.
Both matter.
Camshaft Acceleration Is Critical
Maximum camshaft lift gets most of the attention, but valve acceleration can be even more important to spring control.
Two camshafts can both produce:
.500" valve lift
and still place very different demands on the spring.
A relatively gentle lobe moves the valve differently than an aggressive racing profile that opens and closes the valve much faster.
The more aggressively the camshaft accelerates the valvetrain, the more difficult it becomes for the spring to maintain controlled motion.
This is particularly important during the opening and closing portions of the cam profile.
BK Racing's existing Ecotec valvetrain development has consistently emphasized these ramp events because instability can begin there before an engine experiences the dramatic high-RPM breakup most racers associate with valve float. BK Racing
Maximum Lift Does Not Tell the Whole Story
Suppose two camshafts both have:
.500" maximum valve lift.
Cam A reaches that lift relatively gently.
Cam B reaches the same lift using substantially more aggressive acceleration.
They do not necessarily require the same spring.
This is why selecting a spring simply because:
“My cam has .500 lift and the spring is rated for .520.”
is incomplete.
A maximum-lift specification primarily tells us whether the spring and valvetrain have enough mechanical travel.
It does not prove that the spring has enough dynamic control for the camshaft.
Why Valve Spring Seat Pressure Matters
Seat pressure is the force the spring produces with the valve closed.
Adequate seat pressure helps maintain valve control as the valve approaches and leaves the seat.
For the BK Racing 83 lb Ecotec Valve Spring, our reference installed specification is:
83 lb @ 1.325" installed height
But that is only one point in the spring's operating range.
A spring's ability to control the valve cannot be determined from seat pressure alone.
Why Open Pressure Matters
As the valve opens, the spring compresses farther and spring pressure increases.
The BK Racing 83 lb spring produces approximately:
230 lb @ .500" valve lift
That additional pressure is important because the spring must control the moving valvetrain through the higher-lift portion of the camshaft event.
This is why comparing:
82 lb vs. 83 lb vs. 94 lb
doesn't tell the complete story.
What matters is the pressure curve throughout the valve event, not simply the number measured with the valve closed.
BK Racing publishes both seat and open pressure for this reason. BK Racing
Spring Rate Matters
Spring rate describes how rapidly spring force increases as the spring is compressed.
The BK Racing 83 lb Ecotec spring has an effective rate of approximately:
294 lb/in
with a progressive oval-wire design. BK Racing
Spring rate helps connect:
Seat pressure → increasing valve lift → open pressure
Two springs with nearly identical seat pressure can produce significantly different open pressures because their rates and designs differ.
That can make their high-RPM behavior very different.
Valvetrain Mass Matters
The valve spring has to control moving mass.
That includes contributions from:
- Valve
- Retainer
- Locks
- Rocker/follower
- Spring itself
Increasing moving mass increases the inertial force the spring must control.
This is why reducing valvetrain mass can improve high-RPM control without simply increasing spring pressure.
It is also why titanium retainers are commonly used in performance valvetrains.
The BK Racing Titanium Valve Spring Retainers reduce unnecessary moving mass while maintaining the required Ecotec valvetrain geometry.
The spring therefore has less mass to control during every valve event.
Why Stronger Is Not Automatically Better
If inadequate spring force can contribute to valve float, why not simply install the strongest spring available?
Because spring pressure creates load throughout the valvetrain.
Excessive pressure can increase loading on:
- Camshaft lobes
- Roller finger followers
- Valve stems
- Valve seats
- Lash adjusters
- Retainers
- Valve locks
- Timing components
The goal is not:
Maximum spring pressure.
The goal is:
Enough spring force and appropriate dynamic behavior to maintain control for the intended camshaft, RPM, and valvetrain mass.
That distinction is central to the BK Racing valve spring philosophy.
Spring Fatigue Can Lower the Valve-Float Threshold
Valve springs are fatigue components.
A spring may have adequate pressure when new and gradually lose some of that pressure after repeated:
- Heat cycles
- High-RPM operation
- Compression cycles
- Racing use
As pressure deteriorates, the spring has less control margin.
An engine that previously ran cleanly through its intended RPM range may eventually begin showing instability at a lower engine speed.
This is one reason serious race engines benefit from periodic spring-pressure testing.
Installed Height Can Contribute to Valve Float
Installed height directly affects spring pressure.
If a spring is installed taller than intended, it generally begins with less preload and therefore less seat pressure.
That can reduce the available control margin.
If installed too short, pressure increases—but another problem appears:
Available spring travel decreases.
That moves the spring closer to coil bind.
This is why installed height must be measured rather than treated as an insignificant assembly dimension.
Coil Bind Is Different From Valve Float
Coil bind and valve float are completely different conditions.
Valve Float
The valvetrain loses dynamic control.
Coil Bind
The spring physically runs out of compression travel.
A spring can experience valve float while still having substantial mechanical travel remaining.
Likewise, a spring can have plenty of pressure but be mechanically unsuitable for a high-lift camshaft because it does not have enough remaining travel.
This is why both dynamic control and mechanical clearance have to be considered.
Valve Bounce Is Different From Valve Float
Valve bounce occurs when the valve reaches the valve seat and rebounds instead of remaining cleanly seated.
That is different from valve float.
Valve Float
The valvetrain is no longer accurately following the intended camshaft motion.
Valve Bounce
The valve contacts the seat and rebounds.
The two can interact.
A poorly controlled closing event can contribute to valve bounce, but they should not be treated as interchangeable terms.
Spring Surge Is Different Too
Valve springs are dynamic components.
At high cycling speeds, oscillations can develop within the spring itself.
This is known as:
spring surge
or spring resonance.
Spring surge can interfere with consistent spring force and contribute to broader valvetrain instability.
Again:
Spring surge is not valve float.
But severe spring instability can contribute to the conditions that eventually produce loss of valve control.
Article 10 in this series, Ecotec Valve Float vs. Valve Bounce vs. Spring Surge, examines these differences in detail.
The Ecotec Hydraulic Lash Adjuster Adds Another Variable
This is where the GM Ecotec deserves special attention.
Many Ecotec engines use a roller finger follower supported by a factory hydraulic lash adjuster.
The hydraulic adjuster's job is different from the valve spring's job.
Valve spring: controls valve motion.
Hydraulic lash adjuster: maintains the intended lash and rocker geometry.
At high RPM, a factory hydraulic lash adjuster can introduce its own instability.
BK Racing has documented problems including:
- Hydraulic bleed-down
- Partial collapse
- Internal sticking
- Check-valve leakage
- Incorrect pump-up
- Inconsistent cylinder-to-cylinder behavior
- Physical failure of hydraulic components
These are hydraulic lash-control problems, not simply another name for valve float. BK Racing
Valve Float and Hydraulic Lash Instability Can Interact
Although they are different problems, they can affect one another.
When valve motion becomes unstable, the follower can become unloaded from its normal operating relationship.
That abnormal motion can disturb the hydraulic lash adjuster.
Conversely, if a hydraulic lash adjuster collapses, bleeds down, sticks, or pumps up incorrectly, effective lash and rocker geometry can change.
Now the follower itself may become unstable even if the valve spring was not the original cause.
This creates an important distinction:
Spring instability can disturb follower motion.
Hydraulic instability can disturb lash and follower geometry.
Either can contribute to broader valvetrain instability.
And when both occur together, the situation can become significantly worse.
This relationship is consistent with BK Racing's existing solid-lash-adjuster development and our published discussion of high-RPM Ecotec rocker failures. BK Racing
How Valve Float Can Contribute to Kicked Rockers
One of the most recognized Ecotec racing failures is a dislodged roller finger follower—usually described as:
“kicking a rocker.”
It is important not to oversimplify this failure.
A kicked rocker is not automatically proof of valve float.
Nor is every kicked rocker exclusively a valve-spring problem.
The Ecotec rocker depends on maintaining the correct relationship between:
Camshaft → Rocker/Follower → Valve → Lash Adjuster
If valve spring control deteriorates, the follower can become unloaded as valve motion deviates from the intended cam profile.
If the hydraulic lash adjuster becomes unstable, lash and rocker geometry can also become inconsistent.
Either condition can contribute to rocker instability.
When they occur together at high RPM, the potential for the follower to lose its intended position increases.
Why Stronger Valve Springs Alone Don't Eliminate Kicked Rockers
This is particularly important because BK Racing also manufactures Solid Lash Adjusters.
Upgraded valve springs address the spring-control side of the problem.
They improve the spring's ability to maintain controlled valve motion as RPM, camshaft acceleration, and valve lift increase.
But stronger springs do not eliminate:
- Hydraulic bleed-down
- Hydraulic collapse
- Hydraulic pump-up
- Internal hydraulic check-valve problems
- Mechanical failure inside the hydraulic adjuster
That is why BK Racing has consistently stated that stronger springs help valvetrain control but do not eliminate hydraulic lash-adjuster instability. BK Racing
What Solid Lash Adjusters Address
BK Racing Solid Lash Adjusters eliminate the hydraulic mechanism and replace it with fixed mechanical lash control.
That removes several potential hydraulic variables:
No hydraulic collapse
No hydraulic bleed-down
No hydraulic pump-up
No internal hydraulic check-valve instability
The objective is more consistent lash and rocker geometry at elevated RPM. BK Racing
But this does not eliminate the valve spring's job.
A solid-lash Ecotec still requires adequate spring control.
What Valve Springs Address
Upgraded valve springs address a different part of the system.
They provide the force necessary to maintain controlled valve motion through:
- Opening acceleration
- Maximum lift
- Direction reversal
- Closing deceleration
- Valve seating
This means the BK Racing 83 lb Valve Springs and BK Racing Solid Lash Adjusters are complementary upgrades, not competing solutions to the same exact problem.
The spring controls the valve.
The solid adjuster controls lash and rocker geometry.
That is why BK Racing commonly pairs its 83 lb springs with solid lash adjusters in serious high-RPM Ecotec combinations. BK Racing
Why Circle Track Racing Is Especially Demanding
Circle-track racing presents a very different duty cycle from an occasional street pull.
An Ecotec race engine may experience:
- Sustained elevated RPM
- Repeated acceleration and deceleration
- Constant throttle transitions
- Long-duration cylinder-head heat
- Thousands of high-speed spring cycles
- Repeated operation near peak power
The valvetrain doesn't simply reach high RPM for a moment.
It lives there.
That makes spring stability, fatigue resistance, rocker control, and consistent lash especially important.
This is one reason BK Racing develops its Ecotec valvetrain components around sustained racing conditions rather than simply chasing a single advertised RPM number. BK Racing
Boosted Ecotec Engines Add Another Consideration
Turbocharged and supercharged Ecotec engines introduce pressure across the intake valve.
That pressure can oppose the spring's effort to keep the valve seated.
The actual additional force depends on:
- Boost pressure
- Effective valve area
- Camshaft timing
- Operating conditions
This can increase the importance of adequate seat pressure in high-boost applications.
But once again, boost does not mean:
“Install the highest-pressure spring available.”
Spring selection still needs to account for camshaft profile, RPM, valve lift, valvetrain mass, and mechanical clearance.
What Does Valve Float Feel Like?
A valvetrain beginning to lose control may show symptoms such as:
- Engine pulls cleanly and then lays over at high RPM
- Power falls off sooner than expected
- High-RPM operation becomes inconsistent
- Engine develops a misfire-like breakup near peak RPM
- Rocker/follower behavior becomes unstable
But these symptoms do not prove valve float.
Similar symptoms can come from:
- Ignition limitations
- Fuel delivery problems
- Injector limitations
- ECU rev limiters
- Cam timing problems
- Compression issues
- Hydraulic lash-adjuster problems
Valve float should be diagnosed—not assumed.
How Do You Diagnose Suspected Ecotec Valve Float?
Start by looking at the complete combination.
Document:
- Camshaft specifications
- Maximum valve lift
- Intended RPM
- Installed spring height
- Seat pressure
- Open pressure
- Spring rate
- Spring age
- Valve and retainer combination
- Hydraulic or solid lash-adjuster configuration
- Mechanical clearances
If the springs have significant racing time, test them.
A spring-pressure tester can determine whether the springs still produce the expected:
seat pressure
and:
open pressure at the intended lift.
A spring that has lost pressure can reduce the RPM at which the valvetrain begins losing control.
Check All 16 Springs
A GM Ecotec cylinder head uses 16 valve springs.
One weak spring can create a localized control problem even when the other 15 remain acceptable.
For serious racing engines, checking only one spring does not necessarily tell you what is happening across the complete cylinder head.
Useful measurements include:
- Installed height
- Seat pressure
- Open pressure
- Free height
- Coil-bind height
- Consistency across the set
This is particularly valuable when blueprinting an Ecotec racing cylinder head.
Why BK Racing Developed the 83 lb Ecotec Spring
The BK Racing 83 lb Ecotec Valve Spring was developed around valve control, not simply achieving the largest seat-pressure number.
Current reference specifications include:
83 lb @ 1.325" installed height
Approximately 230 lb @ .500" lift
Approximately 294 lb/in effective spring rate
Progressive oval-wire design
Nitride-treated construction
Approximately .520" recommended maximum lift BK Racing
The goal is to provide substantial pressure through the valve event while maintaining useful mechanical travel and practical single-spring packaging.
Why BK Racing Doesn't Judge Springs by Seat Pressure Alone
A spring can have impressive seat pressure and still be poorly matched to the application.
The complete spring needs to be evaluated by:
Installed height
Seat pressure
Open pressure
Spring rate
Available travel
Coil-bind clearance
Camshaft profile
Valvetrain mass
RPM
Duty cycle
That is why simply comparing:
82 lb vs. 83 lb vs. 94 lb
does not tell us which spring provides the best control for a particular Ecotec combination.
Valve Float Is a System Problem
The most important takeaway from this article is that high-RPM Ecotec valvetrain control should not be reduced to one component.
The valve spring has a critical job.
So does the rocker.
So does the lash adjuster.
So does the camshaft.
A better way to think about the system is:
Camshaft determines valve motion.
Valve spring controls that motion.
Retainer and valve mass influence how difficult that motion is to control.
Rocker/follower transfers the camshaft motion to the valve.
Lash adjuster maintains the intended lash and rocker geometry.
When one part becomes unstable, it can disturb the others.
Preventing Valve Float in a Performance Ecotec
The solution is not automatically the stiffest spring available.
The objective is to build a valvetrain that remains controlled throughout its intended operating range.
That means matching:
Camshaft + RPM + Valve Lift + Spring Pressure + Spring Rate + Valvetrain Mass + Mechanical Clearance + Lash Control
For a mild street engine, that may require very little modification.
For an aggressive high-RPM circle-track engine, it may involve:
- Performance valve springs
- Lightweight titanium retainers
- Proper spring seats
- Correct valve seals
- Solid lash adjusters
- Properly matched camshafts
- Verified installed heights
- Verified mechanical clearances
The farther the engine moves from its original operating conditions, the more important complete valvetrain setup becomes.
The BK Racing Approach to Ecotec Valve Control
BK Racing's approach is not:
More spring pressure fixes everything.
It is:
Maintain control of the complete valvetrain.
The BK Racing 83 lb Valve Springs address spring-side valve control.
BK Racing Titanium Retainers reduce unnecessary moving mass.
BK Racing spring seats and valve seals address high-lift mechanical clearance.
BK Racing Solid Lash Adjusters eliminate hydraulic collapse, bleed-down, pump-up, and internal check-valve variability from the lash-control side of the system. BK Racing
Each component solves a different part of the same overall problem:
keeping the Ecotec valvetrain stable and predictable at elevated RPM.
The Most Important Thing to Remember About Ecotec Valve Float
Valve float does not simply mean:
“The engine revved too high.”
It means the complete valvetrain is no longer accurately maintaining the valve motion commanded by the camshaft.
RPM contributes.
Camshaft acceleration contributes.
Valvetrain mass contributes.
Spring pressure and rate contribute.
Spring condition contributes.
And on factory hydraulic Ecotec valvetrains, hydraulic lash-adjuster behavior introduces another potential source of instability that should be diagnosed separately.
That distinction matters because the correct solution depends on what part of the system is actually losing control.
For serious Ecotec racing engines, the strongest approach is not to chase one pressure number or blame one component.
It is to build and measure the valvetrain as a complete system.
Continue Learning: GM Ecotec Valve Springs
Understanding valve float is only one part of building a stable high-RPM Ecotec valvetrain. Continue through the BK Racing GM Ecotec Valve Spring Knowledge Center to understand how valve float interacts with spring pressure, spring rate, valve bounce, spring surge, camshaft profile, RPM, mechanical clearance, valvetrain mass, and lash control.
For engines experiencing kicked rockers or hydraulic lash instability, also continue into How Solid Lash Adjusters Help Prevent “Kicked Rockers” in GM Ecotec Engines. That article covers the hydraulic side of the system in greater detail, while this article focuses primarily on valve spring and valve-motion control. BK Racing
- GM Ecotec Valve Springs: The Complete Performance Guide — PILLAR
- How GM Ecotec Valve Springs Work
- Understanding GM Ecotec Valve Spring Specifications
- Ecotec Valve Spring Installed Height: Why It Matters
- Ecotec Valve Spring Seat Pressure vs. Open Pressure
- Understanding Ecotec Valve Spring Rate
- Ecotec Valve Spring Coil Bind and Maximum Valve Lift
- Ecotec Retainer-to-Seal Clearance and Spring Seat Clearance
- What Causes Valve Float in GM Ecotec Engines?
- Ecotec Valve Float vs. Valve Bounce vs. Spring Surge
- How RPM Affects Ecotec Valve Spring Requirements
- How to Match Valve Springs to Ecotec Camshafts
- How Camshaft Lift Affects Ecotec Valve Spring Selection
- How Camshaft Duration and Aggressive Lobe Profiles Affect Ecotec Valve Springs
- Single vs. Dual Valve Springs for GM Ecotec Engines
- Drop-In vs. Modified GM Ecotec Valve Spring Systems
- Comparing Popular GM Ecotec Valve Spring Options
- Why Valve Spring Pressure Alone Doesn't Tell the Whole Story
- Choosing GM Ecotec Valve Springs for Street, Performance, and Racing Applications
- Why We Designed the BK Racing 83 lb Ecotec Valve Spring
- Understanding the BK Racing Ecotec Valve Spring System
- How BK Racing Tests and Measures Ecotec Valve Springs
- Common GM Ecotec Valve Spring Installation Mistakes
- GM Ecotec Valve Spring FAQ: Pressure, Lift, RPM, Coil Bind, and Camshafts
- GM Ecotec Valve Spring Technical Specifications and Reference Guide
Shopify SEO
Page title:
What Causes Valve Float in GM Ecotec Engines? | BK Racing
URL handle:what-causes-valve-float-gm-ecotec-engines
Meta description:
Learn what causes valve float in GM Ecotec engines and how RPM, camshaft profile, spring pressure, valvetrain mass and hydraulic lash control affect high-RPM stability.
Excerpt:
What causes valve float in a GM Ecotec? Learn how RPM, camshaft acceleration, valve spring pressure, spring rate, valvetrain mass and hydraulic lash-adjuster behavior affect high-RPM valve and rocker control.
Primary search topic:
What causes valve float in GM Ecotec engines
Supporting search topics:
Ecotec valve float, GM Ecotec valve float, Ecotec high RPM valve springs, Ecotec kicked rockers, Ecotec losing rockers, Ecotec valvetrain instability, Ecotec hydraulic lash adjusters, Ecotec solid lifters, LSJ valve float, LNF valve float, L61 valve float, LE5 valve springs, Ecotec racing valve springs.
The pressure curve matters.
Spring Fatigue Can Lead to Valve Float
Valve springs are fatigue components.
Over time, repeated compression cycles and heat can reduce spring pressure.
A spring that controlled the valvetrain when new may gradually lose enough pressure that valve float begins at a lower RPM.
This is especially relevant in race engines that operate at sustained high RPM.
Potential warning signs include:
- Reduced high-RPM power
- Previously stable engine beginning to break up at high RPM
- Increasing rocker/follower problems
- Measured loss of spring pressure
Periodic spring testing is useful in racing applications for this reason.
Heat Can Affect Spring Life
Valve springs operate in a hot cylinder-head environment.
Repeated heat cycles can contribute to material fatigue and long-term pressure loss.
A spring that sees:
short occasional high-RPM use
has a very different duty cycle from one that sees:
lap after lap at racing temperature
That difference matters.
We will cover this more deeply in the spring-life and fatigue portions of the Knowledge Center.
Installed Height Can Cause Valve-Control Problems
Installed height directly affects spring pressure.
If a spring is installed too tall, seat pressure may be lower than intended.
That can reduce valvetrain-control margin.
If installed too short, pressure increases, but available travel and coil-bind clearance decrease.
This is why performance Ecotec cylinder heads should be measured rather than assembled solely from catalog assumptions.
Valve Float vs. Valve Bounce
These terms are often used interchangeably, but they are different.
Valve Float
The valvetrain is no longer accurately following the intended camshaft motion.
Valve Bounce
The valve reaches the seat but rebounds instead of remaining controlled against it.
Valve bounce can occur as part of a broader valvetrain-instability problem, but it is not identical to valve float.
Article 10, Ecotec Valve Float vs. Valve Bounce vs. Spring Surge, covers these distinctions in much greater detail.
Valve Float vs. Spring Surge
Spring surge is another separate dynamic condition.
The spring itself can experience oscillations as it is rapidly compressed and released.
Those oscillations can interfere with consistent spring force and valvetrain control.
Spring design, coil geometry, spring mass, rate, and RPM all influence these dynamic behaviors.
This is one reason a spring cannot be completely evaluated from static pressure alone.
Rocker/Follower Instability in Ecotec Engines
GM Ecotec engines use roller finger followers.
When the valvetrain loses control, the relationship between the camshaft, follower, and valve can become unstable.
This can contribute to:
- Follower unloading
- Rocker displacement
- Inconsistent cam-to-valve motion
- Mechanical damage in severe cases
Not every lost rocker is automatically caused by valve float.
Other causes can include geometry, component condition, installation issues, or mechanical interference.
But inadequate valve control is one factor that should be considered in a high-RPM Ecotec experiencing rocker/follower problems.
Why Circle Track Ecotec Engines Are Especially Vulnerable
Circle-track racing creates a difficult valvetrain environment.
The engine may operate for long periods near its upper RPM range rather than touching that speed briefly.
That creates:
- Repeated high-speed valve events
- Sustained cylinder-head temperature
- Continuous spring cycling
- Repeated valvetrain acceleration
- Long-duration spring fatigue
This is one reason a spring system that is adequate for a street engine may not be ideal for a dedicated racing engine.
Duty cycle matters.
Boost Can Add Another Force Against the Valve
In boosted Ecotec applications, manifold pressure can act across the intake valve area.
That creates an additional force tending to unseat the valve.
The effect depends on:
- Boost pressure
- Valve diameter
- Camshaft
- RPM
This can increase seat-pressure requirements in certain applications.
However, boost alone does not determine spring selection.
A properly selected boosted-engine spring still needs the correct balance of:
- Seat pressure
- Open pressure
- Rate
- Lift capability
- RPM capability
- Valvetrain mass
Why More Spring Pressure Is Not Always the Cure
If valve float occurs because the spring cannot control the valvetrain, it may seem logical to simply install the strongest spring available.
That can create other problems.
Excessive spring pressure increases load on:
- Camshaft lobes
- Roller followers
- Lash adjusters
- Valve stems
- Valve seats
- Retainers and locks
- Timing components
The goal is not maximum spring pressure.
The goal is:
enough spring pressure and appropriate spring dynamics to maintain control for the actual combination.
Diagnosing Suspected Valve Float
Valve float can be difficult to diagnose because several problems can create similar symptoms.
Potential symptoms include:
- Engine pulls cleanly to a certain RPM, then stops making power
- High-RPM misfire or breakup
- Power curve suddenly flattens
- Rocker/follower instability
- Engine operates normally again when RPM drops
Before assuming valve float, verify other potential causes such as:
- Ignition
- Fuel delivery
- Injector duty cycle
- ECU limiters
- Timing control
- Mechanical interference
- Compression problems
Valve float should be diagnosed as part of the complete system.
Spring Pressure Testing
One of the most useful diagnostic tools is a valve spring tester.
A spring can be tested at:
Installed height
and:
Specified valve lift
to determine whether it is still producing the expected seat and open pressures.
For a racing engine, comparing current spring pressure against original measurements can reveal deterioration.
This is much better than assuming a spring is still good because it looks normal.
Check More Than One Spring
A 16-valve Ecotec uses 16 valve springs.
If one or two springs have weakened more than the others, the engine can develop localized valvetrain instability even though most of the spring set remains healthy.
That is why we prefer checking the complete set in serious racing applications.
Consistency matters.
Why BK Racing Developed an 83 lb Spring
The BK Racing 83 lb Ecotec Valve Spring was developed around the need for increased valvetrain control without simply maximizing seat pressure.
The system combines:
83 lb @ 1.325" installed height
with approximately:
230 lb @ .500" lift
and an effective rate around:
294 lb/in
in a progressive oval-wire single-spring design.
The goal was to provide strong pressure through the valve event while maintaining practical travel, low component complexity, and a conservative recommended maximum lift.
Why Retainer Mass Matters in the BK System
Valve control is not only about increasing spring force.
Reducing unnecessary moving mass can reduce the force the spring must control.
This is one reason the BK Racing valve spring package includes Titanium Valve Spring Retainers.
The system is designed around the interaction between:
spring force
and:
valvetrain mass
rather than relying exclusively on higher pressure.
Why Maximum Lift Still Matters When Preventing Float
You might assume that if a spring has more open pressure at higher lift, increasing lift always improves control.
Not necessarily.
More lift also means:
- Less spring travel
- Less coil-bind clearance
- Less retainer-to-seal clearance
- More aggressive valvetrain motion depending on the cam
So a spring must not only produce sufficient pressure.
It also needs adequate mechanical margin.
The complete valvetrain determines the real operating limit.
Valve Float Is a System Problem
This is probably the most important point in the article.
Valve float is rarely best understood as:
“The spring is too weak.”
Instead, think of it as:
The complete valvetrain can no longer remain controlled at the required speed and motion.
That includes:
Spring pressure
Spring rate
Camshaft profile
Valve lift
RPM
Valve mass
Retainer mass
Follower geometry
Installed height
Spring condition
Operating temperature
The spring is central—but it is part of a system.
The Most Important Rule for Preventing Ecotec Valve Float
Don't select a spring based solely on:
seat pressure
or:
maximum RPM advertised by someone else
Instead, evaluate:
Installed height + seat pressure + open pressure + spring rate + camshaft profile + valve lift + valvetrain mass + mechanical clearance + intended RPM + duty cycle
That is the foundation of proper high-RPM valve control.
For a circle-track Ecotec, the best spring is not necessarily the one with the largest pressure number.
It is the one that maintains controlled valve motion throughout the entire race while staying within the mechanical and durability limits of the valvetrain.
Continue Learning: GM Ecotec Valve Springs
Valve spring pressure is only one part of maintaining stable valve control in a performance Ecotec. Continue through the BK Racing GM Ecotec Valve Spring Knowledge Center to learn how installed height, spring rate, coil bind, camshaft lift, RPM, retainers, spring seats and valve seals work together as a complete valvetrain system. When planning your combination, also explore the BK Racing 83 lb Ecotec Valve Springs, BK Racing Titanium Valve Spring Retainers, BK Racing Extra-Clearance Spring Seats, and BK Racing Press-On Viton Valve Seals.
- GM Ecotec Valve Springs: The Complete Performance Guide
- How GM Ecotec Valve Springs Work
- Understanding GM Ecotec Valve Spring Specifications
- Ecotec Valve Spring Installed Height: Why It Matters
- Ecotec Valve Spring Seat Pressure vs. Open Pressure
- Understanding Ecotec Valve Spring Rate
- Ecotec Valve Spring Coil Bind and Maximum Valve Lift
- Ecotec Retainer-to-Seal Clearance and Spring Seat Clearance
- What Causes Valve Float in GM Ecotec Engines?
- Ecotec Valve Float vs. Valve Bounce vs. Spring Surge
- How RPM Affects Ecotec Valve Spring Requirements
- How to Match Valve Springs to Ecotec Camshafts
- How Camshaft Lift Affects Ecotec Valve Spring Selection
- How Camshaft Duration and Aggressive Lobe Profiles Affect Ecotec Valve Springs
- Single vs. Dual Valve Springs for GM Ecotec Engines
- Drop-In vs. Modified GM Ecotec Valve Spring Systems
- Comparing Popular GM Ecotec Valve Spring Options
- Why Valve Spring Pressure Alone Doesn't Tell the Whole Story
- Choosing GM Ecotec Valve Springs for Street, Performance, and Racing Applications
- Why We Designed the BK Racing 83 lb Ecotec Valve Spring
- Understanding the BK Racing Ecotec Valve Spring System
- How BK Racing Tests and Measures Ecotec Valve Springs
- Common GM Ecotec Valve Spring Installation Mistakes
- GM Ecotec Valve Spring FAQ: Pressure, Lift, RPM, Coil Bind, and Camshafts
- GM Ecotec Valve Spring Technical Specifications and Reference Guide
Primary search topic:
What causes valve float in GM Ecotec engines
Supporting search topics:
Ecotec valve float, GM Ecotec high RPM valve float, Ecotec rocker failure, Ecotec valve spring pressure, Ecotec high RPM valve springs, Ecotec racing valve springs, 2.2 Ecotec valve float, 2.4 Ecotec valve float, LSJ valve float, LNF valve springs.valve head
valve loft
engine builder
hydraulic lifters
make power
rocker arms
rocker arm
cam lobe
