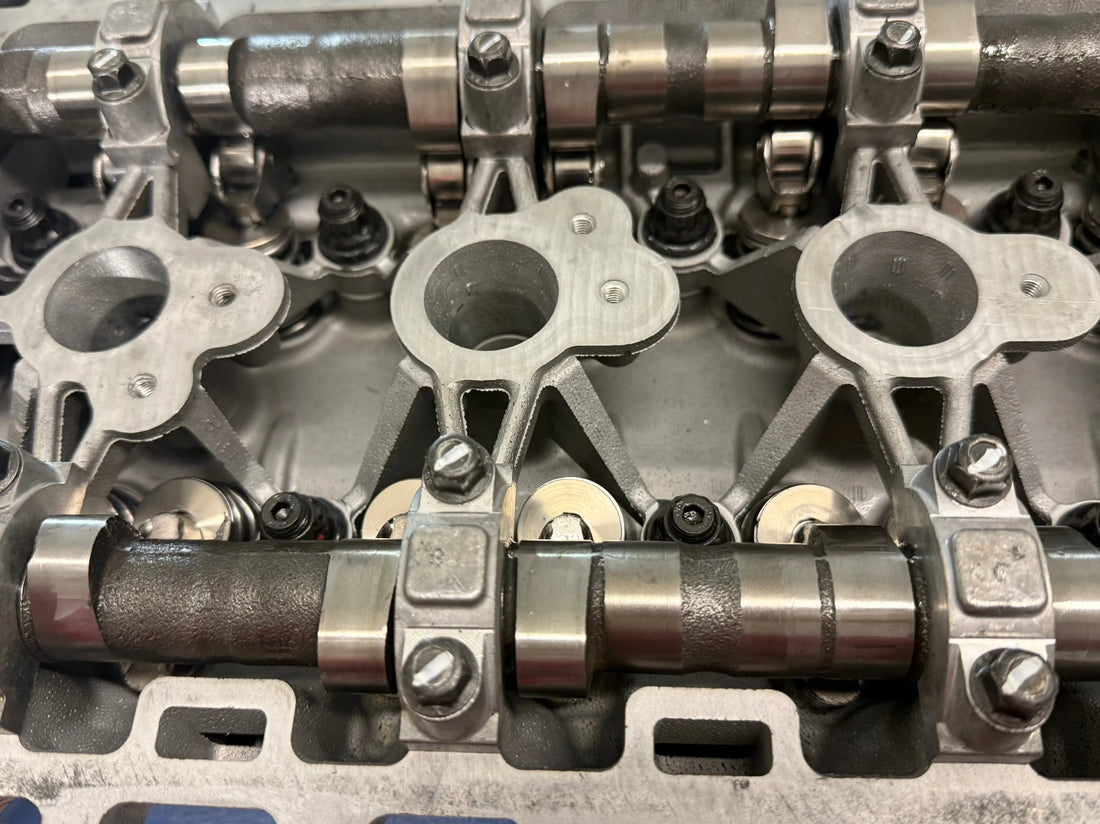

How Camshaft Lift Affects Ecotec Valve Spring Selection

Q: Should You Run a .520" Cam With BK Racing 83 lb Springs?

A .520" camshaft is at the conservative advertised maximum lift of the BK Racing spring system when configured appropriately. It still requires verification of installed height, coil-bind clearance, retainer-to-seal clearance, retainer-to-guide clearance, rocker clearance, and piston-to-valve clearance.

Q: What About More Than .520" Lift?

BK Racing has measured approximately .567" mechanical capability in the appropriate spring/seat/seal configuration. More than .520" should be treated as a custom valvetrain combination requiring full measurement and evaluation, not simply unused advertised capacity.

Camshaft lift is one of the first specifications most builders look at when choosing valve springs for a GM Ecotec.

That makes sense because more lift means the valve travels farther and the spring is compressed farther.

But lift affects much more than just how far the valve opens.

As camshaft lift increases, it changes:

Open spring pressure
Remaining spring travel
Coil-bind clearance
Retainer-to-seal clearance
Retainer-to-guide clearance
Piston-to-valve clearance
The amount of spring compression occurring during each valve event

This is why choosing an Ecotec valve spring based only on a published “maximum lift” number is incomplete.

The spring, retainer, spring seat, valve seal, camshaft, and complete cylinder-head geometry all have to work together.

For the BK Racing 83 lb Ecotec Valve Spring System, this distinction is especially important because the system has demonstrated approximately:

.567" mechanical lift capability in the appropriate configuration

while BK Racing advertises a much more conservative:

.520" recommended maximum lift

The larger number describes the mechanical boundary.

The smaller number represents the operating limit we are comfortable recommending.

What Does Camshaft Lift Mean?

Camshaft lift describes how far the valve is moved away from its seat.

In a completed valvetrain, this is generally expressed as valve lift.

For example:

.450" valve lift

.500" valve lift

.520" valve lift

The greater the valve lift, the farther the valve travels into the cylinder.

That also means the valve spring is compressed farther.

So every increase in lift moves the spring deeper into its operating range.

More Lift Means More Spring Compression

When the valve is closed, the spring is sitting at its installed height.

For the BK Racing 83 lb spring, the reference installed height is:

1.325"

At this point, the spring produces approximately:

83 lb seat pressure

As the camshaft opens the valve, the spring compresses.

At approximately:

.500" valve lift

the BK Racing spring produces approximately:

230 lb open pressure

So increasing lift causes two things to happen simultaneously:

Spring pressure increases

and:

Remaining spring travel decreases

That tradeoff is central to high-lift camshaft selection.

Why Open Pressure Increases With Lift

Spring pressure increases as the spring is compressed.

The amount of increase depends on the spring's rate and design.

The BK Racing spring has an effective rate of approximately:

294 lb/in

through the relevant operating range.

This helps explain how the spring moves from approximately:

83 lb seat pressure

to:

230 lb near .500" lift

As the camshaft moves the valve farther, the spring stores more energy and produces more force.

That increased open pressure can help control the valvetrain at elevated RPM.

But it also brings the spring closer to its mechanical limits.

More Open Pressure Does Not Automatically Mean More Lift Is Better

It can be tempting to think:

“If more lift gives me more open pressure, more lift must improve valve control.”

That is incomplete.

More lift also means:

Less coil-bind clearance
Less retainer-to-seal clearance
Less retainer-to-guide clearance
Greater demand on the spring
More potential piston-to-valve concern

So additional lift increases spring pressure while reducing mechanical margin.

The useful operating range is where both the dynamic requirements and mechanical clearances remain acceptable.

Camshaft Lift and Coil Bind

Coil bind is the point where the spring has been compressed to its mechanical limit.

As camshaft lift increases, the spring moves closer to coil bind.

The relationship can be thought of as:

Installed Height − Valve Lift = Spring Height at Maximum Lift

That spring height then needs to be compared with the actual coil-bind height.

If the spring is too close to coil bind, the camshaft is not appropriate for that installed configuration.

Why Coil Bind Is Not the Same as Maximum Recommended Lift

This is one of the most important distinctions in the entire valve-spring series.

Suppose a spring physically has enough travel for:

.567"

That does not mean:

.567" should be the recommended camshaft lift.

A running engine needs mechanical margin.

This is why BK Racing distinguishes between:

Mechanical capability: ~.567"

and:

Recommended maximum lift: ~.520"

That leaves approximately:

.047"

between the recommended operating point and the measured mechanical boundary in the appropriate configuration.

The difference is intentional.

Why BK Racing Advertises .520" Instead of .567"

The larger number would look better on a product page.

But it would not be the more useful engineering specification.

BK Racing would rather advertise a lift number that maintains a conservative operating margin than use the absolute mechanical boundary as a marketing number.

At racing RPM, the valvetrain experiences:

Heat
Dynamic loading
Component deflection
Spring oscillation
Repeated acceleration
Manufacturing tolerance stack-up

That is why a static mechanical limit should not automatically become the operating limit.

Retainer-to-Seal Clearance Decreases With Lift

Camshaft lift does not affect the spring alone.

As the valve opens, the retainer moves toward the valve stem seal and guide.

Every additional .010" of valve lift reduces that clearance by approximately .010", assuming the geometry remains otherwise unchanged.

Eventually, the retainer can approach the valve seal before the spring reaches coil bind.

In that case:

retainer-to-seal clearance becomes the limiting factor

rather than the spring itself.

This is why a spring can have additional mechanical travel but the assembled cylinder head may not.

Retainer-to-Guide Clearance Matters Too

The seal may not be the only component beneath the retainer.

The valve guide can also become a mechanical limitation.

A lower-profile seal does not help if the retainer contacts the guide underneath it.

This is why maximum usable lift should be determined from the complete installed system.

Why BK Racing Developed Extra-Clearance Seats and Viton Seals

Higher-lift Ecotec camshafts create a packaging problem as much as a spring-pressure problem.

As lift increases, the available space beneath the retainer becomes smaller.

That is why BK Racing developed:

Extra-Clearance Spring Seats

and:

Press-On Viton Valve Seals

as part of the complete system.

The objective is to create more usable space for the retainer while maintaining proper spring location and valve-stem sealing.

This helps make higher-lift camshaft combinations more practical without simply forcing the assembly closer to interference.

Spring Seat Configuration Changes Available Lift

The spring seat determines the lower position of the spring.

Changing seat thickness changes installed height.

A thicker seat or added shim generally:

reduces installed height

which generally:

increases seat pressure

but also:

reduces remaining spring travel

This means a spring can gain pressure while losing available lift.

That is why changing spring seats or adding shims requires the complete system to be rechecked.

Camshaft Lift and Installed Height Work Together

Suppose two cylinder heads use the same spring and camshaft.

One spring is installed at:

1.325"

and another at:

1.305"

The second spring starts .020" more compressed.

That generally means:

More seat pressure
More open pressure
.020" less available travel to coil bind

So the same camshaft can have different mechanical margins in two otherwise similar cylinder heads.

This is why actual installed height matters.

Higher Lift Increases Open Pressure

This is one reason high-lift cams can sometimes work well with a spring that appears moderate based on seat pressure alone.

As lift increases, the spring moves farther through its pressure curve.

For example, an 83 lb spring may develop well over 200 lb at elevated lift.

That is why:

seat pressure alone does not tell you what happens at maximum lift.

The complete spring curve matters.

Camshaft Lift and Spring Rate

Spring rate determines how rapidly pressure increases as lift increases.

A higher effective rate means pressure rises more quickly with additional spring compression.

This is why two springs with similar seat pressure can produce very different open pressures at .500" lift.

When choosing a spring for a high-lift camshaft, the important questions are:

What is the pressure at installed height?

and:

What is the pressure at the actual camshaft lift?

Not simply:

“What is the spring called?”

Lift Does Not Tell You Camshaft Aggressiveness

A camshaft's maximum lift tells you how far the valve moves.

It does not tell you how rapidly it gets there.

Two cams can both have:

.500" lift

but one can use much more aggressive opening and closing ramps.

The more aggressive cam can place substantially greater dynamic demand on the spring.

So camshaft lift determines:

mechanical compression

while camshaft profile determines much of the:

dynamic demand

Both need to be considered.

Lift and Duration Are Different Specifications

Lift tells us how far the valve opens.

Duration tells us how long the valve remains open relative to crankshaft rotation.

Neither specification alone tells us the complete shape of the cam lobe.

This is why spring selection should consider:

Lift
Duration
Ramp design
Valve acceleration
RPM

Article 14 of this series goes deeper into how duration and aggressive lobe profiles affect spring requirements.

Lift and Valve Velocity

As camshaft lift and aggressiveness increase, valve velocity can also increase.

A faster-moving valve creates greater demands on the spring during both:

opening

and:

closing

The spring must maintain control when the valve reverses direction at maximum lift and when it returns toward the seat.

This is why higher-lift camshafts frequently require more than simply checking coil bind.

Lift and Valve Bounce

A high-lift aggressive camshaft can return the valve toward the seat with significant velocity.

If the spring cannot control that closing event, the valve may contact the seat and rebound.

That is valve bounce.

So high lift can increase spring pressure, but that does not guarantee perfect seat control.

The camshaft's closing profile and seat pressure still matter.

Lift and Valve Float

Valve float occurs when actual valve motion can no longer accurately follow the camshaft.

Higher lift can contribute to greater dynamic demand, particularly when combined with:

High RPM
Aggressive lobes
Heavy valves
Heavy retainers

But high lift by itself does not automatically cause valve float.

A well-matched spring and lightweight valvetrain may control a high-lift cam very well.

A poorly matched spring may lose control with considerably less lift.

Higher Lift and Valvetrain Mass

The spring must accelerate and decelerate the moving valvetrain through the camshaft event.

A high-lift cam combined with heavy components can create significantly more dynamic demand than the same cam paired with a lighter valvetrain.

This is one reason the BK Racing Titanium Valve Spring Retainers are part of the high-lift valvetrain strategy.

Reducing unnecessary moving mass helps the spring control aggressive motion without simply increasing spring pressure.

Lift and Rocker/Follower Clearance

The Ecotec uses roller finger followers.

As lift increases, the surrounding retainer and rocker geometry becomes increasingly important.

The retainer must maintain adequate clearance throughout the intended valve event.

This is one reason BK Racing's retainer design focuses not only on weight but also on maintaining positive rocker clearance across the Ecotec rocker configurations the system is designed to support.

Lift and Hydraulic Lash Adjusters

Higher lift and aggressive cam motion also place additional demand on the complete follower and lash-control system.

The valve spring controls valve motion.

The hydraulic lash adjuster maintains lash and rocker geometry.

Higher lift does not automatically cause hydraulic failure, but aggressive high-RPM combinations can expose the limitations of the factory hydraulic system.

That is why solid lash adjusters become relevant in serious racing applications.

Solid Lash Does Not Increase Spring Travel

It is important not to confuse the two systems.

Installing solid lash adjusters does not:

Increase coil-bind clearance
Increase retainer-to-seal clearance
Increase spring mechanical travel

Solid lash addresses hydraulic variability.

The spring system still has to physically support the intended camshaft lift.

Camshaft Lift and Piston-to-Valve Clearance

This is another separate limit.

Even if:

the spring clears

the retainer clears

and:

the rocker clears

the valve can still get too close to the piston.

Piston-to-valve clearance depends on more than maximum lift.

It also depends on:

Camshaft timing
Duration
Lobe profile
Piston design
Deck height
Head milling
Head gasket thickness

Often the closest piston-to-valve point does not occur at maximum valve lift.

This is why piston-to-valve clearance must be checked independently.

Adjustable Cam Gears Can Change Piston-to-Valve Clearance

Changing camshaft timing with adjustable gears can alter when the valve is open relative to piston position.

That can change piston-to-valve clearance even though the camshaft's maximum lift is unchanged.

This is particularly important on Ecotec engines that have:

Decked blocks
Milled cylinder heads
Custom pistons
Aggressive cam timing

Valve spring compatibility does not guarantee piston clearance after cam timing changes.

Why Head Milling and Decking Matter

Removing material from the cylinder head or block can reduce the distance between the camshaft/valves and piston.

That can change piston-to-valve clearance.

It can also affect timing geometry.

So a high-lift camshaft that works in a factory-height engine may need additional checking after substantial machine work.

This is another reason performance engine building should rely on actual measurement.

Street Cams vs. Racing Cams

A mild street camshaft may operate comfortably with substantial spring travel remaining.

A race camshaft may push the valvetrain much closer to:

Coil bind
Retainer-to-seal limits
Piston-to-valve limits

and usually operate at higher RPM.

This means the margin becomes smaller and the importance of accurate measurement becomes greater.

Why Circle Track Camshafts Need Conservative Clearance

Circle-track Ecotec engines can spend substantial time at elevated RPM.

A valvetrain that statically clears by only a few thousandths is not a combination we want operating lap after lap.

Repeated high-RPM operation introduces:

Heat
Deflection
Spring dynamics
Fatigue loading

That is why BK Racing's recommended lift philosophy intentionally maintains margin below the measured mechanical limit.

Should You Run a .520" Cam With BK Racing 83 lb Springs?

A .520" camshaft is at the conservative advertised maximum lift of the BK Racing spring system when the system is configured appropriately.

That does not mean every Ecotec cylinder head can automatically accept a .520" camshaft without measurement.

Before running that lift, verify:

Installed height
Coil-bind clearance
Retainer-to-seal clearance
Retainer-to-guide clearance
Rocker clearance
Piston-to-valve clearance

The published maximum gives you a system target.

The actual cylinder head confirms whether your specific combination meets it.

What About More Than .520" Lift?

BK Racing has measured approximately:

.567" mechanical capability

in the appropriate spring/seat/seal configuration.

That means the system has physically demonstrated more travel than the recommended .520" operating limit.

But we intentionally do not advertise .567" as the recommended lift.

A builder considering more than .520" should treat that as a custom valvetrain combination requiring full measurement and evaluation, not simply as unused advertised capacity.

Why Mechanical Capability Is Useful Information

If we are not recommending .567" lift, why publish or discuss the mechanical capability?

Because it tells us something important about the available margin and design.

A spring system with a recommended .520" limit and approximately .567" mechanical capability has a different engineering relationship than a system whose recommended limit is essentially at its physical boundary.

Knowing both numbers provides transparency.

The key is labeling them correctly.

Choosing the Spring Based on the Actual Camshaft

Before selecting an Ecotec spring for a camshaft, establish:

Actual valve lift

Camshaft duration

Lobe aggressiveness

Intended RPM

Operating RPM range

Then evaluate the spring:

Installed height

Seat pressure

Open pressure at the actual lift

Spring rate

Coil-bind clearance

Retainer-to-seal clearance

Recommended maximum lift

That gives a much more complete picture.

The BK Racing 83 lb System and High-Lift Cams

The BK Racing spring system was developed to provide strong open pressure and usable mechanical travel while maintaining a practical single-spring Ecotec package.

Reference specifications include:

83 lb @ 1.325" installed height

~230 lb @ .500" valve lift

~294 lb/in effective rate

Progressive oval-wire design

.520" conservative recommended maximum lift

with approximately:

.567" measured mechanical capability

in the appropriate configuration.

The spring is then supported by:

BK Racing Titanium Valve Spring Retainers

BK Racing Extra-Clearance Spring Seats

BK Racing Press-On Viton Valve Seals

to address the surrounding high-lift geometry.

Maximum Lift Should Be a System Specification

This is the most important point in the article.

A spring's maximum lift should not be treated as a specification belonging only to the spring.

Usable valve lift is determined by the complete system:

Spring + Installed Height + Retainer + Valve Seal + Guide + Spring Seat + Rocker/Follower + Valve + Camshaft + Piston

The first component to reach its safe mechanical limit establishes the practical limit.

That is why maximum lift should be measured, not simply assumed.

The Most Important Camshaft Lift Rule

If you remember one thing:

More camshaft lift increases spring pressure—but decreases available mechanical clearance.

That means higher lift can improve open pressure while simultaneously moving the system closer to:

Coil bind
Retainer-to-seal contact
Retainer-to-guide contact
Piston-to-valve interference

The correct spring is therefore not simply the spring with the largest advertised maximum-lift number.

It is the spring system that provides:

the required pressure at the actual camshaft lift while maintaining adequate mechanical margin for the intended RPM and application.

That is how BK Racing approaches high-lift Ecotec valvetrain development.

Continue Learning: GM Ecotec Valve Springs

Valve spring pressure is only one part of maintaining stable valve control in a performance Ecotec. Continue through the BK Racing GM Ecotec Valve Spring Knowledge Center to learn how installed height, spring rate, coil bind, camshaft lift, RPM, retainers, spring seats and valve seals work together as a complete valvetrain system. When planning your combination, also explore the BK Racing 83 lb Ecotec Valve Springs, BK Racing Titanium Valve Spring Retainers, BK Racing Extra-Clearance Spring Seats, and BK Racing Press-On Viton Valve Seals.

Primary search topic:
How camshaft lift affects Ecotec valve spring selection

Supporting search topics:
Ecotec camshaft lift valve springs, Ecotec high lift cam springs, Ecotec maximum valve lift, Ecotec coil bind, Ecotec .520 lift cam, GM Ecotec performance cams, 2.2 Ecotec camshaft springs, 2.4 Ecotec camshaft springs, LSJ high lift cam, LNF valve springs.double valve springs

valve locks

valve train

handle more lift

comp cams

spring kit

cam profile

new springs

over the nose

titanium retainer

catastrophic failure

Tags:

Engine Building
