Understanding Ecotec Valve Spring Rate

Valve spring rate is one of the most useful specifications for understanding how a GM Ecotec valve spring behaves as the valve moves from the seat toward maximum lift.

Seat pressure tells us how much force the spring produces with the valve closed.

Open pressure tells us how much force the spring produces at a specified valve lift.

Spring rate helps explain what happens between those two points.

This becomes especially important when comparing Ecotec valve springs with similar advertised seat pressures. Two springs may both be described as an 82 lb or 83 lb spring but develop very different pressures as valve lift increases.

For performance and racing engines, that difference can directly affect valvetrain control.

The BK Racing 83 lb Ecotec Valve Spring was developed around this complete pressure curve rather than simply chasing the largest possible seat-pressure number.

What Is Valve Spring Rate?

Valve spring rate describes how much additional force a spring develops for a given amount of compression.

It is normally expressed in:

pounds per inch — lb/in

For example, a theoretical linear spring with a 300 lb/in rate gains approximately:

3 lb for every .010" of additional compression

15 lb for every .050"

30 lb for every .100"

150 lb for every .500"

This relationship allows us to understand how a spring can begin with relatively modest seat pressure and develop substantially greater pressure as the valve opens.

The Basic Spring Rate Relationship

For a truly linear spring, the basic relationship is:

Change in Spring Force = Spring Rate × Change in Spring Compression

If a spring has a rate of approximately:

294 lb/in

and it is compressed an additional:

.500"

the theoretical pressure increase would be approximately:

147 lb

If that spring began with approximately:

83 lb of seat pressure

the resulting theoretical open pressure would be around:

230 lb

That closely illustrates the operating characteristics of the BK Racing 83 lb Ecotec spring.

However, there is an important qualification.

The BK Racing spring is a progressive spring, meaning its effective rate is not necessarily identical at every point in its travel.

For that reason, actual measured pressures are more useful than treating 294 lb/in as a perfectly linear constant from free height all the way to coil bind.

Why Spring Rate Matters More Than the Number in the Product Name

Imagine two Ecotec valve springs.

Spring A

82 lb seat pressure

Spring B

83 lb seat pressure

Looking only at those numbers, the springs appear almost identical.

But suppose Spring A gains pressure considerably more slowly than Spring B.

At .500" valve lift, their open pressures could be substantially different.

That means:

82 lb vs. 83 lb tells us very little about how the springs behave throughout the complete valve event.

This is one reason BK Racing has emphasized measured open pressure alongside seat pressure.

Our reference specifications include approximately:

83 lb @ 1.325" installed height

and:

230 lb @ .500" valve lift

The open-pressure number shows what the spring is doing much farther into its working range.

Spring Rate Connects Seat Pressure and Open Pressure

Think of the pressure curve like this:

At the valve seat:

Spring pressure is at its installed value.

As the valve opens:

The camshaft compresses the spring farther.

As compression increases:

Spring force increases.

The rate determines how rapidly that force increases.

So:

Seat pressure tells us where the pressure curve begins.

Spring rate describes how the curve develops.

Open pressure tells us where the spring is at a particular point farther along that curve.

All three specifications are related.

Linear Valve Springs

A theoretical linear spring develops the same additional force for each equal amount of compression.

For example, if a spring truly had a constant rate of:

300 lb/in

then every additional .100" of compression would add approximately:

30 lb

Its force curve would be relatively predictable.

This makes calculations straightforward.

But real performance valve springs are more complicated.

Spring geometry, coil spacing, wire shape, active coil count, and other design characteristics can affect how the spring behaves throughout its travel.

Progressive Valve Springs

A progressive valve spring changes its effective rate through its operating range.

Rather than every coil behaving identically throughout the entire compression cycle, portions of the spring can progressively change their contribution as the spring compresses.

This allows designers to shape the spring's pressure characteristics and dynamic behavior.

The BK Racing 83 lb Ecotec Valve Spring uses a progressive oval-wire single-spring design.

That means we are more interested in the actual measured pressure curve than simply applying one theoretical rate number to every point in the spring's movement.

Why BK Racing Uses an Effective Spring Rate

When we refer to approximately:

294 lb/in

for the BK Racing 83 lb spring, it is useful for understanding the approximate relationship between its installed and open pressures.

But because the spring is progressive, the most meaningful specifications remain the actual pressure measurements at relevant operating points.

For example:

83 lb @ 1.325" installed height

and approximately:

230 lb @ .500" valve lift

Those are real operating reference points.

The rate helps explain how we move from one to the other.

Why a Higher Spring Rate Isn't Automatically Better

If a higher spring rate produces more pressure as the valve opens, it might seem logical that the highest-rate spring would always provide the best high-RPM control.

That isn't necessarily true.

A higher-rate spring also increases loads throughout the valvetrain.

Depending on the combination, additional open pressure can increase loading on:

Camshaft lobes
Roller finger followers
Hydraulic lash adjusters
Valve stems
Valve seats
Retainers
Valve locks
Timing system components

The correct rate is therefore the rate that provides the necessary pressure curve for the intended camshaft and RPM without adding unnecessary load.

Spring Rate and Camshaft Lift

Spring rate becomes especially important as valve lift increases.

Imagine a spring with an effective 300 lb/in rate.

At:

.300" compression

the theoretical increase from the starting point is approximately:

90 lb

At:

.400"

approximately:

120 lb

At:

.500"

approximately:

150 lb

So increasing valve lift causes the spring to move farther along its pressure curve.

That means higher-lift camshafts generally produce higher open pressure from the same spring.

But higher lift also reduces:

Remaining spring travel
Coil-bind clearance
Retainer-to-seal clearance

So more lift provides more spring compression and pressure—but less mechanical margin.

This is why lift, pressure, rate, and coil bind must be considered together.

Spring Rate and Installed Height

Installed height establishes where the spring begins operating.

If the spring is installed shorter, it begins in a more compressed state.

That generally means:

Higher initial seat pressure

But the spring rate itself has not necessarily changed.

Instead, the spring is simply starting farther along its pressure curve.

This distinction is important.

For example, shimming a spring does not magically create a different spring rate.

It changes the spring's starting compression.

The pressure at every operating point may therefore increase, but the fundamental rate characteristic of the spring remains governed by its design.

How Shims Affect a Spring's Pressure Curve

Suppose an Ecotec spring is shimmed .020" shorter.

The spring now begins operation with an additional .020" of compression.

If its effective rate in that region were approximately 300 lb/in, that could theoretically add around:

6 lb of seat pressure

But the spring would also be:

.020" closer to coil bind throughout the entire valve event.

So shimming can increase pressure, but it simultaneously reduces available travel.

This is why installed height should never be adjusted solely to chase a pressure number.

Why Open Pressure Reveals Spring Rate Differences

This is where comparing aftermarket springs becomes useful.

A spring with:

82 lb seat pressure

and another with:

83 lb seat pressure

may appear nearly identical.

But if the first produces substantially less open pressure at a comparable lift, the springs clearly do not have identical operating characteristics.

This is why BK Racing continually stresses:

Compare seat pressure AND open pressure.

The difference between those values tells us something about how much force the spring is developing as it moves through its operating range.

Comparing Pressure at the Same Lift Matters

If you are trying to compare spring rates between different Ecotec springs, the pressure measurements should ideally be taken at the same amount of compression.

For example:

Spring A: 200 lb @ .420"

and:

Spring B: 230 lb @ .500"

cannot be directly compared by simply subtracting 200 from 230.

Spring B has been compressed an additional .080".

A proper comparison would measure both springs at common reference points.

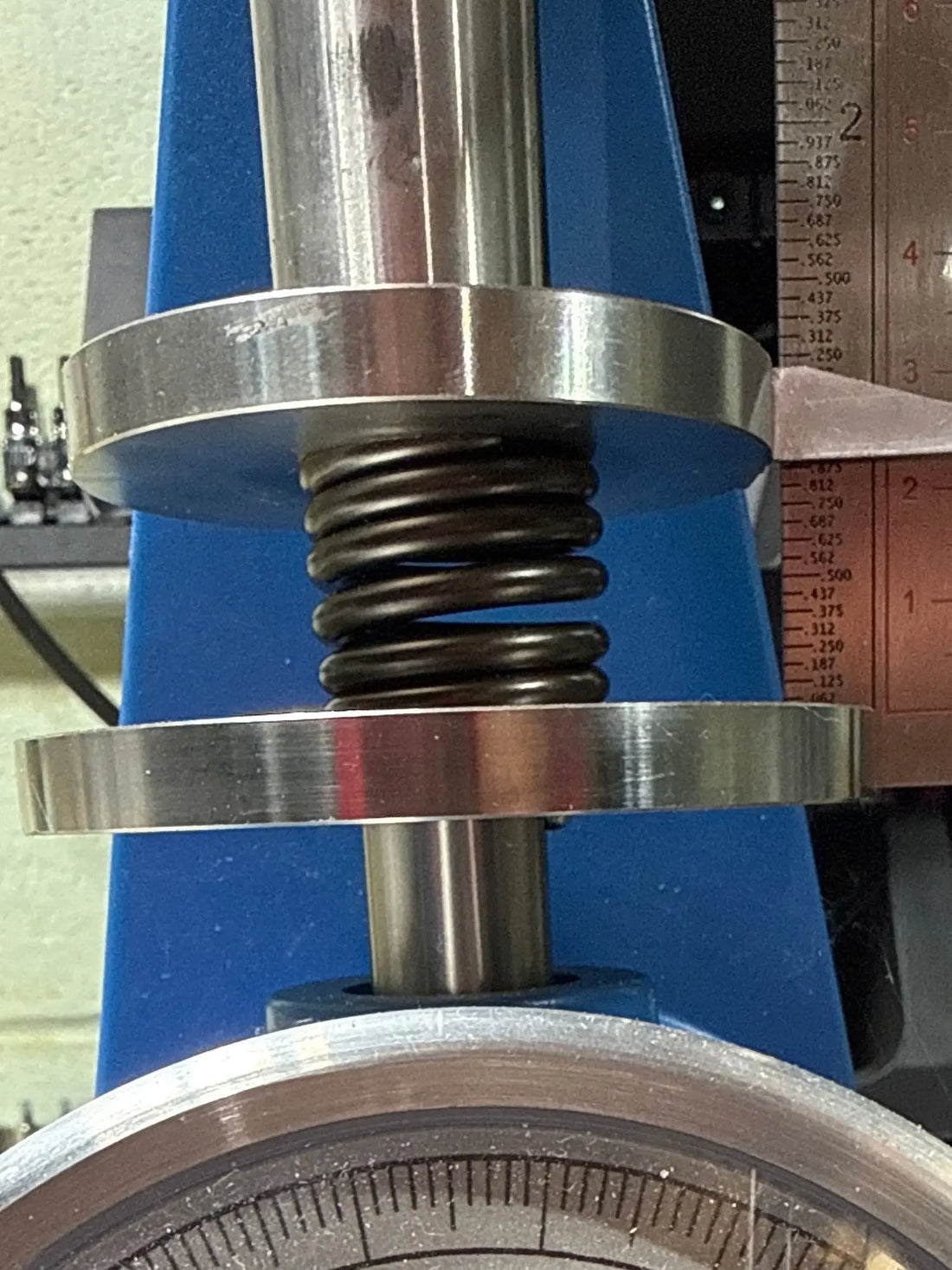

This is one of the reasons real bench testing is so valuable.

It allows multiple springs to be evaluated under the same conditions.

Why Published Spring Rate Can Be Misleading

A single published spring-rate number can create the impression that a spring behaves perfectly linearly throughout its complete travel.

That is not always the case.

Factors affecting the effective rate can include:

Variable coil spacing
Active coil count
Wire geometry
Spring diameter
Progressive coil design
Portions of the spring becoming inactive during compression

For this reason, spring rate should be viewed as one specification among several.

Actual pressure measurements remain extremely valuable.

Spring Rate and Oval-Wire Springs

Wire shape is another design variable.

Traditional coil springs commonly use round wire.

The BK Racing spring uses an oval-wire configuration.

Oval wire can allow the spring designer to package the required spring characteristics differently than a conventional round-wire spring, including considerations of available travel, stress distribution, and spring geometry.

The important point for the end user is not simply that one wire shape is automatically superior.

It is that spring construction affects how pressure, travel, mass, and durability are balanced within the available Ecotec cylinder-head space.

Spring Rate and Coil Bind

The spring rate tells us how much pressure increases as we compress the spring.

But the spring cannot compress indefinitely.

Eventually, the spring approaches coil bind.

As valve lift increases:

Spring compression increases

Spring pressure increases

while:

Remaining travel decreases

This means spring-rate discussions should always remain connected to coil-bind clearance.

A very aggressive rate and high open pressure aren't useful if the spring cannot accommodate the required camshaft lift safely.

Spring Rate and Mechanical Lift

Mechanical lift represents the available physical travel of the complete installed assembly before a mechanical limitation is reached.

For the BK Racing valve spring system, development measurements in the appropriate configuration have demonstrated approximately:

.567" mechanical lift capability

while BK Racing recommends a conservative:

.520" maximum operating lift

The rate helps determine how much spring force exists near that upper operating range.

But the rate itself does not establish the maximum safe lift.

Maximum usable lift also depends on:

Coil bind
Retainer-to-seal clearance
Retainer-to-guide clearance
Installed height
Spring-seat configuration
Rocker clearance
Piston-to-valve clearance

So:

Spring rate affects force.

Mechanical geometry establishes travel.

Both matter.

Spring Rate and Retainer Mass

The spring has to control the moving valvetrain.

If the retainer is heavier, the spring must control more moving mass.

If the retainer is lighter, inertial loading can be reduced.

This is one reason the complete spring system matters.

A spring's rate should not be considered independently of the mass it is being asked to control.

BK Racing developed Titanium Valve Spring Retainers as part of the system to reduce unnecessary moving mass while maintaining positive clearance with the Ecotec rocker/follower configurations the system is designed to support.

Spring Rate and Valve Mass

The same principle applies to valves.

A heavier valve creates greater inertial demands at a given acceleration.

That means a spring that controls one valve and retainer combination may behave differently when heavier components are introduced.

Performance valves, retainers, locks, followers, and the spring itself all contribute to the dynamic behavior of the valvetrain.

This is why simply copying a spring-pressure number from another engine combination can be misleading.

Spring Rate and Camshaft Aggressiveness

Camshaft lift tells us how far the spring is compressed.

Camshaft aggressiveness helps determine how quickly that compression occurs.

A more aggressive lobe can accelerate the valve more rapidly.

That increases the force required to keep the valvetrain under control.

So two camshafts with the same maximum valve lift may not require the same spring characteristics.

This is one of the most important concepts in performance valvetrain design:

Spring requirements are influenced by valve acceleration—not just maximum lift.

We will cover this much more deeply in Article 14, How Camshaft Duration and Aggressive Lobe Profiles Affect Ecotec Valve Springs.

Spring Rate and High RPM

At high RPM, the time available for each valve event decreases.

The spring has to manage the same physical valve movement at much higher cycling speed.

Spring pressure, rate, mass, and dynamic behavior all become increasingly important.

But there is no single spring-rate number that guarantees a particular RPM capability.

The required rate depends on:

Camshaft profile
Maximum valve lift
Valve mass
Retainer mass
Rocker/follower mass
Spring design
Seat pressure
Open pressure
Engine duty cycle

That is why BK Racing does not reduce high-RPM spring selection to:

“Use X lb/in above X RPM.”

The complete system matters.

Why Circle Track Engines Need More Than a Dyno Number

A circle-track Ecotec may spend significant time near its upper operating range.

That creates a different challenge from a street car that briefly reaches the same RPM.

The spring experiences repeated high-speed compression and recovery lap after lap.

For circle-track racing, we care about:

Pressure consistency
Spring fatigue
Heat
Dynamic control
Camshaft aggressiveness
Mechanical clearance
Long-term durability

A well-designed pressure curve needs to remain useful throughout the race—not simply produce an impressive number during one static spring test.

Spring Rate and Valve Bounce

Valve bounce occurs when the valve reaches the seat and rebounds instead of remaining controlled against it.

Spring rate can influence how the system behaves during the closing event, but rate alone does not determine valve bounce.

Other factors include:

Seat pressure
Camshaft closing velocity
Valve mass
Retainer mass
Spring dynamics
RPM
Valve-seat condition

This is why very high open pressure combined with inadequate seat control would not necessarily produce an ideal valvetrain.

The spring needs an appropriate pressure curve throughout the entire event.

Spring Rate and Spring Surge

Spring surge is an oscillation within the spring itself.

A valve spring is not a perfectly rigid component.

Waves can travel through the spring as it is rapidly compressed and released.

Spring geometry, rate, mass, coil spacing, and design all influence these dynamic effects.

This is another reason a spring cannot be completely described by:

Seat pressure + open pressure

even though those are extremely useful specifications.

Dynamic spring behavior also matters.

Why Dual Springs Are Not Automatically Higher Rate

Dual-spring systems use an inner and outer spring together.

Because the two springs act together, they can produce different combined pressure and dynamic characteristics from a single spring.

But a dual spring is not automatically:

Higher rate
Better for every RPM
Better for every camshaft
Higher pressure everywhere
Capable of greater lift

The actual specification still needs to be evaluated.

We will address this directly in Article 15, Single vs. Dual Valve Springs for GM Ecotec Engines.

Why BK Racing Didn't Simply Chase Maximum Spring Rate

When developing the BK Racing 83 lb spring, the goal was not to produce the highest possible rate or the highest possible seat pressure.

The goal was to develop a useful pressure curve for performance Ecotec engines while maintaining:

Practical installed height
Strong open pressure
Substantial usable travel
Single-spring packaging
Conservative recommended lift
Appropriate valvetrain loading
Racing durability

That is a much more useful engineering target than simply trying to win a specification-sheet contest.

Understanding the BK Racing Pressure Curve

The BK Racing spring provides a good example of how the specifications work together.

At the reference installed height:

1.325"

the spring produces approximately:

83 lb seat pressure

As valve lift increases, spring compression increases.

Near:

.500" valve lift

the spring produces approximately:

230 lb open pressure

The effective rate through the relevant operating range is approximately:

294 lb/in

But because the spring is progressive, we prefer using actual measured pressure points when evaluating the spring rather than assuming a perfectly straight-line force curve.

Why We Publish Seat Pressure, Open Pressure, and Rate

Publishing all three gives the customer a much better picture.

If we published only:

83 lb

you would know almost nothing about how the spring behaves after the valve leaves the seat.

If we published:

83 lb seat / 230 lb open

you would know substantially more.

Adding:

approximately 294 lb/in effective rate

helps explain the relationship between those two pressure points.

This transparency is important to the BK Racing valve spring program.

We want Ecotec builders to understand what they are buying rather than simply trusting a number in a product title.

How to Estimate Spring Rate From Two Pressure Measurements

If a spring behaves approximately linearly over a measured range, you can estimate average spring rate using two known pressure points.

The concept is:

Difference in pressure ÷ difference in compression

For example, using approximate BK reference numbers:

Seat:

83 lb

Open:

230 lb

Difference:

147 lb

Compression:

approximately .500"

Average effective rate:

147 ÷ .500 = 294 lb/in

Again, this should be considered an effective average across that range, particularly for a progressive spring.

It should not be interpreted as proof that every .001" of travel produces exactly the same pressure change.

Why Actual Spring Testing Is Better

A spring tester allows the spring to be measured at multiple points through its travel.

Rather than knowing only:

Seat pressure

and:

One open-pressure measurement

we can develop a more complete pressure curve.

For example, a performance spring could be tested at:

Installed height
.100" compression
.200"
.300"
.400"
.500"
Near the intended maximum operating lift

This shows whether the spring is linear, progressive, or changing behavior through its working range.

For serious comparison testing, this is far more informative than product names.

Comparing Springs Using Rate

When comparing Ecotec valve springs, we recommend considering:

Seat pressure at the specified installed height

Open pressure at common valve lifts

Average/effective spring rate

Coil-bind height

Recommended maximum lift

Mechanical travel

Spring construction

A meaningful comparison might show that a spring with lower seat pressure builds open pressure more rapidly than expected.

Or it might reveal that a spring with a large seat-pressure number adds relatively little additional pressure through its travel.

Without rate and open-pressure information, those differences can remain hidden.

Rate Does Not Tell You Maximum Lift

This is worth stating clearly:

Spring rate is not a maximum-lift specification.

A spring can have an excellent rate and still lack sufficient physical travel for a high-lift camshaft.

Maximum lift depends on the complete installed geometry.

That includes:

Coil bind
Installed height
Retainer-to-seal clearance
Spring seat
Valve guide
Retainer geometry
Rocker clearance

So don't select a spring for a .520" camshaft simply because its rate appears appropriate.

Verify the mechanical clearances too.

Rate Does Not Tell You RPM Limit

Likewise:

Spring rate is not an RPM rating.

A 300 lb/in spring cannot automatically be labeled:

“good to 8,000 RPM.”

RPM capability depends on the complete dynamic system.

A light valvetrain with one camshaft can require different spring characteristics from a heavier valvetrain with a more aggressive camshaft at the same RPM.

Any universal RPM claim without considering the full combination should therefore be treated cautiously.

The Most Important Thing to Understand About Spring Rate

Spring rate tells you how quickly spring force increases as the spring is compressed.

That makes it the bridge between:

Seat pressure

and:

Open pressure

For a performance Ecotec, this matters because the spring doesn't only need to control the valve while it is closed.

It must maintain control throughout the complete camshaft event.

That means evaluating:

Installed height → seat pressure → spring rate → open pressure → mechanical travel → recommended lift

as interconnected specifications.

A larger seat-pressure number doesn't automatically mean a better pressure curve.

A higher spring rate doesn't automatically mean a better spring.

The goal is the right pressure curve for the camshaft, RPM, valvetrain mass, and application.

That is the approach behind the BK Racing Ecotec valve spring system.

Continue Learning: GM Ecotec Valve Springs

Valve spring pressure is only one part of maintaining stable valve control in a performance Ecotec. Continue through the BK Racing GM Ecotec Valve Spring Knowledge Center to learn how installed height, spring rate, coil bind, camshaft lift, RPM, retainers, spring seats and valve seals work together as a complete valvetrain system. When planning your combination, also explore the BK Racing 83 lb Ecotec Valve Springs, BK Racing Titanium Valve Spring Retainers, BK Racing Extra-Clearance Spring Seats, and BK Racing Press-On Viton Valve Seals.

Primary search topic:
Ecotec valve spring rate

Supporting search topics:
GM Ecotec valve spring rate, valve spring rate explained, Ecotec valve spring pressure, Ecotec open pressure, Ecotec seat pressure, Ecotec high RPM valve springs, 83 lb Ecotec valve springs, Ecotec camshaft springs, Ecotec racing valve springs.float the valves

spring pressures

valve train

roller cam

spring rates are

Tags:

Engine Building
